2ATS5-TWBL22UWBDIGITRACE ID CARD-U

copyright© 2020 Trackerwave Pvt. Ltd. USER MANUAL www.trackerwave.com DIGITRACE ID CARD-U Model:TWBL22-U,TWBL22-UWB-COASTER No. 4, 363, BIock C, 3rd Floor, OMR Road, Kanthanchavadi, Chennai-600096, Tamilnadu, India. 1 INTRODUCTION ABOUT TRACKERWAVE PRODUCT INTRODUCTION The COVID-19 pandemic, has enforced public facilities to follow social distancing and contact tracing among individuals. The virus is primarily spread between people during close contact; hence it is essential to map contact tracing effortlessly if in case anyone tests positive in the facility. Trackerwave ID Card Holder is designed to track personnel contact history in the facility, developed and manufactured by Trackerwave™ Pvt. Ltd. While social distancing alarm ensures that personnel follows safe distance while interacting with each other, the contact tracing devices enables panic free route map and contact list generation, if incase any symptomatic employees are isolated earlier from the field to avoid further spread. The ID Card Holder is also applicable for other use cases such as Attendance reporting, contactless access control, Crowd Control and Management in public places. 2 CONTENTS IN THE PACKAGE TECHNICAL SPECIFICATION .......................................................... 4 DOWNLOAD AND INSTALL MOBILE APP ......................................... 5 REGISTRATION WITH OTP .......................................................... 5 PAIRING THE DEVICE ............................................................... 12 SYNCHRONIZING DATA ............................................................ 13 INSTRUCTIONS FOR USE ........................................................... 13 OPERATING INSTRUCTIONS ....................................................... 15 CLEANING AND MAINTENANCE .................................................. 16 SAFETY AND PRODUCT INFORMATION NOTES ................................ 16 MATTERS NEEDING ATTENTION ................................................. 17 CAUTION ............................................................................. 17 WARRANTY INFORMATION ....................................................... 18 SUPPORT ............................................................................. 21 END USER LICENSE AGREEMENT................................................. 21 CERTIFICATIONS AND REGULATIONS The id card holder device has undergone following compliance; RoHS compliance, CE certification, FCC and ISO-27001-2013 standard. 3 4 TECHNICAL SPECIFICATION S. No Parameter Specification 1. Radio Frequency BLE 2.4 GHz, UWB 6.4896 GHz 2. Operating Tempertaure -10°C to +60°C 3. Storage Temperature -20°C to +70°C 4. Input Power Rechargeable LiPo Battery 1200mah 5. Dimension 11.4cm x 6.6cm x 0.83cm 6. Weight 57 gram 7. Humidity 10% to 90% non-condensing 8. Waterproof Rating IP65 9. Battery Life 7 days on usage, with 8hrs shift 10. Stand By Time 6 months 11. Battery Type LiPo, 3.7V, 1200mah 12. Recharge 2 Pin PoGo 13. Sterilization Wipes, Ethyl Oxide, Gamma, Plasma 5 14. Alert Sound & Vibration, LED 15. Supply Voltage 1.7 to 3.6 V 16. Operating Voltage 3.3 V DOWNLOAD AND INSTALL MOBILE APP You can setup the device through the TW Wearable application for android or iOS devices. Search for “Trackerwave Wearables” in play store/ app store. REGISTRATION WITH OTP Pre-requisite: Enable the Bluetooth in smart phone, on which the TW Wearable app is installed. Step 1: Open the TW Wearable application and click Login Via OTP. 6 Step 2: Select the country code, enter your mobile number and click Submit button. 7 Step 3: Enter the 6-digit verification code sent to your mobile number, enter employee details like first name, last name, email id, gender, date of birth, employee number should be entered and click NEXT. If you do not receive the OTP, check your Phone number and click Resend OTP. 8 Step 4: Enter organization details like name, admin name, mail id, contact number and organization address and click NEXT. 9 Step 5: Choose Tag type as Id card, scan the QR code of the id card and set start time and click NEXT. 10 11 Step 6: Click Accept button to agree to the terms and conditions and view dashboard page of the application which shows number of close contacts, number of social distance violations, and number of close co- workers added, number of snoozes on a particular day. 12 PAIRING THE DEVICE 1. Click icon on top left corner of the screen 2. Click the Paired Device 3. Lists of available devices will be shown 4. Select the device which you want to pair by cross verifying the serial number. 5. Enable check box to allow pairing 6. Click pair to complete the pairing process Note: During the pairing process, app will prompt you to enable GPS and Bluetooth, and authorize app for GPS access on your mobile phone 13 SYNCHRONIZING DATA TW Wearable app collects your contact information in the facility using ID card Holder device. In order to share the contact tracing report to your organization, configure the email address of your organization administrator and synchronization time. INSTRUCTIONS FOR USE Charging Schematic: Connect and charge the device as shown below.  Please charge your device fully before the first time you use it. Frequent charging is not required. Charge your device once every 7 days and below 40% (through Red LED indication) 14 LED Indication Green LED --> Fully charged Yellow LED --> Device is charging Blue LED for 3 secs --> Battery Low Blue and Red LED --> Data transfer from ID card to Reader LED glows through for 5 seconds, before checking if still the contact exists. Note: Use recommended charging cable provided by the manufacturer. Use charging USB ports with current rating >900mA and voltage ≥ 5V Wearable Position It is recommended to wear id card around your neck or on an ID pulley attached to the waist. 15 OPERATING INSTRUCTIONS You can track personnel contact history in the facility with an ID Card Holder Device. When two tags come close with 1 m dis…

Text truncated - open the document above for the full version.

TCBJ FORM-4 Issued by: TCB Administrator Revision 6 12/06/10 2020.12.30 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, Litum bilgi teknolojileri san. Ve dis tic. A.S hereby authorize (Shenzhen STS Test Services Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Signatory Date 2020-12-31 Signature Name: V. Pradeep Title: Director Company: TRACKERWAVE PRIVATE LlMITED Address: No. 4, 363, BIock C, 3rd Floor, OMR Road, Kanthanchavadi, Chennai-600096, Tamilnadu, India.

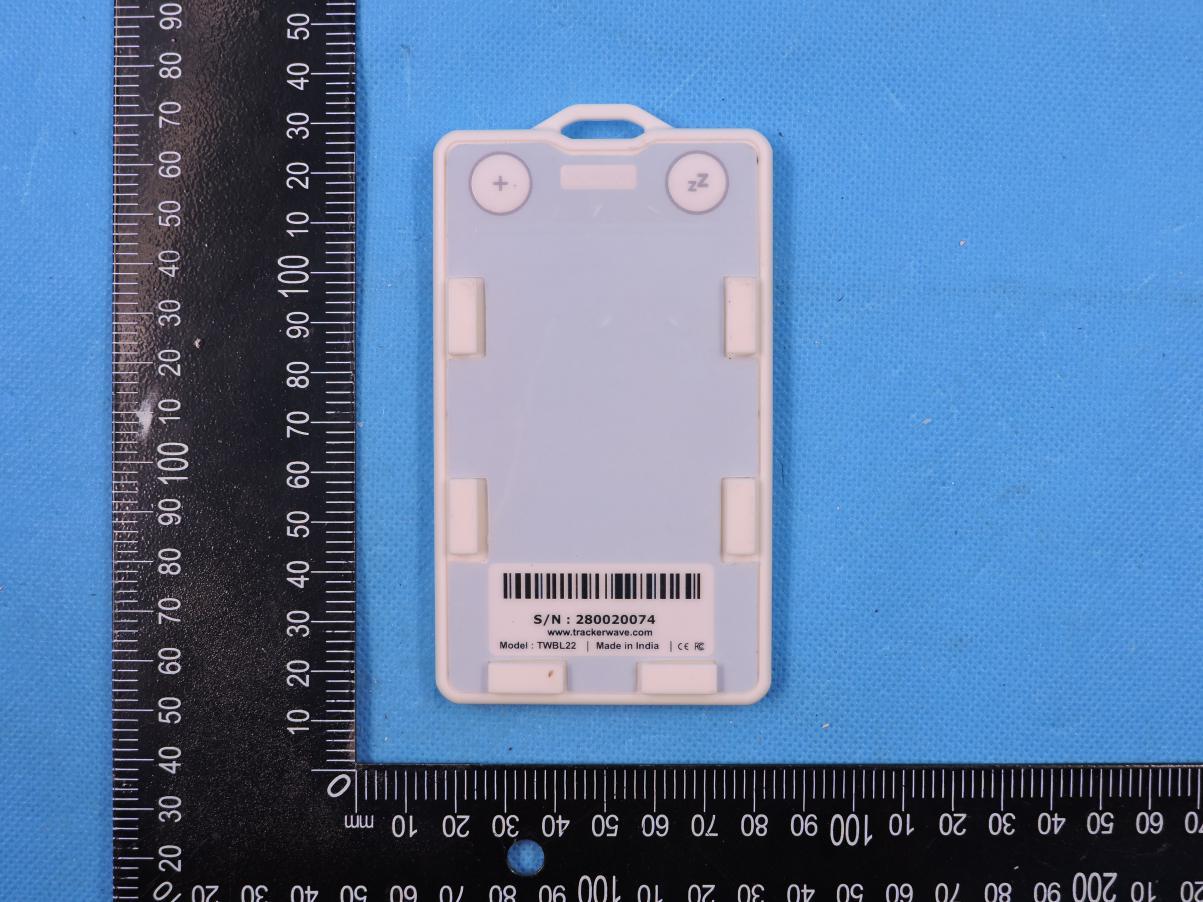

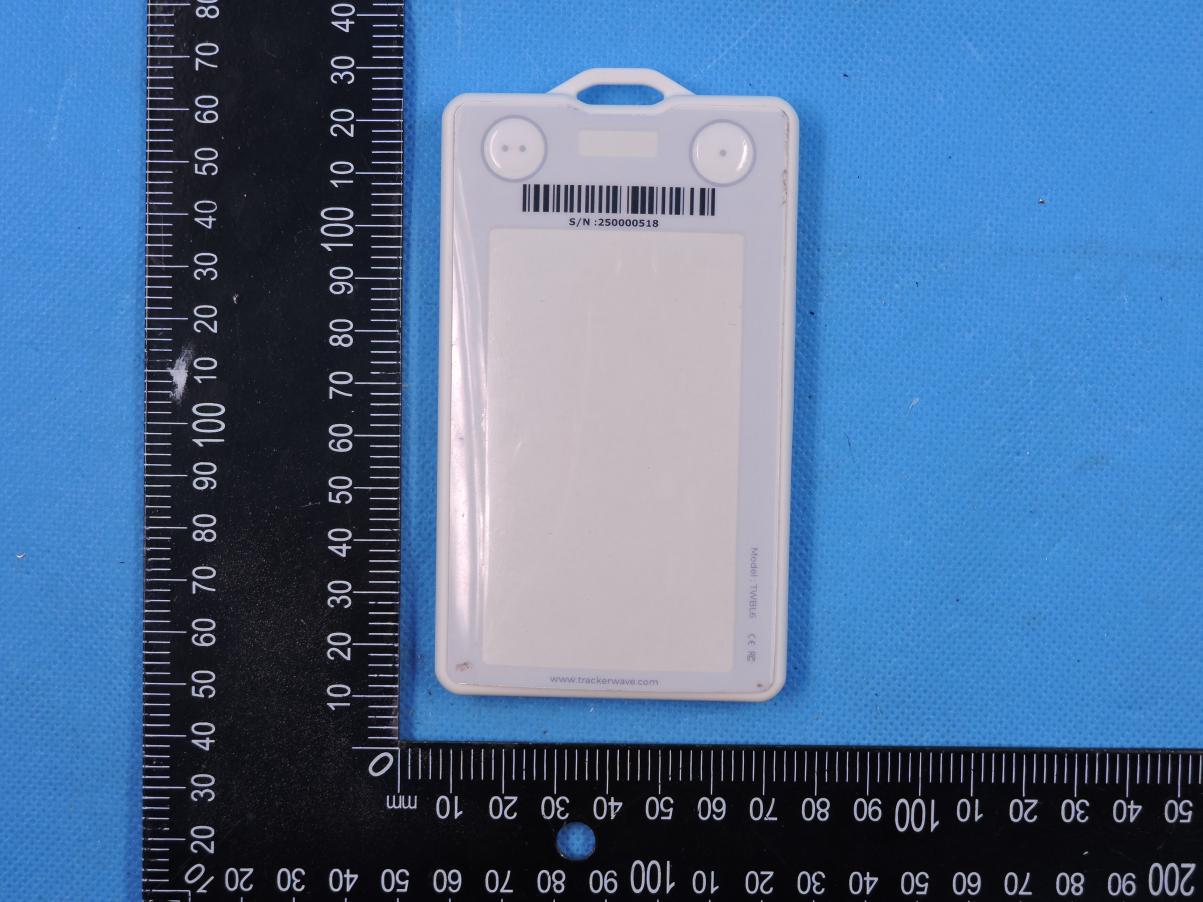

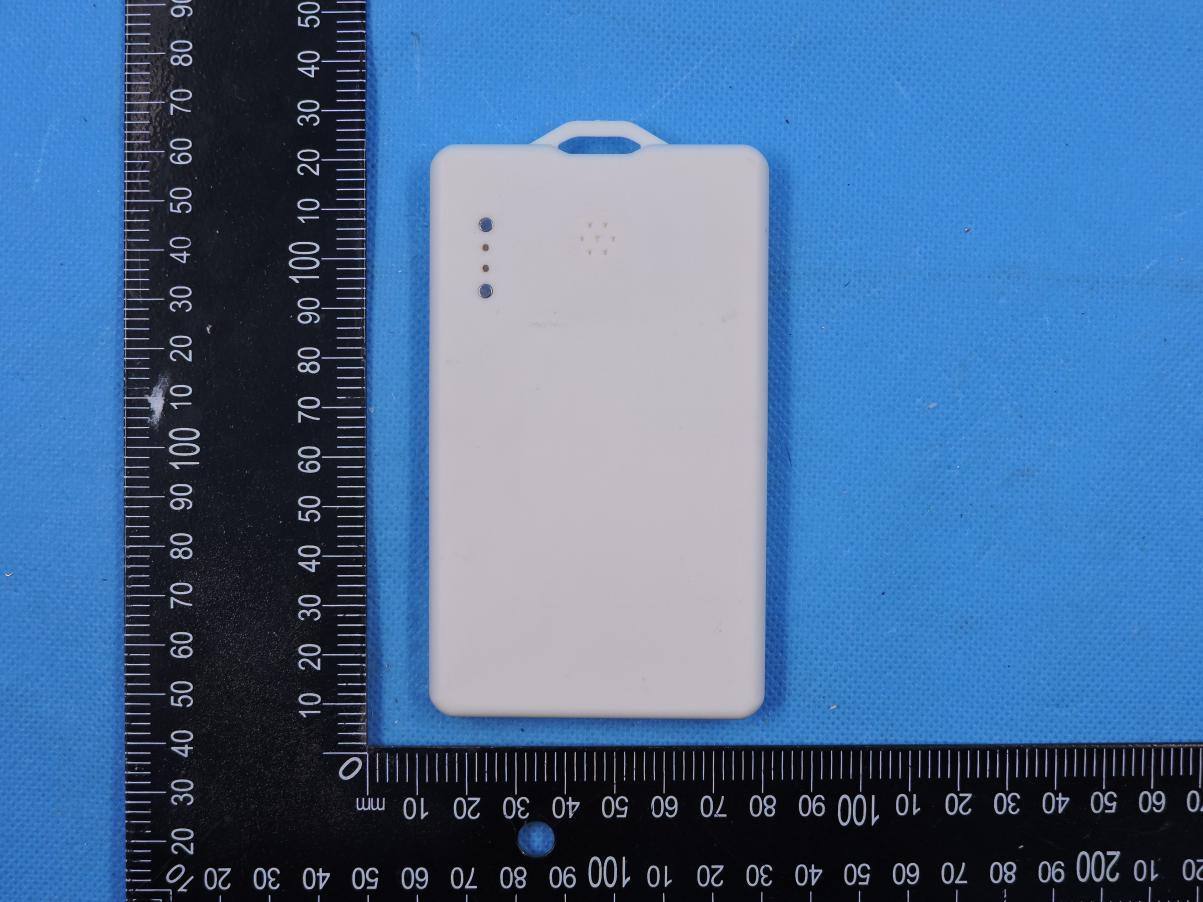

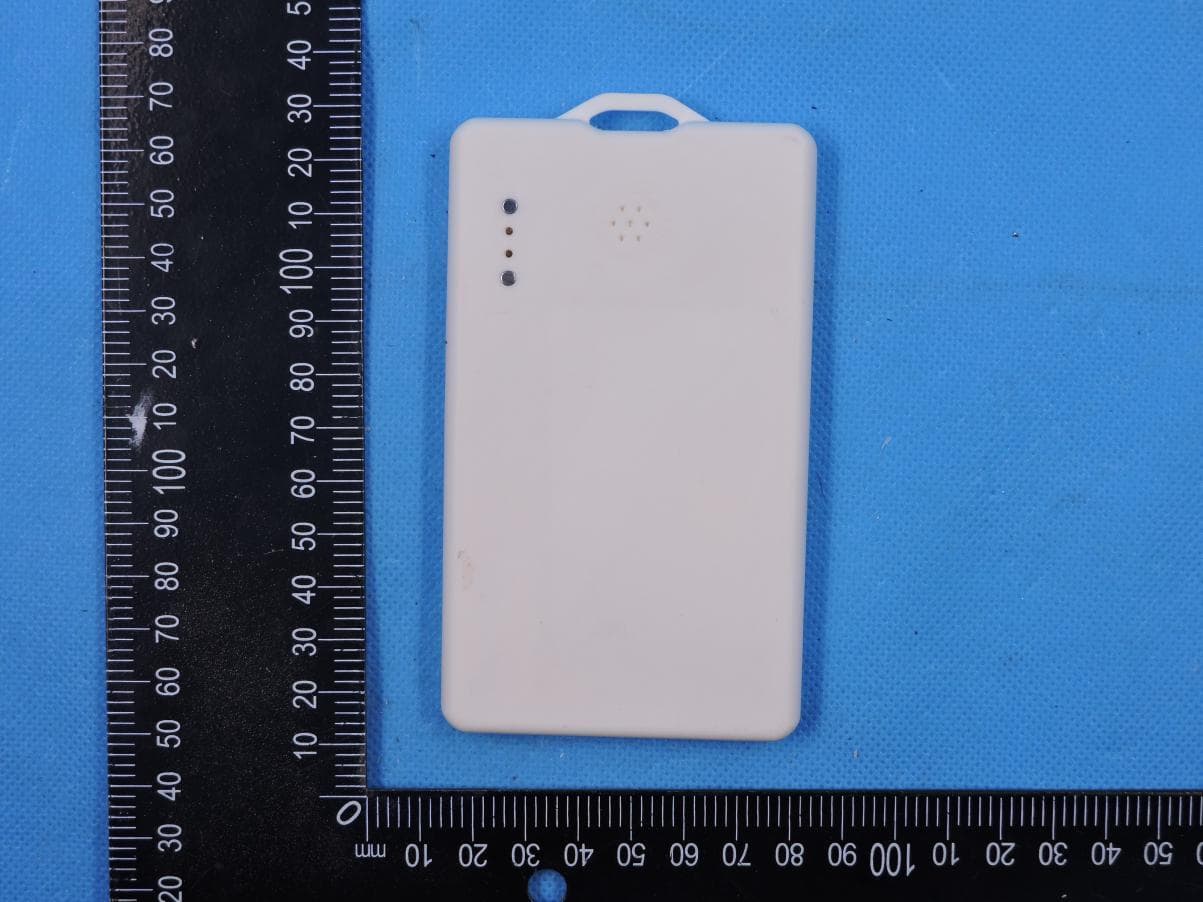

Page 1 of 7 Report No.: STS2012025 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Page 2 of 7 Report No.: STS2012025 Model: TWBL22-UWB-COASTER Photo 1 Photo 2 Photo 3 Page 3 of 7 Report No.: STS2012025 Photo 4 Page 4 of 7 Report No.: STS2012025 Photo 5 Photo 6 Page 5 of 7 Report No.: STS2012025 Model: TWBL22-U Photo 1 Photo 2 Page 6 of 7 Report No.: STS2012025 Photo 3 Photo 4 Page 7 of 7 Report No.: STS2012025 Photo 5 Photo 6

FCC Label Size:40*20mm The label is printed on the shell Model : TWBL22-U FCC ID: 2ATS5-TWBL22UWB FCC Label Size:40*20mm The label is printed on the shell Model : TWBL22-UWB-COASTER FCC ID: 2ATS5-TWBL22UWB

Page 1 of 3 Report No.: STS2012025 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: TWBL22-U, TWBL22-UWB-COASTER Photo 1 Photo 2 BT Antenna UWB Antenna Page 2 of 3 Report No.: STS2012025 Photo 3 Photo 4 Page 3 of 3 Report No.: STS2012025 Photo 5

RF EXPOSURE EVALUATION METHOD FCC ID: 2ATS5-TWBL22UWB SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Maximum measured transmitter power. 1. UWB the Worst Case Detector Radiation (Peak) Radiation (Peak) 6489.6MHz 57.55dBuV/m=-37.65dBm -37dBm (+/- 1dBm) Remark: dBm= dBuV/m-95.2 ANT Gain (G) Antenna Gain: 3.0dBi (gain of antenna in linear scale=2.0) Mode Frequency (GHz) Maxinum Peak Conducted Output Power (dBm) Tune up Power (dBm) Tune up Power (mW) Result Limit BPSK 6.4896 -37.65 -36.00 0.000251 0.00013 3 Threshold at which no SAR required is 0.00013 ≤ 3.0 for 1-g SAR, Separation distance is 5mm. 2. BLE the Worst Case Detector Tune up Power (dBm) GFSK 1M 3 +/- 1dBm GFSK 2M 3 +/- 1dBm ANT Gain (G) Antenna Gain: 3.0dBi (gain of antenna in linear scale=2.0) Mode Frequency (GHz) Maxinum Peak Conducted Output Power (dBm) Tune up Power (dBm) Tune up Power (mW) Result Limit GFSK 2.402 2.96 4 2.51 0.78 3 Threshold at which no SAR required is 0.78 ≤ 3.0 for 1-g SAR, Separation distance is 5mm. 3. BLE and UWB are evaluated simultaneously Result =BLE+UWB=0.78+0.00013=0.78013 Threshold at which no SAR required is 0.78013 ≤ 3.0 for 1-g SAR, Separation distance is 5mm.

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, all test data presented in this report is only applicable to presented test sample. Shenzhen STS Test Services Co., Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] RADIO TEST REPORT Report No.:STS2012025W01 Issued for TRACKERWAVE PRIVATE LlMITED No. 4, 363, BIock C, 3rd Floor, OMR Road, Kanthanchavadi, Chennai-600096, Tamilnadu, India. Product Name: DIGITRACE ID CARD-U Brand Name: TRACKERWAVE Model Name: TWBL22-UWB-COASTER Series Model: TWBL22-U FCC ID: 2ATS5-TWBL22UWB Test Standard: FCC Part 15.247 S T L A B S Page 2 of 60 Report No.: STS2012025W01 TEST RESULT CERTIFICATION Applicant’s Name ..................: TRACKERWAVE PRIVATE LlMITED Address ..................................: No. 4, 363, BIock C, 3rd Floor, OMR Road, Kanthanchavadi, Chennai-600096, Tamilnadu, India. Manufacturer's Name ...........: TRACKERWAVE PRIVATE LlMITED Address ..................................: No. 4, 363, BIock C, 3rd Floor, OMR Road, Kanthanchavadi, Chennai-600096, Tamilnadu, India. Product Description Product Name .........................: DIGITRACE ID CARD-U Brand Name ..........................: TRACKERWAVE Model Name ...........................: TWBL22-UWB-COASTER Series Model ...........................: TWBL22-U Test Standards ......................: FCC Part15.247 Test Procedure .......................: ANSI C63.10-2013 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document may be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ............................................ : Date of receipt of test item ...................... : 03 Dec. 2020 Date (s) of performance of tests ............. : 03 Dec. 2020 ~ 29 Dec. 2020 Date of Issue ........................................... : 29 Dec. 2020 Test Result ............................................... : Pass Testing Engineer : (Chris Chen) Technical Manager : (Sean she) Authorized Signatory : (Vita Li) Page 3 of 60 Report No.: STS2012025W01 Table of Contents 1. SUMMARY OF TEST RESULTS 6 1.1 TEST FACTORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF THE TEST MODES 10 2.3 TEST SOFTWARE AND POWER LEVEL 10 2.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 2.5 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 12 2.6 EQUIPMENTS LIST 13 3. EMC EMISSION TEST 15 3.1 CONDUCTED EMISSION MEASUREMENT 15 3.2 TEST PROCEDURE 16 3.3 TEST SETUP 16 3.4 EUT OPERATING CONDITIONS 16 3.5 TEST RESULTS 17 4. RADIATED EMISSION MEASUREMENT 19 4.1 RADIATED EMISSION LIMITS 19 4.2 TEST PROCEDURE 21 4.3 TEST SETUP 22 4.4 EUT OPERATING CONDITIONS 22 4.5 FIELD STRENGTH CALCULATION 23 4.6 TEST RESULTS 24 5. CONDUCTED SPURIOUS & BAND EDGE EMISSION 37 5.1 LIMIT 37 5.2 TEST PROCEDURE 37 5.3 TEST SETUP 37 5.4 EUT OPERATION CONDITIONS 37 5.5 TEST RESULTS 38 6. POWER SPECTRAL DENSITY TEST 46 6.1 LIMIT 46 6.2 TEST PROCEDURE 46 6.3 TEST SETUP 46 Page 4 of 60 Report No.: STS2012025W01 Table of Contents 6.4 EUT OPERATION CONDITIONS 46 6.5 TEST RESULTS 47 7. BANDWIDTH TEST 51 7.1 LIMIT 51 7.2 TEST PROCEDURE 51 7.3 TEST SETUP 51 7.4 EUT OPERATION CONDITIONS 51 7.5 TEST RESULTS 52 8. PEAK OUTPUT POWER TEST 56 8.1 LIMIT 56 8.2 TEST PROCEDURE 56 8.3 TEST SETUP 56 8.4 EUT OPERATION CONDITIONS 56 8.5 TEST RESULTS 57 9. ANTENNA REQUIREMENT 59 9.1 STANDARD REQUIREMENT 59 9.2 EUT ANTENNA 59 10. EUT TEST PHOTO 60 Page 5 of 60 Report No.: STS2012025W01 Revision History Rev. Issue Date Report NO. Effect Page Contents 00 29 Dec. 2020 STS2012025W01 ALL Initial Issue Page 6 of 60 Report No.: STS2012025W01 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: KDB 558074 D01 15.247 Meas Guidance v05r02. FCC Part 15.247,Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS -- 15.247 (a)(2) 6dB Bandwidth PASS -- 15.247 (b)(3) Output Power PASS -- 15.209 Radiated Spurious Emission PASS -- 15.247 (d) Conducted Spurious & Band Edge Emission PASS -- 15.247 (e) Power Spectral Density PASS -- 15.205 Restricted Band Edge Emission PASS -- Part 15.247(d)/ Part 15.209(a) Band Edge Emission PASS -- 15.203 Antenna Requirement PASS -- NOTE: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2013. Page 7 of 60 Report No.: STS2012025W01 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.68dB 2 Unwanted Emissions, conducted ±2.988dB 3 All emissions, radiated 9KHz - 30MHz ±2.68dB 4 All emissions, radiated 30MHz-1GHz ±4.39dB 5 All emissions, radiated 1G-6GHz ±5.10dB 6 All emissions, radiated>6G ±5.48dB 7 Conducted Emission (9KHz-150KHz) ±2.79dB 8 Conducted Emission (150KHz-30MHz) ±2.80dB Page 8 of 60 Report No.: STS2012025W01 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name DIGITRACE ID CARD-U Trade Name TRACKERWAVE Model Name TWBL22-UWB-COASTER Series Mo…

Text truncated - open the document above for the full version.

Page 1 of 2 FCC ID: 2ATS5-TWBL22UWB DTS Test Setup photo Model name: TWBL22-U Conduction Radiation 30MHz-1000MHz Page 2 of 2 FCC ID: 2ATS5-TWBL22UWB Radiation Above 1GHz
