2ATS5READEROVITAG READER GATEWAY

copyright© 2020 Trackerwave Pvt. Ltd. USER MANUAL OVITAG READER GATEWAY Model : READER- WIFI www.trackerwave.com WiFi Gateway Reader 1 INTRODUCTION ABOUT TRACKERWAVE PRODUCT INTRODUCTION The Wifi Gateway Reader TWR1W is a Real Time Location Services (RTLS) device which has been designed and developed by Trackerwave Pvt. Ltd. It supports Bluetooth 5.0 BLE, Wi-Fi. The intended use of this device is for gathering and aggregating RTLS data from various sensors in the facility and synching the information with cloud system. The system helps in tracking assets and personnel along with environment monitoring in a multi campus enterprise. Reader is an IoT device installed in identified positions of the healthcare facility to track patients, assets and staff. Ovitag Readers are proven to offer industry best ranges, thus reducing the installation points. These readers are easy to install and configure, also support WiFi. All reader models update firmware over the cloud, minimizing maintenance and support activities. Biomedical engineers can map the readers in the facility to the software suite using the mobile application which is downloadable from Play Store/AppStore for easy configuration. The readers are certified to support concurrent Tags, with built in WiFi fault tolerance. WiFi Gateway Reader 2 CONTENTS IN THE PACKAGE INSTRUCTIONS FOR USE ............................................ 3 OPERATING INSTRUCTIONS ....................................... 5 DOWNLOAD AND INSTALL MOBILE APP ....................... 8 SYNCHRONISING DATA ............................................. 8 CONFIGURATION .................................................... 9 OVITAG WEB APPLICATION ..................................... 21 CLEANING AND MAINTENANCE ................................ 23 SAFETY AND PRODUCT INFORMATION NOTES .............. 23 MATTERS NEEDING ATTENTION ............................... 24 CAUTION ............................................................ 24 WARRANTY INFORMATION ..................................... 25 SUPPORT ............................................................ 28 END USER LICENSE AGREEMENT ............................... 28 CERTIFICATIONS AND REGULATIONS The Wifi Reader device has undergone following compliance; RoHS compliance, CE certification, FC and ISO-27001-2013 standard. WiFi Gateway Reader 3 WiFi Gateway Reader 4 TECHNICAL SPECIFICATIONS S.No Pararmeter Specification 1. Network Interface WIFI IEEE802.11b/g/n 2. Bluetooth BLE5.0/2.4GHz 3. CPU ARM® Cortex® @240MHz 4. DRAM 8MB 5. Flash Memory 16MB 6. Power Input 100-240V 0-5A 50-60Hz 22-32VA 7. Power Output 2Pin 2.1mm 5v,2A DC 8. Dimensions 8.4cm: 8.8cm: 3.1cm 9. Weight 58grams 10. Operating Temperatures -40°C / +70°C 11. Bluetooth Range 20 Meters WiFi Gateway Reader 5 INSTRUCTIONS FOR USE Power Schematic: Connect and power the device as shown below. Please power up your device continuously using the DC adaptor 5V, 1A. LED Indication: (Visible on top of enclosure) Red LED ON --> Configuration is not successful Red LED OFF --> Configuration is successful OPERATING INSTRUCTIONS Installation Steps 1. Drill two holes on the false ceiling 36.5 mm apart 2. Drill a cable channel with 9 mm diameter for running the Power adapter wire. WiFi Gateway Reader 6 3. Fasten the screws in nails with 15 mm distance from the false ceiling 4. Connect the power adapter to the power behind the false ceiling and run the cable through the 9mm channel. 5. Connect the 2pin DC jack cable to the reader 6. Place the reader fixing hole to the screws in false ceiling and twist to lock firm. Direction of Reader Antenna The antenna of the reader is in alignment with the balloon icon on the reader case. It is ideal to face the antenna to open indoor space for better signal reception. Wifi Reader Top View WiFi Gateway Reader 7 Wifi Reader Bottom View Wifi Reader Side View Network Requirements OvitagTM Readers supports WIFI networks in IEE802.11 b/g/n with WPA/WPA2 security settings. The indoor locations where readers are placed should have good WiFi Signal for data upstream communication. The reader should be installed higher from floor level on the ceiling, so that the signals gets dispersed through the room. WiFi Gateway Reader 8 Reader Installation Map Readers have to be installed on suggested locations by qualified personnel for RTLS in false ceiling as per the following instructions on Floor plan applicable to the location. The direction of reader antenna is depicted in the floor map and the readers should be strictly aligned. DOWNLOAD AND INSTALL MOBILE APP You can setup the device through the TW Service Application for android or iOS devices. Search for “ TW Service app” in play store/ app store. SYNCHRONIZING DATA By using TW Service app, configure the gateway properties like SSID name, SSID Password, Port number and IP Address. Once the connection is verified successfully then the data will be synced and syncing information will be displayed in cloud system. WiFi Gateway Reader 9 CONFIGURATION Configure Reader Using Service App Pre-requisite: Enable the Bluetooth in smart phone, on which the TW Service app is installed. Step 1: Open our Trackerwave service app, enter the username and password as given below and click Login. User name and password will be provided by Trackerwave Pvt. Ltd. WiFi Gateway Reader 10 Step 2: Click the “Reader” tab to view the list of readers and select the reader device id to configure. Step 3: Ensure that the selected reader is powered on and the user is within 5 meters distance from the reader. If Bluetooth is not turned on, then app promotes to turn on the Bluetooth. WiFi Gateway Reader 11 Go back and reselect the reader then only the Bluetooth icon has enabled. Step 4: The system displays the default gateway, SSID Name and Password configured for the customer’s facility in the UI. If the default configuration SSID Name and Password are correct, no need to edit in gateway near pen icon, follow the steps without edit an…

Text truncated - open the document above for the full version.

2020-09-02 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Shenzhen STS Test Services Co., Ltd., 1/F., Building B, Zhuoke Science Park, No.190, Chongqing Road, Fuyong Street, Bao’an District, Shenzhen, Guangdong,China (Name of Agent company name and address) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with TRACKERWAVE PRIVATE LlMITED, No. 4, 363 , BIock C, 3rd Floor, OMR Road, Kanthanchavadi, Chennai-600096, Tamilnadu , India. (Applicant Name and address) Sincerely, Name: V. Pradeep Title: Director Company: TRACKERWAVE PRIVATE LlMITED

2020-09-02 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2ATS5READER Product Name: OVITAG READER GATEWAY Model name: READER- WIFI Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Sincerely, Name: V. Pradeep Title: Director Company: TRACKERWAVE PRIVATE LlMITED

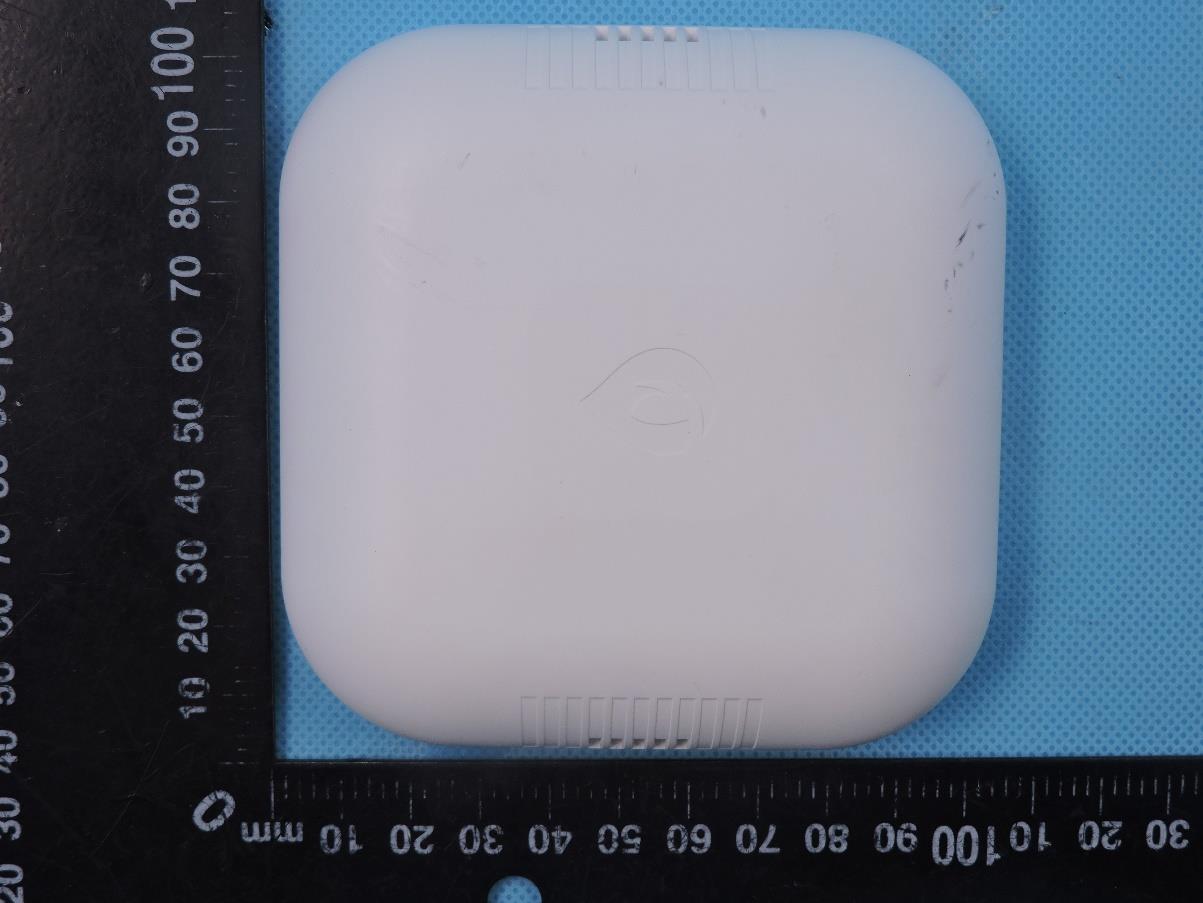

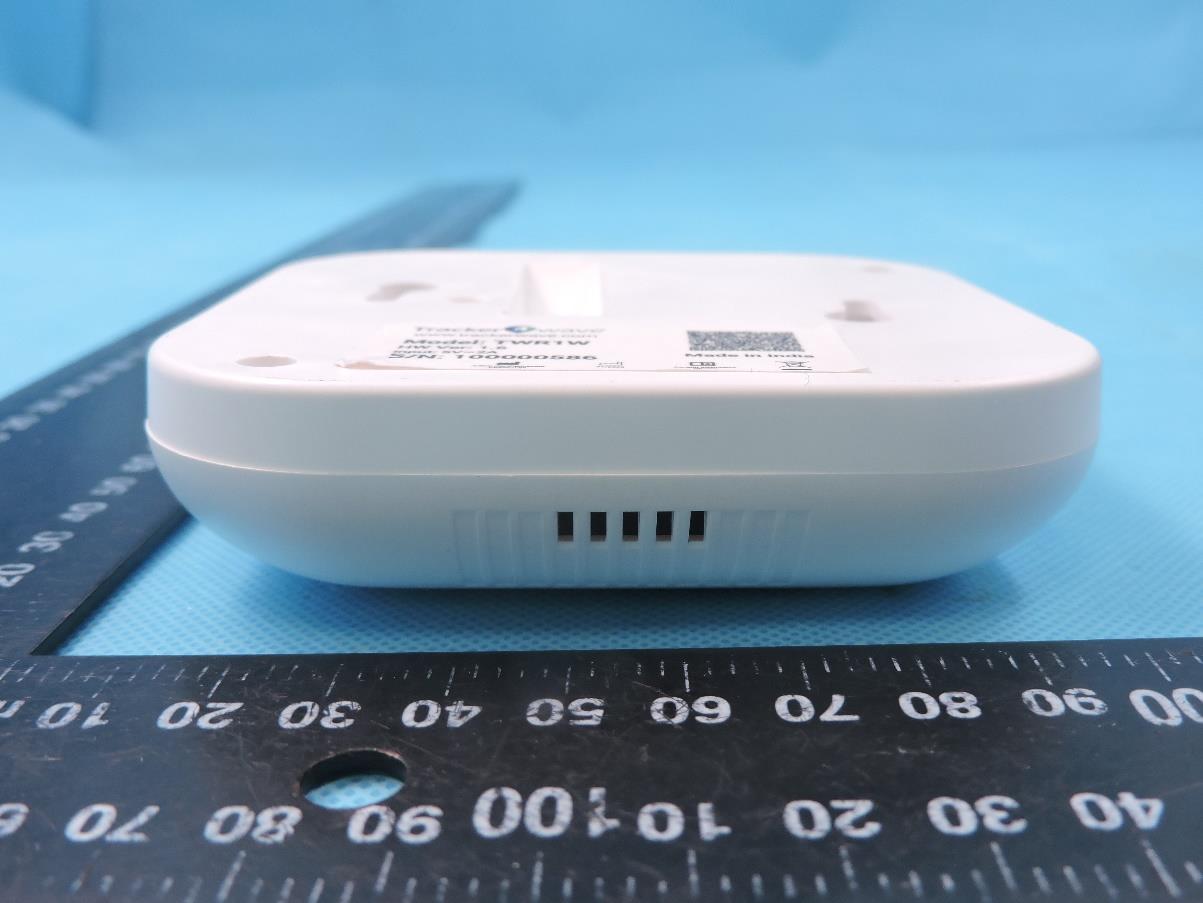

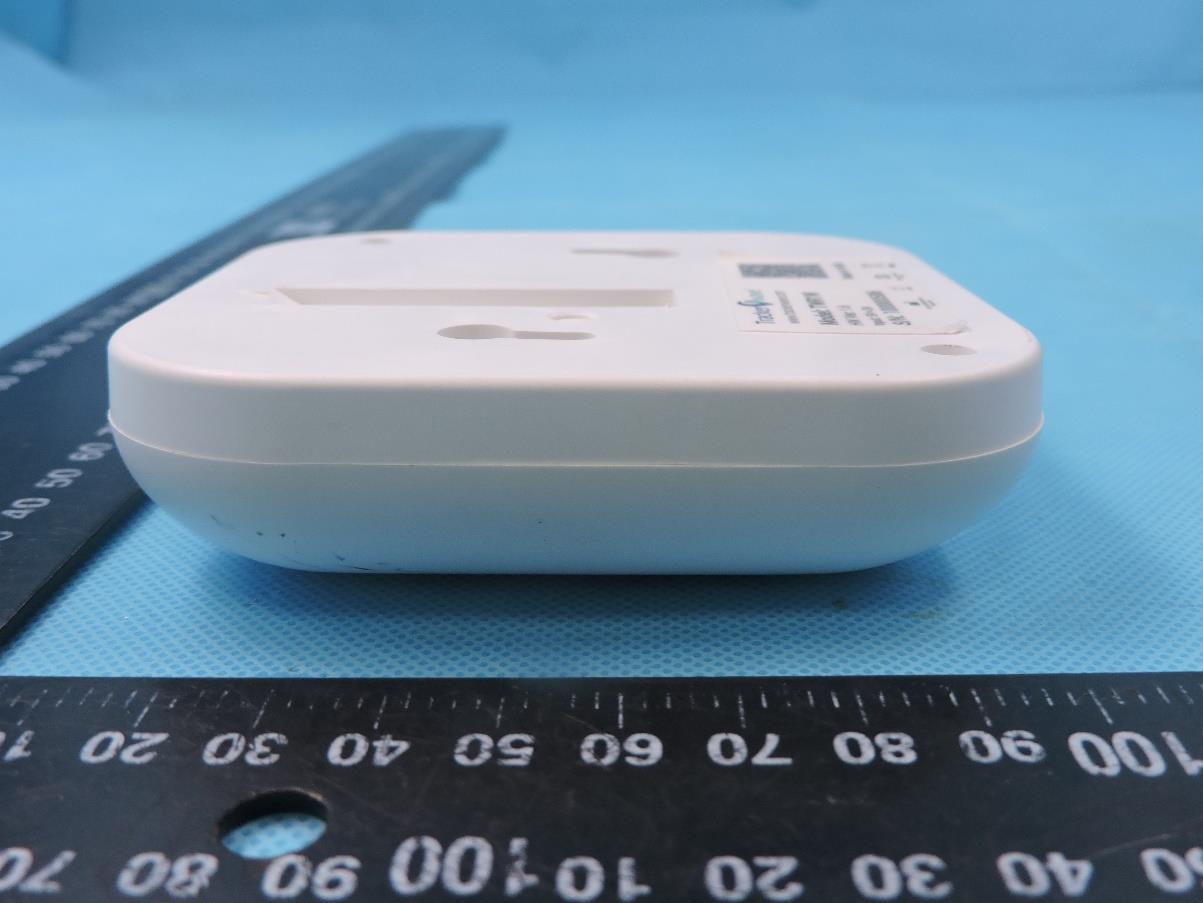

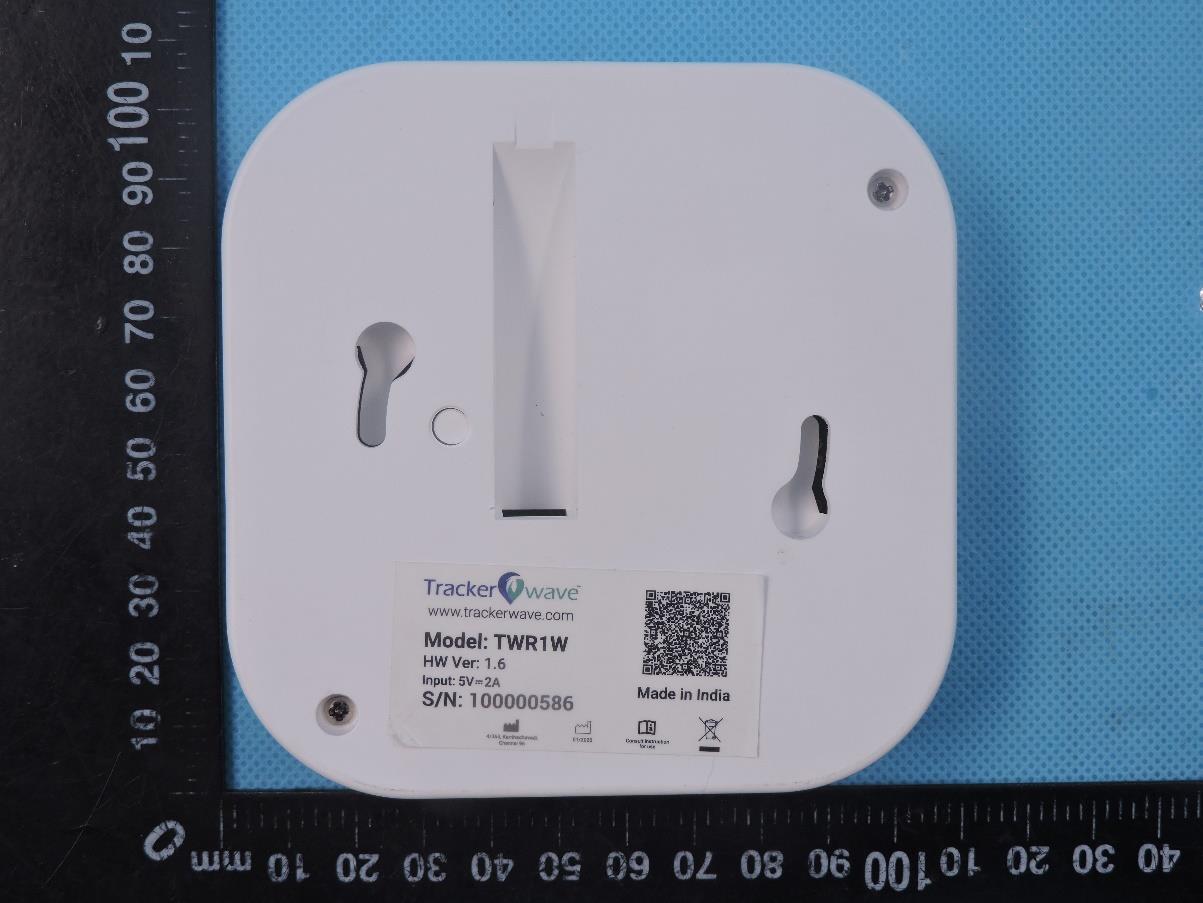

Page 1 of 4 Report No.: STS1906229 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS FCC ID: 2ATS5READER Model: READER- WIFI Photo 1 Photo 2 Page 2 of 4 Report No.: STS1906229 Photo 3 Photo 4 Page 3 of 4 Report No.: STS1906229 Photo 5 Photo 6 Page 4 of 4 Report No.: STS1906229 Photo 7

FCC Label 25mm*50mm, Black font sticker on white background TRACKERWAVE OVITAG READER GATEWAY Model: READER- WIFI FCC ID: 2ATS5READER Contains FCC ID:2AC7Z-ESP32WROVER FCC Label 25mm*50mm, Black font sticker on white background TRACKERWAVE OVITAG READER GATEWAY Model: FCC ID: 2ATS5READER Contains FCC ID:2AC7Z-ESP32WROVER TWR1W

Page 1 of 2 Report No.: STS1906229 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS FCC ID: 2ATS5READER Model: READER- WIFI Photo 1 Photo 2 BT Antenna WIFI Antenna Page 2 of 2 Report No.: STS1906229 Photo 3 Photo 4

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. Shenzhen STS Test Services Co., Ltd. 1/F., Building B, Zhuoke Science Park, No.190, Chongqing Road, Fuyong Street, Bao’an District, Shenzhen, Guangdong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] RADIO TEST REPORT Report No:STS1906229W02 Issued for TRACKERWAVE PRIVATE LlMITED No. 4, 363 , BIock C, 3rd Floor, OMR Road, Kanthanchavadi, Chennai-600096, Tamilnadu , India. Product Name: OVITAG READER GATEWAY Brand Name: TRACKERWAVE Model Name: READER- WIFI Series Model: TWR1W FCC ID: 2ATS5READER Test Standard: FCC Part 15.247 S T L A B S Page 2 of 42 Report No.: STS1906229W02 TEST RESULT CERTIFICATION Applicant’s Name ................. : TRACKERWAVE PRIVATE LlMITED Address ................................. : No. 4, 363 , BIock C, 3rd Floor, OMR Road, Kanthanchavadi, Chennai-600096, Tamilnadu , India. Manufacture's Name ............ : TRACKERWAVE PRIVATE LlMITED Address ................................. : No. 4, 363 , BIock C, 3rd Floor, OMR Road, Kanthanchavadi, Chennai-600096, Tamilnadu , India. Product Description Product Name ....................... : OVITAG READER GATEWAY Brand Name ........................ : TRACKERWAVE Model Name .......................... : READER- WIFI Series Model ......................... : TWR1W Test Standards ..................... : FCC Part15.247 Test Procedure ...................... : ANSI C63.10-2013 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document may be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ........................................... : Date (s) of performance of tests ............. : 26 June 2019 ~ 03 July 2019 Date of Issue .......................................... : 29 July 2019 Test Result.............................................. : Pass Testing Engineer : (Chris Chen) Technical Manager : (Sunday Hu) Authorized Signatory : (Vita Li) Page 3 of 42 Report No.: STS1906229W02 Table of Contents 1. SUMMARY OF TEST RESULTS 6 1.1 TEST FACTORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF THE TEST MODES 10 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 2.4 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 12 2.5 EQUIPMENTS LIST 13 3. EMC EMISSION TEST 14 3.1 CONDUCTED EMISSION MEASUREMENT 14 3.2 TEST PROCEDURE 15 3.3 TEST SETUP 15 3.4 EUT OPERATING CONDITIONS 15 3.5 TEST RESULTS 16 4. RADIATED EMISSION MEASUREMENT 18 4.1 RADIATED EMISSION LIMITS 18 4.2 TEST PROCEDURE 19 4.3 TEST SETUP 20 4.4 EUT OPERATING CONDITIONS 20 4.5 FIELD STRENGTH CALCULATION 21 4.6 TEST RESULTS 22 5. CONDUCTED SPURIOUS & BAND EDGE EMISSION 29 5.1 LIMIT 29 5.2 TEST PROCEDURE 29 5.3 TEST SETUP 29 5.4 EUT OPERATION CONDITIONS 29 5.5 TEST RESULTS 30 6. POWER SPECTRAL DENSITY TEST 33 6.1 LIMIT 33 6.2 TEST PROCEDURE 33 6.3 TEST SETUP 33 6.4 EUT OPERATION CONDITIONS 33 Page 4 of 42 Report No.: STS1906229W02 Table of Contents 6.5 TEST RESULTS 34 7. BANDWIDTH TEST 36 7.1 LIMIT 36 7.2 TEST PROCEDURE 36 7.3 TEST SETUP 36 7.4 EUT OPERATION CONDITIONS 36 7.5 TEST RESULTS 37 8. PEAK OUTPUT POWER TEST 39 8.1 LIMIT 39 8.2 TEST PROCEDURE 39 8.3 TEST SETUP 39 8.4 EUT OPERATION CONDITIONS 39 8.5 TEST RESULTS 40 9. ANTENNA REQUIREMENT 41 9.1 STANDARD REQUIREMENT 41 9.2 EUT ANTENNA 41 10. EUT TEST PHOTO 42 Page 5 of 42 Report No.: STS1906229W02 Revision History Rev. Issue Date Report NO. Effect Page Contents 00 29 July 2019 STS1906229W02 ALL Initial Issue Page 6 of 42 Report No.: STS1906229W02 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: KDB 558074 D01 15.247 Meas Guidance v05r02 FCC Part 15.247,Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS -- 15.247 (a)(2) 6dB Bandwidth PASS -- 15.247 (b)(3) Output Power PASS -- 15.247 (c) Radiated Spurious Emission PASS -- 15.247 (d) Conducted Spurious & Band Edge Emission PASS -- 15.247 (e) Power Spectral Density PASS -- 15.205 Restricted Band Edge Emission PASS -- Part 15.247(d)/part 15.209(a) Band Edge Emission PASS -- 15.203 Antenna Requirement PASS -- NOTE: (1) ”N/A” denotes test is not applicable in this Test Report (2) All tests are according to ANSI C63.10-2013 Page 7 of 42 Report No.: STS1906229W02 1.1 TEST FACTORY Shenzhen STS Test Services Co., Ltd. Add. : 1/F., Building B, Zhuoke Science Park, No.190, Chongqing Road, Fuyong Street, Bao’an District, Shenzhen, Guangdong, China FCC test Firm Registration Number: 625569 A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.71dB 2 Unwanted Emissions, conducted ±0.63dB 3 All emissions, radiated 30-200MHz ±3.43dB 4 All emissions, radiated 200MHz-1GHz ±3.57dB 5 All emissions, radiated>1G ±4.13dB 6 Conducted Emission (9KHz-150KHz) ±3.18dB 7 Conducted Emission (150KHz-30MHz) ±2.70dB Page 8 of 42 Report No.: STS1906229W02 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name OVITAG READER GATEWAY Trade Name TRACKERWAVE Model Name READER- WIFI Series Model TWR1W Model Difference Only different in model name. Product Description The EUT is a OVITAG READER GATEWAY Operation Frequency: 2402~2480 MHz Modulation Type: GFSK Radio Technology: BLE Bluetooth Version: 5.0 Bluetooth Configuration: LE Number Of …
