2AU3A-ASMHHBTActive Safety BT Muff

Active Safety BT Muff - Instruction Instructions Proper fit Place the headset over the head and secure the muff cups over each ear. Adjust the headband to ensure a secure fit. Power On: - Turn the power on by pressing ON/OFF button for 2 seconds Volume Control: - Press volume control + to increase or - to decrease Audio Input Jack: - Plug in a standard 3.5mm male connection cable to connect your device. Power Off: - Turn the power on by pressing ON/OFF button for 2 seconds The multi-color LED will turn on for 10 seconds after power on, with the following color scheme for battery indication: Green: Battery is between 30% and 100% capacity Yellow: Battery is between 15% and 30% capacity Flashing Red: Battery is between 0% and 15% capacity When the unit is plugged in and charging, the LED should be solid red. When the unit is plugged in and fully charged, the LED should be solid blue green. USB Charging voltage/current: Input 5V DC, 1A Bluetooth • By pressing and holding the BT/power button from the powered off state for 5 seconds, the unit will enter Discoverable Mode. In this mode, the unit will advertise itself and allow itself to be paired to a new device. • The LED will alternate flashing Blue and Red. • Discoverable Mode will timeout after 180 seconds and re-enter Connectable Mode. • “Pairing” voice clip will play. • The advertising name will be: Active Safety BT Muff Paired Mode • While in Paired Mode, the status LED will remain off • If the device disconnects, it will enter Connectable Mode. Phone Calls • To answer a call, short press the BT/power button • To reject a call, double press the BT/power button for 1sec • To end a call, short press the BT/power button • During a phone call, if another call is received, double press the BT/power button to switch from first call to the second call. • To switch back to the first call, short press the BT/power button to end the second call and it will be switched back to the previous call. • Double press the BT/power button to redial the last phone number • Microphone Output to Bluetooth should come from dedicated microphone in paddle. Audio/Music • To Play music, short press the BT/power button • To Pause music, short press the BT/power button during playback • For Next Track, press and hold BT Vol+ button • For Previous Track, press and hold BT Vol- button BT Volume Controls • Short pressing the BT Vol+ button during a phone call will adjust the call volume. • Short pressing the BT Vol+ button while streaming music will adjust the connected phone’s media volume. FCC Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. NOTE 2: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. IC WARNING This device contains licence-exempt transmitter(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: 1. L’appareil ne doit pas produire de brouillage; 2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. LIMITED WARRANTY Walker’s warranties this product to the original purchaser to be free from defects in materials and workmanship, under normal use and conditions for a period of one year parts from the date of purchase. Under this warranty, this unit will be replaced or repaired at our option. Copy of the original receipt or gift receipt, is required for any warranty service. To enact the warranty, the customer is required to contact our Customer Service Group at 877-268-8490 to receive an Return Authorization (RA) number PRIOR to sending the product back. This warranty is void if any of the following occur: 1. The unit is not accompanied by a copy of the receipt or gift receipt from the original purchaser. 2. The unit has been tampered with, opened or punctured. 3. The unit has been immersed in water or other liquids, allowed to be filled with dirt or dust, or otherwise physically abused. 4. The one year limited warranty has expired. Please inquire about other options from your Customer Service Representative. This shall be the exclusive written warranty of the or…

Text truncated - open the document above for the full version.

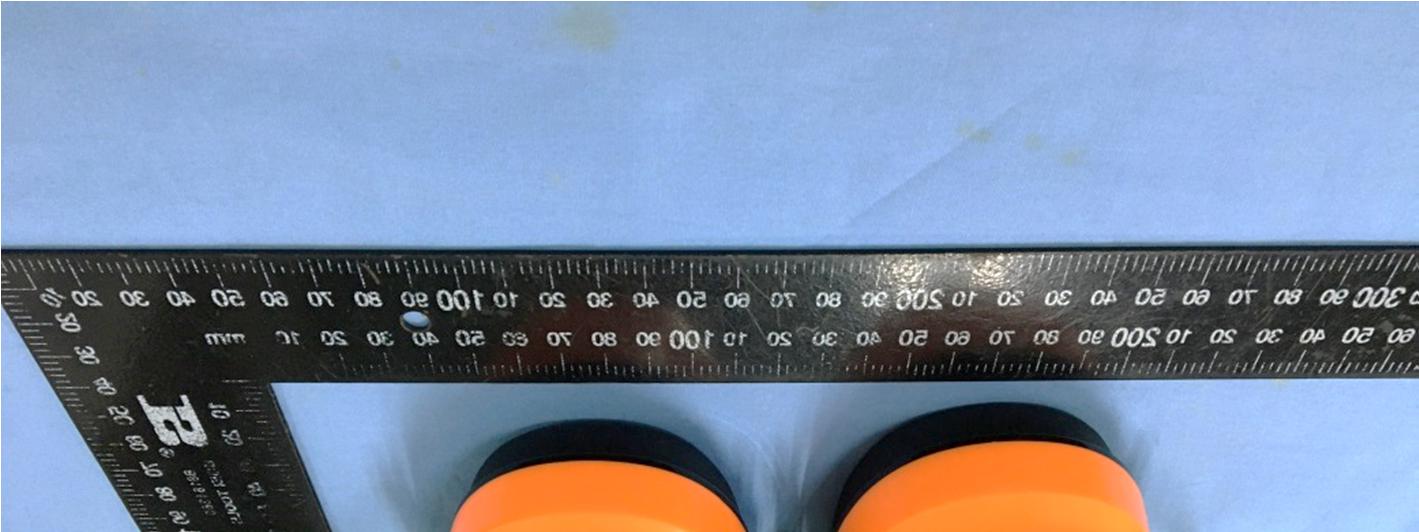

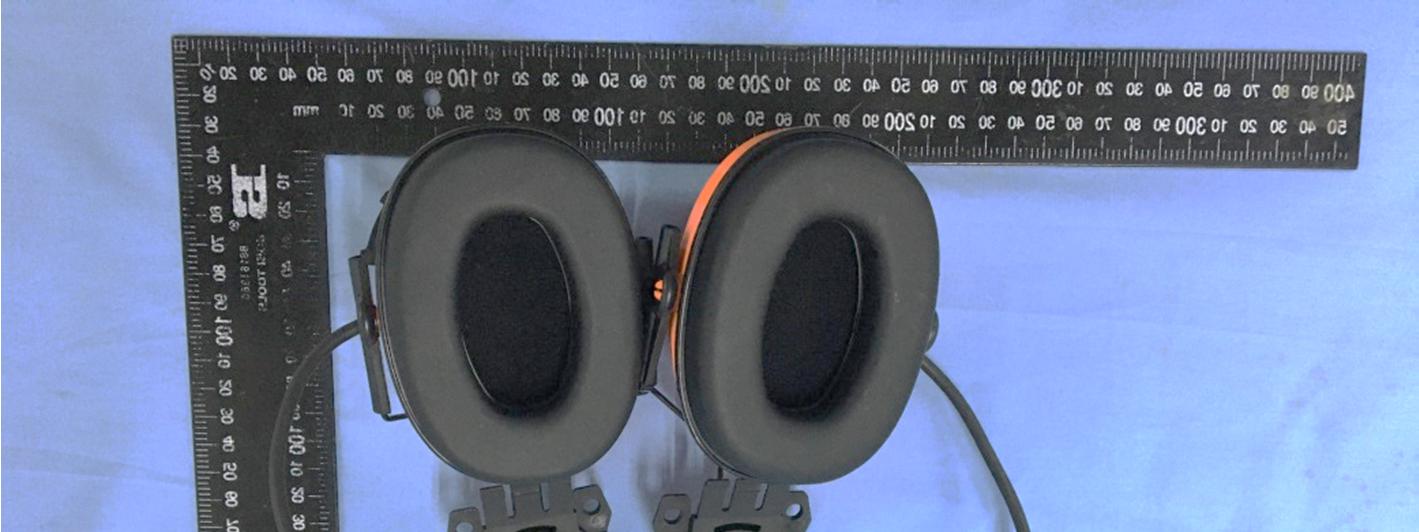

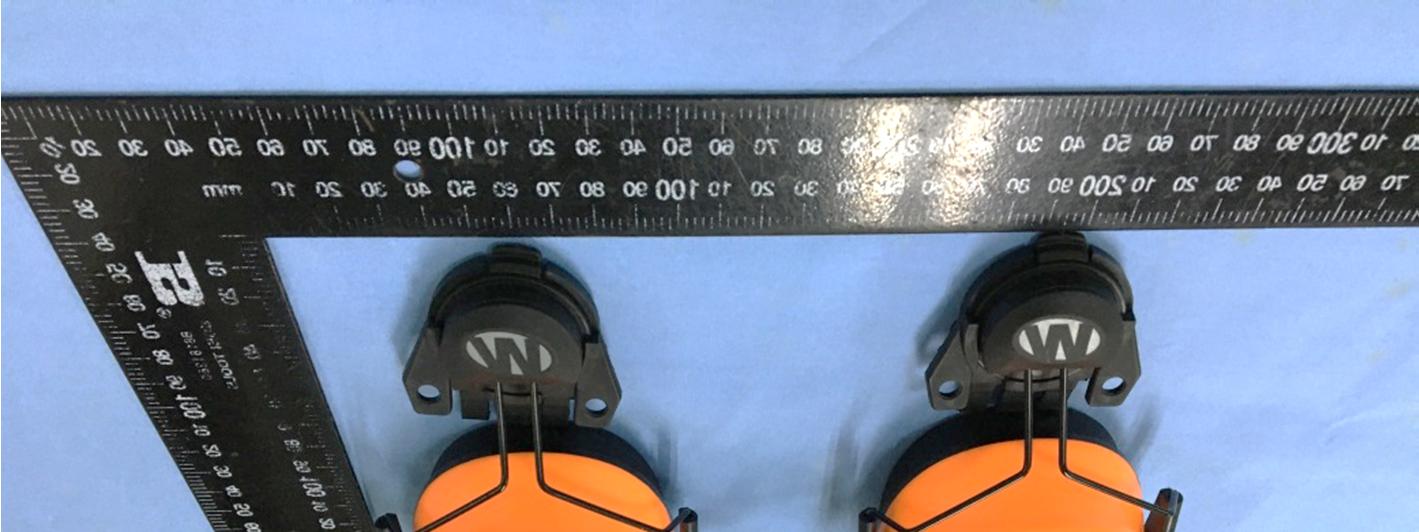

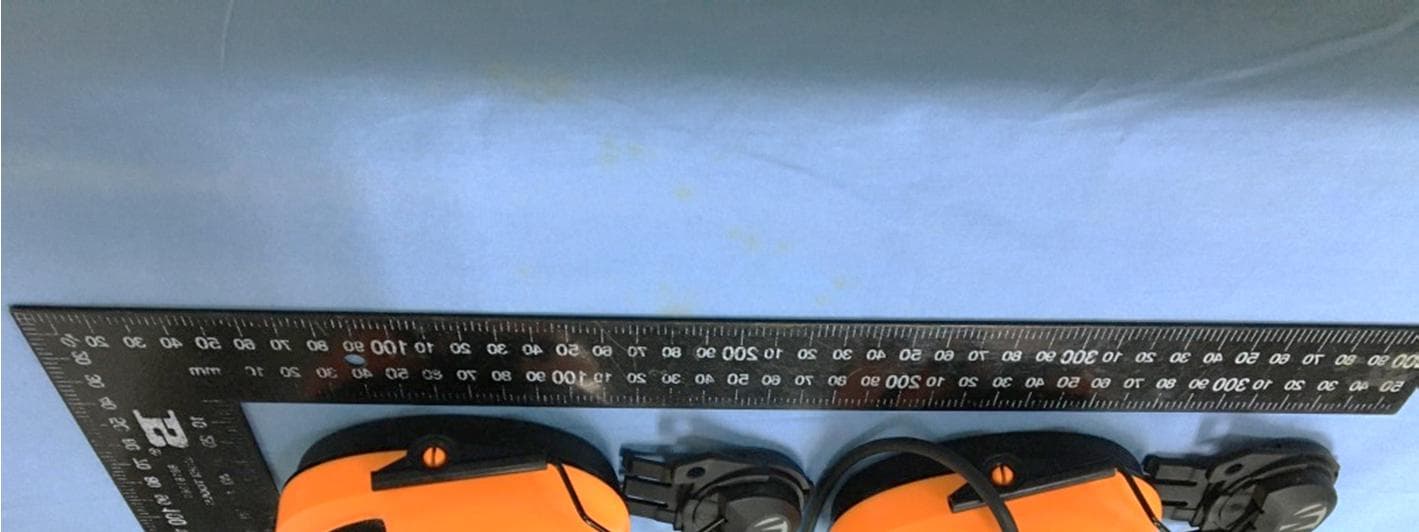

Reference No.: WTX20X06035352W-1 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Reference No.: WTX20X06035352W-1 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn EUT View 3 EUT View 4 Reference No.: WTX20X06035352W-1 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn EUT View 5 EUT View 6 Reference No.: WTX20X06035352W-1 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn EUT View 7

Reference No.: WTX20X06035352W-1 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format Specifications: The label shall be securely affixed to a permanently attached part of the device, in a location where it is visible or easily accessible to the user, and shall not be readily detachable. The label shall be sufficiently durable to remain fully legible and intact on the device in all normal conditions of use throughout the device’s expected lifetime. Proposed Label Location on EUT FCC ID Label Location

Reference No.: WTX20X06035352W-1 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 EUT Housing and Board View 2 Reference No.: WTX20X06035352W-1 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn EUT Housing and Board View 3 EUT Housing and Board View 4 Reference No.: WTX20X06035352W-1 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn EUT Housing and Board View 5 Solder Board-Component View 1 Reference No.: WTX20X06035352W-1 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Solder Board-Component View 2 Solder Board-Component View 3 Reference No.: WTX20X06035352W-1 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Solder Board-Component View 4 Solder Board-Component View 5 Reference No.: WTX20X06035352W-1 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Solder Board-Component View 6 Solder Board-Component View 7 Reference No.: WTX20X06035352W-1 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Antenna View Bluetooth Antenna

RF Exposure Requirements Product Description: Active Safety BT Muff Model No.: GWP-SF-ASMHH-BT-BLZ, GWP-SF-ASMHH-BT-XX, GWP-SF-ASMHH-BT-XXX, GWP-ASMHH-BT-XX, GWP-ASMHH-BT-XXX, X=A to Z FCC ID: 2AU3A-ASMHHBT According to the KDB 447498 D01 v06 section 4.3.1, for 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where - f(GHz) is the RF channel transmit frequency in GHz - Power and distance are rounded to the nearest mW and mm before calculation17 - The result is rounded to one decimal place for comparison Calculation Result: Tx frequency range: 2402-2480MHz Min. test separation distance: 5mm Maximum Conducted Output Power: 4.81dBm Tune-Up output power: 5dBm RF channel transmit frequency: 2402MHz Result: 1.0 Limit: 3.0 The exclusion thresholds is 1.0 < 3, so the transmitter complies with the RF exposure requirements and the SAR is not required.

Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Page 1 of 54 TEST REPORT Reference No. .................... : WTX20X06035352W-1 FCC ID ................................ : 2AU3A-ASMHHBT Applicant ........................... : Good Sportsman Marketing, LLC Address.............................. : 5250 Frye Rd, Irving, TX 75061, United States Product Name ................... : Active Safety BT Muff Test Model. ........................ : GWP-SF-ASMHH-BT-BLZ Standards .......................... : FCC Part 15.247 Date of Receipt sample .... : Jun.09, 2020 Date of Test........................ : Jun.09, 2020 to Jun.19, 2020 Date of Issue ..................... : Jun.19, 2020 Test Result ......................... : Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Testing Group (Shenzhen) Co., Ltd. Address: 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70 Bao'an District, Shenzhen, Guangdong, China Tel.: +86-755-33663308 Fax.: +86-755-33663309 Tested by: Reviewed By: Approved & Authorized By: Mike Shi / Project Engineer Lion Cai / RF Manager Silin Chen / Manager Reference No.: WTX20X06035352W-1 Page 2 of 54 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ...............................................................................4 1.2 TEST STANDARDS ...................................................................................................................................................5 1.3 TEST METHODOLOGY .............................................................................................................................................5 1.4 TEST FACILITY .......................................................................................................................................................5 1.5 EUT SETUP AND TEST MODE .................................................................................................................................6 1.6 MEASUREMENT UNCERTAINTY ..............................................................................................................................7 1.7 TEST EQUIPMENT LIST AND DETAILS .....................................................................................................................8 2. SUMMARY OF TEST RESULTS ......................................................................................................................... 10 3. RF EXPOSURE ....................................................................................................................................................... 11 3.1 STANDARD APPLICABLE ....................................................................................................................................... 11 3.2 TEST RESULT........................................................................................................................................................ 11 4. ANTENNA REQUIREMENT ................................................................................................................................ 12 4.1 STANDARD APPLICABLE ....................................................................................................................................... 12 4.2 EVALUATION INFORMATION................................................................................................................................. 12 5. FREQUENCY HOPPING SYSTEM REQUIREMENTS.................................................................................... 13 5.1 STANDARD APPLICABLE ....................................................................................................................................... 13 5.2 FREQUENCY HOPPING SYSTEM............................................................................................................................. 13 5.3 EUT PSEUDORANDOM FREQUENCY HOPPING SEQUENCE .................................................................................... 14 6. QUANTITY OF HOPPING CHANNELS AND CHANNEL SEPARATION ................................................... 15 6.1 STANDARD APPLICABLE ....................................................................................................................................... 15 6.2 TEST SETUP BLOCK DIAGRAM ............................................................................................................................. 15 6.3 TEST PROCEDURE ................................................................................................................................................. 15 6.4 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 16 7. DWELL TIME OF HOPPING CHANNEL .......................................................................................................... 19 7.1 STANDARD APPLICABLE ....................................................................................................................................... 19 7.2 TEST SETUP BLOCK DIAGRAM ............................................................................................................................. 19 7.3 TEST PROCEDURE ................................................................................................................................................. 19 7.4 SUMMARY OF TEST RESULTS/PLOTS .........................................................................…

Text truncated - open the document above for the full version.

Reference No.: WTX20X06035352W-1 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Conducted Emission Test Setup Radiation Emission Test Setup (Below 30MHz) Reference No.: WTX20X06035352W-1 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Radiation Emission Test Setup (30MHz to 1GHz) Radiation Emission Test Setup (1GHz to 18GHz) Reference No.: WTX20X06035352W-1 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Radiation Emission Test Setup (Above 18GHz)
