2AU3A-AVXDP100Power Flight Smart Duck

Good Sportsman Marketing, LLC DATE : 2023.06.27 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AU3A-AVXDP100 Product Name: Power Flight Smart Duck Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality - for example ... ) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name: Tom Rucci Title: VP of Engineering Company: Good Sportsman Marketing, LLC

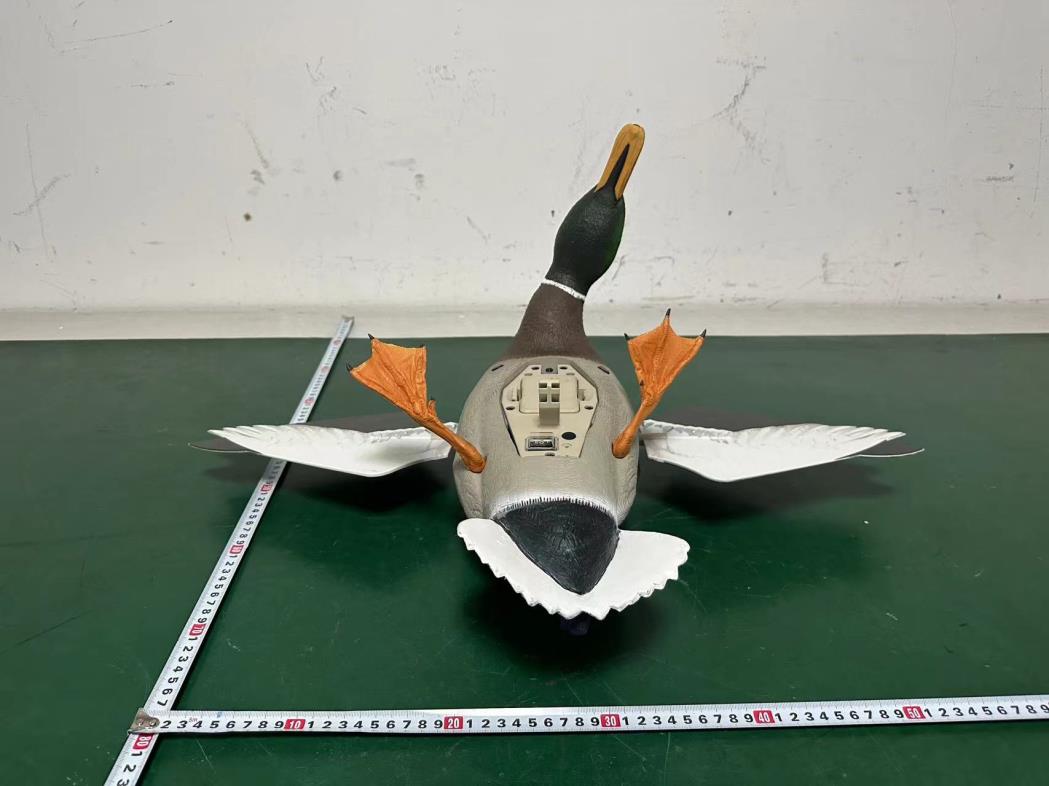

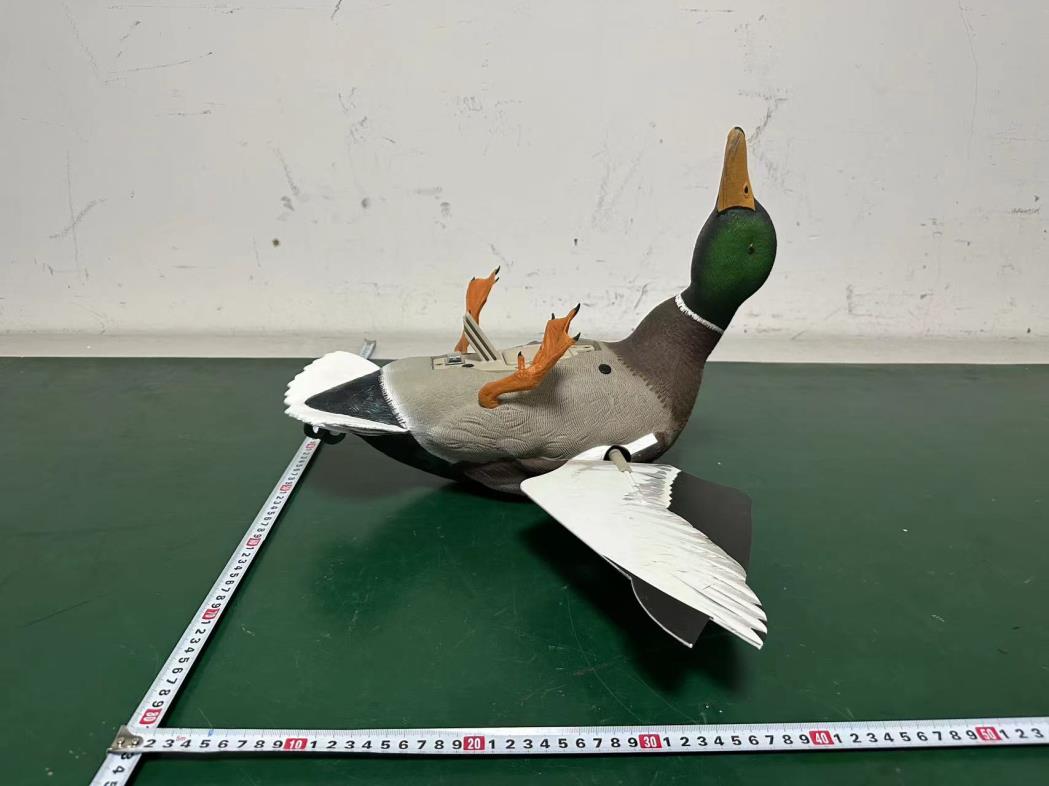

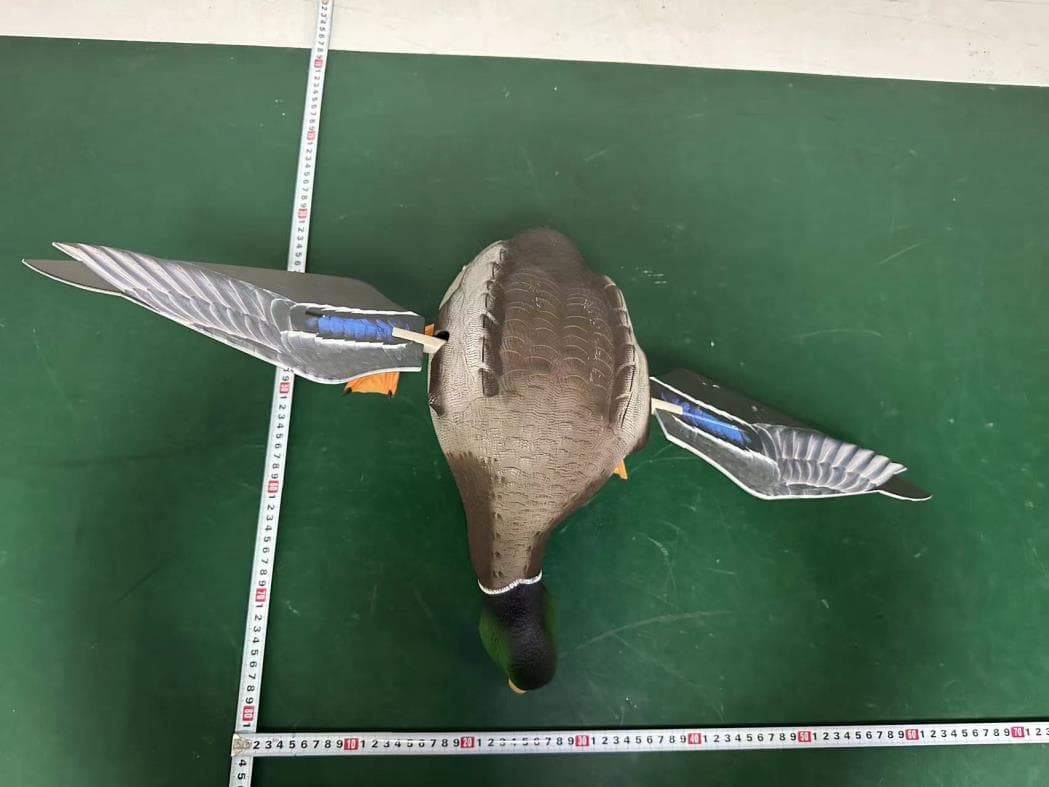

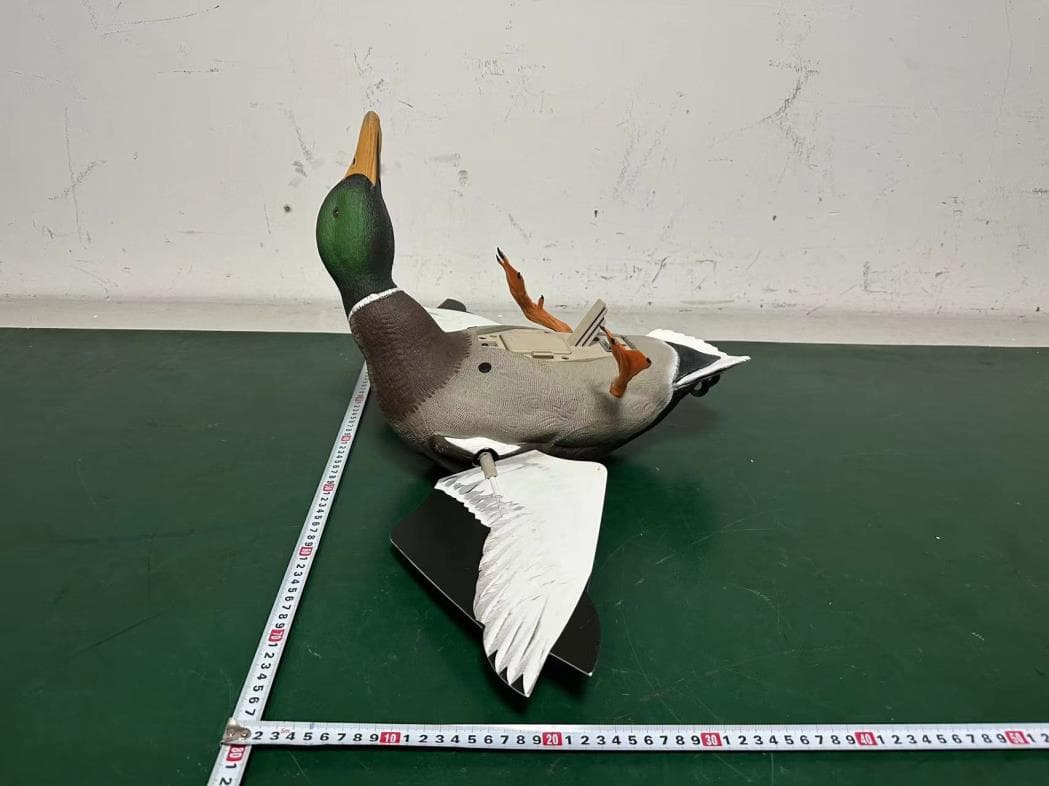

External photos M/N: AVXDP100 External photos M/N: AVXDP100 External photos M/N: AVXDP100

Internal photos M/N: AVXDP100 Internal photos M/N: AVXDP100 Internal photos M/N: AVXDP100 Bluetooth antenna Internal photos M/N: AVXDP100 Internal photos M/N: AVXDP100

FCC ID: 2AU3A-AVXDP100 EST Technology Co. ,Ltd Report No. ESTE-R2306141 Page 1 of 4 FCC 47 CFR MPE REPORT Good Sportsman Marketing, LLC Power Flight Smart Duck Model Number: AVXDP100 FCC ID: 2AU3A-AVXDP100 Applicant: Good Sportsman Marketing, LLC Address: 5250 Frye Rd, Irving, Texas 75061, United States Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2306141 Date of Test: Jun. 06-26, 2023 Date of Report: Jun. 27, 2023 FCC ID: 2AU3A-AVXDP100 EST Technology Co. ,Ltd Report No. ESTE-R2306141 Page 2 of 4 Maximum Permissible Exposure 1. Applicable Standards Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2m normally can be maintained between the user and the device. 1.1. Limits for Maximum Permissible Exposure (MPE) (a) Limits for Occupational/Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-10000 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-10000 1.o 30 Note: f=frequency in MHz; *Plane-wave equivalent power density FCC ID: 2AU3A-AVXDP100 EST Technology Co. ,Ltd Report No. ESTE-R2306141 Page 3 of 4 1.2. MPE Calculation Method E (V/m) = d G × P × 30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric Field (V/m) P = Peak RF output Power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d × 377 G × P × 30 From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained FCC ID: 2AU3A-AVXDP100 EST Technology Co. ,Ltd Report No. ESTE-R2306141 Page 4 of 4 2. Conducted Power Result Mode Frequency (MHz) Peak output power (dBm) Peak output power (mW) BLE 1M 2402 4.74 2.979 2440 4.29 2.685 2480 3.14 2.061 BLE 2M 2402 4.92 3.105 2440 4.43 2.773 2480 3.32 2.148 3. Calculated Result and Limit Mode Peak output power (dBm) Target power （dBm ） MAX Target power （dBm） Antenna gain Power Density (S) (mW /cm2) Limited of Power Density (S) (mW /cm2) Test Result (dBi) (Linear ) 2.4G Band BLE 1M 4.74 4±1 5 4.2 2.630 0.00165 1 Complies BLE 2M 4.92 4±1 5 4.2 2.630 0.00165 1 Complies End of Test Report

FCC ID: 2AU3A-AVXDP100 EST Technology Co., Ltd Report No.ESTE-R2306140 Page 1 of 62 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Good Sportsman Marketing, LLC Power Flight Smart Duck Model Number: AVXDP100 FCC ID: 2AU3A-AVXDP100 Applicant : Good Sportsman Marketing, LLC Address: 5250 Frye Rd, Irving, Texas 75061, United States Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2306140 Date of Test: Jun. 06-26, 2023 Date of Report: Jun. 27, 2023 FCC ID: 2AU3A-AVXDP100 EST Technology Co., Ltd Report No.ESTE-R2306140 Page 2 of 62 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION......................................................................................................................... 3 1. GENERAL INFORMATION ................................................................................................................. 5 1.1. Description of Device (EUT) ........................................................................................................... 5 1.2. Antenna Information ........................................................................................................................ 5 1.3. Information of RF Cable .................................................................................................................. 5 2. SUMMARY OF TEST ......................................................................................................................... 6 2.1. Summary of test result ...................................................................................................................... 6 2.2. Test Facilities ................................................................................................................................... 7 2.3. Measurement uncertainty ................................................................................................................. 8 2.4. Assistant equipment used for test ..................................................................................................... 8 2.5. Block Diagram ................................................................................................................................. 8 2.6. Test Mode ......................................................................................................................................... 9 2.7. Power Setting of Test Software ........................................................................................................ 9 2.8. Duty Cycle ...................................................................................................................................... 10 2.9. Channel List ................................................................................................................................... 11 2.10. Test Equipment List ....................................................................................................................... 12 3. 6DB BANDWIDTH .......................................................................................................................... 13 3.1. Limit ............................................................................................................................................... 13 3.2. Test Setup ....................................................................................................................................... 13 3.3. Spectrum Analyzer Setting ............................................................................................................. 13 3.4. Test Procedure ................................................................................................................................ 13 3.5. Test Result ...................................................................................................................................... 13 4. MAXIMUM PEAK OUTPUT POWER ................................................................................................. 14 4.1. Limit ............................................................................................................................................... 14 4.2. Test Setup ....................................................................................................................................... 14 4.3. Spectrum Analyzer Setting ............................................................................................................. 14 4.4. Test Procedure ................................................................................................................................ 14 4.5. Test Result ...................................................................................................................................... 14 5. POWER SPECTRAL DENSITY .......................................................................................................... 15 5.1. Limit ............................................................................................................................................... 15 5.2. Test Setup ....................................................................................................................................... 15 5.3. Spectrum Analyzer Setting ............................................................................................................. 15 5.4. Test Procedure ................................................................................................................................ 15 5.5. Test Result ...................................................................................................................................... 15 6. CONDUCTED BAND EDGE ............................................................................................................. 16 6.1. Limit ............................................................................................................…

Text truncated - open the document above for the full version.

东莞市一佳电子通讯科技有限公司 Dongguan YiJia Electronics Communication Technology Co.,Ltd. 规格承认书 SPECIFICATION FOR APPROVAL 日期 Date 2023/06/09 编号 File No 23060901 版本 Revision 1.0 客户 CUSTOMER: 恩威视 客户料号 CUSTOMER NO: 智能绿头鸭 品名 WIFI Antenna L 110 0mm MHF 品名 PART NAME: WIFI Antenna L=110.0mm MHF 供方料号 SUPPLIER NO: YJT01.182.021.301A 送样日期 Date: 送样数量Q“TY: 客户确认CUSTOMER APPROVED BY APPROVALCHIEFSUPERVISOR 供方确认SUPPLIER SIGNATURE APPROVALCHECKDESIGN add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 APPROVALCHECKDESIGN ChenGuoqiangXieLiChenXingyi YJ-RD-F04-A 天线规格 Antenna Specification Electrical Properties Frequency 2.4-2.5GHz qy Impedance50 Ohm Nominal V.S.W.R2.0 Max Gain 42dBi Gain 4.2 dBi RadiationOmni-directional PolarizationLinear Physical Properties Connector 1代IPEX Cable TypeO.D.1.13mm Cable Length110mm Cable ColorBlack add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 Operating Temp.-40 ~ +85 ̊C Storage Temp / Humidity 25±5 ̊C / <70% Antenna Performance Test Agilent Antenna Performance Te s t Agilent E5071B SS Parameter Test // WIFI Antenna add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 Antenna Passive TestAntenna Passive Te s t Z Y X X Z Y X add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 Passive Test For WIFI Antenna(2.4G) FreqEffiEffiGain (MHz)(%)(dB)(dBi) 2400 59.2 -2.3 3.7 2410 59.8 -2.2 3.8 2420 59.8 -2.2 3.9 2430 60.0 -2.2 4.2 2440 59.6 -2.3 4.2 2450 60.8 -2.2 4.1 2460 58.5 -2.3 3.9 2470 59.3 -2.3 3.8 2480 57.3 -2.4 3.7 add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 2490 57.7 -2.4 3.7 2500 55.6 -2.6 3.6 Radiation Pattern For WIFI Antenna(2450MHz) add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 Device WIFI Antenna add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 WIFI Antenna add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086
