273mm 196mm Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. 273mm 196mm
Good Sportsman Marketing, LLC 2024/7/30 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2AU3A-RECMBTWT) [Good Sportsman Marketing, LLC] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Applicant printed name) Tom Rucci Good Sportsman Marketing, LLC 2024/7/30 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID: 2AU3A-RECMBTWT) [Good Sportsman Marketing, LLC] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Tom Rucci
Good Sportsman Marketing, LLC 2024/7/30 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: Recon BT Walkie Talkie Trademark: WALKER’S MODEL: GWP-RECM-BT-WT, GWP-RECM-BT-WT-XXX(X=A-Z) FCC ID: 2AU3A-RECMBTWT To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description - BOM - Tune up need provide required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title: Tom Rucci / VP of Engineering Contact information / address: 5250 Frye Rd, Irving, Texas 75061, United States
Good Sportsman Marketing, LLC 2024/7/30 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION EUT NAME: Recon BT Walkie Talkie Trademark: WALKER’S MODEL: GWP-RECM-BT-WT, GWP-RECM-BT-WT-XXX(X=A-Z) FCC ID: 2AU3A-RECMBTWT To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title: Tom Rucci / VP of Engineering Contact information / address: 5250 Frye Rd, Irving, Texas 75061, United States
Good Sportsman Marketing, LLC 2024/7/30 EUT NAME: Recon BT Walkie Talkie Trademark: WALKER’S MODEL: GWP-RECM-BT-WT, GWP-RECM-BT- WT-XXX(X=A-Z) FCC ID: 2AU3A-RECMBTWT All models are identical except for the naming. Client’s signature: Client’s name / title: Tom Rucci / VP of Engineering Contact information / address: 5250 Frye Rd, Irving, Texas 75061, United States

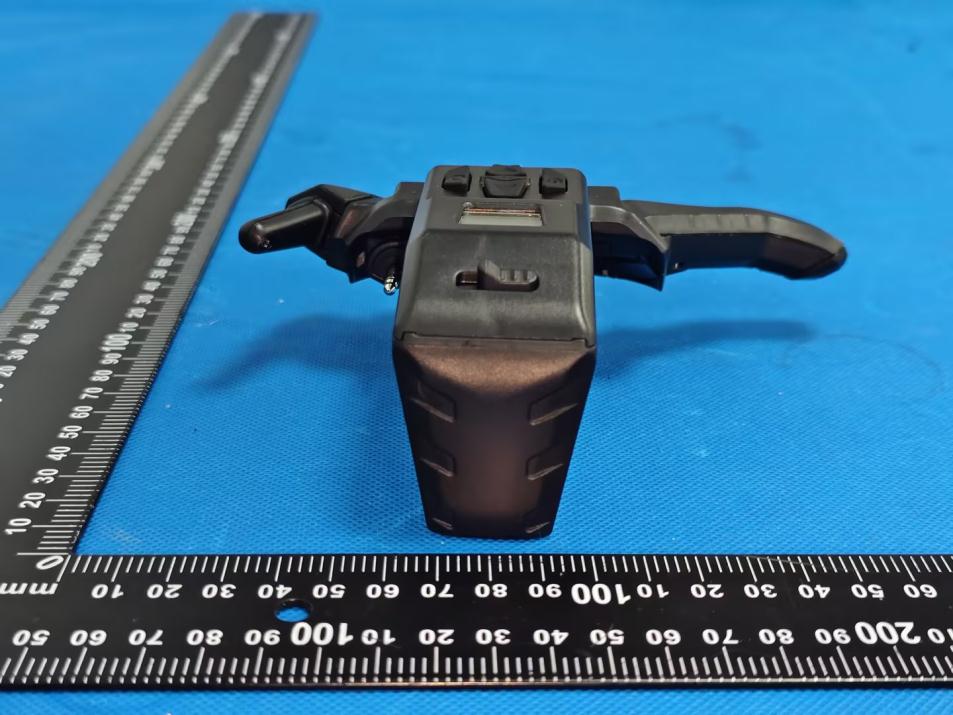

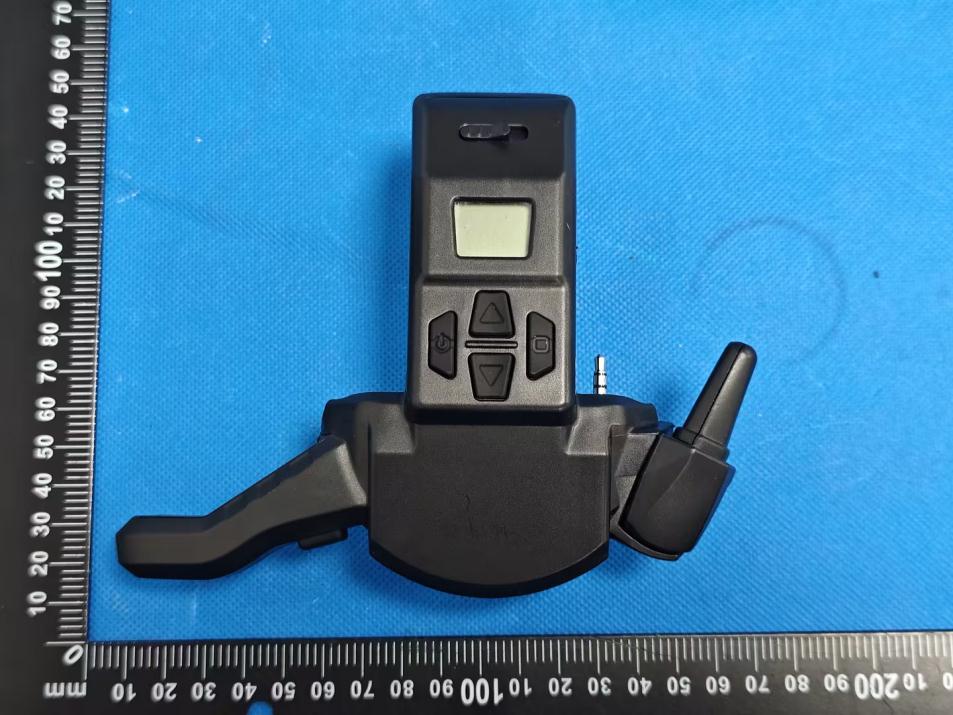

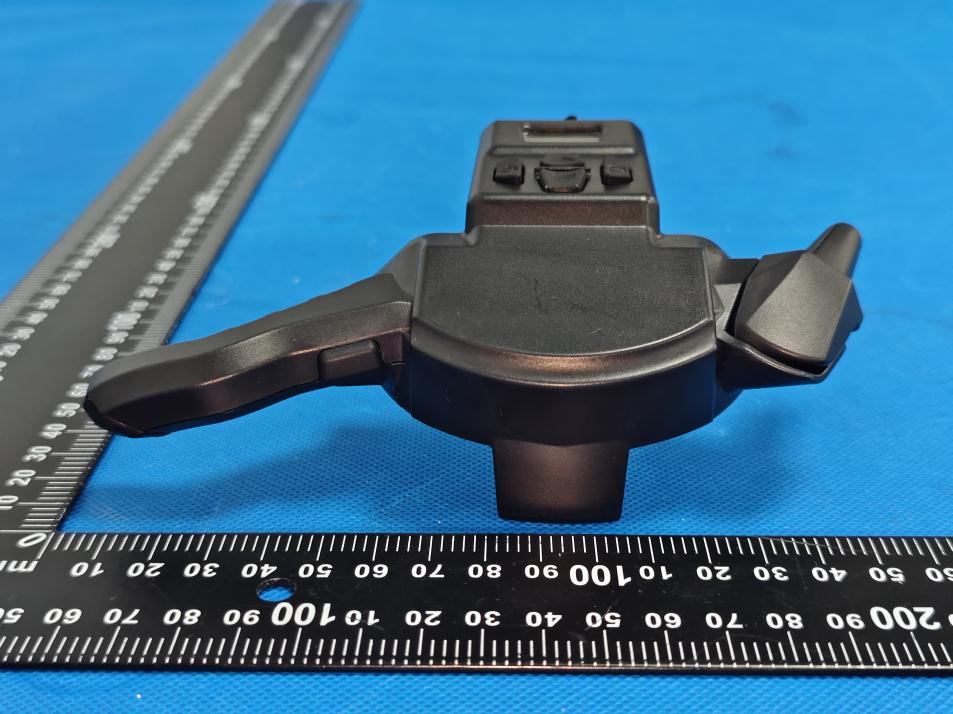

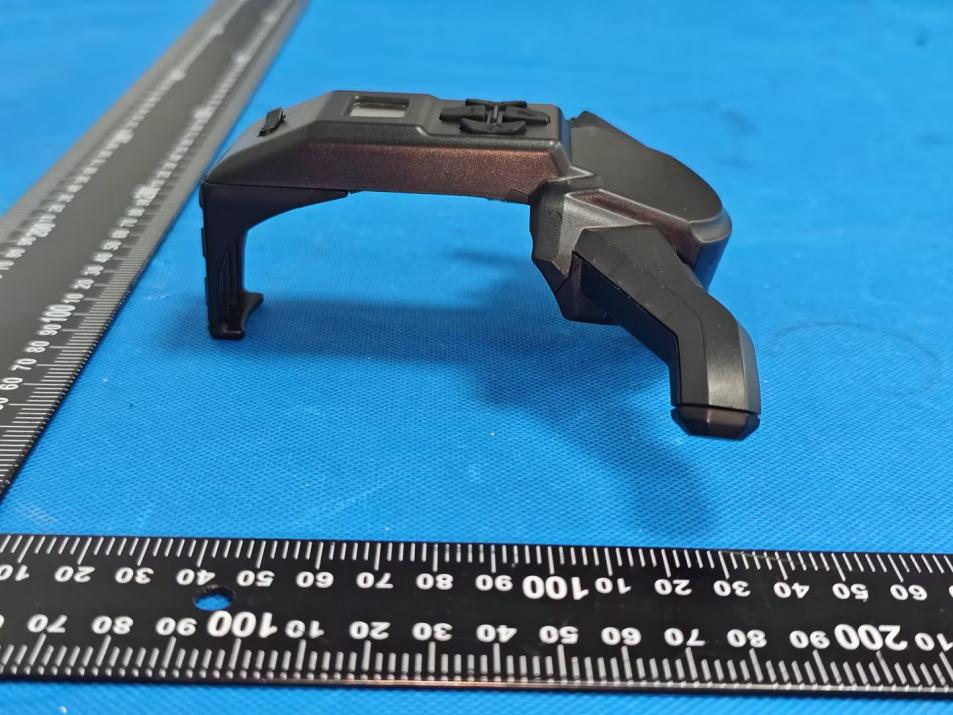

External Photos
Size:10*4mm Recon BT Walkie Talkie FCC ID: 2AU3A-RECMBTWT IC: 25750-RECMBTWT Label location
Internal Photos Walkie Talkie Antenna Bluetooth Antenna
Report No:BCTC2405267956E FCC ID: 2AU3A-RECMBTWT Tune up procedure Tune up procedure shall be over the power range or at specific operating power levels. 1. It must provide an operational voltage to turn on the device and on one certain channel in service mode by means of company proprietary software. 2. Base station simulator (CMW500) measures the Mobile phone device specific RF characteristics. 3. The maximum gains of each individual device are adjusted until the target value met. Tune‐up Power BLE GFSK(1Mbps) 2.0 dBm±1.0 GFSK(2Mbps) 2.0 dBm±1.0 Walkie Talkie FRS 19.0 dBm±1.0 Then these appropriate gain settings are stored in each device individually. The user has no possibility to change these settings later on, and during manufacturing each device will be individual calibrated. The measurement is done in fully calibrated setup, which is based on a CMW500 base station simulator. Furthermore, the highest power level is verified afterwards in a call measurement on three channels (low, middle and high).
FCC ID: 2AU3A-RECMBTWT RF exposure evaluation §2.1093 Radiofrequency radiation exposure evaluation: Portable Devices. According to§15.247(i) and§1.1307b(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the commission’s guidance. The 1-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation When the minimum test separation distance is < 5 mm, a distance of 5 mm according is applied to determine SAR test exclusion. The result is rounded to one decimal place for comparison GFSK Modulation Frequency (GHz) Max. Power (dBm) Tune up Power (dBm) Max. Tune up Power (dBm) Max. Tune up Power (mW) Test distance (mm) exclusion thresholds for 1-g SAR GFSK(1Mbps) 2.450 2.59 2±1 3 2.00 25 48 Walkie Talkie 0.450 19.34 19±1 20 100 25 112 Modulation Frequency (GHz) Power (mW) Limit (mW) Result Simultaneous transmission GFSK(1Mbps) 2.450 2.00 48 0.04 0.93 Walkie Talkie 0.450 100 112 0.89
Inverted F Antenna Specification Summary ITEM ANT SPEC Model Name 2.4G ANT Center Frequency Horizontal Vertical 2400MHz 2400MHz 2500MHz 2400MHz 2400MHz 2500MHz -1.26 -0.76 -0.58 -5.25 -2.46 -1.86 MAX. Gain -0.58dB Polarization Horizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance 50 Ohm Antenna Length 27.20mm Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD Antenna Photo & Length (mm) Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Frequency (MHz) Gain(dB) Max Min Avg 2400 -1.26174 -30.0801 -7.18716 2450 -0.765802 -36.5604 -7.48023 2500 -0.585582 -22.0315 -6.59127 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Frequency (MHz) Gain(dB) Max Min Avg 2400 -5.2537 -22.1424 -12.4294 2450 -2.4652 -24.5837 -10.4702 2500 -1.86120 -29.5214 -9.20432 ANT Test Labs:Attestation of Global Compliance Co., Ltd.
No.:BCTC/RF-EMC-005 Page: 1 of 50 Edition:B.2 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2405267956E Applicant: Good Sportsman Marketing, LLC Product Name: Recon BT Walkie Talkie Test Model: GWP-RECM-BT-WT Tested Date: 2024-05-31 to 2024-06-13 Issued Date: 2024-06-13 Report No.: BCTC2405267956E No.:BCTC/RF-EMC-005 Page: 2 of 50 Edition:B.2 FCC ID: 2AU3A-RECMBTWT The test report is effective only with both signature and specialized stamp.This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full.The tested sample(s) and the sample information are provided by the client. Product Name: Recon BT Walkie Talkie Trademark: WALKER’S Model/Type Reference: GWP-RECM-BT-WT GWP-RECM-BT-WT-XXX(X=A-Z) Prepared For: Good Sportsman Marketing, LLC Address: 5250 Frye Rd, Irving, Texas 75061, United States Manufacturer: K-Mark Industrial Limited Address: FLAT A, 7/F., MAI ON IND. BLDG, 17-21 KUNG YIP STREET, KWAI CHUNG, HONG KONG Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2024-05-31 Sample Tested Date: 2024-05-31 to 2024-06-13 Issue Date: 2024-06-13 Report No.: BCTC2405267956E Test Standards: FCC Part15.247 ANSI C63.10-2013 Test Results: PASS Remark: This is Bluetooth BLE radio test report. Tested by: Approved by: Min Zhi Cheng/ Project Handler Zero Zhou/Reviewer Report No.: BCTC2405267956E No.:BCTC/RF-EMC-005 Page: 3 of 50 Edition:B.2 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information And Test Setup ..................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 9 4.3 Support Equipment ............................................................................................... 9 4.4 Channel List ........................................................................................................ 10 4.5 Test Mode ........................................................................................................... 10 4.6 Table of parameters of text software setting ....................................................... 10 5. Test Facility And Test Instrument Used ............................................................... 11 5.1 Test Facility ......................................................................................................... 11 5.2 Test Instrument Used .......................................................................................... 11 6. Conducted Emissions .......................................................................................... 13 6.1 Block Diagram Of Test Setup .............................................................................. 13 6.2 Limit .................................................................................................................... 13 6.3 Test procedure .................................................................................................... 13 6.4 EUT Operating Conditions .................................................................................. 13 6.5 Test Result .......................................................................................................... 13 7. Radiated Emissions ............................................................................................. 14 7.1 Block Diagram Of Test Setup .............................................................................. 14 7.2 Limit .................................................................................................................... 15 7.3 Test procedure .................................................................................................... 16 7.4 EUT operating Conditions ................................................................................... 17 7.5 Test Result .......................................................................................................... 17 8. Radiated Band Emission Measurement And Restricted Bands Of Operation ..... 22 8.1 Block Diagram Of Test Setup .............................................................................. 22 8.2 Limit .................................................................................................................... 22 8.3 Test Procedure ................................................................................................... 23 8.4 EUT Operating Conditions .................................................................................. 24 8.5 Test Result .......................................................................................................... 24 9. Power Spectral Density Test ............................................................................... 25 9.1 Block Diagram Of Test Setup .............................................................................. 25 9.2 Limit .................................................................................................................... 25 9.3 Test procedure .................................................................................................... 25 9.4 EUT Operating Conditions .................................................................................. 25 9.5 Test Result …
