2AU3A-RPHEBTHearing Protection

Declaration Letter June 01, 2020 FCC ID: 2AU3A-RPHEBT IC ID: 25750-RPHEBT Product Name: Hearing Protection The function of the product is noise reduction but not Hearing aids. Name: Tom Rucci Title: VP of Engineering Company: Good Sportsman Marketing, LLC

May 20, 2020 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 On our behalf, I appoint EMTEK(SHENZHEN) CO., LTD. Zone, Nanshan District, Shenzhen, Guangdong, China to act as our agent in the preparation that submitted documents certification is sought. I also defined in the Federal Communications label identical to that submitted for approval with this For instances where our authorized behalf, I acknowledge that for certification, still resides Rd,Irving,TX75061,United States Name: Tom Rucci Title: VP of Engineering Company: Good Sportsman Federal Communications Commission Authorization & Evaluation Division Authority to Act as Agent EMTEK(SHENZHEN) CO., LTD. (Building 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China preparation of this application for equipment certification. properly describe the device or system for which also certify that each unit manufactured, imported Communications Commission’s regulations will have label identical to that submitted for approval with this application. authorized agent signs the application for certification all responsibility for complying with the terms with Good Sportsman Marketing, LLC (5250 Frye Rd,Irving,TX75061,United States) (Applicant Name and address) Good Sportsman Marketing, LLC 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China) certification. I certify which equipment imported or marketed, as have affixed to it a certification on our and conditions 5250 Frye

May 20, 2020 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AU3A-RPHEBT Product Name: Hearing Protection Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Name: Tom Rucci Title: VP of Engineering Company: Good Sportsman Marketing, LLC

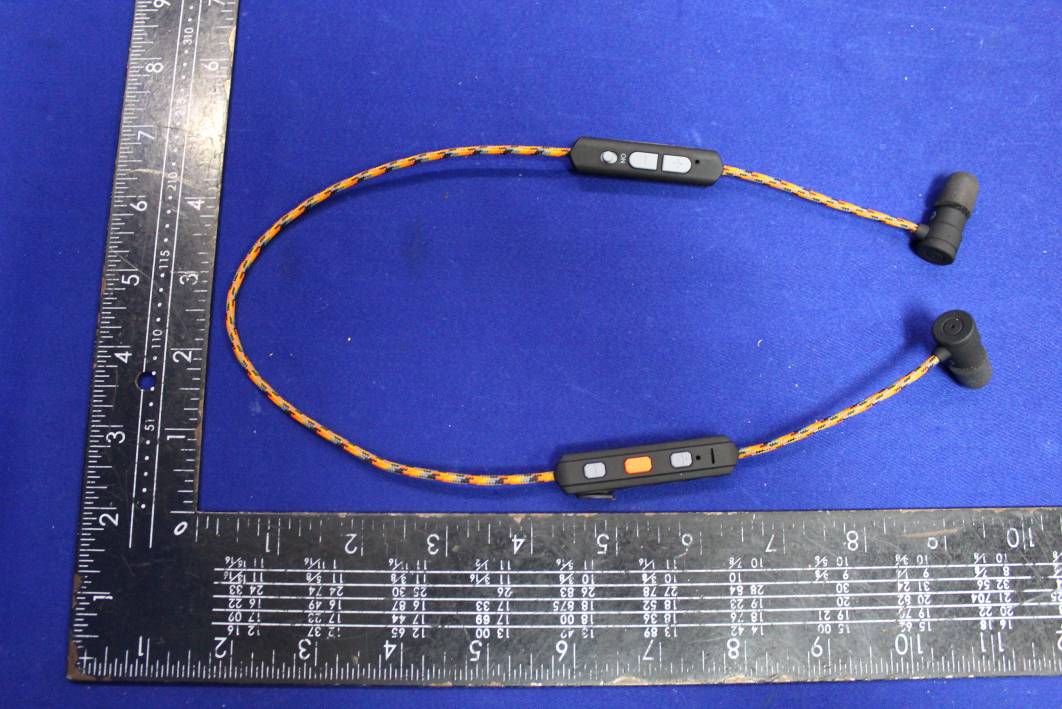

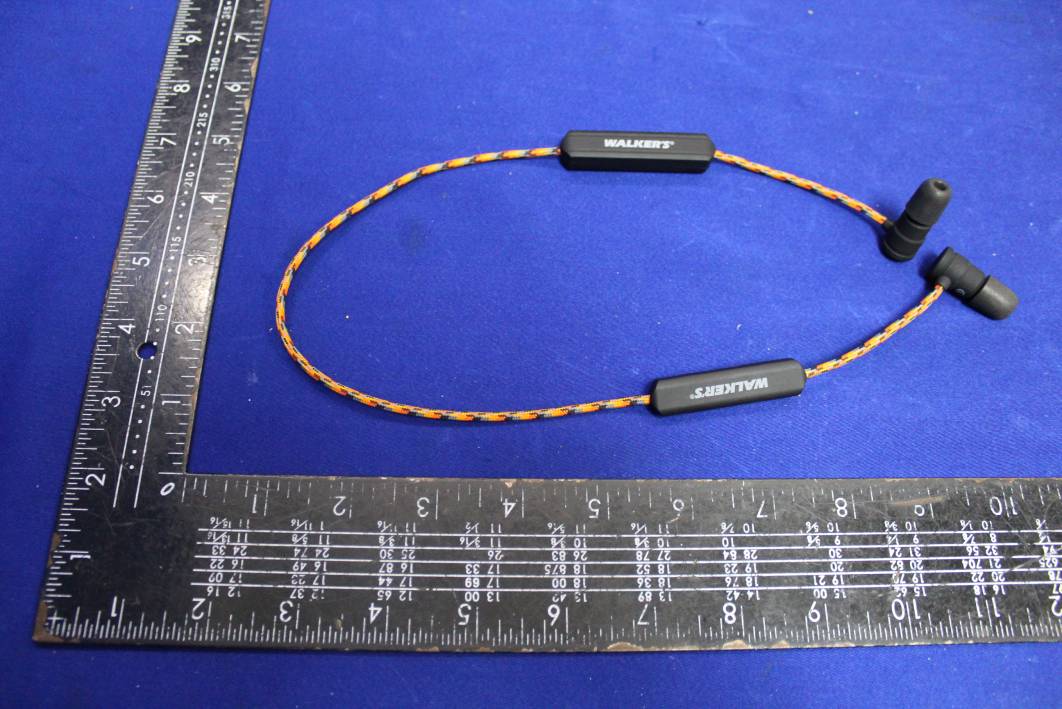

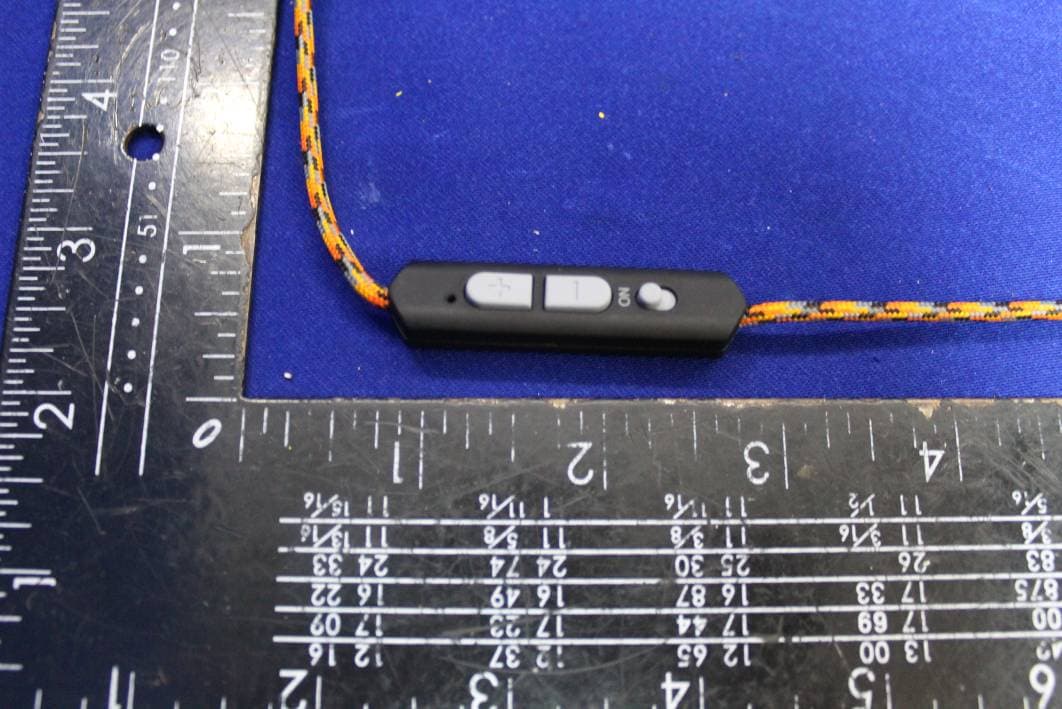

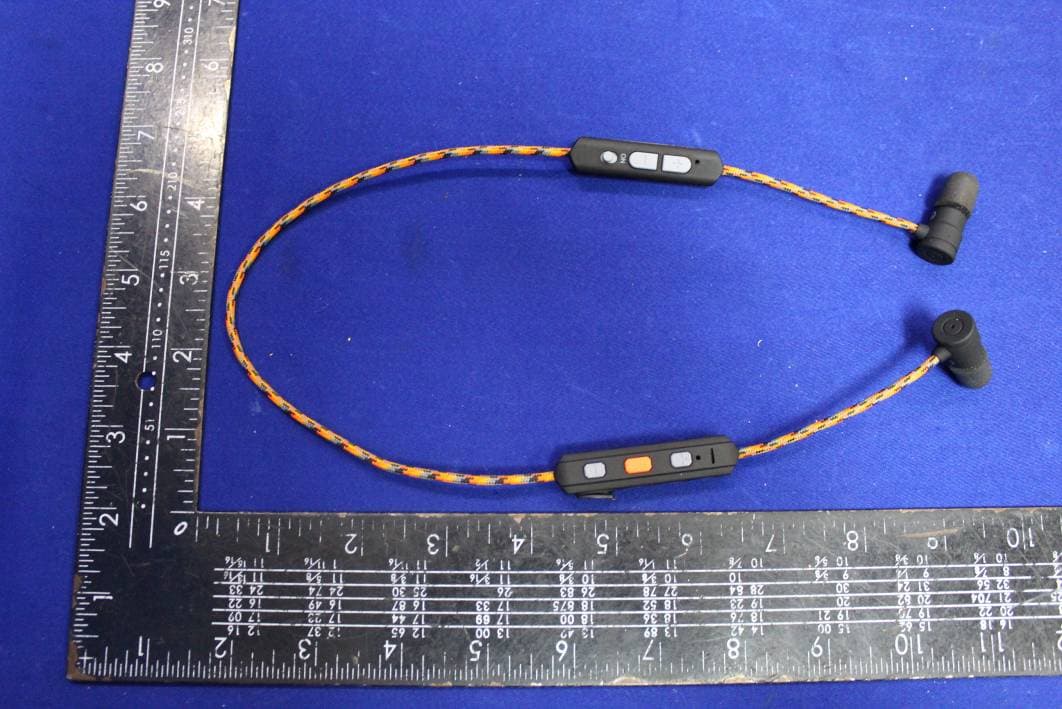

External photos: ---The End---

Internal photos: Antenna ---The End---

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√ f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  The result is rounded to one decimal place for comparison Worse case is as below: [2441 MHz 1.29 dBm（ 1.34 6 mW）output power] (1.34 6 mW /5mm) ·[√2.441 (GHz)]= 0.42 <3.0 for 1-g SAR Then SAR evaluation is not required

Report No. ES200415023W Page 1 of 63 Ver.1.0 TEST REPORT $二维码$ Product Name : Hearing Protection Model Number : GWP-RPHE-BT FCC ID : 2AU3A-RPHEBT IC : 25750-RPHEBT Prepared for : Good Sportsman Marketing, LLC Address : 5250 Frye Rd,Irving,TX75061,United States Prepared by : EMTEK (SHENZHEN) CO., LTD. Address : Building 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China Tel: (0755) 26954280 Fax: (0755) 26954282 Report Number : ES200415023W Date(s) of Tests : April 15, 2020 to June 01, 2020 Date of issue : June 01, 2020 Report No. ES200415023W Page 2 of 63 Ver.1.0 Table of Contents 1 TEST RESULT CERTIFICATION ............................................................................................................. 3 2 GENERAL INFORMATION ...................................................................................................................... 4 2.1 EUT TECHNICAL DESCRIPTION ......................................................................................................... 4 3 SUMMARY OF TEST RESULT ................................................................................................................ 5 4 TEST METHODOLOGY ........................................................................................................................... 6 4.1 GENERAL DESCRIPTION OF APPLIED STANDARDS ....................................................................... 6 4.2 MEASUREMENT EQUIPMENT USED .................................................................................................. 6 4.3 DESCRIPTION OF TEST MODES ........................................................................................................ 7 5 FACILITIES AND ACCREDITATIONS ...................................................................................................... 8 5.1 FACILITIES ............................................................................................................................................ 8 5.2 LABORATORY ACCREDITATIONS AND LISTINGS ............................................................................. 8 5.3 TEST SOFTWARE ..................................................................................................................................... 8 6 TEST SYSTEM UNCERTAINTY .............................................................................................................. 8 7 SETUP OF EQUIPMENT UNDER TEST ................................................................................................. 9 7.1 RADIO FREQUENCY TEST SETUP 1 .................................................................................................. 9 7.2 RADIO FREQUENCY TEST SETUP 2 .................................................................................................. 9 7.3 CONDUCTED EMISSION TEST SETUP ............................................................................................ 10 7.4 SUPPORT EQUIPMENT ..................................................................................................................... 11 8 FREQUENCY HOPPING SYSTEM REQUIREMENTS ......................................................................... 12 8.1 STANDARD APPLICABLE .......................................................................................................................... 12 8.2 EUT PSEUDORANDOM FREQUENCY HOPPING SEQUENCE ........................................................................ 12 8.3 EQUAL HOPPING FREQUENCY USE ......................................................................................................... 13 8.4 FREQUENCY HOPPING SYSTEM .............................................................................................................. 13 9 TEST REQUIREMENTS ........................................................................................................................ 14 9.1 20DB BANDWIDTH ............................................................................................................................. 14 9.2 CARRIER FREQUENCY SEPARATION ............................................................................................. 24 9.3 NUMBER OF HOPPING FREQUENCIES ........................................................................................... 30 9.4 AVERAGE TIME OF OCCUPANCY (DWELL TIME) ............................................................................ 32 9.5 MAXIMUM PEAK CONDUCTED OUTPUT POWER ........................................................................... 35 9.6 CONDUCTED SUPRIOUS EMISSION ............................................................................................... 41 9.7 RADIATED SPURIOUS EMISSION ..................................................................................................... 48 9.8 CONDUCTED EMISSION TEST ......................................................................................................... 61 9.9 ANTENNA APPLICATION ................................................................................................................... 62 Report No. ES200415023W Page 3 of 63 Ver.1.0 1 TEST RESULT CERTIFICATION Applicant: Good Sportsman Marketing, LLC 5250 Frye Rd,Irving,TX75061,United States Manufacture: NINGBO HONGSHUO ELECTRONICS & APPLIANCE CO., LTD Zhangqi Industry Zone, Cixi Ningbo, Zhejiang, China Product Description: Hearing Protection Model Number: GWP-RPHE-BT Trade Mark: Walker’s Measurement Procedure Used: APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 2 2018, Subpart J FCC 47 CFR Part 15 2018, Subpart C IC RSS-GEN, Issue 5, March 2019 IC RSS-247 Issue 2, February 2017. PASS The above equipment was tested by EMTEK(SHENZHEN) CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10 (2013) and the energy emitted by the sample EUT tested as described in this report is in compliance with …

Text truncated - open the document above for the full version.

Report No. ES200415023W Page 23 of 63 Ver.1.0 Test Model 99% Bandwidth Channel 39: 2441MHz 8DPSK Modulation Test Model 99% Bandwidth Channel 78: 2480MHz 8DPSK Modulation Report No. ES200415023W Page 24 of 63 Ver.1.0 9.2 CARRIER FREQUENCY SEPARATION 9.2.1 Applicable Standard According to FCC Part 15.247(a)(1), RSS-247 Clause 5.1(b), 558074 D01 15.247 Meas Guidance V05r02 9.2.2 Conformance Limit Frequency hopping systems operating in the 2400-2483.5MHz band shall have hoppingchannel carrier frequencies separated by a minimum of 25kHz or the 20dB bandwidth ofthe hopping channel, whichever is greater. In case of an output power less than 125mW,the frequency hopping system may have channels separated by a minimum of 25kHz or two-thirds of the 20dB bandwidth of the hopping channel, whichever is greater. 9.2.3 Test Configuration Test according to clause 7.1 radio frequency test setup 1 9.2.4 Test Procedure  According to FCC Part15.247(a)(1) and RSS-247 Clause 5.1(b) The EUT must have its hopping function enabled. Use the following spectrum analyzersettings: Set the RBW =100kHz. Set VBW =300kHz. Set the span = wide enough to capture the peaks of two adjacent channels Set Sweep time = auto couple. Set Detector = peak. Set Trace mode = max hold. Allow the trace to stabilize. Use the marker-delta function to determine the separation between the peaks of the adjacent channels. The limit is specified in one of the subparagraphs of this Section. Submit this plot. Test Results Temperature: 26°C Test Date: May 21, 2020 Humidity: 47 % Test By: XW Modulation Mode Channel Number Channel Frequency (MHz) Measurement Bandwidth (kHz) Limit (kHz) Verdict GFSK 0 2402 998.00 >564.40 PASS 39 2441 1001.00 >593.33 PASS 78 2480 1004.00 >549.93 PASS pi/4-DQPSK 0 2402 1007.00 >813.33 PASS 39 2441 1004.00 >781.47 PASS 78 2480 1007.00 >839.33 PASS 8DPSK 0 2402 1001.00 >827.80 PASS 39 2441 1004.00 >836.47 PASS 78 2480 1004.00 >836.47 PASS Note: Limit = 20dB bandwidth * 2/3, if it is greater than 25kHz and the output power is less than 125mW (21dBm). Report No. ES200415023W Page 25 of 63 Ver.1.0 Test Model Carrier Frequency Separation Channel 0: 2402MHz GFSK Modulation Test Model Carrier Frequency Separation Channel 39: 2441MHz GFSK Modulation Report No. ES200415023W Page 26 of 63 Ver.1.0 Test Model Carrier Frequency Separation Channel 78: 2480MHz GFSK Modulation Test Model Carrier Frequency Separation Channel 0: 2402MHz pi/4-DQPSK Modulation Report No. ES200415023W Page 27 of 63 Ver.1.0 Test Model Carrier Frequency Separation Channel 39: 2441MHz pi/4-DQPSK Modulation Test Model Carrier Frequency Separation Channel 78: 2480MHz pi/4-DQPSK Modulation Report No. ES200415023W Page 28 of 63 Ver.1.0 Test Model Carrier Frequency Separation Channel 0: 2402MHz 8DPSK Modulation Test Model Carrier Frequency Separation Channel 39: 2441MHz 8DPSK Modulation Report No. ES200415023W Page 29 of 63 Ver.1.0 Test Model Carrier Frequency Separation Channel 78: 2480MHz 8DPSK Modulation Report No. ES200415023W Page 30 of 63 Ver.1.0 9.3 NUMBER OF HOPPING FREQUENCIES 9.3.1 Applicable Standard According to FCC Part 15.247(a)(1) (iii), RSS-247 Clause 5.1(d), 558074 D01 15.247 Meas Guidance V05r02 9.3.2 Conformance Limit Frequency hopping systems operating in the 2400-2483.5MHz band shall use at least 15 channels. 9.3.3 Test Configuration Test according to clause 7.1 radio frequency test setup 1 9.3.4 Test Procedure  According to FCC Part15.247(a)(1)(iii) and RSS-247 Clause 5.1(d) The EUT must have its hopping function enabled. Use the following spectrum analyzer settings: Span = the frequency band of operation RBW = 100kHz VBW ≥ RBW Sweep = auto Detector function = peak Trace = max hold Allow the trace to stabilize. It may prove necessary to break the span up to sections, inorder to clearly show all of the hopping frequencies. Test Results Temperature: 25°C Test Date: May 12, 2020 Humidity: 45 % Test By: XW Hopping Channel Frequency Range Quantity of Hopping Channel Quantity of Hopping Channel limit 2402-2480 (GFSK) 79 ＞15 Note: Both BR & EDR mode has same result . Report No. ES200415023W Page 31 of 63 Ver.1.0 Test Model Number Of Hopping Frequencies Span:2400-2483.5MHz GFSK Report No. ES200415023W Page 32 of 63 Ver.1.0 9.4 AVERAGE TIME OF OCCUPANCY (DWELL TIME) 9.4.1 Applicable Standard According to FCC Part 15.247(a)(1)(iii), RSS-247 Clause 5.1(d), 558074 D01 15.247 Meas Guidance V05r02 9.4.2 Conformance Limit For frequency hopping systems operating in the 2400-2483.5MHz band, the averagetime of occupancy on any channel shall not be greater than 0.4s within a period of 0.4smultiplied by the number of hopping channels employed. 9.4.3 Test Configuration Test according to clause 7.1 radio frequency test setup 1 9.4.4 Test Procedure  According to FCC Part15.247(a)(1)(iii) and RSS-247 Clause 5.1(d) The EUT must have its hopping function enabled. Use the following spectrum analyzersettings: Span = zero span, centered on a hopping channel RBW = 1 MHz VBW ≥ RBW Sweep = as necessary to capture the entire dwell time per hopping channel Detector function = peak Trace = max hold If possible, use the marker-delta function to determine the dwell time. If this value varies with different modes of operation (e.g., data rate, modulation format, etc.), repeat this test for each variation. The limit is specified in one of the subparagraphsof this Section. 9.4.5 Test Results Temperature: 25°C Test Date: May 12, 2020 Humidity: 45 % Test By: XW Modulation Mode Channel Number Packet type Pluse width (ms) DwellTime (ms) Limit (ms) Verdict GFSK 0 DH1 0.416 133.120 <400 PASS 0 DH3 1.650 264.000 <400 PASS 0 DH5 2.904 309.760 <400 PASS Note1: DwellTime(DH1)=PW*(1600/2/79)*31.6 DwellTime(DH3)=PW*(1600/4/79)*31.6 DwellTime(DH5)=PW*(1600/6/79)*31.6 Note2: Bluetooth (GFSK, pi/4-DQPSK, 8DPSK)mode have been tested, and the worst results has been recorded on the follow page. Report No. ES200415023W Page 33 of 63 Ver.1.0 Test Model Average Time Of Occupancy (Dwell Time) CH 0: 240…

Text truncated - open the document above for the full version.

Report No. ES200415023W Page 34 of 63 Ver.1.0 Test Model Average Time Of Occupancy (Dwell Time) CH 0: 2402MHz GFSK DH5 Report No. ES200415023W Page 35 of 63 Ver.1.0 9.5 MAXIMUM PEAK CONDUCTED OUTPUT POWER 9.5.1 Applicable Standard According to FCC Part 15.247(b)(1), RSS-247 Clause 5.4(b), 558074 D01 15.247 Meas Guidance V05r02 9.5.2 Conformance Limit The maxFor frequency hopping systems operating in the 2400-2483.5 MHz band employing at least 75 non-overlapping hopping channels: 1 watt. For all other frequency hopping systems in the 2400-2483.5 MHz band: 0.125 watts. 9.5.3 Test Configuration Test according to clause 7.1 radio frequency test setup 1 9.5.4 Test Procedure  According to FCC Part15.247(b)(1) and RSS-247 Clause 5.4(b) As an alternative to a peak power measurement, compliance with the limit can be based on a measurement of the maximum conducted output power. Use the following spectrum analyzer settings: Set Span = approximately 5 times the 20 dB bandwidth, centered on a hopping channel(about 10MHz) Set RBW > the 20 dB bandwidth of the emission being measured(about 3MHz) Set VBW  RBW Set Sweep = auto Set Detector function = peak Set Trace = max hold Allow the trace to stabilize. Use the marker-to-peak function to set the marker to the peak of the emissionto determine the peak amplitude level. Test Results Temperature: 25°C Test Date: May 12, 2020 Humidity: 45 % Test By: XW Operation Mode Channel Number Channel Frequency (MHz) MeasurementLevel (dBm) Limit (dBm) Verdict GFSK 0 2402 -1.15 21 PASS 39 2441 1.29 21 PASS 78 2480 0.44 21 PASS pi/4-DQP SK 0 2402 -3.68 21 PASS 39 2441 -1.21 21 PASS 78 2480 -1.99 21 PASS 8DPSK 0 2402 -3.21 21 PASS 39 2441 -0.71 21 PASS 78 2480 -1.53 21 PASS Note:N/A Report No. ES200415023W Page 36 of 63 Ver.1.0 Test Model Maximum PeakConducted Output Power Channel 0: 2402MHz GFSK Test Model Maximum PeakConducted Output Power Channel 39: 2441MHz GFSK Report No. ES200415023W Page 37 of 63 Ver.1.0 Test Model Maximum PeakConducted Output Power Channel 78: 2480MHz GFSK Test Model Maximum PeakConducted Output Power Channel 0: 2402MHz pi/4-DQPSK Report No. ES200415023W Page 38 of 63 Ver.1.0 Test Model Maximum PeakConducted Output Power Channel 39: 2441MHz pi/4-DQPSK Test Model Maximum PeakConducted Output Power Channel 78: 2480MHz pi/4-DQPSK Report No. ES200415023W Page 39 of 63 Ver.1.0 Test Model Maximum PeakConducted Output Power Channel 0: 2402MHz 8DPSK Test Model Maximum PeakConducted Output Power Channel 39: 2441MHz 8DPSK Report No. ES200415023W Page 40 of 63 Ver.1.0 Test Model Maximum PeakConducted Output Power Channel 78: 2480MHz 8DPSK Report No. ES200415023W Page 41 of 63 Ver.1.0 9.6 CONDUCTED SUPRIOUS EMISSION 9.6.1 Applicable Standard According to FCC Part 15.247(d), RSS-247 Clause 5.5, 558074 D01 15.247 Meas Guidance V05r02 9.6.2 Conformance Limit According to FCC Part 15.247(d) and RSS-247 Clause 5.5 In any 100 kHz bandwidth outside the frequency band in which the spread spectrum intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the desired power, based on either an RF conducted, provided the transmitter demonstrates compliance with the peak conducted power limits. 9.6.3 Test Configuration Test according to clause 7.1 radio frequency test setup 1 9.6.4 Test Procedure The transmitter output (antenna port) was connected to the spectrum analyzer  Reference level measurement Establish a reference level by using the following procedure: Set instrument center frequency to DSS channel center frequency. Set Span = approximately 5 times the 20 dB bandwidth, centered on a hopping channel. Set the RBW = 100 kHz. Set the VBW ≥ 3 x RBW. Set Detector = peak. Set Sweep time = auto couple. Set Trace mode = max hold. Allow trace to fully stabilize. Use the peak marker function to determine the maximum Maximumconducetedlevel. Note that the channel found to contain the maximum conduceted level can be used to establish the reference level.  Band-edge Compliance of RF Conducted Emissions Use the following spectrum analyzer settings: Span = wide enough to capture the peak level of the emission operating on the channel closest to the band-edge, as well as any modulation products which fall outside of the authorized band of operation Set RBW  1% of the span=100kHzSet VBW  RBW Set Sweep = autoSetDetector function = peakSetTrace = max hold Allow the trace to stabilize. Set the marker on the emission at the bandedge, or on the highest modulation product outside of the band, if this level is greater than that at the bandedge. Enable the marker-delta function, then use the marker-to-peak function to move the marker to the peak of the in-band emission. The marker-delta value now displayed must comply with the limit specified in this Section. Now, using the same instrument settings, enable the hopping function of the EUT. Allow the trace to stabilize. Follow the same procedure listed above to determine if any spurious emissions caused by the hopping function also comply with the specified limit.  ConducetedSpurious RF Conducted Emission Use the following spectrum analyzer settings: Span = wide enough to capture the peak level of the in-band emission and all spurious emissions (e.g., harmonics) from the lowest frequency generated in the EUT up through the 10th harmonic.(30MHz to 25GHz).Set RBW = 100 kHzSetVBW RBW Set Sweep = autoSetDetector function = peakSetTrace = max hold Allow the trace to stabilize. Set the marker on the peak of any spurious emission recorded. The level displayed must comply with the limit specified in this Section. 9.6.5 Test Results Report No. ES200415023W Page 42 of 63 Ver.1.0 Bluetooth (GFSK, pi/4-DQPSK, 8DPSK) mode have been tested, and the worst result(GFSK)was report as below: Test Model Maximum Conduceted Level RBW=100kHz Channel 0: 2402MHz GFSK Test Model ConducetedSpurious RF Con…

Text truncated - open the document above for the full version.

Report No. ES200415023W Page 45 of 63 Ver.1.0 Test Model ConducetedSpurious RF Conducted Emission Channel 78: 2480MHz GFSK Test Model Band-edge Conducted Emissions Channel 78: 2480MHz GFSK Report No. ES200415023W Page 46 of 63 Ver.1.0 Test Model Maximum Conduceted Level RBW=100kHz Hopping Mode GFSK Test Model ConducetedSpurious RF Conducted Emission Hopping Mode GFSK Report No. ES200415023W Page 47 of 63 Ver.1.0 Test Model Band-edge Conducted Emissions Hopping Mode GFSK Report No. ES200415023W Page 48 of 63 Ver.1.0 9.7 RADIATED SPURIOUS EMISSION 9.7.1 Applicable Standard According to FCC Part 15.247(d),15.209, RSS-247 Clause 3.3, 558074 D01 15.247 Meas Guidance V05r02 9.7.2 Conformance Limit According to FCC Part 15.247(d) & RSS-Gen Table 6 & Table 7: radiated emissions which fall in the restricted bands, as defined in §15.205(a), must also comply with the radiated emission limits specified in §15.209(a) (see §15.205(c)). According to FCC Part15.205, Restricted bands MHz MHz MHz GHz 0.090-0.110 16.42-16.423 399.9-410 4.5-5.15 10.495-0.505 16.69475-16.69525 608-614 5.35-5.46 2.1735-2.1905 16.80425-16.80475 960-1240 7.25-7.75 4.125-4.128 25.5-25.67 1300-1427 8.025-8.5 4.17725-4.17775 37.5-38.25 1435-1626.5 9.0-9.2 4.20725-4.20775 73-74.6 1645.5-1646.5 9.3-9.5 6.215-6.218 74.8-75.2 1660-1710 10.6-12.7 6.26775-6.26825 123-138 2200-2300 14.47-14.5 8.291-8.294 149.9-150.05 2310-2390 15.35-16.2 8.362-8.366 156.52475-156.52525 2483.5-2500 17.7-21.4 8.37625-8.38675 156.7-156.9 2690-2900 22.01-23.12 8.41425-8.41475 162.0125-167.17 3260-3267 23.6-24.0 12.29-12.293 167.72-173.2 3332-3339 31.2-31.8 12.51975-12.52025 240-285 3345.8-3358 36.43-36.5 12.57675-12.57725 322-335.4 3600-4400 (2) 13.36-13.41 According to FCC Part15.205,the level of any transmitter spurious emission in Restricted bands shall not exceed the level of the emission specified in the following table Restricted Frequency(MHz) Field Strength (μV/m) Field Strength (dBμV/m) Measurement Distance 0.009-0.490 2400/F(KHz) 20 log (uV/m) 300 0.490-1.705 24000/F(KHz) 20 log (uV/m) 30 1.705-30 30 29.5 30 30-88 100 40 3 88-216 150 43.5 3 216-960 200 46 3 Above 960 500 54 3 9.7.3 Test Configuration Test according to clause 7.2 radio frequency test setup 2 9.7.4 Test Procedure This test is required for any spurious emission that falls in a Restricted Band, as defined in Section 15.205. It must be performed with the highest gain of each type of antenna proposed for use with the EUT. Use the following spectrum analyzer settings: The EUT was placed on a turn table which is 0.8m above ground plane. Maximum procedure was performed on the highest emissions to ensure EUT compliance. Span = wide enough to fully capture the emission being measured RBW = 1 MHz for f  1 GHz(1GHz to 25GHz), 100 kHz for f < 1 GHz(30MHz to 1GHz) VBW  RBW Sweep = auto Report No. ES200415023W Page 49 of 63 Ver.1.0 Detector function = peak Trace = max hold Follow the guidelines in ANSI C63.10-2013 respect to maximizing the emission by rotating the EUT, measuring the emission while the EUT is situated in three orthogonal planes (if appropriate), adjusting the measurement antenna height and polarization, etc. A pre-amp and a high pass filter are required for this test, in order to provide the measuring system with sufficient sensitivity. Allow the trace to stabilize. The peak reading of the emission, after being corrected by the antenna factor, cable loss, pre-amp gain, etc., is the peak field strength, which must comply with the limit specified in Section 15.35(b). Submit this data. Now set the VBW to 10 Hz, while maintaining all of the other instrument settings. This peak level, once corrected, must comply with the limit specified in Section 15.209. If the dwell time per channel of the hopping signal is less than 100 ms, then the reading obtained with the 10 Hz VBW may be further adjusted by a “duty cycle correction factor”, derived from 20log(dwell time/100 ms), in an effort to demonstrate compliance with the 15.209 limit. Submit this data. Repeat above procedures until all frequency measured was complete. 9.7.5 Test Results  Spurious Emission below 30MHz(9KHz to 30MHz) Temperature: 27°C Test Date: May 14, 2020 Humidity: 43 % Test By: XW Test mode: TX Mode Freq. (MHz) Ant.Pol. Emission Level(dBuV/m) Limit 3m(dBuV/m) Over(dB) H/V PK AV PK AV PK AV -- -- -- -- -- -- -- -- Note: the amplitude of spurious emission that is attenuated by more than 20dB below the permissible limit has no need to be reported. Distance extrapolation factor =40log(Specific distance/ test distance)( dB); Limit line=Specific limits(dBuV) + distance extrapolation factor  Spurious Emission Above 1GHz(1GHz to 25GHz) Bluetooth (GFSK, pi/4-DQPSK, 8DPSK, Hopping) mode have been tested, and the worst result(GFSK)was report as below: Temperature: 27°C Test Date: May 14, 2020 Humidity: 49 % Test By: XW Test mode: GFSK Frequency: Channel 0: 2402MHz Freq. (MHz) Ant.Pol. Emission Level(dBuV/m) Limit 3m(dBuV/m) Over(dB) H/V PK AV PK AV PK AV 2729.75 V 46.84 31.80 74.00 54.00 -27.16 -22.20 8441.75 V 51.48 36.58 74.00 54.00 -22.52 -17.42 11951.40 V 53.35 37.35 74.00 54.00 -20.65 -16.65 13660.75 V 53.71 37.70 74.00 54.00 -20.29 -16.30 16468.30 V 53.08 36.10 74.00 54.00 -20.92 -17.90 17988.95 V 53.66 38.66 74.00 54.00 -20.34 -15.34 1974.10 H 46.71 32.70 74.00 54.00 -27.29 -21.30 8413.70 H 51.94 36.90 74.00 54.00 -22.06 -17.10 10839.60 H 52.99 37.90 74.00 54.00 -21.01 -16.10 13511.15 H 52.91 37.62 74.00 54.00 -21.09 -16.38 16261.75 H 52.66 38.66 74.00 54.00 -21.34 -15.34 17949.00 H 54.32 39.36 74.00 54.00 -19.68 -14.64 Report No. ES200415023W Page 50 of 63 Ver.1.0 Temperature: 27°C Test Date: May 14, 2020 Humidity: 49 % Test By: XW Test mode: GFSK Frequency: Channel 39: 2441MHz Freq. (MHz) Ant.Pol. Emission Level(dBuV/m) Limit 3m(dBuV/m) Over(dB) H/V PK AV PK AV PK AV 8397.55 V 50.36 35.36 74.00 54.00 -23.64 -18.64 10838.75 V 52.78 37.78 74.00 54.00 -21.22 -16.22 11887.65 V 52.75 37.75 74.00 54.00 -21.25 -16.25 13014.75 V…

Text truncated - open the document above for the full version.

Radiated ---The End---
