2AU8HMGM5607ALTE Module

Smawave Technology Co. ,Ltd
LTE Module - FCC ID 2AU8HMGM5607A - Smawave Technology Co. ,Ltd
Click to zoom

Application Details

Equipment Class
TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant
Mar 09, 2020
Application Purpose
Original Equipment
Date of Application
Mar 08, 2020
Equipment Note
LTE Module
Frequency Range
2488.50000000 - 2490.00000000
Company
Smawave Technology Co. ,Ltd
Country
China

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗
↗

RF Exposure Info

↗

Test Report

↗
↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

SMAWAVESolutionsInc. MGM5607AModule ProductSpecification MGM5607AModule March8,2019 SMAWAVEisatrademarkofSMAWAVESolutions,registeredintheUnitedStatesandothercountries.Otherproduct andbrandnamesmaybetrademarksorregisteredtrademarksoftheirrespectiveowners. ThistechnicaldatamaybesubjecttoU.S.andinternationalexport,re-export,ortransfer(“export”)laws.Diversion contrarytoU.S.andinternationallawisstrictlyprohibited. SMAWAVESolutionsInc 3/F,Building8,1001NorthQinzhouRoad, XuhuiDistrict,Shanghai, China ©2019SMAWAVESolutionsInc.Allrightsreserved. SMAWAVEConfidential 1ProductOverview TheMGM5607Amoduleisanindustrial-gradeLTEmodule,whichprovidesmultiplebands supportsandcoversmostofLTEbandsinEuropeandLatinAmerica.Thismodulecanbe adaptedtovarioustypesofterminaldevices,providingLTEnetworkconnectionanddata communication,suchasindustrialrouters,industrialhandsets,tabletcomputers,laptops,etc. TheMGM5607Amoduleachievesdownloadratesupto150Mbpsanduplinkratesto50Mbps (FDD). TheMGM5607AmodulepassedCEcertifications. SMAWAVEConfidential 2GeneralFeatures ParameterValue MainChipsetGCTGDM7243QT DualARM1136JFSprocesser400MHz Memory2GbNandFlash+1GbLPDDR2 BandsupportBand40/41/42/43/48/53 Antenna2UFLports LTE:Mainandauxiliaryantenna Tx/Rx1Tx/2Rx MIMODL:4x2MIMOor2x2MIMO UL:1x2MU-MIMOor2x2MIMO CA(UL/DL) 40+42/40+43/40+48/41+42/41+43/41+48/ 53+42/53+43/53+48/42+40/42+41/42+53/ 43+40/43+41/43+53/48+40/48+41/48+53 Modulation Uplink:QPSK/16QAM Downlink:QPSK/16QAM/64QAM Poweroutput +23dBm(PowerClass3) Throughput TDD DL:110Mbps UL:30Mbps Interface USB2.0 USIM RGMII GPIO VoltageInput 3.0VDC~3.6VDC(Recommend3.3V) OperatingTemperature -40°C~+85°C (ReduceRFperformance:-40°C~-30°C,+70 °C~+85°C StorageTemperature -40°C~+85°C SMAWAVEConfidential 3PinDefinitions Pindirectiondefinition: I:CarrierboardtoModule O:ModuletoCarrierboard I/O:bothdirectionamongmoduleandcarrierboard PI:Powerinput PO:Poweroutput PinDescriptionPin No. LTE_WAKE#1 UART0_TXD3 UART0_RXD5 FACT_RST7 GND9 RGMII_TXD311 RGMII_TXD113 GND15 RGMII_TXD017 RGMII_TXEN19 GND21 RGMII_TXD223 RGMII_TXCLK25 GND27 GND29 RGMII_RXCLK31 RGMII_RXD133 GND35 GND37 VCC_Main39 VCC_Main41 GND43 RGMII_RX_DV45 RGMII_RXD347 PHY_RESET#49 GPIO151 PinDescriptionPin No. VCC_Main2 GND4 GPIO66 USIM_PWR8 USIM_DATA10 USIM_CLK12 USIM_RESET14 GPIO716 GND18 W_DISABLE#20 PERST#22 VCC_Main24 GND26 RGMII_MDC28 RGMII_RXD030 RGMII_RXD232 GND34 USB_D-36 USB_D+38 GND40 GPIO242 GPIO344 GPIO446 RGMII_MDIO48 GND50 VCC_Main52 SMAWAVEConfidential PinName Pin No. DescriptionI/O Voltage Domain Power VCC_Main 2, 24,39, 41,52 VCCsource PI 3.3V GND 4,9,15, 18,21, 26,27, 29,34, 35,37, 40,43, 50 Returncurrentpath UniversalSerialBus(USB) USB_D+ 38USBserialdatainterface complianttotheUSB2.0 specification I/O USB_D- 36 I/O UniversalAsynchronousReceiver/Transmitter(UART) UART_TXD 3UARTserialdatainterface O UART_RXD 5 I SerialManagementInterface(SMI) RGMII_MDC 28SMIdatainterface O RGMII_MDIO 48 I/O ReducedGigabitMediaIndependentInterface(RGMII) RGMII_TXD0 17RGMIIdatainterface O RGMII_TXD1 13 O RGMII_TXD2 23 O RGMII_TXD3 11 O RGMII_TXCLK 25 O RGMII_TXEN 19 O RGMII_RXD0 30 I RGMII_RXD1 33 I RGMII_RXD2 32 I RGMII_RXD3 47 I SMAWAVEConfidential RGMII_RXCLK 31 I RGMII_RX_DV 45 I AuxiliarySignals PERST# 22 FunctionalresettothecardI, Pull-up 1.8V FACT_RST 7 FACTresetsignalO Pull-up 1.8V PHY_RESET# 49 PHYresetsignalO LTE_WAKE# 1OpenDrainactiveLowsignal. Thissignalisusedtorequestthat thesystemreturnfroma sleep/suspendedstatetoservice afunctioninitiatedwakeevent. O CommunicationsSpecificSignals W_DISABLE# 20Activelowsignal.Thissignalis usedbythesystemtodisable radiooperationonadd-incards thatimplementradiofrequency applications. Whenimplemented,thissignal requiresapull-upresistoronthe card. I, Pull-up GPIO1 51NC 1.8V GPIO2 42NC 1.8V GPIO3 44NC 1.8V GPIO4 46NC 1.8V GPIO6 6NC 1.8V GPIO7 16NC 1.8V UserIdentityModule(UIM)Signals USIM_PWR 8PowersourcefortheUIM. ComplianttotheISO/IEC7816-3 specification(VCC) O 1.8V/3V USIM_RESET14 UIMresetsignal. ComplianttotheISO/IEC7816-3 specification(RST). O 1.8V/3V SMAWAVEConfidential 4DCElectrical ParameterDescriptionMinMaxUnit VIHHigh-levelinputvoltage1.17VDD_IOV VILLow-levelinputvoltage-0.30.63V VOHhigh-leveloutputvoltage1.6VDD_IOV VOLlow-leveloutputvoltage00.4V 5PowerConsumption ParameterMinTypicalMaxUnit TDDBand520mA 6RFPerformance OperatingBandTransmitPower (dBm) AntennaInterfacereceivingsensitivity Band4023±2<–95dBm@20MHzbandwidth Band4123±2<–95dBm@20MHzbandwidth Band4223±2<–96dBm@20MHzbandwidth Band4323±2<–96dBm@20MHzbandwidth Band4823±2<–96dBm@20MHzbandwidth Band5323±2<–95dBm@20MHzbandwidth USIM_CLK12 UIMclocksignal. ComplianttotheISO/IEC7816-3 specification(CLK). O 1.8V/3V USIM_DATA10 UIMdatasignal. ComplianttotheISO/IEC7816-3 specification(I/O). I/O 1.8V/3V SMAWAVEConfidential 7ModuleDimensions SMAWAVEConfidential FCCCertificationRequirements. AccordingtothedefinitionofmobileandfixeddeviceisdescribedinPart2.1091(b),this deviceisamobiledevice. Andthefollowingconditionsmustbemet: 1.ThisModularApprovalislimitedtoOEMinstallationformobileandfixedapplicationsonly. Theantennainstallationandoperatingconfigurationsofthistransmitter,includinganyapplicable source-basedtime-averagingdutyfactor,antennagainandcablelossmustsatisfyMPEcategorical ExclusionRequirementsof2.1091. 2.TheEUTisamobiledevice;maintainatleasta20cmseparationbetweentheEUTandthe user’sbodyandmustnottransmitsimultaneouslywithanyotherantennaortransmitter. 3.Alabelwiththefollowingstatementsmustbeattachedtothehostendproduct:Thisdevice containsFCCID:2AU8HMGM5607A. 4.TocomplywithFCCregulationslimitingbothmaximumRFoutputpowerandhuman exposuretoRFradiation,maximumantennagain(includingcableloss)mustnotexceed: ❒<3.18dBi 5.Thismodulemustnottransmitsimultaneouslywithanyotherantennaortransmitter 6.Thehostendproductmustincludeausermanualthatclearlydefinesoperating requirementsandconditionsthatmustbeobservedtoensurecompliancewithcurrentFCCRF exposureguidelines. Forportabledevices,inadditiontotheconditions3through6describedabove,aseparate approvalisrequiredto…

Text truncated - open the document above for the full version.

Cover Letter(s)

ShanghaiSmawaveTechnologyCo.,Ltd OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 Subject;RequestforLongTermConfidentiality FCCID:2AU8HMGM5607A ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,weare requestingtheCommissiontowithholdthefollowingattachment(s)asconfidentialdocumentsfrom publicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredas proprietaryinformationinoperationoftheequipment.Thepublicdisclosureofthesedocuments mightbeharmfultoourcompanyandwouldgivecompetitorsanunfairadvantageinthemarket. SchematicDiagram BlockDiagram PartsList OperationalDescription Tune-upProcedure SoftwareSecurityDescription UNIIdeclarationletter Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatandcorrespondence duringthecertificationreviewprocesscannotbegrantedasconfidentialdocumentsandthis informationwillbeavailableforpublicreviewoncethegrantofequipmentauthorizationisissued. Sincerely, Date:2020-2-13 Signature: Name(inprint):wangfei Company:ShanghaiSmawaveTechnologyCo.,Ltd Adreess:3FBuilding81001NorthQinzhouRoadXuhuiDistrictShanghaiChina

Cover Letter(s)

ShanghaiSmawaveTechnologyCo.,Ltd DeclarationoftheModularApproval Applicant/Grantee ShanghaiSmawaveTechnologyCo.,Ltd FCCID: 2AU8HMGM5607A Model: MGM5607A Thesinglemoduletransmitterhasbeenevaluatedthentestedmeetingthe requirementsunderPart15CSection212asbelow: ModularapprovalrequirementEUTConditionComply (a)Theradioelementsofthemodulartransmittermusthave theirownshielding.Thephysicalcrystalandtuning capacitorsmaybelocatedexternaltotheshieldedradio elements. Theradioelementsofthe modulartransmitterhave theirownshielding. YES (b)Themodulartransmittermusthave bufferedmodulation/datainputs(ifsuchinputsareprovided) toensurethatthemodulewillcomplywithpart15 requirementsunderconditionsofexcessivedataratesor over-modulation. Themodularhasbuffered datainputs,itisintegratedin chip.Pleasesee schematic.pdf YES (c)Themodulartransmittermusthaveits ownpowersupplyregulation. Allpowerlinesderivedfrom thehostdeviceareregulated beforeenergizingother circuitsinternaltothe 2AU8HMGM5607APlease seeschematic.pdf YES (d)Themodulartransmittermustcomply withtheantennaandtransmissionsystemrequirementsof Sections15.203,15.204(b)and15.204(c).Theantennamust eitherbepermanentlyattachedoremploya“unique”antenna coupler(atallconnectionsbetweenthemoduleandthe antenna,includingthecable).The“professionalinstallation” provisionofSection15.203isnotapplicabletomodulesbut canapplytolimitedmodularapprovalsunderparagraph(b)of thissection. Apermanentlyattached antennaoruniqueantenna connectorisnota requirementforlicensed modules. Not Applicable (e)Themodulartransmittermustbetested inastand-aloneconfiguration,i.e.,themodulemustnotbe insideanotherdeviceduringtestingforcompliancewithpart 15requirements.Unlessthetransmittermodulewillbebattery powered,itmustcomplywiththeAClineconducted requirementsfoundinSection15.207.ACorDCpowerlines anddatainput/outputlinesconnectedtothemodulemustnot containferrites,unlesstheywillbemarketedwiththemodule (seeSection15.27(a)).Thelengthoftheselinesshallbethe lengthtypicalofactualuseor,ifthatlengthisunknown,at least10centimeterstoinsurethatthereisnocoupling The2AU8HMGM5607Awas testedinastand‐alone configurationviaaPCMCIA extender.Pleasesee spuriousset‐up YES ShanghaiSmawaveTechnologyCo.,Ltd betweenthecaseofthemoduleandsupportingequipment. Anyaccessories,peripherals,orsupportequipment connectedtothemoduleduringtestingshallbeunmodified andcommerciallyavailable(seeSection15.31(i))mustnotbe insideanotherdeviceduringtesting. (f)Themodulartransmittermustbe equippedwitheitherapermanentlyaffixedlabelormust becapableofelectronicallydisplayingitsFCCidentification number. Thelabelpositionof 2AU8HMGM5607Aisclearly indicated.IftheFCCIDof themodulecannotbeseen whenitisinstalled,thenthe hostlabelmustincludethe text:ContainsFCCID: 2AU8HMGM5607APlease seethelabel.pdf YES (g)Themodulartransmittermustcomply withanyspecificrulesoroperatingrequirementsthat ordinarilyapplytoacompletetransmitterandthe manufacturermustprovideadequateinstructionsalongwith themoduletoexplainanysuchrequirements.Acopyofthese instructionsmustbeincludedintheapplicationfor quipmentauthorizationrequirements,whicharebasedon theintendeduse/configurations. The2AU8HMGM5607Ais compliantwithallapplicable FCCrules.Detailinstructions aregivenintheUserManual. YES (h)Themodulartransmittermustcomply withanyapplicableRFexposurerequirementsinitsfinal configuration. The 2AU8HMGM5607A is approvedtocomplywiththe applicableRFexposure requirement,pleaseseethe MPEevaluationwith20cmas thedistancerestriction. YES Dated 2020/1/23 By: Signature Printedfeiwang Title:ProjectManager Onbehalfof: ShanghaiSmawaveTechnologyCo.,Ltd

Cover Letter(s)

ShanghaiSmawaveTechnologyCo.,Ltd POWEROFATTORNEY DATE:March2,2020 To: FederalCommunicationsCommission, Authorization&EvaluationDivision, 7435OaklandMillsRoad, Columbia,MD21046 We,theundersigned,herebyauthorizeTATechnology(Shanghai)Co.,Ltd./zhaojunllinonour behalf,toapplytoFCConourequipmentforFCCID:2AU8HMGM5607A.Anyandallactscarried outbyTATechnology(Shanghai)Co.,Ltd.onourbehalfshallhavethesameeffectasactsofour ownforthiscertificate. Sincerely, Date:2020-2-13 Signature: Name(inprint):wangfei Company:ShanghaiSmawaveTechnologyCo.,Ltd Adreess:3FBuilding81001NorthQinzhouRoadXuhuiDistrictShanghaiChina

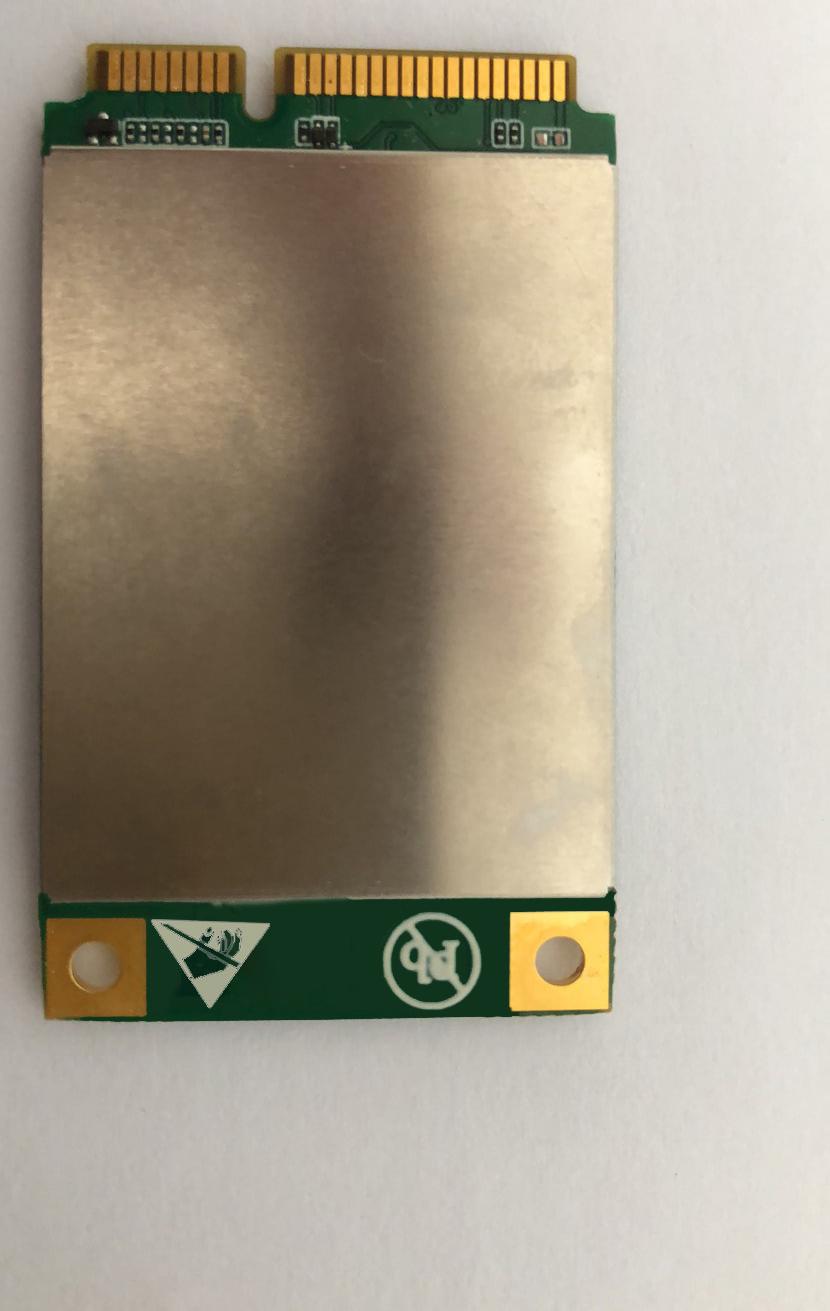

External Photos

MGM5607A

ID Label/Location Info

LabelLocation Company: ShanghaiSmawaveTechnologyCo.,Ltd Model: MGM5607A

Internal Photos

MGM5607A

Internal Photos

EUT Appearance Report No.: R2001A0008 TA Technology (Shanghai) Co., Ltd. Page 1 of 2 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. EUT Appearance EUT Appearance Report No.: R2001A0008 TA Technology (Shanghai) Co., Ltd. Page 2 of 2 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. a: EUT Picture 1: Constituents of EUT

RF Exposure Info

MPE TEST REPORT Applicant Shanghai Smawave Technology Co. ,Ltd FCC ID 2AU8HMGM5607A Product LTE Module Brand Smawave Model MGM5607A Report No. R2001A0008-M1V1 Issue Date March 4, 2020 TA Technology (Shanghai) Co., Ltd. tested the above equipment in accordance with the requirements in FCC 47 CFR Part 1 1.1310. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Performed by: Yu Wang Approved by: Guangchang Fan TA Technology (Shanghai) Co., Ltd. No.145, Jintang Rd, Tangzhen Industry Park, Pudong Shanghai, China TEL: +86-021-50791141/2/3 FAX: +86-021-50791141/2/3-8000 MPE Test Report Report No.: R2001A0008-M1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-01-013S Page 2 of 9 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. Table of Contents 1 Test Laboratory ............................................................................................................................... 3 1.1 Notes of the Test Report ......................................................................................................... 3 1.2. Test facility ............................................................................................................................ 3 1.3 Testing Location ...................................................................................................................... 3 1.4 Laboratory Environment .......................................................................................................... 4 2 Description of Equipment under Test .............................................................................................. 5 3 Maximum conducted output power (measured) and antenna Gain ................................................ 6 4 Test Result ..................................................................................................................................... 7 MPE Test Report Report No.: R2001A0008-M1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-01-013S Page 3 of 9 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. 1 Test Laboratory 1.1 Notes of the Test Report This report shall not be reproduced in full or partial, without the written approval of TA technology (shanghai) co., Ltd.The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein .Measurement Uncertainties were not taken into account and are published for informational purposes only. This report is written to support regulatory compliance of the applicable standards stated above. 1.2. Test facility FCC (Designation number: CN1179, Test Firm Registration Number: 446626) TA Technology (Shanghai) Co., Ltd. has been listed on the US Federal Communications Commission list of test facilities recognized to perform electromagnetic emissions measurements. A2LA (Certificate Number: 3857.01) TA Technology (Shanghai) Co., Ltd. has been listed by American Association for Laboratory Accreditation to perform electromagnetic emission measurement. 1.3 Testing Location Company: TA Technology (Shanghai) Co., Ltd. Address: No.145, Jintang Rd, Tangzhen Industry Park, Pudong Shanghai, China City: Shanghai Post code: 201201 Country: P. R. China Contact: Xu Kai Telephone: +86-021-50791141/2/3 Fax: +86-021-50791141/2/3-8000 Website: http://www.ta-shanghai.com E-mail: [email protected] MPE Test Report Report No.: R2001A0008-M1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-01-013S Page 4 of 9 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. 1.4 Laboratory Environment Temperature Min. = 18C, Max. = 25 C Relative humidity Min. = 30%, Max. = 70% Ground system resistance < 0.5  Ambient noise is checked and found very low and in compliance with requirement of standards. Reflection of surrounding objects is minimized and in compliance with requirement of standards. Note: This revised report (Report No.: R2001A0008-M1V1) supersedes and replaces the previously issued report (Report No.: R2001A0008-M1). Please discard or destroy the previously issued report and dispose of it accordingly. MPE Test Report Report No.: R2001A0008-M1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-01-013S Page 5 of 9 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. 2 Description of Equipment under Test Client Information Applicant Shanghai Smawave Technology Co. ,Ltd Applicant address 3/F, Building 8, 1001 North Qinzhou Road,Xuhui District, Shanghai, China Manufacturer Shanghai Smawave Technology Co. ,Ltd Manufacturer address 3/F, Building 8, 1001 North Qinzhou Road,Xuhui District, Shanghai, China General Technologies Model MGM5607A IMEI 123456798213142 Hardware Version V1.0 Software Version MG56_V1.0.0 Date of Testing: January 6, 2020 ~ February 26, 2020 Note: 1. The EUT is sent from the applicant to TA and the information of the EUT is declared by the applicant. 2. All indications of Pass/Fail in this report are opinions expressed by TA Technology (Shanghai) Co., Ltd. based on interpretations and/or observations of test results. Measurement Uncertainties were not taken into account and are published for informational purposes only. MPE Test Report Report No.: R2001A0008-M1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-01-013S Page 6 of 9 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. 3 Maximum conducted output power (measured) and antenna Gain The numeric gain (G) of the antenna with a gain specified in dB is determined by Numeric gain (G)=10^(antenna gain/10) Band Turn up (dBm) Antenna Gain (dBi) Numeric gain (dBm) (mW) LTE Band 41 23.00 199.53 3.18 2.08 LTE Band 43 23.00 199.53 3.18 2.08 LTE Band 48 23.00 199.53 3.18 2.08 LTE …

Text truncated - open the document above for the full version.

Test Report

RF TEST REPORT Applicant Shanghai Smawave Technology Co. ,Ltd FCC ID 2AU8HMGM5607A Product LTE Module Brand Smawave Model MGM5607A Report No. R2001A0008-R1V1 Issue Date March 4, 2020 TA Technology (Shanghai) Co., Ltd. tested the above equipment in accordance with the requirements in FCC CFR47 Part 2 (2019)/ FCC CFR47 Part 27C (2019). The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Performed by: Peng Tao Approved by: Kai Xu TA Technology (Shanghai) Co., Ltd. No.145, Jintang Rd, Tangzhen Industry Park, Pudong Shanghai, China TEL: +86‐021‐50791141/2/3 FAX: +86‐021‐50791141/2/3‐8000 RF Test Report Report No.: R2001A0008-R1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003R Page 2 of 51 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. TABLE OF CONTENT 1 Test Laboratory ............................................................................................................................ 4 1.1 Notes of the Test Report ......................................................................................................... 4 1.2. Test facility ............................................................................................................................ 4 1.3 Testing Location ...................................................................................................................... 4 2 General Description of Equipment under Test .......................................................................... 5 2.1 Applicant and Manufacturer Information.................................................................................. 5 2.2 General information ................................................................................................................. 5 3 Applied Standards ........................................................................................................................ 6 4 Test Configuration ........................................................................................................................ 7 5 Test Case Results ......................................................................................................................... 8 5.1 RF Power Output and Effective Isotropic Radiated Power ...................................................... 8 5.2 Occupied Bandwidth ............................................................................................................. 21 5.3 Band Edge Compliance ........................................................................................................ 29 5.4 Peak-to-Average Power Ratio (PAPR) .................................................................................. 39 5.5 Frequency Stability ................................................................................................................ 41 5.6 Spurious Emissions at Antenna Terminals ............................................................................ 44 5.7 Radiates Spurious Emission ................................................................................................. 47 6 Main Test Instruments ................................................................................................................ 51 RF Test Report Report No.: R2001A0008-R1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003R Page 3 of 51 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. Summary of Measurement Results Number Test Case Clause in FCC rules Verdict 1 RF Power Output and Effective Isotropic Radiated Power 2.1046 PASS 2 Occupied Bandwidth 2.1049 PASS 3 Band Edge Compliance 27.53(m) PASS 4 Peak-to-Average Power Ratio 27.50(d)/KDB971168 D01(5.7) PASS 5 Frequency Stability 2.1055 / 27.54 PASS 6 Spurious Emissions at Antenna Terminals 2.1051 27.53(m) PASS 7 Radiates Spurious Emission 2.1053 /27.53(m) PASS Date of Testing: January 6, 2020 ~ February 26, 2020 Note: PASS: The EUT complies with the essential requirements in the standard. FAIL: The EUT does not comply with the essential requirements in the standard. All indications of Pass/Fail in this report are opinions expressed by TA Technology (Shanghai) Co., Ltd. based on interpretations and/or observations of test results. Measurement Uncertainties were not taken into account and are published for informational purposes only. Note: This revised report (Report No.: R2001A0008-R1V1) supersedes and replaces the previously issued report (Report No.: R2001A0008-R1). Please discard or destroy the previously issued report and dispose of it accordingly. RF Test Report Report No.: R2001A0008-R1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003R Page 4 of 51 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. 1 Test Laboratory 1.1 Notes of the Test Report This report shall not be reproduced in full or partial, without the written approval of TA technology (shanghai) co., Ltd. The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein .Measurement Uncertainties were not taken into account and are published for informational purposes only. This report is written to support regulatory compliance of the applicable standards stated above. 1.2. Test facility FCC (Designation number: CN1179, Test Firm Registration Number: 446626) TA Technology (Shanghai) Co., Ltd. has been listed on the US Federal Communications Commission list of test facilities recognized to perform electromagnetic emissions measurements. A2LA (Certificate Number: 3857.01) TA Technology (Shanghai) Co., Ltd. has been listed by American Association for Laboratory Accreditation to perform electromagnetic emission measurement. 1.3 Testing Location Company: TA Technology (Shanghai) Co., Ltd. Address: No.145, Jintan…

Text truncated - open the document above for the full version.

Test Report

RF TEST REPORT Applicant Shanghai Smawave Technology Co. ,Ltd FCC ID 2AU8HMGM5607A Product LTE Module Brand Smawave Model MGM5607A Report No. R2001A0008-R2V1 Issue Date March 4, 2020 TA Technology (Shanghai) Co., Ltd. tested the above equipment in accordance with the requirements in FCC CFR47 Part 2 (2018)/ FCC CFR 47 Part 25 (2019). The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Performed by: Peng Tao Approved by: Kai Xu TA Technology (Shanghai) Co., Ltd. No.145, Jintang Rd, Tangzhen Industry Park, Pudong Shanghai, China TEL: +86‐021‐50791141/2/3 FAX: +86‐021‐50791141/2/3‐8000 RF Test Report Report No.: R2001A0008-R2V1 TA Technology (Shanghai) Co., Ltd. TA-MB-01-014R Page 2 of 61 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. TABLE OF CONTENT 1.Test Laboratory ...................................................................................................................................... 4 1.1.Notes of the test report .................................................................................................................. 4 1.2.Test facility ..................................................................................................................................... 4 1.3.Testing Location ............................................................................................................................ 4 1.General Description of Equipment under Test ....................................................................................... 5 1.3.Applicant and Manufacturer Information ....................................................................................... 5 1.4.General information ....................................................................................................................... 5 2.Applied Standards .................................................................................................................................. 6 3.Test Configuration .................................................................................................................................. 7 4.Test Case Results .................................................................................................................................. 8 4.3.RF Power Output and Effective Radiated Power .......................................................................... 8 4.4.Occupied Bandwidth ................................................................................................................... 16 4.5.Power Spectral Density ............................................................................................................... 24 4.6.Band Edge Compliance ............................................................................................................... 33 4.7.Peak-to-Average Power Ratio (PAPR) ....................................................................................... 42 4.8.Frequency Stability ...................................................................................................................... 44 4.9.Spurious Emissions at Antenna Terminals ................................................................................. 47 4.10.Radiates Spurious Emission .................................................................................................... 56 5.Main Test Instruments ......................................................................................................................... 61 RF Test Report Report No.: R2001A0008-R2V1 TA Technology (Shanghai) Co., Ltd. TA-MB-01-014R Page 3 of 61 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. Summary of measurement results No. Test Case Clause in FCC rules Verdict 1 RF power output and Effective Radiated Power 25.149 (4) (iii) PASS 2 Occupied Bandwidth 2.1049 PASS 3 Band Edge Compliance 25.149 (4) (v) PASS 4 Peak-to-Average Power Ratio 25.144 (7) (ii) PASS 5 Frequency Stability 2.1055 PASS 6 Spurious Emissions at Antenna Terminals 2.1051 / 25.202 (11) (fi) PASS 7 Radiates Spurious Emission 2.1053 PASS Date of Testing: January 6, 2020 ~ February 26, 2020 Note: PASS: The EUT complies with the essential requirements in the standard. FAIL: The EUT does not comply with the essential requirements in the standard. All indications of Pass/Fail in this report are opinions expressed by TA Technology (Shanghai) Co., Ltd. based on interpretations and/or observations of test results. Measurement Uncertainties were not taken into account and are published for informational purposes only. Note: This revised report (Report No.: R2001A0008-R2V1) supersedes and replaces the previously issued report (Report No.: R2001A0008-R2). Please discard or destroy the previously issued report and dispose of it accordingly. RF Test Report Report No.: R2001A0008-R2V1 TA Technology (Shanghai) Co., Ltd. TA-MB-01-014R Page 4 of 61 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. 1. Test Laboratory 1.1. Notes of the test report This report shall not be reproduced in full or partial, without the written approval of TA technology (shanghai) co., Ltd. The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. Measurement Uncertainties were not taken into account and are published for informational purposes only. This report is written to support regulatory compliance of the applicable standards stated above. 1.2. Test facility FCC (Designation number: CN1179, Test Firm Registration Number: 446626) TA Technology (Shanghai) Co., Ltd. has been listed on the US Federal Communications Commission list of test facilities recognized to perform electromagne…

Text truncated - open the document above for the full version.

Test Report

TA Technology (Shanghai) Co., Ltd. Page 1 of 85 Thi…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Aliy Yang(Certification engineer)
[email protected]15821213572Fax: 021-54566711

Test Firm

TA Technology (Shanghai) Co., Ltd.Mr. Zhihui Liu
[email protected]86-21-50791141

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
16252.49 GHz - 2.49 GHz159.00 mW9M05W7D0.00904 ppm
Modular Type
Single Modular Approval
Confidentiality
Long Term
Grant Notes
Single Modular Approval. Power listed is conducted. The module antenna must be installed to meet the RF exposure compliance separation distance of 20 cm and any additional testing and authorization process as required. Co-location of this module with other transmitters that operate simultaneously is required to be evaluated using the FCC multi-transmitter procedures. OEM integrators and end-Users must be provided with transmitter operating conditions for satisfying RF exposure compliance. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device. Separate approval is required for all other operating configurations, including portable configurations with respect to 2.1093 and different antenna configurations. This device contains functions that are not operational in U.S. Territories. This filing is only applicable for U.S. operations. This device supports LTE of 1.4, 3, 5 and 10 MHz bandwidth modes for Band 53; and LTE of 5, 10, 15 and 20 MHz bandwidth modes for Bands 41 and 43.
