LTE Indoor CPE SRT421 Quick Start Guide Introduction Panel of Device I/O Panel of Router 1 LED Panel of Router Packing List Make sure you have everything you need to properly configure the device. If you want to remove the SIM card, please lightly press the SIM card, the SIM card will pop out. Make sure the CPE is turned off before you insert or remove your SIM card. Otherwise, the CPE and SIM card may be damaged. IDUEthernet cable 2 How does it Work Configure Hardware Insert SIM Card 3 4 LED Indicators When set up the CP860, you will see the following LED indicators: Power supply Please insert your SIM card (3FF) as following: The figure is just for reference only, please connect according to your requirements. Step 1 Connect the supplied power adapter to the CPE. You can connect your laptop via Wi-Fi. You can connect your telephone via TEL port. Step 2 Connect other devices. POWER SIGNAL IndicatorStatusDescription Steady on Off Off Off Power On No Power Supply INTERNET Steady onInternet Available Internet Unavailable Blinking (500ms interval) WiFi Steady onWiFi Available WiFi unavailable Steady on OffNo Signal Searching network of LTE Blinking one by oneFirmware upgrade VOICE Off Steady onVOICE Available VOICE Unavailable 5 Configure The CPE Login to the Website Use a browser to access the management web page to configure and manage the CPE. The following procedure describes how to use a computer running Windows 7 or above version and Internet Explorer to connect to the CPE webpage. Connect the CPE correctly. Start Internet Explorer, go to http://192.168.1.1 in the address bar, and press Enter. Enter the user name (admin) and password (admin), and click Log In. You can connect to the management web page after the password is verified. Step 1 Step 2 Step 3 When you are using the CPE, you can adjust the position and direction of CPE to get stronger LTE signal, you can judge from the LTE signal LED indicators. You can connect your computer or classic Switch via Ethernet cable to LAN port. Display the current LTE network signal, the stronger signal, the more bars on LTE BTS Wi-Fi 11 a/b/g/n/ac Indoor CPE Power Adapter The SRT421 is a premium indoor LTE CPE, designed for 802.11a/b/ g/n/ac dual band Wi-Fi access. The product provides optimized high throughput data and a wide area coverage network for residential, commercial and enterprise users, supporting multiple services. Customers enjoy reliable dual-band Wi-Fi AP functions, broadband access and hot-spot Wi-Fi connections with the SRT421. 678 Configuration of LTE Step 1 Connect the CPE correctly. Step 2 Enter the management website. Step 3 Choose Settings Network LTE Settings. Step 4 Set the connection mode and scan mode. The default setting is automatically connection and full band scanning,if you want to connect the LTE network according to your needs,you can set the connection mode as manual,and simply scan a specified band. Connect the CPE correctly. Enter the management website. Choose Settings Wi-Fi WLAN Settings. In the General Settings, set Wi-Fi Enable or enable Wi-Fi with the Wi-Fi button. In the Setting, change the SSID, such as "LTE-Router" To ensure data security, it is recommended that you change the Wi-Fi password by default. Click Submit to save the settings. Configuration of Wi-Fi Troubleshooting Make sure that the CPE is started. Verify that the CPE is correctly connected to the computer through Wi-Fi or a network cable. Check that the power adapter is connected properly. Check that the CPE is placed in an open area that is far away from obstructions, such as concrete or wooden walls. Check that the CPE is placed far away from household electrical appliances that generate strong electromagnetic field, such as micro- wave ovens, refrigerators, and satellite dishes. The CPE will be overheated after being used for a long time. There- fore, power off the CPE when you are not using it. Check that the CPE is properly ventilated and shielded from direct sunlight. Fails to login the web management page. Make sure that the power cable is connected properly and the CPE is powered on. Make sure that the power adapter is compatible with the CPE. The POWER indicator does not turn on. The CPE fails to search for the wireless network. The power adapter of the CPE is overheated. If the CPE is powered off unexpectedly while being configured, the parameters may be restored to the default settings. After configuring the parameters, download the configuration file to quickly restore the CPE to the desired settings. The parameters are restored to default values. Some features of the product and its accessories described herein rely on the software installed, capacities and settings of local network, and may not be activated or may be limited by local network operators or network service providers, thus the descriptions herein may not exactly match the product or its accessories you purchase. We reserves the right to change or modify any information or specifica- tions contained in this manual without prior notice or obligation. Notice Step 1 Step 2 Step 3 Step 4 Step 5 Step 6 Step 7 If the problem persists,please contact authorized local service suppliers. This product has reached the standard of shipment inspection. FCC Regulations: § 15.19 (a)(3) This mobile MIFI complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation § 15.21 Changes or modifications not expressly approved by the party responsi- ble for compliance could void the user ‘s authority to operate the equip- ment. § 15.105 (b) This mobile phone has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installati…

Text truncated - open the document above for the full version.

Smawave Technology Co. ,Ltd 3/F, Building 8, 1001 North Qinzhou Road，Xuhui District, Shanghai, China Statement Product Name: LTE Indoor CPE Model Number: SRT421 Hardware Version: V1.0 Software Version: ST_CBRS_V2.0.0 Change LTE 48 gain based on original project Frequency Range original project new project FCC ID: 2AU8HSRT421 FCC ID: 2AU8HSRT421-CBRS LTE Band 48: 5.00dBi 6.55 dBi LTE Band 41 Support Software disable Add without voice interface product based on original project The Products with or without voice interface are the same except for the voice interface. The version without voice is realized by removing voice components, no influence on RF performance. The test strategy reference is as follows: Standard Remark Part 15B Full Test Part 15C Check Power/AC Power Line/RSE worse data Other items original report SZCR210402049802 Part 15E Check Power/AC Power Line/RSE worse data Other items original report SZCR210402049803 Part 96 & WINNF-TS-0122 Full Test Part 2.1091 Reassessment Your assistance on this matter is highly appreciated. Smawave Technology Co. ,Ltd Printed Name: Leven Liang Position：Certification engineer

Smawave Technology Co. ,Ltd 3/F, Building 8, 1001 North Qinzhou Road，Xuhui District, Shanghai, China Date: December 20, 2022 Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Request for Confidentiality FCC ID: 2AU8HSRT421-CBRS To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely. ⚫ Schematic Diagram ⚫ Block Diagram ⚫ Part List ⚫ Operational Description ⚫ Tune-up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’ s policy, in order to comply with the marketing regulations in 47 CFT §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachment(s) for 180 days after the grant as outlined in Public Notice DA 04-1705. ⚫ External Photos ⚫ Internal Photos ⚫ Test Setup Photos ⚫ User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards, Smawave Technology Co. ,Ltd Printed Name: Leven Liang Position：Certification engineer

RF_160, Issue 04 Smawave Technology Co. ,Ltd Declaration of Authorization We Name: Smawave Technology Co. ,Ltd Address: 3/F, Building 8, 1001 North Qinzhou Road，Xuhui District, Shanghai, China City: Shanghai Country: China Declare that: Name Representative of agent: Well Wei Agent Company name: SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd Address: South of No. 6 Plant, No. 1, Runsheng Road, Suzhou Industrial Park, Suzhou Area, China (Jiangsu) Pilot Free Trade Zone City: Suzhou Country China is authorized to apply for Certification of the following product(s): Product description: LTE Indoor CPE Type designation: SRT421 FCC ID: 2AU8HSRT421-CBRS on our behalf. Sincerely yours, Smawave Technology Co. ,Ltd Printed Name: Leven Liang Position：Certification engineer Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

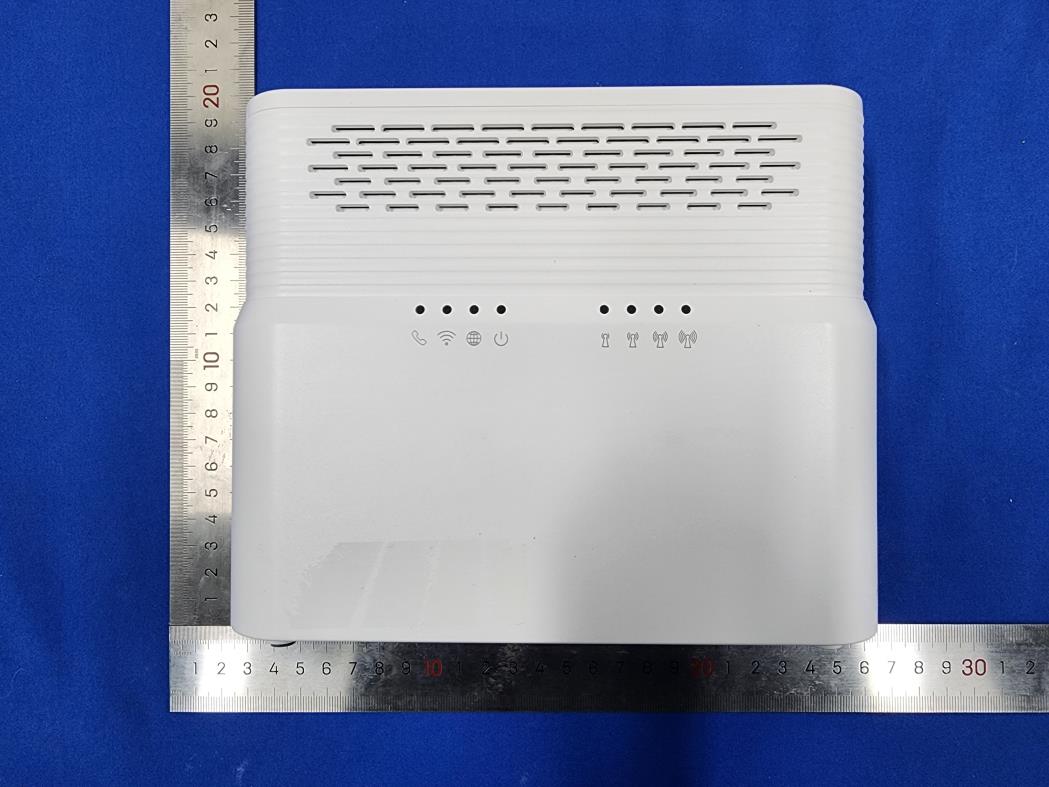

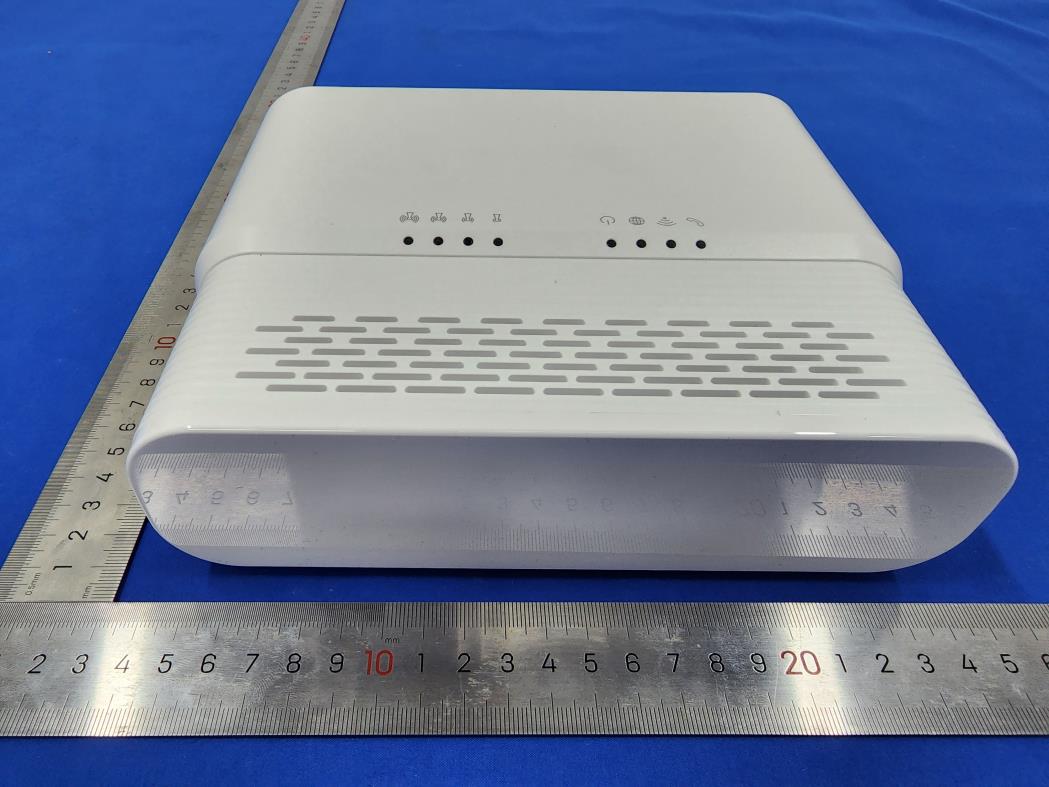

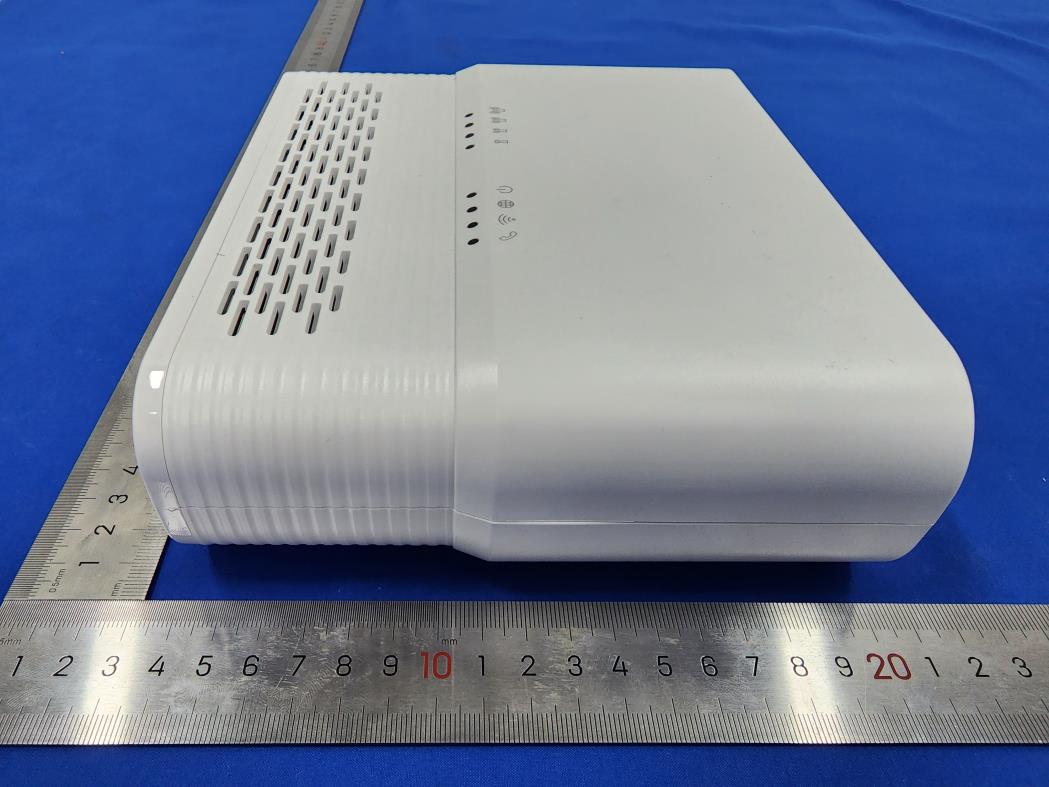

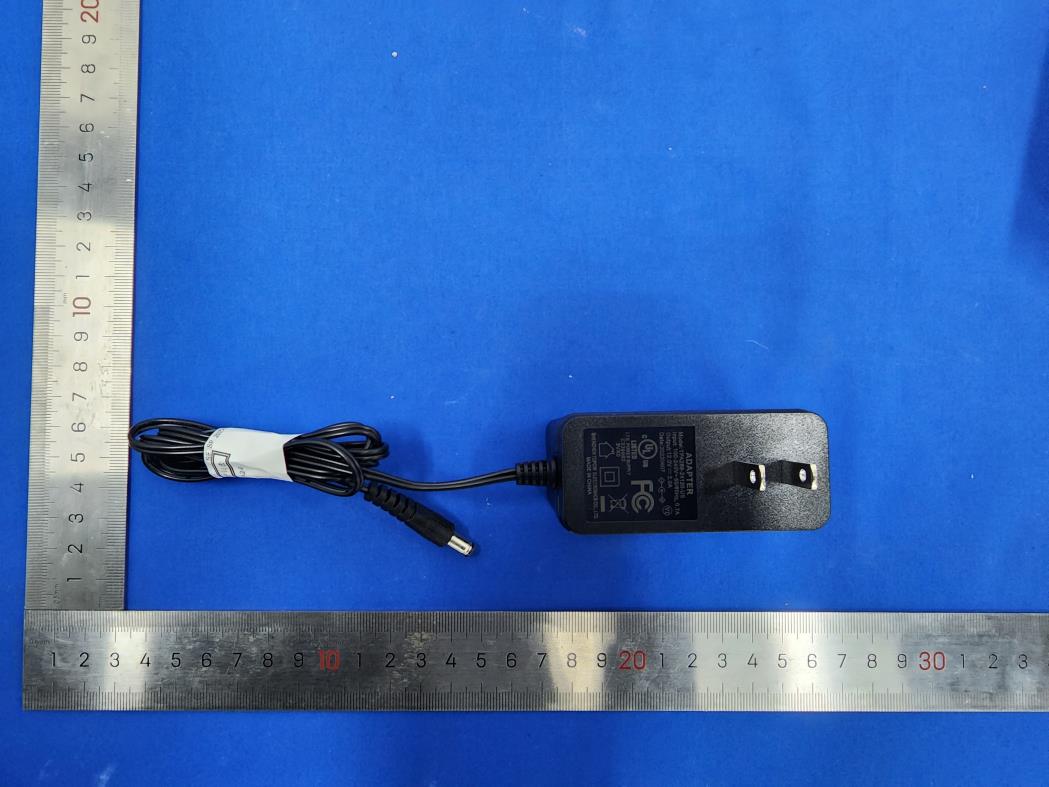

Page 1 of 5 1 Photographs - EUT Constructional Details Model No.(EUT): SRT421 FCC ID: 2AU8HSRT421-CBRS Page 2 of 5 Page 3 of 5 Page 4 of 5 Page 5 of 5

IDU label Size69.8x39.8mm QTY1pcs label location

Page 1 of 4 1 Photographs - EUT Constructional Details Model No.(EUT): SRT421 FCC ID: 2AU8HSRT421-CBRS ANT location Page 2 of 4 Page 3 of 4 Page 4 of 4

` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWM2211000238RG04 Rev.: 01 Page: 1 of 8 Authorized Signature: Panta Sun Wireless Laboratory Manager TEST REPORT Application No.: SEWM2211000238RG Applicant: Smawave Technology Co. ,Ltd Address of Applicant: 3/F, Building 8, 1001 North Qinzhou Road，Xuhui District, Shanghai, China Manufacturer: Smawave Technology Co. ,Ltd Address of Manufacturer: 3/F, Building 8, 1001 North Qinzhou Road，Xuhui District, Shanghai, China EUT Description: LTE Indoor CPE Model No.: SRT421 Trade Mark: Smawave FCC ID: 2AU8HSRT421-CBRS Standards: 47 CFR Part 2.1091 FCC KDB 447498 D01 v06 Date of Receipt: 2022/11/09 Date of Issue: 2022/11/29 Test Result: PASS* * In the configuration tested, the EUT complied with the standards specified above. ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWM2211000238RG04 Rev.: 01 Page: 2 of 8 1 Version Revision Record Version Chapter Date Modifier Remark 01 2022/11/29 Original Prepared By (Weller Liu) / Test Engineer Checked By (Well Wei) / Reviewer ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWM2211000238RG04 Rev.: 01 Page: 3 of 8 Contents 1 Version ......................................................................................................................... 2 2 General Information ...................................................................................................... 4 2.1 Client Information .................................................................................................. 4 2.2 Test Facility ........................................................................................................... 4 2.3 General Description of EUT ................................................................................... 5 3 RF Exposure Evaluation ............................................................................................... 6 3.1 RF Exposure Compliance Requirement ................................................................ 6 3.1.1 Limits ................................................................................................................. 6 3.1.2 Test Procedure .................................................................................................. 7 3.1.3 EUT RF Exposure Evaluation ............................................................................ 7 3.1.4 Exposure calculations for multiple sources ........................................................ 8 ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWM2211000238RG04 Rev.: 01 Page: 4 of 8 2 General Information 2.1 Client Information Applicant: Smawave Technology Co. ,Ltd Address of Applicant: 3/F, Building 8, 1001 North Qinzhou Road，Xuhui District, Shanghai, China Manufacturer: Smawave Technology Co. ,Ltd Address of Manufacturer: 3/F, Building 8, 1001 North Qinzhou Road，Xuhui District, Shanghai, China 2.2 Test Facility The test facility is recognized, certified, or accredited by the following organizations: • A2LA (Certificate No. 6336.01) SGS-CSTC STANDARDS TECHNICAL SERVICES (SUZHOU) CO., LTD. is accredited by the American Association for Laboratory Accreditation(A2LA). Certificate No. 6336.01. • Innovation, Science and Economic Development Canada SGS-CSTC STANDARDS TECHNICAL SERVICES (SUZHOU) CO., LTD. has been recognized by ISED as an accredited testing laboratory. CAB identifier: CN0120. IC#: 27594. • FCC –Designation Number: CN1312 SGS-CSTC STANDARDS TECHNICAL SERVICES (SUZHOU) CO., LTD. has been recognized as an accredited testing laboratory. Designation Number: CN1312. Test Firm Registration Number: 717327 ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWM2211000238RG04 Rev.: 01 Page: 5 of 8 2.3 General Description of EUT EUT Description: LTE Indoor CPE Model No.: SRT421 Trade Mark: Smawave Hardware Version: V1.0 Software Version: ST_CBRS_V2.0.0 Antenna Type: Internal Antenna Antenna Gain: LTE Band 48: 7.40dBi (Ant1);5.50dBi (Ant4) Directional Gain:6.55dBi 2.4GWIFI: 2.27dBi (Ant0);1.82dBi (Ant1) Directional Gain:5.05dBi 5G WIFI : 2.52dBi (Ant0);3.14dBi (Ant1) Directional Gain:5.85dBi Note: The antenna gain are derived from the gain information report provided by the manufacturer. Remark: As above information is provided and confirmed by the applicant. SGS is not liable to the accuracy, suitability, reliability or/and integrity of the information. ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWM2211000238RG04 Rev.: 01 Page: 6 of 8 3 RF Exposure Evaluation 3.1 RF Exposure Compliance Requirement 3.1.1 Limits Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm2) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3-3.0 614 1.63 *(100) 6 3.0-30 1842/f 4.89/f *(900/f2) 6 30-300 61.4 0.163 1.0 6 300-1500 / / f/300 6 1500-100,000 / / 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f2) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 F=frequency in MHz *=Plane-wave equivalent power density RF exposure compliance will need to be determined with respect to 1.1307(c) and (d) of the FCC rules. The emissions should be within the limits at 300kHz in Table 1 of 1.1310(use the 300kHz limits for 150kHz:614V/m,1.63A/m). Friis Formula Friis transmission formula: Pd = (Pout*G)/(4* Pi * R 2 ) Where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWM2211000238RG04 Rev.: 01 Page: 7 of …

Text truncated - open the document above for the full version.

Document No: BL-EC22B1001 Page 1 of 9 A.7 Field Strength of Spurious Radiation Document No: BL-EC22B1001 Page 2 of 9 LTE 1 LTE Band 48 1.1 LTE Band 48 BW5, Middle Channel RSE-H&H LTE Band 48 BW5 CH55990 Frequency (MHz) Result (dBm) Factor (dB) PK Limit (dBm) Over Limit (dB) Table (o) ANT EUT Verdict 65.114 -64.93 -17.76 -40.0 24.93 166.00 Horizontal Horizontal Pass 1916.600 -55.91 -3.45 -40.0 15.91 1.00 Horizontal Horizontal Pass 2973.600 -49.04 6.62 -40.0 9.04 340.00 Horizontal Horizontal Pass 3490.000 -50.19 13.18 -40.0 10.19 154.00 Horizontal Horizontal Pass 7054.750 -46.32 22.90 -40.0 6.32 360.00 Horizontal Horizontal Pass 13395.750 -53.54 16.97 -40.0 13.54 3.00 Horizontal Horizontal Pass Document No: BL-EC22B1001 Page 3 of 9 RSE-V&H LTE Band 48 BW5 CH55990 Frequency (MHz) Result (dBm) Factor (dB) PK Limit (dBm) Over Limit (dB) Table (o) ANT EUT Verdict 65.162 -58.20 -17.78 -40.0 18.20 102.00 Vertical Horizontal Pass 1636.200 -56.95 -3.99 -40.0 16.95 1.00 Vertical Horizontal Pass 2960.600 -48.68 6.14 -40.0 8.68 32.00 Vertical Horizontal Pass 3622.750 -43.95 14.02 -40.0 3.95 290.00 Vertical Horizontal N/A 7223.000 -46.48 22.47 -40.0 6.48 109.00 Vertical Horizontal Pass 13387.875 -52.72 16.90 -40.0 12.72 271.00 Vertical Horizontal Pass Document No: BL-EC22B1001 Page 4 of 9 1.2 LTE Band 48 BW10, Middle Channel RSE-H&H LTE Band 48 BW10 CH55990 Frequency (MHz) Result (dBm) Factor (dB) PK Limit (dBm) Over Limit (dB) Table (o) ANT EUT Verdict 65.114 -65.30 -17.76 -40.0 25.30 172.00 Horizontal Horizontal Pass 1390.100 -55.95 -4.62 -40.0 15.95 178.00 Horizontal Horizontal Pass 2981.100 -48.53 6.25 -40.0 8.53 1.00 Horizontal Horizontal Pass 3490.000 -47.97 13.18 -40.0 7.97 301.00 Horizontal Horizontal Pass 6698.500 -46.24 23.26 -40.0 6.24 187.00 Horizontal Horizontal Pass 13796.325 -53.31 16.76 -40.0 13.31 246.00 Horizontal Horizontal Pass Document No: BL-EC22B1001 Page 5 of 9 RSE-V&H LTE Band 48 BW10 CH55990 Frequency (MHz) Result (dBm) Factor (dB) PK Limit (dBm) Over Limit (dB) Table (o) ANT EUT Verdict 64.920 -58.11 -17.66 -40.0 18.11 86.00 Vertical Horizontal Pass 1560.500 -56.04 -3.79 -40.0 16.04 1.00 Vertical Horizontal Pass 2968.600 -48.73 6.45 -40.0 8.73 295.00 Vertical Horizontal Pass 3620.500 -43.20 14.00 -40.0 3.20 305.00 Vertical Horizontal N/A 6639.500 -46.36 23.35 -40.0 6.36 124.00 Vertical Horizontal Pass 13395.488 -53.17 16.97 -40.0 13.17 51.00 Vertical Horizontal Pass Document No: BL-EC22B1001 Page 6 of 9 1.3 LTE Band 48 BW15, Middle Channel RSE-H&H LTE Band 48 BW15 CH55990 Frequency (MHz) Result (dBm) Factor (dB) PK Limit (dBm) Over Limit (dB) Table (o) ANT EUT Verdict 61.719 -65.83 -16.92 -40.0 25.83 160.00 Horizontal Horizontal Pass 1303.400 -56.52 -4.44 -40.0 16.52 294.00 Horizontal Horizontal Pass 2077.000 -52.75 -0.67 -40.0 12.75 360.00 Horizontal Horizontal Pass 3490.000 -50.63 13.18 -40.0 10.63 314.00 Horizontal Horizontal Pass 7238.500 -46.01 22.92 -40.0 6.01 360.00 Horizontal Horizontal Pass 13375.013 -52.87 16.78 -40.0 12.87 3.00 Horizontal Horizontal Pass Document No: BL-EC22B1001 Page 7 of 9 RSE-V&H LTE Band 48 BW15 CH55990 Frequency (MHz) Result (dBm) Factor (dB) PK Limit (dBm) Over Limit (dB) Table (o) ANT EUT Verdict 64.726 -57.82 -17.56 -40.0 17.82 121.00 Vertical Horizontal Pass 1558.000 -56.48 -3.99 -40.0 16.48 1.00 Vertical Horizontal Pass 2980.000 -48.47 6.36 -40.0 8.47 4.00 Vertical Horizontal Pass 3618.250 -43.94 13.98 -40.0 3.94 324.00 Vertical Horizontal N/A 7053.000 -46.08 23.30 -40.0 6.08 152.00 Vertical Horizontal Pass 13347.188 -52.96 16.43 -40.0 12.96 360.00 Vertical Horizontal Pass Document No: BL-EC22B1001 Page 8 of 9 1.4 LTE Band 48 BW20, Middle Channel RSE-H&H LTE Band 48 BW20 CH55990 Frequency (MHz) Result (dBm) Factor (dB) PK Limit (dBm) Over Limit (dB) Table (o) ANT EUT Verdict 1204.300 -57.52 -4.77 -40.0 17.52 143.00 Horizontal Horizontal Pass 2967.100 -48.62 6.32 -40.0 8.62 360.00 Horizontal Horizontal Pass 3490.000 -52.95 13.18 -40.0 12.95 219.00 Horizontal Horizontal Pass 4907.500 -51.48 17.73 -40.0 11.48 145.00 Horizontal Horizontal Pass 7250.000 -45.58 23.26 -40.0 5.58 37.00 Horizontal Horizontal Pass 13377.375 -53.36 16.80 -40.0 13.36 256.00 Horizontal Horizontal Pass Document No: BL-EC22B1001 Page 9 of 9 RSE-V&H LTE Band 48 BW20 CH55990 Frequency (MHz) Result (dBm) Factor (dB) PK Limit (dBm) Over Limit (dB) Table (o) ANT EUT Verdict 64.774 -58.58 -17.58 -40.0 18.58 96.00 Vertical Horizontal Pass 1646.200 -56.56 -3.93 -40.0 16.56 346.00 Vertical Horizontal Pass 2994.900 -48.53 6.02 -40.0 8.53 25.00 Vertical Horizontal Pass 3490.000 -47.81 13.18 -40.0 7.81 73.00 Vertical Horizontal Pass 6672.750 -46.43 22.61 -40.0 6.43 204.00 Vertical Horizontal Pass 13365.300 -52.91 16.68 -40.0 12.91 65.00 Vertical Horizontal Pass

Report No.: BL-EC22B1001-501 Tel: +86-755-66850100 E-mail: [email protected] Page No. 1 / 41 Web: www.titcgroup.com Template No.: TRP-FCC-ISED (2022-01-12) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China TEST REPORT Applicant: Smawave Technology Co., Ltd Address: 3/F, Building 8, 1001 North Qinzhou Road, Xuhui District, Shanghai, China Equipment Type: LTE Indoor CPE Model Name: SRT421 Brand Name: N/A FCC ID: 2AU8HSRT421-CBRS Test Standard: 47 CFR Part 2 (Others refer to chapter 3.1) Sample Arrival Date: Nov. 28, 2022 Test Date Nov. 28, 2022 - Nov. 29, 2022 Date of Issue: Dec. 06, 2022 ISSUED BY: Shenzhen BALUN Technology Co., Ltd. Tested by: Huang Jiaquan Checked by: Wu Huihui Approved by: Wei Yanquan Chief Engineer _______________ _______________ _______________ Report No.: BL-EC22B1001-501 Tel: +86-755-66850100 E-mail: [email protected] Page No. 2 / 41 Web: www.titcgroup.com Template No.: TRP-FCC-ISED (2022-01-12) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China Revision History Version Issue Date Revisions Content Rev. 01 Dec. 06, 2022 Initial Issue TABLE OF CONTENTS 1 GENERAL INFORMATION ........................................................................................................ 4 1.1 Test Laboratory ................................................................................................................... 4 1.2 Test Location ....................................................................................................................... 4 2 PRODUCT INFORMATION ....................................................................................................... 5 2.1 Applicant Information ........................................................................................................... 5 2.2 Manufacturer Information .................................................................................................... 5 2.3 Factory Information ............................................................................................................. 5 2.4 General Description for Equipment under Test (EUT) ......................................................... 5 2.5 Technical Information .......................................................................................................... 6 3 SUMMARY OF TEST RESULTS ............................................................................................... 7 3.1 Test Standards .................................................................................................................... 7 3.2 Test Verdict ......................................................................................................................... 8 4 GENERAL TEST CONFIGURATIONS ...................................................................................... 9 4.1 Test Environments .............................................................................................................. 9 4.2 Test Equipment List ............................................................................................................. 9 4.3 Test Configurations ........................................................................................................... 10 4.4 Test Setup ......................................................................................................................... 11 5 TEST ITEMS ........................................................................................................................... 13 5.1 Transmitter Radiated Power (EIRP/ERP) .......................................................................... 13 5.2 Peak to Average Ratio....................................................................................................... 17 5.3 Occupied Bandwidth ......................................................................................................... 19 5.4 Frequency Stability ............................................................................................................ 21 5.5 Spurious Emission at Antenna Terminals .......................................................................... 23 5.6 Band Edge ........................................................................................................................ 28 5.7 Field Strength of Spurious Radiation ................................................................................. 33 Report No.: BL-EC22B1001-501 Tel: +86-755-66850100 E-mail: [email protected] Page No. 3 / 41 Web: www.titcgroup.com Template No.: TRP-FCC-ISED (2022-01-12) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 5.8 End user device additional requirements ........................................................................... 38 ANNEX A TEST RESULTS ......................................................................................................... 39 A.1 Field Strength of Spurious Radiation ................................................................................. 39 ANNEX B TEST SETUP PHOTOS ............................................................................................. 40 ANNEX C EUT EXTERNAL PHOTOS ......................................................................................... 40 ANNEX D EUT INTERNAL PHOTOS .......................................................................................... 40 Report No.: BL-EC22B1001-501 Tel: +86-755-66850100 E-mail: [email protected] Page No. 4 / 41 Web: www.titcgroup.com Template No.: TRP-FCC-ISED (2022-01-12) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 1 GENERAL INFORMATION 1.1 Test Laboratory Name Shenzhen BALUN Technology Co., Ltd. Address Block B, 1/F, Baisha Science and Technology Park…

Text truncated - open the document above for the full version.

TEL: 886-3-327-0868 Page Number : 1 of 47 FAX: 886-3-327-0855 Issue Date : Dec. 20, 2022 Report Version : 01 WINNF-TS-0122 TEST REPORT Report No. : FG2D0118 WINNF-TS-0122 Test Report FCC ID : 2AU8HSRT421-CBRS Equipment : LTE Indoor CPE Model Name : SRT421 Applicant : Smawave Technology Co. ,Ltd 3/F, Building 8, 1001 North Qinzhou Road，Xuhui District, Shanghai, China Manufacturer : Smawave Technology Co. ,Ltd 3/F, Building 8, 1001 North Qinzhou Road，Xuhui District, Shanghai, China Standard : WINNF-TS-0122 Version V1.0.2 RF Interface : LTE B48 The product was received on Dec. 07, 2022 and testing was performed from Dec. 07, 2022 to Dec. 15, 2022. We, Sporton International Inc. Wensan Laboratory, would like to declare that the tested sample has been evaluated in accordance with the test procedures given in WINNF-TS-0122 Version V1.0.2 and has been in compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of Sporton International Inc. Wensan Laboratory, the test report shall not be reproduced except in full. Approved by: Jones Tsai Sporton International Inc. Wensan Laboratory No.58, Aly. 75, Ln. 564, Wenhua 3rd, Rd., Guishan Dist., Taoyuan City 333010, Taiwan (R.O.C.) TEL: 886-3-327-0868 Page Number : 2 of 47 FAX: 886-3-327-0855 Issue Date : Dec. 20, 2022 Report Version : 01 WINNF-TS-0122 TEST REPORT Report No. : FG2D0118 Table of Contents History of this test report ----------------------------------------------------------------------------------------------------- 4 1. Administration Data ----------------------------------------------------------------------------------------------------------- 5 1.1 Testing Laboratory ------------------------------------------------------------------------------------------------------- 5 2. General Information ----------------------------------------------------------------------------------------------------------- 5 2.1 Description of Equipment Under Test (EUT) ---------------------------------------------------------------------- 5 2.2 Protocol Test Summary ------------------------------------------------------------------------------------------------ 6 2.3 Time test for getting Grant Summary ------------------------------------------------------------------------------- 7 2.4 Support Equipment ------------------------------------------------------------------------------------------------------ 7 2.5 Test Equipment List ----------------------------------------------------------------------------------------------------- 7 3. Measurement Environment ------------------------------------------------------------------------------------------------- 8 3.1 Test configuration without Domain Proxy -------------------------------------------------------------------------- 9 3.2 Standards -------------------------------------------------…
