2AU8HSRE620-BH

Smawave Technology Co. ,Ltd

5G ODU_NA

Click to zoom

Application Details

Equipment Class: CBD - Citizens Band Category A and B Devices
Date of Grant: Jul 18, 2023
Application Purpose: Original Equipment
Date of Application: Jul 15, 2023
Equipment Note: 5G ODU_NA
Frequency Range: 3570.00000000 - 3679.98000000
Company: Smawave Technology Co. ,Ltd
Country: China

Documents & Files

Select a file to view

Users Manual

Attestation Statements

Cover Letter(s)

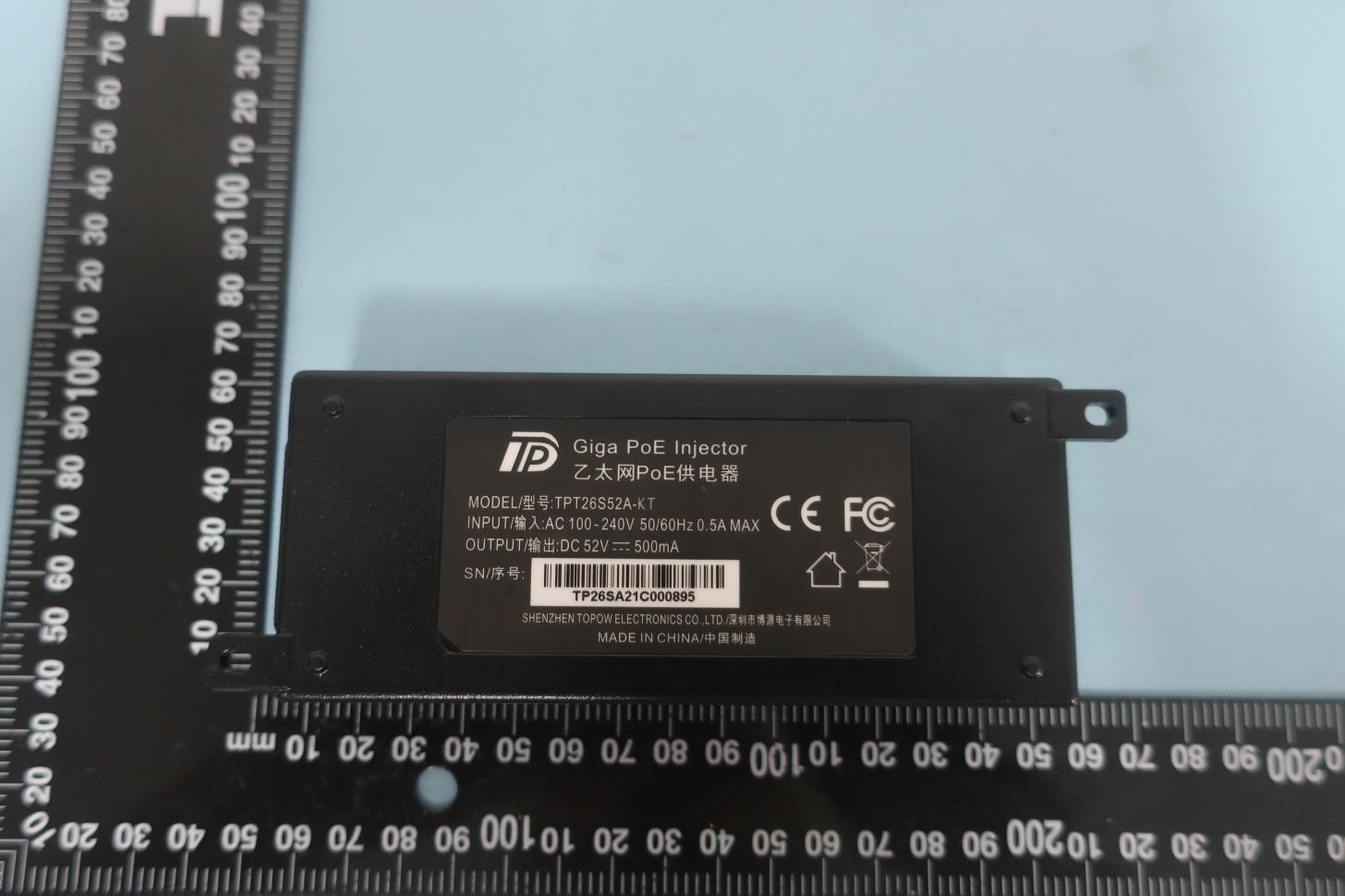

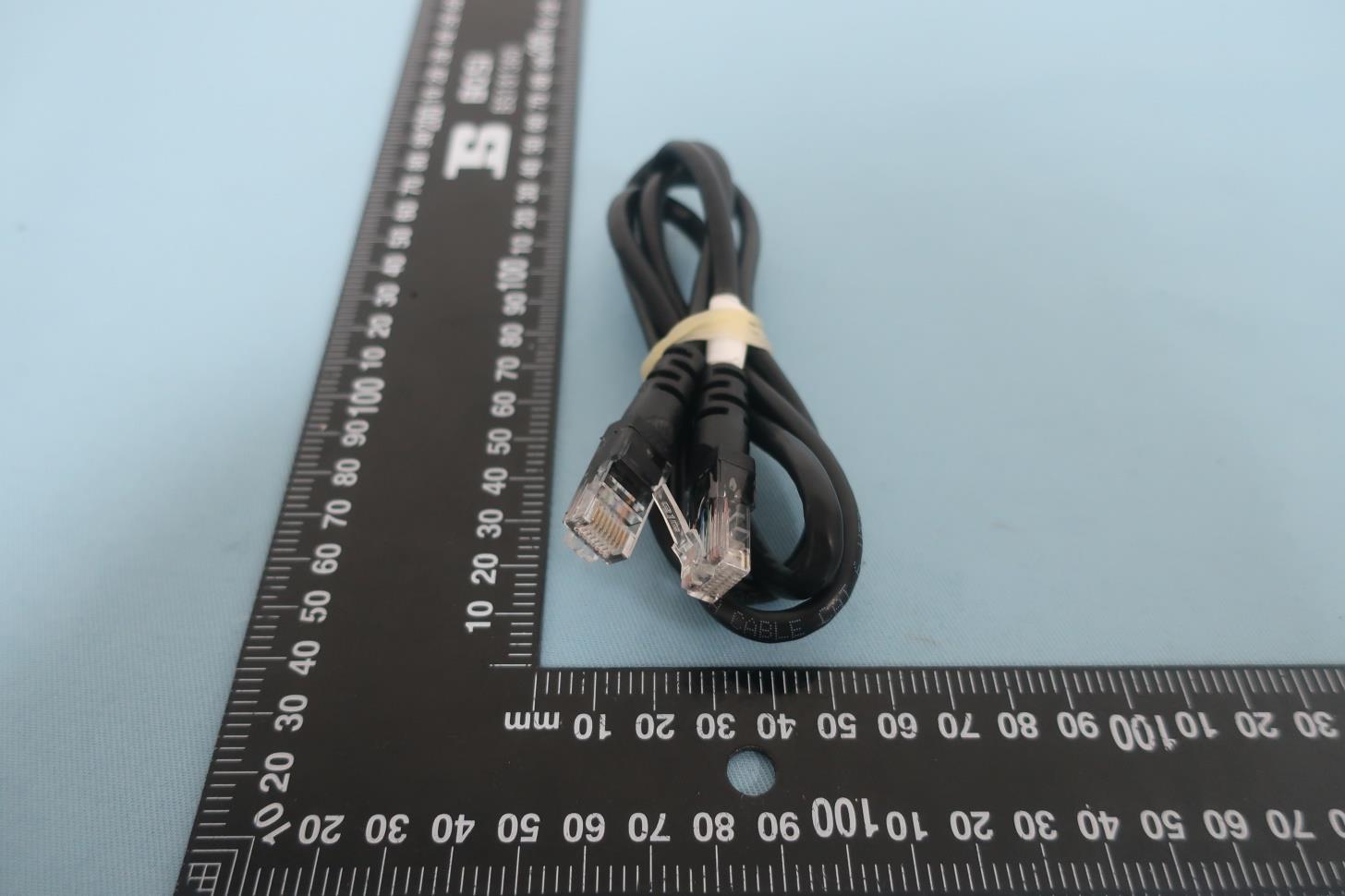

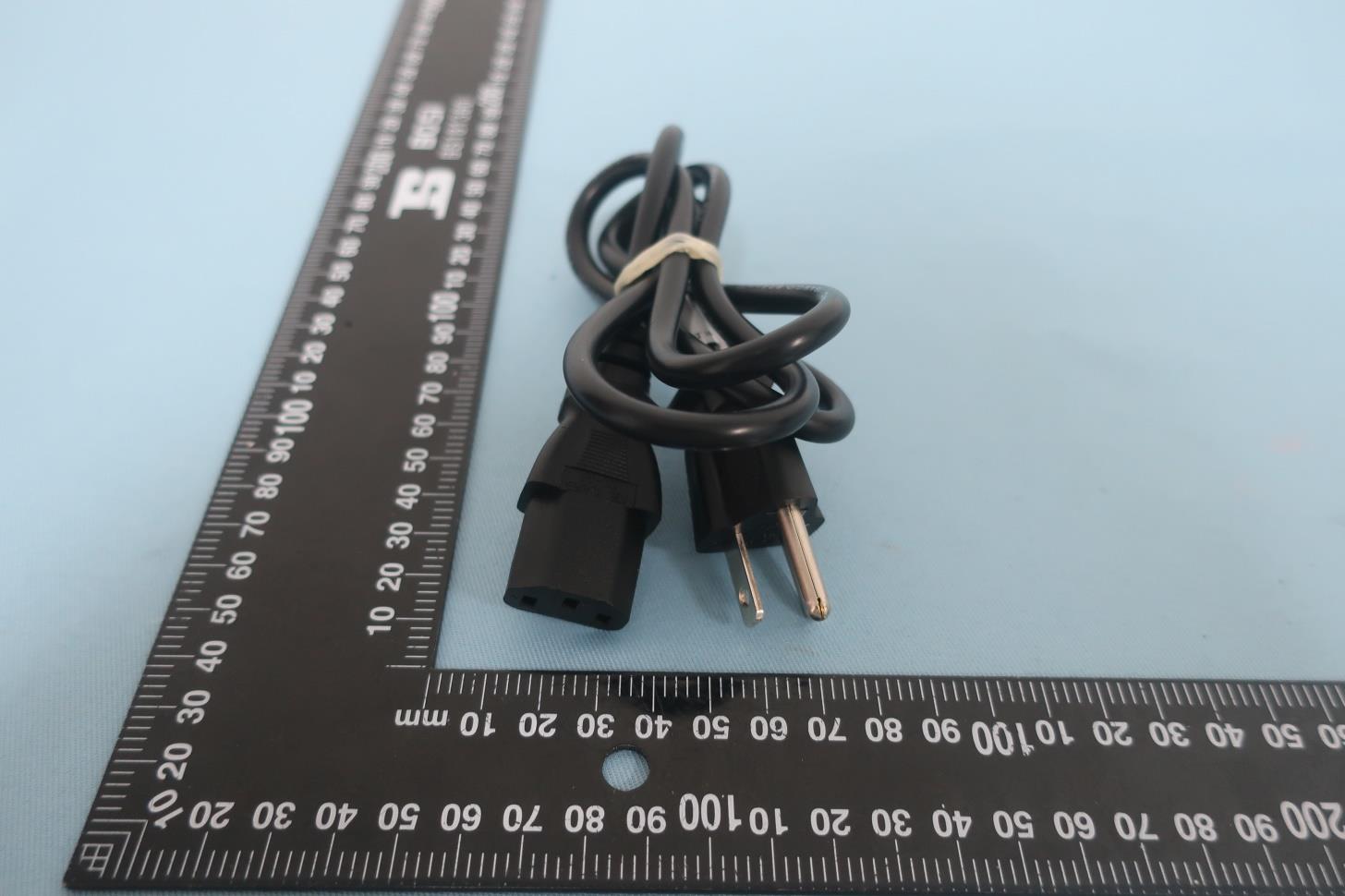

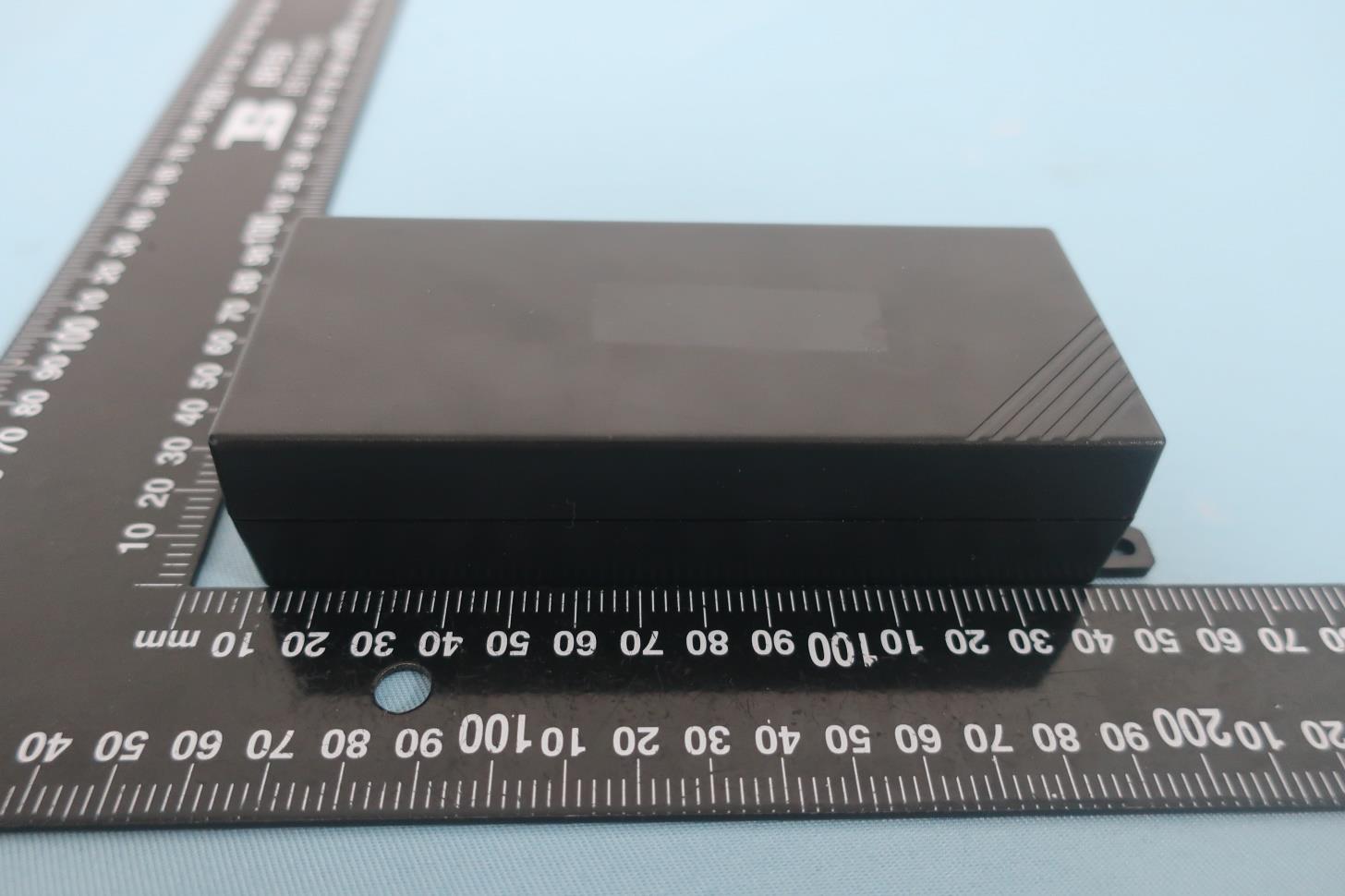

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
28	96	3.57 GHz - 3.68 GHz	3.2659 W	38M4W7D	2.5 ppm

Confidentiality

Long Term

Grant Notes

Output Power is EIRP. This transmitter operates as a Category B CBSD and is limited to professional installation and outdoor operations. This device must be installed and operated so as to provide a separation distance of at least 27 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. This device supports 5, 10, 15 and 20 MHz bandwidth modes per carrier for TDD Band 48. This device also supports LTE uplink carrier aggregation as described in this filing. This device also supports Frequency Range 1 5G NR modes of 10, 20 and 40MHz bandwidth modes for FDD Band n48. Installers and end-users must be provided with installation instructions and transmitter operating conditions and instructions for satisfying RF exposure compliance.
