2AU8HSMC411-ALTE-A Hotspot

Good Signal Icon Status Description Weak Signal No Service Full PowerLow Power The number of clients connect to WIFIPress menu button to select next Press power button to confirm The icon changes from low to high repeatedly to indicate that the battery is charging Signal Battery WIFI Next OK 0 NEXT OK The default username and password can be both referred to printed label from the packing box. Choose Advanced Settings Wi-Fi WLAN Settings. In the General Settings list, set Wi-Fi Enable or Disable. In the SSID Profile list, change the SSID, such as "LTE-My MIFI". To ensure data security, it is recommended that you change the Wi-Fi password. Click Submit to save the settings. Click Submit to save the settings. Welcome to the SMC SeriesSMC Series LTE-A hotspot provides consistent access to LTE networks , including most operators and Private LTE spectrums. It allows multiple end users and mobile devices to share 4G mobile broadband Internet connection from anywhere. SMC SeriesQuick Start Guide Device Architecture      LCD Screen  Power Button  USB Menu Button   LED Light Working Environment Icon Definition Power Consumption 2.5W 5V/2A Operating Temperature StorageTemperature Humidity -10 ˫ ~ 45 ˫ -20 ˫
~ 70 ˫ 5% ~ 95% Charging   Hardware Configuration Remove the cover of unit and the battery Push the SIM card cover back and open it upposition. Place the SIM card in the correct direction. Close the SIM card cover and push          Place the battery then close the cover . Step1Step2 Step3Step4Step5Install SIM Card Instructions 1. Press power button 3s to power on MIFI, or 5s to power off MIFI 2.     1. Enter menu setting 2. Select next menu Connect to the Network It takes several seconds to connect to LTE network. The screen will show different status as follow.1. It will show SIM not ready if MIFI does not detect the SIM2. The screen will show No service when does not connect to network.3. The screen will show connected when LTE network connect successfully. Login to the Web Management Page Launch the web browser, enter http://192.168.1.1 in the address bar, and press Enter. Login to the web management page via USB cable or wirelessly Software Configuration Step2Step1 Enter the username and password, and click Login. Step3 Step3        can login to the web management page. LTE Settings Choose Advenced Settings > Network > APN Settings . On APN Settings page, you can    !     #$&   Step1 Step2 Step3 If the problem persists, please contact the authorized local service suppliers.Fails to login the web management page Please make sure MIFI is powered onPlease make sure the login password is correct Please check if PC get IP successfully.If the problem persists,please contact the authorized local service suppliers. FCC Regulations: § 15.19 (a)(3)This mobile MIFI complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation § 15.21 !           '  party responsible for compliance could void the user‘s authority to operate the equipment. § 15.105 (b)This mobile phone has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna.—Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. FCC RF Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. The device has been tested for use against the body with *    '   + ;+<   ! =           !       satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. FAQs MIFI is not powered Please make sure it is full battery.Please press the power button more than 3s. If the problem persists, please contact the authorized local service suppliers.Unable to connect to network Please make sure the SIM is insert successfully. Please check if the unit is placed in an open area. If the problem persists, please contact the authorized local service suppliers.Unable to connect to WIFI Please check if the WIFI is enable.Please check if the WIFI password correct Packing List SMC Series USB Cable SMC S i Step2Step3 Step4 Step5 WLAN Settings Step1 Considering RF effect, we would recommend you to keep it away from 20 cm when using our SMC series.

SmawaveTechnologyCo.,Ltd OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 Subject;RequestforLongTermConfidentiality FCCID:2AU8HSMC411-A ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,weare requestingtheCommissiontowithholdthefollowingattachment(s)asconfidentialdocumentsfrom publicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredas proprietaryinformationinoperationoftheequipment.Thepublicdisclosureofthesedocuments mightbeharmfultoourcompanyandwouldgivecompetitorsanunfairadvantageinthemarket. SchematicDiagram BlockDiagram PartsList OperationalDescription Tune-upProcedure SoftwareSecurityDescription UNIIdeclarationletter Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatandcorrespondence duringthecertificationreviewprocesscannotbegrantedasconfidentialdocumentsandthis informationwillbeavailableforpublicreviewoncethegrantofequipmentauthorizationisissued. Sincerely, Date:2020-12-25 Signature: Name(inprint):wangzhigang Company:SmawaveTechnologyCo.,Ltd Adreess:3FBuilding81001NorthQinzhouRoadXuhuiDistrictShanghaiChina

SmawaveTechnologyCo.,Ltd POWEROFATTORNEY DATE:December25,2020 To: FederalCommunicationsCommission, Authorization&EvaluationDivision, 7435OaklandMillsRoad, Columbia,MD21046 We,theundersigned,herebyauthorizeTATechnology(Shanghai)Co.,Ltd./zhaojunllinonour behalf,toapplytoFCConourequipmentforFCCID:2AU8HSMC411-A.Anyandallactscarried outbyTATechnology(Shanghai)Co.,Ltd.onourbehalfshallhavethesameeffectasactsofour ownforthiscertificate. Sincerely, Date:2020-12-25 Signature: Name(inprint):wangzhigang Company:SmawaveTechnologyCo.,Ltd Adreess:3FBuilding81001NorthQinzhouRoadXuhuiDistrictShanghaiChina

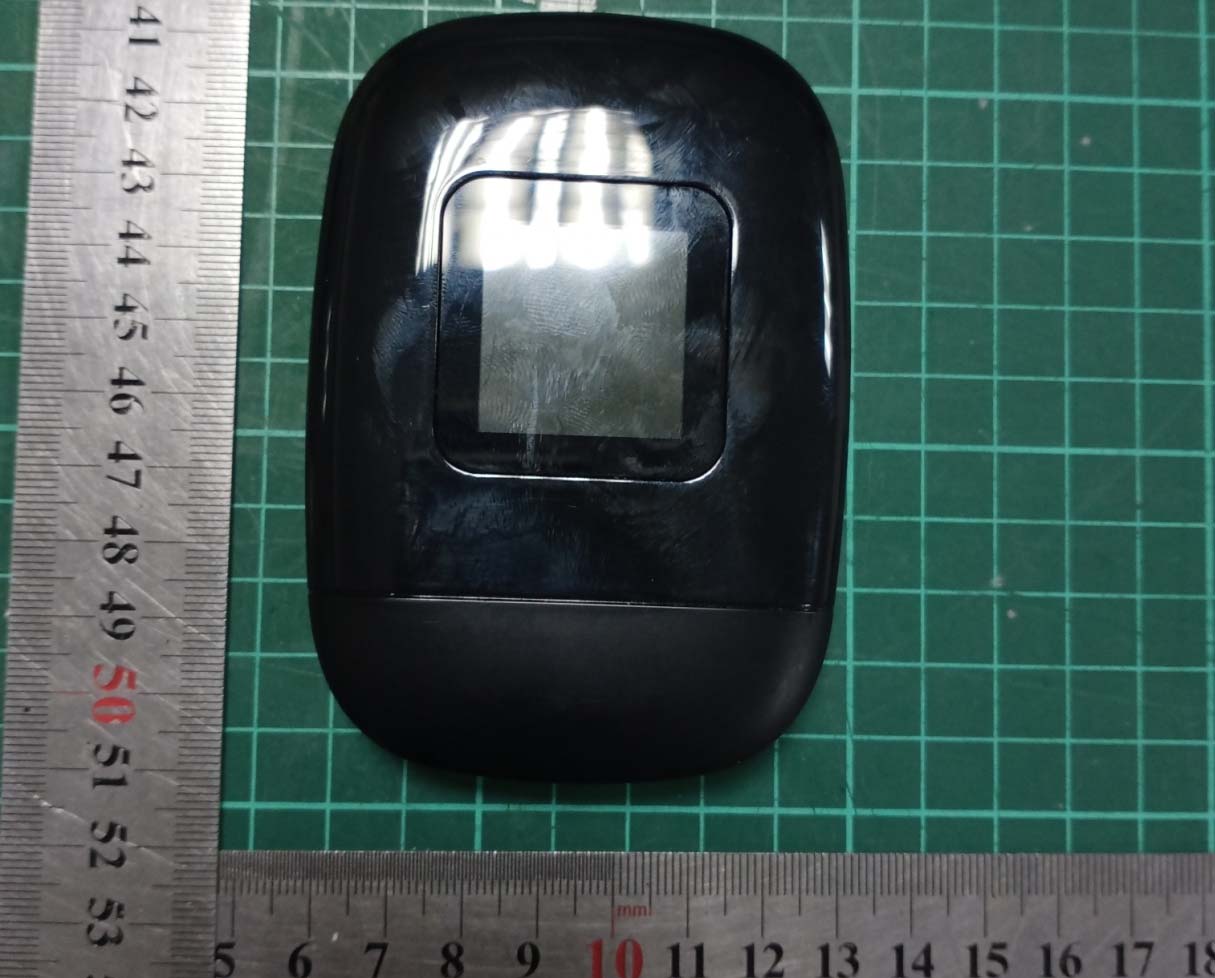

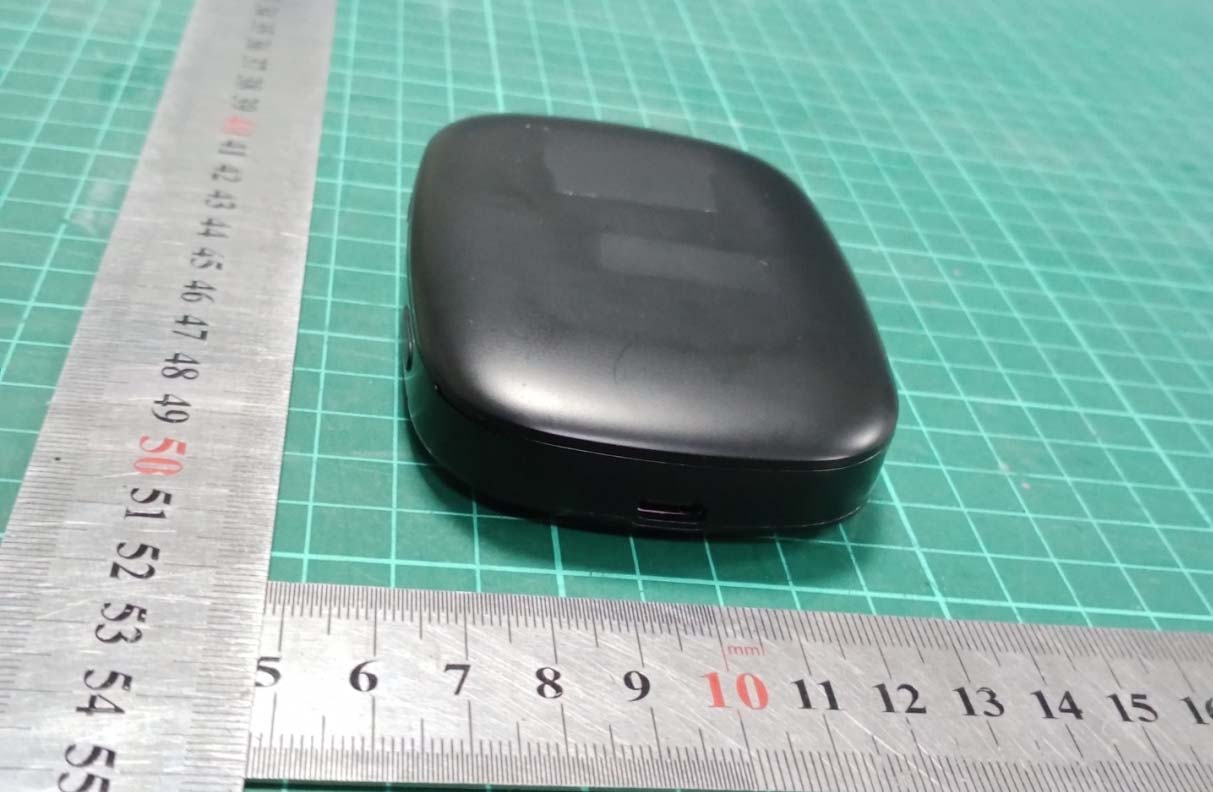

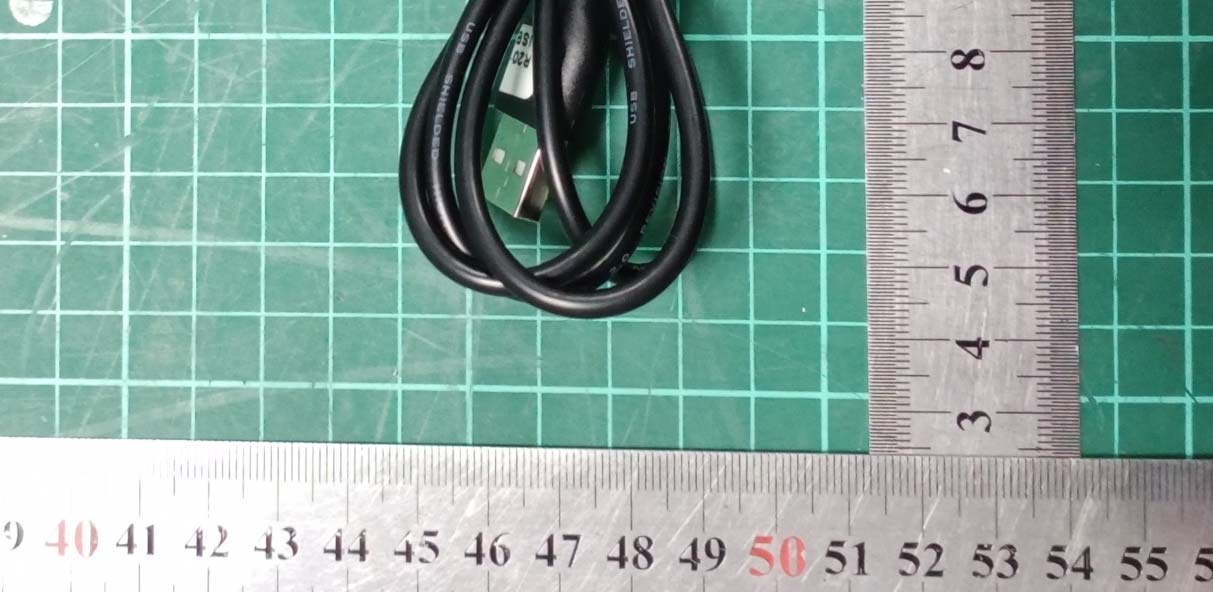

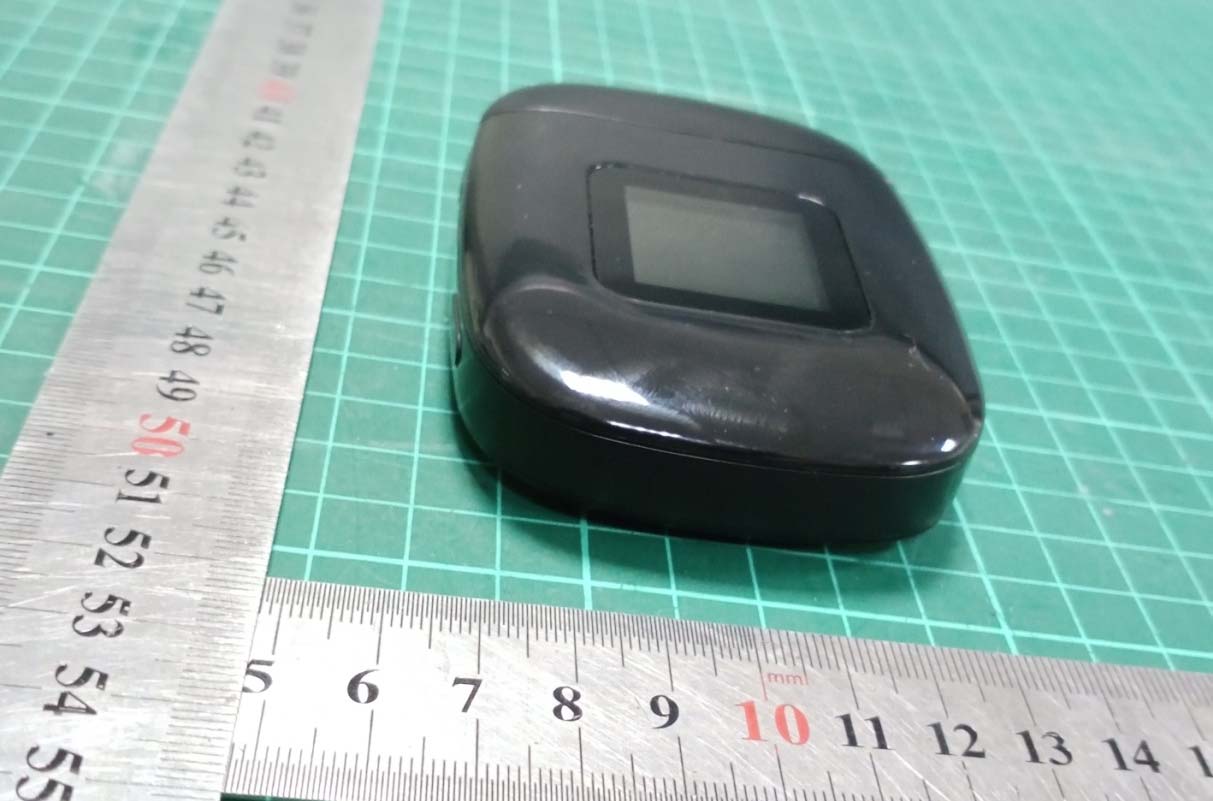

EUT Appearance Report No.: R2011A0794 TA Technology (Shanghai) Co., Ltd. Page 1 of 4 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. EUT Appearance EUT Appearance Report No.: R2011A0794 TA Technology (Shanghai) Co., Ltd. Page 2 of 4 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. EUT Appearance Report No.: R2011A0794 TA Technology (Shanghai) Co., Ltd. Page 3 of 4 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. a: EUT EUT Appearance Report No.: R2011A0794 TA Technology (Shanghai) Co., Ltd. Page 4 of 4 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. b: USB Cable Picture 1: Constituents of EUT
