2AV29B036TRVideo Baby Monitor-Camera

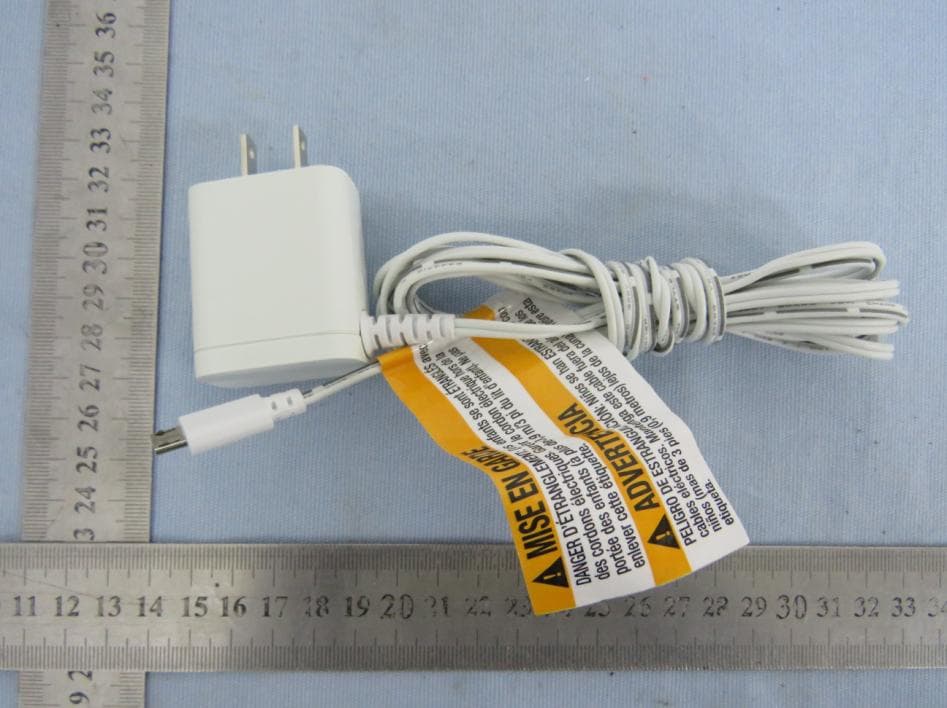

FCC ID: 2AV29B036TR External photo FCC ID: 2AV29B036TR FCC ID: 2AV29B036TR FCC ID: 2AV29B036TR FCC ID: 2AV29B036TR

FCC ID: 2AV29B036TR Internal photo FCC ID: 2AV29B036TR FCC ID: 2AV29B036TR FCC ID: 2AV29B036TR FCC ID: 2AV29B036TR RF Antenna FCC ID: 2AV29B036TR RF Chip

Zhongshan Jesmay Electronics Co., Ltd Declaration concerning Antenna Specification It is hereby declared that the product Model No.: JM55963T, B036T, B036, B036-2T FCC ID: 2AV29B036TR fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for integral antenna type(s) described below: Model No. of antenna: 2.4G Antenna Type of antenna: permanently attached (Integral antenna) Gain of the antenna: 2 dBi Frequency range: 2406-2475 MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Zhongshan Jesmay Electronics Co., Ltd Address: No.1 Industry District, Tan Zhou Town, City: Zhong Shan City, Guangdong, ZIP / Postal code: N/A Country: China Place: Cong chen Date: 2020-08-15 Signature:

Dongguan Nore Testing Center Co., Ltd. Report No.: NTC2007034F-1 FCC ID: 2AV29B036TR RF EXPOSURE EVALUATION EUT Specification EUT Video Baby Monitor-Camera Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.24GHz WLAN: 5.745GHz ~ 5825GHz Others( 2.406GHz ~ 2.475GHz) Device category Portable (<20cm separation) Mobile (>20cm separation) Others ___ Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 20.885dBm(122.60mW) Antenna gain 2dBi Evaluation applied MPE Evaluation SAR Evaluation Limits for Maximum Permissible Exposure (MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) 300-1500 -- -- F/1500 1500-100000 -- -- 1 Dongguan Nore Testing Center Co., Ltd. Report No.: NTC2007034F-1 FCC ID: 2AV29B036TR Friis transmission formula: Pd=(Pout*G)\(4*pi*R 2 ) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in Mw G= gain of antenna in linear scale Pi=3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE, 1mW/cm2. If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Measurement Result Channel Gain Channel Frequency (MHz) Max Output power (dBm) Tolerance Max Tune-UP power (mW) Power density at 20cm (mW/ cm 2 ) Power density Limits (mW/cm 2 ) Low 2 2406 20.558 ± 0.5 127.59 0.040 1 Middle 2 2442 20.381 ± 0.5 122.49 0.039 1 High 2 2475 20.885 ± 0.5 137.56 0.043 1

Dongguan Nore Testing Center Co., Ltd. Report No.: NTC2007034FV00 FCC ID: 2AV29B036TR Page 2 of 35 Table of Contents 1. GENERAL INFORMATION ................................................................................................ 5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST ................................................................. 5 1.2 RELATED SUBMITTAL(S) / GRANT (S) ............................................................................................ 7 1.3 TEST METHODOLOGY .................................................................................................................. 7 1.4 EQUIPMENT MODIFICATIONS ........................................................................................................ 7 1.5 SUPPORT DEVICE ....................................................................................................................... 7 1.6 TEST FACILITY AND LOCATION ..................................................................................................... 8 1.7 SUMMARY OF TEST RESULTS ....................................................................................................... 9 2. SYSTEM TEST CONFIGURATION .................................................................................. 10 2.1 EUT CONFIGURATION ............................................................................................................... 10 2.2 SPECIAL ACCESSORIES ............................................................................................................. 10 2.3 DESCRIPTION OF TEST MODES ................................................................................................... 10 2.4 EUT EXERCISE ......................................................................................................................... 10 3. CONDUCTED EMISSIONS TEST .................................................................................... 12 3.1 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................ 12 3.2 TEST CONDITION ....................................................................................................................... 12 3.3 MEASUREMENT RESULTS .......................................................................................................... 12 4. MAX. CONDUCTED OUTPUT POWER ........................................................................... 15 4.1 MEASUREMENT PROCEDURE ..................................................................................................... 15 4.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................ 15 4.3 MEASUREMENT RESULTS .......................................................................................................... 15 5. 6DB BANDWIDTH ............................................................................................................ 16 5.1 MEASUREMENT PROCEDURE ..................................................................................................... 16 5.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................ 16 5.3 MEASUREMENT RESULTS .......................................................................................................... 16 6. POWER SPECTRAL DENSITY ........................................................................................ 19 6.1 MEASUREMENT PROCEDURE ..................................................................................................... 19 6.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................ 19 6.3 MEASUREMENT RESULTS .......................................................................................................... 19 7. BAND EDGE AND CONDUCTED SPURIOUS EMISSIONS ........................................... 22 7.1 REQUIREMENT AND MEASUREMENT PROCEDURE ........................................................................ 22 7.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................ 22 7.3 MEASUREMENT RESULTS .......................................................................................................... 22 Dongguan Nore Testing Center Co., Ltd. Report No.: NTC2007034FV00 FCC ID: 2AV29B036TR Page 3 of 35 8. RADIATED SPURIOUS EMISSIONS AND RESTRICTED BANDS ................................. 27 8.1 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................ 27 8.2 MEASUREMENT PROCEDURE ..................................................................................................... 28 8.3 LIMIT ........................................................................................................................................ 29 8.4 MEASUREMENT RESULTS ................................................................................................. 29 9. ANTENNA APPLICATION ............................................................................................... 34 9.1 ANTENNA REQUIREMENT............................................................................................................ 34 9.2 MEASUREMENT RESULTS .......................................................................................................... 34 10. TEST EQUIPMENT LIST ................................................................................................ 35 Dongguan Nore Testing Center Co., Ltd. Report No.: NTC2007034FV00 FCC ID: 2AV29B036TR Page 4 of 35 Revision History of This Test Report Report Number Description Issued Date NTC2007034FV00 Initial Issue 2020-08-06 Dongguan Nore Testing Center Co., Ltd. Report No.: NTC2007034FV00 FCC ID: 2AV29B036TR Page 5 of 35 1. GENERAL INFORMATION 1.1 Product Description for Equipment under Test E.U.T. : Video Baby Monitor-Camera Main model number : JM55963T Additional Model…

Text truncated - open the document above for the full version.

FCC ID: 2AV29B036TR Test photo Radiated emission Below 30MHz 30MHz-1GHz FCC ID: 2AV29B036TR Above 1GHz Conducted emission
