2AVD2-MG25001BLUETOOTH AUDIO GLASSES

USB-C充电接口 指示灯 上一曲/音量减 下一曲/音量加 电源开/关机 USB-C port Indicator light Previous song/Volume down Next song/Volume up Power On/Off 1 2 3 4 Model No.: MG25001 75X95MM 105G双胶+K+186C印刷+风琴折 封面 Please read this Quick Start Guide carefully and retain it for future reference. QUICK START GUIDE 充电 请在使用此设备前先给眼镜充满电，此设备可以通过USB-C接口进行 充电，充电时红灯常亮，充满灯灭。 Model No.: MG25001 清除配对 在开机状态下，按 � 次MFB键,智能眼镜自动关机 低电报警 当电池电 量低时会有系统提示音，每 � 秒钟白灯快闪 � 次 自动关机 在低电量和超出连接时间（�� 分钟）会自动关机 注意 *不建议未经许可私下更换电池。 *电池[电池组或电池组合]不得暴露在照明，烘烤或类似过热的环境中。 *耳机充电仓在外接电源充电时，输入电压电流标准≤ �V/�A； Attention *Private replacement of batteries without permission is not recommended. *Batteries [battery packs or battery combinations] should not be exposed to lighting, baking or similar overheating environments. *The input voltage and current standard ≤ 5V/1A when charging the headset charging compartment from an external power source; 请仔细阅读本快速指南并妥善保存以备将来使用。 快速指南 Air 1 Air 1 本产品由中国平安保险公司承保 Product Overview Smart Glasses USB-C cable Quick Start Guide Cleaning Cloth 产品概述 布智能眼镜快速指南 Charging Before using the device for the first time, fully charge the smart glasses using the USB-C charging cable. Connect the cable to a power adapter. red indicator light remains on while charging. Light turns off once charging is complete. Pairing To pair with a new device, long press " " for 2 seconds. The glasses will turn on automatically. Enable Bluetooth on your device and search for "Monster Air 1 ". The red and blue indicator lights will flash alternately. Once paired, a voice prompt will confirm the connection and the indicator will turn off. Power On/Off Power On: While the device is off, long press " " for 2 seconds. The red and blue indicator lights will flash alternately. device will power on. Power Off: While the device is on, long press " " for 3 seconds. The indicator will turn off, and the device will shut down. Voice Assistant Long press " - " the for 2 seconds to activate the voice assistant Music Play/Pause: Click " " button Previous Track: Connected mobile phone status, double-click " - " button Next Track: Connected mobile phone status, double-click " " button Call Answer/End Call: Click " - " or " " button Reject Call: Double-click " " button Volume Control Volume Up: Press the " " button three times to increase the volume. Volume Down: Press the " - " button three times to decrease the volume. Clear Pairing When the device is powered on, press the MFB button 8 times, and the smart glasses will automatically shut down. Low Battery Alert When the battery is low, a voice prompt will be heard. The white indicator will flash once every 5 seconds. Auto Shutdown The device will automatically power off if: The battery is critically low. No connection is established for more than 10 minutes. 配对 长按“ ”键2秒，智能眼镜将自动开机。对于新设备连接，请打开蓝牙 设备并搜索 “ Monster Air 1 ”进行连接，红蓝指示灯会交替闪烁，配 对成功后，您会听到系统提示音，指示灯熄灭。 电源开/关 关机状态下，长按 “ ” 键2秒，红蓝指示灯会交替闪烁,眼镜开机 开机状态下，长按 “ ” 键3秒，指示灯熄灭，眼镜关机 语音助手 长按�秒 “ - ” 键唤醒语音助手 音乐 播放/暂停：单击 “ ” 键 上一曲: 已连接手机状态，双击“ - ” 键 下一曲：已连接手机状态，双击“ ” 键 通话 接听/挂断：单击“ - ” 或者“ ” 键 拒接来电：双击 “ ” 键 音量控制 音量加：三击按 “ ” 键，调高音量。 音量减：三击按 “ - ” 键，调低音量。 保修信息卡 信息填写 产品名称： 产品型号： 产品SN号： 购机日期： 用户信息 用户姓名： 联系电话： 地 址： X:表示该有害物质至少 在该部件的某一均质材料中的含量超出G B/T�� ���规定的限量要求。 本表格依据SJ /T�����- ����的规定来编制 O: 表示该有害物质在该部件所有均质材料中的含量均在G B/T�� ���规定的限量要求以 下。 产品有毒有害物质或元素表 有害物质 铅 (Pb) 汞 (Hg) 镉 (Cd) 六格铬 (Cr(VI)) 多溴联笨 (PBBs) 多溴二笨醚 (PBDEs) 部件名称 外壳线材喇叭主板 电池 ○○○○○ ○○○○○ ○○○○○ ○○○○○ ○○ ○○ ○ ○○○ X ○ USB-C 数据线 + 1 2 3 4 Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. lf this equipment does cause harmful interference to radio or television reception which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and the receiver. - Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio / TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received. Including interference that may cause undesired operation. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. FCC ID: 2AVD2-MG25001 FCC STATEMENT IC Caution Radio Standards Specification RSS-Gen, issue 5 - English: This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: This device may not cause interference. This device must accept any interference, including interference that may cause undesired operation of the device. RF exposure statement: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. - French: Cet appareil contient des émetteurs / récepteurs exemptés de licence conformes aux RSS (RSS) d'Innovation, Sciences et Développem…

Text truncated - open the document above for the full version.

AOGES CO., LIMITED 2.911 (d)(7)USA Agent v1.5 Section 2.911(d)(7) USA Agent for Service of Process Company name: Shenzhen Monster Creative Technology Co., Ltd. Address: Room 1602, Building A, Fencheng Zhigu Building, Xixiang Street, Bao 'an District, Shenzhen, Guangdong, China Product Name: BLUETOOTH AUDIO GLASSES FCC ID: 2AVD2-MG25001 Model(s): MG25001, G01A 2.911(d)(7) USA Designated Agent for Service of Process We, [Shenzhen Monster Creative Technology Co., Ltd.] (“the applicant”) designate [AOGES CO., LIMITED] NOTE1 for the purpose of accepting service of process on behalf of the applicant. Applicant consent: We acknowledge our consent to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address of the designated agent and acknowledge our acceptance of our obligation to maintain an agent for service of process in the United States for no less than one year after either we the grantee have permanently terminated all marketing and importation of the applicable equipment within the U.S., or at the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. Agent obligation: We acknowledge our obligation to accept service of process in the United States for matters related to the applicable equipment at our physical U.S. address and email address for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or at the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. USA Agent Company name: AOGES CO., LIMITED USA Address: 1624 Market St, Ste 226, #30327 Denver CO, 80202 USA FRN Number: 0033947847 Contact Name: XIAOYAN LAl Telephone No: +1 303 623 1940 Email: [email protected] Applicant Company name: Shenzhen Monster Creative Technology Co., Ltd. Address: Room 1602, Building A, Fencheng Zhigu Building, Xixiang Street, Bao 'an District, Shenzhen, Guangdong, China Grantee FRN Number: 0036280543 FCC Grantee Code: 2AVD2 Contact Name: Wang runlong AOGES CO., LIMITED 2.911 (d)(7)USA Agent v1.5 Telephone No: 18925204512 Email: [email protected] Signature: Title: CEO Signature: Title: Mannger Date: 2025.11.25 Date: 2025.11.25 NOTE 1: An applicant located in the United States may designate itself as the agent for service of process. Reference; Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-nation al-security-threats-to-the-communications-supply-chain-through-the

Shenzhen Monster Creative Technology Co., Ltd. (2025.11.29) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC 2AVD2-MG25001) [Shenzhen Monster Creative Technology Co., Ltd.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, the equipment does not utilize cyber-security or anti-virus software from Kaspersky Lab, Inc, or any of its successors and assignees, which is also on the “covered list”. Sincerely, Wang run long Shenzhen Monster Creative Technology Co., Ltd. (2025.11.29) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID:2AVD2-MG25001) [Shenzhen Monster Creative Technology Co., Ltd.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Wang run long

Shenzhen Monster Creative Technology Co., Ltd. Product Similarity Declaration Product name: BLUETOOTH AUDIO GLASSES Model name: MG25001, G01A FCC ID: 2AVD2-MG25001 We (Shenzhen Monster Creative Technology Co., Ltd.) hereby state that all the models are electrical identical including the same software parameter and hardware design (i.e., circuit design, PCB Layout, RF module/circuit, antenna type(s) and antenna location, components on PCB, etc.,), same mechanical structure and design (including product enclosure, materials, etc.,), only the model names are different. Signature: Name: Wang run long Title: R & D Manager China, 2025.07.10

Shenzhen Monster Creative Technology Co., Ltd. 2025.11.29 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (BLUETOOTH AUDIO GLASSES / MG25001, G01A / FCC ID: 2AVD2-MG25001) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the • Schematics • Block diagram • Operation description • Parts List required to be submitted with this application be permanently withheld from public review. These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Please contact me if there is any information you may need. Sincerely, Name: Wang run long

Shenzhen Monster Creative Technology Co., Ltd. 2025.11.29 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (Shenzhen STS Test Services Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Name: Wang run long

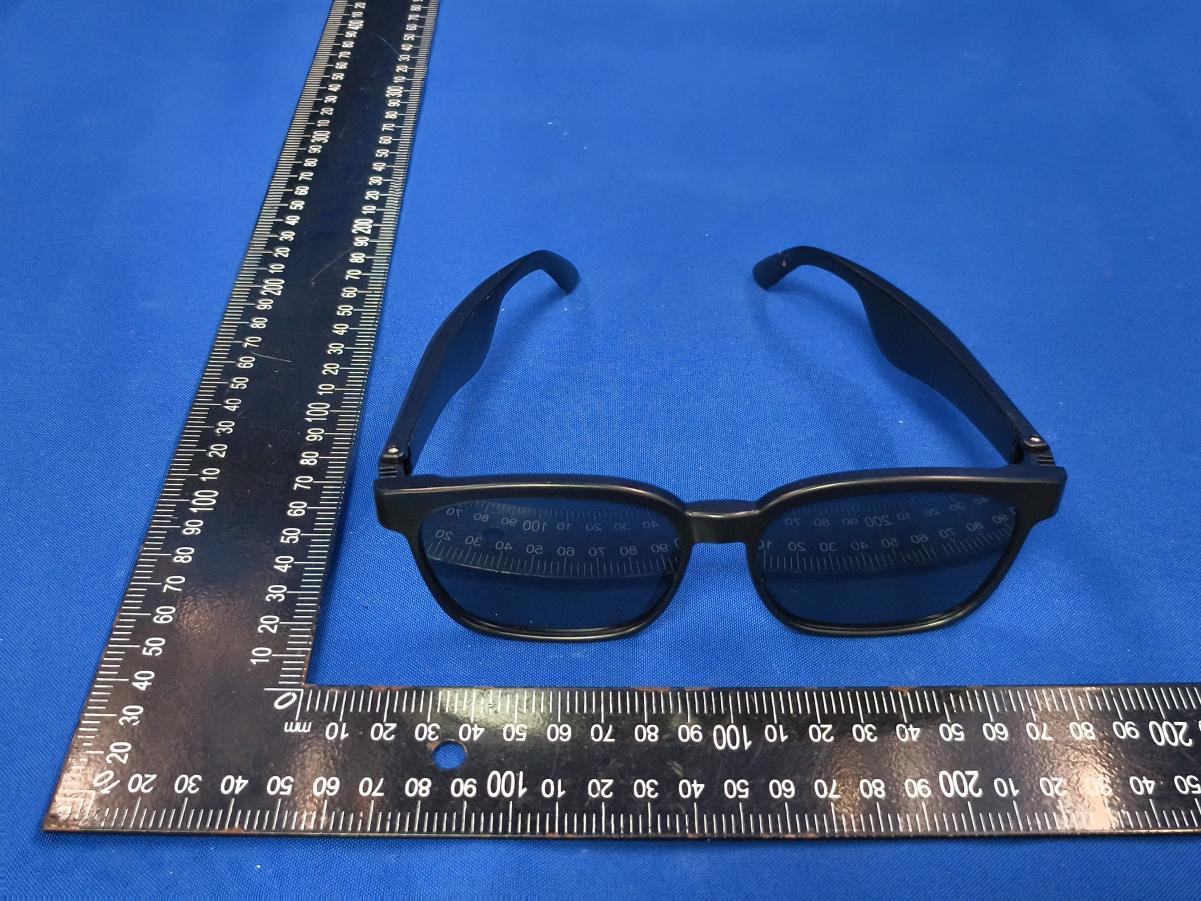

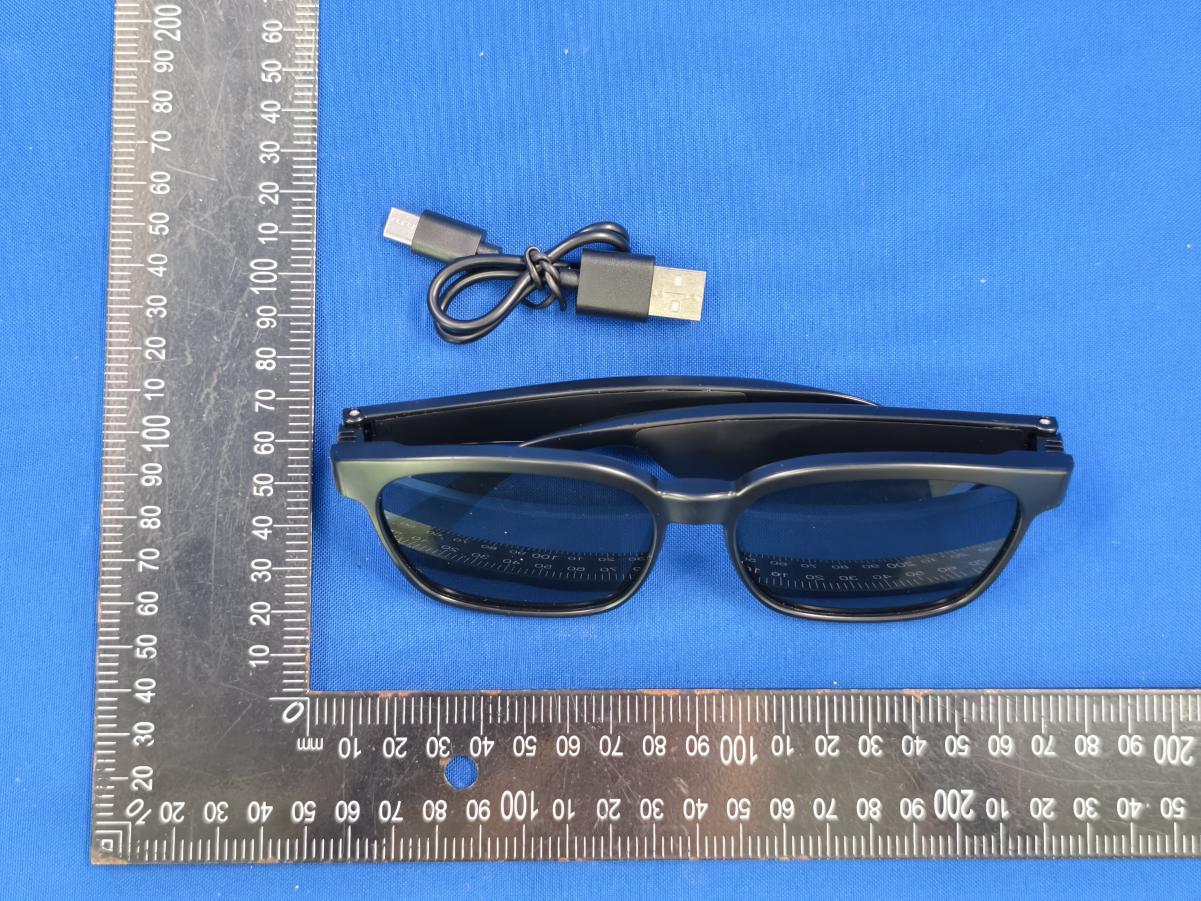

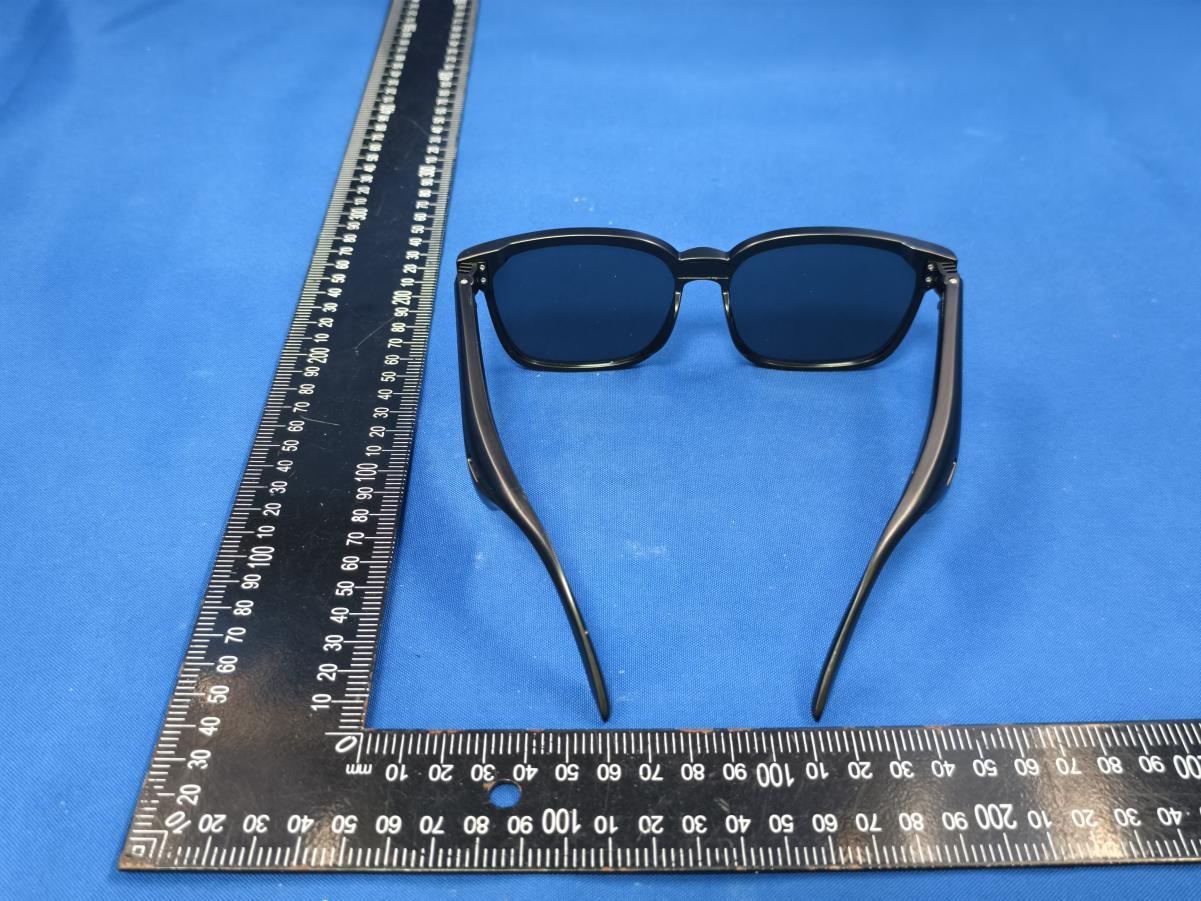

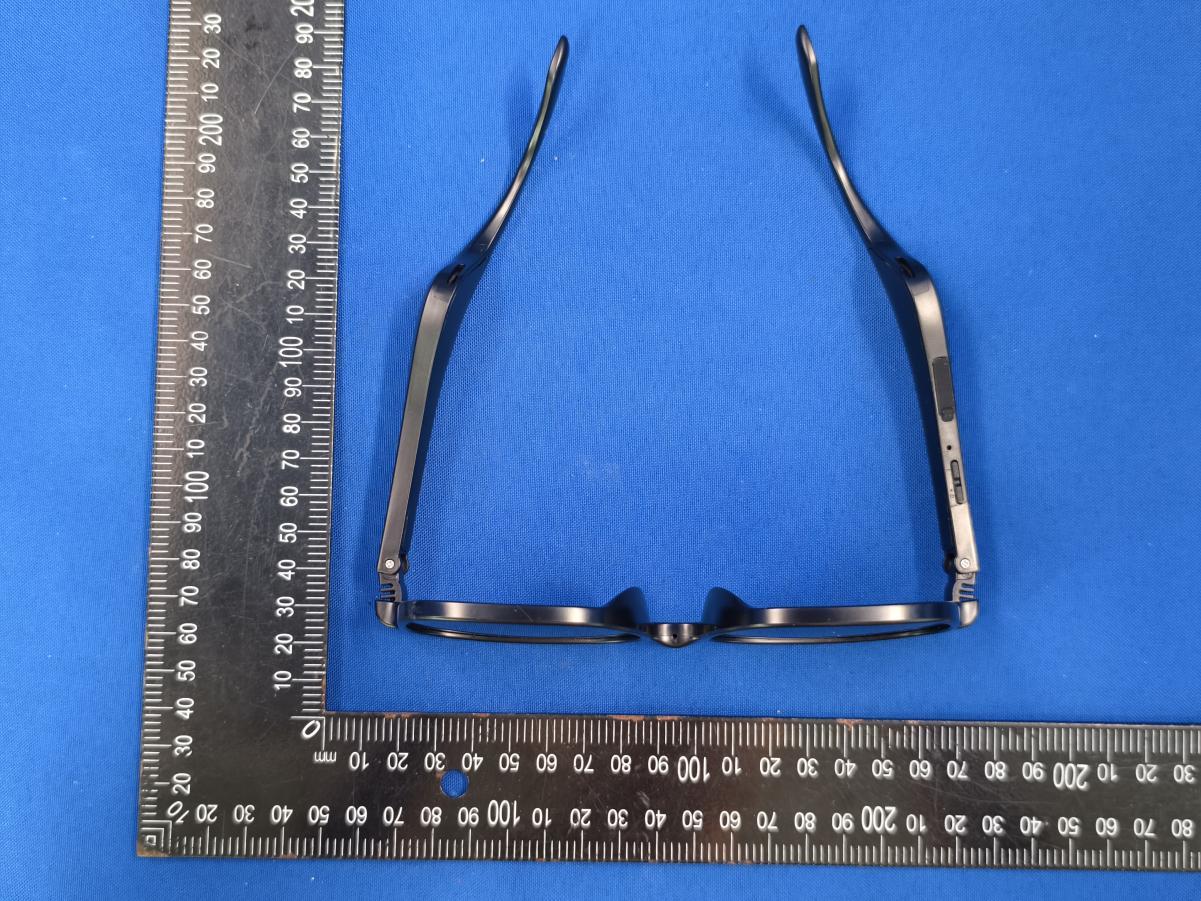

Page 1 of 4 Report No.: STS2509167 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Page 2 of 4 Report No.: STS2509167 Photo 3 Photo 4 Page 3 of 4 Report No.: STS2509167 Photo 5 Photo 6 Page 4 of 4 Report No.: STS2509167 Photo 7

型号 / Model: MG25001 输入 / Input: 5V 0.5A FCC ID: 2AVD2-MG25001 BLUETOOTH AUDIO GLASSES 蓝牙音频眼镜 DESIGNED IN CALIFORNIA 中国制造 深圳市魔声创新技术有限公司 MADE IN CHINA Shenzhen Monster Creative Technology Co., Ltd SN: MG250012550100001 镭雕动态序列号内容 镭雕颜色：本色 尺寸：38.2x8.5mm IC: 28087-MG25001 IC: 28087-MG25001

Page 1 of 4 Report No.: STS2509167 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Page 2 of 4 Report No.: STS2509167 Photo 3 Photo 4 Antenna Page 3 of 4 Report No.: STS2509167 Photo 5 Photo 6 Page 4 of 4 Report No.: STS2509167 Photo 7

The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the ShenZhen STS Test Services Co., Ltd. MPE Report Report No.:STS2509167H01 Issued for Shenzhen Monster Creative Technology Co., Ltd. Room 1602, Building A, Fencheng Zhigu Building, Xixiang Street, Bao 'an District, Shenzhen, Guangdong, China Product Name: BLUETOOTH AUDIO GLASSES Brand Name: MONSTER Model Name: MG25001 Series Model(s): G01A FCC ID: 2AVD2-MG25001 Test Standards: FCC 47CFR §2.1093 Page 2 of 9 Report No.:STS2509167H01 TEST REPORT Applicant’s Name ................. : Shenzhen Monster Creative Technology Co., Ltd. Address ................................. : Room 1602, Building A, Fencheng Zhigu Building, Xixiang Street, Bao 'an District, Shenzhen, Guangdong, China Manufacturer's Name ........... : Shenzhen Monster Creative Technology Co., Ltd. Address ................................. : Room 1602, 1601A2, 1601B, 1601C, Building A, Fencheng Zhigu Building, No. 60 Tiezai Road, Xixiang Street, Bao’an District, Shenzhen, China. Product Description Product Name ........................ : BLUETOOTH AUDIO GLASSES Brand Name .......................... : MONSTER Model Name .......................... : MG25001 Series Model(s) ...................... : G01A Test Standards ..................... : FCC 47CFR §2.1093 447498 D04 Interim General RF Exposure Guidance v01 The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the ShenZhen STS Test Services Co., Ltd. Date of Test ........................................... : Date of receipt of test item ...................... : 25 Sept. 2025 Date (s) of performance of tests ............. : 25 Sept. 2025~09 Oct. 2025 Date of Issue .......................................... : 09 Oct. 2025 Test Result .............................................. : Pass Testing Engineer : (Aaron Bu) Technical Manager : (Skylar Li) Authorized Signatory : (Bovey Yang) Page 3 of 9 Report No.:STS2509167H01 TABLE OF CONTENTS 1. GENERAL INFORMATION 5 1.1 GENERAL DESCRIPTION OF THE EUT 5 1.2 TEST FACTORY 5 2. FCC 47CFR §2.1093 REQUIREMENT 6 2.1 TEST STANDARDS 6 2.2 LIMIT 6 2.3 TEST RESULT 9 Page 4 of 9 Report No.:STS2509167H01 Revision History Rev. Issue Date Report No. Effect Page Contents 00 09 Oct. 2025 STS2509167H01 ALL Initial Issue Page 5 of 9 Report No.:STS2509167H01 1. GENERAL INFORMATION 1.1 GENERAL DESCRIPTION OF THE EUT Product Name BLUETOOTH AUDIO GLASSES Brand Name MONSTER Model Name MG25001 Series Model(s) G01A Model Difference Only the model names are different. Product Description The EUT is BLUETOOTH AUDIO GLASSES Operation Frequency: 2402 – 2480 MHz Modulation Type: BT BR(1Mbps): GFSK BT EDR(2Mbps): π/4-DQPSK Antenna gain: -0.58dBi Antenna Designation: PCB Power Rating Input: DC5V 0.5A Adapter N/A Battery Model: 400929 Brand:N/A Rated Voltage:3.7V Charge Limit Voltage:4.2V Capacity: 80mAh Hardware Version V1.2 Software Version SDK patch00.02 1.2 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : 101, Building B, Zhuoke Science Park, No.190 Chongqing Road, ZhanChengShequ, Fuhai Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 Page 6 of 9 Report No.:STS2509167H01 2. FCC 47CFR §2.1093 REQUIREMENT 2.1 TEST STANDARDS Follow the maximum permissible exposure (MPE) limits specified in 447498 D04 Interim General Radio Frequency Exposure Guidelines v01. The gain of the antenna used in the product was extracted from the supplied antenna data sheet and the maximum total power input to the antenna was also measured. Calculate the distance from the product to the MPE limit by the formula. 2.2 LIMIT For single RF sources (i.e., any single fixed RF source, mobile device, or portable device, as defined in paragraph (b)(2) of this section): A single RF source is exempt if: (A) The available maximum time-averaged power is no more than 1 mW, regardless of separation distance. This exemption may not be used in conjunction with other exemption criteria other than those in paragraph (b)(3)(ii)(A) of Part 1.1307. Medical implant devices may only use this exemption and that in paragraph (b)(3)(ii)(A); (B) Or the available maximum time-averaged power or effective radiated power (ERP), whichever is greater, is less than or equal to the threshold Pth (mW) described in the following formula. This method shall only be used at separation distances (cm) from 0.5 centimeters to 40 centimeters and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by: Page 7 of 9 Report No.:STS2509167H01 (C) Or using below table and the minimum separation distance (R in meters) from the body of a nearby person for the frequency (f in MHz) at which the source operates, the ERP (watts) is no more than the calculated value prescribed for that frequency. For the exemption in Table 1 to apply, R must be at least λ/2π, where λ is the free-space operating wavelength in meters. If the ERP of a single RF source is not easily obtained, then the available maximum time-averaged power may be used in lieu of ERP if the physical dimensions of the radiating structure(s) do not exceed the electrical length of λ/4 or if the antenna gain is less than that of a half-wave dipole (1.64 linear value). RF Source frequency (MHz) Threshold ERP(watts) 0.3-1.34 1,920 R 2 . 1.34-30 3,450 R 2 /f 2 . 30-300 3.83 R 2 . 300-1,500 0.0128 R 2 f. 1,500-100,000 19.2R 2 . Page 8 of 9 Report No.:STS2509167H01 For multiple RF sources: Multiple RF sources are exempt if: (A) The available maximum time-averaged power of each source is no more than 1 mW and there is a separation distance of two centimeters between any portion of a radiating structure operating and the nearest portion of any other radiating structure in the same device, except if t…

Text truncated - open the document above for the full version.

Summary Onboard Antenna Specification ITEM ANT SPEC Model Name 2.4G ANT Center Frequency Horizontal Vertical 2400MHz 2400MHz 2500MHz 2400MHz 2400MHz 2500MHz -1.26 -0.76 -0.58 -5.25 -2.46 -1.86 MAX. Gain -0.58dB Polarization Horizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance 50 Ohm Antenna Length 29.80mm Manufacture Shenzhen Jiexuntong Technology Co., Ltd Antenna Photo & Length (mm) Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Frequency (MHz) Gain(dB) Max Min Avg 2400 -1.26174 -30.0801 -7.18716 2450 -0.765802 -36.5604 -7.48023 2500 -0.585582 -22.0315 -6.59127 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Frequency (MHz) Gain(dB) Max Min Avg 2400 -5.2537 -22.1424 -12.4294 2450 -2.4652 -24.5837 -10.4702 2500 -1.86120 -29.5214 -9.20432

The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the Shenzhen STS Test Services Co., Ltd. Radio Test Report Report No.:STS2509167W01 Issued for Shenzhen Monster Creative Technology Co., Ltd. Room 1602, Building A, Fencheng Zhigu Building, Xixiang Street, Bao 'an District, Shenzhen, Guangdong, China Product Name: BLUETOOTH AUDIO GLASSES Brand Name: MONSTER Model Name: MG25001 Series Model(s): G01A FCC ID: 2AVD2-MG25001 Test Standards: FCC Part15.247 Page 2 of 79 Report No.: STS2509167W01 TEST REPORT Applicant’s Name ................. : Shenzhen Monster Creative Technology Co., Ltd. Address .................................. : Room 1602, Building A, Fencheng Zhigu Building, Xixiang Street, Bao 'an District, Shenzhen, Guangdong, China Manufacturer's Name ........... : Shenzhen Monster Creative Technology Co., Ltd. Address .................................. : Room 1602, 1601A2, 1601B, 1601C, Building A, Fencheng Zhigu Building, No. 60 Tiezai Road, Xixiang Street, Bao’an District, Shenzhen, China. Product Description Product Name ........................ : BLUETOOTH AUDIO GLASSES Brand Name ........................... : MONSTER Model Name ........................... : MG25001 Series Model(s) .................... : G01A Standards ............................. : FCC Part15.247 Test Procedure ....................... : ANSI C63.10-2020 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the Shenzhen STS Test Services Co., Ltd. Date of Test ............................... : Date of receipt of test item ......... : 25 Sept. 2025 Date (s) of performance of tests : 25 Sept. 2025~09 Oct. 2025 Date of Issue ............................. : 09 Oct. 2025 Test Result ................................. : Pass Testing Engineer : (Aaron Bu) Technical Manager : (Skylar Li) Authorized Signatory : (Bovey Yang) Page 3 of 79 Report No.: STS2509167W01 Table of Contents Page 1. SUMMARY OF TEST RESULTS 6 1.1 TEST FACTORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.2 DESCRIPTION OF THE TEST MODES 10 2.3 FREQUENCY HOPPING SYSTEM REQUIREMENTS 10 2.4 TABLE OF PARAMETERS OF TEST SOFTWARE SETTING 12 2.5 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 2.6 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 14 2.7 EQUIPMENTS LIST 15 3. EMC EMISSION TEST 16 3.1 CONDUCTED EMISSION MEASUREMENT 16 3.2 RADIATED EMISSION MEASUREMENT 20 4. CONDUCTED SPURIOUS & BAND EDGE EMISSION 32 4.1 LIMIT 32 4.2 TEST PROCEDURE 32 4.3 TEST SETUP 33 4.4 EUT OPERATION CONDITIONS 33 4.5 TEST RESULTS 33 5. NUMBER OF HOPPING CHANNEL 34 5.1 LIMIT 34 5.2 TEST PROCEDURE 34 5.3 TEST SETUP 34 5.4 EUT OPERATION CONDITIONS 34 5.5 TEST RESULTS 34 6. AVERAGE TIME OF OCCUPANCY 35 6.1 LIMIT 35 6.2 TEST PROCEDURE 35 6.3 TEST SETUP 35 6.4 EUT OPERATION CONDITIONS 35 6.5 TEST RESULTS 35 7. HOPPING CHANNEL SEPARATION MEASUREMEN 36 7.1 LIMIT 36 Page 4 of 79 Report No.: STS2509167W01 Table of Contents Page 7.2 TEST PROCEDURE 36 7.3 TEST SETUP 36 7.4 EUT OPERATION CONDITIONS 36 7.5 TEST RESULTS 36 8. BANDWIDTH TEST 37 8.1 LIMIT 37 8.2 TEST PROCEDURE 37 8.3 TEST SETUP 37 8.4 EUT OPERATION CONDITIONS 37 8.5 TEST RESULTS 37 9. OUTPUT POWER TEST 38 9.1 LIMIT 38 9.2 TEST PROCEDURE 38 9.3 TEST SETUP 39 9.4 EUT OPERATION CONDITIONS 39 9.5 TEST RESULTS 39 10. ANTENNA REQUIREMENT 40 10.1 STANDARD REQUIREMENT 40 10.2 EUT ANTENNA 40 APPENDIX 1-TEST DATA 41 DWELL TIME 41 MAXIMUM PEAK CONDUCTED OUTPUT POWER 48 -20DB BANDWIDTH 52 CARRIER FREQUENCIES SEPARATION 56 NUMBER OF HOPPING CHANNEL 60 BAND EDGE 62 BAND EDGE(HOPPING) 67 CONDUCTED RF SPURIOUS EMISSION 72 APPENDIX 2-PHOTOS OF TEST SETUP 79 Page 5 of 79 Report No.: STS2509167W01 Revision History Rev. Issue Date Report No. Effect Page Contents 00 09 Oct. 2025 STS2509167W01 ALL Initial Issue Page 6 of 79 Report No.: STS2509167W01 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: KDB 558074 D01 15.247 Meas Guidance v05r02. FCC Part 15.247,Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS -- 15.247(a)(1) Hopping Channel Separation PASS -- 15.247(a)(1)&(b)(1) Output Power PASS -- 15.209 Radiated Spurious Emission PASS -- 15.247(d) Conducted Spurious & Band Edge Emission PASS -- 15.247(a)(1)(iii) Number of Hopping Frequency PASS -- 15.247(a)(1)(iii) Dwell Time PASS -- 15.247(a)(1) Bandwidth PASS -- 15.205 Restricted bands of operation PASS -- Part 15.247(d)/part 15.209(a) Band Edge Emission PASS -- 15.203 Antenna Requirement PASS -- Note: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2020. Page 7 of 79 Report No.: STS2509167W01 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : 101, Building B, Zhuoke Science Park, No.190 Chongqing Road, ZhanChengShequ, Fuhai Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ±U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.755dB 2 Unwanted Emissions, conducted ±2.874dB 3 All emissions, radiated 9K-30MHz ±3.80dB 4 All emissions, radiated 30M-1GHz ±4.18dB 5 All emissions, radiated 1G-6GHz ±4.90dB 6 All emissions, radiated>6G ±5.24dB 7 Conducted Emission (9KHz-150KHz) ±2.19dB 8 Conducted Emission (150KHz-30MHz) ±2.53dB 9 Occupied Channel Bandwidth ±3.5% 1…

Text truncated - open the document above for the full version.

Page 1 of 2 FCC ID: 2AVD2-MG25001 Setup photo AC Conduction RF Conduction Page 2 of 2 FCC ID: 2AVD2-MG25001 RE (Below 1GHz) RE (Above 1GHz)
