2AVD2-MS62110PORTABLE BLUETOOTH SPEAKER

���g双胶���C+K 风琴折 双色印刷 ��x��mm 英文 正 反 S160 Model: MS62110 11 12 13 14 15 bLUE LINE Product Overview 1. Mode switch Short press: mode switching Long press: 3 seconds to clear the paired device records 2. Light mode switch Short press:Light mode switching Long press:Turn on/off the light 3.Number button Short press the number/number combination button to switch songs 4. Multifunction button Short press: Play/pause/answer a call / end the call Long press:Reject a call 5.Power On/Off Long press: Power on/off 11.Charging Indicator Charging in progress, the charging indicator light stays on Aer fully charged, the charging indicator light off 12.USB-C Charging 13.USB (Audio) Input Connect a USB storage device 14.Micro SD card Input Connect a Micro SD card mode storage device 115.AUX Input External audio devices can be connected using audio cables 16.Headphone input 6.Recording Short press: Enter recording mode Long press: Enter/exit recording playback 7.Delete Short press:Delete the currently playing recording file 8.Display screen 9.Volume down/Previous song Short press:Volume down Long press: Previous song 10.Volume up/Next song Short press: Volume up Long press: Next song Press and hold the " " button for 2 seconds to play the previous recording. Press and hold the " " button for 2 seconds to play the next recording. Delete When in recording playback mode, press the " " button to delete the current recording. Power Saving Settings •In Bluetooth mode, when no device is connected, the speaker will be switched off automatically in 15 minutes. •Micro SD card mode/USB IN (Audio) mode/FM mode, no music playback for 15 minutes, the speaker will be switched off automatically. •In AUX IN mode, the music that is not being played will not automatically shut off aer 15 minutes. Reset Device If the speaker needs to be reset, press and hold the " " button for 8 seconds. Caution •It is not recommended to replace the battery privately. •The battery (battery pack or battery pack combination) must not be exposed to sunshine, fire or similar overheated environments. Power/Charging For better enjoyment, fully charge the speaker before use. A USB-C charging cable (charge only) is included for standard USB compatible device. Please use a 5V/1A or above power adapter (not included). Caution: - Other incompatible charges may cause damages. - Do not use if the connector or device is wet or damaged. Power On/Off To turn on the speaker, press and hold the power on/off Button for 2 seconds, you will hear a power on tone. To turn off the speaker, press and hold the power on/off Button for 2 seconds, you will hear a power off tone. Caution: If no Bluetooth device is connected, the speaker will turn off in 15 minutes. Bluetooth Connection • When first used and turned on, the speaker will automatically enter a waiting mode for connection. • The speaker will automatically enter pairing mode if it is not connected to a Bluetooth device. When connecting, enable the Bluetooth function of the mobile phone, search for "Monster S160" and connect. Aer the connection is successful, you will hear a voice prompt, " BLUE" characters go from flashing to long bright. Music Control Short press " " music can be played or paused. Long press " " to go to the previous song. Long press " " to go to the next song. Fast song selection: Press 0-9 number/number combination button to directly enter the song serial number (this function only supports USB, Micro SD card valid), you can play the song. Call Mode Answer a call: Short press the " " button. End the call: Short press the " " button. Reject a call: Long press the " " button. Volume Control Short press the " " button to turn down the volume. Short press the " " button to turn up the volume. USB IN (Audio) Playback When speaker is on and USB drive is inserted, USB IN (Audio) is the priority playback source. If you want to use Bluetooth function, press the " " button to switch the source. Micro SD Card Playback When speaker is on and micro SD card (not included) is inserted, micro SD card is the priority playback source. If you want to use Bluetooth function, press the " " button to switch the source. AUX IN Playback When speaker is on and audio source is inserted via AUX IN (not included) , AUX IN is the priority playback source. If you want to use Bluetooth function, press the " " button to switch the source. FM Playback When speaker is on and press the " " button to switch the FM mode. If you want to use Bluetooth function, press the " " button to switch the source.In FM playback mode, Press and hold " " for 2 seconds to automatically search for channels,short press the " " key to play the previous radio station that has already been searched, and short press the " " key to play the next radio station that has already been searched. Recording When a micro SD card or USB drive is inserted, pressing the " " button in any mode will start recording. Press the " " button again to stop recording and automatically play back the current recording. Pressing any key during playback will exit the recording playback mode. Playback of Recordings In USB or micro SD card playback mode, press and hold the " " button for 2 seconds to play recorded files in sequence (a USB drive or micro SD card must contain recording files, otherwise recording playback cannot be accessed). Press and hold the " " button again for 2 seconds to exit recording playback. PORTABLE BLUETOOTH SPEAKER Please read this Quick Start Guide carefully and keep it for future use Quick Start Guide FCC Statement Input mode display Bluetooth mode FM mode AUX Input Micro SD card Input USB (Audio) Input 12 3 45 FMTF USB Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonabl…

Text truncated - open the document above for the full version.

AOGES CO., LIMITED 2.911 (d)(7)USA Agent v1.5 Section 2.911(d)(7) USA Agent for Service of Process Company name: Shenzhen Monster Creative Technology Co., Ltd. Address: Room 1602, Building A, Fencheng Zhigu Building, Xixiang Street, Bao 'an District, Shenzhen, Guangdong, China Product Name: PORTABLE BLUETOOTH SPEAKER FCC ID: 2AVD2-MS62110 Model(s): MS62110, M206 2.911(d)(7) USA Designated Agent for Service of Process We, [Shenzhen Monster Creative Technology Co., Ltd.] (“the applicant”) designate [AOGES CO., LIMITED] NOTE1 for the purpose of accepting service of process on behalf of the applicant. Applicant consent: We acknowledge our consent to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address of the designated agent and acknowledge our acceptance of our obligation to maintain an agent for service of process in the United States for no less than one year after either we the grantee have permanently terminated all marketing and importation of the applicable equipment within the U.S., or at the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. Agent obligation: We acknowledge our obligation to accept service of process in the United States for matters related to the applicable equipment at our physical U.S. address and email address for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or at the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. USA Agent Company name: AOGES CO., LIMITED USA Address: 1624 Market St, Ste 226, #30327 Denver CO, 80202 USA FRN Number: 0033947847 Contact Name: XIAOYAN LAl Telephone No: +1 303 623 1940 Email: [email protected] Applicant Company name: Shenzhen Monster Creative Technology Co., Ltd. Address: Room 1602, Building A, Fencheng Zhigu Building, Xixiang Street, Bao 'an District, Shenzhen, Guangdong, China Grantee FRN Number: 0036280543 FCC Grantee Code: 2AVD2 Contact Name: Wang runlong AOGES CO., LIMITED 2.911 (d)(7)USA Agent v1.5 Telephone No: 18925204512 Email: [email protected] Signature: Title: CEO Signature: Title: Mannger Date: 2025.12.09 Date: 2025.12.09 NOTE 1: An applicant located in the United States may designate itself as the agent for service of process. Reference; Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-nation al-security-threats-to-the-communications-supply-chain-through-the

(Shenzhen Monster Creative Technology Co., Ltd.) (2025.12.15) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (2AVD2-MS62110) [Shenzhen Monster Creative Technology Co., Ltd.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, the equipment does not utilize cyber-security or anti-virus software from Kaspersky Lab, Inc, or any of its successors and assignees, which is also on the “covered list”. Sincerely, Wang run long (Shenzhen Monster Creative Technology Co., Ltd.) (2025.12.15) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (2AVD2-MS62110) [Shenzhen Monster Creative Technology Co., Ltd.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Wang run long

Shenzhen Monster Creative Technology Co., Ltd. Product Similarity Declaration Product name: PORTABLE BLUETOOTH SPEAKER Model name: MS62110, M206 FCC ID: 2AVD2-MS62110 We (Shenzhen Monster Creative Technology Co., Ltd.) hereby state that all the models are electrical identical including the same software parameter and hardware design (i.e., circuit design, PCB Layout, RF module/circuit, antenna type(s) and antenna location, components on PCB, etc.,), same mechanical structure and design (including product enclosure, materials, etc.,), the only the model names are different. Signature: Name: Wang run long Title: R & D Manager China, 2025.12.09

Shenzhen Monster Creative Technology Co., Ltd. 2025.12.09 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (PORTABLE BLUETOOTH SPEAKER / MS62110, M206/ FCC ID: 2AVD2- MS62110) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the • Schematics • Block diagram • Operation description required to be submitted with this application be permanently withheld from public review. These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Please contact me if there is any information you may need. Sincerely, Name: Wang run long

Shenzhen Monster Creative Technology Co., Ltd. 2025.12.09 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (Shenzhen STS Test Services Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Name: Wang run long

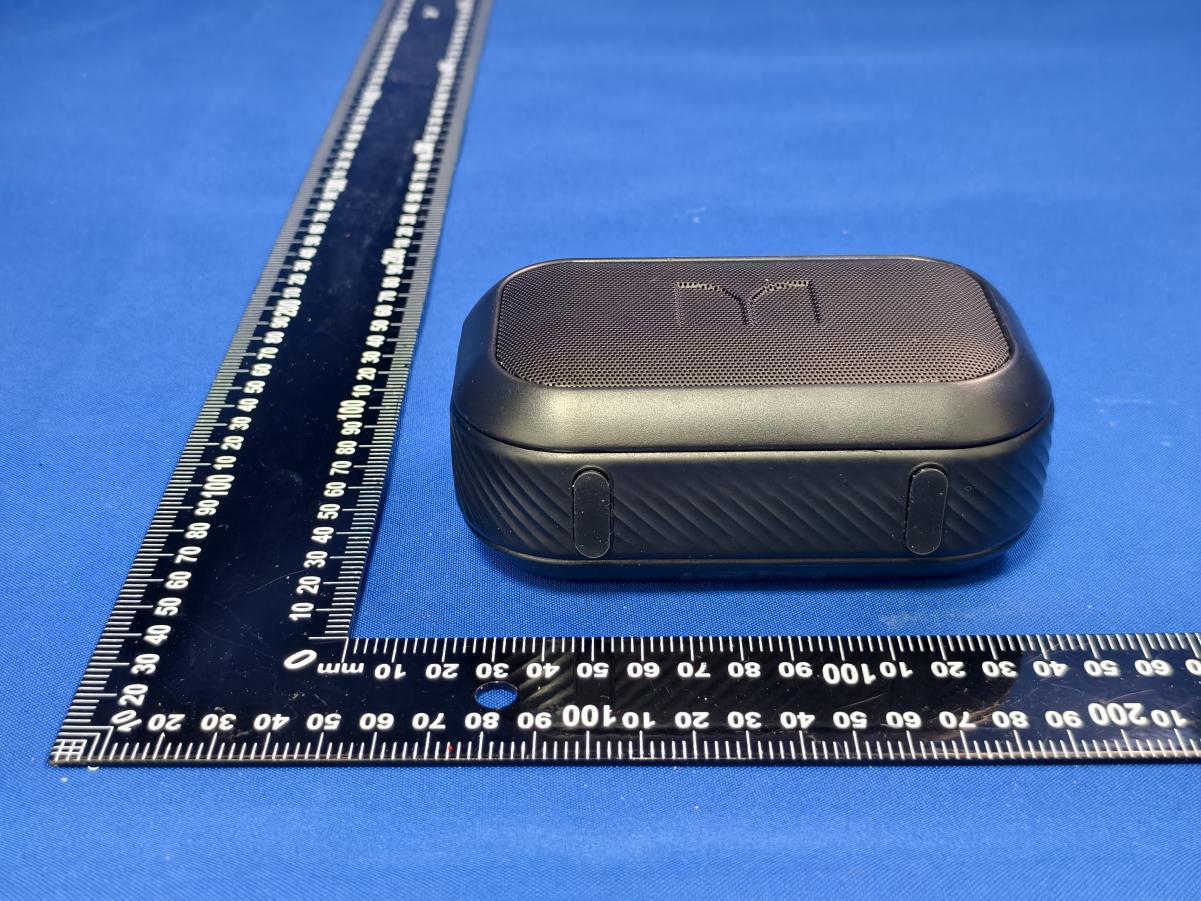

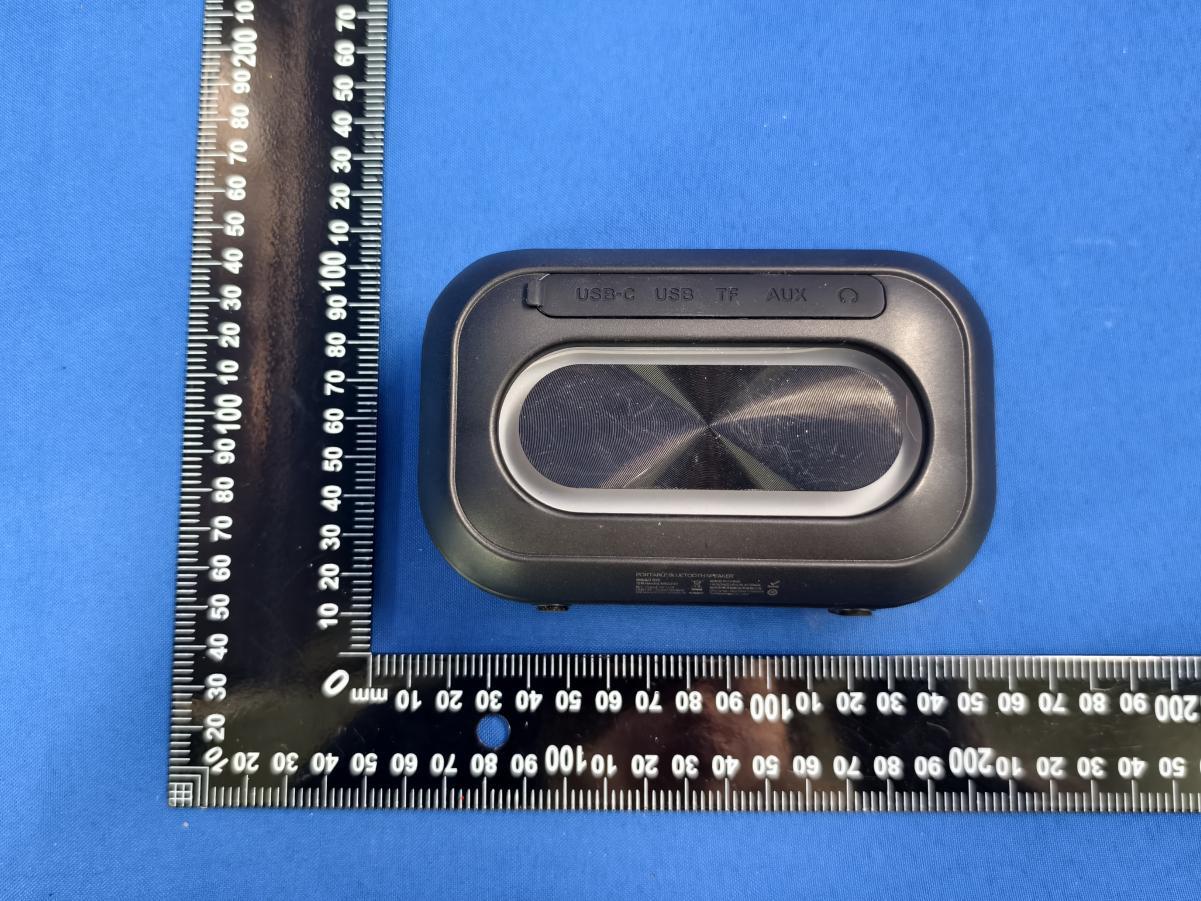

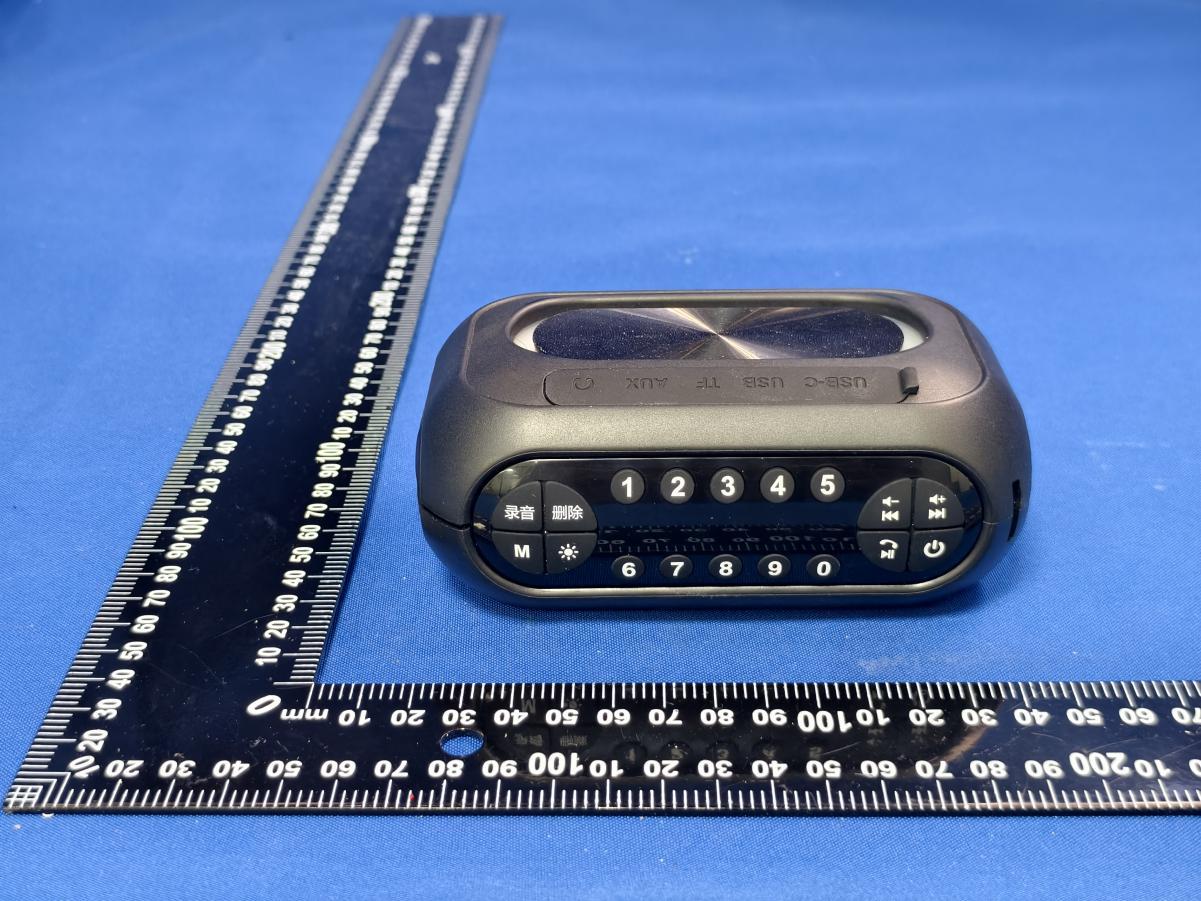

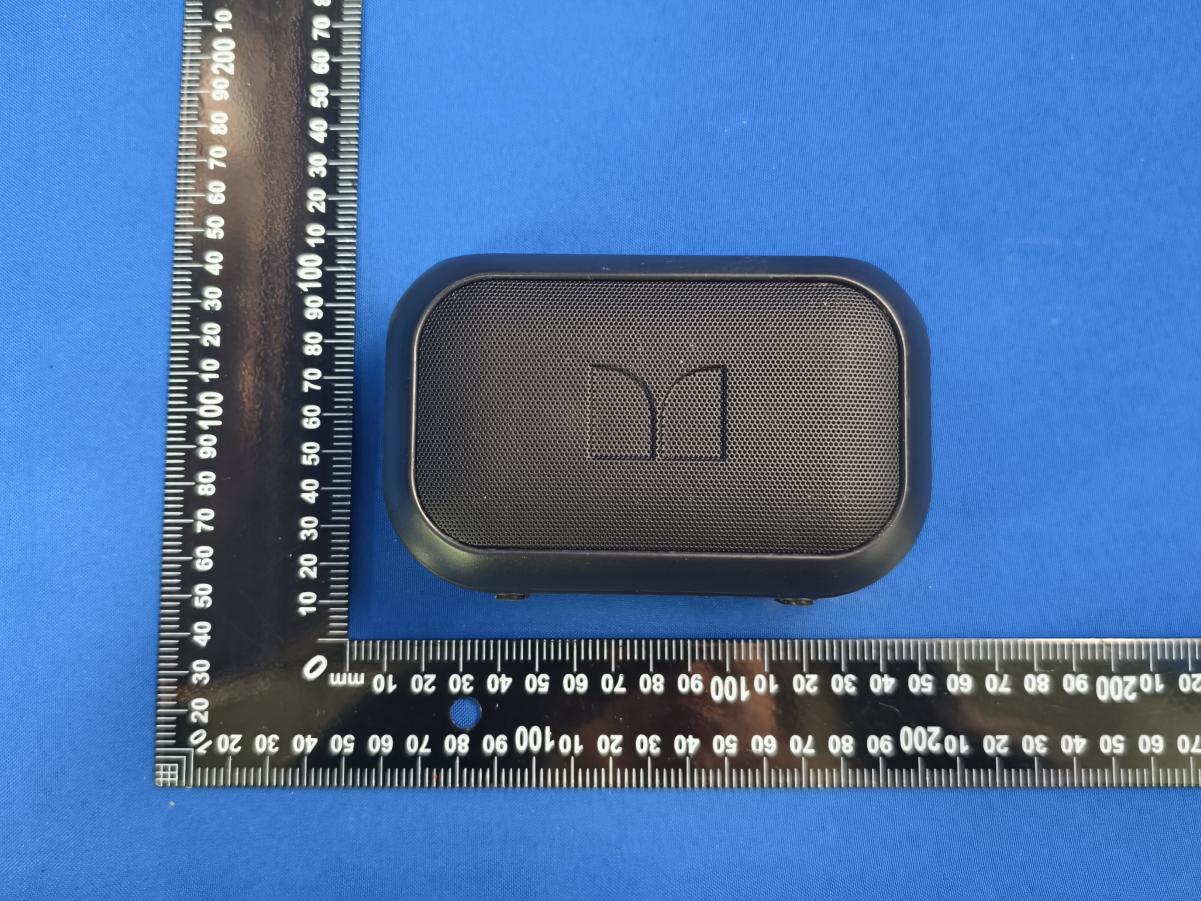

Page 1 of 4 Report No.: STS2508198 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Page 2 of 4 Report No.: STS2508198 Photo 3 Photo 4 Page 3 of 4 Report No.: STS2508198 Photo 5 Photo 6 Page 4 of 4 Report No.: STS2508198 Photo 7

镭雕信息 尺寸：��.��x�.��mm 颜色:镭雕本色 字体:Antenna Regular 字号： 比例�:� MS621102580100001 SN: MS62110 25801 00001 产品ID批次号流水号 CMIIT ID: 25J44T9X5674 型号 /Model: MS62110 输入 / Input: 5V 1A FCC ID: 2AVD2-MS62110 IC: 28087-MS62110 DESIGNED IN CALIFORNIA 中国制造 深圳市魔声创新技术有限公司 MADE IN CHINA Shenzhen Monster Creative Technology Co., Ltd PORTABLE BLUETOOTH SPEAKER SN: MS621102580100001 便携蓝牙音响

Page 1 of 5 Report No.: STS2508198 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Page 2 of 5 Report No.: STS2508198 Photo 3 Photo 4 Antenna Page 3 of 5 Report No.: STS2508198 Photo 5 Photo 6 Page 4 of 5 Report No.: STS2508198 Photo 7 Photo 8 Page 5 of 5 Report No.: STS2508198 Photo 9 Photo 10

The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the ShenZhen STS Test Services Co., Ltd. MPE Report Report No.:STS2508198H02 Issued for Shenzhen Monster Creative Technology Co., Ltd. Room 1602, Building A, Fencheng Zhigu Building, Xixiang Street, Bao 'an District, Shenzhen, Guangdong, China Product Name: PORTABLE BLUETOOTH SPEAKER Brand Name: MONSTER Model Name: MS62110 Series Model(s): M206 FCC ID: 2AVD2-MS62110 Test Standards: FCC 47CFR §2.1093 Page 2 of 9 Report No.: STS2508198H02 TEST REPORT Applicant’s Name ................. : Shenzhen Monster Creative Technology Co., Ltd. Address ................................. : Room 1602, Building A, Fencheng Zhigu Building, Xixiang Street, Bao 'an District, Shenzhen, Guangdong, China Manufacturer's Name ........... : Shenzhen Monster Creative Technology Co., Ltd. Address ................................. : Room 1602, 1601A2, 1601B, 1601C, Building A, Fencheng Zhigu Building, No. 60 Tiezai Road, Xixiang Street, Bao’an District, Shenzhen, China. Product Description Product Name ........................ : PORTABLE BLUETOOTH SPEAKER Brand Name .......................... : MONSTER Model Name .......................... : MS62110 Series Model(s) ...................... : M206 Test Standards ..................... : FCC 47CFR §2.1093 447498 D04 Interim General RF Exposure Guidance v01 The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the ShenZhen STS Test Services Co., Ltd. Date of Test ........................................... : Date of receipt of test item ...................... : 29 Aug. 2025 Date (s) of performance of tests ............. : 29 Aug. 2025 ~ 02 Sept. 2025 Date of Issue .......................................... : 02 Sept. 2025 Test Result .............................................. : Pass Testing Engineer : (Aaron Bu) Technical Manager : (Skylar Li) Authorized Signatory : (Bovey Yang) Page 3 of 9 Report No.: STS2508198H02 TABLE OF CONTENTS 1. GENERAL INFORMATION 5 1.1 GENERAL DESCRIPTION OF THE EUT 5 1.2 TEST FACTORY 5 2. FCC 47CFR §2.1093 REQUIREMENT 6 2.1 TEST STANDARDS 6 2.2 LIMIT 6 2.3 TEST RESULT 9 Page 4 of 9 Report No.: STS2508198H02 Revision History Rev. Issue Date Report No. Effect Page Contents 00 02 Sept. 2025 STS2508198H02 ALL Initial Issue Page 5 of 9 Report No.: STS2508198H02 1. GENERAL INFORMATION 1.1 GENERAL DESCRIPTION OF THE EUT Product Name PORTABLE BLUETOOTH SPEAKER Brand Name MONSTER Model Name MS62110 Series Model(s) M206 Model Difference Only the model names are different. Product Description The EUT is PORTABLE BLUETOOTH SPEAKER Operation Frequency: 2402 – 2480 MHz Modulation Type: BT BR(1Mbps): GFSK BT EDR(2Mbps): π/4-DQPSK BT EDR(3Mbps): 8DPSK Antenna gain: 2dBi Antenna Designation: PCB Power Rating Input: DC 5V 1A Output: DC 3.7V Adapter N/A Battery Model: 18650-2000mAh Brand: N/A Rated Voltage: 3.7 V Charge Limit Voltage: 4.2 V Capacity:2000 mAh Hardware Version A0 Software Version A0 1.2 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : 101, Building B, Zhuoke Science Park, No.190 Chongqing Road, ZhanChengShequ, Fuhai Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 Page 6 of 9 Report No.: STS2508198H02 2. FCC 47CFR §2.1093 REQUIREMENT 2.1 TEST STANDARDS Follow the maximum permissible exposure (MPE) limits specified in 447498 D04 Interim General Radio Frequency Exposure Guidelines v01. The gain of the antenna used in the product was extracted from the supplied antenna data sheet and the maximum total power input to the antenna was also measured. Calculate the distance from the product to the MPE limit by the formula. 2.2 LIMIT For single RF sources (i.e., any single fixed RF source, mobile device, or portable device, as defined in paragraph (b)(2) of this section): A single RF source is exempt if: (A) The available maximum time-averaged power is no more than 1 mW, regardless of separation distance. This exemption may not be used in conjunction with other exemption criteria other than those in paragraph (b)(3)(ii)(A) of Part 1.1307. Medical implant devices may only use this exemption and that in paragraph (b)(3)(ii)(A); (B) Or the available maximum time-averaged power or effective radiated power (ERP), whichever is greater, is less than or equal to the threshold Pth (mW) described in the following formula. This method shall only be used at separation distances (cm) from 0.5 centimeters to 40 centimeters and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by: Page 7 of 9 Report No.: STS2508198H02 (C) Or using below table and the minimum separation distance (R in meters) from the body of a nearby person for the frequency (f in MHz) at which the source operates, the ERP (watts) is no more than the calculated value prescribed for that frequency. For the exemption in Table 1 to apply, R must be at least λ/2π, where λ is the free-space operating wavelength in meters. If the ERP of a single RF source is not easily obtained, then the available maximum time-averaged power may be used in lieu of ERP if the physical dimensions of the radiating structure(s) do not exceed the electrical length of λ/4 or if the antenna gain is less than that of a half-wave dipole (1.64 linear value). RF Source frequency (MHz) Threshold ERP(watts) 0.3-1.34 1,920 R 2 . 1.34-30 3,450 R 2 /f 2 . 30-300 3.83 R 2 . 300-1,500 0.0128 R 2 f. 1,500-100,000 19.2R 2 . Page 8 of 9 Report No.: STS2508198H02 For multiple RF sources: Multiple RF sources are exempt if: (A) The available maximum time-averaged power of each source is no more than 1 mW and there is a separation distance of two centimeters between any portion of a radiating structure operating and the nearest portion of any oth…

Text truncated - open the document above for the full version.

0~2dbi product model name_antenna model name_PCB Antenna Test Equipment:XXXX 1. Electrical Characteristics No. Item Specifications 1 Working Central Frequency 2450 MHz 2 Band Width 3 Gain 4 V.S.W.R (in BW) ≤2.0 5 Polarization Linear 6 Azimuth Beam width Omni-directional 7 Impedance 阻抗 50  2400~2500MHZ 2.Return Loss and Smith Chat -40-35-30-25-20-15-10 -5 0 2000 2100 2200 2300 2400 2500 2600 2700 2800 2900 3000 M1 M2 M3 M4 Return Loss Current Model: S332D Serial #: 00924093 Date: Sep/02/2009 Time: 14:16:43 Std: --- Channel: N/A Resolution: 517 FlexCAL:ON(COAX) CW: ON dB Frequency (2000.0 - 3000.0 MHz) M1: -12.90 dB @ 2397.387 MHz M2: -19.64 dB @ 2451.550 MHz M3: -15.75 dB @ 2482.658 MHz M4: -.28 dB @ 2000.100 MHz 3． ．． ．Physical Test Environment Antitsu S332D 0.2 0.4 0.6 0.8 1 1.5 2 3 4 5 10 20 50 0.2 0.4 0.6 0.8 1 1.5 2 3 4 5 10 20 50 -0.2 -0.4 -0.6 -0.8 -1 -1.5 -2 -3 -4 -5 -10 -20 -50 M1 M2 M3 M4 Smith Chart Current Model: S332D Serial #: 00924093 Date: Sep/02/2009 Time: 14:16:43 Prop.Vel:.800 Resolution: 517 FlexCAL:ON(COAX) CW ON M1: r=1.48, x=0.30 @ 2397.387 MHz M2: r=1.02, x=-0.21 @ 2451.65 MHz M3: r=0.75, x=-0.14 @ 2482.658 MHz M4: r=0.02, x=0.43 @ 2000.10 MHz 4.Shape of the antenna 5 Radiation Pattern 0.66 END

The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the Shenzhen STS Test Services Co., Ltd. Radio Test Report Report No.:STS2508198W02 Issued for Shenzhen Monster Creative Technology Co., Ltd. Room 1602, Building A, Fencheng Zhigu Building, Xixiang Street, Bao 'an District, Shenzhen, Guangdong, China Product Name: PORTABLE BLUETOOTH SPEAKER Brand Name: MONSTER Model Name: MS62110 Series Model(s): M206 FCC ID: 2AVD2-MS62110 Test Standards: FCC Part15.247 Page 2 of 96 Report No.: STS2508198W02 TEST REPORT Applicant’s Name ................. : Shenzhen Monster Creative Technology Co., Ltd. Address .................................. : Room 1602, Building A, Fencheng Zhigu Building, Xixiang Street, Bao 'an District, Shenzhen, Guangdong, China Manufacturer's Name ........... : Shenzhen Monster Creative Technology Co., Ltd. Address .................................. : Room 1602, 1601A2, 1601B, 1601C, Building A, Fencheng Zhigu Building, No. 60 Tiezai Road, Xixiang Street, Bao’an District, Shenzhen, China. Product Description Product Name ........................ : PORTABLE BLUETOOTH SPEAKER Brand Name ........................... : MONSTER Model Name ........................... : MS62110 Series Model(s) .................... : M206 Standards ............................. : FCC Part15.247 Test Procedure ....................... : ANSI C63.10-2020 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the Shenzhen STS Test Services Co., Ltd. Date of Test ............................... : Date of receipt of test item ......... : 29 Aug. 2025 Date (s) of performance of tests : 29 Aug. 2025 ~ 02 Sept. 2025 Date of Issue ............................. : 02 Sept. 2025 Test Result ................................. : Pass Testing Engineer : (Aaron Bu) Technical Manager : (Skylar Li) Authorized Signatory : (Bovey Yang) Page 3 of 96 Report No.: STS2508198W02 Table of Contents Page 1. SUMMARY OF TEST RESULTS 6 1.1 TEST FACTORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.2 DESCRIPTION OF THE TEST MODES 10 2.3 FREQUENCY HOPPING SYSTEM REQUIREMENTS 10 2.4 TABLE OF PARAMETERS OF TEST SOFTWARE SETTING 12 2.5 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 2.6 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 14 2.7 EQUIPMENTS LIST 15 3. EMC EMISSION TEST 16 3.1 CONDUCTED EMISSION MEASUREMENT 16 3.2 RADIATED EMISSION MEASUREMENT 20 4. CONDUCTED SPURIOUS & BAND EDGE EMISSION 32 4.1 LIMIT 32 4.2 TEST PROCEDURE 32 4.3 TEST SETUP 33 4.4 EUT OPERATION CONDITIONS 33 4.5 TEST RESULTS 33 5. NUMBER OF HOPPING CHANNEL 34 5.1 LIMIT 34 5.2 TEST PROCEDURE 34 5.3 TEST SETUP 34 5.4 EUT OPERATION CONDITIONS 34 5.5 TEST RESULTS 34 6. AVERAGE TIME OF OCCUPANCY 35 6.1 LIMIT 35 6.2 TEST PROCEDURE 35 6.3 TEST SETUP 35 6.4 EUT OPERATION CONDITIONS 35 6.5 TEST RESULTS 35 7. HOPPING CHANNEL SEPARATION MEASUREMEN 36 7.1 LIMIT 36 Page 4 of 96 Report No.: STS2508198W02 Table of Contents Page 7.2 TEST PROCEDURE 36 7.3 TEST SETUP 36 7.4 EUT OPERATION CONDITIONS 36 7.5 TEST RESULTS 36 8. BANDWIDTH TEST 37 8.1 LIMIT 37 8.2 TEST PROCEDURE 37 8.3 TEST SETUP 37 8.4 EUT OPERATION CONDITIONS 37 8.5 TEST RESULTS 37 9. OUTPUT POWER TEST 38 9.1 LIMIT 38 9.2 TEST PROCEDURE 38 9.3 TEST SETUP 39 9.4 EUT OPERATION CONDITIONS 39 9.5 TEST RESULTS 39 10. ANTENNA REQUIREMENT 40 10.1 STANDARD REQUIREMENT 40 10.2 EUT ANTENNA 40 APPENDIX 1-TEST DATA 41 DWELL TIME 41 MAXIMUM PEAK CONDUCTED OUTPUT POWER 51 -20DB BANDWIDTH 57 CARRIER FREQUENCIES SEPARATION 63 NUMBER OF HOPPING CHANNEL 69 BAND EDGE 72 BAND EDGE(HOPPING) 79 CONDUCTED RF SPURIOUS EMISSION 86 APPENDIX 2-PHOTOS OF TEST SETUP 96 Page 5 of 96 Report No.: STS2508198W02 Revision History Rev. Issue Date Report No. Effect Page Contents 00 02 Sept. 2025 STS2508198W02 ALL Initial Issue Page 6 of 96 Report No.: STS2508198W02 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: KDB 558074 D01 15.247 Meas Guidance v05r02. FCC Part 15.247,Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS -- 15.247(a)(1) Hopping Channel Separation PASS -- 15.247(a)(1)&(b)(1) Output Power PASS -- 15.209 Radiated Spurious Emission PASS -- 15.247(d) Conducted Spurious & Band Edge Emission PASS -- 15.247(a)(1)(iii) Number of Hopping Frequency PASS -- 15.247(a)(1)(iii) Dwell Time PASS -- 15.247(a)(1) Bandwidth PASS -- 15.205 Restricted bands of operation PASS -- Part 15.247(d)/part 15.209(a) Band Edge Emission PASS -- 15.203 Antenna Requirement PASS -- Note: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2020. Page 7 of 96 Report No.: STS2508198W02 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : 101, Building B, Zhuoke Science Park, No.190 Chongqing Road, ZhanChengShequ, Fuhai Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ±U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.755dB 2 Unwanted Emissions, conducted ±2.874dB 3 All emissions, radiated 9K-30MHz ±3.80dB 4 All emissions, radiated 30M-1GHz ±4.18dB 5 All emissions, radiated 1G-6GHz ±4.90dB 6 All emissions, radiated>6G ±5.24dB 7 Conducted Emission (9KHz-150KHz) ±2.19dB 8 Conducted Emission (150KHz-30MHz) ±2.53dB 9 Occupied Channel Bandwidt…

Text truncated - open the document above for the full version.

Page 1 of 2 FCC ID: 2AVD2-MS62110 Setup photo AC Conduction RF Conduction Page 2 of 2 FCC ID: 2AVD2-MS62110 RE (Below 1GHz) RE (Above 1GHz)
