Model No.:MH12003 FCC ID: 2AVD2-MH12003 Quick Start Guide Please read this Quick Start Guide carefully and keep it for future use. Product Overview In-ear Earphone x 2 (left & right) Charging Case Ear Tips × 3 pairs (M size installed) Quick Start Guide and Warranty Letter 1. Indicator Light 2. Multi Function Button（MFB） 3. Microphones 4. Ear Tips 5. Charging Contacts 6. Wireless Charging Area 7. Charging Case Indicator Light 8. USB-C Charging Port Power On/Off Open the charging case, take out the earphones, it will automatically turn on. To turn off the earphones, put back to the charging case and close. Earphones will be turned off and start charging. Wired/Wireless Charging Case Charging Besides using the included USB-C charging cable to charge the charging case, the charging case can be charged by compatible wireless charging device. After charging case is fully charged, indicator turn off. Pairing Open the charging case, take out the earphones, it will automatically turn on. left and right earphones will be connected automatically within few seconds. Then “pairing” voice prompt will be heard. For new device connection, go to the Bluetooth settings on your mobile device and set it to search for new devices (new Monster device). Once the earphones are paired to the designated device, you will hear “connected”. Volume Control Volume down: quickly double press the MFB on the left earphone during music streaming. Volume up: quickly double press the MFB on the right earphone during music streaming. Calling Answer / End a call: Click the MFB touch button. Reject the call: Press and hold the MFB touch button for about 2 seconds. Music Play/Pause music:short press the MFB button. Previous song: Press and hold the MFB button on the left earphone for about 2 seconds. Next song: Press and hold the MFB button on the right earphone for about 2 seconds. Voice Control After connecting to the phone, quickly double press the MFB to activate the voice assistant. LED Indicator Guide Mode Description Voice prompts Power On White LED indicator light stays on about 1 second “Power On” Power Off Red LED indicator light stays on about 1 second “Power Off ” Pairing White LED indicator light flashes quickly “Pairing” Connected Indicator light goes off “Connected” Earphone charging Red LED indicator light stays on - Charging case During charging, the indicator light of the charging box is on and goes out after full - Note: * After removing the earpieces from the charging case, without pressing any buttons, the left and right earpieces will connect automatically. If there is no connection found, it enters to pairing mode automatically. * Please put the earphones in the correct position to charge. * It is not recommended to replace the battery privately. * The battery (battery pack or combination battery) must not be exposed to excessive heat such as sunlight or fire. FCC Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RF warning statement: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

Shenzhen Monster Creative Technology Co., Ltd. Agent Authorization Company: Shenzhen Monster Creative Technology Co., Ltd. Address: Flat G, 3/F, Building D, The Central Avenue, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Product Name: Monster Bluetooth Headphone Model Number(s): MH12003 Product Description: Monster Bluetooth Headphone We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-01-26 Name: Qing yun He Company: Shenzhen Monster Creative Technology Co., Ltd.

Shenzhen Monster Creative Technology Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-12-11 Subject; Request for Confidentiality FCC ID: 2AVD2-MH12003 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely Shenzhen Monster Creative Technology Co., Ltd. Contact person: Qing yun He

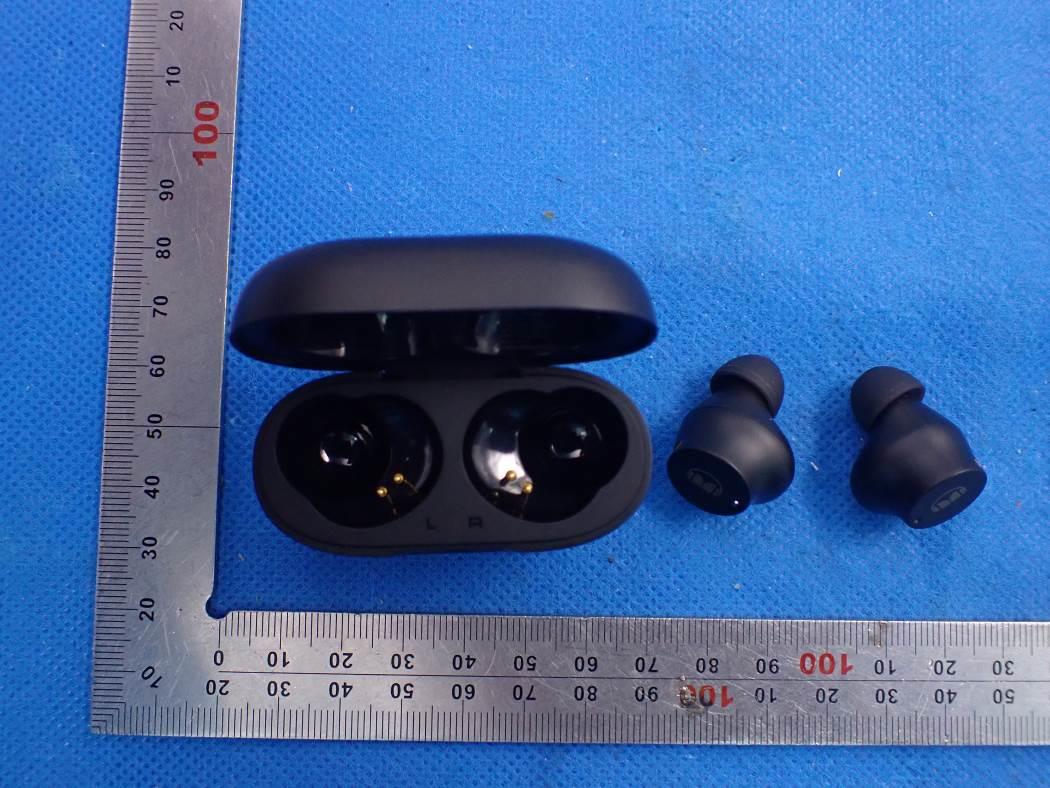

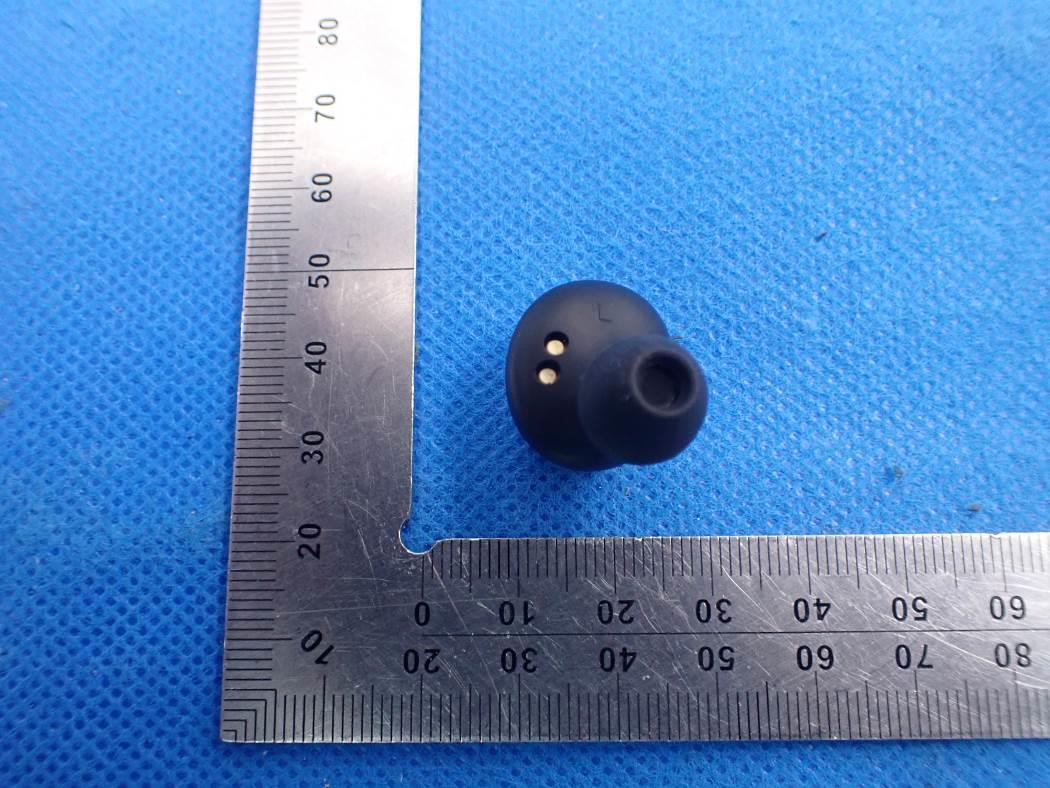

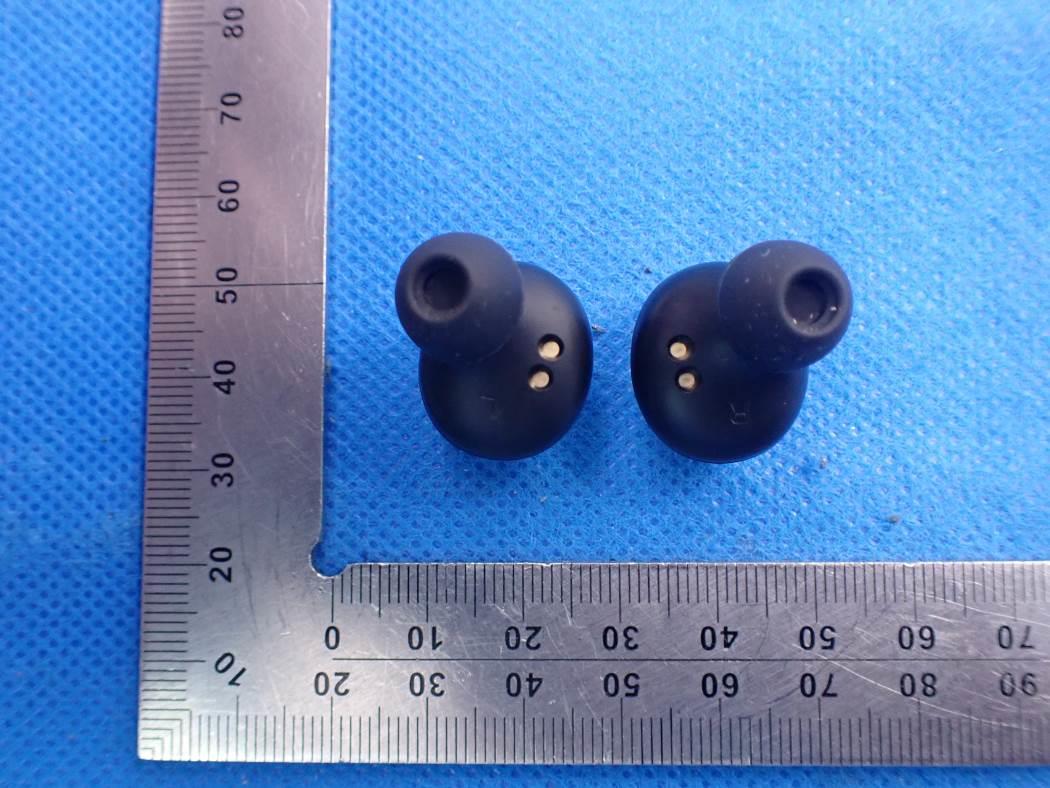

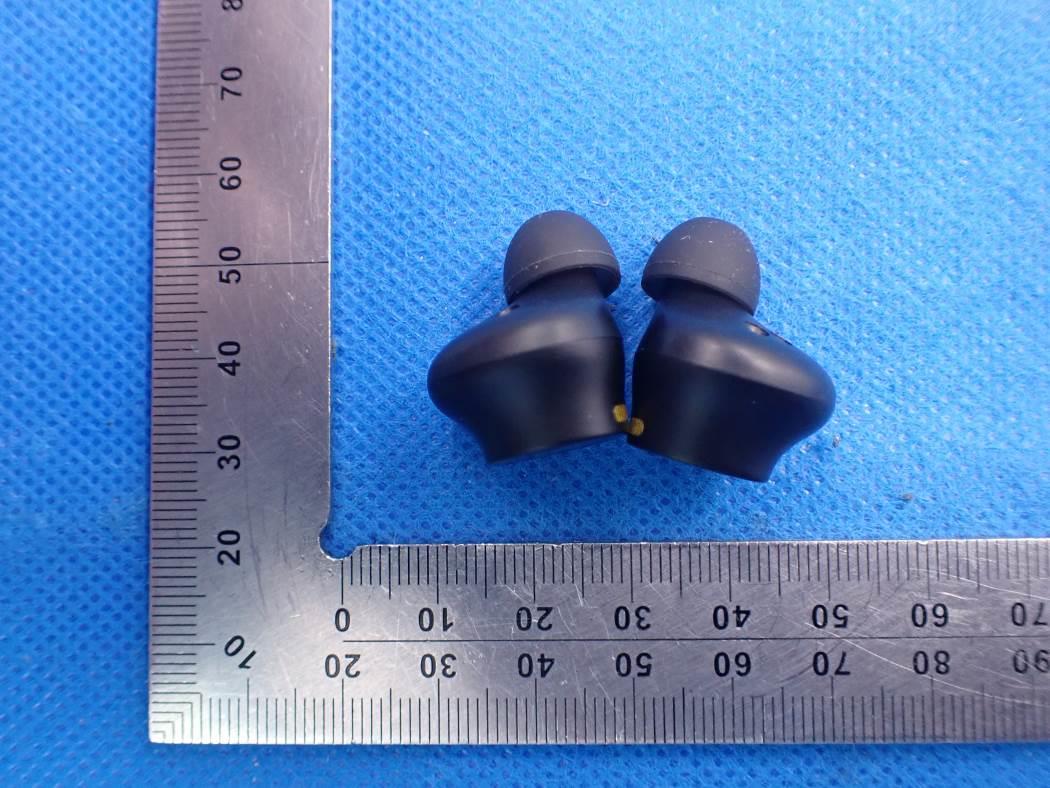

External Photos WHOLE VIEW OF EUT-1 WHOLE VIEW OF EUT-2 TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT Left VIEW OF EUT(PORT) Right VIEW OF EUT(PORT)

FCC ID Label Location The product does not have enough space to place the label, and FCC ID label is reflected in the user manual and package, as below:

Internal Photos Left OPEN VIEW OF EUT VIEW OF BATTERY INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 BT Antenna INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 Right OPEN VIEW OF EUT VIEW OF BATTERY INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 BT Antenna INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description Monster Bluetooth Headphone Model Name MH12003 FCC ID 2AVD2-MH12003 2. EVALUATION METHOD According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 3. CALCULATION BR/EDR: P t =3.128dBm=2.05mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(2.05mW /5mm) .[√2.480GHz)]=0.64<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. 4. CONCLUSION The SAR evaluation is not required.

Page 1 of 77 FCC Test Report Report No.: AGC00275201102FE03 FCC ID : 2AVD2-MH12003 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Monster Bluetooth Headphone BRAND NAME : MONSTER MODEL NAME : MH12003 APPLICANT : Shenzhen Monster Creative Technology Co., Ltd. DATE OF ISSUE : Dec. 10,2020 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC00275201102FE03 Page 2 of 77 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Dec. 10,2020 Valid Initial Release Report No.: AGC00275201102FE03 Page 3 of 77 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ............................................................................................................... 5 2. GENERAL INFORMATION ............................................................................................................................ 6 2.1. PRODUCT DESCRIPTION ..................................................................................................................... 6 2.2. TABLE OF CARRIER FREQUENCYS ..................................................................................................... 6 2.3. RECEIVER INPUT BANDWIDTH ............................................................................................................ 7 2.4. EXAMPLE OF A HOPPING SEQUENCY IN DATA MODE ....................................................................... 7 2.5. EQUALLY AVERAGE USE OF FREQUENCIES AND BEHAVIOUR ........................................................ 7 2.6. RELATED SUBMITTAL(S) / GRANT (S) .................................................................................................. 8 2.7. TEST METHODOLOGY .......................................................................................................................... 8 2.8. SPECIAL ACCESSORIES ....................................................................................................................... 8 2.9. EQUIPMENT MODIFICATIONS .............................................................................................................. 8 2.10. ANTENNA REQUIREMENT .................................................................................................................. 8 3. MEASUREMENT UNCERTAINTY ................................................................................................................. 9 4. DESCRIPTION OF TEST MODES ............................................................................................................... 10 5. SYSTEM TEST CONFIGURATION ............................................................................................................. 11 5.1. CONFIGURATION OF EUT SYSTEM .................................................................................................... 11 5.2. EQUIPMENT USED IN TESTED SYSTEM ............................................................................................. 11 5.3. SUMMARY OF TEST RESULTS ............................................................................................................. 11 6. TEST FACILITY ........................................................................................................................................... 12 7. PEAK OUTPUT POWER ............................................................................................................................. 13 7.1. MEASUREMENT PROCEDURE ........................................................................................................... 13 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 13 7.3. LIMITS AND MEASUREMENT RESULT ............................................................................................... 14 8. 20DB BANDWIDTH ..................................................................................................................................... 26 8.1. MEASUREMENT PROCEDURE ........................................................................................................... 26 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 26 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................. 27 9. CONDUCTED SPURIOUS EMISSION ........................................................................................................ 33 9.1. MEASUREMENT PROCEDURE ........................................................................................................... 33 Report No.: AGC00275201102FE03 Page 4 of 77 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 33 9.3. MEASUREMENT EQUIPMENT USED .................................................................................................. 33 9.4. LIMITS AND MEASUREMENT RESULT ............................................................................................... 33 10. RADIATED EMISSION ............................................................................................................................... 46 10.1. MEASUREMENT PROCEDURE ......................................................................................................... 46 10.2. TEST SETUP ....................................................................................................................................... 48 10.3. LIMITS AND MEASUREMENT RESULT ............................................................................................. 49 10.4. TEST RESULT ..................................................................................................................................... 49 11. NUMBER OF HOPPING FREQUENCY ..................................................................................................... 59 11.1. MEASUREMENT PR…

Text truncated - open the document above for the full version.

Report No.: AGC00275201102FE03 Page 41 of 77 GFSK MODULATION IN HIGH CHANNEL Hopping off Hopping on Report No.: AGC00275201102FE03 Page 42 of 77 π /4-DQPSK MODULATION IN LOW CHANNEL Hopping off Hopping on Report No.: AGC00275201102FE03 Page 43 of 77 π /4-DQPSK MODULATION IN HIGH CHANNEL Hopping off Hopping on Report No.: AGC00275201102FE03 Page 44 of 77 8-DPSK MODULATION IN LOW CHANNEL Hopping off Hopping on Report No.: AGC00275201102FE03 Page 45 of 77 8-DPSK MODULATION IN HIGH CHANNEL Hopping off Hopping on Report No.: AGC00275201102FE03 Page 46 of 77 10. RADIATED EMISSION 10.1. MEASUREMENT PROCEDURE 1. The EUT was placed on the top of the turntable 0.8 or 1.5 meter above ground. The phase center of the receiving antenna mounted on the top of a height-variable antenna tower was placed 3 meters far away from the turntable. 2. Power on the EUT and all the supporting units. The turntable was rotated by 360 degrees to determine the position of the highest radiation. 3. The height of the broadband receiving antenna was varied between one meter and four meters above ground to find the maximum emissions field strength of both horizontal and vertical polarization. 4. For each suspected emission, the antenna tower was scan (from 1 M to 4 M) and then the turntable was rotated (from 0 degree to 360 degrees) to find the maximum reading. 5. Set the test-receiver system to Peak or CISPR quasi-peak Detect Function with specified bandwidth under Maximum Hold Mode. 6. For emissions above 1GHz, use 1MHz RBW and 3MHz VBW for peak reading. Place the measurement antenna away from each area of the EUT determined to be a source of emissions at the specified measurement distance, while keeping the measurement antenna aimed at the source of emissions at each frequency of significant emissions, with polarization oriented for maximum response. The measurement antenna may have to be higher or lower than the EUT, depending on the radiation pattern of the emission and staying aimed at the emission source for receiving the maximum signal. The final measurement antenna elevation shall be that which maximizes the emissions. The measurement antenna elevation for maximum emissions shall be restricted to a range of heights of from 1 m to 4 m above the ground or reference ground plane. 7. When the radiated emissions limits are expressed in terms of the average value of the emissions, and pulsed operation is employed, the measurement field strength shall be determined by averaging over one complete pulse train, including blanking intervals, as long as the pulse train does not exceed 0.1 seconds. As an alternative (provided the transmitter operates for longer than 0.1 seconds) or in cases where the pulse train exceeds 0.1 seconds, the measured field strength shall be determined from the average absolute voltage during a 0.1 second interval during which the field strength is at its maximum values. 8.If the emissions level of the EUT in peak mode was 3 dB lower than the average limit specified, then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions which do not have 3 dB margin will be repeated one by one using the quasi-peak method for below 1GHz. 9. For testing above 1GHz, the emissions level of the EUT in peak mode was lower than average limit (that means the emissions level in peak mode also complies with the limit in average mode), then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions will be measured in average mode again and reported. 10. In case the emission is lower than 30MHz, loop antenna has to be used for measurement and the recorded data should be QP measured by receiver. High - Low scan is not required in this case. Report No.: AGC00275201102FE03 Page 47 of 77 The following table is the setting of spectrum analyzer and receiver. Spectrum Parameter Setting Start ~Stop Frequency 9KHz~150KHz/RB 200Hz for QP Start ~Stop Frequency 150KHz~30MHz/RB 9KHz for QP Start ~Stop Frequency 30MHz~1000MHz/RB 120KHz for QP Start ~Stop Frequency 1GHz~26.5GHz 1MHz/3MHz for Peak, 1MHz/3MHz for Average Receiver Parameter Setting Start ~Stop Frequency 9KHz~150KHz/RB 200Hz for QP Start ~Stop Frequency 150KHz~30MHz/RB 9KHz for QP Start ~Stop Frequency 30MHz~1000MHz/RB 120KHz for QP Report No.: AGC00275201102FE03 Page 48 of 77 10.2. TEST SETUP Radiated Emission Test-Setup Frequency Below 30MHz RADIATED EMISSION TEST SETUP 30MHz-1000MHz RADIATED EMISSION TEST SETUP ABOVE 1000MHz Report No.: AGC00275201102FE03 Page 49 of 77 10.3. LIMITS AND MEASUREMENT RESULT 15.209 Limit in the below table has to be followed Frequencies (MHz) Field Strength (microvolts/meter) Measurement Distance (meters) 0.009~0.490 2400/F(kHz) 300 0.490~1.705 24000/F(kHz) 30 1.705~30.0 30 30 30~88 100 3 88~216 150 3 216~960 200 3 Above 960 500 3 Note: All modes were tested for restricted band radiated emission, the test records reported below are the worst result compared to other modes. 10.4. TEST RESULT RADIATED EMISSION BELOW 30MHz The amplitude of spurious emissions from 9kHz to 30MHz which are attenuated more than 20 dB below the permissible value need not be reported. Report No.: AGC00275201102FE03 Page 50 of 77 RADIATED EMISSION BELOW 1GHz EUT Monster Bluetooth Headphone Model Name MH12003 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 3 Antenna Horizontal RESULT: PASS Report No.: AGC00275201102FE03 Page 51 of 77 EUT Monster Bluetooth Headphone Model Name MH12003 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 3 Antenna Vertical RESULT: PASS Note: 1. Factor=Antenna Factor + Cable loss, Over= Measurement –Limit. 2. All test modes had been pre-tested. The mode 3 is the worst case and recorded in the report. Report No.: AGC00275201102FE03 Page 52 of 77 RADIATED EMISSION ABOVE 1GHz EUT Monster Bluetooth Headphone Model Name MH12003 Temperature 25°C Relative Humidity 55.4% Pressure 960…

Text truncated - open the document above for the full version.

Report No.: AGC00275201102FE03 Page 70 of 77 LEFT VIEW OF EUT RIGHT VIEW OF EUT Report No.: AGC00275201102FE03 Page 71 of 77 Left VIEW OF EUT(PORT) OPEN VIEW OF EUT Report No.: AGC00275201102FE03 Page 72 of 77 VIEW OF BATTERY INTERNAL VIEW OF EUT-1 BT Antenna Report No.: AGC00275201102FE03 Page 73 of 77 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 Report No.: AGC00275201102FE03 Page 74 of 77 INTERNAL VIEW OF EUT-4 Right VIEW OF EUT(PORT) Report No.: AGC00275201102FE03 Page 75 of 77 OPEN VIEW OF EUT VIEW OF BATTERY Report No.: AGC00275201102FE03 Page 76 of 77 INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 BT Antenna Report No.: AGC00275201102FE03 Page 77 of 77 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 ----END OF REPORT---- Conditions of Issuance of Test Reports 1. All samples and goods are accepted by the Attestation of Global Compliance (Shenzhen) Co., Ltd (the “Company”) solely for testing and reporting in accordance with the following terms and conditions. The company provides its services on the basis that such terms and conditions constitute express agreement between the company and any person, firm or company requesting its services (the “Clients”). 2. Any report issued by Company as a result of this application for testing services (the “Report”) shall be issued in confidence to the Clients and the Report will be strictly treated as such by the Company. It may not be reproduced either in its entirety or in part and it may not be used for advertising or other unauthorized purposes without the written consent of the Company. The Clients to whom the Report is issued may, however, show or send it, or a certified copy thereof prepared by the Company to its customer, supplier or other persons directly concerned. The Company will not, without the consent of the Clients, enter into any discussion or correspondence with any third party concerning the contents of the Report, unless required by the relevant governmental authorities, laws or court orders. 3.The Company shall not be called or be liable to be called to give evidence or testimony on the Report in a court of law without its prior written consent, unless required by the relevant governmental authorities, laws or court orders. 4. The non-CMA report issued by AGC is only permitted to be used by the client as internal reference use and shall not be used for public demonstration purpose. 5. In the event of the improper use of the report as determined by the Company, the Company reserves the right to withdraw it, and to adopt any other additional remedies which may be appropriate. 6. Samples submitted for testing are accepted on the understanding that the Report issued cannot form the basis of, or be the instrument for, any legal action against the Company. 7. The Company will not be liable for or accept responsibility for any loss or damage however arising from the use of information contained in any of its Reports or in any communication whatsoever about its said tests or investigations. 8.Clients wishing to use the Report in court proceedings or arbitration shall inform the Company to that effect prior to submitting the sample for testing. 9. The Company is not responsible for recalling the electronic version of the original report when any revision is made to them. The Client assumes the responsibility to providing the revised version to any interested party who uses them. 10. Subject to the variable length of retention time for test data and report stored hereinto as otherwise specifically required by individual accreditation authorities, the Company will only keep the supporting test data and information of the test report for a period of six years. The data and information will be disposed of after the aforementioned retention period has elapsed. Under no circumstances shall we provide any data and information which has been disposed of after retention period. Under no circumstances shall we be liable for damage of any kind, including (but not limited to) compensatory damages, lost profits, lost data, or any form of special, incidental, indirect, consequential or punitive damages of any kind, whether based on breach of contract of warranty, tort (including negligence), product liability or otherwise, even if we are informed in advance of the possibility of such damages.

Test Setup Photos RADIATED EMISSION TEST SETUP BELOW 1GHz RADIATED EMISSION TEST SETUP ABOVE 1GHz CONDUCTED TEST SETUP
