2AVD2-MH21903Monster Bluetooth Headphone

Model No.:MH21903 FCC ID:2AVD2‐MH21903 Quick Start Guide Please read this Quick Start Guide carefully and keep it for future use. Product Overview In‐ear Earphones (left & right) Charging Case USB‐C Charging Cable Ear Tips × 3 pairs (M size installed) Quick Start Guide and Warranty Letter 1. Multi Function Button（MFB） 2. Indicator Light (White) 3. Microphones 4. Ear Tip 5. USB‐C Charging Port 6. Pair/ Reset to Factory Settings Button 7. Charging Case 8. Charging Case Indicator Light Power On/Off The earphones will be turned on when opening the charging case. To turn off the earphones, put back to the charging case and close. Earphones will be turned off and start charging. Noise Cancellation On/Off Press and hold the MFB for about 2 seconds to switch different mode. [Noise Cancellation On] – [Transparency Mode] – [Noise Cancellation Off] Transparency Mode請看看有沒有相關的註冊商標權 Charging case Connect the included USB‐C cable to charge the charging case. During the charging process, the charging case light indicator will show the current charge status. When the charging case is fully charged, the light will turn off. Pairing Open the charging case, the earphones will be turned on automatically. Left and right earphones will be connected automatically within few seconds. Then “pairing” voice prompt will be heard. For new device connection, go to the Bluetooth settings on your device and set it to search for new devices (new Monster device). Once the earphones are paired to the designated device, you will hear “connected”. Connect other devices Keep the earphones in the charging case and leave the cover open. Press and hold the pair button which is located on the bottom of the charging case for about 2 seconds until the light indicator start to flash. It is now in pairing mode. Activate the Bluetooth on your device and set it to search for new devices. Volume Control The earphones do not have volume control function. After Bluetooth connection, volume level can be controlled on the connected device. Calling Answer/End call: Click the MFB. Reject a call: Double‐click the MFB. Music Play/Pause music: Short press the MFB. Previous song: Double‐click the MFB on the left earphone. Next song: Double‐click the MFB on the right earphone. Voice Control After connecting to the phone, triple‐click the MFB quickly to activate the voice assistant. LED Indicator Guide Mode Description Voice prompts Power On Indicator light stays on about 1 second. “Power On” Power Off Indicator light stays on about 1 second. “Power Off ” Pairing Indicator light flashes quickly. “Pairing” Connected After connected, Indicator light goes off. “Connected” Earphones charging When left earphones is charging, the left indicator light is on. ‐ When right earphones is charging, the right indicator light is on. When both earphones are charging, the left and right indicator lights are on respectively. Charging case Charging case indicator light flashes while charging. When charging case indicator light is off, it is fully charged. ‐ Note: * After removing the earpieces from the charging case, without pressing any buttons, the left and right earpieces will connect automatically. If there is no connection found, it enters to pairing mode automatically. * Please put the earphones in the correct position to charge. * It is not recommended to replace the battery privately. * The battery (battery pack or combination battery) must not be exposed to excessive heat such as sunlight or fire. FCC Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RF warning statement: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

MonsterBluetoothHeadphone ModelNumber:MH21903 FCCID:2AVD2-MH21903 Thedevicehaveleftandrightearphones ， leftandright earphonesareelectricallyidentical. <Signature> Name:QingyunHe Title:R&DManager Company:ShenzhenMonsterCreativeTechnologyCo.,Ltd.

DATE:2020.09.03 EquipmentAutorisationDivision FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 FCCID:2AVD2-MH21903 ProductName:MonsterBluetoothHeadphone RequestforConfidentiality PursuanttoSections0.457and0.459ofthecommissionsrules,weherebyrequestthat thefollowingdocumentsbeheldconfidential: (Listherethedocumentsforwhichyouareseekingconfidentiality–forexample...) Schematics Blockdiagram  Operationdescription Thesematerialscontaintradesecretsandproprietaryinformationandarenot customarilyreleasedtothepublic.Thepublicdisclosureofthisinformationmightbe harmfultothecompanyandprovideunjustifiedbenefitstoourcompetitors. <Signature> Name:QingyunHe Title:R&DManager Company:ShenzhenMonsterCreativeTechnologyCo.,Ltd.

DATE:2020.09.03 FederalCommunicationsCommission Authorization&EvaluationDivision 7345OaklandMillsRoad Columbia,Maryland21046 AuthoritytoActasAgent Onourbehalf,IappointESTTechnologyCo.,Ltd.Address:Chilingxiang,Qishantou,Santun, Houjie,Dongguan,Guangdong,China (NameofAgentcompanynameandaddress)toact asouragentinthepreparationofthisapplicationforequipmentcertification.Icertifythat submitteddocumentsproperlydescribethedeviceorsystemforwhichequipment certificationissought.Ialsocertifythateachunitmanufactured,importedormarketed,as definedintheFederalCommunicationsCommission’sregulationswillhaveaffixedtoita labelidenticaltothatsubmittedforapprovalwiththisapplication. Forinstanceswhereourauthorizedagentsignstheapplicationforcertificationonourbehalf,I acknowledgethatallresponsibilityforcomplyingwiththetermsandconditionsforcertification, stillresideswithShenzhenMonsterCreativeTechnologyCo.,Ltd.Address:No.303,Building 1,HezhouJinfoIndustrialZone,HezhouVillage,HangchengStreet,BaoanDistrict,Shenzhen, Guangdong,China(ApplicantNameandaddress) <Signature> Name:QingyunHe Title:R&DManager Company:ShenzhenMonsterCreativeTechnologyCo.,Ltd.

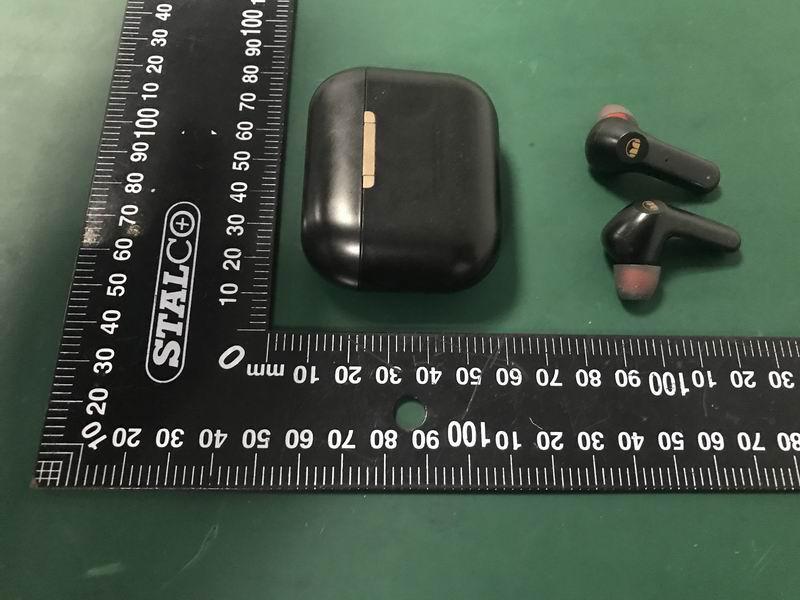

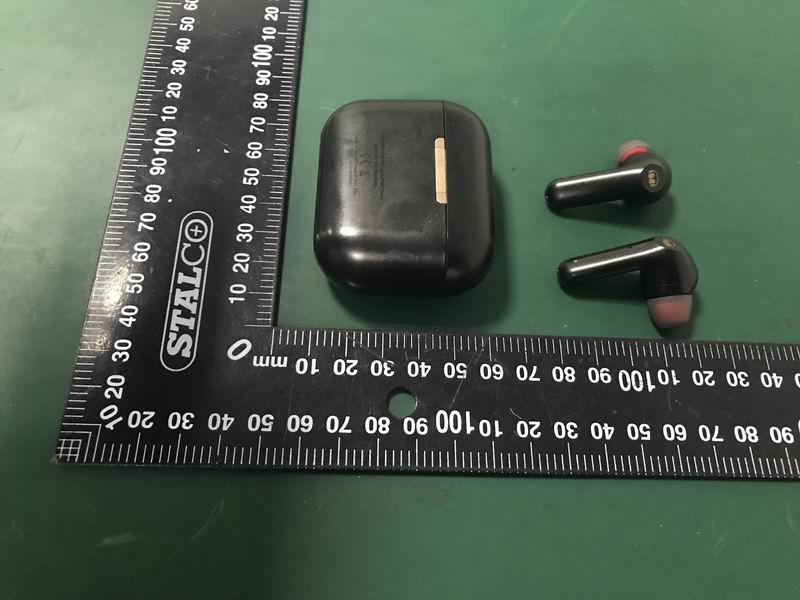

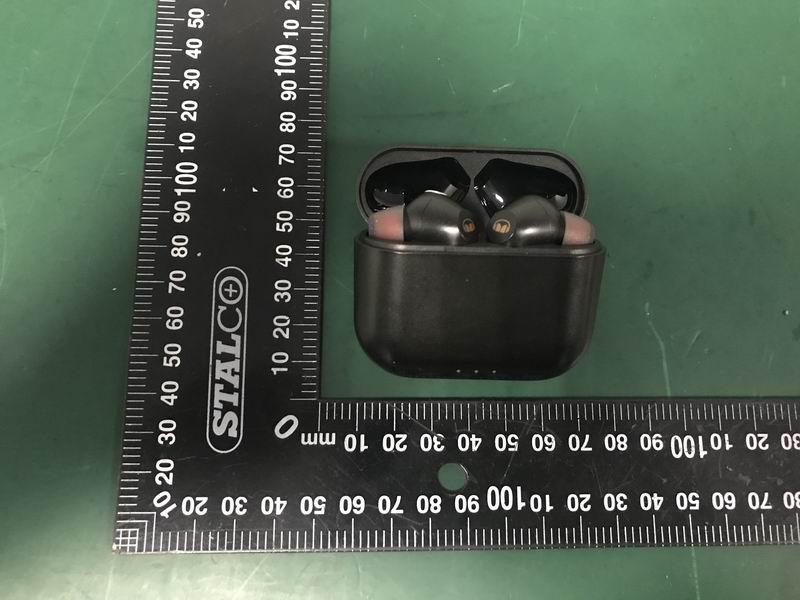

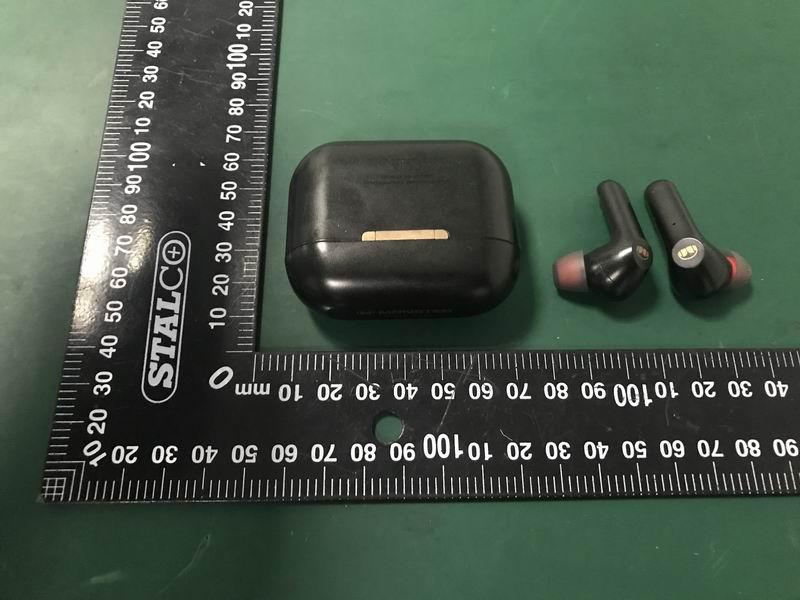

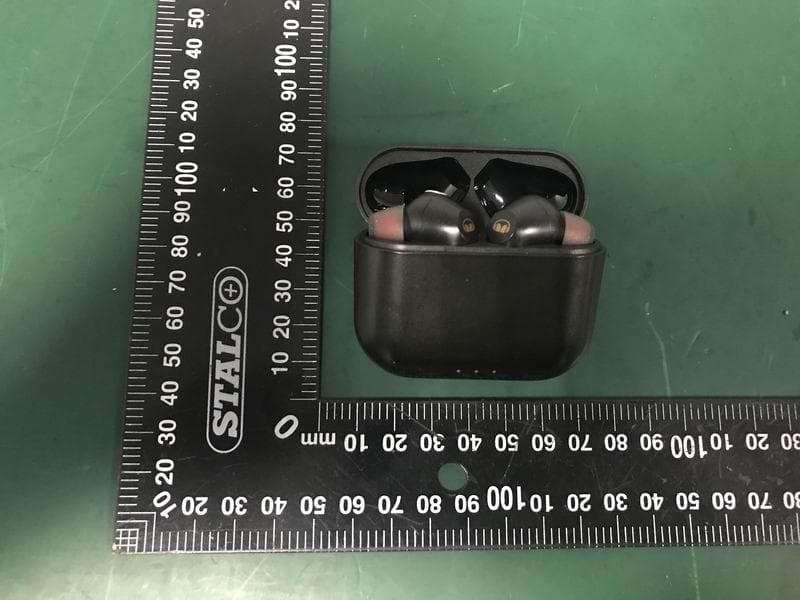

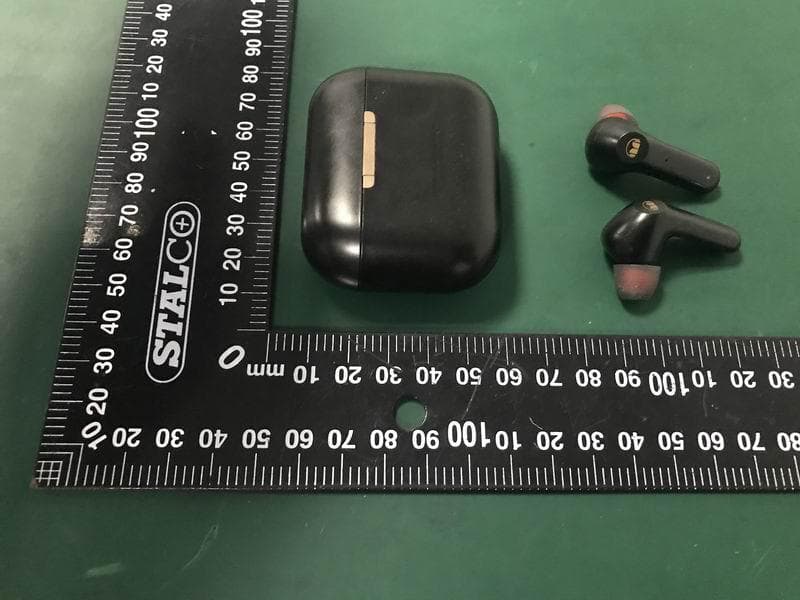

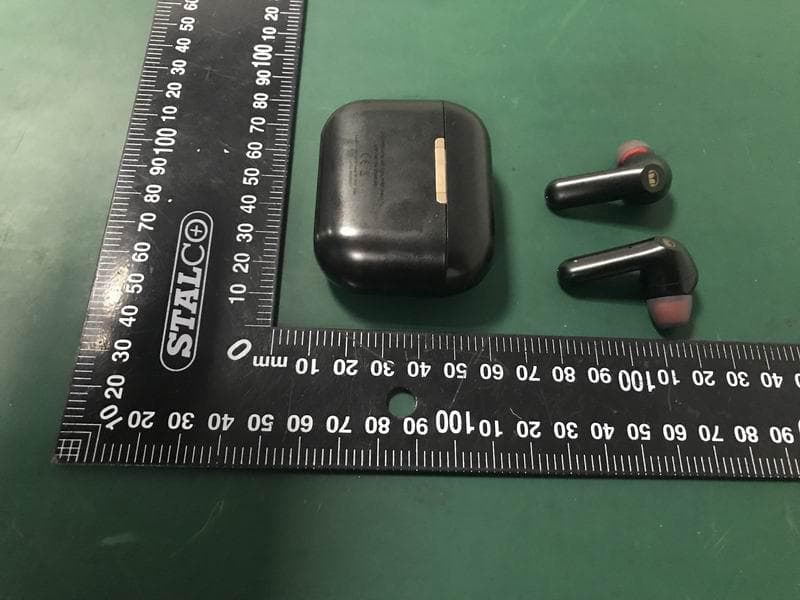

ExternalPhotos M/N:MH21903 ExternalPhotos M/N:MH21903 ExternalPhotos M/N:MH21903 ExternalPhotos M/N:MH21903 ExternalPhotos M/N:MH21903 ExternalPhotos M/N:MH21903 ExternalPhotos M/N:MH21903 ExternalPhotos M/N:MH21903

Earphone Design Roadmap 2020 Clarity Airlinks –Black- CMF 丝印LOGO 尺寸：4.9x3.2mm 颜色：玫瑰金 比例：1：1 丝印LOGO 尺寸：25x3.2mm 颜色：玫瑰金 比例：1：1 丝印符号 尺寸：3x3mm 颜色：玫瑰金 比例：1：1 丝印符号 尺寸：3x3mm 颜色：玫瑰金 比例：1：1 丝印LOGO 尺寸：4.9x3.2mm 颜色：玫瑰金 比例：1：1 丝印LOGO 尺寸：23.1x11mm 颜色：透明亮UV 比例：1：1 FCC ID: 2AVD2-MH21903 CMIIT ID:XXXXXXXXXX Model No.: MH21903 Input: DC 5V 0.8A DESIGNED IN CALIFORNIA MADE IN CHINA SHENZHEN MONSTER CREATIVE TECHNOLOGY CO., LTD. FCC ID: 2AVD2-MH21903 CMIIT ID:XXXXXXXXXX Model No.: MH21903 Input: DC 5V 0.8A DESIGNED IN CALIFORNIA MADE IN CHINA SHENZHEN MONSTER CREATIVE TECHNOLOGY CO., LTD.

Internal Photos M/N: MH21903 Internal Photos M/N: MH21903 Internal Photos M/N: MH21903 Bluetooth Antenna

FCC ID: 2AVD2-MH21903 EST Technology Co., Ltd Report No. ESTE-R2009053 Page 1 of 3 FCC RF EXPOSURE REPORT Shenzhen Monster Creative Technology Co., Ltd. Monster Bluetooth Headphone Model Number: MH21903 FCC ID: 2AVD2-MH21903 Prepared for: Shenzhen Monster Creative Technology Co., Ltd. No. 303, Building 1, Hezhou Jinfo Industrial Zone, Hezhou Village, Hangcheng Street, Baoan District,Shenzhen, Guangdong, China Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2009053 Date of Test: Aug. 18~31, 2020 Date of Report: Sep. 03, 2020 FCC ID: 2AVD2-MH21903 EST Technology Co., Ltd Report No. ESTE-R2009053 Page 2 of 3 1. Applicable Standards FCC Part 2(Section 2.1093) FCC KD B447498 D01 General RF Exposure Guidance v06 2. Exposure Evaluation of Portable or Mobile Devices Human exposure to RF emissions from portable devices (47 CFR §2.1093), as defined by the FCC, must be evaluated with respect to the FCC-adopted limits for SAR. Evaluation of mobile devices, as defined by the FCC, may also be performed with respect to SAR limits, but in such cases it is usually simpler and more cost-effective to evaluate compliance with respect to field strength or power density limits. For certain devices that are designed to be used in both mobile and portable configurations similar to those described in 47 CFR §2.1091(d)(4), such as certain desktop phones and wireless modem modules, compliance for mobile configurations is also satisfied when the same device is evaluated for SAR compliance in portable configurations. SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. FCC ID: 2AVD2-MH21903 EST Technology Co., Ltd Report No. ESTE-R2009053 Page 3 of 3 3. Evaluation Results Mode CH Peak output Power （dBm） Peak output Power （mW） Target power (dBm) Results GFSK 2402 2.23 1.671 2±1 0.620 2441 3.08 2.032 3±1 0.784 2480 3.69 2.339 3±1 0.788 8-DPSK 2402 2.13 1.633 2±1 0.620 2441 3.00 1.995 3±1 0.784 2480 3.61 2.296 3±1 0.788 Note: 1. [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] < 3.0. 2. SAR Test Exclusion Thresholds is 3.0 for separation distance 5mm. Therefore, SAR test is not required. End of Test Report

FCC ID: 2AVD2-MH21903 EST Technology Co., Ltd Report No. ESTE-R2009052 Page 1 of 75 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Shenzhen Monster Creative Technology Co., Ltd. Monster Bluetooth Headphone Model Number: MH21903 FCC ID: 2AVD2-MH21903 Prepared for: Shenzhen Monster Creative Technology Co., Ltd. No. 303, Building 1, Hezhou Jinfo Industrial Zone, Hezhou Village, Hangcheng Street, Baoan District,Shenzhen, Guangdong, China Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2009052 Date of Test: Aug. 18~31, 2020 Date of Report: Sep. 03, 2020 FCC ID: 2AVD2-MH21903 EST Technology Co., Ltd Report No. ESTE-R2009052 Page 2 of 75 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION......................................................................................................................... 3 1. GENERAL INFORMATION ................................................................................................................. 5 1.1. Description of Device (EUT) ........................................................................................................... 5 1.2. Antenna Information ........................................................................................................................ 5 2. SUMMARY OF TEST ......................................................................................................................... 6 2.1. Summary of test result ...................................................................................................................... 6 2.2. Test Facilities ................................................................................................................................... 7 2.3. Measurement uncertainty ................................................................................................................. 8 2.4. Assistant equipment used for test ..................................................................................................... 8 2.5. Block Diagram ................................................................................................................................. 8 2.6. Test mode ......................................................................................................................................... 9 2.7. Channel List ................................................................................................................................... 10 2.8. Power Setting of Test Software ...................................................................................................... 10 2.9. Test Equipmen ................................................................................................................................ 11 3. MAXIMUM PEAK OUTPUT POWER ................................................................................................. 12 3.1. Limit ............................................................................................................................................... 12 3.2. Test Setup ....................................................................................................................................... 12 3.3. Spectrum Analyzer Setting ............................................................................................................. 12 3.4. Test Procedure ................................................................................................................................ 12 3.5. Test Result ...................................................................................................................................... 13 4. 20 DB BANDWIDTH ....................................................................................................................... 17 4.1. Limit ............................................................................................................................................... 17 4.2. Test Setup ....................................................................................................................................... 17 4.3. Spectrum Analyzer Setting ............................................................................................................. 17 4.4. Test Procedure ................................................................................................................................ 17 4.5. Test Result ...................................................................................................................................... 18 5. CARRIER FREQUENCY SEPARATION .............................................................................................. 22 5.1. Limit ............................................................................................................................................... 22 5.2. Test Setup ....................................................................................................................................... 22 5.3. Spectrum Analyzer Setting ............................................................................................................. 22 5.4. Test Procedure ................................................................................................................................ 22 5.5. Test Result ...................................................................................................................................... 23 6. NUMBER OF HOPPING CHANNEL .................................................................................................. 27 6.1. Limit ............................................................................................................................................... 27 6.2. Test Setup ....................................................................................................................................... 27 6.3. Spect…

Text truncated - open the document above for the full version.

ConductedTest RadiatedTest(Below1GHz) RadiatedTest(Above1GHz)
