2AVFK-C200Suitcase Record Player

9[OZIGYK8KIUXJ6RG_KX with Bluetooth and USB Encoding Model C200 TURNTABLE PARTS BEFORE USE 1. Choose a safe location and avoid placing the unit in direct sunlight or near any heat source. 2. Avoid locations subject to vibrations, excessive dust, cold or moisture. 3. Do not open the cabinet as this may result in electrical shock. If a foreign object is inserted accidentally contact your dealer. 4. Do not attempt to clean the unit with chemical solvents as this might damage the finishing. A clean, dry cloth is recommended for cleaning. 5. Keep this manual for future reference. 1. 45RPM adaptor2. Lift lever3. PREV/NEXT button Mode switching (Switch mode to BT/AUX/USB when rotation time is more than 1 second)4. Volume + / switch / volume -5. Status indicator6. Headphone port—to connect headphone or earphone to enjoy music7. AUTO-STOP ON/OFF switch8. Speed switch9. Tonearm10. Tonearm lock11. Cartridge with needle12. Platter13. DC IN jack—to connect the power adaptor14. USB port15. Line in(AUX IN) port16. RCA out port---to connect external speaker system with built-in amplifier Getting StartedFirmly and securely insert the DC plug of the adaptor to the DC IN Jack on the unit.Insert the adaptor’ s AC plugs into a power outlet.Bluetooth Mode1. Turn on the power switch knob. Device enter into Bluetooth mode automatically USB AUX IN ports are not occupied The status indicator will become blue with flashing.2. Turn on the Bluetooth function on your mobile phone or tablet PC andsearch device name VOKSUN. After pairing and connection, the indicator will become blue without flashing, then you can play your music from your mobile phone or tablet PC through this turntable player. Turn the VOLUME CONTROL KNOB to adjust the volume. The mobile phone or tablet PC’s volume control also impact the overall volume level. Please adjust that as well if necessary. PHONO Mode 1. Turn on the power switch knob. 2. Place a record on the turntable platter and select the desired speed (33/45/78) according to the record. NOTE: when playing a 45RPM record, use the included 45RPM adapter located in the holder near the tone arm.3. Remove the white needle protector and open the tonearm clip to release the tonearm. Push the lift lever backward to raise the tonearm and gently move the tonearm towards the desired position over the record. Push the lift lever forward to lower the tonearm slowly onto the desired position on the record, Device enter into PHONO mode automatically to begin playing the record. 4. If the AUTO STOP ON/OFF Switch is turned ON, the record will stop playing automatically when finished (For a few vinyl records, it will stop when it does not come to the end OR it will not stop when it comes to the end.). If Auto Stop Control is turned OFF, record will NOT stop playing automatically when finished. 5. Vinyl-to-MP3 Recording: First please make sure your USB flash drive’s format is FAT32. In phono mode, and insert a USB drive into the USB port. Place a record and starts to play. Press the PREV/PAUSE/NEXT button till the statusindicator becomes red flashing. The vinyl recording starts. Press the PREV/PAUSE/NEXT button till the status indicator stops flashing whenyou want to stop the recording. An audio file is created. Then power off therecord player and remove the USB drive.Notice PHONO mode is the highest precedence , must stop PHONO mode to switch into BT,AUX, USB mode. USB Playback Mode The status indicator will become blue . The USB playback mode is on and it will automatically start to play the audio files in your USB drive. Press the PREV/PAUSE/NEXT button to pause or restart the playing. Switch the PREV/PAUSE/NEXT button to wards NEXT position for next song, and towards the PREV position for previous song.Line-in ModeAUX IN mode is precedence after plug in, plug 3.5mm Audio cable Device enter into AUX IN mode automatically.You can enjoy the music from iPod, MP3 player, mobile phones etc. through the record player. Turn the VOLUME CONTROL KNOB to adjust the volume. The iPod, MP3 player, mobile phones’ volume control also impact the overall volume level. Please adjust that as well if necessary.AMPLIFIER CONNECTION (if required)Whilst you can listen to your new turntable using the built in speakers you may wish to connect it to your existing Hi Fi system. Connect the audio plugs to the Line input on your mixer or amplifier using an RCA cable (not supplied)ŏ5HGSOXJLQWR5+FKDQQHOLQSXWŏ:KLWHSOXJLQWR/+FKDQQHOLQSXWHOW TO REPLACE THE NEEDLE direction “B”.2. Push the stylus upward as in direction "C" until the stylus locks into the tipposition. We advise you to clean your records with an anti-static cloth to gain maxi mum enjoyment from them.We would also point out that for the same reason your stylus should be replaced periodically (approximately every 250 playback hours) TIPS FOR BETTER TURNTABLE PERFOR-MANCE1.When opening or closing the turntable cover, handle it gently, gripping it either at the centre or at each side.2.Do not touch the needle tip with your fingers; avoid bumping the needle against the turntable platter or record edge.3.Frequently clean the needle tip-use a soft brush in a “back-to-front’ motion only.4.If you must use a needle cleaning fluid, use very sparing ly. 5.Gently wipe the turntable player housing with a soft cloth. Use only a small amount of mild detergent to clean the turntable player. 6.Never apply harsh chemicals or solvents to any part of the turntable system. us To replace the needle, please refer to the instructions below.Removing the needle from the cartridge1. Place a screwdriver at the tip of the stylus and push downward as shown in direction “A”.2. Remove the stylus by pulling the stylus forward and pushing downwardInstalling the Stylus 1. Hold the tip of the stylus and insert the stylus by pressing as shown in Insert your USB drive into the USB port. Device enter into USB mode automatically. NOTES Mo d e l C200 FCC WARNING This device complies with part 15 …

Text truncated - open the document above for the full version.

Rev11/20/07 (ShenzhenZhiqiTechnologyCo.LTD) FederalCommunicationsCommission AuthorizationandEvaluationDivision ConfidentialityRequestregardingapplicationforcertificationofFCCID: 2AVFK-C200 PursuanttoSections0.457and0.459oftheCommission’sRules,weherebyrequestconfidential treatmentofinformationaccompanyingthisapplicationasoutlinedbelow: ExhibitTypeFileName BlockDiagram, Schematics, OperationalDescription BlockDiagram Schematics OperationalDescription Theabovematerialscontaintradesecretsandproprietaryinformationnotcustomarilyreleasedto thepublic.Thepublicdisclosureofthesematerialsmaybeharmfultotheapplicantandprovide unjustifiedbenefitstoitscompetitors. TheapplicantunderstandsthatpursuanttoSection0.457oftheRules,disclosureofthis applicationandallaccompanyingdocumentationwillnotbemadebeforethedateoftheGrant forthisapplication. Sincerely, (DUXI)

ShenzhenZhiqiTechnologyCo.LTD ModelDifference Productdescription:SuitcaseRecordPlayer Modelname:C200 C5,C210 TradeName:N/A FCCID:2AVFK-C200 AllthemodelarethesamecircuitandRFmodule,exceptmodelnamesandcolor. Regards Sincerely Client’ssignature: Client’sname/title:DUXI/Manager Contactinformation/address:BaochengTaizhihuiSquare,No.38QinfuRoad,Liuyue Community,HenggangStreet,LonggangDistrict,Shenzhen,China

(ShenzhenZhiqiTechnologyCo.LTD) FederalCommunicationsCommission AuthorizationandEvaluationDivision 1435OaklandMillsRoad Columbia,MD21046 Date:2020.7.8 SUBJECT:FCCApplicationforFCCID:2AVFK-C200 ToWhomItMayConcern: We,theundersigned,herebyauthorizeAlanMeiatShenzhenBCTCTestingCo.,Ltd. onourbehalf,toapplytotheFederalCommunicationsCommissiononourequipment. AnyandallactscarriedoutbyAlanMeiofShenzhenBCTCTestingCo.,Ltd.onour behalfshallhavethesameeffectasactsofourown. ThisistoadvisethatweareinfullcompliancewiththeAnti-DrugAbuseAct.We,the applicant,arenotsubjecttoadenialoffederalbenefitspursuanttoSection5301ofthe Anti-DrugActof1988,21USC853a,andnopartytotheapplicationissubjecttoadenial offederalbenefitspursuanttothatsection. Regards, (DUXI)

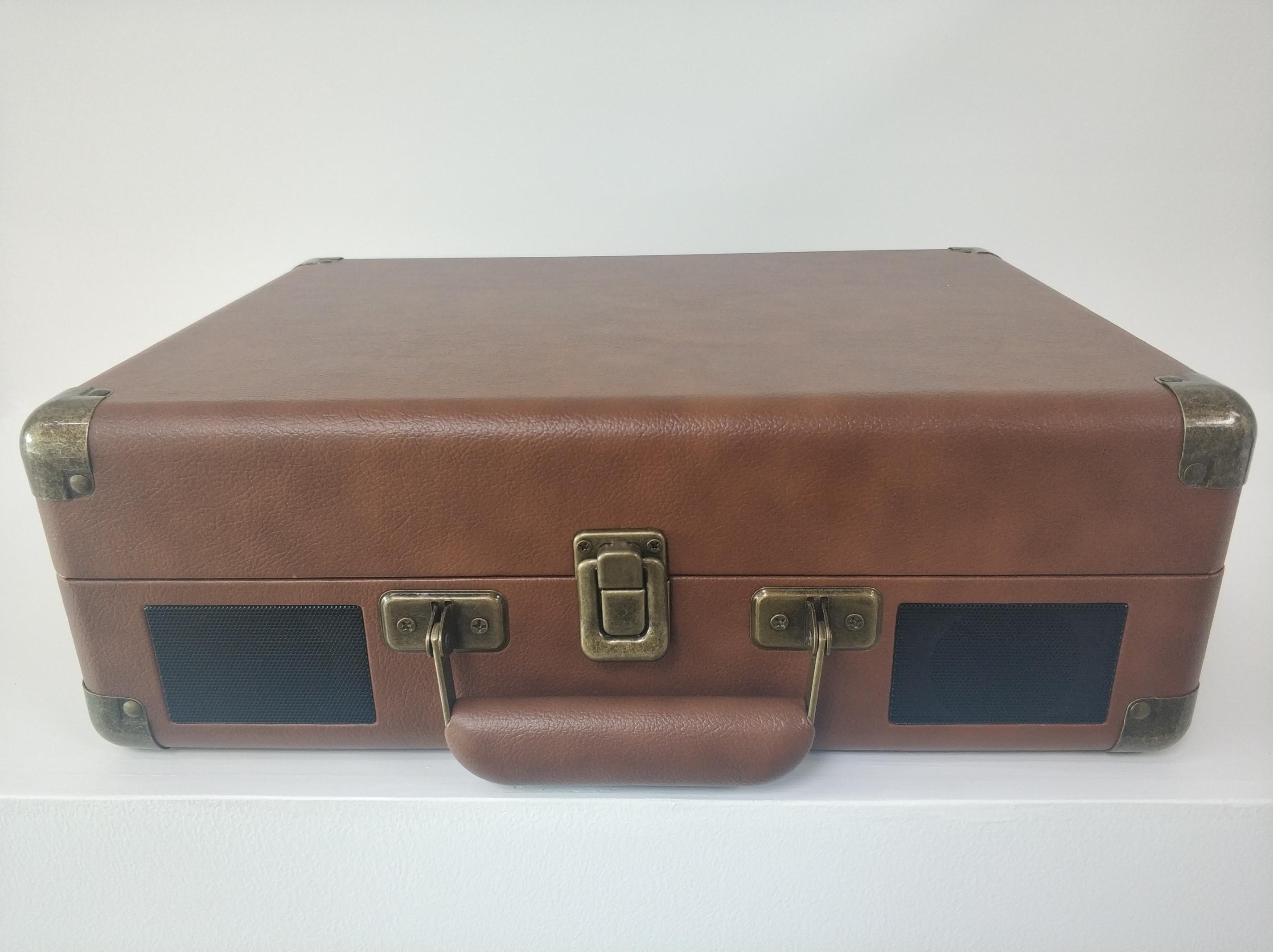

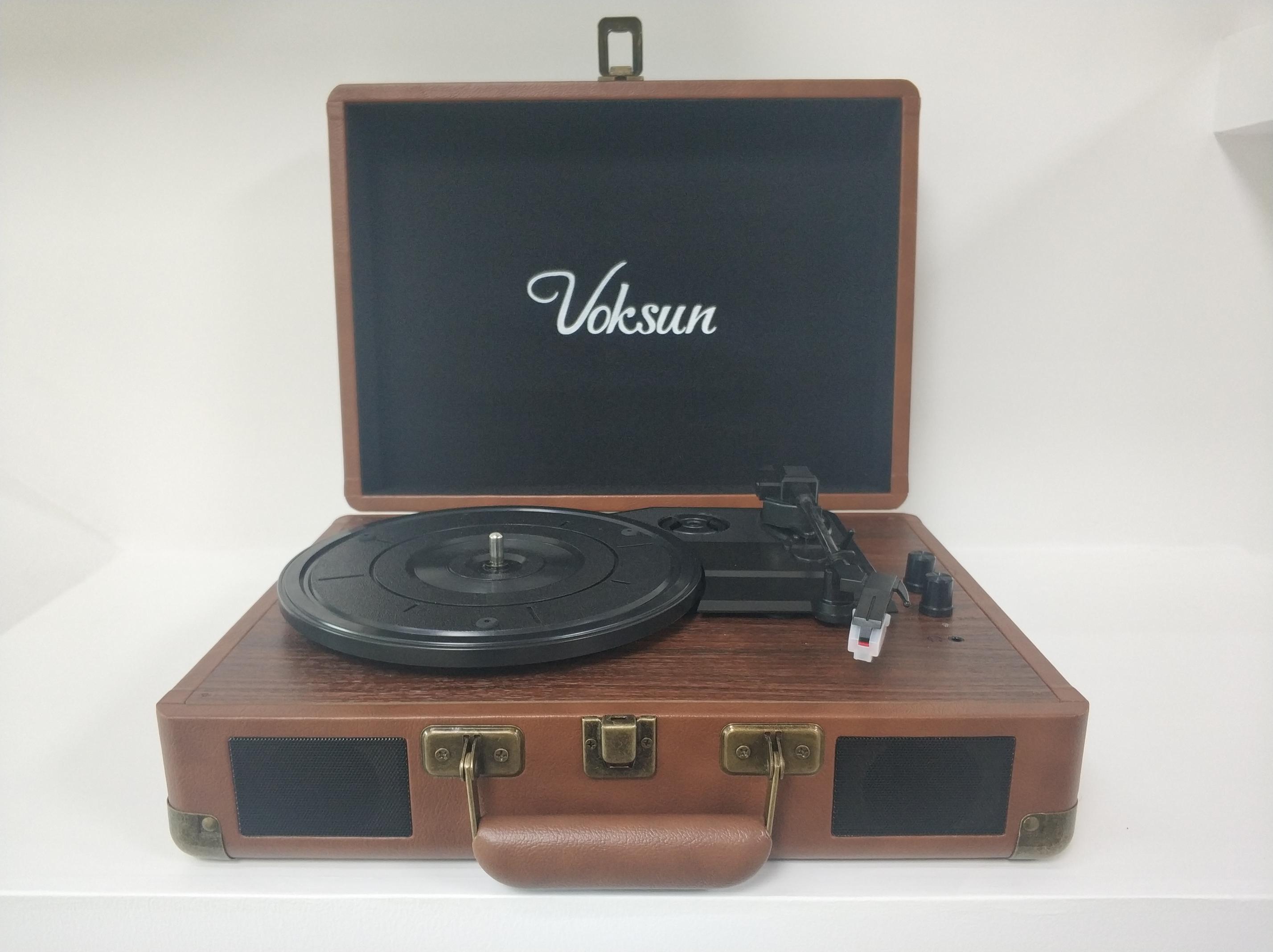

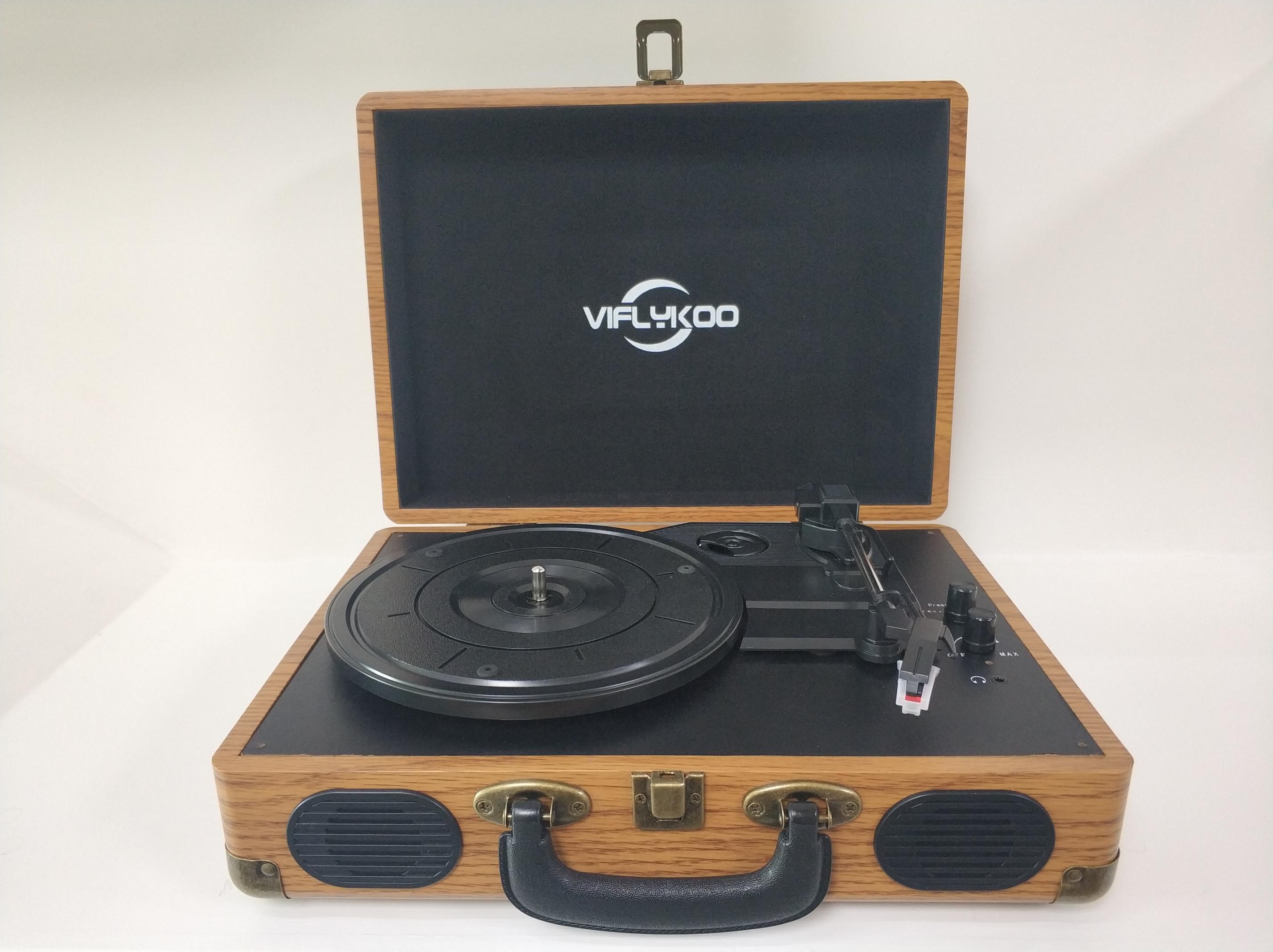

ExternalPhotos

Label&labellocation Size:40*20mm C200 FCCID:2AVFK-C200 Thisdevicecomplieswithpart15oftheFCCRules.Operation issubjecttothefollowingtwoconditions: (1)Thisdevicemaynotcauseharmfulinterference,and (2)Thisdevicemustacceptanyinterferencereceived,including interferencethatmaycauseundesiredoperation. Label location

InternalPhotos Antenna

FCC §15.247 (i), §2.1091 – RF Exposure FCC ID:2AVFK-C200 Applied procedures / limit According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Note: ƒ is frequency in MHz * = Power density limit is applicable at frequencies greater than 100 MHz Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density MPE PREDICTION Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna, R=0.2m TEST RESULTS Modulation Channel Freq. (MHz) Conduct ed power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2) 24020.34 0±11.001.261.05 0.000261 24410.400±1 1.001.261.05 0.000261 24800.490±11.001.261.05 0.000261 24021.06 1±12.001.58 1.05 0.000331 24411.071±12.001.581.050.000331 24801.18 1±12.001.581.05 0.000331 GFSK Pi/4DQPSK Conclusion: For the max result : 0.00033≤ 1.0 , compliance with FCC's RF Exposure. Summary: Since the ERP (effective radiated power) operated at < 1.5 GHz is less than 1.5 watts and > 1.5 GHz is less than 3 watts, the routine environmental evaluation is not required, and the MPE result calculated for this device complies with the MPE limit as specified in 47 CFR §1.1310.

Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2005001017E FCC Part 15C Test Report FCC ID:2AVFK-C200 Product Name: Suitcase Record Player Trademark: N/A Model Name : C200 C5, C210 Prepared For : Shenzhen Zhiqi Technology Co. LTD Address : Baocheng Taizhihui Square, No.38 Qinfu Road, Liuyue Community, Henggang Street, Longgang District, Shenzhen, China Prepared By : Shenzhen BCTC Testing Co., Ltd. Address : BCTC Building & 1-2F, East of B Building, Pengzhou Industrial, Fuyuan 1st Road, Qiaotou Community, Fuyong Street, Bao’an District, Shenzhen, China Test Date: May 20, 2020 – Ju n. 10, 2020 Date of Report : Jun. 10, 2020 Report No.: BCTC2005001017E Te s t Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-0 07 Ver.：A.0 Page 1 of 60 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2005001017E TEST RESULT CERTIFICATION Applicant’s name ............. : Shenzhen Zhiqi Technology Co. LTD Address ............................. : Baocheng Taizhihui Square, No.38 Qinfu Road, Liuyue Community, Henggang Street, Longgang District, Shenzhen, China Manufacture's Name ........ : Shenzhen Zhiqi Technology Co. LTD Address ............................. : Baocheng Taizhihui Square, No.38 Qinfu Road, Liuyue Community, Henggang Street, Longgang District, Shenzhen, China Product description Product name .................... : Suitcase Record Player Trademark ......................... : N/A Model and/or type reference .......................................... : C200 C5, C210 Standards ......................... : FCC Part15.247 ANSI C63.10:2013 This device described above has been tested by BCTC, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of BCTC, this document may be altered or revised by BCTC, personal only, and shall be noted in the revision of the document. Prepared by(Engineer): Kelsey Tan Reviewer(Supervisor): Eric Yang Approved(Manager): Zero Zhou Te s t Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-0 07 Ver.：A.0 Page 2 of 60 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2005001017E Table of Contents Test Report Declaration Page 1. TEST SUMMARY ...................................................... 5 2. TEST FACILITY ....................................................... 6 3. MEASUREMENT UNCERTAINTY........................................ 6 4. GENERAL INFORMATION .............................................. 7 4.1 GENERAL DESCRIPTION OF EUT ...................................... 7 4.2 Test Setup Configuration ................................................ 7 4.3 Support Equipment ..................................................... 8 4.4 Channel List ........................................................... 9 4.5 Test Mode ............................................................ 10 5. TEST FACILITY AND TEST INSTRUMENT USED ........................ 11 5.1 Test Facility ........................................................... 11 5.2 Test Instrument Used .................................................. 11 6. CONDUCTED EMISSIONS ............................................. 13 6.1 Block Diagram Of Test Setup ........................................... 13 6.2 Limit ................................................................. 13 6.3 Test procedure ........................................................ 13 6.4 Test Result ........................................................... 15 7. RADIATED EMISSIONS ............................................... 17 7.1 Block Diagram Of Test Setup ........................................... 17 7.2 Limit ................................................................. 18 7.3 Test procedure ........................................................ 18 7.4 Test Result ........................................................... 20 7.5 RADIATED BAND EMISSION MEASUREMENT AND RESTRICTED BANDS OF OPERATION ........................................................... 24 8. CONDUCTED EMISSION .............................................. 27 8.1 Block Diagram Of Test Setup ........................................... 27 8.2 Limit ................................................................. 27 8.3 Test procedure ........................................................ 27 8.4 Test Result ........................................................... 28 9. 20 DB BANDWIDTH .................................................. 34 9.1 Block Diagram Of Test Setup ........................................... 34 9.2 Limit ................................................................. 34 9.3 Test procedure ........................................................ 34 9.4 Test Result ........................................................... 35 10. MAXIMUM PEAK OUTPUT POWER .................................... 39 10.1 Block Diagram Of Test Setup .......................................... 39 10.2 Limit ................................................................ 39 10.3 Test procedure ....................................................... 39 10.4 Test Result .......................................................... 40 11. HOPPING CHANNEL SEPARATION .................................... 44 11.1 Block Diagram Of Test Setup .......................................... 44 Te s t Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-0 07 Ver.：A.0 Page 3 of 60 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2005001017E 11.2 Limit ................................................................ 44 11.3 Test procedure ....................................................... 44 11.4 Test Result .......................................................... 45 12. NUMBER OF HOPPING FREQUENCY .................................. 49 12.1 Block Diagram Of Test Setup .......................................... 49 12.2 Limit ....…

Text truncated - open the document above for the full version.

Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2005001017E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 59 of 60 16. EUT TEST SETUP PHOTOGRAPHS Spurious emissions Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2005001017E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 60 of 60 Conducted Measurement Photos ※※※※※※※※※※ END OF REPORT
