Introduction Operations Buttons and controls Package Content Specifications Thank you for purchasing the M2 Wireless Speaker. We advise you to read, follow and keep the following instructions in order to be able to correctly set up the speaker and enjoy all its features to the fullest. 1. When the speaker indicates “Low battery”, the volume will be turned down automatically to save power. At that time, please charge the speaker ASAP. 2. While charging the speaker, please do not use the AUX cable to connect computer at the same time. 3. Charging time: About 4.5 hours to fully charge the speaker. Note: While charging, it is normal that the speaker gets hot. Please don't worry. Do NOT drop, hit or shake the device. Do NOT disassemble, repair or modify the speaker. Do NOT cleaning stuff that contains benzene, solvents or alcohol. Do NOT expose the speaker to excessive heat or direct sunlight for prolonged periods of time. Do NOT store the device in a place with high humidity. 1. Make sure that your device is within 1 meter from the speaker. 1. Card capacity: 32G or below. 2. Support files: mp3, flac, wav. Full light on light off 2. Clear the Bluetooth pairing list on your device. 3. Make sure the speaker has entered the “Bluetooth Mode” rather than “AUX in Mode”or “TF card Mode” 4. Try to reset your device. 5. Try the pairing steps above again. 1*M2 Wireless Speaker 1*Micro USB charging cable 1*3.5mm AUX cable 1*User Mannual Model/Bluetooth Name: M2 Speaker: 52mm Internal magnetic 4R 5W Battery: 1800mAh 3.7V Output: 5W@1% THD+N Input: 5V/1A Weight: 224g Bluetooth Range: 10m/33ft TWS indicator Pair the speaker with your smartphone Have connecting problem? Pair the speaker with your computer AUX in Mode Play music via TF card Mode Warnings Charge the speaker Trouble Shooting Hands-free Calling Party Light Control / TWS Connect Playing Time Bluetooth indicator/ charging indicator Charging port AUX in port TF card jack TapPress and h old Double- Click Tap Press and hold Double- Click Tap Press and hold Double- Click Pl ay/ Pause Power on/ off switch sp eake r to si lent Power on/ off Pl ay/ Pause Power on/off / Volume +Next SongVolume +Volume +Volume + Next Song / Volume - Previ ous Song Volume -Volume -Volume - Previ ous Song / / / / // / / / / / / / / / Bluetooth ModeAUX in ModeTF Card ModeButtons M ode Indicators ViewIndicator StateSystem State Flash ing white The speaker has entered into TWS Mode and it is ready to be paired TWS connected Charging Fully charged Waiting for bluetooth pairing Device is paired St eady white Flash ing white St eady white Flash ing white St eady white TWS Indicator Charging Indicator Bluetooth Indicator Switch mode Bluetooth Mode/AU X in Mode/TF card Mode An- swer/End a call Turn on/off the light Start/End the TWS Connect- ed Clear the TWS paired devices Turn on/off the light Start/End the TWS Connect- ed Turn on/off the light Cut off bluetooth connect- ed/Reject a call Switch mode Bluetooth Mode/AUX in Mode/TF card Mode Switch mode Blue- tooth Mode/A UX in Mode/T F card Mode 1. Turn on the M2 Bluetooth Speaker 2. Turn on the Bluetooth on your computer, then pair "M2". Have connecting problem? 1. Make sure that your device is within 1 meter from the speaker. 2. Clear the Bluetooth pairing list on your device. 3. Make sure the speaker has entered the “Bluetooth Mode” rather than “AUX in Mode”or “TF card Mode” 4. Try to reset your computer. 5. Please make sure that your computer setting 6. Try the pairing steps above again. Auto-off Timer The auto-off timer conserves the battery when the speaker is operating on battery power. In bluetooth mode, the speaker switches off automatically when the bluetooth device has disconnected and buttons have not been pressed for 20 minutes. In AUX in mode and TF card mode, the speaker switches off when audio has stopped and buttons have not been pressed for 20 minutes. The party light do not changed by the beat? Please turn up the volume on the speaker and your device. NoteIn AUX-in mode, the bluetooth speaker cannot answer the phone call. ProblemsSolutions No power Battery may be in protection mode or drained. Plug in and charge the speaker. Battery cannot be charged 1.Make sure you are using a USB cable f rom a qualified manufacturer. 2.Please use a adapter to charge the speaker, do not use computer USB port or other. 3.Try to use a different USB cable. No sound 1.Turn off the bluetooth on your device. Remove the speaker f rom the bluetooth list and then try to pair your device again. 2.Increase the volume on the speaker and your device. 3.Make sure that you are using the correct device. 4.Use a different music source. 5.Try to pair a different device. No sound when in aux-in mode 1.Make sure the device connected to your speaker is turned on and playing music. 2.Increase the volume on the speaker and your device. 3.Make sure the device is properly connected. 4.Try to use a different cable. 5.Try to connect a different device. Poor sound quality/buzzing sound 1.Try to use a different music sources. 2.Increse the volume on speaker and device. 3.Check the device's audio settings. 4.Charge the speaker until fully charged. 6 FCC Caution： This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the ins…

Text truncated - open the document above for the full version.

(Shenzhen Zhiqi Technology Co. LTD) Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2AVFK-M2 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram, Schematics, Operational Description Block Diagram Schematics Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ( DU XI) Rev 11/20/07

(Shenzhen Zhiqi Technology Co. LTD) Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: SUBJECT: FCC Application for FCC ID: 2AVFK-M2 To Whom It May Concern: We, the undersigned, hereby authorize Alan Mei at Shenzhen BCTC Testing Co., Ltd. on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Alan Mei of Shenzhen BCTC Testing Co., Ltd. on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, ( DU XI)

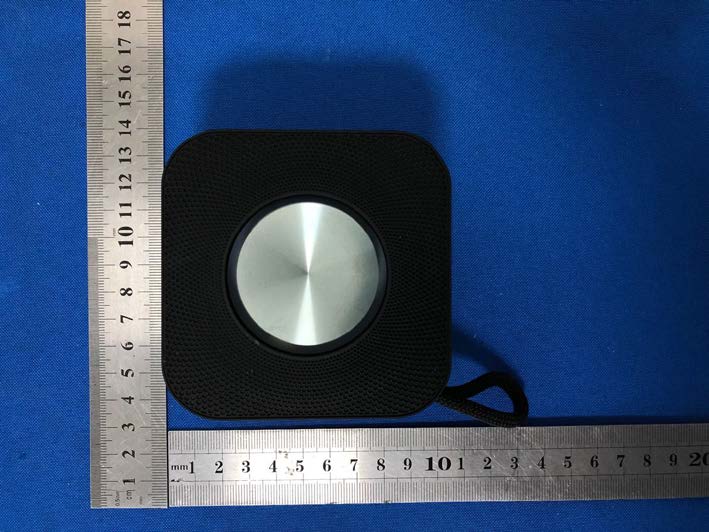

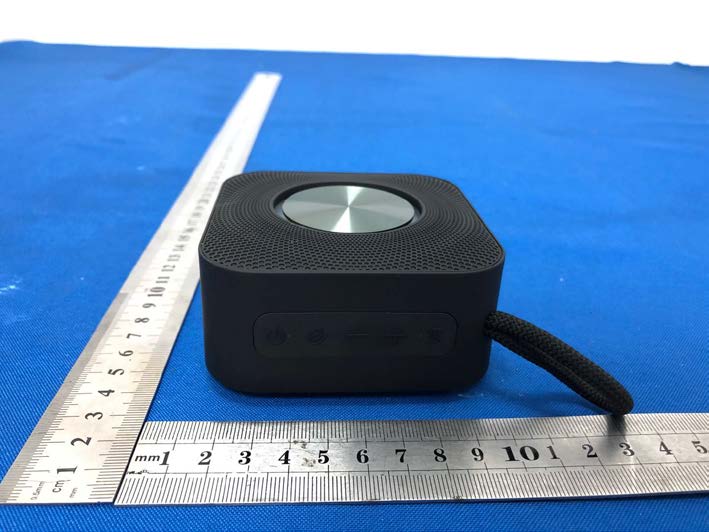

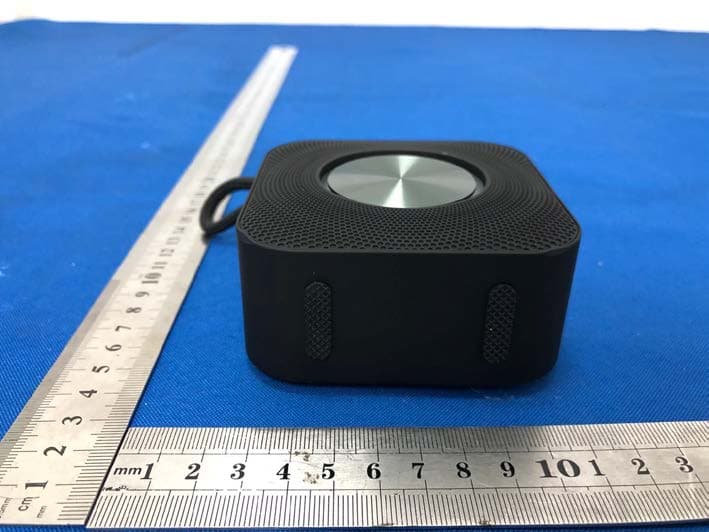

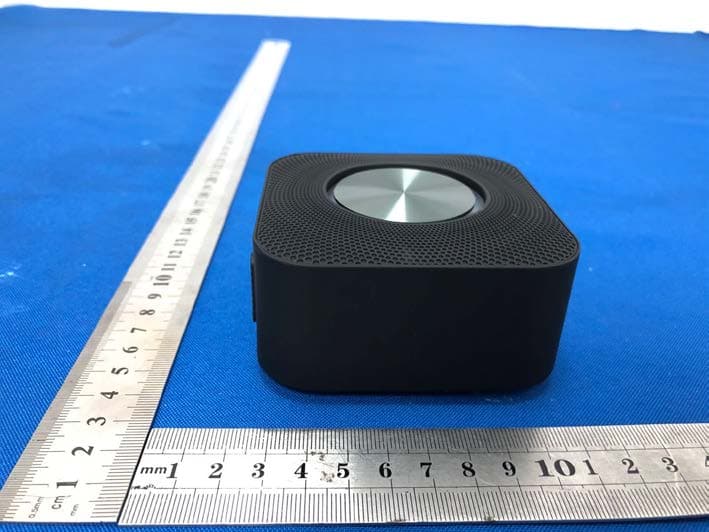

External Photos

Label & label location Size:40*20mm M2 FCC ID: 2 AV F K-M2 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Label location

Internal Photos Antenna

RF EXPOSURE EVALUATION METHOD FCC ID: 2 AV F K-M2 SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. BT-EDR max possible output power (PK,conducted)：2±1dbm 2dBi logarithmic terms convert to numeric result is nearly 1 3dBm=2mW 2402MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]=2/5*√2.402=0.62≤3.0 Threshold at which no SAR required is 10mw and ≤ 3.0 for 1-g SAR, Separation distance is 5mm. Modulation Frequency (MHz) Output Power (dBm) Max Antenna Gain (dBi) GFSK 2402 -1.01 0 GFSK 2441 0.65 0 GFSK 2480 1.24 0 Pi/4 DQPSK 2402 -0.34 0 Pi/4 DQPSK 2441 1.28 0 Pi/4 DQPSK 2480 1.88 0 2441MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 2/5*√2.441=0.62≤3.0 Threshold at which no SAR required is 10mw and ≤ 3.0 for 1-g SAR, Separation distance is 5mm. 2480MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]=2/5*√2.48=0.63≤3.0 Threshold at which no SAR required is 10mw and ≤ 3.0 for 1-g SAR, Separation distance is 5mm. Conclusion: No SAR is required.
