2AVFK-M8Bluetooth Speaker with LED lights

PREFACE OPERATION INSTRUCTION TECHNICAL PARAMETERS TROUBLE SHOOTING (1) BLUETOOTH MODE OPERATION INSTRUCTIONOPERATION INSTRUCTION Dear customer: Thank you for purchasing the M8 Bluetooth Speaker, For your better user’s experience please read the user manual carefully before use. Enjoy the music journey! Please keep this user manual for your later references! PACKAGE CONTENT · 1* Type-C cable · 1*M8 Main device · 1* 3.5mm Aux in cable · 1* User Manual ① ③ ② ⑩ ④ ⑤ ⑦ ⑧ ⑥ ⑨ ⑪ ⑫ ⑬ ⑭ (4) TWS STEREO SOUND PLAY Turn on two M8 speakers enter into bluetooth mode. Short press “ ”botton of one speaker. TWS light starts to flash, the speaker will automatically search the other for TWS connection,if they connected successfully, two speakers will switch into left and right channels automatically. Repeat the bluetooth connection operation and connect to phone, Bluetooth versionBattery capacity Charging voltage Rated power Product weight 5.07200mA 5V/2A 40W 865g (6) TYPE-C QUICK CHARGE Left channel (Main Speaker) Right channel (Auxiliary Speaker) + (2) AUX IN MODE (5) COOL PARTY LIGHTS Party lights on is defaulted setting when you turn on speaker, Short press“ ”key to turn on/off lights. (3) TF CARD PLAY Please insert TF card in speaker,the speaker will switch mode automatically with a prompt tone “TF card mode”, the speaker will play music saved in card automatically, TF card memory maximum is 32G. (This mode is only apply to some models, please consult local dealer for details.) (7) POWER BANK OUTPUT ⑩ ⑪ ⑫ ⑬ ⑭ ① ③ ② ④ ⑤ ⑦ ⑥ ⑧ ⑨ KEY FUNCTION DEFINITION Strap hook Power: Long press Turn on/off Short press Play/Pause Bluetooth/Phone: Long press force to disconnect Bluetooth connection Short press switch Bluetooth/ Aux in mode Answer/Hang off phone call Plus: Short press to increase volume Long press to next track Minus: Short press to decrease volume Long press to previous track Lights key: Short press turn on/off lights TWS pairing: Short press on/cancel TWS connection Long press to clear away TWS pairing Charging light/Power bank light Bluetooth light TWS light AUX interface TF card slot Type-C interface Power bank output interface 1.Turn on speaker enter into bluetooth mode,the bluetooth light starts to flash.Open the bluetooth on your device search for “M8” and connect to your speaker.If it’s connected successfully,you will hear a prompt tone that“device paired ”. The bluetooth light is always on, now you can play music on your device by bluetooth. 2.When the bluetooth is connected successfully and you make calls with phone, the voice will automatically enter into the bluetooth hands-free mode.Short press “ ”key to answer incoming call,Long press to reject call. Please connect 3.5mm audio cable to the headphone of the phone/computer output interface, short press “ ” key switch to AUX in mode.When you hear a prompt tone“AUX in mode”, then you can play music. Due to the lower power supply capability,most computer’s USB interface can not meet speaker’s operational requirements.It is not recommended to use the computer’s USB for charging synchronously when you play music in the AUX in mode while connecting computer. If they connected succesffully ,music will play on the speaker shows dual stereo sound effect. Note:This function requires two M8 speakers,make sure both are turned on and in the bluetooth mode. No bluetooth connection to any other devices before TWS paring. When TWS is connected, short press“ ”key of one speaker to cancel the Do not use power adapter that has not been certificated by safety certification. Power adapter with output 5V-2A is recommended for charging. 1.When you hear a prompt tone “Out of battery”,Please charge speaker as quickly as possible. 2.This speaker supports self-adaption charging . It’s able to choose charging current automatically according to the external rated power of the adapter, When charging by USB interface on computer, the current is smaller and it takes longer time to complete charging. 3.When speaker is charging, the power light is red and always on. When speaker is fully charged,the power light is green and always on. Kindly tips: This product is waterproof on daily basis conditions,and it can washes normally. Do not soak the product in water for a long time(If the prodcut malfunction due to water ingress, our company reserves the right of final Explanation). Energy saving: The speaker will automatically shut down to save power under below circumstances. 1.In bluetooth mode,after 20 minutes waiting for no device pairing. 2.In any modes, short press “ ”key pause for 20 minutes without any operation the speaker will shut down automatically, Please long press the power key to turn it on again. ※The function of power bank is forbidden when the speaker is charging. Both states can not exist at the same time. 1.USB-A OUTPUT : 5V/1A(Power bank function only works when speaker is turned on. 2.Turn on speaker insert the standard USB cable into the output interface of power bank, connect the other end to the mobile. At this time the power bank indicator is green, the green indicator will be off after mobile being fully charged. 3.Turn off speaker in the process of using speaker to charge the mobile,speaker will stand by,power bank function works normally, and speaker can be awakened by long press the power key. ※The USB and Type C interfaces of the same charing line are forbidden to be inserted into the speaker simultaneously. 1.Can not connect to bluetooth or no sound when playing music? Please make sure the speaker is in bluetooth mode,and also make sure your device supports bluetooth function and bluetooth has already been turned on searching for devices. Check if there are too many bluetooth devices around ,which might bring difficulties of the searching process. Please turn off other bluetooth device. 2.What if TF card doesn’t respond ? Please make sure TF card is in good quality,and check whether the audio file is MP3 playing format,If all problems above are exc…

Text truncated - open the document above for the full version.

(Shenzhen Zhiqi Technology Co., LTD) Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2AVFK-M8 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram, Schematics, Operational Description Block Diagram Schematics Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ( DU XI) Rev 11/20/07

(Shenzhen Zhiqi Technology Co., LTD) Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: SUBJECT: FCC Application for FCC ID: 2AVFK-M8 To Whom It May Concern: We, the undersigned, hereby authorize Alan Mei at Shenzhen BCTC Testing Co., Ltd. on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Alan Mei of Shenzhen BCTC Testing Co., Ltd. on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, ( DU XI)

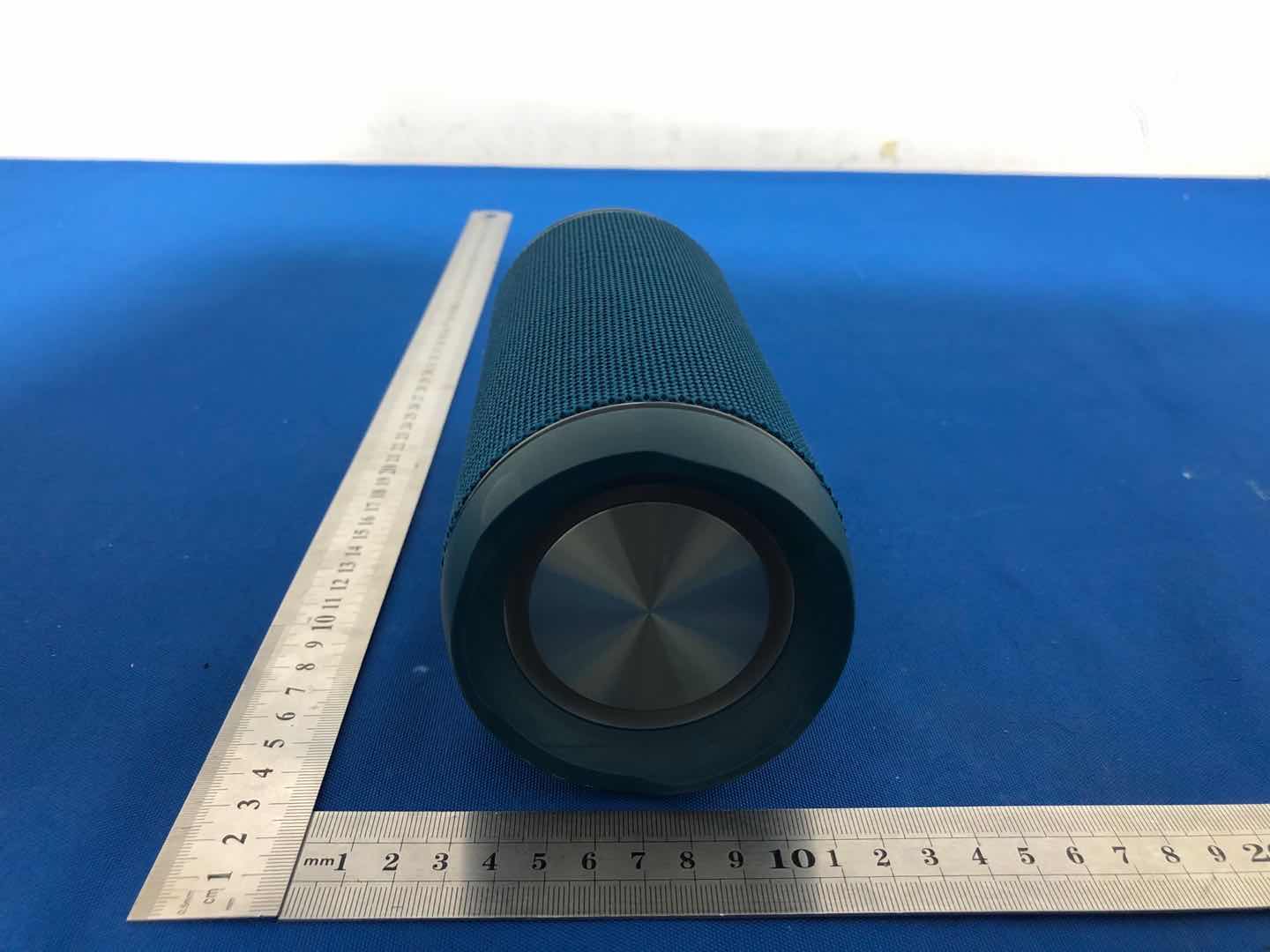

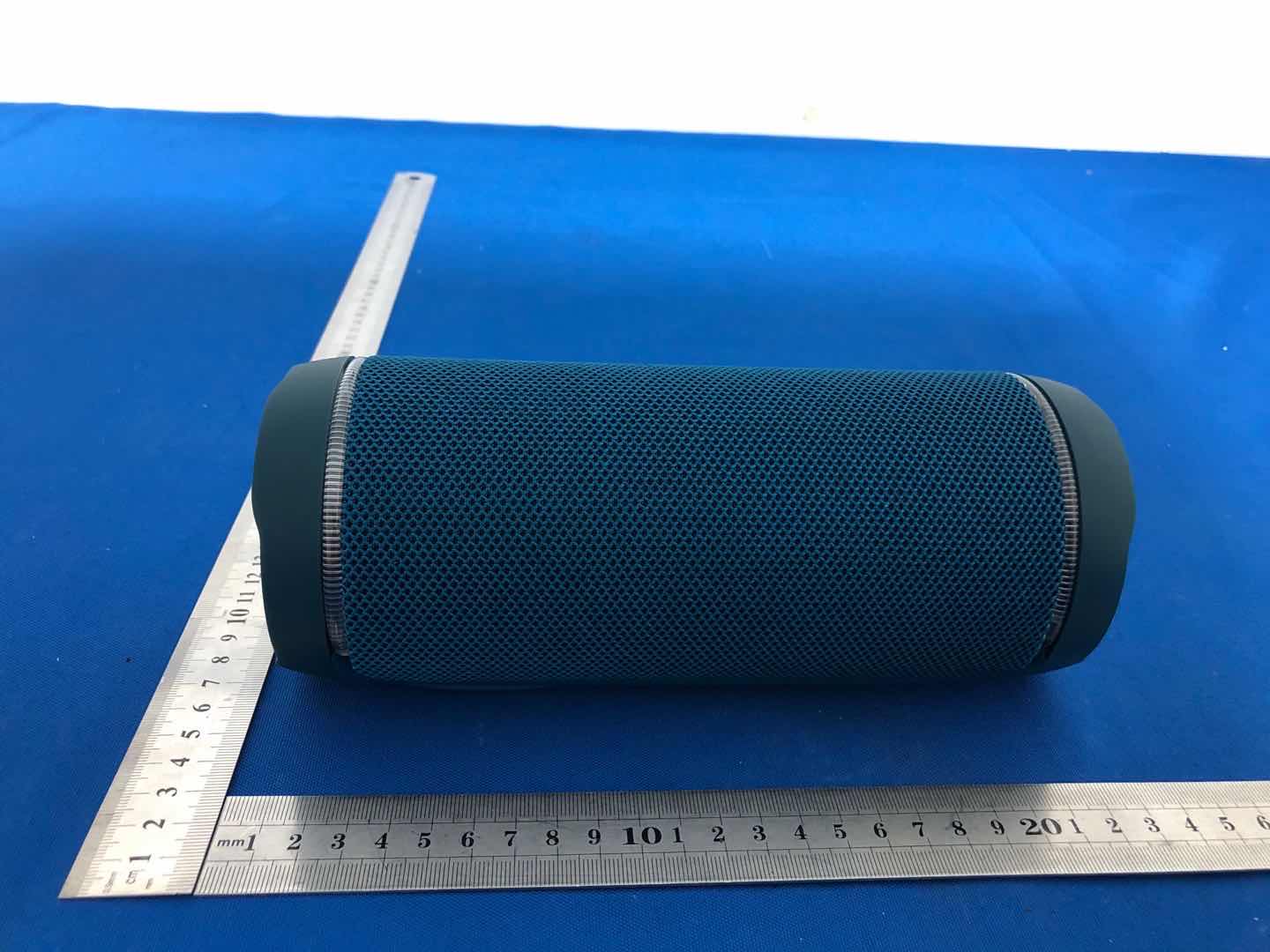

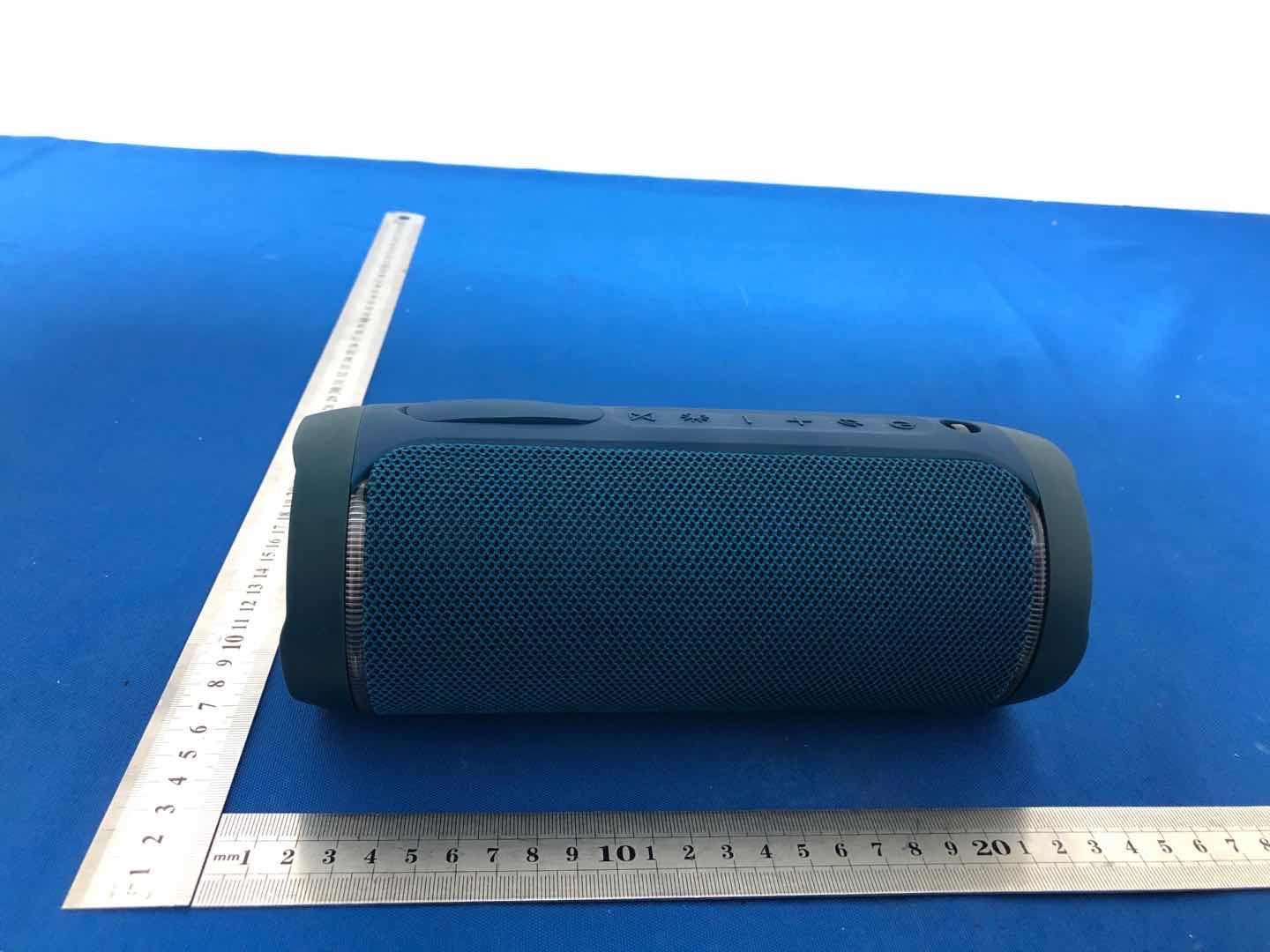

External Photos

Label & label location Size:40*20mm Bluetooth Speaker with LED lights FCC ID: 2 AV F K-M8 Label location

Internal Photos Antenna

Shenzhen BCTC Testing Co., Ltd. FCC ID:2AVFK-M8 RF EXPOSURE EVALUATION 1. Introduction According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b), a device is defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 cm is normally maintained between the transmitting antenna and the body of the user or nearby persons. In this context, the term “fixed location” means that the device is physically secured at one location and is not able to be easily moved to another location. Transmitting devices designed to be used by consumers or workers that can be easily re-located, such as wireless devices associated with a personal computer, are considered to be mobile devices if they meet the 20 cm separation requirement. The limits to be used for MPE evaluation are specified in §1.1310. All unlicensed personal communications service (PCS) devices and unlicensed NII devices shall be subject to the limits for general population/uncontrolled exposure. 2.RF Radiation Exposure Limits According to 47 CFR §1.1310, the criteria listed in below table shall be used to evaluate the environmental impact of human exposure to RF radiation as specified in §1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of §2.1093. Notes: 1. f = frequency in MHz 2. Occupational/controlled limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when an individual is transient through a location where occupational/controlled limits apply provided they are made aware of the potential for exposure. 3. General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or cannot exercise control over their exposure. Shenzhen BCTC Testing Co., Ltd. 3.MPE Assessment Method Calculations can be made to predict RF field strength and power density levels around typical RF sources. For example, in the case of a single radiating antenna, a prediction for power density in the far-field of the antenna can be made by use of the general Equations below. This equation is generally accurate in the far-field of an antenna but will over-predict power density in the near field, where they could be used for making a "worst case" or conservative prediction. Where S = Power Density, unit in mW/cm2 P = Power input to the antenna, unit in mW G = Power gain of the antenna in the direction of interest relative to an isotropic radiator R = Distance to the center of radiation of the antenna, unit in cm EIRP = Effective isotropically radiated power 4. MPE Calculation for Standalone Operations Operation Frequency: 2402-2480MHz Power density limited: 1mW/ cm 2 Antenna Type: Internal antenna Antenna gain: 2dBi R=20cm mW=10^(dBm/10) =3.1416 Modulation Channel Freq. (MHz) Conduct ed power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2) 2402 1.682±13.00 2.001.590.000631 24412.072±13.00 2.001.590.000631 24802.20 2±13.002.001.590.000631 24022.43 2±13.002.001.590.000631 24412.793±1 4.002.511.59 0.000791 2480 2.933±14.002.51 1.590.000791 GFSK Pi/4DQPSK Conclusion: For the max result : 0.00079≤ 1.0, compliance with FCC's RF Exposure. Summary: Since the ERP (effective radiated power) operated at < 1.5 GHz is less than 1.5 watts and > 1.5 GHz is less than 3 watts, the routine environmental evaluation is not required, and the MPE result calculated for this device complies with the MPE limit as specified in 47 CFR §1.1310.
