2AVQS-17WFM21Wi-Fi module

1 17WFM21 Product Specification and User Manual 2 Contents 1. General Description ...................................................................................................................... 3 2. Features .......................................................................................................................................... 3 3. Key Specifications .......................................................................................................................... 3 4. Electrical Specification .................................................................................................................. 3 4.1. Power supply voltages ............................................................................................................... 3 4.2. Current consumption ................................................................................................................ 3 4.3. Thermal characteristics ............................................................................................................ 4 5. RF Characteristic .......................................................................................................................... 4 6. Antenna Characteristic ................................................................................................................. 5 6.1. Antenna Gains ........................................................................................................................... 5 7. Mechanical Characteristics .......................................................................................................... 5 8. Pin Description .............................................................................................................................. 5 9. Block diagram ................................................................................................................................ 6 10. Environmental ........................................................................................................................... 6 10.1. Operating ............................................................................................................................... 6 10.2. Storage .................................................................................................................................... 6 11. Hardware & Software installation ........................................................................................... 6 11.1. Hardware Installation ........................................................................................................... 6 11.2 Software Installation ................................................................................................................. 7 12. FCC/IC Warning ....................................................................................................................... 7 13. Country Regulations ................................................................................................................. 8 14. Test modes .................................................................................................................................. 8 Author Note Date Versi on Emre Ardalı Initial Draft 16.04.2019 V1.0 Emre Ardalı Add info note for country regulations and tabulate module current consumption 16.05.2019 V1.1 Emre Ardalı Add max output power for transmitter 20.05.2019 V1.2 Hakan Falakalıoğlu Add FCC statements; add List of applicable FCC-rules and Test modes sections 21.01.2020 V1.3 Hakan Falakalıoğlu Add new statements to Hardware Installation section 28.08.2020 V1.4 Hakan Falakalıoğlu Tables in RF Characteristic section and Country Regulations section are updated List of applicable FCC-rules section is removed 02.09.2020 V1.5 Hakan Falakalıoğlu Add FCC/IC warning section and update RF Characteristic table 21.10.2020 V1.6 Information given in this document may change without any notification. 3 1. General Description The 17WFM21 WI-FI module design is a highly integrated MIMO wireless LAN (WLAN) used for high speed wireless local network access. The card is built with 2T2R capable RF/baseband single chip. The 17WFM21 WI-FI module design implements multiple input, multiple output (MIMO) orthogonal frequency division multiplexing (OFDM) with 2 transmit and 2 receive paths and is compatible with 802.11 a/b/g/n specifications. For legacy compatibility, direct sequence spread spectrum (DSSS), complementary code keying (CCK) and OFDM baseband processing are included to support all 802.11b, and 802.11g data rates. Differential phase shift keying modulation schemes, DBPSK and DQPSK with data scrambling capability, are available along with complementary code keying to provide the data rates of 1, 2, 5.5 and 11Mbps with long or short preamble. The high speed FFT/IFFT paths, combined with BPSK, QPSK, 16QAM, and 64QAM modulation of the individual subcarriers and rate compatible punctured convolutional coding with coding rate of 1/2, 2/3, 3/4, and 5/6, provides the maximum data rate of 54 Mbps and 300 Mbps phy rate for IEEE 802.11g and 802.11n MIMO OFDM respectively. Module has no DFS (Dynamic Frequency Selection) and is only a DFS Client. 2. Features  IEEE 802.11a/b/g/n standards  2.4 & 5 GHz dual band, HT20 & HT40  2x2 MIMO  Phy-rates up to 300Mbps  USB interface  Printed PIFA antennas 3. Key Specifications Main chipset MT7600, Mediatek Frequency range * 2402-2482 Mhz, 5170-5330 Mhz, 5490-5710 Mhz Channels support * CH 1-13, CH 36-64, CH100-140 Host interface USB 2.0 * Country code control by host device 4. Electrical Specification 4.1. Power supply voltages DC supply to module Min Typ Max VCC 4.75V 5 V 5.25 V 4.2. Current consumption Note (VCC 5V) Typ (mA rms) Max peak (mA) 2.4G HT20 Ch6, RX mode *(1) 175 348 2.4G HT20 Ch6, TX mode *(1) 261 352 5G HT20 Ch48, RX mode *(1) 199 420 5G HT20 Ch48, TX mode *(1) 323 412 5G HT40 Ch64, RX mode *(1) 273 420 5G HT40 Ch64, TX mode *…

Text truncated - open the document above for the full version.

Company Confidential Page 1 of 2 FCC ID: 2AVQS-17WFM21 To the certification reviewer: We are hereby applying for full modular approval of the above-referenced FCC ID, based on compliance with all of the criteria as detailed below. Tropmann Anton Head of Laboratory (Authorized Agent) STC Germany (formerly PKM electronic GmbH) Part 15 Unlicensed Single Modular Transmitter Approval Justification per § 15.212 Requirement per § 15.212 Reference (1) The radio elements of the modular transmitter must have their own RF shielding. Shielding is provided by a ground plane on the printed wiring board and shielding housing. RF circuitry is fully shielded (2) The modular transmitter must have buffered modulation/data inputs (if such inputs are provided. All modulation and data inputs are buffered by circuitry on the transmitter chip. (3) The modular transmitter must have its own power supply regulation. Power supply regulation is provided by circuitry on the transmitter board. (4) The modular transmitter must comply with the antenna and transmission system requirements of § 15.203, § 15.204(b) and § 15.204(c). The used antenna is a PCB antenna, which is not serviceable and can not be replaced by the user. UFL connectors are only placed with the test purposes and not placed when it is marketed. (5) The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 parameters. Testing was performed with the module connected to an Extender Board that will not be marketed together with the module. Company Confidential Page 2 of 2 (6) The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. If the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. FCC ID label is placed to the bottom side of the PCB. If module is installed to inside of the host devices, another label is placed outside of the host where FCC ID of the module is visible. (7) The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. The module is compliant with all applicable FCC rules. Compliance requirements are stated in the user manual exhibit. (8) The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. Compliance with SAR / RF Exposure exemption limits for mobile/fixed host device, for portable devices a minimum separation distance of 45 mm between antenna and human body shall be observed. Details are addressed in SAR / RF Exposure letter.

Long/Short-term Confidentiality Request Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AVQS-17WFM21 To Whom It May Concerns, Pursuant to sections 0.457(d) and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, we hereby request long- term confidential treatment of information accompanying this application as outlined below: ☒ Schematics ☒ Parts List ☒ Block Diagram ☐ Tune-Up Info Operational Description ☒ software defined radio In addition, we hereby request the following exhibits contained in this application to be temporarily (short-term confidentiality) withheld from the public disclosure ☐ for an initial period of days ☐ until: ☒ not applicable ☐ External Photos ☐ Test Setup Photos ☐ Internal Photos ☐ Users Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to rule 0.457(d), disclosure of this application and all accompanying documentation will not be made before the date of the GRANT for this application. If you have any questions, please feel free to contact me. Yours sincerely, Mr. Anton Tropmann Authorized Agent Head of Laboratory STC Germany GmbH ☒

Attachment to Test-Report-No.: 20/01-0030 Product: Transmitting / Receiving System STC Germany GmbH, Ohmstrasse 1, 84160 Frontenhausen Tel.: + 49 (0) 8732 6381 - Fax: + 49 (0) 8732 2345 - E-mail: [email protected] - Website: www.pkm.eu.com o:\funk\20-01-0030\fcc_15-247\20-01-0030-fcc-ised-ext-photos.docx page 1 of 2 Photos of tested sample Attachment to Test-Report-No.: 20/01-0030 Product: Transmitting / Receiving System STC Germany GmbH, Ohmstrasse 1, 84160 Frontenhausen Tel.: + 49 (0) 8732 6381 - Fax: + 49 (0) 8732 2345 - E-mail: [email protected] - Website: www.pkm.eu.com o:\funk\20-01-0030\fcc_15-247\20-01-0030-fcc-ised-ext-photos.docx page 2 of 2

Company Confidential Page 1 of 1 FCC and IC Label Location Information FCC ID: 2AVQS-17WFM21 IC: 25888-17WFM21 HVIN: 260419-R3 FCC and IC number of the module is engraved to bottom side of the module PCB. If the module is installed to inside of a host devices, another label is placed outside of the host device where FCC ID and IC of the module is visible. Below picture is an example of engraving.

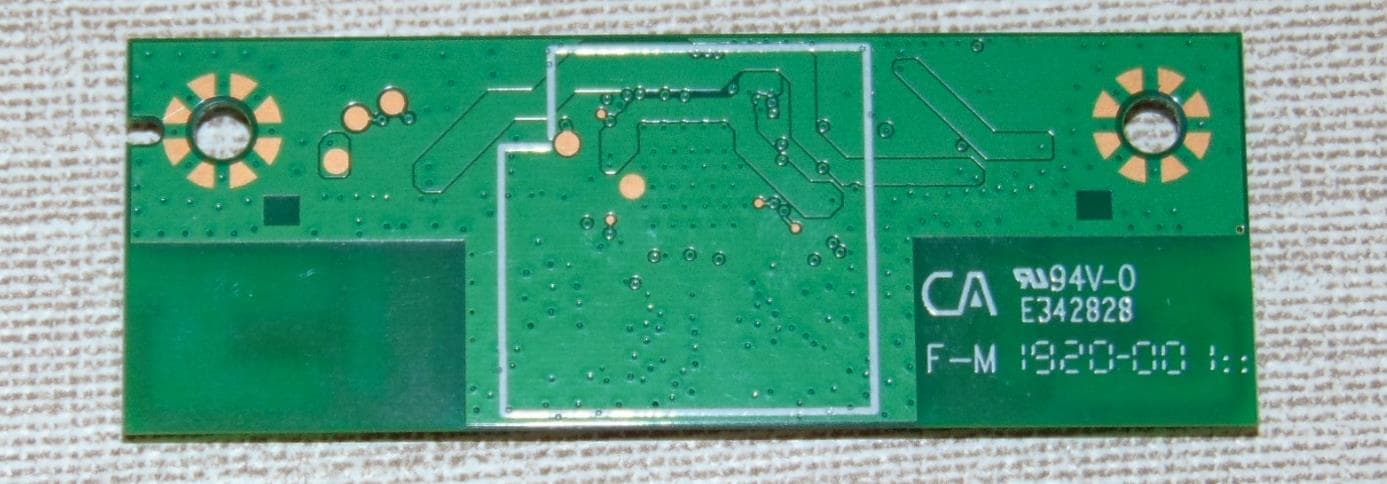

Company Confidential Page 1 of 1 Internal Photos of the 17WFM21 Top side Bottom side

STC Germany GmbH, Ohmstrasse 1, 84160 Frontenhausen Tel.: + 49 (0) 8732 6381 - Fax: + 49 (0) 8732 2345 - E-mail: [email protected] - Website: www.pkm.eu.com o:\fcc-vorgänge\fcc-aufträge\20-01-0030\anträge\sar_rf-exposure letter_ 20-01-0030 only 2_4 ghz.docx page 1 of 1 14 July 2020 SAR / RF Exposure Letter FCC ID: 2AVQS-17WFM21 To whom it may concern, We, STC Germany GmbH, herby declare that WIFI Modul 17WFM21 of Vestel Elektronik is exempt for RF exposure SAR evaluation with Exposure Compliance requirments of the KDB 447498 D01 General RF Exposure Guidance. KDB 447498D01 has following exclusion for portable devices: For 100 MHz to 6 GHz at a separation distance ≤ 50 mm, the 1 g and 10 g SAR test exclusion is determined by: For 1g SAR: (P/d)x(√ f) ≤ 3.0 For 10g SAR: (P/d)x(√ f) ≤ 7.5  P (mW) Power rounded to the nearest mW  d (mm) distance rounded to the nearest mm. When the minimum test separation distance is < 5mm, a distance of 5mm applied to determine SAR test exclusion.  f (GHz) is the RF channel transmit frequency in GHz  The result is rounded to one decimal place for comparison Calculation Data for the device: Conducted RF Output power: 14.39dBm @2412MHz (802.11n HT20) Tune-up power: 15.0dBm (31.62mW) Seperation distance 45 mm Result: 31.62 mW / 45 mm x √ 2.412GHz = 1.* * This is less than 3.0, so no SAR is required for a separation distance of 45 mm between antenna and user/bystander. Thank you for your attention to this matter Tropmann Anton Head of Laboratory STC Germany (formerly PKM electronic GmbH) 7

Attachment to Test-Report-No.: 20/01-0030 Product: Transmitting / Receiving System STC Germany GmbH, Ohmstrasse 1, 84160 Frontenhausen Tel.: + 49 (0) 8732 6381 - Fax: + 49 (0) 8732 2345 - E-mail: [email protected] - Website: www.pkm.eu.com o:\fcc-vorgänge\fcc-aufträge\20-01-0030\2020-09-16 sent out to stc hk fcc_id 2avqs-17wfm21\06_general checklist\20_ised cover sheets\ised_test_report_cover_sheet_stc_20-01-0030 v3.doc page 1 of 1 RSP-100 Form B - Test Report Cover Sheet Product Information PMN: 17WFM21 FVIN: Product:V.3.39.0.0 WiFi component: 3.4.1 HMN: N/A ISED certification number: 25888-17WFM21 HVIN: 260419-R3 Testing laboratory CAB identifier: DE0012 Emission Information Band 1 Band 2 Band 3 Band 4 Band 5 Band 6 Band 7 Band 8 RSS # and Issue # RSS-247 Issue 2 RSS-247 Issue 2 RSS-247 Issue 2 RSS-247 Issue 2 Frequency Min (MHz) 2412 2412 2412 2422 Frequency Max (MHz) 2462 2462 2462 2452 RF Power Min (W) Conducted/EIRP/ERP 0.0146 W (cond.) 0.0117 W (cond.) 0.0109 W (cond.) 0.0105 W (cond.) RF Power Max (W) Conducted/EIRP/ERP 0.0305 W (cond.) 0.0259 W (cond.) 0.0275 W (cond.) 0.0237 W (cond.) Field Strength Units @distance N/A N/A N/A N/A Measured BW (kHz) (99%, 26dB, 6dB etc.) 10070 kHz (6 dB) 16300 kHz (6 dB) 17060 kHz (6 dB) 35460 kHz (6 dB) Calculated BW (kHz) as per TRC-43 N/A N/A N/A N/A Modulation Type CCK OFDM OFDM OFDM Emission Classification (F1D, G1D, D1D, etc.) 12M9D1D 16M6D1D 17M6D1D 36M2D1D Spurious Emissions conducted/radiated 50.2 dBμV/m @3m 45.9 dBμV/m @3m 48.0 dBμV/m @3m 53.5 dBμV/m @3m Band 9 Band 10 Band 11 Band 12 Band 13 Band 14 Band 15 Band 16 RSS # and Issue # Frequency Min (MHz) Frequency Max (MHz) RF Power Min (W) Conducted/EIRP/ERP RF Power Max (W) Conducted/EIRP/ERP Field Strength Units @distance Measured BW (kHz) (99%, 26dB, 6dB etc.) Calculated BW (kHz) as per TRC-43 Modulation Type Emission Classification (F1D, G1D, D1D, etc.) Spurious Emissions conducted/radiated Agreement Signature ATTESTATION: The test measurements were made in accordance with the above-mentioned departmental standard(s), and the equipment identified in this application has been subject to all the applicable test conditions specified in the departmental standards and all of the requirements of the standards have been met. Applicant / Agent Name: Anton Tropmann Applicant Agent Title: Head of Laboratory Applicant / Agent Name: Signature: Signature Date: 16.09.2020

Test report according to ISO/IEC 17025:2017 FCC (Federal Communications Commission) Test Firm Registration Number: 768032 Designation Number DE0022 ISED (Inovation, Science and Economic Development) CAB identifier: DE0012 ISED#: 6155A Electromagnetic compatibility Intentional Radiators STC Germany GmbH Ohmstrasse 1 84160 Frontenhausen, Germany Tel.: + 49 (0) 8732 6381 Fax: + 49 (0) 8732 2345 E-mail: [email protected] Test report no.: 20/01-0030-A Page 1 of 108 pages Test report no.: 20/01-0030-A Page 2 of 108 pages Table of contents 1. Client information ................................................................................................................................................... 3 2. Equipment under test (EUT) ................................................................................................................................... 3 3. Description of the Equipment under test and test conditions .................................................................................. 4 4. Performed measurements and results.................................................................................................................... 6 5. AC Mains conducted emissions ............................................................................................................................. 7 6. Radiated emission measurements ....................................................................................................................... 13 7. Operation within the band 902-928 MHz, 2400-2483,5 MHz and 5725-5850 MHz ............................................. 20 8. Test equipment ..................................................................................................................................................... 98 9. Test Setups ........................................................................................................................................................ 100 10. Measurement uncertainty ................................................................................................................................... 104 11. Photos setup ...................................................................................................................................................... 106 12. Conclusions ........................................................................................................................................................ 107 13. Photos of tested sample ..................................................................................................................................... 108 Location of test facility: STC Germany GmbH Ohmstrasse 1 84160 Frontenhausen Germany Test report no.: 20/01-0030-A Page 3 of 108 pages 1. Client information Name: Vestel Elektronik San ve Tic. A.S. Address: Organize Sanayi Bölgesi Vestel City, High-End 45030 MANISA TURKEY Name of contact: Mr. Andac Pamuk Telephone: +90 236 2332582 Fax: +90 236 2332584 E-mail: [email protected] 2. Equipment under test (EUT) 2.1 Identification of the EUT Equipment: WIFI Module Model: 17WFM21 Brand name: -/- Serial no.: -/- Manufacturer: Vestel Elektronik San ve Tic. A.S., Organize Sanayi Bölgesi, Vestel City, High-End, 45030 MANISA, TURKEY Country of origin: TURKEY Power rating: Highest frequency generated or used in the device or on which the device operates or tunes (MHz): 5.70 GHz Date Sample Received: 16.01.2020, 25.03.2020 Tests were performed: 01.04.2020 – 08.04.2020 2.2 Additional information about the EUT: The EUT can also operate as 5 GHz Wifi module, but not simultaneously to the 2.4 Ghz RF-function. The 5 GHz is not documented in this Report. To duplicate parts of this test report needs the written confirmation of the test laboratory. The test results relate only to the above mentioned test sample(s). Test report no.: 20/01-0030-A Page 4 of 108 pages 3. Description of the Equipment under test and test conditions FCC-ID: 2AVQS-17WFM21 IC: 25888-17WFM21 HVIN: 260419-R3 Firmware version: 3.4.1 Software to control EUT: MT7662 QA tool (V1.0.3.24) Power: nominal 5 V ⎓, +/- 5 % Cables: USB cable 100 cm Cable to test adaptor 30 cm Approx. Size (l x w x h): (70 x 25 x 4.5) mm Test conditions: The “WIFI Module – 17WFM21” (= equipment under test – EUT) had been tested, where applicable, in the following modes: (1) 802.11b: Tx mode BW 20MHz CCK 1MBps 2412 MHz (2) 802.11b: Tx mode BW 20MHz CCK 1MBps 2437 MHz (3) 802.11b: Tx mode BW 20MHz CCK 1MBps 2462 MHz (4) 802.11g: Tx mode BW 20MHz OFDM 6MBps 2412 MHz (5) 802.11g: Tx mode BW 20MHz OFDM 6MBps 2437 MHz (6) 802.11g: Tx mode BW 20MHz OFDM 6MBps 2462 MHz (7) 802.11n: Tx mode BW 20MHz HT Greenfield 6.5MBps 2412 MHz (8) 802.11n: Tx mode BW 20MHz HT Greenfield 6.5MBps 2437 MHz (9) 802.11n: Tx mode BW 20MHz HT Greenfield 6.5MBps 2462MHz (10) 802.11n: Tx mode BW 40MHz HT Greenfield 15MBps 2422 MHz (11) 802.11n: Tx mode BW 40MHz HT Greenfield 15MBps 2437 MHz (12) 802.11n: Tx mode BW 40MHz HT Greenfield 15MBps 2452 MHz with an active WLAN connection as well as controlled by a test software with maximum RF-output power and different data rate in order to find the worst case. RF Module Model Number: 17WFM21 Frequency range: 2.400 GHz – 2.483,5 GHz Type of modulation: 802.11 b 802.11 g 802.11 n [20] 802.11 n [40] Operating frequencies [MHz]: 2412 - 2462 2412 - 2462 2412 - 2462 2422 - 2452 6 dB Bandwidth [MHz]: 10.07 16.30 17.06 34.46 Emission classification: 12M9G1D 16M6D1D 17M6D1D 36M2D1D Transmission protocol: CCK OFDM OFDM (HT Greenfield) OFDM (HT Greenfield) Number of channels: 1 - 11 1 - 11 1 - 11 3 - 9 Spurious Emissions: 50.24 dBμV/m @ 3m 45.88 dBμV/m @ 3m 48.00 dBμV/m @ 3m 53.54 dBμV/m @ 3m Max. conducted RF output Power [dBm / mW]: 11.86 dBm 15.35 mW 11.51 dBm 14.16 mW 14.39 dBm 27.45 mW 13.75 dBm 23.74 mW TX Power setting: 19 19 19 19 Duty Cycle: ≥98% ≥ 98% ≥ 98% ≥ 98% Module Tranmission Type: WLAN (1TX, 1RX) / WLAN (2TX, 2RX) Transmission protocol Specification: CC…
