2AVQS-17WFM25Wi-Fi + BT Combo module

1 17WFM25 Product Specification and User Manual 2 1. General Description ...................................................................................................................... 3 2. Features .......................................................................................................................................... 3 3. Key Specification ........................................................................................................................... 3 4. Electrical Specification .................................................................................................................. 3 4.1 Power supply voltages ........................................................................................................... 3 4.2 Current consumption ............................................................................................................ 4 4.3 Thermal characteristics ........................................................................................................ 4 5 RF Characteristic .......................................................................................................................... 5 5.1 Wi-Fi ....................................................................................................................................... 5 5.2 Bluetooth ................................................................................................................................ 5 6 Antenna Characteristic ................................................................................................................. 5 6.1 Onboard Printed Antenna Gains ......................................................................................... 5 6.2 External Antenna Gains ....................................................................................................... 6 7 Mechanical Characteristics .......................................................................................................... 6 8 Pin Description .............................................................................................................................. 7 9 Block diagram ................................................................................................................................ 7 10 Environmental ........................................................................................................................... 7 10.1 Operating ............................................................................................................................... 7 10.2 Storage .................................................................................................................................... 7 11 Hardware & Software installation ........................................................................................... 8 11.1 Hardware Installation ............................................................................................................... 8 12 Country Regulations ................................................................................................................. 9 13 Test modes ................................................................................................................................ 10 Author Note Date Version Gülizar Yardımoğlu Büşra Demirtaş Initial Draft 02.05.2019 V1.0 Emre Ardalı Add target power table, correct header formats 06.05.2019 V1.1 Gülizar Yardımoğlu Add Country Regulations and SW Installation, Current consumption, BT RF Characteristic 20.06.2019 V1.2 Hakan Falakalıoğlu Add FCC statements; add List of applicable FCC- rules and Test modes sections 21.01.2020 V1.3 Hakan Falakalıoğlu Add new statements to Hardware Installation section 28.08.2020 V1.4 Hakan Falakalıoğlu Tables in RF Characteristic section and Country Regulations section are updated List of applicable FCC-rules section is removed 02.09.2020 V1.5 Hakan Falakalıoğlu Add FCC/IC warning section and update RF Characteristic table 21.10.2020 V1.6 Hakan Falakalıoğlu External antenna gain table is updated 30.07.2021 V1.7 Information given in this document may change without any notification. 3 1. General Description The 17WFM25 WI-FI + BT combo module design is a highly integrated MIMO wireless LAN (WLAN) and BT solution to let users enjoy the digital content via the wireless technology and connect wireless sound devices, HID devices, BT remote controller etc. The card is built with WI-FI 2T2R and Bluetooth v5.0 and BT 4.2 Low Energy (LE) capable RF/baseband single chip. 17WFM25 is based on MediaTek MT7668BUN solution. The 17WFM25 module design implements multiple input, multiple output (MIMO) orthogonal frequency division multiplexing (OFDM) with 2 transmit and 2 receive paths and is compatible with 802.11 n/ac specifications for WI-FI. For legacy compatibility, direct sequence spread spectrum (DSSS), complementary code keying (CCK) and OFDM baseband processing are included to support all 802.11b, and 802.11g data rates. Differential phase shift keying modulation schemes, DBPSK and DQPSK are available along with complementary code keying to provide the data rates of 1, 2, 5.5 and 11Mbps with long or short preamble. It supports BPSK, QPSK, 16QAM, and 64QAM modulation of the individual subcarriers and rate compatible punctured convolutional coding with coding rate of 1/2, 2/3, 3/4, and 5/6, provides the maximum data rate of 54 Mbps and 300 Mbps for IEEE 802.11g and 802.11n/a MIMO OFDM respectively. It can support MCS0-9 (up to 256 QAM) in 20/40/80 MHz channels for 802.11ac mode. Module has no DFS (Dynamic Frequency Selection) and is only a DFS Client. 2. Features  IEEE 802.11a/b/g/n/ac Dual Band WLAN standards  Support 20 MHz, 40 MHz, 80 MHz bandwidth in 2.4 GHz & 5 GHz bands  Bluetooth specification 2.1 + EDR, Bluetooth 4.2 Low Energy (LE), Bluetooth 5.0  2x2 MIMO  USB2.0 interface  Printed PIFA antennas (WLAN Printed Antennas, BT Printed Antenna)  Ex…

Text truncated - open the document above for the full version.

Long/Short-term Confidentiality Request Equipment Authorization Division 28. Sept. 2021 Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AVQS-17WFM25 To Whom It May Concerns, Pursuant to sections 0.457(d) and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, we hereby request long-term confidential treatment of information accompanying this application as outlined below: ☒ Schematics ☒ Parts List ☒ Block Diagram ☐ Tune-Up Info ☐ Operational Description ☒ software defined radio In addition we hereby request the following exhibits contained in this application to be temporarily (short-term confidentiality) withheld from the public disclosure ☐ for an initial period of days ☐ until: ☒ not applicable ☐ External Photos ☐ Test Setup Photos ☐ Internal Photos ☐ Users Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to rule 0.457(d), disclosure of this application and all accompanying documentation will not be made before the date of the GRANT for this application. If you have any questions, please feel free to contact me. Sincerely, Klaus Gisbert Authorised Agent Laboratory Supervisor STC Germany GmbH

Page 1 of 2 FCC ID: 2AVQS-17WFM25 To the certification reviewer: We are hereby applying for full modular approval of the above-referenced FCC ID, based on compliance with all of the criteria as detailed below. Manager (Authorized Agent) Part 15 Unlicensed Single Modular Transmitter Approval Justification per § 15.212 Requirement per § 15.212 Reference (1) The radio elements of the modular transmitter must have their own RF shielding. Shielding is provided by a ground plane on the printed wiring board and shielding housing. RF circuitry is fully shielded (2) The modular transmitter must have buffered modulation/data inputs (if such inputs are provided. All modulation and data inputs are buffered by circuitry on the transmitter chip. (3) The modular transmitter must have its own power supply regulation. Power supply regulation is provided by circuitry on the transmitter board. (4) The modular transmitter must comply with the antenna and transmission system requirements of § 15.203, § 15.204(b) and § 15.204(c). 17WFM25 can use PCB antenna or two models of UFL connectors are only placed with the test purposes and not placed when it is marketed. (5) The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 parameters. Testing was performed with the module connected to an Extender Board that will not be marketed together with the module. Brian Chan The Hong Kong Standards & Testing Centre Ltd. RP-SMA type external antenna. (JCW601 and WS.01.B.305151) Page 2 of 2 (6) The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. If the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. FCC ID label is placed to the bottom side of the PCB. If module is installed to inside of the host devices, another label is placed outside of the host where FCC ID of the module is visible. (7) The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. The module is compliant with all applicable FCC rules. Compliance requirements are stated in the user manual exhibit. (8) The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. Compliance with SAR / RF Exposure exemption limits for mobile/fixed host device, for portable devices a minimum separation distance of 200 mm between antenna and human body shall be observed. Details are addressed in SAR / RF Exposure letter.

Date : 27.09.2021 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 Dear Sirs, Re. : Letter of Authorization This is the letter of authorization to accept our appointment of STC Germany GmbH. Klaus Gisbert as agent for VESTEL ELEKTRONIK San ve Tic. A.S., Organize Sanayi Bölgesi, 45030, Manisa/TURKEY to sign applications before the Commission on our behalf, to make representations to you on our behalf, and to receive and exchange data between our company and the Commission in connection with Certification of the following product of VESTEL ELEKTRONIK San ve Tic. A.S. Product name : WIFI+BT Combo Module Model : 17WFM25 This authorization will expire one year from the date of this letter.

Date : 27.09.2021 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 Dear Sirs, Re. : Letter of Authorization This is the letter of authorization to accept our appointment of The Hong Kong Standards and Testing Centre Ltd. Brian Chan as agent for VESTEL ELEKTRONIK San ve Tic. A.S., Organize Sanayi Bölgesi, 45030, Manisa/TURKEY to sign applications before the Commission on our behalf, to make representations to you on our behalf, and to receive and exchange data between our company and the Commission in connection with Certification of the following product of VESTEL ELEKTRONIK San ve Tic. A.S. Product name : WIFI+BT Combo Module Model : 17WFM25 This authorization will expire one year from the date of this letter.

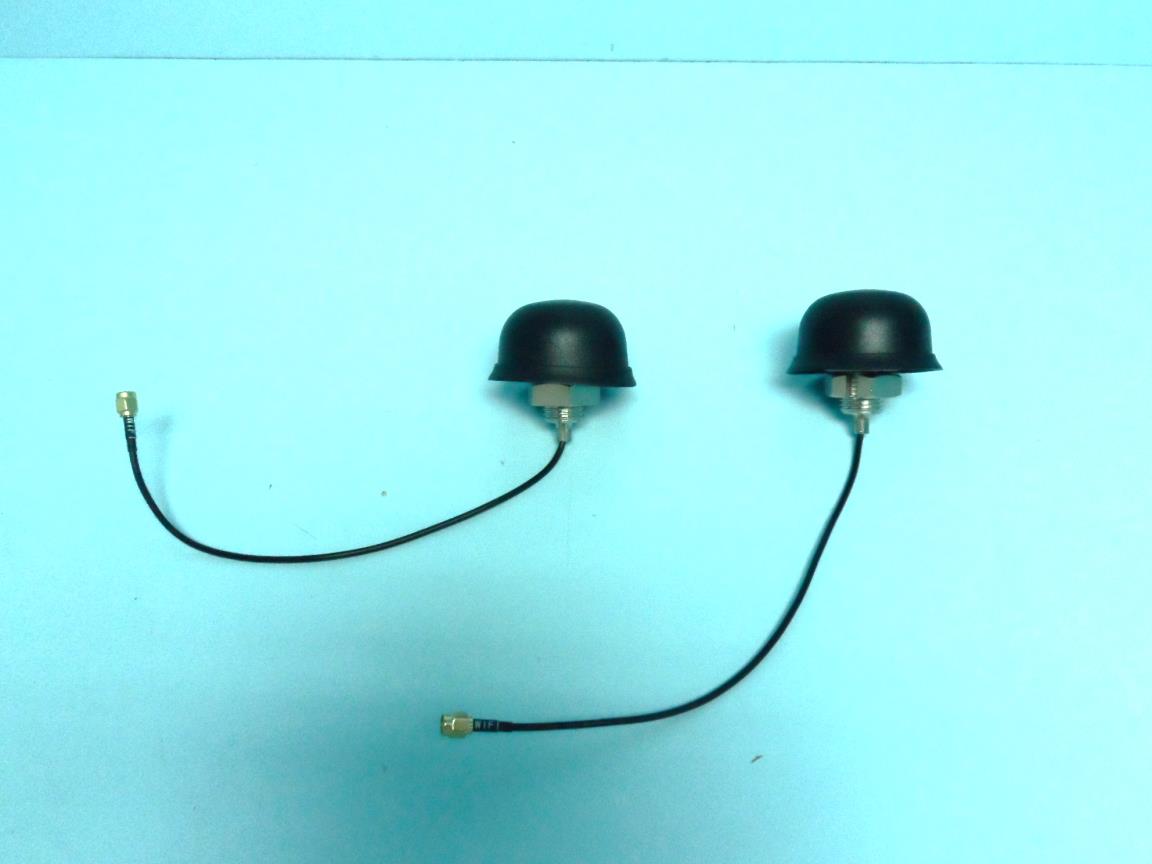

17WFM25 External Antenna Photos JCW601 WS.01.B.305151

17WFM25 PHOTOGRAPH OF THE PRODUCT Page 1 of 7 17WFM25 PHOTOGRAPH OF THE PRODUCT Page 2 of 7 17WFM25 PHOTOGRAPH OF THE PRODUCT Page 3 of 7 External antenna – JCW601 17WFM25 PHOTOGRAPH OF THE PRODUCT Page 4 of 7 17WFM25 PHOTOGRAPH OF THE PRODUCT Page 5 of 7 External antenna –WS.01.B.305151 17WFM25 PHOTOGRAPH OF THE PRODUCT Page 6 of 7 17WFM25 PHOTOGRAPH OF THE PRODUCT Page 7 of 7

Company Confidential Page 1 of 1 FCC and IC Label Location Information FCC ID: 2AVQS-17WFM25 IC: 25888-17WFM25 HVIN: 080419R4 FCC and IC number of the module is engraved to bottom side of the module PCB. If the module is installed to inside of a host devices, another label is placed outside of the host device where FCC ID and IC of the module is visible. Below picture is an example of engraving.

Company Confidential Page 1 of 1 Internal photos of the 17WFM25 Top Bottom

1 17WFM25 Description of Operation General Description The 17WFM25 WI-FI + BT combo module design is a highly integrated MIMO wireless LAN (WLAN) and BT solution to let users enjoy the digital content via the wireless technology and connect wireless sound devices, HID devices, BT remote controller etc. The card is built with WI-FI 2T2R and Bluetooth v5.0 and BT 4.2 Low Energy (LE) capable RF/baseband single chip. 17WFM25 is based on MediaTek MT7668BUN solution (use an external 40MHz crystal oscillator). The 17WFM25 module design implements multiple input, multiple output (MIMO) orthogonal frequency division multiplexing (OFDM) with 2 transmit and 2 receive paths and is compatible with 802.11 n/ac specifications for WI-FI. For legacy compatibility, direct sequence spread spectrum (DSSS), complementary code keying (CCK) and OFDM baseband processing are included to support all 802.11b, and 802.11g data rates. Differential phase shift keying modulation schemes, DBPSK and DQPSK are available along with complementary code keying to provide the data rates of 1, 2, 5.5 and 11Mbps with long or short preamble. It supports BPSK, QPSK, 16QAM, and 64QAM modulation of the individual subcarriers and rate compatible punctured convolutional coding with coding rate of 1/2, 2/3, 3/4, and 5/6, provides the maximum data rate of 54 Mbps and 300 Mbps for IEEE 802.11g and 802.11n/a MIMO OFDM respectively. It can support MCS0-9 (up to 256 QAM) in 20/40/80 MHz channels for 802.11ac mode. Frequency band WLAN: 2400-2483.5 MHz, 5150-5350 MHz, 5470-5725 MHz, 5725-5850 MHz (CH 1-13, 36-64, 100-140, 149-165) Bluetooth: 2400-2483.5 MHz CH 0-78 (BR), CH0-39 (BLE) Module is only a DFS Client. 2 Antenna Characteristic Module has on board printed antennas with the given gain values in below. Onboard Printed Antenna Gains 2.4 Ghz 5 Ghz low band (5180 to 5320 ) (ch 36-64) 5 Ghz medium band (5500 to 5700) (ch100-140) 5 Ghz high band (5500 to 5700) (ch100-140) Antenna 0 3,4 dBi 2,97 dBi 3,69 dBi 2,89 dBi Antenna 1 2,12 dBi 3,7 dBi 3,68 dBi 2,83 dBi BT 0,29 dBi External Antenna Gains Below two external antennas on the table may use as an option instead of the antenna 0. Antenna 2.4 Ghz 5 Ghz low band (5180 to 5320 ) (ch 36-64) 5 Ghz medium band (5500 to 5700) (ch100-140) 5 Ghz high band (5500 to 5700) (ch100-140) JC-JCW601 3 dBi 3 dBi 3 dBi 3 dBi Taoglas_WS.01.B.055111 4,12 dBi 4,74 dBi N/A N/A

2.4GHz RF Exposure Evaluation Model no: 17WFM25 FCC ID: 2AVQS-17WFM25 Refer to the 47CFR 15.247(i) The test separation distances is ≥20 cm The Maximum conducted output power = 17.37 dBm @ 2412 MHz (802.11b) Tune-up power = 19.00 dBm (79.43 mW) The Maximum e.i.r.p. = 19.0 dBm + 4.12 dBi = 23.12 dBm (205.12 mW) Power Density = 0.04081 mW/cm 2 MPE Limit at 2412 MHz = 1.0 mW/cm 2 Simultaneous transmission Evaluation 2.4 GHz Wi-Fi + 2.4 GHz Bluetooth Refer to Report No. 20/01-0031 The Maximum conducted output power = 7.79 dBm @ 2441 MHz (Bluetooth – 8DPSK) Tune-up power = 8.00 dBm (6.31 mW) The 2.4 GHz Bluetooth Maximum e.i.r.p. = 8.00 dBm + 0.29 dBi = 8.29 dBm (6.7453 mW) Power Density = 0.00134 mW/cm 2 MPE Limit at 2441 MHz = 1.0 mW/cm 2 2.4 GHz Wi-Fi + 2.4 GHz Bluetooth = 0.04081 + 0.00134 = 0.04215 mW/cm 2 Therefore, the SAR evaluation can be exempted. _______________________________ K. Simon, Authorized Signatory

Test report according to ISO/IEC 17025:2017 FCC (Federal Communications Commission) Test Firm Registration Number: 768032 Designation Number DE0022 ISED (Inovation, Science and Economic Development) CAB identifier: DE0012 ISED#: 6155A Electromagnetic compatibility Intentional Radiators STC Germany GmbH Ohmstrasse 1 84160 Frontenhausen, Germany Tel.: + 49 (0) 8732 6381 Fax: + 49 (0) 8732 2345 E-mail: [email protected] Test report no.: 20/01-0031 Page 1 of 92 pages Test report no.: 20/01-0031 Page 2 of 92 pages Table of contents 1. Client information ................................................................................................................................................... 3 2. Equipment under test (EUT) ................................................................................................................................... 3 3. Description of the Equipment under test and test conditions .................................................................................. 4 4. Performed measurements and results.................................................................................................................... 6 5. Antenna requirement .............................................................................................................................................. 7 6. AC Mains conducted emissions ............................................................................................................................. 8 7. Radiated emission measurements ....................................................................................................................... 14 8. Operation within the band 902-928 MHz, 2400-2483,5 MHz and 5725-5850 MHz ............................................. 24 9. Test equipment ..................................................................................................................................................... 83 10. Test Setups .......................................................................................................................................................... 85 11. Measurement uncertainty ..................................................................................................................................... 89 12. Photos setup ........................................................................................................................................................ 90 13. Conclusions .......................................................................................................................................................... 91 14. Photos of tested sample ....................................................................................................................................... 92 Location of test facility: STC Germany GmbH Ohmstrasse 1 84160 Frontenhausen Germany Test report no.: 20/01-0031 Page 3 of 92 pages 1. Client information Name: Vestel Elektronik Sanayi ve Ticaret A.Ş. Address: Organize Sanayi Bolgesi 45030, Yunusemre/MANISA/Turkey Name of contact: Mr. Andac Pamuk Telephone: +90 236 2332582 Fax: +90 236 2332584 E-mail: [email protected] 2. Equipment under test (EUT) 2.1 Identification of the EUT Equipment: WIFI+BT Combo Module Model: 17WFM25 Brand name: -/- Serial no.: -/- Manufacturer: Vestel Elektronik San ve Tic. A.S., Organize Sanayi Bölgesi, Vestel City, High-End, 45030 MANISA, TURKEY Country of origin: TURKEY Power rating: 4.75 V – 5.25 V nominal 5 V ⎓ via USB Highest frequency generated or used in the device or on which the device operates or tunes (MHz): 5.825 Date Sample Received: 16.01.2020 Tests were performed: 03.03.2020 – 18.06.2020 2.2 Additional information about the EUT: The EUT can also operate simultaneously as 2.4 GHz or 5 GHz Wifi module. The 2.4 GHz / 5 GHz is not documented in this Report. To duplicate parts of this test report needs the written confirmation of the test laboratory. The test results relate only to the above mentioned test sample(s). Test report no.: 20/01-0031 Page 4 of 92 pages 3. Description of the Equipment under test and test conditions FCC-ID: 2AVQS-17WFM25 IC: 25888-17WFM25 HVIN: 080419R4 Firmware version: V0.5.0.0, Wi-Fi Component: V1.1.0 Software to control EUT: Media Tek BT Tool (Version: W1746) Power: 4.75 V – 5.25 V nominal 5 V ⎓ via USB Cables: USB cable 100 cm Cable to test adaptor 30 cm Approx. Size (l x w x h): (70 x 25 x 4.5) mm Test conditions: The “WIFI+BT Combo Module – 17WFM25” (= equipment under test – EUT) had been tested, where applicable with test software Media Tek BT Tool and with maximal RF-output in the following modes: (1) Bluetooth 5.0: Tx mode GFSK 2402.0 MHz (2) Bluetooth 5.0: Tx mode GFSK 2441.0 MHz (3) Bluetooth 5.0: Tx mode GFSK 2480.0 MHz (4) Bluetooth 5.0: Tx mode π/4-DQPSK 2402.0 MHz (5) Bluetooth 5.0: Tx mode π/4-DQPSK 2441.0 MHz (6) Bluetooth 5.0: Tx mode π/4-DQPSK 2480.0 MHz (7) Bluetooth 5.0: Tx mode 8DPSK 2402.0 MHz (8) Bluetooth 5.0: Tx mode 8DPSK 2441.0 MHz (9) Bluetooth 5.0: Tx mode 8DPSK 2480.0 MHz (10) Bluetooth 5.0: Tx mode 8DPSK Hopping Mode The tested configuration represents (based on the product specification) with the tested operation modes the worst case. RF Module Model Number: 17WFM25 Frequency range: 2.400 GHz – 2.483,5 GHz Operating frequencies: 2.402 GHz – 2.480 GHz Module Tranmission Type: Bluetooth 5.0 (FHSS) Modulation: GFSK π/4-DQPSK 8DPSK Data Rates: 1 MBit/s 2 MBit/s 3 MBit/s Channel separation: 1 MHz 1 MHz 1 MHz Number of channels: 79 79 79 Spurious Emissions: radiated lowest margin to limit 50.68 dBμV/m @ 3 m 50.68 dBμV/m @ 3 m 50.68 dBμV/m @ 3 m Environmental conditions during tests: Ambient temperature: 20 °C Relative humitity 40 % Atmospheric pressure 965 mbar Antenna specification: Model: Printed PCB Antenna Gain: max. 0.29 dBi Type: External (with accessible antenna socket) Internal (integrated, PCB antenna) Test standard: - e-CFR Title 47 Chapter I Subchapter A Part 15 Subpart C §15.247:…

Text truncated - open the document above for the full version.

Attachment to Test-Report-No.: 20/01-0031 Product: Transmitting / Receiving System STC Germany GmbH, Ohmstrasse 1, 84160 Frontenhausen Tel.: + 49 (0) 8732 6381 - Fax: + 49 (0) 8732 2345 - E-mail: [email protected] - Website: www.pkm.eu.com c:\users\002293.station-c451\desktop\fcc & ised cert draft\hm20020027\fcc2_4g\20-01-0031-fcc-ised-rep-photos test setup_wu_12_11_2021.docx page 1 of 12 Photos Test Setup Conducted Mains emissions Attachment to Test-Report-No.: 20/01-0031 Product: Transmitting / Receiving System STC Germany GmbH, Ohmstrasse 1, 84160 Frontenhausen Tel.: + 49 (0) 8732 6381 - Fax: + 49 (0) 8732 2345 - E-mail: [email protected] - Website: www.pkm.eu.com c:\users\002293.station-c451\desktop\fcc & ised cert draft\hm20020027\fcc2_4g\20-01-0031-fcc-ised-rep-photos test setup_wu_12_11_2021.docx page 2 of 12 Attachment to Test-Report-No.: 20/01-0031 Product: Transmitting / Receiving System STC Germany GmbH, Ohmstrasse 1, 84160 Frontenhausen Tel.: + 49 (0) 8732 6381 - Fax: + 49 (0) 8732 2345 - E-mail: [email protected] - Website: www.pkm.eu.com c:\users\002293.station-c451\desktop\fcc & ised cert draft\hm20020027\fcc2_4g\20-01-0031-fcc-ised-rep-photos test setup_wu_12_11_2021.docx page 3 of 12 Radiated emissions Tested frequency range 9 kHz – 30 MHz (Picture is exemplatory for all DUT Antenna configurations) Attachment to Test-Report-No.: 20/01-0031 Product: Transmitting / Receiving System STC Germany GmbH, Ohmstrasse 1, 84160 Frontenhausen Tel.: + 49 (0) 8732 6381 - Fax: + 49 (0) 8732 2345 - E-mail: [email protected] - Website: www.pkm.eu.com c:\users\002293.station-c451\desktop\fcc & ised cert draft\hm20020027\fcc2_4g\20-01-0031-fcc-ised-rep-photos test setup_wu_12_11_2021.docx page 4 of 12 Configuration 1) Antenna 0: Printed PCB Antenna Antenna 1: Printed PCB Antenna Configuration 2) Antenna 0: External Antenna Type 1 Jinchan JCW601 Antenna 1: Printed PCB Antenna Attachment to Test-Report-No.: 20/01-0031 Product: Transmitting / Receiving System STC Germany GmbH, Ohmstrasse 1, 84160 Frontenhausen Tel.: + 49 (0) 8732 6381 - Fax: + 49 (0) 8732 2345 - E-mail: [email protected] - Website: www.pkm.eu.com c:\users\002293.station-c451\desktop\fcc & ised cert draft\hm20020027\fcc2_4g\20-01-0031-fcc-ised-rep-photos test setup_wu_12_11_2021.docx page 5 of 12 Configuration 3) Antenna 0: External Antenna Type 2, Taoglas WS.01.B.305151 Antenna 1: Printed PCB Antenna Attachment to Test-Report-No.: 20/01-0031 Product: Transmitting / Receiving System STC Germany GmbH, Ohmstrasse 1, 84160 Frontenhausen Tel.: + 49 (0) 8732 6381 - Fax: + 49 (0) 8732 2345 - E-mail: [email protected] - Website: www.pkm.eu.com c:\users\002293.station-c451\desktop\fcc & ised cert draft\hm20020027\fcc2_4g\20-01-0031-fcc-ised-rep-photos test setup_wu_12_11_2021.docx page 6 of 12 Tested frequency range 30 MHz - 1000 MHz (Picture is exemplatory for all DUT Antenna configurations) Attachment to Test-Report-No.: 20/01-0031 Product: Transmitting / Receiving System STC Germany GmbH, Ohmstrasse 1, 84160 Frontenhausen Tel.: + 49 (0) 8732 6381 - Fax: + 49 (0) 8732 2345 - E-mail: [email protected] - Website: www.pkm.eu.com c:\users\002293.station-c451\desktop\fcc & ised cert draft\hm20020027\fcc2_4g\20-01-0031-fcc-ised-rep-photos test setup_wu_12_11_2021.docx page 7 of 12 Configuration 1) Antenna 0: Printed PCB Antenna Antenna 1: Printed PCB Antenna Configuration 2) Antenna 0: External Antenna Type 1 Jinchan JCW601 Antenna 1: Printed PCB Antenna Attachment to Test-Report-No.: 20/01-0031 Product: Transmitting / Receiving System STC Germany GmbH, Ohmstrasse 1, 84160 Frontenhausen Tel.: + 49 (0) 8732 6381 - Fax: + 49 (0) 8732 2345 - E-mail: [email protected] - Website: www.pkm.eu.com c:\users\002293.station-c451\desktop\fcc & ised cert draft\hm20020027\fcc2_4g\20-01-0031-fcc-ised-rep-photos test setup_wu_12_11_2021.docx page 8 of 12 Configuration 3) Antenna 0: External Antenna Type 2, Taoglas WS.01.B.305151 Antenna 1: Printed PCB Antenna Attachment to Test-Report-No.: 20/01-0031 Product: Transmitting / Receiving System STC Germany GmbH, Ohmstrasse 1, 84160 Frontenhausen Tel.: + 49 (0) 8732 6381 - Fax: + 49 (0) 8732 2345 - E-mail: [email protected] - Website: www.pkm.eu.com c:\users\002293.station-c451\desktop\fcc & ised cert draft\hm20020027\fcc2_4g\20-01-0031-fcc-ised-rep-photos test setup_wu_12_11_2021.docx page 9 of 12 Tested frequency range > 1 GHz (Picture is exemplatory for all DUT Antenna configurations) Attachment to Test-Report-No.: 20/01-0031 Product: Transmitting / Receiving System STC Germany GmbH, Ohmstrasse 1, 84160 Frontenhausen Tel.: + 49 (0) 8732 6381 - Fax: + 49 (0) 8732 2345 - E-mail: [email protected] - Website: www.pkm.eu.com c:\users\002293.station-c451\desktop\fcc & ised cert draft\hm20020027\fcc2_4g\20-01-0031-fcc-ised-rep-photos test setup_wu_12_11_2021.docx page 10 of 12 Configuration 1) Antenna 0: Printed PCB Antenna Antenna 1: Printed PCB Antenna Configuration 2) Antenna 0: External Antenna Type 1 Jinchan JCW601 Antenna 1: Printed PCB Antenna Attachment to Test-Report-No.: 20/01-0031 Product: Transmitting / Receiving System STC Germany GmbH, Ohmstrasse 1, 84160 Frontenhausen Tel.: + 49 (0) 8732 6381 - Fax: + 49 (0) 8732 2345 - E-mail: [email protected] - Website: www.pkm.eu.com c:\users\002293.station-c451\desktop\fcc & ised cert draft\hm20020027\fcc2_4g\20-01-0031-fcc-ised-rep-photos test setup_wu_12_11_2021.docx page 11 of 12 Configuration 3) Antenna 0: External Antenna Type 2, Taoglas WS.01.B.305151 Antenna 1: Printed PCB Antenna Attachment to Test-Report-No.: 20/01-0031 Product: Transmitting / Receiving System STC Germany GmbH, Ohmstrasse 1, 84160 Frontenhausen Tel.: + 49 (0) 8732 6381 - Fax: + 49 (0) 8732 2345 - E-mail: [email protected] - Website: www.pkm.eu.com c:\users\002293.station-c451\desktop\fcc & ised cert draft\hm20020027\fcc2_4g\20-01-0031-fcc-ised-rep-photos test setup_wu_12_11_2021.docx page 12 of 12 RF-conducted measurements EUT EUT
