BLE-IT005 is a broadcast protocol based on the bluetooth BLE protocol. It is usually installed in a suitable location, and it will broadcast continuously or periodically to its surrounding environment. The BLE- IT005 beacon allows to create Bluetooth® Low Energy (Bluetooth LE) 5.0 solutions. Besides basic Bluetooth LE advertising functionality via radio transmission, the TWHBC01 beacon allows additional functionality thanks to the add-on hardware components: a green and a red LED, a push button and an accelerometer with built-in thermometer. Depending on the casing not all hardware components may be present or can be used. The accelerometer can be configured for detection of specific events. Currently the following events are supported: free fall, single tap, double tap, activity/movement and flip-flop. There are two aspects concerning the TWHBC01 beacon firmware. On the one hand there is a firmware implemented as a release HEX file with functionality as described in this document. A major objective in the implementation is low current consumption hence long battery lifetime. There are many parameters that affect the behavior of the firmware. The release firmware has default values for these parameters. Firmware Functionality TWHBC01 beacon can be in five modes: • Transport & Warehousing • Configuration • Operational Active • Operational Active_Alarm • Operational Passive_Alarm By Operational mode we refer to the actual mode that is configured and can be either Operational Active, Operational Active_Alarm or Operational Passive_Alarm. Transport & Warehousing mode As its name suggests, this mode is meant for the beacon to be silent for a long period and only to be woken up when needed. Therefore this mode has no advertising broadcast. Wake-up can occur on possible events: • Accelerometer event • Short press on push button On wakeup the beacon goes to the configured Operational mode. Operational Active mode In this mode the beacon does an undirected advertising (broadcast) with frame content defined by the configuration parameters. The broadcast can be either connectable or non-connectable. When it is connectable, the beacon reverts to Configuration mode on connection by a (central) client, where a new configuration can be uploaded. The connectable option should only be used for testing purposes. Based on configuration settings, the push button and/or accelerometer can be enabled. On occurrence of the alarm state, which is triggered by either a long press of the push button or on accelerometer event, the beacon stops advertising for a given period (alarm duration timer), after which it restarts normal broadcast. Operational Active_Alarm mode This mode is similar to the Operational Active mode, except that during the alarm state the beacon broadcasts an alarm frame instead of being silent. On occurrence of the alarm state, the beacon starts an undirected alarm broadcast for a given period (alarm duration timer), after which it restarts normal broadcast. Operational Passive_Alarm mode This mode is similar to the Operational Active_Alarm mode, except that the beacon is silent until an event occurs. Configuration mode This mode is used for testing and configuration. In this mode the beacon does undirected connectable advertising. This mode is entered when the Operational mode is connectable and a (central) client connects. When connected the (central) client can interact with the Configuration Service in the beacon. The only way to leave the Configuration mode is by uploading and activating a valid TLV file. Alarm broadcast The broadcast in the alarm state of modes Operational Active_Alarm and Operational Passive_Alarm consists of just one frame type and can be either connectable or non-connectable1. Behavior on reset On reset the beacon checks whether valid TLV configuration file is present in flash. If so its configuration values are used. If no TLV file is present or is erroneous, the beacon uses the default configuration. To show which of these is the case the beacon flicks LEDs just after startup: • Twice green LED when TLV content is used. • Green LED followed by red LED when TLV configuration is not supported. • Twice red LED when TLV configuration is supported but TLV data are erroneous. Product specification Product usage scenario: Asset tracking and location in an industrial environment. People flow management, secure access control, People monitoring in certain areas. Product installation method The beacon can be stuck onto objects with a strong adhesive surface on it's backside. For removable versions, the Beacon can be supplied with an extra strong Velcro surface Operation frequency: 2402-2480MHz Modulation type: GFSK Bit Rate of transmitter: 1 Mbps Antenna type: PCB Antenna Antenna gain: 1dBi Max. output power: -3.569dBm Hardware version: TWHBC01 Software version: FW-2.1 FCC WARNING This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on,…

Text truncated - open the document above for the full version.

Applicant: Tatwah SA . Discrepancy Declaration Product name：TWHBC01 IT001 tag FCC ID：2AWJD-IT005 IC：26164-IT005 Model Name： IT005, IT008 The above products are applied for FCC ID & IC certification .All the model are the same circuit and RF module, except the appearance shape and model No.. Dated ：2020-06-16 By: ___________________Peter Egli___ SignaturePrinted Title:CEO

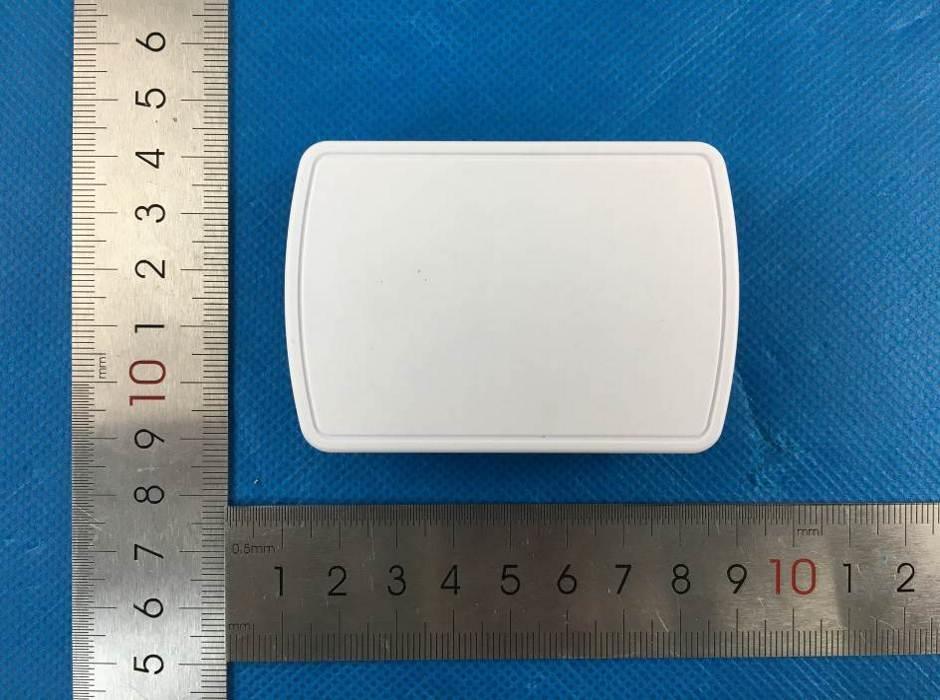

- Page 1 of 4 - Report No.: MTi19102108-12E1-1 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: No.102A & 302A, East Block, Hengfang Industrial Park, Xingye Road, Xixiang, Bao'an District, Shenzhen, Guangdong, China APPENDIX 1: EUT PHOTO Photo 1 (For model IT005) Photo 2 - Page 2 of 4 - Report No.: MTi19102108-12E1-1 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: No.102A & 302A, East Block, Hengfang Industrial Park, Xingye Road, Xixiang, Bao'an District, Shenzhen, Guangdong, China Photo 3 Photo 4 - Page 3 of 4 - Report No.: MTi19102108-12E1-1 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: No.102A & 302A, East Block, Hengfang Industrial Park, Xingye Road, Xixiang, Bao'an District, Shenzhen, Guangdong, China Photo 5 Photo 6 - Page 4 of 4 - Report No.: MTi19102108-12E1-1 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: No.102A & 302A, East Block, Hengfang Industrial Park, Xingye Road, Xixiang, Bao'an District, Shenzhen, Guangdong, China Photo 7 (IT008) ----END OF REPORT----

- Page 1 of 3 - Report No.: MTi19102108-12E1-1 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: No.102A & 302A, East Block, Hengfang Industrial Park, Xingye Road, Xixiang, Bao'an District, Shenzhen, Guangdong, China APPENDIX 1: EUT PHOTO Photo 1 (For model IT005) Photo 2 - Page 2 of 3 - Report No.: MTi19102108-12E1-1 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: No.102A & 302A, East Block, Hengfang Industrial Park, Xingye Road, Xixiang, Bao'an District, Shenzhen, Guangdong, China Photo 3 Photo 4 PCB Antenna - Page 3 of 3 - Report No.: MTi19102108-12E1-1 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: No.102A & 302A, East Block, Hengfang Industrial Park, Xingye Road, Xixiang, Bao'an District, Shenzhen, Guangdong, China Photo 5 ----END OF REPORT----

This test report is valid for the tested samples only. It cannot be reproduced except in full without prior written consent of Shenzhen Microtest Co., Ltd. Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: No.102A & 302A, East Block, Hengfang Industrial Park, Xingye Road, Xixiang, Bao'an District, Shenzhen, Guangdong, China MPE REPORT FCC ID:2AWJD-IT005 Date of issue: June 10, 2020 Report number: MTi19102108-12E2 Sample description: TWHBC01 IT001 tag Mo d e l( s ) : IT005, IT008 Applicant: Tatwah SA Address: Rue de Lausanne 47, CH-1110 Morges, Switzerland Date of test: May 22, 2020 to June 10, 2020 Shenzhen Microtest Co., Ltd. http://www.mtitest.com - Page 2 of 4 - Report No.: MTi19102108-12E2 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: No.102A & 302A, East Block, Hengfang Industrial Park, Xingye Road, Xixiang, Bao'an District, Shenzhen, Guangdong, China TEST RESULT CERTIFICATION Applicant’s name: Tatwah SA Address: Rue de Lausanne 47, CH-1110 Morges, Switzerland Manufacture's name: Tatwah Technology Co., Ltd Address: No.9 Shuiyi South Road Taifeng industrial Park, Xiaolan Town, Zhongshan City, Guangdong, China Product name: TWHBC01 IT001 tag Trademark: Mango Model and/or type reference: IT005 Serial model: IT008 RF exposure procedures: KDB 447498 D01 v06 This device described above has been tested by Shenzhen Microtest Co., Ltd and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. Tested by: Demi Mu June 10, 2020 Reviewed by: Leo Su June 10, 2020 Approved by: Tom Xue June 10, 2020 - Page 3 of 4 - Report No.: MTi19102108-12E2 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: No.102A & 302A, East Block, Hengfang Industrial Park, Xingye Road, Xixiang, Bao'an District, Shenzhen, Guangdong, China RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) MPE Calculation Method Friis transmission formula: Pd= (Pout*G)\ (4*pi*R 2 ) Where Pd= Power density in mW/cm2 Pout=output power to antenna in mW G= Numeric gain of the antenna relative to isotropic antenna Pi=3.1415926 R= distance between observation point and center of the radiator in cm(20cm) Pd the limit of MPE, 1mW/cm2. If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. - Page 4 of 4 - Report No.: MTi19102108-12E2 Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: No.102A & 302A, East Block, Hengfang Industrial Park, Xingye Road, Xixiang, Bao'an District, Shenzhen, Guangdong, China Measurement Result BLE: Operation Frequency: 2402-2480MHz, Power density limited: 1mW/ cm 2 Antenna Type: PCB Antenna; Antenna gain: 1dBi R=20cm mW=10^(dBm/10) antenna gain Numeric=10^(dBi/10)= 10^(1/10)=1.26 Channel Freq. (MHz) modulation conducted power Tune- up power (dBm) Max Antenna Evaluation result Power density Limits (dBm) tune-up power Gain (mW/cm2 ) (mW/cm2) (dBm) (mW) (dBi) Numeric 2402 GFSK -4.086 -4±1 -3 0.501 1.00 1.26 0.0001 1 2440 -4.046 -4±1 -3 0.501 1.00 1.26 0.0001 1 2480 -3.569 -4±1 -3 0.501 1.00 1.26 0.0001 1 Conclusion: For the max result: 0.0001≤ 1.0 for 1g SAR, No SAR is required. ----END OF REPORT----
