Tatwah Technology Co.,Ltd Datasheet Rev1. 25 th -Sept,2023 CONFIDENTIAL. Page 1 / 4 Add.: No.9 Shuiyi South Road, Taifeng Industrial Park, Xiaolan Town, Zhongshan City, Guangdong Province, China, 528415 tatwah SA (Back Office) – www.tatwah.net Add.: Rue de Lausanne 47 CH-1110 Morges Switzerland Beacon IT008 (M_26 module) Operation Instructions The beacon is using a broadcast protocol based on the Bluetooth BLE protocol. It is usually installed in a suitable location, and it will broadcast continuously or periodically to its surrounding environment. The beacon allows to create Bluetooth? Low Energy (Bluetooth LE) 5.0 solutions. Besides basic Bluetooth LE advertising functionality via radio transmission, the beacon allows additional functionality thanks to the add-on hardware components: a green and a red LED, a push button and an accelerometer. The accelerometer can be configured for detection of specific events. Currently the following events are supported: free fall, single tap, double tap, activity/movement and flip-flop. There are two aspects concerning the beacon firmware. On the one hand there is a firmware implemented as a release HEX file with functionality as described in this document. A major objective in the implementation is low current consumption hence long battery lifetime. There are many parameters that affect the behavior of the firmware. The release firmware has default values for these parameters. Firmware Functionality The beacon can be in five modes: • Transport & Warehousing • Configuration • Operational Active • Operational Active_Alarm • Operational Passive_Alarm By Operational mode we refer to the actual mode that is configured and can be either Operational Active, Operational Active_Alarm or Operational Passive_Alarm. Transport & Warehousing mode As its name suggests, this mode is meant for the beacon to be silent for a long period and only to be woken up when needed. Therefore, this mode has no advertising broadcast. Wake-up can occur on possible events: • Accelerometer event • Short press on push button On wakeup the beacon goes to the configured Operational mode. Operational Active mode In this mode the beacon does an undirected advertising (broadcast) with frame content defined by the configuration parameters. The broadcast can be either connectable or non-connectable. When it is connectable, the beacon reverts to Configuration mode on connection by a (central) client, where a new configuration can be uploaded. The connectable option should only be used for testing purposes. Based on configuration settings, the push button and/or accelerometer can be enabled. On occurrence of the alarm state, which is triggered by either a long press of the push button or on accelerometer event, the beacon stops advertising for a given period (alarm duration timer), after which it restarts normal broadcast. Operational Active_Alarm mode This mode is similar to the Operational Active mode, except that during the alarm state the beacon broadcasts an alarm frame instead of being silent. On occurrence of the alarm state, the beacon starts an undirected alarm broadcast for a given period (alarm duration timer), after which it restarts normal broadcast. Tatwah Technology Co.,Ltd Datasheet Rev1. 25 th -Sept,2023 CONFIDENTIAL. Page 2 / 4 Add.: No.9 Shuiyi South Road, Taifeng Industrial Park, Xiaolan Town, Zhongshan City, Guangdong Province, China, 528415 tatwah SA (Back Office) – www.tatwah.net Add.: Rue de Lausanne 47 CH-1110 Morges Switzerland Operational Passive_Alarm mode This mode is similar to the Operational Active_Alarm mode, except that the beacon is silent until an event occurs. Configuration mode This mode is used for testing and configuration. In this mode the beacon does undirected connectable advertising. This mode is entered when the Operational mode is connectable and a (central) client connects. When connected the (central) client can interact with the Configuration Service in the beacon. The only way to leave the Configuration mode is by uploading and activating a valid TLV file. Alarm broadcast The broadcast in the alarm state of modes Operational Active_Alarm and Operational Passive_Alarm consists of just one frame type and can be either connectable or nonconnectable1. Behavior on reset On reset the beacon checks whether valid TLV configuration file is present in flash. If so its configuration values are used. If no TLV file is present or is erroneous, the beacon uses the default configuration. To show which of these is the case the beacon flicks LEDs just after startup: • Twice green LED when TLV content is used. • Green LED followed by red LED when TLV configuration is not supported. • Twice red LED when TLV configuration is supported but TLV data are erroneous. The Connection Process: Connecting to BLE beacons typically involves the following steps: 1. Scanning for Nearby Beacons: The central device initiates a scan to detect nearby BLE beacons. During this scanning phase, the central device listens for beacon advertisements. 2. Advertisement Packets: BLE beacons periodically broadcast advertisement packets containing essential information, including their unique identifier, transmission power, and additional data. 3. Identifying Target Beacons: The central device filters these packets to identify specific BLE beacons it wants to connect to, based on their unique identifiers. 4. Establishing a Connection: Once the central device identifies a target beacon, it initiates a connection request. If the beacon is available and within range, it responds, and a connection is established. 5. Interacting with the Beacon: After the connection is established, the central device can request additional information from the beacon, such as sensor data or configuration parameters. Conversely, it can also send commands or updates to the beacon. Tatwah Technology Co.,Ltd Datasheet Rev1. 25 th -Sept,2023 CONFIDENTIAL.Page 3 / 4 Add.: No.9 Shuiyi South Road, Taifeng Industrial Pa…

Text truncated - open the document above for the full version.

Tatwah Technology Co.,Ltd Datasheet Rev1. 25 th -Sept,2023 CONFIDENTIAL. Page 1 / 4 Add.: No.9 Shuiyi South Road, Taifeng Industrial Park, Xiaolan Town, Zhongshan City, Guangdong Province, China, 528415 tatwah SA (Back Office) – www.tatwah.net Add.: Rue de Lausanne 47 CH-1110 Morges Switzerland Beacon IT005 (M_26 module) Operation Instructions The beacon is using a broadcast protocol based on the Bluetooth BLE protocol. It is usually installed in a suitable location, and it will broadcast continuously or periodically to its surrounding environment. The beacon allows to create Bluetooth? Low Energy (Bluetooth LE) 5.0 solutions. Besides basic Bluetooth LE advertising functionality via radio transmission, the beacon allows additional functionality thanks to the add-on hardware components: a green and a red LED, a push button and an accelerometer. The accelerometer can be configured for detection of specific events. Currently the following events are supported: free fall, single tap, double tap, activity/movement and flip-flop. There are two aspects concerning the beacon firmware. On the one hand there is a firmware implemented as a release HEX file with functionality as described in this document. A major objective in the implementation is low current consumption hence long battery lifetime. There are many parameters that affect the behavior of the firmware. The release firmware has default values for these parameters. Firmware Functionality The beacon can be in five modes: • Transport & Warehousing • Configuration • Operational Active • Operational Active_Alarm • Operational Passive_Alarm By Operational mode we refer to the actual mode that is configured and can be either Operational Active, Operational Active_Alarm or Operational Passive_Alarm. Transport & Warehousing mode As its name suggests, this mode is meant for the beacon to be silent for a long period and only to be woken up when needed. Therefore, this mode has no advertising broadcast. Wake-up can occur on possible events: • Accelerometer event • Short press on push button On wakeup the beacon goes to the configured Operational mode. Operational Active mode In this mode the beacon does an undirected advertising (broadcast) with frame content defined by the configuration parameters. The broadcast can be either connectable or non-connectable. When it is connectable, the beacon reverts to Configuration mode on connection by a (central) client, where a new configuration can be uploaded. The connectable option should only be used for testing purposes. Based on configuration settings, the push button and/or accelerometer can be enabled. On occurrence of the alarm state, which is triggered by either a long press of the push button or on accelerometer event, the beacon stops advertising for a given period (alarm duration timer), after which it restarts normal broadcast. Operational Active_Alarm mode This mode is similar to the Operational Active mode, except that during the alarm state the beacon broadcasts an alarm frame instead of being silent. On occurrence of the alarm state, the beacon starts an undirected alarm broadcast for a given period (alarm duration timer), after which it restarts normal broadcast. Tatwah Technology Co.,Ltd Datasheet Rev1. 25 th -Sept,2023 CONFIDENTIAL. Page 2 / 4 Add.: No.9 Shuiyi South Road, Taifeng Industrial Park, Xiaolan Town, Zhongshan City, Guangdong Province, China, 528415 tatwah SA (Back Office) – www.tatwah.net Add.: Rue de Lausanne 47 CH-1110 Morges Switzerland Operational Passive_Alarm mode This mode is similar to the Operational Active_Alarm mode, except that the beacon is silent until an event occurs. Configuration mode This mode is used for testing and configuration. In this mode the beacon does undirected connectable advertising. This mode is entered when the Operational mode is connectable and a (central) client connects. When connected the (central) client can interact with the Configuration Service in the beacon. The only way to leave the Configuration mode is by uploading and activating a valid TLV file. Alarm broadcast The broadcast in the alarm state of modes Operational Active_Alarm and Operational Passive_Alarm consists of just one frame type and can be either connectable or nonconnectable1. Behavior on reset On reset the beacon checks whether valid TLV configuration file is present in flash. If so its configuration values are used. If no TLV file is present or is erroneous, the beacon uses the default configuration. To show which of these is the case the beacon flicks LEDs just after startup: • Twice green LED when TLV content is used. • Green LED followed by red LED when TLV configuration is not supported. • Twice red LED when TLV configuration is supported but TLV data are erroneous. The Connection Process: Connecting to BLE beacons typically involves the following steps: 1. Scanning for Nearby Beacons: The central device initiates a scan to detect nearby BLE beacons. During this scanning phase, the central device listens for beacon advertisements. 2. Advertisement Packets: BLE beacons periodically broadcast advertisement packets containing essential information, including their unique identifier, transmission power, and additional data. 3. Identifying Target Beacons: The central device filters these packets to identify specific BLE beacons it wants to connect to, based on their unique identifiers. 4. Establishing a Connection: Once the central device identifies a target beacon, it initiates a connection request. If the beacon is available and within range, it responds, and a connection is established. 5. Interacting with the Beacon: After the connection is established, the central device can request additional information from the beacon, such as sensor data or configuration parameters. Conversely, it can also send commands or updates to the beacon. Tatwah Technology Co.,Ltd Datasheet Rev1. 25 th -Sept,2023 CONFIDENTIAL.Page 3 / 4 Add.: No.9 Shuiyi South Road, Taifeng Industrial Pa…

Text truncated - open the document above for the full version.

1/1 US Agent for Service of Process LETTER OF ATTESTATION TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 US Agent for Service of Process: Company Name: Global RFID Systems North America LCC Contact Name: Ralf Michael Address: 45 E Mossy Creek Ct. Elizabethtown, KY 42701. USA Telephone No: +1 2706812665 Email: [email protected] Applicant: Company name: Tatwah SA Product Description: M_26 IT005 TAG Grantee code: 2AWJD FCC ID: 2AWJD-IT005A Contact Name: Peter Egli Address: Rue de Lausanne 47, CH-1110 Morges, Switzerland Telephone No: +41 21 803 32 34 Email: [email protected] [Tatwah SA] certifies that, as of the date of this filing of the application with the TCB, [Global RFID Systems North America LCC] is our designated US agent for service of process for the above referenced FCC ID. [Tatwah SA] accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any commission related proceeding involving equipment. [Global RFID Systems North America LCC] accepts, as of the date of the filing of the application, the obligation of the designated US agent for service of process for the above reference FCC ID. The US Agent for Service of Process is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. The Applicant is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. Date: 9.14.2023 Applicant’s Name: Peter Egli US Agent’s Name: Ralf Michael Title: CEO Title: CEO Signature Signature FRN: 0029617974

C5266091_X24_Ed.2 1/1 “Attestation Statements” TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 The Commission adopted rules that prohibit equipment authorization for “covered” telecommunications equipment and video surveillance equipment produced by entities identified on the Commission’s Covered List 1 , which is periodically updated. See the Covered List for more details. This Attestation Statement is to confirm that we follow the Section 2.911(d)(5)(i)-(ii) Applicant Company name: Tatwah SA Grantee code: 2AWJD FCC ID: 2AWJD-IT005A Contact Name: Peter Egli Address: Rue de Lausanne 47, CH-1110 Morges, Switzerland Telephone No: +41 21 803 32 34 Fax No: +41 21 803 32 38 Email: [email protected] i. [Tatwah SA] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. The applicant must sign this certification. ii. [Tatwah SA] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not (as a specifically named entity or any of its subsidiaries or affiliates) identified on the Covered List as an entity producing “covered” equipment. The applicant must sign this certification. Tatwah SA certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Date: 9.14.2023 Applicant’s Name: Peter Egli Title: CEO Signature 1 The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist

Tatwah SA Product Similarity Declaration Product name: M_26 IT005 TAG Model name: IT005, IT008 FCC ID: 2AWJD-IT005A We (Tatwah SA.) hereby state that all the models are electrical identical including the same software parameter and hardware design (i.e., circuit design, PCB Layout, RF module/circuit, antenna type(s) and antenna location, components on PCB, etc.,), same mechanical structure and design (including product enclosure, materials, etc.,), the only difference is the model name and appearance. The difference lies in the shape and of their shells. Demonstrate the detail(descriptions and pictures) as to the difference list above. IT005 IT008 Signature: Name: Peter Egli Title: CEO Date: 9.14.2023 尸

1/1 Global RFID Systems North America LCC “Attestation Statements” TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 US Agent for Service of Process: Company Name: Global RFID Systems North America LCC Contact Name: Ralf Michael Address: 45 E Mossy Creek Ct. Elizabethtown, KY 42701. USA Telephone No: +1 2706812665 Email: [email protected] Applicant: Company name: Tatwah SA FRN: 0029617974 Product Description: M_26 IT005 TAG Grantee code: 2AWJD FCC ID: 2AWJD-IT005A Contact Name: Peter Egli Address: Rue de Lausanne 47, CH-1110 Morges, Switzerland Telephone No: +41 21 803 32 34 Email: [email protected] The US Agent (Global RFID Systems North America LCC) for service of process does no business with the FCC other than being designated as an U.S agent for service of process and there is no a FRN for U.S agent, so U.S agent FRN is not be included on attachment US Agent for Service of Process attestation Lettter (X23) according to 986446 D01 Covered Equipment Guidance v02. Date: 9.14.2023 Applicant’s Name: Peter Egli US Agent’s Name: Ralf Michael Title: CEO Title: CEO Signature Signature

C5266091_X8_Ed.1 1/1 Letter of Authorization Company: Tatwah SA Address: Rue de Lausanne 47, CH-1110 Morges, Switzerland Product Name: M_26 IT005 TAG Model Number: IT005, IT008 FCC Identifier: 2AWJD-IT005A We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Peter Egli Date: 9/14/2023 Title: CEO Signature of applicant: 尸

C5266091_X10_Ed.1 1/1 Tatwah SA Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 9/14/2023 Subject: Request for Confidentiality FCC ID: 2AWJD-IT005A To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality ID Label/Location No No Attestation Statement No No External Photos No Block Diagram Schematics Test Report No No Test Setup Photos No User’s Manual Internal Photos Parts List / Tune Up RF Exposure Info Operational Description Cover Letter(s) No No SDR Software / Security Info No Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Peter Egli Date: 9/14/2023 Title: CEO 尸

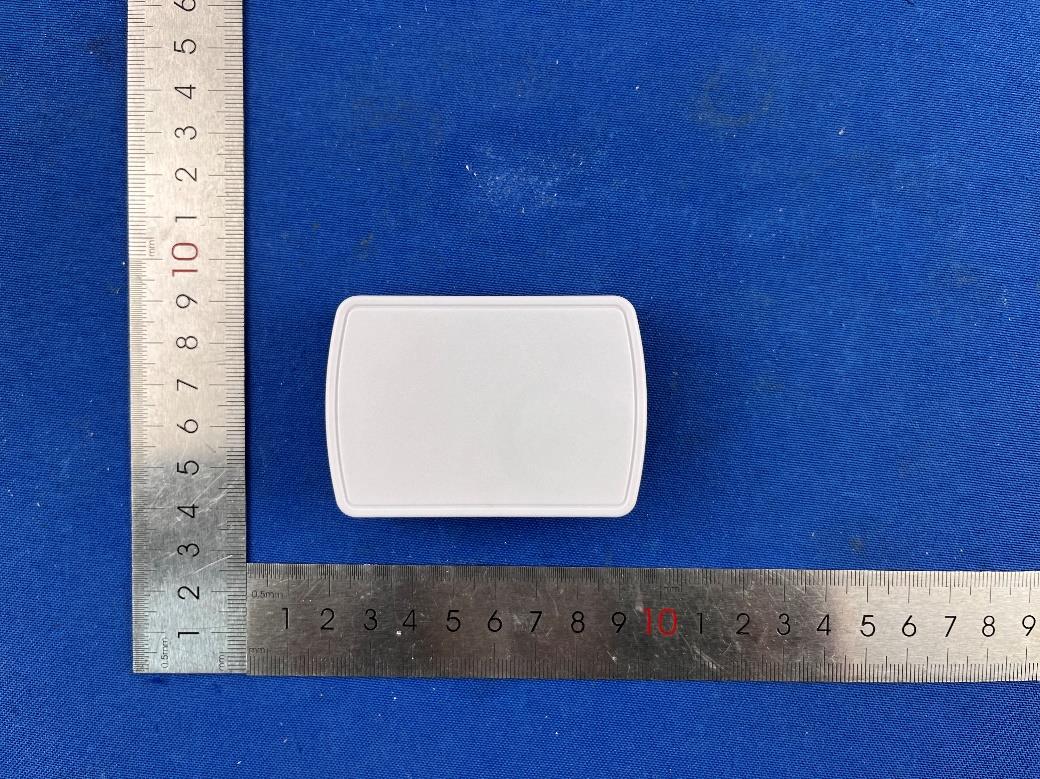

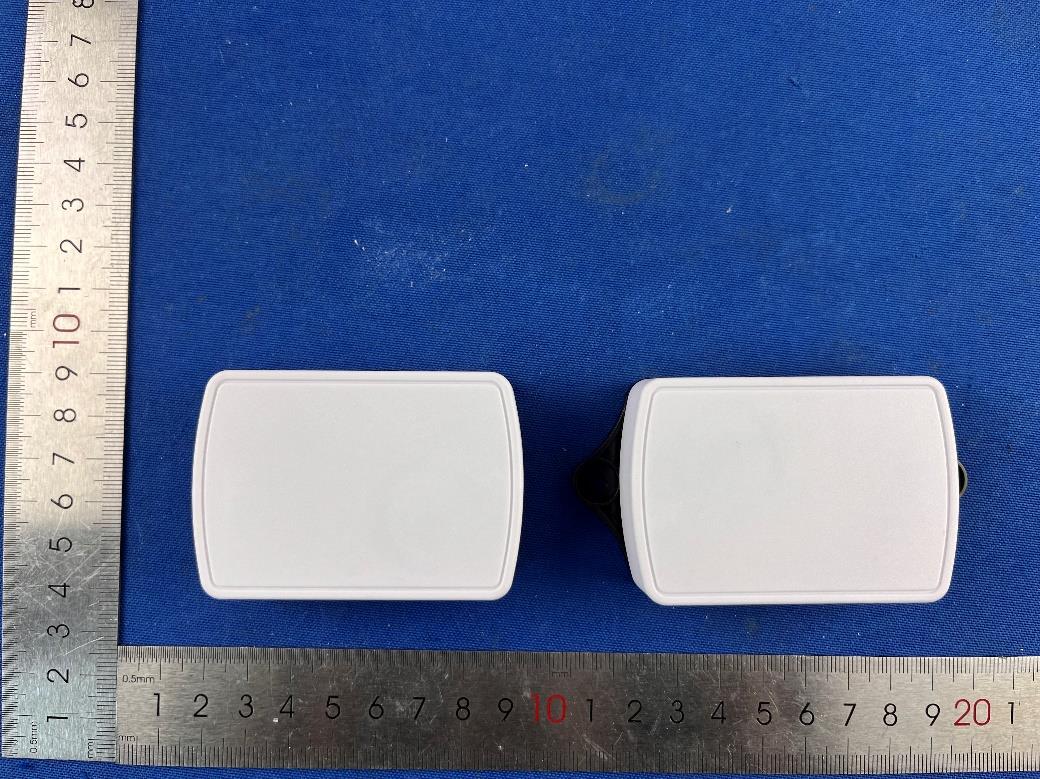

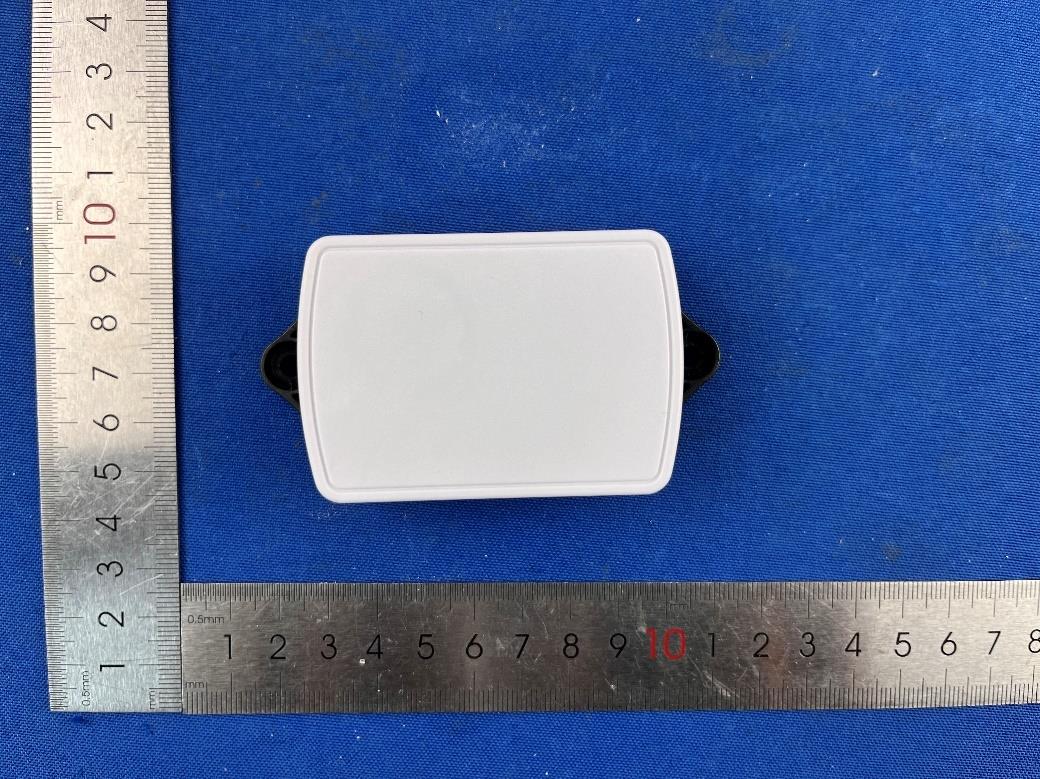

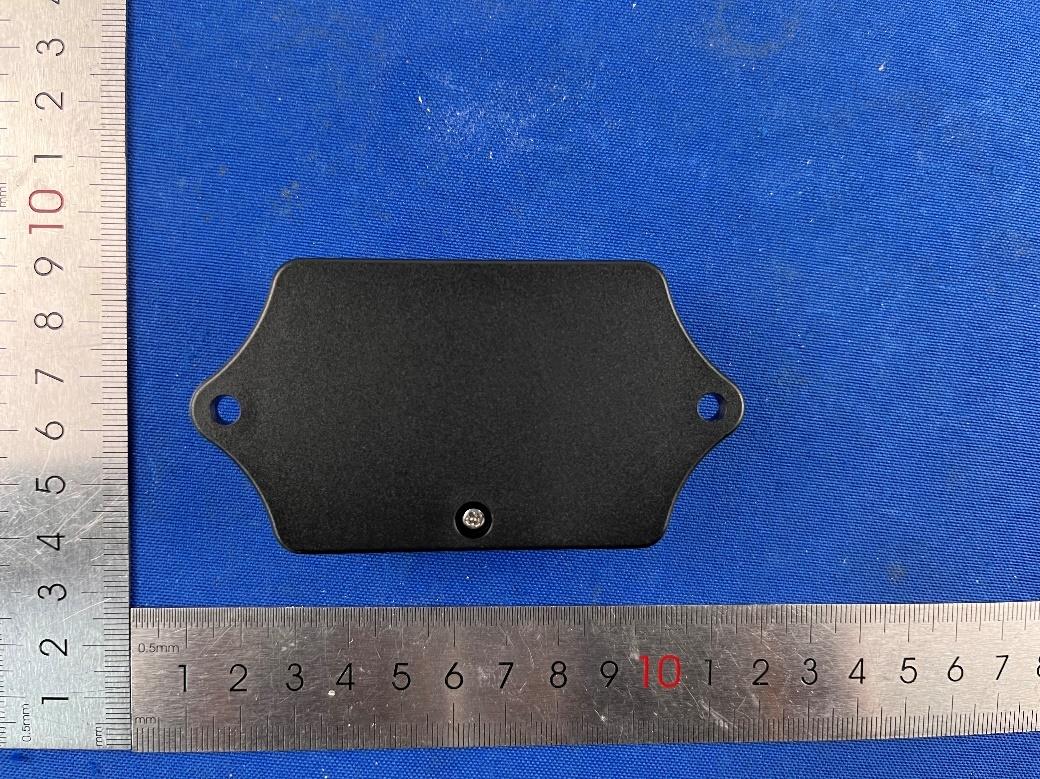

Page 1 of 7 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel: (86-755)88850135 Fax: (86-755) 88850136 Web:www.mtitest.com E-mail: [email protected] Appendix - Ext Photos Model: IT005 External Page 2 of 7 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel: (86-755)88850135 Fax: (86-755) 88850136 Web:www.mtitest.com E-mail: [email protected] Page 3 of 7 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel: (86-755)88850135 Fax: (86-755) 88850136 Web:www.mtitest.com E-mail: [email protected] Page 4 of 7 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel: (86-755)88850135 Fax: (86-755) 88850136 Web:www.mtitest.com E-mail: [email protected] Page 5 of 7 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel: (86-755)88850135 Fax: (86-755) 88850136 Web:www.mtitest.com E-mail: [email protected] IT008 Page 6 of 7 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel: (86-755)88850135 Fax: (86-755) 88850136 Web:www.mtitest.com E-mail: [email protected] Page 7 of 7 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel: (86-755)88850135 Fax: (86-755) 88850136 Web:www.mtitest.com E-mail: [email protected] ----End of Report----

Page 1 of 6 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel: (86-755)88850135 Fax: (86-755) 88850136 Web:www.mtitest.com E-mail: [email protected] Appendix - Int Photos IT005 Internal Page 2 of 6 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel: (86-755)88850135 Fax: (86-755) 88850136 Web:www.mtitest.com E-mail: [email protected] ANT Reserved ANT Page 3 of 6 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel: (86-755)88850135 Fax: (86-755) 88850136 Web:www.mtitest.com E-mail: [email protected] Page 4 of 6 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel: (86-755)88850135 Fax: (86-755) 88850136 Web:www.mtitest.com E-mail: [email protected] IT008 Internal Page 5 of 6 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel: (86-755)88850135 Fax: (86-755) 88850136 Web:www.mtitest.com E-mail: [email protected] ANT Reserved ANT Page 6 of 6 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel: (86-755)88850135 Fax: (86-755) 88850136 Web:www.mtitest.com E-mail: [email protected] ----End of Report----

Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China. Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] RF EXPOSURE Test Report Report No.: MTi230804002-10E2 Date of issue: 2023-09-04 Applicant: Tatwah SA Product: M_26 IT005 TAG Model(s): IT005, IT008 FCC ID: 2AWJD-IT005A Shenzhen Microtest Co., Ltd. http://www.mtitest.com - Page 2 of 6- Report No.: MTi230804002-10E2 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China. Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Instructions 1. The report shall not be partially reproduced without the written consent of the laboratory; 2. The test results of this report are only responsible for the samples submitted; 3. This report is invalid without the seal and signature of the laboratory; 4. This report is invalid if transferred, altered or tampered with in any form without authorization; 5. Any objection to this report shall be submitted to the laboratory within 15 days from the date of receipt of the report. - Page 3 of 6- Report No.: MTi230804002-10E2 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China. Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Applicant: Tatwah SA Address: Rue de Lausanne 47, CH-1110 Morges, Switzerland Manufacturer: Tatwah Technology Co., Ltd Address: No.9 Shuiyi South Road Taifeng industrial Park, Xiaolan Town, Zhongshan City, Guangdong, China Product description Product name: M_26 IT005 TAG Trademark: Mango Model name: IT005 Serial Model: IT008 Standards: N/A Test method: KDB 447498 D01 v06 Date of Test Date of test: 2023-08-30 to 2023-09-04 Test result: Pass Test Engineer : (Letter Lan) Reviewed By: : (Leon Chen) Approved By: : (Tom Xue) - Page 4 of 6- Report No.: MTi230804002-10E2 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China. Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Table of Contents 1. STANDALONE SAR TEST EXCLUSION CONSIDERATIONS ............................................................................................ 5 2. SAR TEST EXCLUCSION THRESHOLDS ........................................................................................................................ 6 - Page 5 of 6- Report No.: MTi230804002-10E2 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China. Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] 1. Standalone SAR test exclusion considerations Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition(s), listed below, is (are) satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions. The minimum test separation distance defined in 4.1 f) is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander. To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified, typically in the SAR measurement or SAR analysis report, by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting are required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions. a) For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where ⚫ f (GHz) is the RF channel transmit frequency in GHz ⚫ Power and distance are rounded to the nearest mW and mm before calculation ⚫ The result is rounded to one decimal place for comparison ⚫ The values 3.0 and 7.5 are referred to as numeric thresholds in step b) below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm, and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 4.1 f) is applied to determine SAR test exclusion. b) For 100 MHz to 6 GHz and test separation distances > 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following (also illustrated in Appendix B): 1) {[Power allowed at numeric threshold for 50 mm in step a)] + [(test separation distance – 50 mm)·(f(MHz)/150)]} mW, for 100 MHz to 1500 MHz 2) {[Power allowed at numeric threshold for 50 mm in step a)] + [(test separation distance – 50 mm)·10]} mW, for > 1500 MHz and ≤ 6 GHz c) For frequencies below 100 MHz, the following may be considered for SAR test exclusion…

Text truncated - open the document above for the full version.

Inverted F Antenna Specification Summary ITEMANT SPEC Model Name 2.4G ANT HorizontalVertical 2400MHz 2450MHz 2500MHz 2400MHz 2450MHz 2500MHz Center Frequency -1.26-0.76 0 -5.25-2.46-1.86 MAX. Gain 0dBL PolarizationHorizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance50 Ohm Antenna Length 14.50mm Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD Antenna Photo & Length (mm) Horizontal: 2500 MHz Power (dBL) Max: 0 Min: -40 Scale: 5/div Test image ANT Test Labs˖Attestation of Global Compliance Co., Ltd.
