2AWLG-MEB11V2Notebook

Package contents Product name: Notebook Product Model numbers: MZB1164G64GW10 Brand name: Evolve III Power adapter (100V-240V) X TM Quick guide Important safety and legal information Remove all components from the packaging and remove the packaging material, including the protective film. Check to ensure that the delivery is complete. If you find that there are missing or damaged components, contact customer service immediately. Technical specifications Processor (CPU): Intel® Celeron® N3450Processor (up to 2.2GHz) quad core* Operating system: Windows 10 Pro RAM/Internal storage: 4GB/64GB Graphics unit (GPU): Intel® HD Graphics 500 (C)* Screen size: 11.6” Display: TN display (1366*768; 16:9) Camera: Front: 2MP Interfaces: 1x Mini-HDMI®, 1x TF, audio out/MIC in (3.5mm), 1x USB2.0, 1x USB3.0. Network: WIFI 802.11 b/g/n, Bluetooth 4.0 Card slot: TF Card More: Hall-Sensor, Analogue-microphone, Stereo speaker Size: 277mm x190.3 mm x17.8mm Weight: approx.1000g Material/Color: PC + ABS︱Cool Grey Battery: Li-polymer (charging via DC IN) Operation and storage Temperatures: between 5°C to 30°C Relative humidity: of 30% to 70% Quick guide Charging the Notebook Please charge your Notebook fully before using it for the first time. Connect the DC plug on the supplied power adapter to the charging socket (DC IN) on the Notebook. Then plug the power adapter into a socket. The charging LED lights up while the device is charging. Only leave the power adapter connected to the socket until the battery of the Notebook is fully charged. In addition, always disconnect the power adapter from the Notebook when you are not charging the Notebook. Turning on the Notebook for the first time Bring the screen upwards until it is standing at a minimum angle of 90° to the keyboard. Press the on/off switch for about 5 seconds to switch on the Notebook. The setup assistant will then appear on the screen. Follow the setup assistant instructions to set up your Notebook. During the start-up, the wizard prompts you to register for your Microsoft account. If you do not yet have a Microsoft account, please set up one here. After completion of the start-up, your Notebook is configured. This may take several minutes to complete. Do not turn off the Notebook during this time ! Unlocking the display As soon as the device has been set up (and every time it is subsequently switched on and booted up), the lock screen appears, Press any key on the keyboard to unlock the screen. If your Notebook is password-protected, you must then enter the password. Start menu To display the start menu, click the Windows icon in the bottom left of the display or press the the Windows button on the keyboard. Press the icon a second time to hide the Start menu. The Start menu consists of the classic navigation list (A) and a useful app area (B) to the right of the navigation list. Among other things, the navigation list includes a link to open Settings (cog wheel icon).In the app area, you can pin apps and favorites in the form of live tiles and organize them. In the navigation list (A) you find a list of all installed apps in alphabetical order. An alphabetic quick access to the navigation list appears when you click on a respective first letter. The Action Center The Info Center is a bar with quick links to some important Notebook functions, which you can either display or hide. To access the Info Center click the memo symbol in the bottom fight-hand corner. Activating WIFI and opening the browser a. Call up Settings(see “Start menu”). b In the settings, click “Network & Internet”. c Click “ Wi-Fi” on the left in the next screen. d Click the slider or the word “Off”. The word “On” now appears next to the slider.The Notebook searches for all available for all available wireless networks nearby and then displays them as a list (“Show available networks”). e Click the network that you wish to connect to. f Enter the network key (password) if necessary. g . Click “Connect”. The Notebook connects to the selected network. The button for launching the Internet browser can be found on the task bar at the bottom of the display. Click the little blue “e” to launch the browser. To enter an Internet address (URL), click the search bar displayed centrally at the top of the window. Reset If the Notebook “freezes” and no longer responds, you can reset it. Please and hold down then on/off switches off. Wait for about 20 seconds and then turn the Notebook on normally. Any files that have not been saved will be lost when the Notebook is reset. Switching off the Notebook Standby Briefly press the on/off switch on the device to activate the standby mode. Press it again quickly to take the Notebook out of standby mode. Shutting down Open the Start menu. Click“Ф” in the bottom area of the Start menu and then tap “Shut down”. The Notebook shuts down. Saving energy Deactivate the WIFI function when it is not in use. Only leave the power adapter connected to the socket until the Notebook’s battery is fully charged. In addition, always disconnect the power adapter form the Notebook when you are not charging the Notebook. Reduce the display brightness under “System”→“Display” in the settings. Activate standby mode or turn off the Notebook completely if you are not using the Notebook. General safety information WARNING Risk of multiple injuries due ton reduced physical, sensory or mental capabilities and/or lack of knowledge or practical experience Children and vulnerable individuals may only use the device under direct supervision. Risk of electric shock or electrocution from live components Do not insert objects into the device’s ventilation slots. Do not open the power adapter. Do not touch the power adapter if you hands are wet. Do not short out the device and/or charger. Fire hazard andor risk of burns from damaged or leaking batteries Do not use or charge the device if the battery if damaged or leaking. Do not use or charge the device if the battery is damaged or leaking. …

Text truncated - open the document above for the full version.

Evolve 3 Holdings Pty Ltd PO BOX 6222, NARRAWEENA NSW, Australia, 2099 Tel: +61400665466 Email: [email protected] QA-FR-170-B 7/29/2014 FCC Authorization Date: 2020-11-10 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We Evolve 3 Holdings Pty Ltd, the undersigned, hereby authorizes Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratories Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: RAY PAOLA CEO

Evolve 3 Holdings Pty Ltd PO BOX 6222, NARRAWEENA NSW, Australia, 2099 Tel: +61400665466 Email: [email protected] FCC Confidential Authorization Date: 2020-11-10 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2AWLG-MEB11V2 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Evolve 3 Holdings Pty Ltd hereby requests long-term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Signature: RAY PAOLA CEO

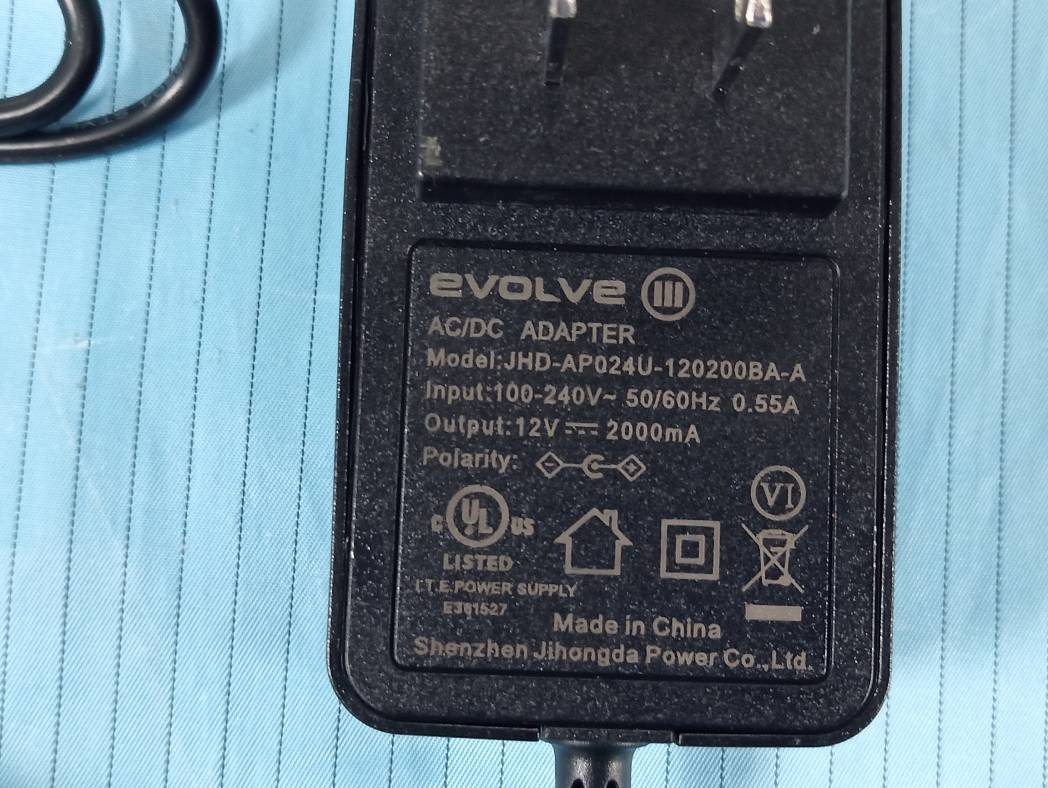

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201016003-RF Page 1 of 5 EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201016003-RF Page 2 of 5 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201016003-RF Page 3 of 5 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201016003-RF Page 4 of 5 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201016003-RF Page 5 of 5

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201016003-RF Page 1 of 9 EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201016003-RF Page 2 of 9 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201016003-RF Page 3 of 9 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201016003-RF Page 4 of 9 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201016003-RF Page 5 of 9 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201016003-RF Page 6 of 9 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201016003-RF Page 7 of 9 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201016003-RF Page 8 of 9 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201016003-RF Page 9 of 9 Bluetooth/Wi-Fi Antenna

Note: This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. SAR TEST REPORT For Evolve 3 Holdings Pty Ltd PO BOX 6222, NARRAWEENA NSW, Australia, 2099 FCC ID: 2AWLG-MEB11V2 Report Type: Original Report Product Type: Notebook Report Number: RSZ201016003-SA Report Date: 2020-10-29 Reviewed By: Yates Li SAR En gineer Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F., West Wing, Third Phase of Wanli Industrial Building, Shihua Road, Futian Free Trade Zone, Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ201016003-SA SAR Evaluation Report 2 of 31 Attestation of Test Results EUT Information EUT Description Notebook Tested Model MZB1164G64GW10 FCC ID 2AWLG-MEB11V2 Serial Number RSZ201016003-SA-S1 Test Date 2020/10/24 MODE Max. SAR Level(s) Reported(W/kg) Limit (W/kg) WLAN 2.4G 1g Body SAR 0.54 1.6 Applicable Standards FCC 47 CFR part 2.1093 Radiofrequency radiation exposure evaluation: portable devices IEEE1528:2013 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques IEC 62209-1:2016 Measurement procedure for the assessment of specific absorption rate of human exposure to radio frequency fields from hand-held and body-mounted wireless communication devices – Part 1: Devices used next to the ear (Frequency range of 300 MHz to 6 GHz) IEC 62209-2:2010 Human exposure to radio frequency fields from hand-held and body-mounted wireless communication devices-Human models, instrumentation, and procedures-Part 2: Procedure to determine the specific absorption rate (SAR) for wireless communication devices used in close proximity to the human body (frequency range of 30 MHz to 6 GHz) KDB procedures KDB 447498 D01 General RF Exposure Guidance v06 KDB 865664 D01 SAR Measurement 100 MHz to 6 GHz v01r04 KDB 865664 D02 RF Exposure Reporting v01r02 KDB 248227 D01 802.11 Wi-Fi SAR v02r02 Note: This wireless device has been shown to be capable of compliance for localized specific absorption rate (SAR) for General Population/Uncontrolled Exposure limits specified in FCC 47 CFR part 2.1093 and has been tested in accordance with the measurement procedures specified in IEEE 1528-2013 and RF exposure KDB procedures. The results and statements contained in this report pertain only to the device(s) evaluated. Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ201016003-SA SAR Evaluation Report 3 of 31 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ......................................................................................................................... 4 EUT DESCRIPTION ................................................................................................................................................... 5 TECHNICAL SPECIFICATION ......................................................................................................................................... 5 REFERENCE, STANDARDS, AND GUIDELINES ................................................................................................. 6 SAR LIMITS ................................................................................................................................................................ 7 FACILITIES ................................................................................................................................................................. 8 DESCRIPTION OF TEST SYSTEM .......................................................................................................................... 9 EQUIPMENT LIST AND CALIBRATION ............................................................................................................. 15 EQUIPMENTS LIST & CALIBRATION INFORMATION ................................................................................................... 15 SAR MEASUREMENT SYSTEM VERIFICATION ............................................................................................. 16 LIQUID VERIFICATION ............................................................................................................................................... 16 SYSTEM ACCURACY VERIFICATION .......................................................................................................................... 17 SAR SYSTEM VALIDATION DATA .................................................................................................................... 18 EUT TEST STRATEGY AND METHODOLOGY ................................................................................................. 19 CONDUCTED OUTPUT POWER MEASUREMENT .......................................................................................... 21 PROVISION APPLICABLE ............................................................................................................................................ 21 TEST PROCEDURE ...................................................................................................................................................... 21 MAXIMUM TARGET OUTPUT POWER ......................................................................................................................... 2…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ201016003-SA SAR Evaluation Report 1 of 16 APPENDIX C PROBE CALIBRATION CERTIFICATES Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ201016003-SA SAR Evaluation Report 2 of 16 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ201016003-SA SAR Evaluation Report 3 of 16 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ201016003-SA SAR Evaluation Report 4 of 16 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ201016003-SA SAR Evaluation Report 5 of 16 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ201016003-SA SAR Evaluation Report 6 of 16 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ201016003-SA SAR Evaluation Report 7 of 16 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ201016003-SA SAR Evaluation Report 8 of 16 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ201016003-SA SAR Evaluation Report 9 of 16 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ201016003-SA SAR Evaluation Report 10 of 16 APPENDIX D DIPOLE CALIBRATION CERTIFICATES Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ201016003-SA SAR Evaluation Report 11 of 16 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ201016003-SA SAR Evaluation Report 12 of 16 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ201016003-SA SAR Evaluation Report 13 of 16 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ201016003-SA SAR Evaluation Report 14 of 16 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ201016003-SA SAR Evaluation Report 15 of 16 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ201016003-SA SAR Evaluation Report 16 of 16

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ201016003-SA Page 1 of 2 Test Plot 1#: WLAN 802.11b_Body Back_Middle DUT: Notebook; Type: MZB1164G64GW10; Serial: RSZ201016003-SA-S1; Communication System: UID 0, 2.4G DTS (0); Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2437 MHz; σ = 1.813 S/m; εr = 38.942; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration: • Probe: EX3DV4 - SN7522; ConvF(7.15, 7.15, 7.15) @ 2437 MHz; • Sensor-Surface: 4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn1562; Calibrated: 3/3/2020 • Phantom: SAM-Twin V8.0 P1aP2a; Type: QD 000 P41 AA ; Serial: 1962 • Measurement SW: DASY52, Version 52.10 (2); Body Back/WLAN 802.11b Mid/Area Scan (101x101x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.555 W/kg Body Back/WLAN 802.11b Mid/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 5.865 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 0.961 W/kg SAR(1 g) = 0.491 W/kg; SAR(10 g) = 0.249 W/kg Maximum value of SAR (measured) = 0.539 W/kg Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ201016003-SA Page 2 of 2 Test Plot 2#: WLAN 802.11b_Body Left_Middle DUT: Notebook; Type: MZB1164G64GW10; Serial: RSZ201016003-SA-S1; Communication System: UID 0, 2.4G DTS (0); Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2437 MHz; σ = 1.813 S/m; εr = 38.942; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration: • Probe: EX3DV4 - SN7522; ConvF(7.15, 7.15, 7.15) @ 2437 MHz; • Sensor-Surface: 4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn1562; Calibrated: 3/3/2020 • Phantom: SAM-Twin V8.0 P1aP2a; Type: QD 000 P41 AA ; Serial: 1962 • Measurement SW: DASY52, Version 52.10 (2); Body Left/WLAN 802.11b Mid/Area Scan (101x101x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.452 W/kg Body Left/WLAN 802.11b Mid/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 6.142 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 0.751 W/kg SAR(1 g) = 0.397 W/kg; SAR(10 g) = 0.202 W/kg Maximum value of SAR (measured) = 0.433 W/kg 0 dB = 0.433 W/kg = -3.64 dBW/kg

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ201016003-SA SAR Evaluation Report 1 of 2 APPENDIX B EUT TEST POSITION PHOTOS Liquid depth ≥ 15cm • Phantom: SAM-Twin V8.0 P1aP2a; Type: QD 000 P41 AA ; Serial: 1962 Body Back Setup Photo(0mm) Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ201016003-SA SAR Evaluation Report 2 of 2 Body Left Setup Photo(0mm)

Note: This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 15.247 TEST REPORT For Evolve 3 Holdings Pty Ltd PO BOX 6222, NARRAWEENA NSW, Australia, 2099 FCC ID: 2AWLG-MEB11V2 Report Type: Original Report Product Type: Notebook Re port Number: RSZ201016003-00C Re port Date: 2020-11-18 Reviewed B y: Jimmy Xiao RF En gineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F., West Wing, Third Phase of Wanli Industrial Building, Shihua Road, Futian Free Trade Zone, Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ201016003-00C FCC Part 15.247 Page 2 of 66 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 7 EUT EXERCISE SOFTWARE .......................................................................................................................................... 7 DUTY CYCLE ................................................................................................................................................................ 8 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 8 EXTERNAL I/O CABLE .................................................................................................................................................. 8 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 9 SUMMARY OF TEST RESULTS ............................................................................................................................. 10 TEST EQUIPMENT LIST ......................................................................................................................................... 11 FCC§15.247 (i), §1.1307 (b) (1) & §2.1093 – RF EXPOSURE ..................................................................................... 12 APPLICABLE STANDARD ............................................................................................................................................ 12 FCC §15.203 - ANTENNA REQUIREMENT ........................................................................................................... 13 APPLICABLE STANDARD ............................................................................................................................................ 13 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 13 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS ..................................................................................... 14 APPLICABLE STANDARD ............................................................................................................................................ 14 EUT SETUP ................................................................................................................................................................ 14 EMI TEST RECEIVER SETUP ....................................................................................................................................... 14 TEST PROCEDURE ...................................................................................................................................................... 14 CORRECTED FACTOR & MARGIN CALCULATION ....................................................................................................... 15 TEST DATA ................................................................................................................................................................ 15 FCC §15.209, §15.205 & §15.247(d) - SPURIOUS EMISSIONS ............................................................................. 20 APPLICABLE STANDARD ............................................................................................................................................ 20 EUT SETUP ...........................…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201016003-RF Page 1 of 2 EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions - Side View Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201016003-RF Page 2 of 2 Radiated Emissions View (Below 1 GHz) Radiated Emissions View (Above 1 GHz)
