2AWMK-BTP-2585NSBEITONG ASURA 2 GAME CONTROLLER MULTI-MODE

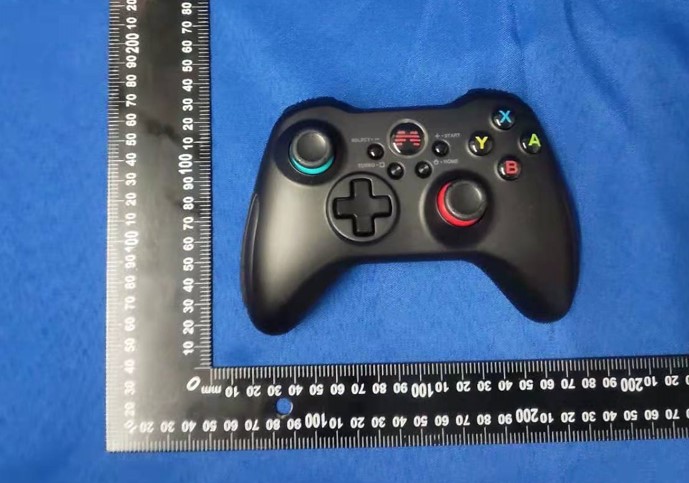

样机正面照 样机背面照 样机侧面照1 样机侧面照2 样机侧面照3 样机侧面照4

样机内部照1 样机内部照2 样机内部照3 样机内部照4

TEST REPORT FCC ID : 2AWMK-BTP-2585NS Applicant : Guangzhou Pinzhong Electronic Technology Co.,Ltd. Product Name : BEITONG ASURA 2 GAME CONTROLLER MULTI-MODE Mode No. : BTP-2585NS CVC Testing Technology Co., Ltd. Test Report No.: FCC2022-0045-H Test Report No. FCC2022-0045-H Page 2 of 12 LTC-R-7093-RF-Part15E-A0 Product Name BEITONG ASURA 2 GAME CONTROLLER MULTI-MODE Trade Mark Type/Model BTP-2585NS Sample Status — Applicant Guangzhou Pinzhong Electronic Technology Co.,Ltd. Applicant Address Room 611-612,Greenland Center of Financial city,No.662,Huangpu Avenue Middle Road.Tianhe District,Guangzhou City. Manufacturer Guangzhou Pinzhong Electronic Technology Co.,Ltd. Manufacturer Address Room 611-612,Greenland Center of Financial city,No.662,Huangpu Avenue Middle Road.Tianhe District,Guangzhou City. Producer Guangzhou Pinzhong Electronic Technology Co.,Ltd. Producer Address Room 611-612,Greenland Center of Financial city,No.662,Huangpu Avenue Middle Road.Tianhe District,Guangzhou City. Quantity of sample 1 pcs Sample Identification 1-1 Tested According To FCC Part 2 (Section 2.1093) KDB 447498 D04 IEEE C95.1 Test Item RF Exposure Receiving Date 2022.08.15 Completing Date 2022.10.31 Test conclusion The equipment under test was found to comply with the requirements of the standards applied. Final Verdict：Pass. Seal of CVC Date of issue: 2022.11.09 Note 1: This test report relates only to the EUT, and shall not be reproduced except in full, without written approval of CVC. Approved by: Chen HuaWen Reviewed by: Xu Zhenfei Tested by: Lu Weiji Test Report No. FCC2022-0045-H Page 3 of 12 LTC-R-7093-RF-Part15E-A0 TABLE OF CONTENTS 1. GENERAL PRODUCT INFORMATION ............................................................................................................... 4 2. HUMAN EXPOSURE ASSESSMENT .................................................................................................................... 5 3. RF OUTPUT POWER ........................................................................................................................................... 11 4. TEST RESULTS .................................................................................................................................................... 12 Test Report No. FCC2022-0045-H Page 4 of 12 LTC-R-7093-RF-Part15E-A0 1. General Product Information 1.1 General information Product Name BEITONG ASURA 2 GAME CONTROLLER MULTI-MODE Model No. BTP-2585NS Additional model / Power Supply DC 5V-600mA Antenna Type PCB Antenna Antenna Gain 1.5 dBi (provided by client) Beamforming gain Unsupported (provided by client) Frequency Range Bluetooth(BR): 2402~2480MHz Bluetooth(Low Energy): 2402~2480MHz Operate Temp.Range 0C to +85°C Note： 1. The information of the EUT is declared by the manufacturer. 2. The laboratory is not responsible for the product technical specification provided by the client. Test Report No. FCC2022-0045-H Page 5 of 12 LTC-R-7093-RF-Part15E-A0 2. Human Exposure Assessment 2.1 RF Exposure Test Exemptions for Single Source 2.1.1 1-mW Test Exemption The 1 mW Test Exemption of § 1.1307(b)(3)(i)(A) applies for single fixed, mobile, and portable RF sources with available maximum time-averaged power of no more than 1 mW, regardless of separation distance. The 1 mW blanket exemption applies at separation distances less than 0.5 cm, including where there is no separation. This exemption shall not be used in conjunction with other exemption criteria other than those for multiple RF sources in paragraph § 1.1307(b)(3)(ii)(A). The 1 mW exemption is independent of service type and covers the full range of 100 kHz to 100 GHz, but it shall not be used in conjunction with other exemption criteria or in devices with higher-power transmitters operating in the same time-averaging period. Exposure from such higher-power transmitters would invalidate the underlying assumption that exposure from the lower-power transmitter is the only contributor to SAR in the relevant volume of tissue. 2.1.2 SAR-Based Exemption A more comprehensive exemption, considering a variable power threshold that depends on both the separation distance and power, is provided in § 1.1307(b)(3)(i)(B). This exemption is applicable to the frequency range between 300 MHz and 6 GHz, with test separation distances between 0.5 cm and 40 cm, and for all RF sources in fixed, mobile, and portable device exposure conditions. Accordingly, a RF source is considered an RF exempt device if its available maximum time averaged (matched conducted) power or its effective radiated power (ERP), whichever is greater, are below a specified threshold. This exemption threshold was derived based on general population 1-g SAR requirements. General frequency and separation-distance dependent MPE-based effective radiated power (ERP) thresholds are in Table B.1 [Table 1 of § 1.1307(b)(1)(i)(C)] to support an exemption from further evaluation from 300 kHz through 100 GHz. The table applies to any RF source (i.e., single fixed, mobile, and portable transmitters) and specifies power and distance criteria for each of the five frequency ranges used for the MPE limits. These criteria apply at separation distances from any part of the radiating structure of at least λ/2π. The thresholds are based on the general population MPE limits with a single perfect reflection, outside of the reactive near-field, and in the main beam of the radiator. For mobile devices that are not exempt per Table B.1 [Table 1 of § 1.1307(b)(1)(i)(C)] at distances from 20 cm to 40 cm and in 0.3 GHz to 6 GHz, evaluation of compliance with the exposure limits in § 1.1310 is necessary if the ERP of the device is greater than ERP20cm in Formula (B.1) [repeated from § 2.1091(c)(1) and § 1.1307(b)(1)(i)(B)] Test Report No. FCC2022-0045-H Page 6 of 12 LTC-R-7093-RF-Part15E-A0 TABLE B.1—THRESHOLDS FOR SINGLE RF SOURCES SUBJECT TO ROUTINE ENVIRONMENTAL EVALUATION RF Source Frequency Minimum Distance Threshold ERP f L MHz f…

Text truncated - open the document above for the full version.

TEST REPORT FCC ID : 2AWMK-BTP-2585NS Applicant : Guangzhou Pinzhong Electronic Technology Co.,Ltd. Product Name : BEITONG ASURA 2 GAME CONTROLLER MULTI-MODE Mode No. : BTP-2585NS CVC Testing Technology Co., Ltd. Test Report No.: FCC2022-0045-RF1 Test Report No. FCC2022-0045-RF1 Page 2 of 42 LTC-R-7092-RF-Part15C-A1 Applicant Name: Guangzhou Pinzhong Electronic Technology Co.,Ltd. Address: Room 611-612,Greenland Center of Financial city,No.662,Huangpu Avenue Middle Road.Tianhe District,Guangzhou City. Manufacturer Name: Guangzhou Pinzhong Electronic Technology Co.,Ltd. Address: Room 611-612,Greenland Center of Financial city,No.662,Huangpu Avenue Middle Road.Tianhe District,Guangzhou City. Equipment Under Test Product Name : BEITONG ASURA 2 GAME CONTROLLER MULTI-MODE Model No. : BTP-2585NS Trade mark : Serial no. : — Sampling : 1-1 Date of Receipt. 2022.08.15 Date of Testing 2022.08.16~2022.10.09 Test Specification Test Result FCC CFR47 Part 15C (2020) Radio Frequency Devices ANSI C63.10 (2013) KDB 558074 D01 DTS Meas Guidance v05 KDB 662911 D01 Multiple Transmitter Output v02r01 PASS Evaluation of Test Result The equipment under test was found to comply with the requirements of the standards applied. Seal of CVC Issue Date: 2022.11.09 Approved by: Chen HuaWen Reviewed by: Xu Zhenfei Tested by: Lu Weiji Other Aspects: NONE. Abbreviations:OK, Pass= passed Fail = failed N/A= not applicable EUT= equipment, sample(s) under tested This test report relates only to the EUT, and shall not be reproduced except in full, without written approval of CVC. Test Report No. FCC2022-0045-RF1 Page 3 of 42 LTC-R-7092-RF-Part15C-A1 TABLE OF CONTENTS 1. GENERAL PRODUCT INFORMATION ................................................................................................... 4 1.1 GENERAL INFORMATION ............................................................................................................................ 4 2. TEST SITES ............................................................................................................................................... 5 2.1 TEST FACILITIES ........................................................................................................................................ 5 2.2 DESCRIPTION OF NON-STANDARD METHOD AND DEVIATIONS ................................................................. 5 2.3 LIST OF TEST AND MEASUREMENT INSTRUMENTS ................................................................................... 5 3. TEST CONFIGURATION .......................................................................................................................... 6 3.1 TEST MODE ............................................................................................................................................... 6 3.2 DUTY CYCLE .............................................................................................................................................. 7 4. SUMMARY OF MEASUREMENT RESULTS .......................................................................................... 8 5. MEASUREMENT PROCEDURE ............................................................................................................. 9 5.1 CONDUCTED EMISSION ............................................................................................................................. 9 5.2 RADIATED EMISSION ............................................................................................................................... 13 5.3 MAXIMUM CONDUCTED OUTPUT POWER ................................................................................................. 30 5.4 MINIMUM 6 DB BANDWIDTH ..................................................................................................................... 32 5.5 OCCUPIED CHANNEL BANDWIDTH .......................................................................................................... 34 5.6 BAND EDGE MEASUREMENT ................................................................................................................... 36 5.7 MAXIMUM POWER SPECTRAL DENSITY .................................................................................................. 38 5.8 SPURIOUS RF CONDUCTED EMISSIONS ................................................................................................. 40 6. APPENDIX E ............................................................................................................................................ 42 Test Report No. FCC2022-0045-RF1 Page 4 of 42 LTC-R-7092-RF-Part15C-A1 1. General Product Information 1.1 General information Product Name BEITONG ASURA 2 GAME CONTROLLER MULTI-MODE Model No. BTP-2585NS Power Supply DC 5V-600mA Serial Number(SN) / Power Supply Adapter / Battery / Antenna Type PCB Antenna Antenna Connector A permanently attached antenna (meet with the standard FCC Part 15.203 requirement) Antenna Gain 1.5 dBi (provided by client) Beamforming gain Unsupported Frequency Range Bluetooth(Low Energy): 2402~2480MHz Channel Number Bluetooth(Low Energy):40 Channels Type of Modulation Bluetooth(Low Energy):GFSK Max. Conducted Power Bluetooth(Low Energy): -3.34 dBm Operate Temp.Range 0°C to +85°C Note： 1. The information of the EUT is declared by the manufacturer. 2. The laboratory is not responsible for the product technical specification provided by the client. Test Report No. FCC2022-0045-RF1 Page 5 of 42 LTC-R-7092-RF-Part15C-A1 2. Test Sites 2.1 Test Facilities The tests and measurements refer to this report were performed by EMC testing Lab. of CVC Testing Technology Co., Ltd. Add.: No.3, Tiantaiyi Road, Kaitai Avenue, Science City, Guangzhou,Guangdong,510663, People's Republic of China Telephone : +86-20-32293888 Fax : +86-20-32293889 FCC(Test firm designation number：CN1282) IC(Test firm CAB identifier number：CN0103) 2.2 Description of Non-standard Method and Deviations The testing and measurement methods used in…

Text truncated - open the document above for the full version.

Appendix A: DTS Bandwidth Test Result TestMode Antenna Channel DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.66 2401.65 2402.31 0.5 PASS 2440 0.66 2439.65 2440.31 0.5 PASS 2480 0.66 2479.65 2480.31 0.5 PASS Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 1.019 2401.469 2402.488 --- --- 2440 1.019 2439.469 2440.488 --- --- 2480 1.023 2479.469 2480.492 --- --- Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Appendix C: Maximum conducted output power Test Result Peak TestMode Antenna Channel Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict BLE_1M Ant1 2402 -5.45 ≤30 PASS 2440 -4.61 ≤30 PASS 2480 -3.34 ≤30 PASS Appendix D: Maximum power spectral density Test Result TestMode Antenna Channel Result[dBm/3kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -16.62 ≤8.00 PASS 2440 -15.63 ≤8.00 PASS 2480 -13.38 ≤8.00 PASS Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Appendix E: Band edge measurements Test Result TestMode Antenna ChName Channel RefLevel[dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 Low 2402 -7.58 -48.14 ≤-27.58 PASS High 2480 -5.20 -47.56 ≤-25.2 PASS Test Graphs BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Channel FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 Reference -7.33 -7.33 --- PASS 30~1000 -7.33 -58.63 ≤-27.33 PASS 1000~26500 -7.33 -48.09 ≤-27.33 PASS 2440 Reference -6.58 -6.58 --- PASS 30~1000 -6.58 -59.65 ≤-26.58 PASS 1000~26500 -6.58 -48.47 ≤-26.58 PASS 2480 Reference -5.17 -5.17 --- PASS 30~1000 -5.17 -59.7 ≤-25.17 PASS 1000~26500 -5.17 -47.97 ≤-25.17 PASS Test Graphs BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 BLE_1M_Ant1_2402_1000~26500 BLE_1M_Ant1_2440_0~Reference BLE_1M_Ant1_2440_30~1000 BLE_1M_Ant1_2440_1000~26500 BLE_1M_Ant1_2480_0~Reference BLE_1M_Ant1_2480_30~1000 BLE_1M_Ant1_2480_1000~26500 Appendix G: Duty Cycle Test Result TestMode Antenna Channel ON Time [ms] Period [ms] X DC [%] xFactor Limit Verdict BLE_1M Ant1 2402 50.00 50.00 NaN 100 NaN --- --- 2440 50.00 50.00 NaN 100 NaN --- --- 2480 50.00 50.00 NaN 100 NaN --- --- Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480

Passive Test For wifi 2.4Application Information FreqEffiEffiGainGainUHISDHISMaxMinDirectivityBeamwidthAttHAttVO4Version5.243.347 (MHz) (%)(dB)(dBi) (dBd) (%)(%)(dB)(dB)(dBi) (3dB) (dB)(dB)TotalTime13m 56s 483ms 240043.2 -3.641.04 -1.11 22.209 20.9961.04 -15.374.6830 47.73 47.75 2410 45.72-3.41.5 -0.94 23.973 21.7441.21 -16.064.6190 46.95 46.97 2420 43.92 -3.571.02 -1.13 23.706 20.2141.02 -18.334.5990 47.8647.9 2430 41.63 -3.810.46 -1.69 23.428 18.1970.46 -21.134.2790 47.36 47.37 2440 40.82 -3.890.56 -1.59 23.928 16.8890.56 -22.864.45105 46.91 46.91 2450 41.37 -3.830.86 -1.29 25.031 16.3380.86 -21.184.694547.647.6 2460 39.88 -3.990.82 -1.33 24.673 15.2060.82 -18.344.8145 48.06 48.05 2470 37.13-4.30.65-1.5 23.151 13.9770.65 -17.044.9545 47.47 47.46 2480 40.55 -3.921.14 -1.01 25.246 15.3031.14 -16.085.066047.6 47.58 2490 38.44 -4.150.8 -1.35 23.758 14.6810.8 -15.524.9560 47.96 47.91 2500 41.04 -3.871.03 -1.12 24.951 16.0931.03 -17.084.8975 47.74 47.67 N/A Model Name Antenna Gain & Efficiency Dimension of Antenna Antenna Manufacturer Applicant:Qiaolian Electronics DongGuan co.,LTD Address:Dongxing Industrial park,Qishi Town,Dongguan City,Guangdong Prov.China 2D Test Pattern

场地照1 场地照2 场地照3 场地照4 场地照5 场地照6
