2AWMK-BTP-KP40DBEITONG KP40D Elite Wireless Controller

* the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. SC6037890 U.S. Agent Designation for Service of Process - Certification Attestation Letter 2/5/2026 TO: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 ATTN.: Reviewing Engineer FCC ID: 2AWMK-BTP-KP40D FRN of applicant: 0029661444 Per section 2.911(d)(7) of the FCC rules, Guangzhou Pinzhong Electronic Technology Co.,Ltd. FRN:0029661444(“the applicant”) certifies that the equipment for which authorization is sought is designated to thefollowing U.S. agent* for service of process: Company Name: Global Product Services and Consultation LLC FCC Registration Number (FRN): 0033406703 Physical U.S. Company Address: 328 W Palm Ave. Monrovia, CA91016 Contact Person: Michael Chan Tel: +1 626 366 4358 Agent Email Address: [email protected] The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed:Agent Signed (if different from Applicant): Signed: Printed name: Bode Liu Title: Manager Company Name: Guangzhou Pinzhong Electronic Technology Co.,Ltd. Date: 2/5/2026 Signed: Printed name: Michael Chan Title: Technical Director Company Name: Global Product Services and Consultation LLC Date: 3/26/2026

GuangzhouPinzhongElectronicTechnologyCo.,Ltd. 2026-02-05 EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:AttestationStatementsPart2.911(d)(5)(i)requestfor(FCCID: 2AWMK-BTP- KP40D ) [GuangzhouPinzhongElectronicTechnologyCo.,Ltd.](“theapplicant”)certifiesthatthe equipmentforwhichauthorizationissoughtisnot“covered”equipmentprohibited fromreceivinganequipmentauthorizationpursuanttosection2.903oftheFCCrules. Wealsocertifythat,asofthedateofthefilingoftheapplication,theequipmentdoes notutilizecyber-securityoranti-virussoftwarefromKasperskyLab,Inc,oranyofits successorsandassignees,whichisalsoonthe“coveredlist”. Sincerely, BodeLiu Manager GuangzhouPinzhongElectronicTechnologyCo.,Ltd. Room611-612,GreenlandCenterofFinancialCity,No.662,HuangpuAvenueMiddle Road,TianheDistrict,GuangzhouCity,China GuangzhouPinzhongElectronicTechnologyCo.,Ltd. 2026-02-05 EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:AttestationStatementsPart2.911(d)(5)(ii)requestfor(FCCID: 2AWMK-BTP- KP40D ) [GuangzhouPinzhongElectronicTechnologyCo.,Ltd.](“theapplicant”)certifiesthat,as ofthedateofthefilingoftheapplication,theapplicantisnotidentifiedontheCovered Listasanentityproducing“covered”equipment. Sincerely, BodeLiu Manager GuangzhouPinzhongElectronicTechnologyCo.,Ltd. Room611-612,GreenlandCenterofFinancialCity,No.662,HuangpuAvenueMiddle Road,TianheDistrict,GuangzhouCity,China

GuangzhouPinzhongElectronicTechnologyCo.,Ltd. 2026-02-05 EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:LETTEROFAGENTAUTHORIZATION ToWhomItMayConcern: We,theundersigned,herebyauthorizeGuangdongGlobalTestingTechnologyCo.,Ltd.toact onourbehalfinallmattersrelatingtoapplicationforequipmentauthorization,includingthe signingofalldocumentsrelatingtothesematters. Wealsoherebycertifythatnopartytotheapplicationauthorizedhereunderissubjecttothe denialofbenefits,includingFCCbenefits,pursuanttoSection5301oftheAnti-DrugAbuseAct of1988,21U.S.C.853(a). Thisagreementexpiresoneyearfromthecurrentdate. Sincerely, BodeLiu Manager GuangzhouPinzhongElectronicTechnologyCo.,Ltd. Room611-612,GreenlandCenterofFinancialCity,No.662,HuangpuAvenueMiddleRoad, TianheDistrict,GuangzhouCity,China

GuangzhouPinzhongElectronicTechnologyCo.,Ltd. 2026-02-05 EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:CONFIDENTIALITYREQUESTFOR(EUTName:BEITONGKP40DElite WirelessController/Model:BTP-KP40D/FCCID:2AWMK-BTP-KP40D) ToWhomItMayConcern: Thisletterservesasanofficialrequestforconfidentialityundersections0.457and0.459 ofCFR47.Wehaverequestedthatthe(BlockDiagram,OperationalDescription,Schematics) requiredtobesubmittedwiththisapplicationbepermanentlywithheldfrompublic review. Theabovematerialscontaintradesecretsandproprietaryinformationnotcustomarilyreleasedtothepublic.The publicdisclosureofthesematerialsmaybeharmfultotheapplicantandprovideunjustifiedbenefitstoitscompetitors. Pleasecontactmeifthereisanyinformationyoumayneed. Sincerely, BodeLiu Manager GuangzhouPinzhongElectronicTechnologyCo.,Ltd. Room611-612,GreenlandCenterofFinancialCity,No.662,HuangpuAvenue MiddleRoad,TianheDistrict,GuangzhouCity,China

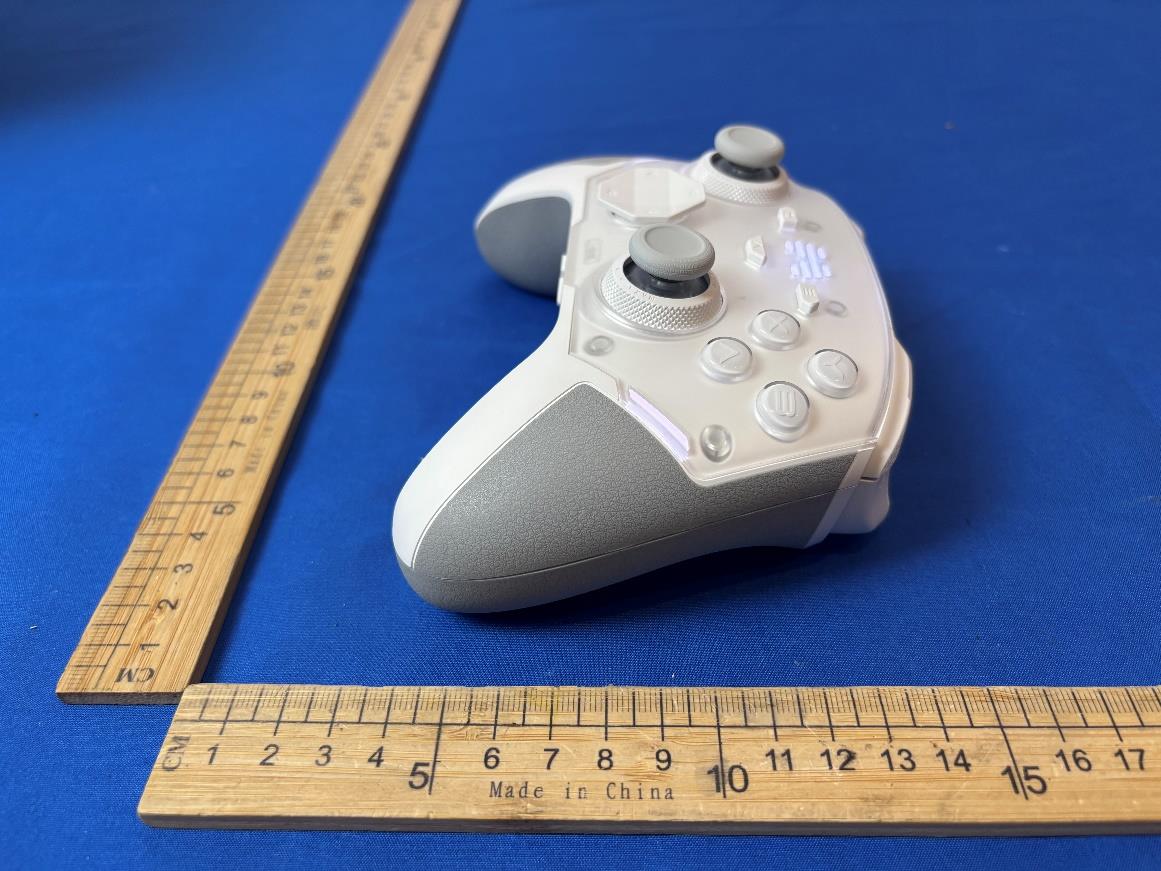

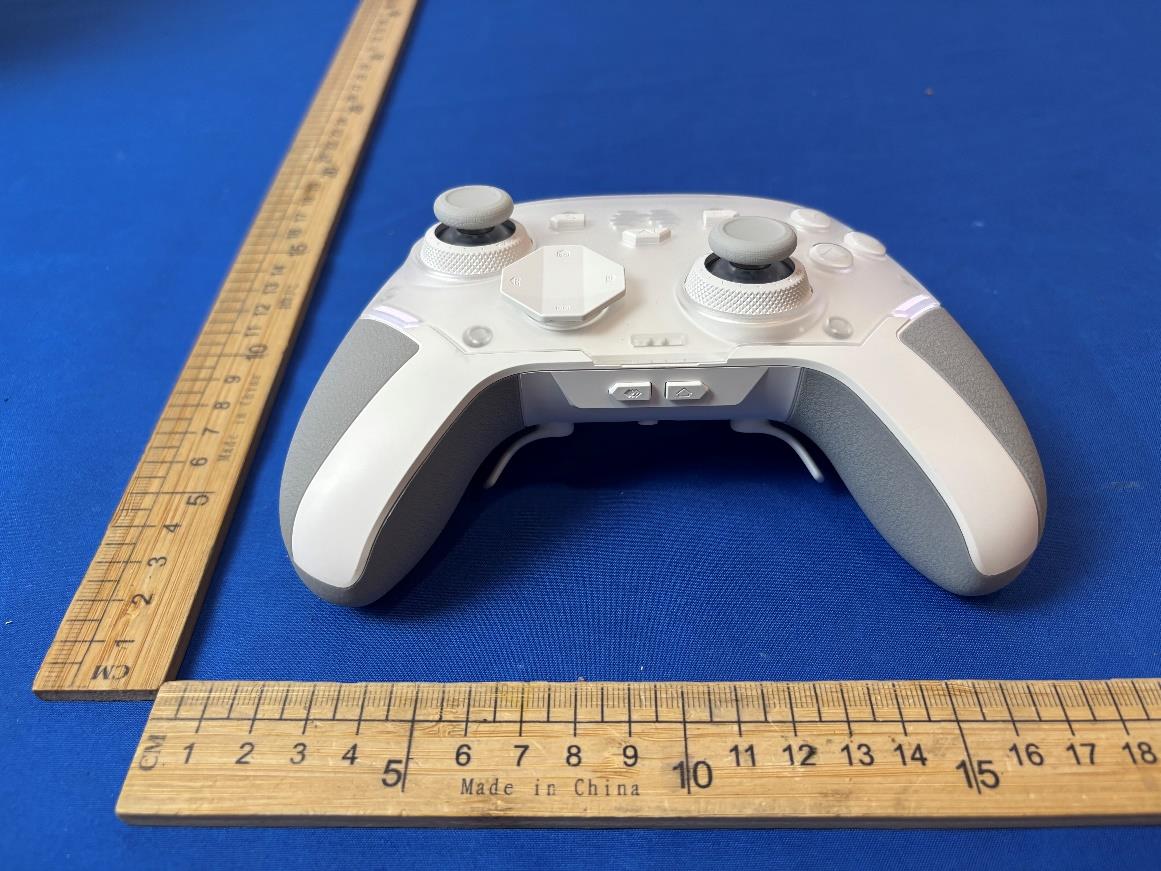

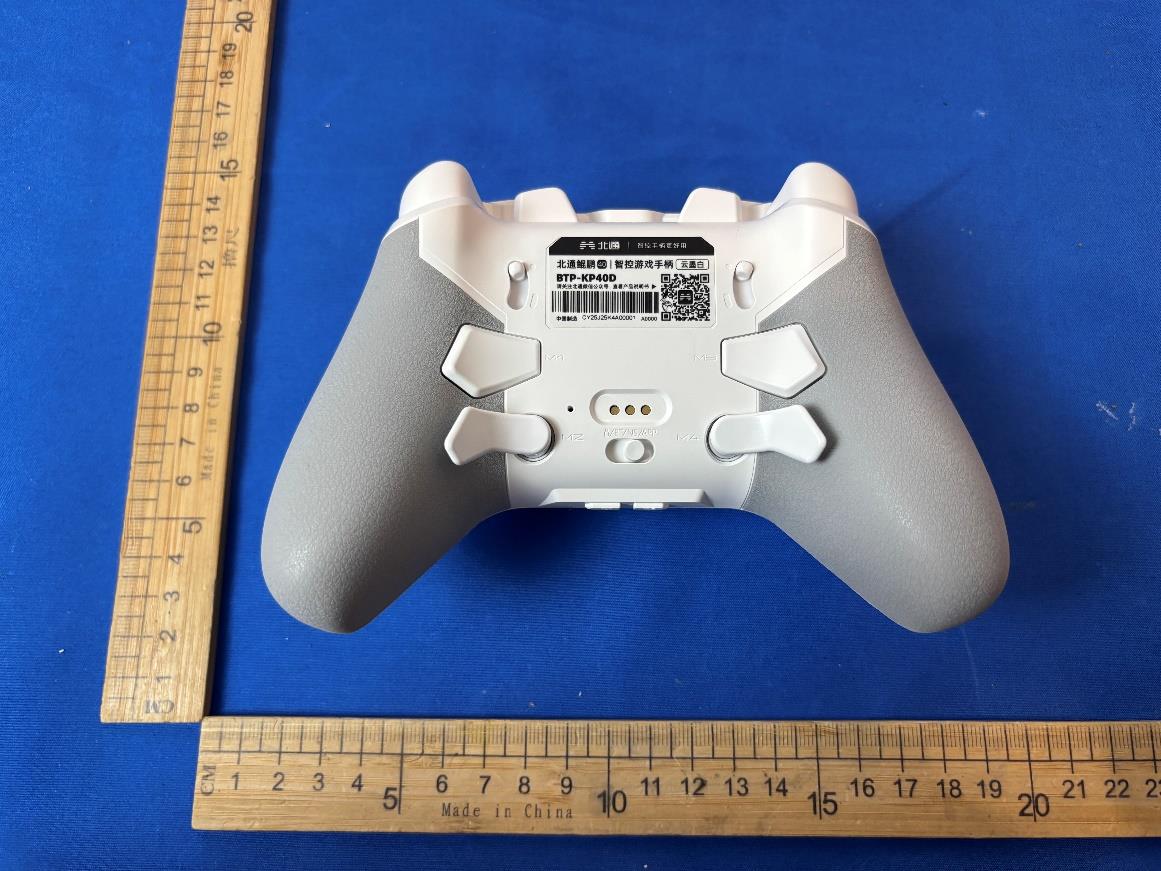

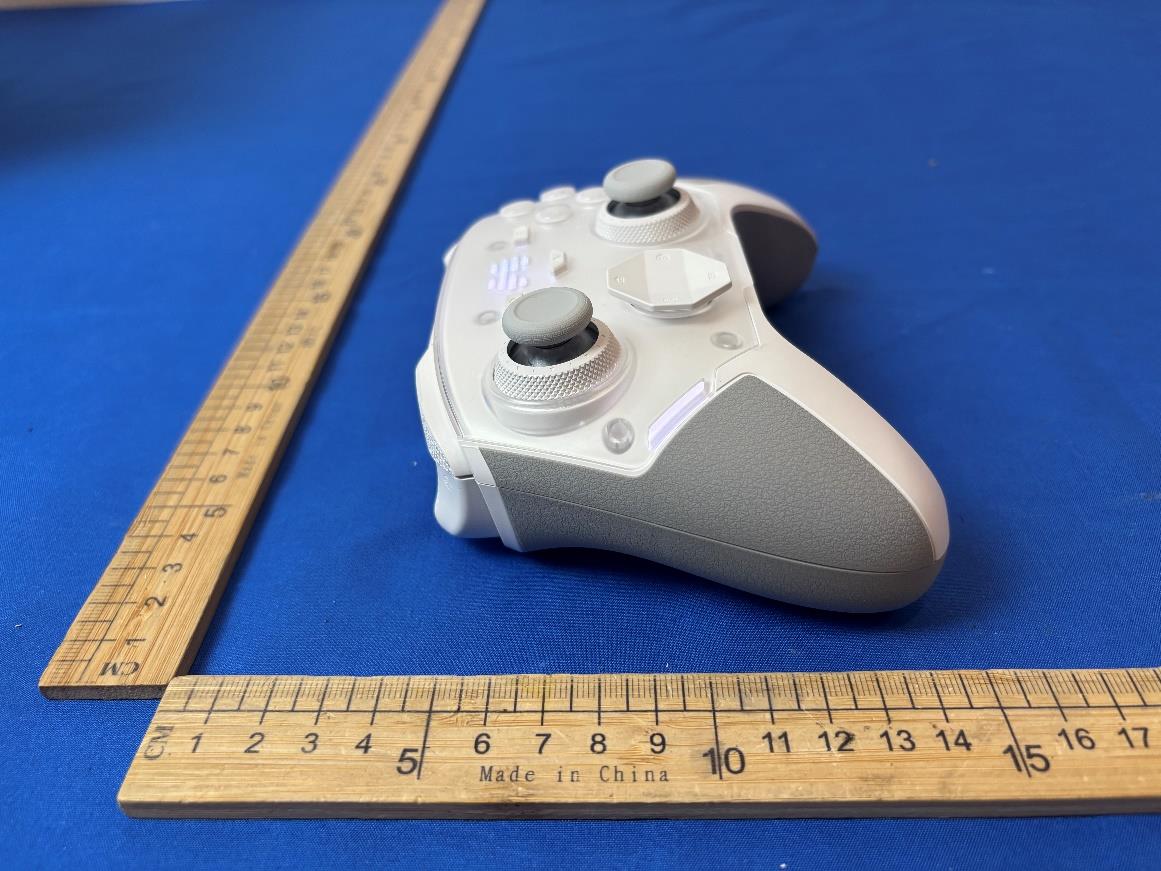

External Photographs View of EUT-1 View of EUT-2 Page 2 of 4 View of EUT-3 View of EUT-4 Page 3 of 4 View of EUT-5 View of EUT-6 Page 4 of 4 View of EUT-7 View of EUT-8

Internal Photographs Internal View of EUT-1 Internal View of EUT-2 Page 2 of 7 Internal View of EUT-3 Internal View of EUT-4 Page 3 of 7 Internal View of EUT-5 Internal View of EUT-6 Page 4 of 7 Internal View of EUT-7 Internal View of EUT-8 Page 5 of 7 Internal View of EUT-9 Internal View of EUT-10 Page 6 of 7 Internal View of EUT-11 Internal View of EUT-12 Antenna Page 7 of 7 Internal View of EUT-13

RF EXPOSURE EVALUATION EUT Specification FCC ID 2AWMK-BTP-KP40D EUT Name BEITONG KP40D Elite Wireless Controller Model BTP-KP40D Series Model / Model Difference / Antenna gain (Max) 1.08 dBi Operation Frequency 2402-2480MHz Classification Per Stipulated Test Standard §15.247(i), §2.1093 Modulation GFSK, π/4-DQPSK, 8DPSK Max. output power BR + EDR: 1.88 dBm(1.542mW), BLE: 1.84 dBm(1.528mW), 2.4GHz: 2.36 dBm(1.722mW) Test Requirement: According to ß15.247(i) and ß1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Routine SAR evaluation refers to that specifically required by ß2.1093, using measurements or computer simulation. When routine SAR evaluation is not required, portable transmitters with output power greater than the applicable low threshold require SAR evaluation to quality for TCB approval. One antenna is available for the EUT. The minimum separation distance is 5mm. Transmit Frequency (MHz) Mode Measured Power (dBm) Tune up Power (dBm) Max tune up power(dBm) Calculation Result 1-g SAR Verdict 2441 3DH5 1.88 2 ± 1 3 0.62347 3 PASS 2440 BLE 1Mbps 1.84 2 ± 1 3 0.62334 3 PASS 2440 2.4GHz 2.36 2 ± 1 3 0.62334 3 PASS Note: No need for SAR test Signature: Shawn Wen Date: 2025-12-12

Antenna Specifications Antenna Name: PCB Board-Mounted Antenna Manufacturer: Huitong Electronic Technology (Huizhou) Co., Ltd. Version: V1 Antenna Dimensions Testing Equipment S-parameters: Agilent 5071B/5062A Network Analyzer Radiation and Gain: Agilent 8960 Network Analyzer, 3M Darkroom Antenna Efficiency and Gain FreqEffiGain (MHz)(%)(dBi) 240051.461.08 241051.020.52 242050.120.55 243051.270.65 244046.320.32 245044.220.27 246040.75-0.02 247038.89-0.33 248042.510.26 249044.160.62 250046.060.81 Antenna Field Strength Diagram 2D diagram 3D diagram

TRF No.: 04-E001-0B TRF Originator: GTG TRF Date: 2023-12-13 Web: www.gtggroup.com E-mail: [email protected] Tel.: 86-400 755 8988 CFR 47 FCC PART 15 SUBPART C(DSS) TEST REPORT For BEITONG KP40D Elite Wireless Controller MODEL NUMBER: BTP-KP40D REPORT NUMBER: E04A25110991F00101 ISSUE DATE: December 11, 2025 FCC ID: 2AWMK-BTP-KP40D Prepared for Guangzhou Pinzhong Electronic Technology Co.,Ltd. Room 611-612, Greenland Center of Financial City, No. 662, Huangpu Avenue Middle Road, Tianhe District, Guangzhou City, China Prepared by Guangdong Global Testing Technology Co., Ltd. Room 101-105, 203-210, Building 1, No.2, Keji 8 Road, Songshan Lake Park, Dongguan city, Guangdong, People’s Republic of China, 523808 This report is based on a single evaluation of the submitted sample(s) of the above mentioned product, it does not imply an assessment of the production of the products. This report shall not be reproduced, except in full, without the written approval of Guangdong Global Testing Technology Co., Ltd. REPORT NO.: E04A25110991F00101 Page 2 of 106 TRF No.: 04-E001-0B Global Testing , Great Quality. Revision History Rev. Issue Date Revisions Revised By V0 December 11, 2025 Initial Issue REPORT NO.: E04A25110991F00101 Page 3 of 106 TRF No.: 04-E001-0B Global Testing , Great Quality. Summary of Test Results Test Item Clause Limit/Requirement Result Antenna Requirement ANSI C63.10-2020 FCC Part 15.203/15.247 (c) Pass AC Power Line Conducted Emission ANSI C63.10-2020 FCC Part 15.207 Pass Conducted Output Power ANSI C63.10-2020 FCC Part 15.247 (b)(1) Pass 20 dB Bandwidth and 99% Occupied Bandwidth ANSI C63.10-2020 FCC Part 15.247 (a)(1) Pass Carrier Hopping Channel Separation ANSI C63.10-2020 FCC Part 15.247 (a)(1) Pass Number of Hopping Frequency ANSI C63.10-2020 FCC Part 15.247 (b)(1) Pass Time of Occupancy (Dwell Time) ANSI C63.10-2020 FCC Part 15.247 (a)(1) Pass Conducted Bandedge and Spurious Emission ANSI C63.10-2020 FCC Part 15.247(d) Pass Radiated Band edge and Spurious Emission ANSI C63.10-2020 FCC Part 15.205/15.209 Pass Duty Cycle ANSI C63.10-2020 None; for reporting purposes only. Pass *This test report is only published to and used by the applicant, and it is not for evidence purpose in China. *The measurement result for the sample received is <Pass> according to <CFR 47 FCC PART 15 SUBPART C(DSS)> when <Accuracy Method> decision rule is applied. REPORT NO.: E04A25110991F00101 Page 4 of 106 TRF No.: 04-E001-0B Global Testing , Great Quality. CONTENTS 1. ATTESTATION OF TEST RESULTS ..................................................................................... 5 2. TEST METHODOLOGY ......................................................................................................... 6 3. FACILITIES AND ACCREDITATION ..................................................................................... 6 4. CALIBRATION AND UNCERTAINTY ................................................................................... 7 4.1. MEASURING INSTRUMENT CALIBRATION ........................................................... 7 4.2. MEASUREMENT UNCERTAINTY ............................................................................ 7 5. EQUIPMENT UNDER TEST .................................................................................................. 8 5.1. DESCRIPTION OF EUT ........................................................................................... 8 5.2. CHANNEL LIST ........................................................................................................ 8 5.3. MAXIMUM CONDUCTED OUTPUT POWER ........................................................... 9 5.4. TEST CHANNEL CONFIGURATION ........................................................................ 9 5.5. THE WORSE CASE POWER SETTING PARAMETER .......................................... 10 5.6. DESCRIPTION OF AVAILABLE ANTENNAS ......................................................... 10 5.7. EUT ACCESSORY ................................................................................................. 10 5.8. SUPPORT UNITS FOR SYSTEM TEST ................................................................. 11 5.9. SETUP DIAGRAM .................................................................................................. 11 6. MEASURING EQUIPMENT AND SOFTWARE USED......................................................... 12 7. ANTENNA PORT TEST RESULTS ..................................................................................... 14 7.1. Conducted Output Power ........................................................................................ 14 7.2. 20 dB Bandwidth and 99% Occupied Bandwidth..................................................... 15 7.3. Carrier Hopping Channel Separation ...................................................................... 16 7.4. Number of Hopping Frequency ............................................................................... 18 7.5. Time of Occupancy (Dwell Time) ............................................................................ 19 7.6. Conducted Bandedge and Spurious Emission ........................................................ 21 7.7. Duty Cycle .............................................................................................................. 23 8. RADIATED TEST RESULTS ............................................................................................... 24 8.1. Radiated Band edge and Spurious Emission .......................................................... 30 9. ANTENNA REQUIREMENT ................................................................................................ 42 10. AC POWER LINE CONDUCTED EMISSION ......................................................... 43 11. TEST DATA - Appendix A ..................................................................................... 46 REPORT NO.: E04A25110991F00101 Page 5 of 106 TRF No.: 04-E001-0B Global Testing , Great Quality. 1. ATTESTA…

Text truncated - open the document above for the full version.

REPORT NO.: E04A25110991F00101 Page 76 of 106 TRF No.: 04-E001-0B Global Testing , Great Quality. Dwell NVNT 1-DH5 2480MHz Ant1 One Burst Dwell NVNT 1-DH5 2480MHz Ant1 Accumulated REPORT NO.: E04A25110991F00101 Page 77 of 106 TRF No.: 04-E001-0B Global Testing , Great Quality. Dwell NVNT 2-DH5 2402MHz Ant1 One Burst Dwell NVNT 2-DH5 2402MHz Ant1 Accumulated REPORT NO.: E04A25110991F00101 Page 78 of 106 TRF No.: 04-E001-0B Global Testing , Great Quality. Dwell NVNT 2-DH5 2441MHz Ant1 One Burst Dwell NVNT 2-DH5 2441MHz Ant1 Accumulated REPORT NO.: E04A25110991F00101 Page 79 of 106 TRF No.: 04-E001-0B Global Testing , Great Quality. Dwell NVNT 2-DH5 2480MHz Ant1 One Burst Dwell NVNT 2-DH5 2480MHz Ant1 Accumulated REPORT NO.: E04A25110991F00101 Page 80 of 106 TRF No.: 04-E001-0B Global Testing , Great Quality. Dwell NVNT 3-DH5 2402MHz Ant1 One Burst Dwell NVNT 3-DH5 2402MHz Ant1 Accumulated REPORT NO.: E04A25110991F00101 Page 81 of 106 TRF No.: 04-E001-0B Global Testing , Great Quality. Dwell NVNT 3-DH5 2441MHz Ant1 One Burst Dwell NVNT 3-DH5 2441MHz Ant1 Accumulated REPORT NO.: E04A25110991F00101 Page 82 of 106 TRF No.: 04-E001-0B Global Testing , Great Quality. Dwell NVNT 3-DH5 2480MHz Ant1 One Burst Dwell NVNT 3-DH5 2480MHz Ant1 Accumulated REPORT NO.: E04A25110991F00101 Page 83 of 106 TRF No.: 04-E001-0B Global Testing , Great Quality. Band Edge Condition Mode Frequency (MHz) Antenna Hopping Mode Max Value (dBc) Limit (dBc) Verdict NVNT 1-DH5 2402 Ant1 No-Hopping -54.56 -20 Pass NVNT 1-DH5 2480 Ant1 No-Hopping -56.63 -20 Pass NVNT 2-DH5 2402 Ant1 No-Hopping -48.64 -20 Pass NVNT 2-DH5 2480 Ant1 No-Hopping -57.4 -20 Pass NVNT 3-DH5 2402 Ant1 No-Hopping -53.98 -20 Pass NVNT 3-DH5 2480 Ant1 No-Hopping -57.52 -20 Pass REPORT NO.: E04A25110991F00101 Page 84 of 106 TRF No.: 04-E001-0B Global Testing , Great Quality. Test Graphs Band Edge NVNT 1-DH5 2402MHz Ant1 No-Hopping Ref Band Edge NVNT 1-DH5 2402MHz Ant1 No-Hopping Emission REPORT NO.: E04A25110991F00101 Page 85 of 106 TRF No.: 04-E001-0B Global Testing , Great Quality. Band Edge NVNT 1-DH5 2480MHz Ant1 No-Hopping Ref Band Edge NVNT 1-DH5 2480MHz Ant1 No-Hopping Emission REPORT NO.: E04A25110991F00101 Page 86 of 106 TRF No.: 04-E001-0B Global Testing , Great Quality. Band Edge NVNT 2-DH5 2402MHz Ant1 No-Hopping Ref Band Edge NVNT 2-DH5 2402MHz Ant1 No-Hopping Emission REPORT NO.: E04A25110991F00101 Page 87 of 106 TRF No.: 04-E001-0B Global Testing , Great Quality. Band Edge NVNT 2-DH5 2480MHz Ant1 No-Hopping Ref Band Edge NVNT 2-DH5 2480MHz Ant1 No-Hopping Emission REPORT NO.: E04A25110991F00101 Page 88 of 106 TRF No.: 04-E001-0B Global Testing , Great Quality. Band Edge NVNT 3-DH5 2402MHz Ant1 No-Hopping Ref Band Edge NVNT 3-DH5 2402MHz Ant1 No-Hopping Emission REPORT NO.: E04A25110991F00101 Page 89 of 106 TRF No.: 04-E001-0B Global Testing , Great Quality. Band Edge NVNT 3-DH5 2480MHz Ant1 No-Hopping Ref Band Edge NVNT 3-DH5 2480MHz Ant1 No-Hopping Emission REPORT NO.: E04A25110991F00101 Page 90 of 106 TRF No.: 04-E001-0B Global Testing , Great Quality. Band Edge(Hopping) Condition Mode Frequency (MHz) Antenna Hopping Mode Max Value (dBc) Limit (dBc) Verdict NVNT 1-DH5 2402 Ant1 Hopping -47.47 -20 Pass NVNT 1-DH5 2480 Ant1 Hopping -45.09 -20 Pass NVNT 2-DH5 2402 Ant1 Hopping -47.65 -20 Pass NVNT 2-DH5 2480 Ant1 Hopping -44.89 -20 Pass NVNT 3-DH5 2402 Ant1 Hopping -45.26 -20 Pass NVNT 3-DH5 2480 Ant1 Hopping -45.85 -20 Pass REPORT NO.: E04A25110991F00101 Page 91 of 106 TRF No.: 04-E001-0B Global Testing , Great Quality. Test Graphs Band Edge(Hopping) NVNT 1-DH5 2402MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 1-DH5 2402MHz Ant1 Hopping Emission REPORT NO.: E04A25110991F00101 Page 92 of 106 TRF No.: 04-E001-0B Global Testing , Great Quality. Band Edge(Hopping) NVNT 1-DH5 2480MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 1-DH5 2480MHz Ant1 Hopping Emission REPORT NO.: E04A25110991F00101 Page 93 of 106 TRF No.: 04-E001-0B Global Testing , Great Quality. Band Edge(Hopping) NVNT 2-DH5 2402MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 2-DH5 2402MHz Ant1 Hopping Emission REPORT NO.: E04A25110991F00101 Page 94 of 106 TRF No.: 04-E001-0B Global Testing , Great Quality. Band Edge(Hopping) NVNT 2-DH5 2480MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 2-DH5 2480MHz Ant1 Hopping Emission REPORT NO.: E04A25110991F00101 Page 95 of 106 TRF No.: 04-E001-0B Global Testing , Great Quality. Band Edge(Hopping) NVNT 3-DH5 2402MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 3-DH5 2402MHz Ant1 Hopping Emission REPORT NO.: E04A25110991F00101 Page 96 of 106 TRF No.: 04-E001-0B Global Testing , Great Quality. Band Edge(Hopping) NVNT 3-DH5 2480MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 3-DH5 2480MHz Ant1 Hopping Emission REPORT NO.: E04A25110991F00101 Page 97 of 106 TRF No.: 04-E001-0B Global Testing , Great Quality. Conducted RF Spurious Emission Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT 1-DH5 2402 Ant1 -50.57 -20 Pass NVNT 1-DH5 2441 Ant1 -47.75 -20 Pass NVNT 1-DH5 2480 Ant1 -48.4 -20 Pass NVNT 2-DH5 2402 Ant1 -49.95 -20 Pass NVNT 2-DH5 2441 Ant1 -47.5 -20 Pass NVNT 2-DH5 2480 Ant1 -49.78 -20 Pass NVNT 3-DH5 2402 Ant1 -51.01 -20 Pass NVNT 3-DH5 2441 Ant1 -51.28 -20 Pass NVNT 3-DH5 2480 Ant1 -47.77 -20 Pass REPORT NO.: E04A25110991F00101 Page 98 of 106 TRF No.: 04-E001-0B Global Testing , Great Quality. Test Graphs Tx. Spurious NVNT 1-DH5 2402MHz Ant1 Ref Tx. Spurious NVNT 1-DH5 2402MHz Ant1 Emission REPORT NO.: E04A25110991F00101 Page 99 of 106 TRF No.: 04-E001-0B Global Testing , Great Quality. Tx. Spurious NVNT 1-DH5 2441MHz Ant1 Ref Tx. Spurious NVNT 1-DH5 2441MHz Ant1 Emission REPORT NO.: E04A25110991F00101 Page 100 of 106 TRF No.: 04-E001-0B Global Testing , Great Quality. Tx. Spurious NVNT 1-DH5 2480MHz Ant1 Ref Tx. Spurious NVNT 1-DH5 2480MHz Ant1 Emission REPORT NO.: E04A25110991F00101 Page 101 of 106 TRF No.: 04-E001-0B Global Testing , Great Quality. Tx. Spurious NVNT 2-DH5 2402MHz Ant1 Ref Tx. Spurious NVNT 2-DH5 2402MHz…

Text truncated - open the document above for the full version.

TRF No.: 04-E001-0B TRF Originator: GTG TRF Date: 2023-12-13 Web: www.gtggroup.com E-mail: [email protected] Tel.: 86-400 755 8988 CFR 47 FCC PART 15 SUBPART C(DSS) TEST REPORT For BEITONG KP40D Elite Wireless Controller MODEL NUMBER: BTP-KP40D REPORT NUMBER: E04A25110991F00103 ISSUE DATE: December 12, 2025 FCC ID: 2AWMK-BTP-KP40D Prepared for Guangzhou Pinzhong Electronic Technology Co.,Ltd. Room 611-612, Greenland Center of Financial City, No. 662, Huangpu Avenue Middle Road, Tianhe District, Guangzhou City, China Prepared by Guangdong Global Testing Technology Co., Ltd. Room 101-105, 203-210, Building 1, No.2, Keji 8 Road, Songshan Lake Park, Dongguan city, Guangdong, People’s Republic of China, 523808 This report is based on a single evaluation of the submitted sample(s) of the above mentioned product, it does not imply an assessment of the production of the products. This report shall not be reproduced, except in full, without the written approval of Guangdong Global Testing Technology Co., Ltd. REPORT NO.: E04A25110991F00103 Page 2 of 73 TRF No.: 04-E001-0B Global Testing , Great Quality. Revision History Rev. Issue Date Revisions Revised By V0 December 12, 2025 Initial Issue REPORT NO.: E04A25110991F00103 Page 3 of 73 TRF No.: 04-E001-0B Global Testing , Great Quality. Summary of Test Results Test Item Clause Limit/Requirement Result Antenna Requirement ANSI C63.10-2020 FCC Part 15.203/15.247 (c) Pass AC Power Line Conducted Emission ANSI C63.10-2020 FCC Part 15.207 Pass Conducted Output Power ANSI C63.10-2020 FCC Part 15.247 (b)(1) Pass 20 dB Bandwidth and 99% Occupied Bandwidth ANSI C63.10-2020 FCC Part 15.247 (a)(1) Pass Carrier Hopping Channel Separation ANSI C63.10-2020 FCC Part 15.247 (a)(1) Pass Number of Hopping Frequency ANSI C63.10-2020 FCC Part 15.247 (b)(1) Pass Time of Occupancy (Dwell Time) ANSI C63.10-2020 FCC Part 15.247 (a)(1) Pass Conducted Bandedge and Spurious Emission ANSI C63.10-2020 FCC Part 15.247(d) Pass Radiated Band edge and Spurious Emission ANSI C63.10-2020 FCC Part 15.205/15.209 Pass Duty Cycle ANSI C63.10-2020 None; for reporting purposes only. Pass *This test report is only published to and used by the applicant, and it is not for evidence purpose in China. *The measurement result for the sample received is <Pass> according to <CFR 47 FCC PART 15 SUBPART C(DSS)> when <Accuracy Method> decision rule is applied. REPORT NO.: E04A25110991F00103 Page 4 of 73 TRF No.: 04-E001-0B Global Testing , Great Quality. CONTENTS 1. ATTESTATION OF TEST RESULTS ..................................................................................... 5 2. TEST METHODOLOGY ......................................................................................................... 6 3. FACILITIES AND ACCREDITATION ..................................................................................... 6 4. CALIBRATION AND UNCERTAINTY ................................................................................... 7 4.1. MEASURING INSTRUMENT CALIBRATION ........................................................... 7 4.2. MEASUREMENT UNCERTAINTY ............................................................................ 7 5. EQUIPMENT UNDER TEST .................................................................................................. 8 5.1. DESCRIPTION OF EUT ........................................................................................... 8 5.2. CHANNEL LIST ........................................................................................................ 8 5.3. MAXIMUM CONDUCTED OUTPUT POWER ........................................................... 9 5.4. TEST CHANNEL CONFIGURATION ........................................................................ 9 5.5. THE WORSE CASE POWER SETTING PARAMETER ............................................ 9 5.6. DESCRIPTION OF AVAILABLE ANTENNAS ........................................................... 9 5.7. EUT ACCESSORY ................................................................................................. 10 5.8. SUPPORT UNITS FOR SYSTEM TEST ................................................................. 10 5.9. SETUP DIAGRAM .................................................................................................. 10 6. MEASURING EQUIPMENT AND SOFTWARE USED......................................................... 12 7. ANTENNA PORT TEST RESULTS ..................................................................................... 14 7.1. Conducted Output Power ........................................................................................ 14 7.2. 20 dB Bandwidth and 99% Occupied Bandwidth..................................................... 15 7.3. Carrier Hopping Channel Separation ...................................................................... 16 7.4. Number of Hopping Frequency ............................................................................... 18 7.5. Time of Occupancy (Dwell Time) ............................................................................ 19 7.6. Conducted Bandedge and Spurious Emission ........................................................ 21 7.7. Duty Cycle .............................................................................................................. 23 8. RADIATED TEST RESULTS ............................................................................................... 24 8.1. Radiated Band edge and Spurious Emission .......................................................... 30 9. ANTENNA REQUIREMENT ................................................................................................ 42 10. AC POWER LINE CONDUCTED EMISSION ......................................................... 43 11. TEST DATA - Appendix A ..................................................................................... 46 REPORT NO.: E04A25110991F00103 Page 5 of 73 TRF No.: 04-E001-0B Global Testing , Great Quality. 1. ATTESTATI…

Text truncated - open the document above for the full version.

Setup Photographs AC Power Line Conducted Emission Radiated Band edge and Spurious Emission Page 2 of 2
