2AWNK-TR100Teckin Roll

DÉCLARATION D'EXPOSITION AUX RADIATIONS : Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20cm de distance entre la source de rayonnement et votre corps.

Shenzhen Apeman Innovations Technology Co., Ltd. FCC ID: 2AWNK-TR100 & IC: 25047-TR100 Model Declaration Letter We, the undersigning company Company Name: Shenzhen Apeman Innovations Technology Co., Ltd. Address: Address: 1808, Heng Lu E Times Building,No.159,North Pingji Road, Hehua Community, Pinghu Street, Longgang District, Shenzhen, Guangdong, CHINA Hereby confirm that the following products: Product description: Teckin Roll Type designation: TR100, TR200, TR300, TR400, TR500 Trade name or Brand(s): Teckin All these models are identical in the same PCB layout and electrical circuit, the only difference is the appearance. Model Picture TR200 TR300 Shenzhen Apeman Innovations Technology Co., Ltd. Model Picture TR400 TR500 City and Country: Date: Name: (thi Function: Signature: ( ffi i l t) Shenzhen, China 01/22/2021 Jack Wang Manager

Shenzhen Apeman Innovations Technology Co.,Ltd. Agent Authorization Company: Shenzhen Apeman Innovations Technology Co.,Ltd. Address: 1808, Heng Lu E Times Building, No. 159, North Pingji Road, Hehua Community, Pinghu Street, Longgang District, Shenzhen, Guangdong, CHINA Product Name: Teckin Roll Model Number(s): TR100, TR200, TR300, TR400, TR500 Product Description: Teckin Roll We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 01/25/2021 Name: Jack Wang Title: Manager Company: Shenzhen Apeman Innovations Technology Co.,Ltd.

Shenzhen Apeman Innovations Technology Co.,Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date:01/25/2021 Subject; Request for Confidentiality FCC ID: 2AWNK-TR100 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure Software Security Requirement In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Jack Wang Title: Manager

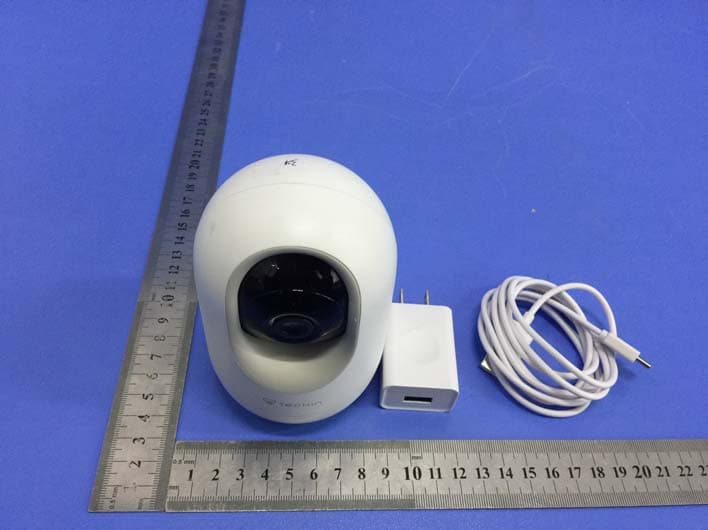

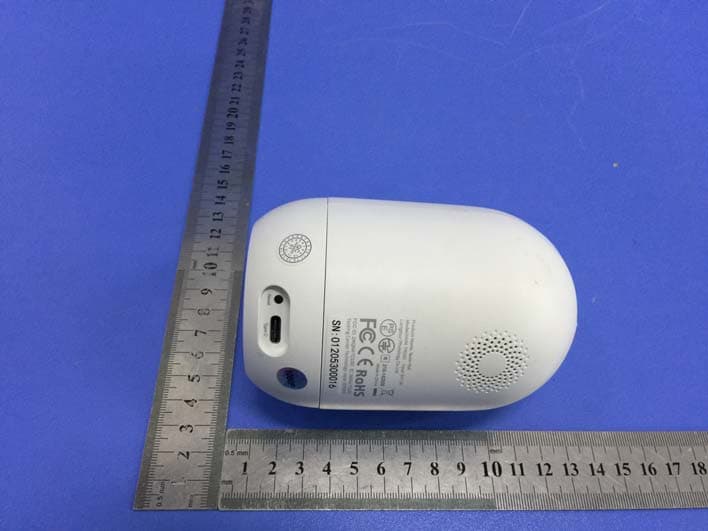

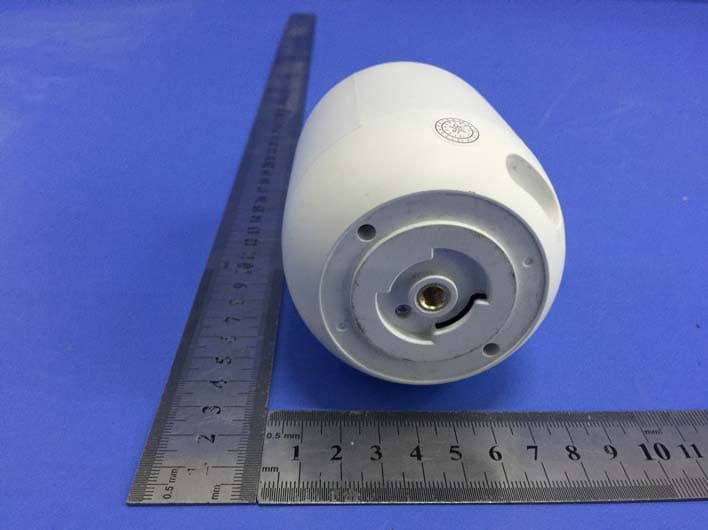

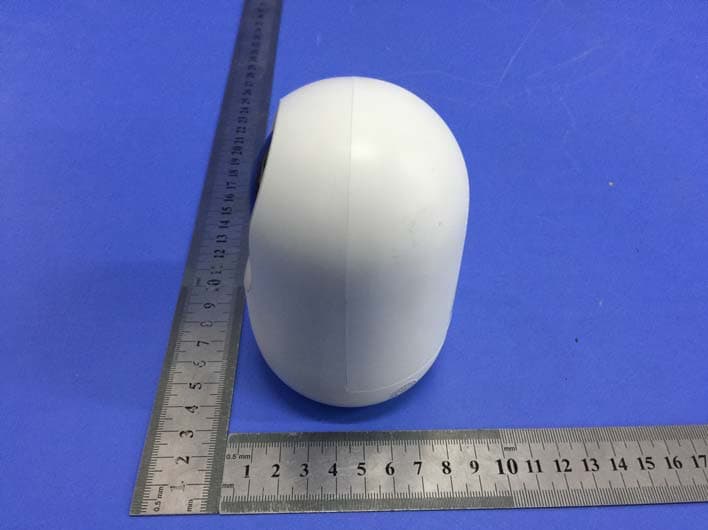

Page : 3 of 12 IC: 25047-TR100&FCC ID: 2AWNK-TR100 TB-RF-075-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of EUT Page : 4 of 12 IC: 25047-TR100&FCC ID: 2AWNK-TR100 TB-RF-075-1.0 Photo 3 Appearance of EUT Photo 4 Appearance of EUT Page : 5 of 12 IC: 25047-TR100&FCC ID: 2AWNK-TR100 TB-RF-075-1.0 Photo 5 Appearance of EUT Photo 6 Appearance of EUT Page : 6 of 12 IC: 25047-TR100&FCC ID: 2AWNK-TR100 TB-RF-075-1.0 Photo 7 Appearance of EUT Photo 8 Appearance of Adapter

Page : 1 of 12 IC: 25047-TR100&FCC ID: 2AWNK-TR100 TB-RF-074-1.0 Appendix IIC&FCC ID Label

Page : 2 of 12 IC: 25047-TR100&FCC ID: 2AWNK-TR100 TB-RF-075-1.0 Appendix II IC&FCC ID Label Location

Page : 1 of 12 IC: 25047-TR100&FCC ID: 2AWNK-TR100 TB-RF-074-1.0 Appendix IIC&FCC ID Label

Page : 7 of 12 IC: 25047-TR100&FCC ID: 2AWNK-TR100 TB-RF-075-1.0 Appendix IV EUT Internal Photographs Photo 9 Internal of EUT Photo 10 Internal of EUT 2.4G WiFi Antenna Page : 8 of 12 IC: 25047-TR100&FCC ID: 2AWNK-TR100 TB-RF-075-1.0 Photo 11 Appearance of PCB Photo 12 Appearance of PCB Page : 9 of 12 IC: 25047-TR100&FCC ID: 2AWNK-TR100 TB-RF-075-1.0 Photo 13 Appearance of PCB Photo 14 Appearance of PCB Page : 10 of 12 IC: 25047-TR100&FCC ID: 2AWNK-TR100 TB-RF-075-1.0 Photo 15 Appearance of PCB Photo 16 Appearance of PCB

Shenzhen Toby Technology Co., Ltd. Report No.: TB-MPE178225 Page: 1 of 5 TB-RF-075-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 Maximum Permissible Exposure Evaluation FCC ID: 2AWNK-TR100 & IC: 25047-TR100 1. Client Information Applicant : Shenzhen Apeman Innovations Technology Co.,Ltd. Address : 1808, Heng Lu E Times Building, No. 159, North Pingji Road, Hehua Community, Pinghu Street, Longgang District, Shenzhen, Guangdong, CHINA Manufacturer : Shenzhen Apeman Innovations Technology Co.,Ltd. Address : 1808, Heng Lu E Times Building, No. 159, North Pingji Road, Hehua Community, Pinghu Street, Longgang District, Shenzhen, Guangdong, CHINA 2. General Description of EUT EUT Name : Teckin Roll HVIN/Models No. : TR100, TR200, TR300, TR400, TR500 Model Different : All these models are identical in the same PCB, layout and electrical circuit, the only difference is appearance. Sample ID : 20201216-10-1#& 20201216-10-2# Product Description : Operation Frequency: 802.11b/g/n(HT20): 2412MHz~2462MHz 802.11n(HT40): 2422MHz~2452MHz Antenna Gain: 4.53dBi FPC Antenna Modulation Type: 802.11b: DSSS(CCK, DQPSK, DBPSK) 802.11g/n:OFDM(BPSK,QPSK,16QAM,64QAM) Power Rating : DC 5V from Adapter(TPA-46050100UU): Input: AC 100-240V, 50/60Hz 0.15A Output: DC 5V, 1000mA Software Version : 20201208_V1.0.4 Hardware Version : TI01_MB_V1.1 Remark : The adapter and antenna gain provided by the applicant, the verified for the RF conduction test provided by TOBY test lab. Report No.: TB-MPE178225 Page: 2 of 5 TB-RF-075-1.0 Method Of Measurement for FCC 1. Antenna Gain: FPC Antenna: 4.53dBi. 2. EUT Operation Condition: Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 3. Exposure Evaluation: Equation from page 18 of OET Bulletin 65, Edition 97-01 S=(PG)/4πR 2 Where S: power density P: power input to the antenna G: power gain of the antenna in the direction of interest relative to an isotropic radiator. R: distance to the center of radiation of the antenna 4. Test Result: Worst Maximum MPE Result Mode N TX Freq. (MHz) Conducted Power(max) (dBm) Turn-up Power (dB) Max tune up power (dBm) [P] ANT Gain (dBi) [G] Distance (cm) [R] Power Density (mW/ cm 2 ) [S] 802.11b 1 2412 13.48 14±1 15 4.53 20 0.0179 2437 13.95 14±1 15 4.53 20 0.0179 2462 13.68 14±1 15 4.53 20 0.0179 802.11g 1 2412 13.78 14±1 15 4.53 20 0.0179 2437 14.15 14±1 15 4.53 20 0.0179 2462 14.13 14±1 15 4.53 20 0.0179 802.11n (HT20) 1 2412 13.81 14±1 15 4.53 20 0.0179 2437 14.12 14±1 15 4.53 20 0.0179 2462 14.02 14±1 15 4.53 20 0.0179 802.11n (HT40) 1 2422 13.64 14±1 15 4.53 20 0.0179 2437 13.53 14±1 15 4.53 20 0.0179 2452 13.39 14±1 15 4.53 20 0.0179 Note: (1) N TX = Number of Transmit Antennas (2) RF Output power specifies that Maximum Conducted Peak Output Power. Report No.: TB-MPE178225 Page: 3 of 5 TB-RF-075-1.0 5. Conclusion: As specified in Table 1B of 47 CFR 1.1310- Limits for Maximum Permissible Exposure (MPE), Limits for General Population/ Uncontrolled Exposure Frequency Range (MHz) Power density (mW/ cm 2 ) 300-1,500 F/1500 1,500-100,000 1.0 For:2412~2462 MHz MPE limit S: 1mW/ cm 2 The MPE is calculated as 0.0179mW / cm 2 < limit 1mW / cm 2 . So, RF exposure limit warning or SAR test are not required. The EUT will only be used with a separation of 20cm or greater between the antenna and nearby persons and can therefore be considered a mobile transmitter per 47 CFR2.1091 (b). The RF Exposure Information page from the manual is included here for reference. Report No.: TB-MPE178225 Page: 4 of 5 TB-RF-075-1.0 Method Of Measurement for IC 1. Applicable Standard Radio Standards Specification 102, Radio Frequency (RF) Exposure Compliance of Radio communication Apparatus (All Frequency Bands), sets out the requirements and measurement techniques used to evaluate radio frequency (RF) exposure compliance of radio communication apparatus designed to be used within the vicinity of the human body. ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. 2. Evaluation Method and Limit Exemption Limits for Routine Evaluation – RF Exposure Evaluation RF exposure evaluation is required if the separation distance between the user and/or bystander and the device’s radiating element is greater than 20 cm, except when the device operates as follows: • below 20 MHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 1 W (adjusted for tune-up tolerance); • at or above 20 MHz and below 48 MHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 4.49/ƒ 0.5 W (adjusted for tune-up tolerance), where ƒ is in MHz; • at or above 48 MHz and below 300 MHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 0.6 W (adjusted for tune-up tolerance); • at or above 300 MHz and below 6 GHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 1.31 x 10 -2 ƒ 0.6834 W (adjusted for tune-up tolerance), where ƒ is in MHz; • at or above 6 GHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 5 W (adjusted for tune-up tolerance). Frequency Band ƒ (MHz) E.I.R.P. (W) 2.4G WLAN 2412 2.684 Note: Limit=1.31 x 10 -2 ƒ 0.6834 (where ƒ is in MHz). The ƒ in the limit is the frequency of the lowest Channel. Report No.: TB-MPE178225 Page: 5 of 5 TB-RF-075-1.0 3. Evaluation Results Standalone MPE Evaluation: [2.4GHz WLAN] Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) Tolerance ± (dB) Turn-up Power Tolerance (dB) IEEE 802.11b 1 2412 13.48 1.0 14±1 6 2437 13.95 1.0 14±1 11 …

Text truncated - open the document above for the full version.

Shenzhen Toby Technology Co., Ltd. Report No.: TB-FCC178224 Page: 1 of 78 TB-RF-074-1.0 1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China Tel: +86 75526509301 Fax: +86 75526509195 FCC Radio Test Report FCC ID: 2AWNK-TR100 Original Grant Report No. : TB-FCC178224 Applicant : Shenzhen Apeman Innovations Technology Co.,Ltd. Equipment Under Test (EUT) EUT Name : Teckin Roll Model No. : TR100 Series Model No. : TR200, TR300, TR400, TR500 S/N : 01205300015, 01205300016 Brand Name : Teckin Sample ID : 20201216-10 -1#& 20201216-10-2# Receipt Date : 2021-01-06 Test Date : 2021-01-07 to 2021-01-22 Issue Date : 2021-01-23 Standards : FCC Part 15, Subpart C 15.247 Test Method : ANSI C63.10: 2013 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above, The EUT technically complies with the FCC and IC requirements Test/Witness Engineer : Rebeca Engineer Supervisor : Ivan Su Engineer Manager : Ray Lai This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TB-FCC178224 Page: 2 of 78 TB-RF-074-1.0 Contents CONTENTS ............................................................................................................................................. 2 1. GENERAL INFORMATION ABOUT EUT ............................................................................. 5 1.1 Client Information ................................................................................................................. 5 1.2 General Description of EUT (Equipment Under Test) ................................................... 5 1.3 Block Diagram Showing the Configuration of System Tested ...................................... 6 1.4 Description of Support Units .............................................................................................. 6 1.5 Description of Test Mode .................................................................................................... 7 1.6 Description of Test Software Setting ................................................................................ 8 1.7 Measurement Uncertainty .................................................................................................. 8 1.8 Test Facility ........................................................................................................................... 9 2. TEST SUMMARY ..................................................................................................................... 10 3. TEST SOFTWARE ................................................................................................................... 10 4. TEST EQUIPMENT .................................................................................................................. 11 5. CONDUCTED EMISSION TEST ........................................................................................... 12 5.1 Test Standard and Limit .................................................................................................... 12 5.2 Test Setup ........................................................................................................................... 12 5.3 Test Procedure ................................................................................................................... 13 5.4 Deviation From Test Standard ......................................................................................... 13 5.5 EUT Operating Mode ........................................................................................................ 13 5.6 Test Data ............................................................................................................................. 13 6. RADIATED EMISSION TEST ................................................................................................ 14 6.1 Test Standard and Limit .................................................................................................... 14 6.2 Test Setup ........................................................................................................................... 15 6.3 Test Procedure ................................................................................................................... 16 6.4 Deviation From Test Standard ......................................................................................... 17 6.5 EUT Operating Condition ................................................................................................. 17 6.6 Test Data ............................................................................................................................. 17 7. RESTRICTED BANDS REQUIREMENT ............................................................................. 18 7.1 Test Standard and Limit .................................................................................................... 18 7.2 Test Setup ........................................................................................................................... 18 7.3 Test Procedure ................................................................................................................... 19 7.4 Deviation From Test Standard ......................................................................................... 19 7.5 EUT Operating Condition ................................................................................................. 19 7.6 Test Data ............................................................................................................................. 19 8. BANDWIDTH TEST ................................................................................................................. 20 8.1 Test Standard an…

Text truncated - open the document above for the full version.

Page : 11 of 12 IC: 25047-TR100&FCC ID: 2AWNK-TR100 TB-RF-075-1.0 Appendix V EUT Test Photographs Photo of Setup for Radiated Emission (Below 1 GHz) Photo of Setup for Radiated Emission (Above 1 GHz) Page : 12 of 12 IC: 25047-TR100&FCC ID: 2AWNK-TR100 TB-RF-075-1.0 Photo of Setup for Conducted Emission -----END OF REPORT-----
