2AWY6-ELRT8723DUTWLAN 11b/g/n 1T1R + Bluetooth 4.2 module

EL.RTL8723DU-WFT IEEE 802.11b/g/n USB2.0 1T1R + Bluetooth 4.2module Software： 客 户 Customer 客户承认 Approve（请盖印章） 日 期 Date 深圳市中龙通电子科技有限公司 CHINA DRAGON TECHNOLOGY LIMITED 工厂地址：深圳市宝安区沙井街道南浦路林坡坑蚝三第一工业园B4栋 电话：(86 755) 81449957 传真：(86 755) 81449967 E-mail: [email protected] Http://www.cdtech.cn 拟制 Design 审核 Check 批准 Approve 版本 Version 日期 Date V1.1 2023.11.23 产 品 承 认 书 SPECIFCATION 深圳市中龙通电子科技有限公司 Page 1 WiFi Module EL.RTL8723DU-WFT 更改记录： Reversion History： 版本 Version 日期 Date 更改内容 Modification 1.0 2023.08.11 Draft 1.1 2023.11.23 更新实物图 深圳市中龙通电子科技有限公司 Page 2 WiFi Module EL.RTL8723DU-WFT 1. Overview The EL.RTL8723DU-WFT is a highly integrated single-chip 802.11n Wireless LAN (WLAN) USB 2.0 Multi-Function network interface controller with integrated Bluetooth 2.1/3/0/4.2 controller. It combines a WLAN MAC, a 1T1R capable WLAN baseband, and RF in s single chip. The EL.RTL8723DU-WFT provides a complete solution for a high-performance integrated wireless LAN and Bluetooth device. The integration provides good coordination and with sophisticated dynamic power control and packet traffic arbitration to achieve good coexistence performance between 802.11 and Bluetooth. 2. Features ●IEEE 802.11b/g/n compatible WLAN802.11b/g/n 1T1R WLAN and Bluetooth single chip ●Complete 802.11n solution for 2.4GHz band ●72.2Mbps receive PHY rate and 72.2Mbps transmit PHY rate using 20M bandwidth ●150Mbps receive PHY rate and 150Mbps transmit PHY rate using 40M bandwidth ●Security support for WPA/WPA2. Open, shared key, and pair-wise key authentication services ●Compatible with Bluetooth v2.1 and v3.0 Systems ●Supports Bluetooth 4.2 ●Supports multiple Low Energy states ●Support 3D Glasses application 深圳市中龙通电子科技有限公司 Page 3 WiFi Module EL.RTL8723DU-WFT 3. System Block Diagram 4. General Specification Model EL.RTL8723DU-WFT Product Name WLAN 11b/g/n 1T1R + Bluetooth 4.2 module Major Chipset RTL8723DU Standard 802.11b/g/n Modulation Method BPSK/ QPSK/ 16-QAM/64-QAM Frequency Band 2.4GHz ISM Band WiFi/BT Interface USB2.0 Operating Temperature -20° C ~ 65° C Storage Temperature -40° C ~ 85°C Humidity 5% to 90% maximum Dimension 30x25x6.0 (LxWxH) ±0.2mm 5. DC Characteristics symbol Parameter Minimum Typical Maximum Units VCC 3.3V supply voltage 3.0 3.3 3.6 V VCC 3.3V rating current -- -- 1000 mA VOH output high Voltage 2.97 -- 3.3 V VOL output low Voltage 0 -- 0.33 V Realtek RTL8723DU RF0 RF1 3V3 40MHZ Crystal USB2.0 BT_WAKE_HST WL_WAKE_HST BT WL 深圳市中龙通电子科技有限公司 Page 4 WiFi Module EL.RTL8723DU-WFT 6. Electrical Characteristics 6.1 WiFi Section: Feature Description WLAN Standard IEEE 802.11b/g/n WiFi compliant Frequency Range 2.400 GHz ~ 2.4835 GHz (2.4 GHz ISM Band) Number of Channels 2.4GHz：Ch1 ~ Ch11 Modulation 802.11b : DQPSK, DBPSK, CCK 802.11 g/n : OFDM /64-QAM,16-QAM, QPSK, BPSK Receive Sensitivity (11b,20MHz) @8% PER - 1Mbps PER @ -91 dBm, typical - 2Mbps PER @ -89 dBm, typical - 5.5Mbps PER @ -87 dBm, typical - 11Mbps PER @ -85 dBm, typical Sensitivity (11g,20MHz) @10% PER - 6Mbps PER @ -90 dBm, typical - 9Mbps PER @ -89 dBm, typical - 12Mbps PER @ -88 dBm, typical - 18Mbps PER @ -85 dBm, typical - 24Mbps PER @ -82 dBm, typical - 36Mbps PER @ -79 dBm, typical - 48Mbps PER @ -74 dBm, typical - 54Mbps PER @ -72 dBm, typical Receive Sensitivity (11n,20MHz) @10% PER - MCS=0 PER @ -90 dBm, typical - MCS=1 PER @ -87 dBm, typical - MCS=2 PER @ -85 dBm, typical - MCS=3 PER @ -81 dBm, typical - MCS=4 PER @ -78 dBm, typical - MCS=5 PER @ -73 dBm, typical - MCS=6 PER @ -72 dBm, typical - MCS=7 PER @ -70 dBm, typical Receive Sensitivity (11n,40MHz) @10% PER - MCS=0 PER @ -87 dBm, typical - MCS=1 PER @ -84 dBm, typical - MCS=2 PER @ -82 dBm, typical - MCS=3 PER @ -79 dBm, typical - MCS=4 PER @ -75 dBm, typical - MCS=5 PER @ -71 dBm, typical - MCS=6 PER @ -69 dBm, typical 深圳市中龙通电子科技有限公司 Page 5 WiFi Module EL.RTL8723DU-WFT - MCS=7 PER @ -68 dBm, typical Maximum Input Level 802.11b : -10 dBm 802.11g/n : -20 dBm 6.2 Bluetooth Section: Feature Description General Specification Bluetooth Standard BT2.1/3.0/4.2 Host Interface USB2.0 Frequency Band 2402 MHz ~ 2480 MHz Modulation FHSS, GFSK, DPSK, DQPSK RF Specification Sensitivity @ BER=0.1% for GFSK (1Mbps) -86 dBm Sensitivity @ BER=0.01% for π/4-DQPSK (2Mbps) -86 dBm Sensitivity @ BER=0.01% for 8DPSK (3Mbps) -80 dBm Maximum Input Level GFSK (1Mbps):-20dBm π/4-DQPSK (2Mbps) :-20dBm 8DPSK (3Mbps) :-20dBm 7. Supplier Supplier list Name of Material Supplier brand Main chip RTL Crystal FK/TKD/TXC/JWT PCB Bomin/Kexiang/E-Tech/Yigetong Inductor Sunlord/ CHILISIN/SAMWHA/TDK Capacitance SAMSUNG /EYANG/ WALSIN/ muRata/TAIYO/ Darfon Resistor UniOhm /YAGEO/ WALSIN 深圳市中龙通电子科技有限公司 Page 6 WiFi Module EL.RTL8723DU-WFT 8. Module photo TOP VIEW BOTTOM VIEW Dimension:30.0*25.0*6.0mm (LxWxH) ±0.3mm 9. Module size 25.0±0.3 30.0±0.3 6.0±0.2 1.00±0.10 7.00±0.101.5*5=7.50±0.10 18.00±0.10 1.5*2=3.00±0.10 11.50±0.10 1.5*3=4.50±0.10 1.20±0.10 1.30±0.10 Main ViewSide ViewBack View PIN1PIN6 PIN7 PIN10 PIN13 深圳市中龙通电子科技有限公司 Page 7 WiFi Module EL.RTL8723DU-WFT 10. Pin Description 11. Package Size NO. Symbol Description 1 GND Ground connections 2 DP USB positive differential data lines 3 DM USB negative differential data lines 4 VCC Power supply 3.3V 5 NC 6 WOW Wake up system via wifi,low active 7 GND Ground connections 8 NC 9 BT_WAKE_HOST Wake up system via BT,low active 10 GND Ground connections 11 GND Ground connections 12 BT_RF Bluetooth RF output 13 GND Ground connections 深圳市中龙通电子科技有限公司 Page 8 WiFi Module EL.RTL8723DU-WFT 12. Recommended Reflow Profile Referred IPC/JEDEC standard. Peak Temperature : <250°C es 13. Package 深圳市中龙通电子科技有限公司 Page 9 WiFi Module EL.RTL8723DU-WFT ESD CAUTION The EL.RTL8723DU-WFT is ESD (electrostatic discharge) sensitive device and may be damaged with ESD or spike voltage. Although EL.RTL8723DU-WFT is with built-in ESD protection circuitry, please handle with care to avoid the permanent malfunction or the performance degradation. inner box K3K: 33.5cm*34.7cm*7cm A box of 300 PCS carton K=A: 36.4*35.7*…

Text truncated - open the document above for the full version.

EXPRESS LUCK INDUSTRIAL（SHENZHEN）LIMITED 2024.01.03 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for FCC ID: 2AWY6-ELRT8723DUT EXPRESS LUCK INDUSTRIAL（SHENZHEN）LIMITED certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Applicant signature: Applicant printed name: Zilong Lai EXPRESS LUCK INDUSTRIAL（SHENZHEN）LIMITED 2024.01.03 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for FCC ID: 2AWY6-ELRT8723DUT EXPRESS LUCK INDUSTRIAL（SHENZHEN）LIMITED certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Applicant signature: Applicant printed name: Zilong Lai

EXPRESS LUCK INDUSTRIAL (SHENZHEN) LIMITED. U.S. Agent Designation for Service of Process (Applicant and U.S. Agent are Separate Parties) TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: Baihetian Innovative Solutions FRN: 0033401605 Contact Name: Kenneth Young Street Address: 6837 Chase Rd City/Province/Zip: Dearborn, MI 48126 Telephone No: 313-395-3113 Email: [email protected] This letter is to confirm that we (Baihetian Innovative Solutions) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date: Signed by (Printed Name/Title): The Applicant acknowledges that they must maintain an agent for no less t han one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: EXPRESS LUCK INDUSTRIAL (SHENZHEN) LIMITED FRN: 0029787975 FCC ID: 2AWY6-ELRT8723DUT Contact Name: Zilong Lai Street Address: Floor 1, Workshop1, No.88, South Baotong Road, Xikeng Community Yuanshan Street, Longgang District, Shenzhen, GuangDong, China Telephone No: +86-15776493370 Email: [email protected] Applicant Signature: Date: 2024.01.04 Signed by (Printed Name/Title): Zilong Lai / Manager Jan 2024 Jan 4, 2024 Kenneth Young/Manager

EXPRESS LUCK INDUSTRIAL（SHENZHEN）LIMITED 2024.01.03 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name: Zilong Lai / Manager Contact information / address: Floor1, Workshop1, No.88, South Baotong Road, Xikeng Community Yuanshan Street, Longgang District, Shenzhen,GuangDong, China

EXPRESS LUCK INDUSTRIAL（SHENZHEN）LIMITED 2024.01.03 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: WLAN 11b/g/n 1T1R + Bluetooth 4.2 module MODEL: EL.RTL8723DU-WFT FCC ID: 2AWY6-ELRT8723DUT To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name: Zilong Lai / Manager Contact information / address: Floor1, Workshop1, No.88, South Baotong Road, Xikeng Community Yuanshan Street, Longgang District, Shenzhen,GuangDong, China

EXPRESS LUCK INDUSTRIAL（SHENZHEN）LIMITED FCC Modular Approval Request Rev 3.0 Federal Communications Commission Equipment Authorization Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2024/01/03 Subject; Modular Transmitter Application Company name: EXPRESS LUCK INDUSTRIAL（SHENZHEN）LIMITED FCC ID: 2AWY6-ELRT8723DUT Dear Sir/Madam, This letter includes the FCC application requirements for Modular Transmitter Approval Request for;- FCC KDB 996369 D01 ‘Module Certification Guide v02; and FCC KDB 996369 D03 OEM Manual v01 In accordance with 47CFR 15.212 Modular Transmitters and KDB 996369 D01 ‘Module Equip Auth Guide v02’. FCC ID: 2AWY6-ELRT8723DUT has been examined against the following requirements. Requirement per 15.212 and KDB 996369 D01 Explanation from Grantee (do not write yes/no, but explain why product complies/how it is achieved) The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly. Yes, It has a shield. The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal. Yes, this module meets the requirements of FCC part 15C(15.247).it specifically establish the 6dB Bandwidth, Peak Output Power, Radiated Spurious Emission, Power Spectral Density, Restricted Band of Operation and Band Edge (Out of Band Emissions) The module must contain power supply regulation on the module. Yes, the module has a power management system. The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per §§ 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b). Yes, the module contains a permanently connected antenna and operates with a specific antenna. The module must demonstrate compliance in a stand-alone configuration. Yes, module can work independent. The module must be labeled with its permanently affixed FCC ID label, or use an electronic display (see KDB Publication 784748). Yes, label will be printed on the Shielding cover. The module must comply with all specific rules applicable to the transmitter, including all the conditions provided in the integration instructions by the grantee. Yes, The module with trace antenna designs, and This manual has been shown the layout of trace design, antenna, connectors, and isolation requirements. EXPRESS LUCK INDUSTRIAL（SHENZHEN）LIMITED FCC Modular Approval Request Rev 3.0 The module must comply with RF exposure requirements Yes, This module complies with FCC RF radiation exposure limits set forth for an uncontrolled environment, This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body." This module is designed to comply with the FCC statement, FCC ID: 2AWY6-ELRT8723DUT Integration Instructions for host product manufacturers The following items are submitted in support of application for Modular Transmitter FCC ID as noted above as required by the FCC KDB 996369 D03 OEM Manual v01. These items are provided as integration instructions for host product manufacturers (e.g., OEM instruction manual) to use when integrating a module in a host product. Any requirements that are not applicable to the Module are as indicated below. Summary of requirements and Checklist.Refer to the KDB for description of the complete requirements; KDB Ref Sect Requirements of KDB 996369 D03 User Manual Page Number reference 2.2 List of applicable FCC rules Page 22 2.3 Summarize the specific operational use conditions Page 22 2.4 Limited module procedures Page 22 2.5 Trace antenna designs Page 23 2.6 RF exposure considerations Page 23 2.7 Antennas Page 23 2.8 Label and compliance information Page 24 2.9 Information on test modes and additional testing requirements Page 24 2.10 Additional testing, Part 15 Subpart B disclaimer Page 24 Name: Zilong Lai Date: 2024/01/03 Title: Manager Signature of applicant :

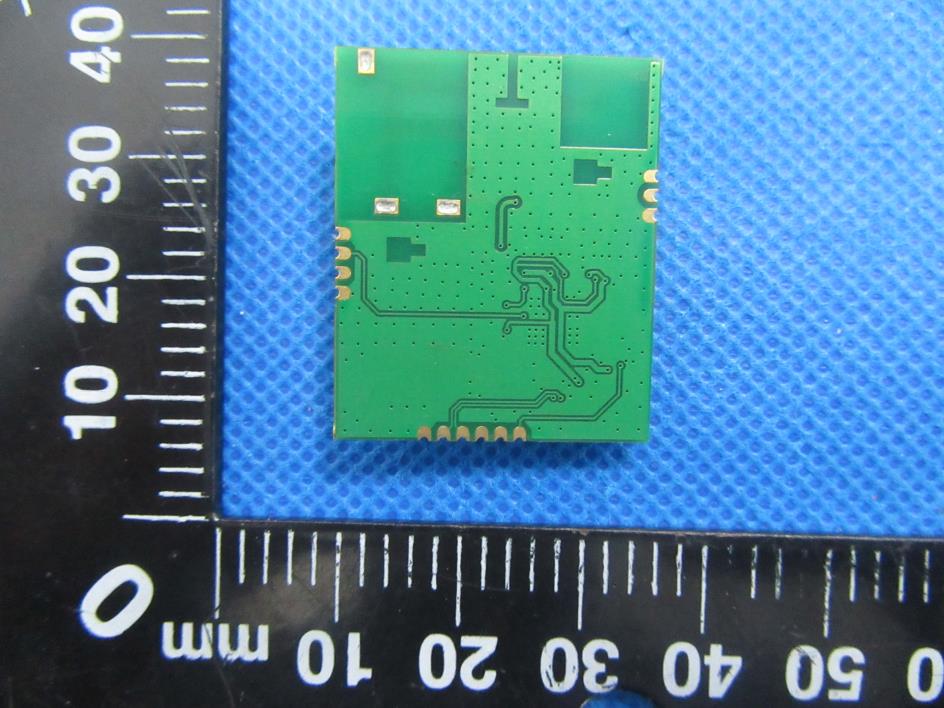

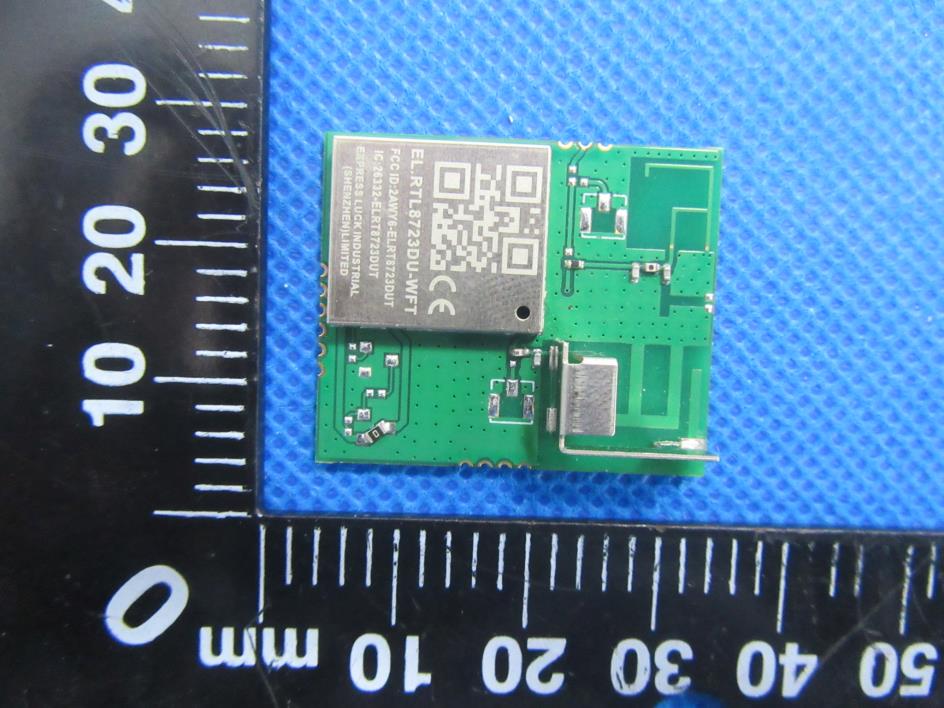

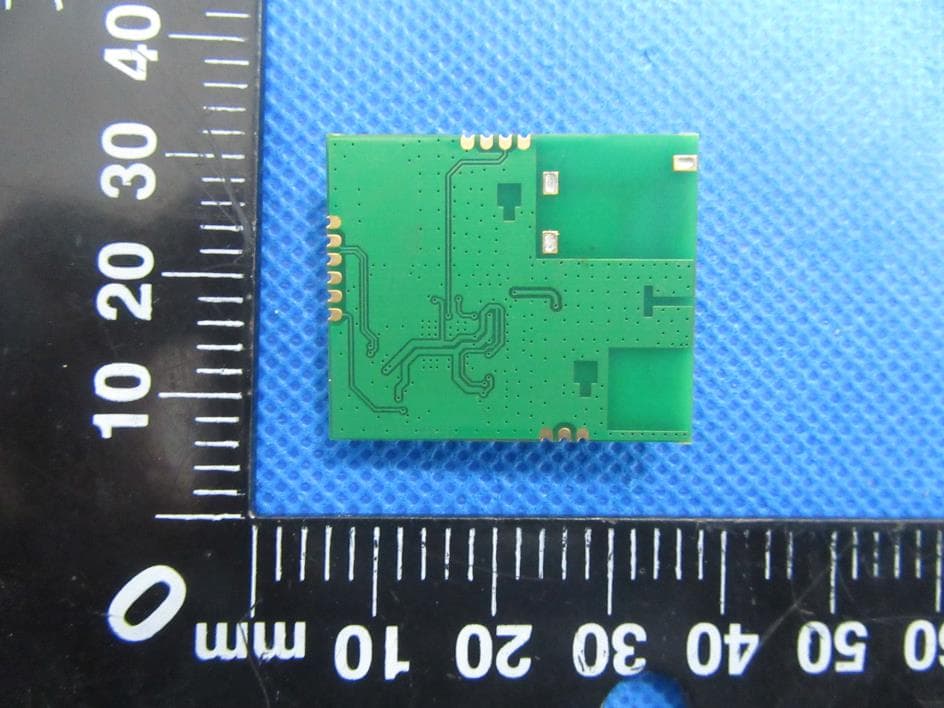

External Photos BT Antenna WIFI Antenna

15*10mm Label Location WLAN 11b/g/n 1T1R + Bluetooth 4.2 module Model: EL.RTL8723DU-WFT FCC ID: 2AWY6-ELRT8723DUT IC ID: 26332-ELRT8723DUT

Internal Photos

FCC §15.247 (i), §2.1091 – RF Exposure FCC ID: 2AWY6-ELRT8723DUT Applied procedures / limit According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Note: ƒ is frequency in MHz * = Power density limit is applicable at frequencies greater than 100 MHz Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density MPE PREDICTION Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna, R=0.2m TEST RESULTS For the Max simultaneous transmission MPE Conclusion: For the max Power Density(S)(mW/ cm2) : 0.00383＜1, the SAR testing is not required. Tune up Produce power Maximu m peak output power (dBm) Output power to antenna (mW) Antenna Gain (numeric) Power Density (S) (mW/ cm2) Limit (mW/ cm2) Result BT 3±1 4 2.51 0.22 (-6.49dBi) 0.00011 1 Pass BLE 1±1 2 1.58 0.22 (-6.49dBi) 0.00007 1 Pass 802.11 b 15±1 16 39.81 0.47 (-3.25dBi) 0.00372 1 Pass Evaluation mode Power Density/Limit Sum of the MPE rate Limit Result BT 0.00011 0.00383 1 Pass 802.11 b 0.00372

Client：CDTECH 2.4G Ant test report Copyright ©2014-2024 Shenzhen Hanyang Antenna Design Co., Ltd. All rights reserved. Date：2023.10.10 SHENZHEN HANYANG ANTENNA DESIGN CO.LTD. Copyright ©2014-2024 Shenzhen Hanyang Antenna Design Co., Ltd. All rights reserved. SHENZHEN HANYANG ANTENNA DESIGN CO.LTD. Testing Environment Copyright ©2014-2024 Shenzhen Hanyang Antenna Design Co., Ltd. All rights reserved. SHENZHEN HANYANG ANTENNA DESIGN CO.LTD. Test Philosophy Copyright ©2014-2024 Shenzhen Hanyang Antenna Design Co., Ltd. All rights reserved. SHENZHEN HANYANG ANTENNA DESIGN CO.LTD. PCB Ant metal Ant $ntennaDiagram Copyright ©2014-2024 Shenzhen Hanyang Antenna Design Co., Ltd. All rights reserved. SHENZHEN HANYANG ANTENNA DESIGN CO.LTD. PCB Ant Metal Ant $ntennaDimensions Un it: mm Unit: mm Copyright ©2014-2024 Shenzhen Hanyang Antenna Design Co., Ltd. All rights reserved. SHENZHEN HANYANG ANTENNA DESIGN CO.LTD. PCB Ant - SWR Copyright ©2014-2024 Shenzhen Hanyang Antenna Design Co., Ltd. All rights reserved. SHENZHEN HANYANG ANTENNA DESIGN CO.LTD. PCB Ant - S11 Copyright ©2014-2024 Shenzhen Hanyang Antenna Design Co., Ltd. All rights reserved. SHENZHEN HANYANG ANTENNA DESIGN CO.LTD. FreqEfficiency_dBGaindBiEfficiency_Pcent% 2400-9.74-6.4910.61 2410-9.92-6.7310.18 2420-10.13-6.939.69 2430-10.29-7.089.36 2440-10.47-7.238.98 2450-10.81-7.68.3 2460-11.07-7.877.82 2470-11.33-8.17.36 2480-11.53-8.297.02 2490-11.74-8.486.69 2500-12.06-8.796.22 PCB Ant - Passive data Copyright ©2014-2024 Shenzhen Hanyang Antenna Design Co., Ltd. All rights reserved. SHENZHEN HANYANG ANTENNA DESIGN CO.LTD. 2450MHZ PCB Ant - 3D radiation pattern Copyright ©2014-2024 Shenzhen Hanyang Antenna Design Co., Ltd. All rights reserved. SHENZHEN HANYANG ANTENNA DESIGN CO.LTD. Metal Ant - SWR 汉阳天线版权所有Copyright ©2014-2024 Shenzhen HanyangAntenna Design Co., Ltd. All rights reserved. SHENZHEN HANYANG ANTENNA DESIGN CO.LTD. Metal Ant - S11 汉阳天线版权所有Copyright ©2014-2024 Shenzhen HanyangAntenna Design Co., Ltd. All rights reserved. SHENZHEN HANYANG ANTENNA DESIGN CO.LTD. FreqEfficiency_dBGaindBiEfficiency_Pcent% 2400-6.27-3.2523.61 2410-6.48-3.6122.5 2420-6.48-3.8322.5 2430-6.42-3.9622.82 2440-6.22-3.8123.89 2450-6.08-3.6124.65 2460-6.03-3.5524.97 2470-5.99-3.5425.17 2480-6.04-3.5724.9 2490-6.05-3.6424.83 2500-6.03-3.6324.95 Metal Ant - Passive data Copyright ©2014-2024 Shenzhen Hanyang Antenna Design Co., Ltd. All rights reserved. SHENZHEN HANYANG ANTENNA DESIGN CO.LTD. 2450MHZ Metal Ant - 3D radiation pattern SHENZHEN HANYANG ANTENNA DESIGN CO.LTD. Welcome calls consultations, negotiations and guidance come! Thank you Copyright ©2014-2024 Shenzhen Hanyang Antenna Design Co., Ltd. All rights reserved.

No.：BCTC/RF-EMC-005 Page: 1 of 79 Edition：B.1 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2309740639-1E Applicant: EXPRESS LUCK INDUSTRIAL（SHENZHEN）LIMITED Product Name: WLAN 11b/g/n 1T1R + Bluetooth 4.2 module Test Model: EL.RTL8723DU-WFT Tested Date: 2023-09-26 to 2023-12-22 Issued Date: 2023-12-26 Report No.:BCTC2309740639-1E No.：BCTC/RF-EMC-005 Page: 2 of 79 Edition：B.1 FCC ID: 2AWY6-ELRT8723DUT The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: WLAN 11b/g/n 1T1R + Bluetooth 4.2 module Trademark: N/A Model/Type Reference: EL.RTL8723DU-WFT Prepared For: EXPRESS LUCK INDUSTRIAL（SHENZHEN）LIMITED Address: Floor1, Workshop1, No.88, South Baotong Road, Xikeng Community Yuanshan Street, Longgang District, Shenzhen,GuangDong, China Manufacturer: EXPRESS LUCK INDUSTRIAL（SHENZHEN）LIMITED Address: Floor1, Workshop1, No.88, South Baotong Road, Xikeng Community Yuanshan Street, Longgang District, Shenzhen,GuangDong, China Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2023-09-26 Sample tested Date: 2023-09-26 to 2023-12-22 Issue Date: 2023-12-26 Report No.: BCTC2309740639-1E Test Standards FCC Part15.247 ANSI C63.10-2013 Test Results PASS Remark: This is Bluetooth Classic radio test report. Tested by: Approved by: Eric Yang/Project Handler Zero Zhou/Reviewer Report No.:BCTC2309740639-1E No.：BCTC/RF-EMC-005 Page: 3 of 79 Edition：B.1 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information And Test Setup ..................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 8 4.3 Support Equipment ............................................................................................... 9 4.4 Channel List .......................................................................................................... 9 4.5 Test Mode ........................................................................................................... 10 4.6 Table Of Parameters Of Text Software Setting ................................................... 10 5. Test Facility And Test Instrument Used ............................................................... 11 5.1 Test Facility ......................................................................................................... 11 5.2 Test Instrument Used .......................................................................................... 11 6. Conducted Emissions .......................................................................................... 13 6.1 Block Diagram Of Test Setup .............................................................................. 13 6.2 Limit .................................................................................................................... 13 6.3 Test procedure .................................................................................................... 13 6.4 EUT operating Conditions ................................................................................... 13 6.5 Test Result .......................................................................................................... 14 7. Radiated emissions ............................................................................................. 16 7.1 Block Diagram Of Test Setup .............................................................................. 16 7.2 Limit .................................................................................................................... 17 7.3 Test procedure .................................................................................................... 18 7.4 EUT operating Conditions ................................................................................... 19 7.5 Test Result .......................................................................................................... 19 8. Radiated Band Emission Measurement And Restricted Bands Of Operation ..... 23 8.1 Block Diagram Of Test Setup .............................................................................. 23 8.2 Limit .................................................................................................................... 23 8.3 Test procedure .................................................................................................... 24 8.4 EUT operating Conditions ................................................................................... 24 8.5 Test Result .......................................................................................................... 25 9. Spurious RF Conducted Emissions ..................................................................... 26 9.1 Block Diagram Of Test Setup .............................................................................. 26 9.2 Limit .................................................................................................................... 26 9.3 Test procedure ...............................................................…

Text truncated - open the document above for the full version.

Report No.:BCTC2309740639-1E No.：BCTC/RF-EMC-005 Page: 62 of 79 Edition：B.1 CFS NVNT 1-DH1 2480MHz CFS NVNT 2-DH1 2402MHz Report No.:BCTC2309740639-1E No.：BCTC/RF-EMC-005 Page: 63 of 79 Edition：B.1 CFS NVNT 2-DH1 2441MHz CFS NVNT 2-DH1 2480MHz Report No.:BCTC2309740639-1E No.：BCTC/RF-EMC-005 Page: 64 of 79 Edition：B.1 CFS NVNT 3-DH1 2402MHz CFS NVNT 3-DH1 2441MHz Report No.:BCTC2309740639-1E No.：BCTC/RF-EMC-005 Page: 65 of 79 Edition：B.1 CFS NVNT 3-DH1 2480MHz Report No.:BCTC2309740639-1E No.：BCTC/RF-EMC-005 Page: 66 of 79 Edition：B.1 13. Number Of Hopping Frequency 13.1 Block Diagram Of Test Setup 13.2 Limit Frequency hopping systems in the 2400-2483.5 MHz band shall use at least 15 channels. 13.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set the spectrum analyzer: RBW = 100kHz. VBW = 300kHz. Sweep = auto; Detector Function = Peak. Trace = Max hold. 3. Allow the trace to stabilize. It may prove necessary to break the span up to sections. in order to clearly show all of the hopping frequencies. The limit is specified in one of the subparagraphs of this Section. 4. Set the spectrum analyzer: Start Frequency = 2.4GHz, Stop Frequency = 2.4835GHz. Sweep=auto; 13.4 Test Result Condition Mode Hopping Number Limit Verdict NVNT 1-DH1 79 15 Pass NVNT 2-DH1 79 15 Pass NVNT 3-DH1 79 15 Pass Report No.:BCTC2309740639-1E No.：BCTC/RF-EMC-005 Page: 67 of 79 Edition：B.1 Test Graphs Hopping No. NVNT 1-DH1 2441MHz Hopping No. NVNT 2-DH1 2441MHz Report No.:BCTC2309740639-1E No.：BCTC/RF-EMC-005 Page: 68 of 79 Edition：B.1 Hopping No. NVNT 3-DH1 2441MHz Report No.:BCTC2309740639-1E No.：BCTC/RF-EMC-005 Page: 69 of 79 Edition：B.1 14. Dwell Time 14.1 Block Diagram Of Test Setup 14.2 Limit Frequency hopping systems in the 2400-2483.5 MHz band shall use at least 15 channels. The average time of occupancy on any channel shall not be greater than 0.4 seconds within a period of 0.4 seconds multiplied by the number of hopping channels employed. Frequency hopping systems may avoid or suppress transmissions on a particular hopping frequency provided that a minimum of 15 channels are used. 14.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set spectrum analyzer span = 0. Centred on a hopping channel; 3. Set RBW = 1MHz and VBW = 3MHz.Sweep = as necessary to capture the entire dwell time per hopping channel. Set the EUT for DH5, DH3 and DH1 packet transmitting. 4. Use the marker-delta function to determine the dwell time. If this value varies with different modes of operation (e.g.. data rate. modulation format. etc.). repeat this test for each variation. The limit is specified in one of the subparagraphs of this Section. Submit this plot(s). 14.4 Test Result DH5 Packet permit maximum 1600 / 79 / 6 hops per second in each channel (5 time slots RX, 1 time slot TX). DH3 Packet permit maximum 1600 / 79 / 4 hops per second in each channel (3 time slots RX, 1 time slot TX). DH1 Packet permit maximum 1600 / 79 /2 hops per second in each channel (1 time slot RX, 1 time slot TX). So, the Dwell Time can be calculated as follows: DH5:1600/79/6*0.4*79*(MkrDelta)/1000 DH3:1600/79/4*0.4*79*(MkrDelta)/1000 DH1:1600/79/2*0.4*79*(MkrDelta)/1000 Remark: Mkr Delta is once pulse time. Report No.:BCTC2309740639-1E No.：BCTC/RF-EMC-005 Page: 70 of 79 Edition：B.1 Condition Mode Frequency (MHz) Pulse Time (ms) Total Dwell Time (s) Limit (s) Verdict NVNT 1-DH1 2441 0.383 0.123 0.4 Pass NVNT 1-DH3 2441 1.639 0.262 0.4 Pass NVNT 1-DH5 2441 2.887 0.308 0.4 Pass NVNT 2-DH1 2441 0.392 0.125 0.4 Pass NVNT 2-DH3 2441 1.644 0.263 0.4 Pass NVNT 2-DH5 2441 2.891 0.308 0.4 Pass NVNT 3-DH1 2441 0.391 0.125 0.4 Pass NVNT 3-DH3 2441 1.643 0.263 0.4 Pass NVNT 3-DH5 2441 2.894 0.309 0.4 Pass Test Graphs Dwell NVNT 1-DH1 2441MHz One Burst Report No.:BCTC2309740639-1E No.：BCTC/RF-EMC-005 Page: 71 of 79 Edition：B.1 Dwell NVNT 1-DH3 2441MHz One Burst Dwell NVNT 1-DH5 2441MHz One Burst Report No.:BCTC2309740639-1E No.：BCTC/RF-EMC-005 Page: 72 of 79 Edition：B.1 Dwell NVNT 2-DH1 2441MHz One Burst Dwell NVNT 2-DH3 2441MHz One Burst Report No.:BCTC2309740639-1E No.：BCTC…
