2AXD8-LCBLUEREMOTERAB Bluetooth Remote Control

User Manual 1.ON/OFF，toggle on/off when click. 2. Dim up •Click- Dim up 10%. •Press and Hold- Step to 100% (3s from 0% to 100%). 3.Dim Down •Click- Dim up 10%. •Press and Hold- Step to 100% (3s from 0% to 100%). 4.“..” •CCT.( 4 fixed value switch) •Custom scene （Switch up to 3 scenes） 5.“...” •DIM.（3 fixed value switch） •Custom scene （Switch up to 3 scenes） 6. Long press the RESET button on the back for 3S to restore factory Settings and enter the state of distribution network, and the red indicator will blink for 30s. 7. Once the network has been configured, click the RESET button on the back for 1s to wake up 60s for OTA upgrade. Product Information: Product name RAB BLUE REMOTE Model No. LCBLUEREMOTE/W Test Model No. LCBLUEREMOTE/W Power Supply 2.3V~3.3V Software version V1.0 Hardware version V1.0 Peak Antenna Gain -0.63dBi Bluetooth Version BL5.0 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. Radiation Exposure Statement The device has been evaluated to meet general RF exposure requirement. in portable exposure condition without restriction.

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date: 2021/7/28 Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AXD8-LCBLUEREMOTE LCBLUEREMOTE/W For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： JINGJING Wu / Certification Authority Company: Suzhou EICCOMM Technology CO., Ltd. Address: Room 304, Building 4,Zhuyuan Road 209, GAOXIN District, Suzhou, Jiangsu Province, China Phone: +86 18662211697 Fax: +86 18662211697 E-Mail: [email protected]

Suzhou EICCOMM Technology CO., Ltd. Room 304, Building 4,Zhuyuan Road 209, GAOXIN District, Suzhou, Jiangsu Province, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2021/7/28 To whom it may concern: We, Suzhou EICCOMM Technology CO., Ltd. the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AXD8-LCBLUEREMOTE including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： JINGJING Wu / Certification Authority Company: Suzhou EICCOMM Technology CO., Ltd. Address: Room 304, Building 4,Zhuyuan Road 209, GAOXIN District, Suzhou, Jiangsu Province, China Phone: +86 18662211697 Fax: +86 18662211697 E-Mail: [email protected]

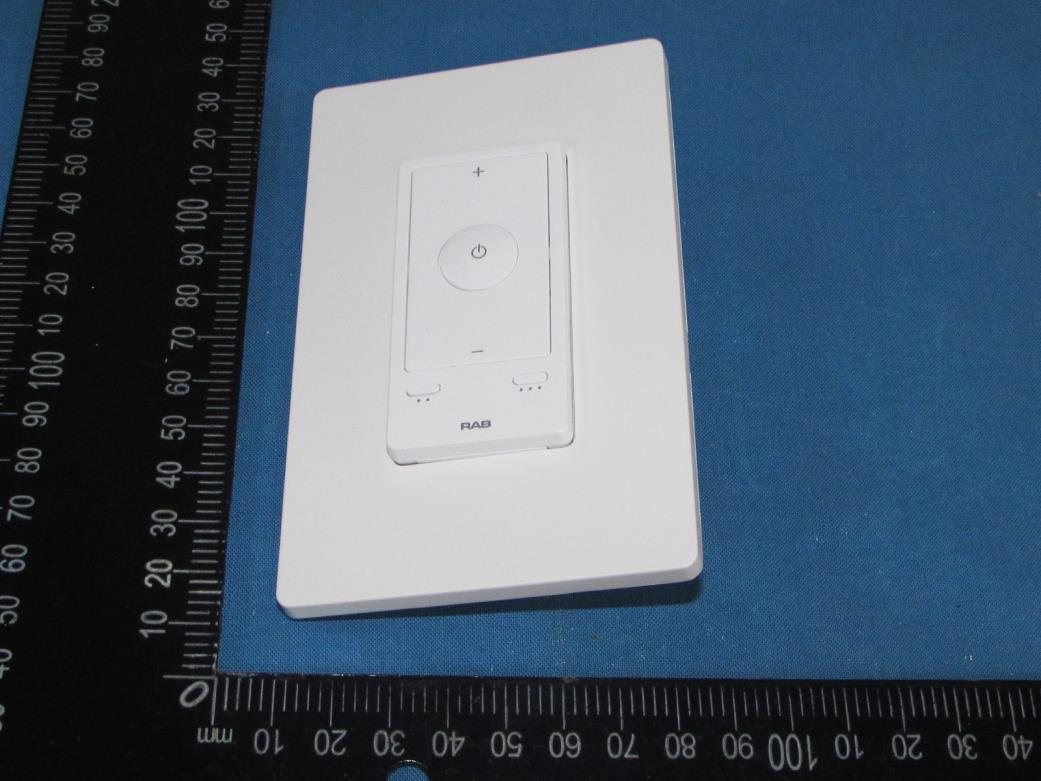

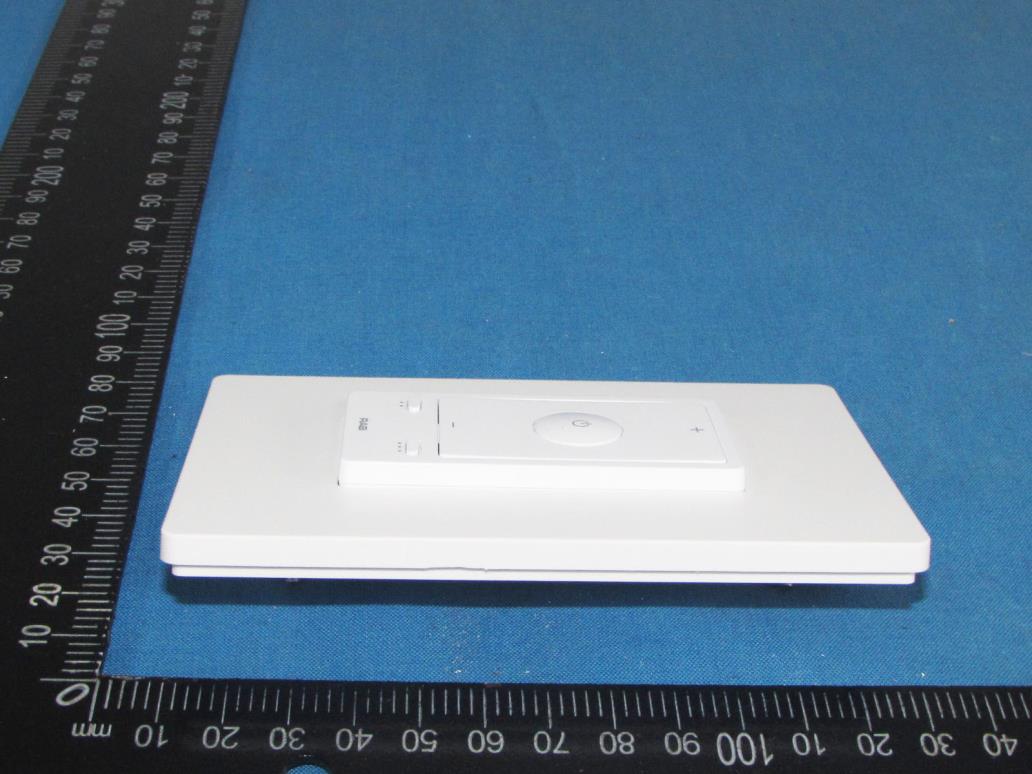

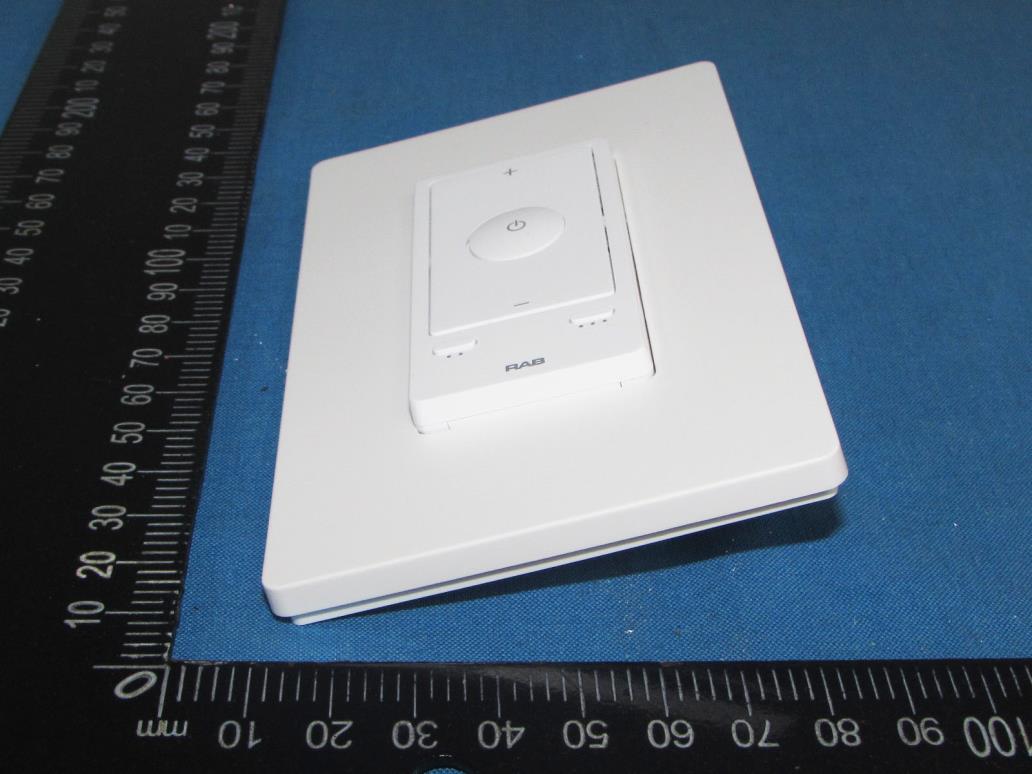

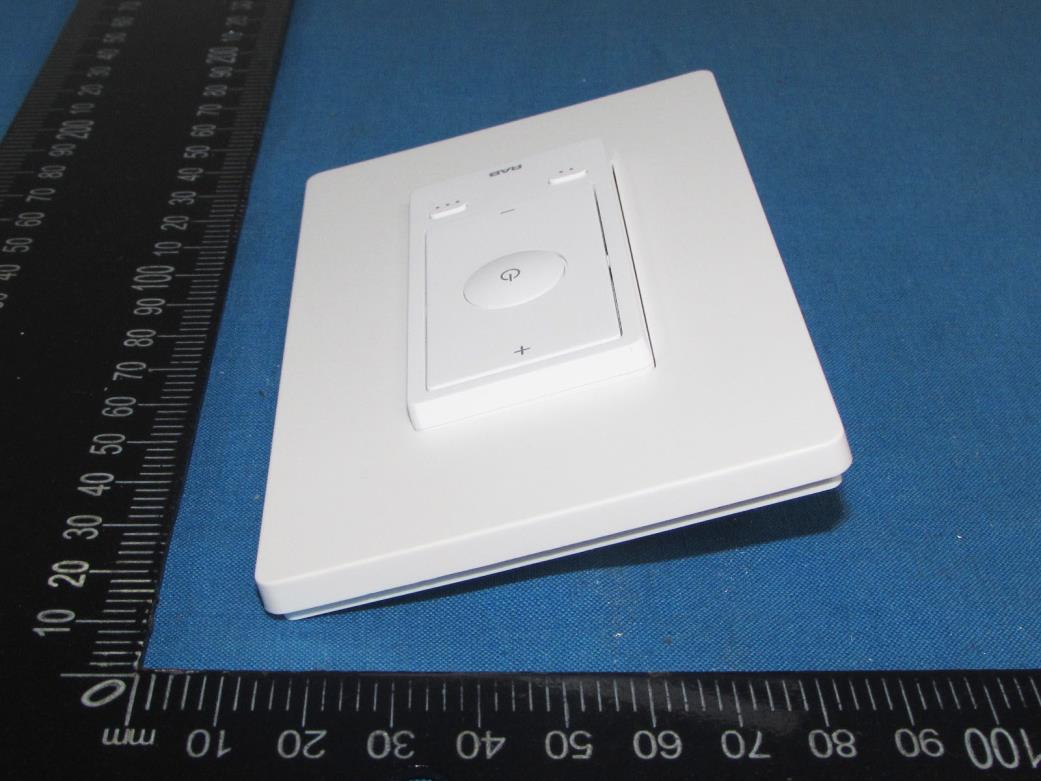

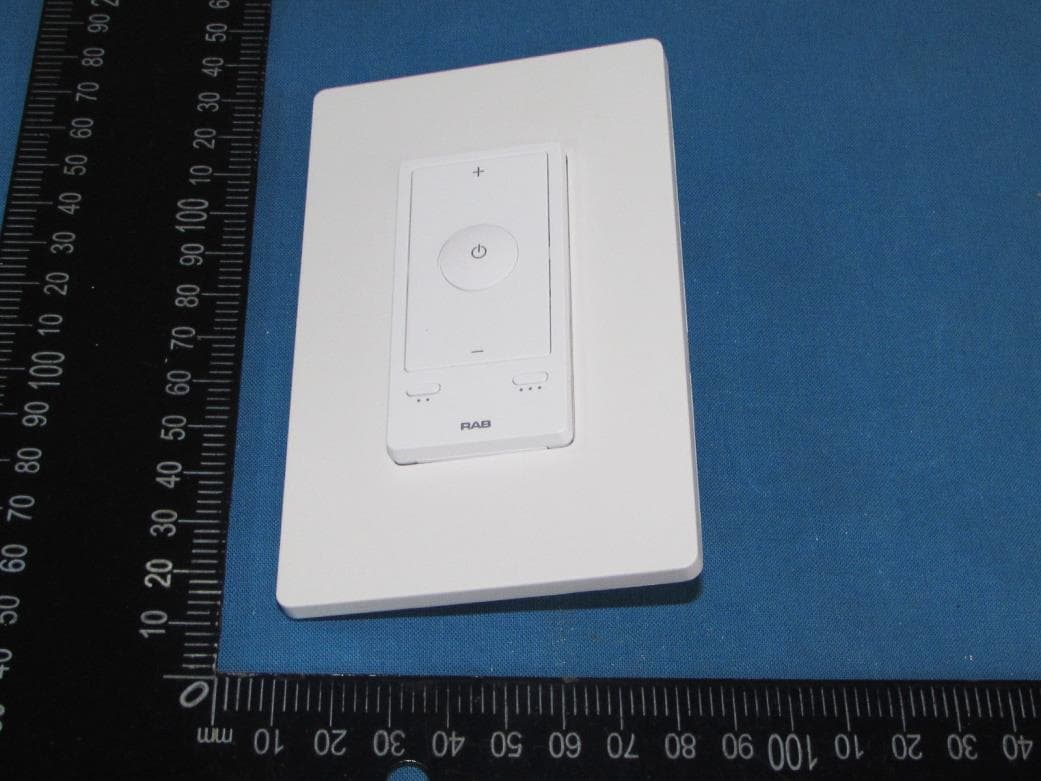

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AXD8-LCBLUEREMOTE This reportshall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 3 EXTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AXD8-LCBLUEREMOTE This reportshall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 3 Fig.3 Fig.4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AXD8-LCBLUEREMOTE This reportshall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 3 Fig.5 Fig.6

Size: 25mm(L)*20mm(W) Label Location: FCC ID: 2AXD8-LCBLUEREMOTE

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AXD8-LCBLUEREMOTE This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 5 INTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AXD8-LCBLUEREMOTE This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 5 Fig.3 Fig.4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AXD8-LCBLUEREMOTE This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 5 Fig.5 Fig.6 Bluetooth Antenna Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AXD8-LCBLUEREMOTE This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 5 Fig.7 Fig.8 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AXD8-LCBLUEREMOTE This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 5 of 5 Fig.9

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AXD8-LCBLUEREMOTE This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 2 RADIO FREQUENCY EXPOSURE Limit According to section 4.3.1 of KDB 447498 D01 General RF Exposure Guidance v06, SAR evaluation is required if the separation distance between the user and/or bystander and the antenna and/or radiating element of the device is less than or equal to 20 cm, except when the device operates at or below the applicable output power level (adjusted for tune-up tolerance) for the specified separation distance defined in Appendix A. Appendix A SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm MHz 5 10 15 20 25 mm 150 39 77 116 155 194 SAR Test Exclusion Threshold (mW) 300 27 55 82 110 137 450 22 45 67 89 112 835 16 33 49 66 82 900 16 32 47 63 79 1500 12 24 37 49 61 1900 11 22 33 44 54 2450 10 19 29 38 48 3600 8 16 24 32 40 5200 7 13 20 26 33 5400 6 13 19 26 32 5800 6 12 19 25 31 MHz 30 35 40 45 50 mm 150 232 271 310 349 387 SAR Test Exclusion Threshold (mW) 300 164 192 219 246 274 450 134 157 179 201 224 835 98 115 131 148 164 900 95 111 126 142 158 1500 73 86 98 110 122 1900 65 76 87 98 109 2450 57 67 77 86 96 3600 47 55 63 71 79 5200 39 46 53 59 66 5400 39 45 52 58 65 5800 37 44 50 56 62 Note: Manufacturer declared that the maximum antenna gain is -0.63dBi (Max.). Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AXD8-LCBLUEREMOTE This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 2 Conducted Power Results Test Mode Channel Frequency (MHz) Measured Peak Output Power (dBm) GFSK(1Mbps) 00 2402 0.38 19 2440 -0.39 39 2480 -0.64 GFSK(2Mbps) 00 2402 0.27 19 2440 -0.34 39 2480 -0.85 Manufacturing tolerance GFSK (1Mbps Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) 0.0 -0.5 -1.0 Tolerance ±(dB) 1.0 1.0 1.0 GFSK (2Mbps Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) 0.0 -0.5 -1.0 Tolerance ±(dB) 1.0 1.0 1.0 Results Test Mode Channel Frequency (MHz) Max. Tune Up Power (dBm, Peak) Max. Eirp including Tune Up (dBm, Peak) Max. of Eirp and Conducted power including Tune Up (mW, Peak) Exemption Limit (mW) GFSK(1Mbps) 2402 1.0 0.37 1.26 10 2440 0.5 -0.13 1.12 10 2480 0.0 -0.63 1.00 10 GFSK(2Mbps) 2402 1.0 0.37 1.26 10 2440 0.5 -0.13 1.12 10 2480 0.0 -0.63 1.00 10 The antenna gain of the EUT for BT is -0.63 dBi (Max). the Maximum Eirp is used for Routine Evaluation Exemption according to section 4.3.1 of KDB 447498 D01. So, the SAR evaluation is not required.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AXD8-LCBLUEREMOTE Report No.: TZ210702393-E Page 1 of 38 RF Test Data for BT(BLE) (Conducted Measurement) Product Name: RAB Bluetooth Remote Control Trade Mark: N/A Test Model: LCBLUEREMOTE/W FCC ID: 2AXD8-LCBLUEREMOTE Environmental Conditions Temperature: 25.5C Relative Humidity: 55% ATM Pressure: 100.0 kPa Test Engineer: Anna Hu Supervised by: Hugo Chen NOTE N/A Appendix A: DTS Bandwidth Test Result TestMode Antenna Channel DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.656 2401.612 2402.268 0.5 PASS 2440 0.684 2439.592 2440.276 0.5 PASS 2480 0.680 2479.592 2480.272 0.5 PASS BLE_2M Ant1 2402 1.228 2401.340 2402.568 0.5 PASS 2440 1.336 2439.288 2440.624 0.5 PASS 2480 1.260 2479.288 2480.548 0.5 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AXD8-LCBLUEREMOTE Report No.: TZ210702393-E Page 2 of 38 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AXD8-LCBLUEREMOTE Report No.: TZ210702393-E Page 3 of 38 BLE_1M_Ant1_2480 BLE_2M_Ant1_2402 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AXD8-LCBLUEREMOTE Report No.: TZ210702393-E Page 4 of 38 BLE_2M_Ant1_2440 BLE_2M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AXD8-LCBLUEREMOTE Report No.: TZ210702393-E Page 5 of 38 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 1.0033 2401.434 2402.437 --- PASS 2440 1.0365 2439.416 2440.452 --- PASS 2480 1.0404 2479.414 2480.455 --- PASS BLE_2M Ant1 2402 2.0396 2400.918 2402.958 --- PASS 2440 2.0369 2438.904 2440.941 --- PASS 2480 2.0252 2478.920 2480.945 --- PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AXD8-LCBLUEREMOTE Report No.: TZ210702393-E Page 6 of 38 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AXD8-LCBLUEREMOTE Report No.: TZ210702393-E Page 7 of 38 BLE_1M_Ant1_2480 BLE_2M_Ant1_2402 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AXD8-LCBLUEREMOTE Report No.: TZ210702393-E Page 8 of 38 BLE_2M_Ant1_2440 BLE_2M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AXD8-LCBLUEREMOTE Report No.: TZ210702393-E Page 9 of 38 Appendix C: Maximum conducted output power Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 0.38 <=30 PASS 2440 -0.39 <=30 PASS 2480 -0.64 <=30 PASS BLE_2M Ant1 2402 0.27 <=30 PASS 2440 -0.34 <=30 PASS 2480 -0.85 <=30 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AXD8-LCBLUEREMOTE Report No.: TZ210702393-E Page 10 of 38 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AXD8-LCBLUEREMOTE Report No.: TZ210702393-E Page 11 of 38 BLE_1M_Ant1_2480 BLE_2M_Ant1_2402 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AXD8-LCBLUEREMOTE Report No.: TZ210702393-E Page 12 of 38 BLE_2M_Ant1_2440 BLE_2M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AXD8-LCBLUEREMOTE Report No.: TZ210702393-E Page 13 of 38 Appendix D: Maximum power spectral density Test Result TestMode Antenna Channel Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -9.53 <=8 PASS 2440 -11.02 <=8 PASS 2480 -10.97 <=8 PASS BLE_2M Ant1 2402 -13.03 <=8 PASS 2440 -13.05 <=8 PASS 2480 -14.21 <=8 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AXD8-LCBLUEREMOTE Report No.: TZ210702393-E Page 14 of 38 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AXD8-LCBLUEREMOTE Report No.: TZ210702393-E Page 15 of 38 BLE_1M_Ant1_2480 BLE_2M_Ant1_2402 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AXD8-LCBLUEREMOTE Report No.: TZ210702393-E Page 16 of 38 BLE_2M_Ant1_2440 BLE_2M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AXD8-LCBLUEREMOTE Report No.: TZ210702393-E Page 17 of 38 Appendix E: Band edge measurements Test Result TestMode Antenna ChName Channel RefLevel[dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 Low 2402 -0.10 -49.51 <=-20.1 PASS High 2480 -1.26 -49.24 <=-21.26 PASS BLE_2M Ant1 Low 2402 -1.71 -33.66 <=-21.71 PASS High 2480 -2.65 -48.91 <=-22.65 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AXD8-LCBLUEREMOTE Report No.: TZ210702393-E Page 18 of 38 Test Graphs BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AXD8-LCBLUEREMOTE Report No.: TZ210702393-E Page 19 of 38 BLE_2M_Ant1_Low_2402 BLE_2M_Ant1_High_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AXD8-LCBLUEREMOTE Report No.: TZ210702393-E Page 20 of 38 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Channel FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 Reference -0.85 -0.85 --- PASS 30~1000 -0.85 -56.38 <=-20.85 PASS 1000~26500 -0.85 -51.45 <=-20.85 PASS 2440 Reference -1.03 -1.03 --- PASS 30~1000 -1.03 -56.84 <=-21.03 PASS 1000~26500 -1.03 -47.21 <=-21.03 PASS 2480 Reference -1.51 -1.51 --- PASS 30~1000 -1.51 -56.48 <=-21.51 PASS 1000~26500 -1.51 -51.95 <=-21.51 PASS BLE_2M Ant1 2402 Reference -1.47 -1.47 --- PASS 30~1000 -1.47 -57.24 <=-21.47 PASS 1000~26500 -1.47 -51.58 <=-21.47 PASS 2440 Reference -3.00 -3.00 --- PASS 30~1000 -3.00 -56.94 <=-23 PASS 1000~26500 -3.00 -51.91 <=-23 PASS 2480 Reference -3.10 -3.10 --- PASS 30~1000 -3.10 -56.56 <=-23.1 PASS 1000~26500 -3.10 -51.55 <=-23.1 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AXD8-LCBLUEREMOTE Report No.: TZ210702393-E Page 21 of 38 Test Graphs BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AXD8-LCBLUEREMOTE Report No.: TZ210702393-E Page 22 of 38 BLE_1M_Ant1_2402_1000~26500 BLE_1M_Ant1_2440_0~Reference Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AXD8-LCBLUEREMOTE Report No.: TZ210702393-E Page 23 of 38 BLE_1M_Ant1_2440_30~1000 BLE_1M_Ant1_2440_1000~26500 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AXD8-LCBLUEREMOTE Report No.: TZ210702393-E Page 24 of 38 BLE_1M_Ant1_2480_0~Reference BLE_1M_Ant1_2480_30~1000 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AXD8-LCBLUEREMOTE Report No.: TZ210702393-E Page 25 of 38 BLE_1M_Ant1_…

Text truncated - open the document above for the full version.

Report No.: TZ210702393-E Page 1 of 33 FCC TEST REPORT Test report On Behalf of Suzhou EICCOMM Technology CO., Ltd. For RAB Bluetooth Remote Control Model No.: LCBLUEREMOTE/W FCC ID: 2AXD8-LCBLUEREMOTE Prepared for : Suzhou EICCOMM Technology CO., Ltd. Room 304, Building 4,Zhuyuan Road 209, GAOXIN District, Suzhou, Jiangsu Province, China Prepared By : Shenzhen Tongzhou Testing Co.,Ltd 1F, B2 Building, Junfeng Zhongcheng Zhizao Innovation Park, Fuhai Street, Bao'an District, Shenzhen City, China Date of Test: 2021/7/11~2021/7/19 Date of Report: 2021/7/20 Report Number: TZ210702393-E The test report apply only to the specific sample(s) tested under stated test conditions It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TZ210702393-E Page 2 of 33 TEST RESULT CERTIFICATION Applicant’s name ................. : Suzhou EICCOMM Technology CO., Ltd. Address .................................. : Room 304, Building 4,Zhuyuan Road 209, GAOXIN District, Suzhou, Jiangsu Province, China Manufacture's Name ............ : Suzhou Bescon Electronic Co. Ltd Address .................................. : No. 48, Juhua Road, Wangting Town, Xiangcheng District, Suzhou, China Product description Trade Mark: N/A Product name ........................... : RAB Bluetooth Remote Control Model and/or type reference : LCBLUEREMOTE/W Standards ............................. : FCC Rules and Regulations Part 15 Subpart C Section 15.247 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Tongzhou Testing Co.,Ltd is acknowledged as copyright owner and source of the material. Shenzhen Tongzhou Testing Co.,Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ........................................... : Date (s) of performance of tests ............. : 2021/7/11~ 2021/7/19 Date of Issue .......................................... : 2021/7/20 Test Result .............................................. : Pass Testing Engineer : (Anna Hu) Technical Manager : (Hugo Chen) Authorized Signatory : (Andy Zhang) Report No.: TZ210702393-E Page 3 of 33 Revision History Revision Issue Date Revisions Revised By 000 2021/7/20 Initial Issue Andy Zhang Report No.: TZ210702393-E Page 4 of 33 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 5 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................ 5 1.2. HOST SYSTEM CONFIGURATION LIST AND DETAILS .......................................................................................... 5 1.3 EUT CONFIGURATION .......................................................................................................................................... 6 1.4. EXTERNAL I/O CABLE ......................................................................................................................................... 6 1.5. DESCRIPTION OF TEST FACILITY ........................................................................................................................ 6 1.6. STATEMENT OF THE MEASUREMENT UNCERTAINTY .......................................................................................... 7 1.7. MEASUREMENT UNCERTAINTY ........................................................................................................................... 7 1.8. DESCRIPTION OF TEST MODES .......................................................................................................................... 7 1.9. FREQUENCY OF CHANNELS ................................................................................................................................ 7 2. TEST METHODOLOGY ......................................................................................................................................... 8 2.1. EUT CONFIGURATION......................................................................................................................................... 8 2.2. EUT EXERCISE ................................................................................................................................................... 8 2.3. GENERAL TEST PROCEDURES ........................................................................................................................... 8 3. SYSTEM TEST CONFIGURATION ...................................................................................................................... 9 3.1. JUSTIFICATION..................................................................................................................................................... 9 3.2. EUT EXERCISE SOFTWARE ................................................................................................................................ 9 3.3. SPECIAL ACCESSORIES ...................................................................................................................................... 9 3.4. BLOCK DIAGRAM/SCHEMATICS........................................................................................................................... 9 3.5. EQUIPMENT MODIFICATIONS .............................................................................................................................. 9 3.6. TEST SETUP ........................................................................................................................................................ 9 4. SUMMARY OF TEST RESULTS ........................................................................................................................ 10 5. TEST RESULT .............................................…

Text truncated - open the document above for the full version.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AXD8-LCBLUEREMOTE TEST SETUP PHOTOS OF THE EUT Radiated Emission Below 1GHz Radiated Emission Above 1GHz
