2AXTH-H615W Manual Press Wireless Car Charging Holder

产品名称：H6 齿轮式车载支架 输入电压：5V/2A, 9V/2A, 12V/2A QC3.0 ,PD 输出功率：5W, 7.5W, 10W, 15W (Max) 工作温度: 0°C ~ 40°C 充电距离：≤4mm 适用手机：支持QI协议的无线充手机 1、把该产品与配件通过球头螺帽装配并旋紧（可兼容其他球 头直径17mm配件），并固定在理想位置。用数据线把产品与 QC3.0车充 （选配）连接，并插入点烟器取电。 2、该产品通电后，指示灯常亮；手动按压产品背后的按键， 夹臂底托同步打开，放置手机后线圈自动感应并开启充电，指 示灯改为呼吸效果；同时需手动锁紧夹臂固定住手机；如果手 机不支持无线充电或者检测到金属异物，指示灯闪烁5秒后灯 灭。本 产品最大充电功率为15W，充电效率根据充电环境和手 机会有所不同。通过拨动产品右侧面的通/断电开关 可以手动 控制是否开启充电功能。 3、无线充的最佳距离是4mm以内并不能穿透金属，所以需 要避免用金属的或太厚的（大于4mm）手机保护壳，这样才 能保证手机快速的无线充电。 4、从产品上取下手机后，指示灯即刻常亮待机状态。停车熄 火，产品停止供电时，指示灯熄灭。 5、取下手机方式： 手动按压背后按钮，夹臂自动打开，放入手机手动合拢夹 臂，手机进入充电状态。 1 1 2 3 4 12 3 4 左臂夹 2右臂夹 3底托臂夹 4无线充电区 5打开臂夹按钮 6指示灯 7通/断电开关 8Type-C 充电口 9出风口夹子 产品介绍使用说明出风口支架 产品参数 包装清单 1.车载无线充支架 x1 2.USB线 x1 3.出风口夹子 x1 4.使用说明书 x1 根据出风口叶片位置调整好出风口顶片和可旋转夹子组件的位置；插入 叶片，根据叶片厚度选择锁紧开关档位；适用于大部分汽车出风口一键 锁紧。硅胶接触汽车，更紧更贴合更好保护汽车不刮伤。 使用说明书 旋转调节夹子开合 出风口挡片 深入出风口内部夹片 万向旋转球头 出风口挡片 注意事项 1、请勿在车内60摄氏度以上高温条件下使用本产品。 2、请勿在专业赛车或汽车极限越野时使用该产品。 保 修 产品保修卡 本产品三包有效期：自购买日起（以寄回的客户回执或购机发票日期为 准），提供12个月保修服务，其它附件（如包装等）不属三包范围， 产品外观为人为损坏，附件损失，不在三包之列。不在三包之内或超过 三包期的产品，客户仍享受维修服务，但需要交纳维修工本费。 为了您的权益，请您认真填写，并妥善保管，作为维修前凭证！请勿擅自修改 内容，否则视为作废。本公司保留对产品售后服务条例的最终解释权。 型号： 购买日期： 经销商名称： 购买商号： 姓名： 地址： 保修内容保修日期 电话： 1. Assemble and tighten the product and the accessories through the ball head nut (compatible with other ball head diameter 17mm accessories), and fix in the ideal position. Connect the product with a QC3.0 car charger (optional) with the data cable, and plug in the cigarette lighter to take Product Name: 15W Manual Press Wireless Car Charging Holder Input voltage: 5V/2A, 9V/2A, 12V/2A QC3.0, PD Output power: 5W, 7.5W, 10W, 15W (Max) Working temperature: 0 °C ~ 40 °C Charging distance: ≤ 6mm Applicable phones: QI enabled phones power. 2. After the product is powered on, the indicator light remains on constantly. Manually press the button on the back of the product. The clamping arms and bottom support will open simultaneously. After placing the mobile phone, the coil will automatically sense and start charging. The indicator light will change to the breathing effect. Meanwhile, the clamping arm needs to be manually locked to fix the mobile phone. If the phone doesn't support wireless charging or if it detects a metal foreign object, the light flashes alternately for 5 seconds and then goes off. The maximum charging power of this productis 15W, and the charging efficiency will vary according to the charging environment and mobile phone. The charging function can be manually controlled to be activated or not by towing the on/off switch on the right side of the product 3. The best distance of wireless charging is within 4mm, and it cannot penetrate metal, so it is necessary to avoid using metal or too thick (over 4mm) mobile phone case, so as to ensure fast wireless charging of mobile phone. 4. After the phone is removed from the product, the indicator will immediately show the standby status . When the car engined off and the power supply stops, the indicator light goes off. 5. How to remove the phone: Manually press the button on the back, the clamping arm will automatically open, insert the phone and manually close the clamping arm, and the phone will enter the charging state. 1 2 3 4 5 6 7 8 9 Package Wireless charger *1 Air vent mount *1 Type-C cable *1 User manual *1 15W Manual Press Wireless Car Charging Holder User Manual 1、Do not use the product in the car at a temperature above 60 degrees. 2、Do not use this product in professional racing or extreme off-road driving. Product Warranty Card For your rights and interests , please fill in carefully and keep it safely as a pre-repair certificate! Do not modify the content without authorization,otherwise it will be considered invalid The company reserves the right of final interpretation of the product atter-sales service regulations. No.: Date of purchase: Dealer name: Dealer: Name:Telephone: Address: Warranty cantentWarranty date Product introduction Left arm clamp Open arm clamp button Indicator light Right arm clamp Bottom bracket arm clamp Wireless charging coil Type-C charging port Air outlet clip Power ON/OFF switch Product parameters Direction for useAir vent mount Adjust the clip opening and closing by rotating. Upper and lower support plate Upper and lower support plate A clip that goes deep into the air vent. Universal rotating ball joint Adjust the position of the top piece of the air outlet and the rotatable clip assembly according to the position of the air outlet blade; insert the blade and select the lock switch position according to the thickness of the blade; suitable for one-key locking of the air outlet of most cars. Silicone touches the car, tighter and fits better to protect the car from scratches. Precautions The guarantee Products three guarantees valid time:From purchasing date (Prevail to the customer receipt date or invoice date),provide 12 months guarantee.Prod-uct surface man-made damage,acces sories missed are not include in this guarantee.repair service for you for the product is out of the guarantee period or not covered by warranty ,but you need to pay the repair charge. 5 6 7 8 9 5 6 7 8 9 Warning: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, …

Text truncated - open the document above for the full version.

ShenzhenCaiboTechnologyCo.,Ltd. F4,Building30,FifthIndustrialZone,HuaideCuigangIndustrialPark,FuYong,Bao'anDistrict, Shenzhen,China AttestationStatements NotCoveredEntityApplicant&NotCoveredEquipment To:FederalCommunicationsCommissionDate:Dec.11,25 7435OaklandMillsRoad, Columbia,MD21046,USA Ref:InformationRequiredbySection2.911(d)(5)(i)&(ii) FCCID:2AXTH-H6 ShenzhenCaiboTechnologyCo.,Ltd.(“theapplicant”)certifiesthat,asofthedateofthefilingofthe application,theapplicantisnotidentifiedontheCoveredList,establishedpursuantto§1.50002of referencechapter,asanentityproducing“covered”communicationequipment.Theequipmentfor whichauthorizationissoughtisnot“covered”telecommunicationsequipmentandvideosurveillance equipmentproducedbyentitiesidentifiedontheCommission’sCoveredListthatprohibitedfrom receivinganequipmentauthorizationpursuanttosection§2.903oftheFCCrules. Sincerely, ApplicantSignature: PrintedName:LinjunHu Title:CEO Address:F4,Building30,FifthIndustrialZone,HuaideCuigangIndustrialPark,FuYong,Bao'anDistrict, Shenzhen,China Tel.:13713719057 Email:[email protected]

ShenzhenCaiboTechnologyCo.,Ltd. F4,Building30,FifthIndustrialZone,HuaideCuigangIndustrialPark,FuYong,Bao'anDistrict, Shenzhen,China 1|Page AttestationStatements To:FederalCommunicationsCommissionDate:Dec.11,25 7435OaklandMillsRoad, Columbia,MD21046,USA Subject:AttestationofCompliancewithFCCCoveredListSoftwareRequirements FCCID:[2AXTH-H6] ProductName:[:15WManualPressWirelessCarChargingHolder] Thisletterservesasanattestationthattheequipmentidentifiedabove☐is/☒isnot(selectone)"covered" softwareasdefinedundertheFederalCommunicationsCommission(FCC)CoveredListrequirements,as outlinedinFCC22-84andKDB986446. Specifically,theundersignedcertifiesthattheequipmentforwhichauthorizationissought: 1.Doesnotcontaincybersecurityoranti-virussoftwareproducedorprovidedbyKasperskyLab, Inc.oranyofitssuccessors,assignees,parents,subsidiaries,affiliates,oranyentitythathasrebranded orrelabeledsoftwareproducedbytheaforementionedentities. 2.Doesnothavethecapabilitytostore,run,ordeliveranysoftwareidentifiedontheFCCCoveredList, includingbutnotlimitedtocybersecurityandanti-virussoftware. Tosupportthisattestation,theappendixevaluationdocumentationhasbeenpreparedandisincludedinthe certificationfiling. Thisattestationisbasedonathoroughevaluationofthedevice'sdesign,functionality,andsoftware environment.Theundersignedaffirmsthattheinformationprovidedisaccurateandcompletetothebestof theirknowledge. Sincerely, ApplicantSignature: PrintedName:LinjunHu Title:CEO Address:F4,Building30,FifthIndustrialZone,HuaideCuigangIndustrialPark,FuYong,Bao'anDistrict, Shenzhen,China Tel.:13713719057 Email:[email protected] ShenzhenCaiboTechnologyCo.,Ltd. F4,Building30,FifthIndustrialZone,HuaideCuigangIndustrialPark,FuYong,Bao'anDistrict, Shenzhen,China 2|Page EvaluationregardingtotheCoveredListSoftware: Compliance Methodology EvaluationProcessResults Deviceis Inherent compliance ☒ TheChipset(s)usedislimitedtorun theCybersecurityoranti-virus software. Compliance ☒ TheMemoryusedislimitedtorunthe Cybersecurityoranti-virussoftware. Compliance ☒ Thereisstoragecapacitylimitationfor storeorinstalltheCybersecurityor anti-virussoftware. Compliance ☒ Operatingsystemusedislimitedto run,installordelivertheCybersecurity oranti-virussoftware. Compliance Deviceisnot Inherent compliance ☐ EvaluationBasedonSoftware BillofMaterials(SBoM) ☐ EvaluationBasedonScanfor Softwareonthedevice ☐ EvaluationBasedonFilesystemscan ☐ EvaluationBasedonRunning softwarecheck

ShenzhenCaiboTechnologyCo.,Ltd. F4,Building30,FifthIndustrialZone,HuaideCuigangIndustrialPark,FuYong,Bao'anDistrict, Shenzhen,China 12/18/2025 FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 Subject:ConfidentialityRequestfor:FCCID:2AXTH-H6 PursuanttoSections0.457and0.459oftheCommission’sRules,weherebyrequestpermanent confidentialtreatmentoftheexhibitsaccompanyingthiscertificationapplicationasoutlinedbelow: BlockDiagram  Schematics OperationalDescription Theaboveexhibitscontaintradesecretsand/orproprietaryinformationthatarenotpubliclyavailableand materialsthattheApplicanthasspentconsiderableeffortsindeveloping.Publicdisclosureofthesemay beharmfultotheApplicantandgiveanunfairadvantagetocompetitorsonthemarket. Sincerely, ApplicantSignature: PrintedName:LinjunHu Title:CEO Address:F4,Building30,FifthIndustrialZone,HuaideCuigangIndustrialPark,FuYong,Bao'anDistrict, Shenzhen,China Tel.:13713719057 Email:[email protected]

ShenzhenCaiboTechnologyCo.,Ltd. F4,Building30,FifthIndustrialZone,HuaideCuigangIndustrialPark,FuYong,Bao'anDistrict, Shenzhen,China Date:Dec.17,25 FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 Subject:AgentAuthorizationforFCCID:2AXTH-H6 I,theundersigned,herebyauthorize(FluxComplianceServiceLaboratory)toactonourbehalfinall mattersrelatingtothisapplicationforequipmentcertification. Anyactcarriedoutby(FluxComplianceServiceLaboratory)shallhavethesameeffectasourownandI acknowledgethatallresponsibilityforcomplyingwiththetermsandconditionsofcertification,as specifiedbyDERYCOMCERTIFICATIONSERVICES,INC.,stillresideswith(ShenzhenCaibo TechnologyCo.,Ltd.). WecertifythatwearenotsubjecttoadenialoffederalbenefitsthatincludesFCCbenefitspursuantto Section5301oftheAnti-DrugAbuseActof1988,21U.S.C.§862,andthatnopartytotheapplication,as definedin47CFR§1.2002(b),issubjecttoadenialoffederalbenefitsthatincludesFCCbenefits pursuanttothatsection. Sincerely, ApplicantSignature: PrintedName:LinjunHu Title:CEO Address:F4,Building30,FifthIndustrialZone,HuaideCuigangIndustrialPark,FuYong,Bao'anDistrict, Shenzhen,China Tel.:13713719057 Email:[email protected]

ShenzhenCaiboTechnologyCo.,Ltd. ProductSimilarityDeclaration EUTDescription:15WManualPressWirelessCarChargingHolder ModelNo.:H6,H6L,Y-H100,Y-H101,Y-H102,T240-F,T241-F FCCID:2AXTH-H6 We(ShenzhenCaiboTechnologyCo.,Ltd.)herebystatethatall themodelsareelectricalidenticalincludingthesamesoftware parameterandhardwaredesign(i.e.,circuitdesign,PCBLayout, RFmodule/circuit,antennatype(s)andantennalocation, componentsonPCB,etc.,),samemechanicalstructureand design(includingproductenclosure,materials,etc.,),theonly differenceisthemodelnameandcolour. Signature: Name:LinjunHu Title:Manager Place,date:December11,2025

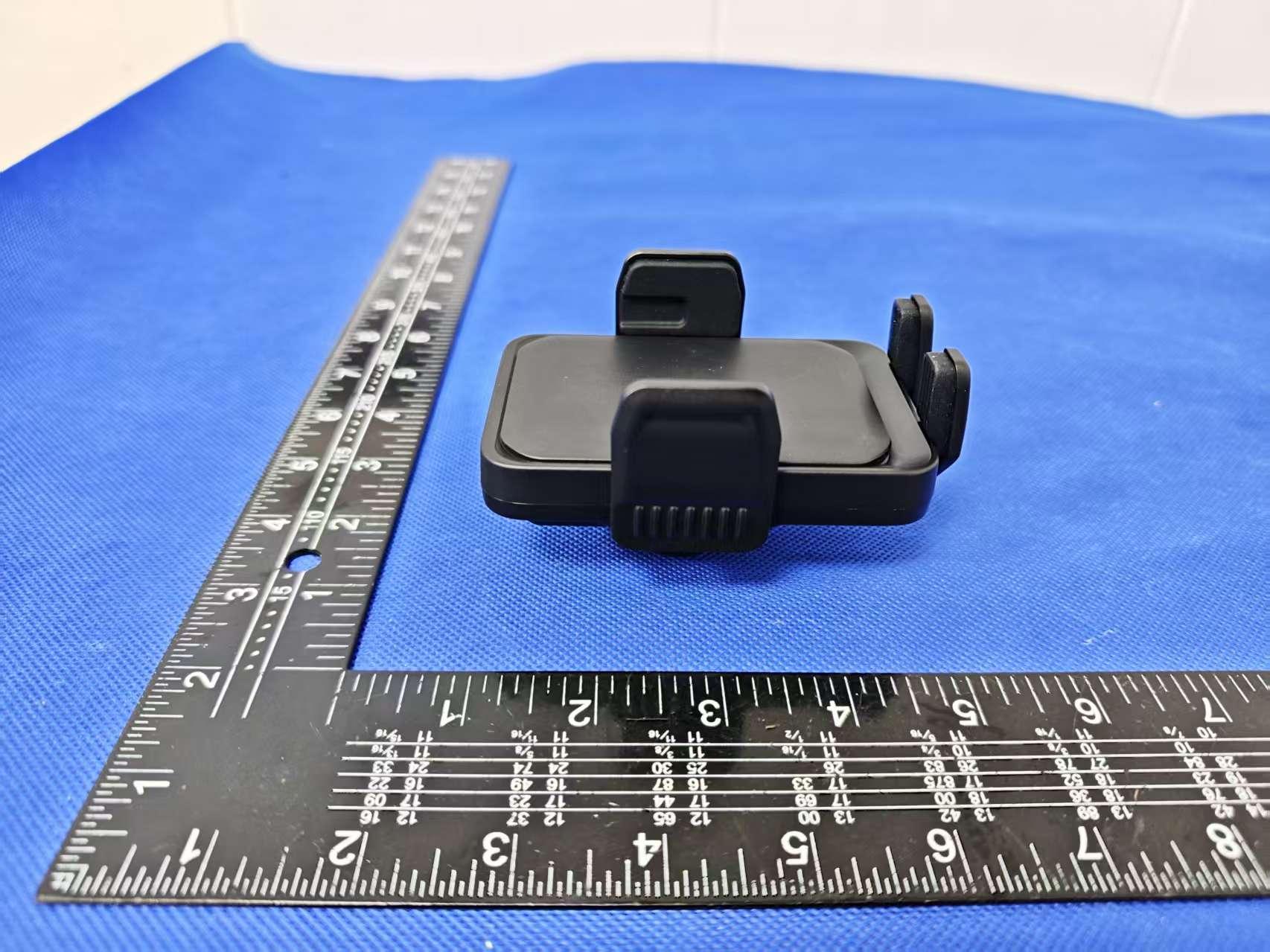

Page1of3 ReportNo.:FCS202511069 Externalphotos Photo1 Photo2 Page2of3 ReportNo.:FCS202511069 Photo3 Photo4 Page3of3 ReportNo.:FCS202511069 Photo5 Photo6

LabelandLabelLocation FCCID:2AXTH-H6 L*W:10mm*5mm labelandWhitefont

Page1of2 ReportNo.:FCS202511069 Internalphotos Photo1 Photo2 ANT Page2of2 ReportNo.:FCS202511069 Photo3

Page1of7ReportNo.:FCS202511069 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com MPETestReport ReportNo:FCS202511069 Issuedfor Applicant: ShenzhenCaiboTechnologyCo.,Ltd Address: F4,Building30,FifthIndustrialZone,HuaideCuigang IndustrialPark,FuYong,Bao'anDistrict,Shenzhen,China ProductName: 15WManualPressWirelessCarChargingHolder BrandName: N/A ModelName: H6 SeriesModel: H6L,Y-H100,Y-H101,Y-H102,T240-F,T241-F FCCID: 2AXTH-H6 IssuedBy:FluxComplianceServiceLaboratory Add:Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-Tech Industrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com Page2of7ReportNo.:FCS202511069 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com TESTRESULTCERTIFICATION Applicant’sName......................: ShenzhenCaiboTechnologyCo.,Ltd Address......................................: F4,Building30,FifthIndustrialZone,HuaideCuigangIndustrial Park,FuYong,Bao'anDistrict,Shenzhen,China Manufacture'sName ................ : ShenzhenCaiboTechnologyCo.,Ltd Address......................................: F4,Building30,FifthIndustrialZone,HuaideCuigangIndustrial Park,FuYong,Bao'anDistrict,Shenzhen,China ProductDescription ProductName ........................... :15WManualPressWirelessCarChargingHolder BrandName.............................:N/A ModelName .............................. :H6 SeriesModel .............................. :Pleaserefertothefirstpageofthereport TestStandards..........................: FCCCFR47part1,1.1307(b),1.1310,47CFRS2.1091: KDB680106WirelessPowerTransferD01V04 ThisdevicedescribedabovehasbeentestedFCS,thetestresultsshowthattheequipmentunder test(EUT)isincompliancewiththeFCCrequirements.Anditisapplicableonlytothetestedsample identifiedinthereport. Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofFCS,thisdocument maybealteredorrevisedbyFCS,personalonly,andshallbenotedintherevisionofthedocument.. DateofTest..................................: Date(s)ofperformanceoftests . :November05,2025~November17,2025 DateofIssue ................................. :December8,2025 TestResult.....................................:Pass Testedby: (MikeTan) Reviewedby : (NelsWang) Approvedby: ( JackWang ) Page3of7ReportNo.:FCS202511069 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com GENERALDESCRIPTIONOFTHEEUT ProductName15WManualPressWirelessCarChargingHolder TradeNameN/A ModelNameH6 SeriesModelPleaserefertothefirstpageofthereport ModelDifference PCBboard,structureandinternalofthesemodel(s) arethesame,onlydifferinginModelnameandcolor. Sonoadditionalmodelsweretested ChannelListPleaserefertotheNote2. Operationfrequency115-205kHz ModulationTypeMSK AntennaTypeInductiveLoopAntennawith1.0dBi PowerSupply Inputvoltage:5V2A,9V2.2A,12V2A Outputpower:5W/7.5W/10W/15W RatedvoltageDC12Vbyadapter TestvoltageDC12Vbyadapter HardwareversionnumberV1.0 SoftwareversionnumberV1.0 ConnectingI/OPort(s)PleaserefertotheUser'sManual Note: 1. Foramoredetailedfeaturesdescription,pleaserefertothemanufacturer’sspecifications ortheUser'sManual. Page4of7ReportNo.:FCS202511069 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com 3Limits Thecriterialistedinthefollowingtableshallbeusedtoevaluatetheenvironmentimpactofhuman exposuretoradiofrequency(RF)radiationasspecifiedin1.1307(b) LimitsforMaximumPermissibleExposure(MPE) 4TestSetup RFExposureEvaluation 1MeasuringStandard KDB680106WirelessPowerTransferD01V04 2Requirements AllrequirementsrefertoSection3ofKDB680106D01V04： 1.Thedevicesmaybeconsideredtomeetthe§2.1091-Mobileconditions(“generallybeusedinsucha waythataseparationdistanceofatleast20centimetersisnormallymaintainedbetweentheRF source'sradiatingstructure(s)and[thenearestperson]”) 2.DevicesOperatingatFrequenciesBelow4MHz. 3.For§2.1091-Mobiledevices,theMPElimitsbetween100kHzto300kHzaretobeconsideredthe sameasthoseat300kHzinTable1of§1.1310,thatis,614V/mand1.63A/m,fortheelectricfieldand magneticfield,respectively. Page5of7ReportNo.:FCS202511069 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com 5TestProcedure 1)TheRFexposuretestwasperformedinanechoicchamber. 2)Themeasurementprobewasplacedattestdistance(20cmfromthetop)whichisbetween theedgeofthechargerandthegeometriccenterofprobe. 3)Thehighestemissionlevelwasrecordedandcomparedwithlimitassoonasmeasurement ofeachpoints(A,B,C,D,E)werecompleted 4)TheEUTwasmeasuredaccordingtothedictatesofKDB680106D01WirelessPower Transferv04. 6. MeasurementUncertainty (95%confidencelevels,k=2) ItemUncertainty UncertaintyforH-Field2.36dB UncertaintyforE-Field2.42dB UncertaintyforconductedRFPower0.62dB Uncertaintyfortemperature0.2°C Uncertaintyforhumidity1.1% UncertaintyforDCandlowfrequencyvoltages0.06% 7.Equipmentlist TestEquipmentManufacturerModelNo.SN.Last calibration Calibrated until Electricand Magnetic field probe-Analyzer NardaEHP-200AN03565Aug25,2025Aug24,2026 Page6of7ReportNo.:FCS202511069 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com 8Testmode Mode1NullLoad Mode2HalfLoad-7.5W Mode3FullLoad-15W 9Necessaryaccessories EquipmentMfr/BrandModel/TypeNo.SerialNo.Note 1electronicloadYBZ Intelligent wirelesscharging fullfunctiontest module N/A Thisisfortestingonly inreport. 2AdapterXiaomiAD652GN/A Thisisfortestingonly inreport. 3PhoneXiaomi14proN/A Thisisf…

Text truncated - open the document above for the full version.

客户名称亿添源电子科技有限公司 产品类型MG2S线圈L=35MM 宏贵料号 42.5*0.8开双槽带孔12圈背圆白胶 客户料号 【 新版发行 , □ 版本修订】 【 本规范含目录共 3页 】 【 RoHS Compliant Parts 】 编制审核批准 彭建基 安福宏贵电子有限公司 本承认书在客户收到一星期内，请务必签章返回，逾期视为生产时按此承认书的标准 执行。 【客户核准】 日期: 承认状态： □完全承认 □条件承认 □拒绝承认 批准审核复检检查 产品规格书 客户名称亿添源电子科技有限公司客户料号 宏贵料号 42.5*0.8 开双槽带孔 12 圈背圆白胶规格编号 HG20241122001 版本 01 ♦、外形尺寸 (单位: mm) 规格编号 HG20241122001 生效日期 产 品 承认书 书 A 42.5 ± .0.5 B 40.0 ±1.5 C 15.0 ±0.5 D 5.3 E 37.0 ±2 F 35.0 ±2 G 3.0 ±1 H 2.5 ±0.2 I 0.8 ±0.1 J 8.0 ( 1)线径: 0.08* 105P丝包自粘铜线 (2)绕线圈数:12TS (3)起尾线是否交叉: 是 (4)线圈包8mm宽高温胶带 (5)线圈与磁片需粘贴居中 (6) 磁片背圆 42 白胶 参数 L0 规格测试条件测试仪器 LO 6.8 ±0.3 μH100KHz/ 1V■TH1816B ■TH1816B ■CH-502BC Q >30 min100KHz/ 1V DCR <60 mΩ @ 25 °C 操作温度 -40 °C ~ 125 °C ♦ 、材料清单: 序号 1 品名材料规格供应商备注 2 磁片42.5*0.8 开双槽带孔PC95猛锌 3 铜线0.08*105P丝包自粘铜线 4 高温胶 带 8MM环保胶带 5 锡高温锡条千岛环保锡 6 胶白胶环保胶水 7 背胶 42圆白胶 编制 审核批准 彭建基

FCCTestReport ReportNo:FCS202511069W01 Issuedfor Applicant: ShenzhenCaiboTechnologyCo.,Ltd Address: F4,Building30,FifthIndustrialZone,HuaideCuigang IndustrialPark,FuYong,Bao'anDistrict,Shenzhen,China ProductName: 15WManualPressWirelessCarChargingHolder BrandName: N/A ModelName: H6 SeriesModel: H6L,Y-H100,Y-H101,Y-H102,T240-F,T241-F FCCID: 2AXTH-H6 IssuedBy:FluxComplianceServiceLaboratory Add:Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-Tech Industrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com Page 2 of 23 ReportNo.:FCS202511069W01 TESTRESULTCERTIFICATION Applicant’sName ...................... : ShenzhenCaiboTechnologyCo.,Ltd Address......................................: F4,Building30,FifthIndustrialZone,HuaideCuigangIndustrial Park,FuYong,Bao'anDistrict,Shenzhen,China Manufacture'sName ................ : ShenzhenCaiboTechnologyCo.,Ltd Address......................................: F4,Building30,FifthIndustrialZone,HuaideCuigangIndustrial Park,FuYong,Bao'anDistrict,Shenzhen,China ProductDescription ProductName ........................... :15WManualPressWirelessCarChargingHolder BrandName.............................:N/A ModelName..............................:H6 SeriesModel .............................. :Pleaserefertothefirstpageofthereport TestStandards .......................... :FCCRulesandRegulationsPart15SubpartC,Section209 TestProcedure..........................:ANSIC63.10:2020 ThisdevicedescribedabovehasbeentestedFCS,thetestresultsshowthattheequipmentunder test(EUT)isincompliancewiththeFCCrequirements.Anditisapplicableonlytothetestedsample identifiedinthereport. Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofFCS,thisdocument maybealteredorrevisedbyFCS,personalonly,andshallbenotedintherevisionofthedocument.. DateofTest .................................. : Date(s)ofperformanceoftests . :November05,2025~November21,2025 DateofIssue ................................. :November21,2025 TestResult.....................................:Pass Testedby: (MikeTan) Reviewedby : (NelsWang) Approvedby: ( JackWang ) FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com Page 3 of 23 ReportNo.:FCS202511069W01 TableofContentsPage 1.SUMMARYOFTESTRESULTS..............................................................................................5 1.1TESTFACTORY................................................................................................................6 1.2MEASUREMENTUNCERTAINTY.....................................................................................6 2.GENERALINFORMATION.......................................................................................................7 2.1GENERALDESCRIPTIONOFTHEEUT..........................................................................7 2.2DESCRIPTIONOFTHETESTMODES............................................................................8 2.3DESCRIPTIONOFNECESSARYACCESSORIESANDSUPPORTUNITS..................9 2.4EQUIPMENTSLIST.........................................................................................................10 3CONDUCTEDEMISSIONMEASUREMENT..........................................................................11 3.1LIMIT.................................................................................................................................11 3.2TESTPROCEDURE........................................................................................................11 3.3TESTSETUP...................................................................................................................12 3.4TESTRESULTS...............................................................................................................13 4.RADIATEDEMISSIONMEASUREMENT..............................................................................15 4.1LIMIT................................................................................................................................15 4.2TESTPROCEDURE........................................................................................................16 4.3TESTSETUP...................................................................................................................17 4.4TESTRESULTS...............................................................................................................18 (30MHZ-1000MHZ)................................................................................................................19 5.20DBBANDWIDTHTEST.....................................................................................................21 5.1LIMIT................................................................................................................................21 5.2TESTPROCEDURE........................................................................................................21 5.3TESTSETUP...................................................................................................................21 5.4TESTRESULTS...............................................................................................................22 6.ANTENNAREQUIREMENT...................................................................................................23 6.1STANDARDREQUIREMENT..........................................................................................23 6.2EUTANTENNA................................................................................................................23 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.co…

Text truncated - open the document above for the full version.

Page1of2 ReportNo.:FCS202511069 Blow1GHzforradiatedemissiontestsetup Page2of2 ReportNo.:FCS202511069 Conductedemissiontestsetup MPEtestphotos
