2AXTH-T11Foldable 3-in-1 Wireless Charging Stand

三合一桌面无线充*1 Type-C 充电线*1 说明书*1 包 装产品规格 1.手机无线充电区域 2.手表无线充电区域 3.耳机无线充电区域 4.充电指示灯 5.Type-c 接口 为了您的权益，请您认真填写，并妥善保管，作为维前凭证！ 请勿擅自修改内容，否则视为作废。 本公司保留对该产品售后服务条例的最终解释权。 保 修 本产品三包有效期：自购买日起（以寄回的客户回执或购机发 票日期为准），提供12个月保修服务，其它附件（如包装等） 不属三包范围，产品外观为人为损坏，附件损失，不在三包之 列。不在三包之内或超过三包期的产品，客户仍享受维修服务 ，但需要交纳维修工本费。 1.接通电源，给产品通电。 2.将手机/耳机/手表放到对应的充电位置，均正常充电。 额定输入: 9V-3A/12V-3A/15V-3A 手机输出: 5W/7.5W/10W/15W/25W 耳机输出: 5 W 手表输出: 2.5 W (苹果） 手机充电距离: ≤4MM 输入接口: Type-C接口 工作频率: 5W,7.5W,10W (110-205kHz)MPP15W/25W(360KHz) 磁铁吸力: 0.8 KG 产品尺寸: 100mm*62mm*31.2mm 3 in 1 Desktop Wireless charger *1 Type-C charging cable *1 User Manual *1 1. Connect the power supply and power up the product. 2. Place the phone/earphone/watch in the corresponding charging position and charge it normally. 三合一无线充 使用说明书 USER MANUAL Package Functional component 1.Smartphone：For non-MagSafe phones, please use an extra magnetic ring or MagSafe case to use this product. 2. Input compatibility: QC3.0, PD3.0 and other protocols (Recommended: PD30W) 3.When the input voltage is 5V, the device will flash a warning light (due to the low 5V voltage, the power of the three in one charging is high, which may cause the watch to disconnect, please use a 9V adapter) 4.When the input is greater than 12V/3A, charging the phone separately can reach a maximum of 15W Applicable Devices LED intelligent indicator Use steps Warranty Input: 9V-3A/12V-3A/15V-3A Phone Output: 5W/7.5W/10W/15W/25W Earphone Output: 5W Watch Output: 2.5W (Apple Watch Mobile phone charging distance: ≤4MM Input interface: type-C interface Operating Frequency: 5W,7.5W,10W (110-205kHz) MPP15W/25W(360KHz) Magnetic attraction: 0.8 KG Product size: 100mm*62mm*31.2mm Product specification Caution For your rights and interests, please fill in carefully and keep it properly as a pre maintenance voucher! Do not modify the content without authorization, otherwise it will be deemed invalid. The company reserves the final right to interpret the after-sales service regulations of the product. Product Warranty Card 1. Do not over squeeze or collide with the equipment. 2. Please do not place it too close to the magnetic card (ID card, bank card, etc.) with magnetic stripe or chip to avoid magnetic card failure. 3.Do not use 5V adapter as insufficient power which may cause charging interruption. Please use 9V adapter for power supply. 1. Power on: the light stays on for 5 seconds and turn off 2. Standby: Off 3. Charging prompt: The phone indicator light stays on for 5 seconds and goes off (there is no indicator light when charging headphones or watches) 4. Full charge: Off The three guarantee period of this product: from purchasing date (Prevail to the customer receipt date or invoice date), provide 12 months guarantee. product surface man-made damage,accessories missed are not include in this guarantee, repair service for the product is out of the guarantee period or not covered by warranty ,customer need to pay the repair charge. 3 IN 1 Wireless Charging 功能组件 使用步骤 1.Mobile phone Wireless Charging Area 2.Apple Watch Wireless Charging Area 3.Earphone charging area 4.Indicator light 5.Type-C interface 注意事项 1.上电提示: 灯常亮5秒熄灭 2.待机提示: 指示灯熄灭 3.充电提示: 手机指示灯常亮5秒灭灯（耳机、手表充电时无指示灯） 4.充满提示: 指示灯熄灭 5.金属异物检测提示: 手机指示灯闪烁（耳机、手表异物时无指示灯） LED 智能指示灯 1.请勿过度挤压或碰撞设备。 2. 请勿与带磁条或者芯片的磁卡（身份证、银行卡等）放置 太近，避免造成磁卡失效。 3.请勿使用5V适配器充头,因功率不足会出现断充情况， 请使用9V适配器供电。 适用设备 1.智能手机:非磁吸手机，请增加引磁环后使用该产品 2.输入兼容：QC3.0 PD3.0等协议（建议PD30W） 3.输入电压5V时,设备会闪灯提醒（由于5V电压过低，三合一同 时充电时功率较大，可能会出现手表断充，请使用9V适配器） 4.输入12V/3A时，单独充手机最高25W 5.输入15V/3A时，同时充手机25W、耳机5W、手表2.5W(苹果) 6.iPhone16系列最大充电功率25W；三星手机最大充电功率 15W；华为安卓等手机支持的最大充电功率5W BRAND BRAND 1 2 3 4 5 BRAND 1 2 3 4 5 5. Metal foreign object detection: The mobile phone indicator light flashes (no indicator light when there is a foreign object on the headphones or watch) 5.When the input is greater than 15V/3A, charge the phone 25W, headphones 5W, and watch 2.5W simultaneously( Apple Watch ) 6.The maximum charging power supported is 25W for iPhone 16 series, 15W for Samsung smartphones, and 5W for Huawei and other Android smartphones. BRAND

ShenzhenCaiboTechnologyCo.,Ltd. F4,Building30,FifthIndustrialZone,HuaideCuigangIndustrialPark,FuYong,Bao'anDistrict, Shenzhen,China AttestationStatements NotCoveredEntityApplicant&NotCoveredEquipment To:FederalCommunicationsCommissionDate:Jan.21,26 7435OaklandMillsRoad, Columbia,MD21046,USA Ref:InformationRequiredbySection2.911(d)(5)(i)&(ii) FCCID:2AXTH-T11 ShenzhenCaiboTechnologyCo.,Ltd.(“theapplicant”)certifiesthat,asofthedateofthefilingofthe application,theapplicantisnotidentifiedontheCoveredList,establishedpursuantto§1.50002of referencechapter,asanentityproducing“covered”communicationequipment.Theequipmentfor whichauthorizationissoughtisnot“covered”telecommunicationsequipmentandvideosurveillance equipmentproducedbyentitiesidentifiedontheCommission’sCoveredListthatprohibitedfrom receivinganequipmentauthorizationpursuanttosection§2.903oftheFCCrules. Sincerelyyours, ApplicantSignature PrintedName:LinjunHu Title:CEO Address:F4,Building30,FifthIndustrialZone,HuaideCuigangIndustrialPark,FuYong,Bao'anDistrict, Shenzhen,China Tel.:13713719057 Email:[email protected]

ShenzhenCaiboTechnologyCo.,Ltd. F4,Building30,FifthIndustrialZone,HuaideCuigangIndustrialPark,FuYong,Bao'anDistrict, Shenzhen,China 1|Page AttestationStatements To:FederalCommunicationsCommissionDate:Jan.21,26 7435OaklandMillsRoad, Columbia,MD21046,USA Subject:AttestationofCompliancewithFCCCoveredListSoftwareRequirements FCCID:[2AXTH-T11] ProductName:[Foldable3-in-1WirelessChargingStand] Thisletterservesasanattestationthattheequipmentidentifiedabove☐is/☒isnot(selectone)"covered" softwareasdefinedundertheFederalCommunicationsCommission(FCC)CoveredListrequirements,as outlinedinFCC22-84andKDB986446. Specifically,theundersignedcertifiesthattheequipmentforwhichauthorizationissought: 1.Doesnotcontaincybersecurityoranti-virussoftwareproducedorprovidedbyKasperskyLab, Inc.oranyofitssuccessors,assignees,parents,subsidiaries,affiliates,oranyentitythathasrebranded orrelabeledsoftwareproducedbytheaforementionedentities. 2.Doesnothavethecapabilitytostore,run,ordeliveranysoftwareidentifiedontheFCCCoveredList, includingbutnotlimitedtocybersecurityandanti-virussoftware. Tosupportthisattestation,theappendixevaluationdocumentationhasbeenpreparedandisincludedinthe certificationfiling. Thisattestationisbasedonathoroughevaluationofthedevice'sdesign,functionality,andsoftware environment.Theundersignedaffirmsthattheinformationprovidedisaccurateandcompletetothebestof theirknowledge. Sincerelyyours, ApplicantSignature PrintedName:LinjunHu Title:CEO Address:F4,Building30,FifthIndustrialZone,HuaideCuigangIndustrialPark,FuYong,Bao'anDistrict, Shenzhen,China Tel.:13713719057 Email:[email protected] ShenzhenCaiboTechnologyCo.,Ltd. F4,Building30,FifthIndustrialZone,HuaideCuigangIndustrialPark,FuYong,Bao'anDistrict, Shenzhen,China 2|Page EvaluationregardingtotheCoveredListSoftware: Compliance Methodology EvaluationProcessResults Deviceis Inherent compliance ☒ TheChipset(s)usedislimitedtorun theCybersecurityoranti-virus software. Compliance ☒ TheMemoryusedislimitedtorunthe Cybersecurityoranti-virussoftware. Compliance ☒ Thereisstoragecapacitylimitationfor storeorinstalltheCybersecurityor anti-virussoftware. Compliance ☒ Operatingsystemusedislimitedto run,installordelivertheCybersecurity oranti-virussoftware. Compliance Deviceisnot Inherent compliance ☐ EvaluationBasedonSoftware BillofMaterials(SBoM) ☐ EvaluationBasedonScanfor Softwareonthedevice ☐ EvaluationBasedonFilesystemscan ☐ EvaluationBasedonRunning softwarecheck

ShenzhenCaiboTechnologyCo.,Ltd. F4,Building30,FifthIndustrialZone,HuaideCuigangIndustrialPark,FuYong,Bao'anDistrict, Shenzhen,China U.S.AgentLetterofAttestation To:FederalCommunicationsCommission 7435OaklandMillsRoad,Columbia,MD21046,USA Date:Jan.26,26 Ref:AttestationStatement–Part2.911(d)(7)filing FCCID:2AXTH-T11 ShenzhenCaiboTechnologyCo.,Ltd.(“theapplicant”)certifiesthat,asofthedateofthefilingof theapplication,[LOBOSIOWAINC](“theagent”)isourdesignatedU.S.agentforserviceof processfortheabovereferenceFCCID.Theapplicantacceptstomaintainanagentforserviceof processintheUnitedStatesfornolessthanoneyearaftereitherthegranteehaspermanently terminatedallmarketingandimportationoftheapplicableequipmentwithintheU.S.,orthe conclusionofanyCommission-relatedadministrativeorjudicialproceedinginvolvingtheequipment, whicheverislater.TheapplicantfurtheracknowledgesitisourresponsibilitytoinformtheFCC whenevertheagentinformationchanges. [LOBOSIOWAINC]("theagent)understanditistheagent'sobligationtoacceptserviceofprocess intheUnitedStatesformattersrelatedtotheapplicableequipment,andatthephysicalU.S. addressandemailaddress. DesignatedU.S.Agent CompanyName:LOBOSIOWAINC FRN:0036413961 Address:4623BittercreekDrColoradoSpringsco 80922Us Signature: ContactPerson:HarleyLi Tel:(818)818-0538Email:[email protected] Applicant CompanyName:ShenzhenCaiboTechnologyCo.,Ltd. Address:F4,Building30,FifthIndustrialZone,Huaide CuigangIndustrialPark,FuYong,Bao'anDistrict, Shenzhen,China FRN:0030078273 Signature: ContactPerson:LinjunHu Tel:13713719057Email:[email protected]

ShenzhenCaiboTechnologyCo.,Ltd. F4,Building30,FifthIndustrialZone,HuaideCuigangIndustrialPark,FuYong,Bao'anDistrict, Shenzhen,China 1/21/2026 FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 Subject:ConfidentialityRequestfor:FCCID:2AXTH-T11 PursuanttoSections0.457and0.459oftheCommission’sRules,weherebyrequestpermanent confidentialtreatmentoftheexhibitsaccompanyingthiscertificationapplicationasoutlinedbelow: BlockDiagram  Schematics OperationalDescription Theaboveexhibitscontaintradesecretsand/orproprietaryinformationthatarenotpubliclyavailableand materialsthattheApplicanthasspentconsiderableeffortsindeveloping.Publicdisclosureofthesemay beharmfultotheApplicantandgiveanunfairadvantagetocompetitorsonthemarket. Sincerely, (Signature) PrintedName:LinjunHu Title:CEO Address:F4,Building30,FifthIndustrialZone,HuaideCuigangIndustrialPark,FuYong,Bao'anDistrict, Shenzhen,China Tel.:13713719057 Email:[email protected]

ShenzhenCaiboTechnologyCo.,Ltd. F4,Building30,FifthIndustrialZone,HuaideCuigangIndustrialPark,FuYong,Bao'anDistrict, Shenzhen,China Date:Jan.26,26 FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 Subject:AgentAuthorizationforFCCID:2AXTH-T11 I,theundersigned,herebyauthorize(CTSLTesting(Dongguan)Co.,Ltd.)toactonourbehalfinall mattersrelatingtothisapplicationforequipmentcertification. Anyactcarriedoutby(CTSLTesting(Dongguan)Co.,Ltd.)shallhavethesameeffectasourownandI acknowledgethatallresponsibilityforcomplyingwiththetermsandconditionsofcertification,as specifiedbyDERYCOMCERTIFICATIONSERVICES,INC.,stillresideswith(ShenzhenCaibo TechnologyCo.,Ltd.). WecertifythatwearenotsubjecttoadenialoffederalbenefitsthatincludesFCCbenefitspursuantto Section5301oftheAnti-DrugAbuseActof1988,21U.S.C.§862,andthatnopartytotheapplication,as definedin47CFR§1.2002(b),issubjecttoadenialoffederalbenefitsthatincludesFCCbenefits pursuanttothatsection. Sincerely, ApplicantSignature: PrintedName:LinjunHu Title:CEO Address:F4,Building30,FifthIndustrialZone,HuaideCuigangIndustrialPark,FuYong,Bao'anDistrict, Shenzhen,China Tel.:13713719057 Email:[email protected]

ShenzhenCaiboTechnologyCo.,Ltd. ProductSimilarityDeclaration EUTDescription:Foldable3-in-1WirelessChargingStand ModelNo.:T11 SeriesModel:HR-T11WH,HR-T11BK We(ShenzhenCaiboTechnologyCo.,Ltd.)herebystatePCB board,structureandinternalofthesemodel(s)arethesame,only differinginModelnameandcolor.Sonoadditionalmodelswere tested. Signature: Name:LinjunHu Title:CEO Place,date:Jan.26,2026

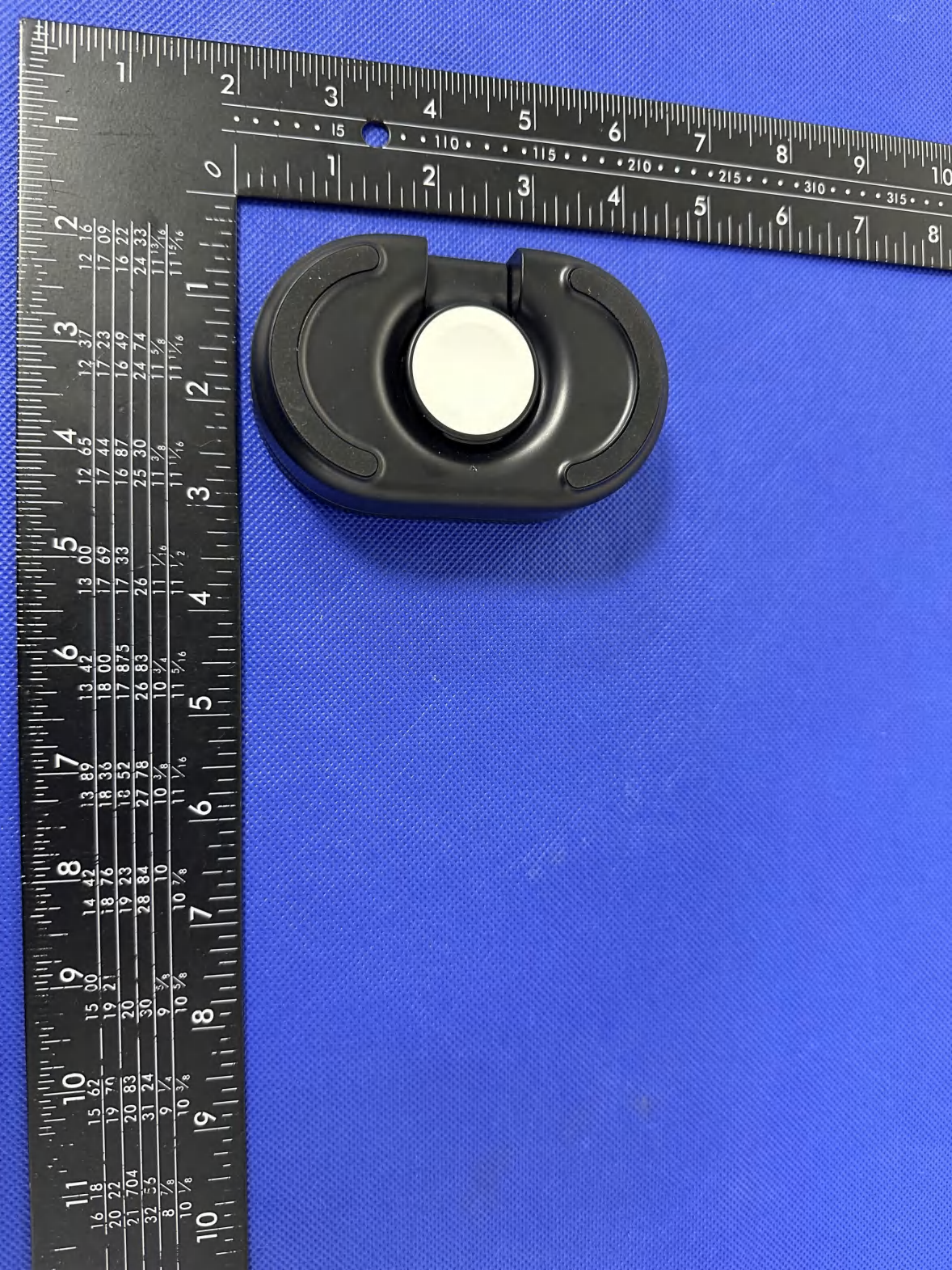

Page1of4 CTSLTesting(Dongguan)Co.,Ltd. ReportNo.:CTSL2620120041 AnnexA. EUTExternalPhotos FCCID:2AXTH-T11 Room112,Building1,No.15,Jiaoyuansongshan,HetianVilltage,HoujieTown,DongguanCity,Guangdong,China. Tel:0769-86009597E-mail:[email protected]://www.ctsl-lab.com AnnexA. EUTExternalPhotos Photo1ExternalphotosofEUT Photo2ExternalphotosofEUT Page2of4 CTSLTesting(Dongguan)Co.,Ltd. ReportNo.:CTSL2620120041 AnnexA. EUTExternalPhotos FCCID:2AXTH-T11 Room112,Building1,No.15,Jiaoyuansongshan,HetianVilltage,HoujieTown,DongguanCity,Guangdong,China. Tel:0769-86009597E-mail:[email protected]://www.ctsl-lab.com Photo3ExternalphotosofEUT Photo4ExternalphotosofEUT Page3of4 CTSLTesting(Dongguan)Co.,Ltd. ReportNo.:CTSL2620120041 AnnexA. EUTExternalPhotos FCCID:2AXTH-T11 Room112,Building1,No.15,Jiaoyuansongshan,HetianVilltage,HoujieTown,DongguanCity,Guangdong,China. Tel:0769-86009597E-mail:[email protected]://www.ctsl-lab.com Photo5ExternalphotosofEUT Photo6ExternalphotosofEUT Page4of4 CTSLTesting(Dongguan)Co.,Ltd. ReportNo.:CTSL2620120041 AnnexA. EUTExternalPhotos FCCID:2AXTH-T11 Room112,Building1,No.15,Jiaoyuansongshan,HetianVilltage,HoujieTown,DongguanCity,Guangdong,China. Tel:0769-86009597E-mail:[email protected]://www.ctsl-lab.com Photo7ExternalphotosofEUT ------------------------------------------EndofEUTExternalPhotos------------------------------------------

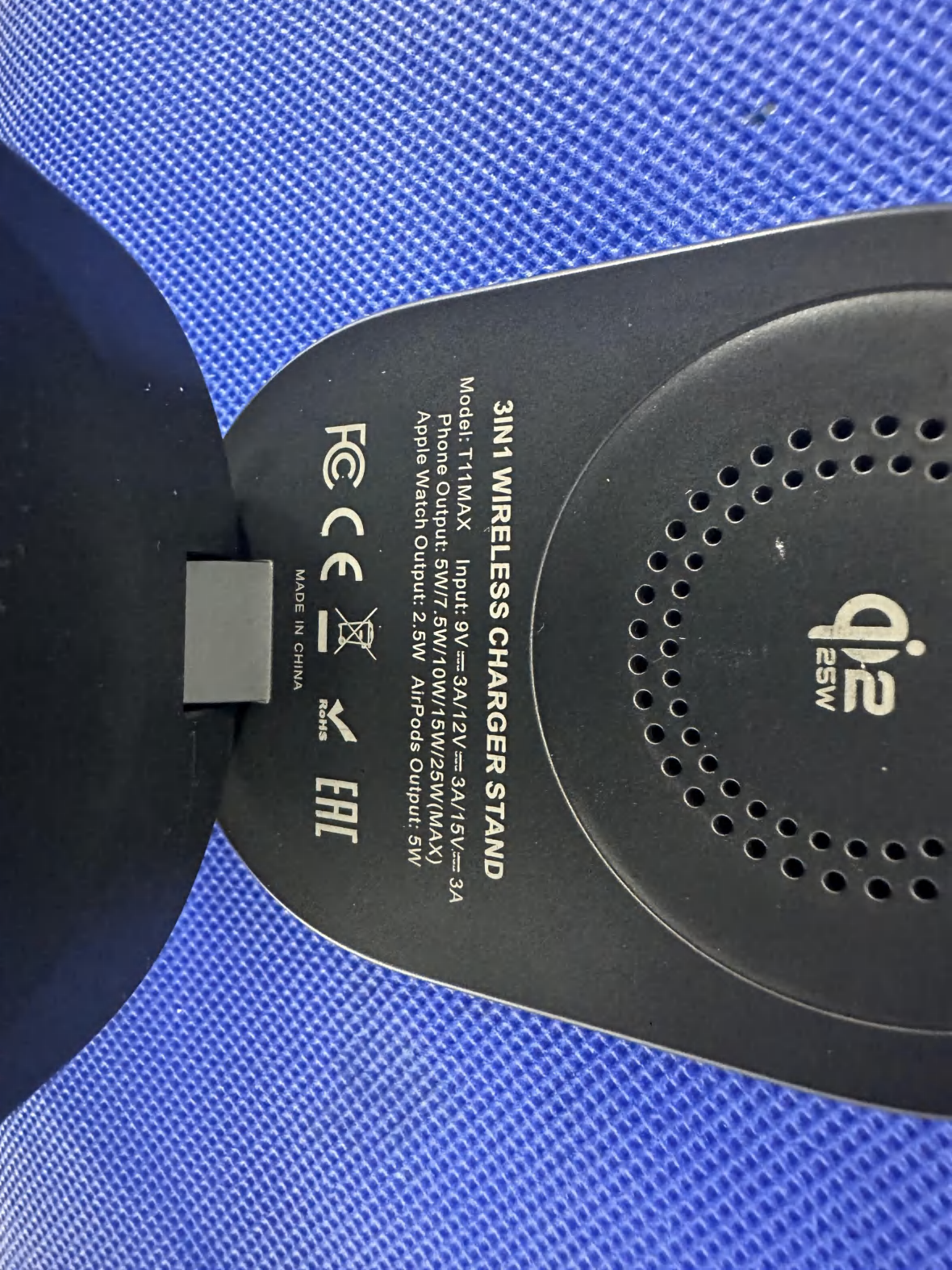

LabelandLabelLocation FCCID:2AXTH-T11

Page1of3 CTSLTesting(Dongguan)Co.,Ltd. ReportNo.:CTSL2620120041 AnnexB. EUTInternalPhotos FCCID:2AXTH-T11 Room112,Building1,No.15,Jiaoyuansongshan,HetianVilltage,HoujieTown,DongguanCity,Guangdong,China. Tel:0769-86009597E-mail:[email protected]://www.ctsl-lab.com AnnexB. EUTInternalPhotos Photo1InternalphotosofEUT Photo2InternalphotosofEUT Page2of3 CTSLTesting(Dongguan)Co.,Ltd. ReportNo.:CTSL2620120041 AnnexB. EUTInternalPhotos FCCID:2AXTH-T11 Room112,Building1,No.15,Jiaoyuansongshan,HetianVilltage,HoujieTown,DongguanCity,Guangdong,China. Tel:0769-86009597E-mail:[email protected]://www.ctsl-lab.com Photo3InternalphotosofEUT Photo4InternalphotosofEUT Page3of3 CTSLTesting(Dongguan)Co.,Ltd. ReportNo.:CTSL2620120041 AnnexB. EUTInternalPhotos FCCID:2AXTH-T11 Room112,Building1,No.15,Jiaoyuansongshan,HetianVilltage,HoujieTown,DongguanCity,Guangdong,China. Tel:0769-86009597E-mail:[email protected]://www.ctsl-lab.com Photo5InternalphotosofEUT ------------------------------------------EndofEUTInternalPhotos------------------------------------------ Antennaposition

FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com RFExposureEvaluation FCCID:2AXTH-T11 Applicant Name ShenzhenCaiboTechnologyCo.,Ltd. Applicant Address F4,Building30,FifthIndustrialZone,HuaideCuigangIndustrialPark,FuYong,Bao'an District,Shenzhen,China Manufacturer Name ShenzhenCaiboTechnologyCo.,Ltd. Manufacturer Address F4,Building30,FifthIndustrialZone,HuaideCuigangIndustrialPark,FuYong,Bao'an District,Shenzhen,China TradeMark-- ProductnameFoldable3-in-1WirelessChargingStand MainTest Model T11 SeriesModels-- Standard FCCCFR47part1,1.1307(b),1.1310,47CFRS2.1091: KDB680106WirelessPowerTransferD01V04 TestLocation ISO/IEC17025byILAC-MRAisA2LA7556.01 CTSLTesting(Dongguan)Co.,Ltd. Room112,Building1,No.15,JiaoyuansongshanHetianVillage,HoujieTown DongguanCity,Guangdong,People’sRepublicofChina ReceiptDate2025.11.15Testperiod2025.11.15-2025.12.3IssueDate2025.12.3 Conclusion Theequipmentundertestwasfoundtobecompliancewiththerequirementsof thestandardsapplied. Performs Testing: EthanZhao TestReport Reviewer: SteveQin TestReport Authorizer: AlanLi Page 2 of 7 CTSLTesting(Dongguan)Co.,Ltd. ReportNo.:CTSL2620120041 3Limits Thecriterialistedinthefollowingtableshallbeusedtoevaluatetheenvironmentimpactofhuman exposuretoradiofrequency(RF)radiationasspecifiedin1.1307(b) LimitsforMaximumPermissibleExposure(MPE) 4TestSetup RFExposureEvaluation FCCID:2AXTH-T11 1MeasuringStandard KDB680106WirelessPowerTransferD01V04 2Requirements AllrequirementsrefertoSection3ofKDB680106D01V04： 1.Thedevicesmaybeconsideredtomeetthe§2.1091-Mobileconditions(“generallybeusedinsucha waythataseparationdistanceofatleast20centimetersisnormallymaintainedbetweentheRF source'sradiatingstructure(s)and[thenearestperson]”) 2.DevicesOperatingatFrequenciesBelow4MHz. 3.For§2.1091-Mobiledevices,theMPElimitsbetween100kHzto300kHzaretobeconsideredthe sameasthoseat300kHzinTable1of§1.1310,thatis,614V/mand1.63A/m,fortheelectricfieldand magneticfield,respectively. Page 3 of 7 CTSLTesting(Dongguan)Co.,Ltd. ReportNo.:CTSL2620120041 5TestProcedure 1)TheRFexposuretestwasperformedinanechoicchamber. 2)Themeasurementprobewasplacedattestdistance(20cmfromthetop)whichisbetween theedgeofthechargerandthegeometriccenterofprobe. 3)Thehighestemissionlevelwasrecordedandcomparedwithlimitassoonasmeasurement ofeachpoints(A,B,C,D,E)werecompleted 4)TheEUTwasmeasuredaccordingtothedictatesofKDB680106D01WirelessPower Transferv04. 6. MeasurementUncertainty (95%confidencelevels,k=2) ItemUncertainty UncertaintyforH-Field2.36dB UncertaintyforE-Field2.42dB UncertaintyforconductedRFPower0.62dB Uncertaintyfortemperature0.2°C Uncertaintyforhumidity1.1% UncertaintyforDCandlowfrequencyvoltages0.06% 7.Equipmentlist TestEquipmentManufacturerModelNo.SN.Last calibration Calibrated until Electricand Magnetic field probe-Analyzer NardaEHP-200AN03565Aug25,2025Aug24,2026 9Testmode Mode1 Watch(5W) Mode2 WirelessEarbuds(5W) Page 4 of 7 CTSLTesting(Dongguan)Co.,Ltd. ReportNo.:CTSL2620120041 Mode3 Phone(5W) Mode4 Phone(7.5W) Mode5 Phone(10W) Mode6 Phone(15W) Mode7 Phone(25W) Mode8 Watch(5W)+WirelessEarbuds(5W)+Phone(5W) Mode9 Watch(5W)+WirelessEarbuds(5W)+Phone(7.5W) Mode10 Watch(5W)+WirelessEarbuds(5W)+Phone(10W) Mode11 Watch(5W)+WirelessEarbuds(5W)+Phone(15W) Mode12 Watch(5W)+WirelessEarbuds(5W)+Phone(25W) Mode10 Watch(5W)+Phone(5W) Mode14 Watch(5W)+Phone(7.5W) Mode15 Watch(5W)+Phone(10W) Mode16 Watch(5W)+Phone(15W) Mode17 Watch(5W)+Phone(25W) Mode18 WirelessEarbuds(5W)+Phone(5W) Mode19 WirelessEarbuds(5W)+Phone(7.5W) Mode20 WirelessEarbuds(5W)+Phone(10W) Mode21WirelessEarbuds(5W)+Phone(15W) Mode22WirelessEarbuds(5W)+Phone(25W) Mode23Watch(5W)+WirelessEarbuds(5W) Page 5 of 7 CTSLTesting(Dongguan)Co.,Ltd. ReportNo.:CTSL2620120041 10Necessaryaccessories EquipmentMfr/BrandModel/TypeNo.SerialNo.Note 1PhoneAppleiPhone15N/A Thisisfortestingonly inreport. 2EarbudsAppleAirPodsAirPods2N/A Thisisfortestingonly inreport. 3WatchAppleWatchS7N/A Thisisfortestingonly inreport. 4AdapterXiaomiMDY-11-EBN/A Thisisfortestingonly inreport. 11TestResult PlacementMode11(Worst) E-FiledStrengthat20cmfromtheedgessurroundingtheEUT(V/m) Battery power Frequency Range(MHz) Test Position A Test Position B Test Position C Test Position D Limits (V/m) Result 1%0.115-0.2051.431.480.600.49614 PASS 50%0.115-0.2051.521.470.490.63614 PASS 95%0.115-0.2051.281.520.460.61614 PASS Stand-by0.115-0.2051.481.420.640.66614 PASS E-FiledStrengthat20cmfromthetopoftheEUT(V/m) Battery power Frequency Range(MHz) Test PositionE Limits (V/m) Result 1%0.115-0.2051.27614 PASS 50%0.115-0.2051.30614 PASS 95%0.115-0.2051.37614 PASS Stand-by0.115-0.2051.50614 PASS H-FiledStrengthat20cmfromtheedgessurroundingtheEUT(A/m) Page 6 of 7 CTSLTesting(Dongguan)Co.,Ltd. ReportNo.:CTSL2620120041 Battery power Frequency Range(MHz) Test Position A Test Position B Test Position C Test Position D Limits (A/m) Result 1%0.115-0.2050.660.670.660.641.63PASS 50%0.115-0.2050.610.590.600.681.63PASS 95%0.115-0.2050.660.590.610.641.63PASS Stand-by0.115-0.2050.660.600.640.661.63PASS H-FiledStrengthat20cmfromthetopoftheEUT(A/m) Battery power Frequency Range(MHz) Test PositionE Limits (A/m) Result 1%0.115-0.2050.57 1.63PASS 50%0.115-0.2050.50 1.63PASS 95%0.115-0.2050.51 1.63PASS Stand-by0.115-0.2050.66 1.63PASS PlacementMode12(Worst) E-FiledStrengthat20cmfromtheedgessurroundingtheEUT(V/m) Battery power Frequency Range(KHz) Test Position A Test Position B Test Position C Test Position D Limits (V/m) Result 1%3601.391.210.420.51614 PASS 50%3601.281.350.350.52614 PASS 95%3601.351.420.410.59614 PASS E-FiledStrengthat20cmfromthetopoftheEUT(V/m) Battery power Frequency Range(KHz) Test PositionE Limits (V/m) Result 1%3601.15614 PASS 50%3601.19614 PASS 95%3601.21614 PASS H-FiledStrengthat20cmfromtheedgessurroundingtheEUT(A/m) Page 7 of 7 CTSLTesting(Dongguan)Co.,Ltd. ReportNo.:CTSL2620120041 Battery power Frequency Range(KHz) Test Position A Test Position B…

Text truncated - open the document above for the full version.

FCCPART15SUBPARTC FCCPART15.209 TESTREPORT FCCID:2AXTH-T11 ReportNo:CTSL2620120041 ProductName:Foldable3-in-1WirelessChargingStand MainTestModel:T11 SeriesModels: HR-T11WH,HR-T11BK(PCBboard,structureandinternalof thesemodel(s)arethesame,onlydifferinginModelname andcolor.Sonoadditionalmodelsweretested) Applicant:ShenzhenCaiboTechnologyCo.,Ltd. EXECUTIVESUMMARY Asampleofthisproductwastestedandfoundtobeincompliancewith FCCPART15C,FCCPART15SUBPARTC(15.209). Anyreproductionofthisdocumentmustbedoneinfull.Nosinglepartofthisdocumentmaybe reproducedwithoutpermissionfromCTSL.AllTestDataPresentedinthisreportisonly applicabletopresentedTestsample. CTSLTesting(Dongguan)Co.,Ltd. Maincompanyaddress:Building1,HoujieRoadHoujieTown,GuangdongProvince, DongguanCityP.R.C. Page 2 of 26 CTSLTesting(Dongguan)Co.,Ltd. ReportNo.:CTSL2620120041 TestReport FCCID:2AXTH-T11 Applicant Name ShenzhenCaiboTechnologyCo.,Ltd. Applicant Address F4,Building30,FifthIndustrialZone,HuaideCuigangIndustrialPark,FuYong,Bao'an District,Shenzhen,China Manufacturer Name ShenzhenCaiboTechnologyCo.,Ltd. Manufacturer Address F4,Building30,FifthIndustrialZone,HuaideCuigangIndustrialPark,FuYong,Bao'an District,Shenzhen,China TradeMark-- ProductnameFoldable3-in-1WirelessChargingStand MainTest Model T11 SeriesModelsHR-T11WH,HR-T11BK Standard FCCPart15SubpartC(15.209) ANSIC63.10:2020 FCCKDB558074D0115.209MeasGuidancev05r02 TestLocation ISO/IEC17025byILAC-MRAisA2LA7556.01 CTSLTesting(Dongguan)Co.,Ltd. Room112,Building1,No.15,JiaoyuansongshanHetianVillage,HoujieTown DongguanCity,Guangdong,People’sRepublicofChina ReceiptDate2025.11.15Testperiod2025.11.15-2025.12.3IssueDate2025.12.3 Conclusion Theequipmentundertestwasfoundtobecompliancewiththerequirementsof thestandardsapplied. Performs Testing: EthanZhao TestReport Reviewer: SteveQin TestReport Authorizer: AlanLi Page 3 of 26 CTSLTesting(Dongguan)Co.,Ltd. ReportNo.:CTSL2620120041 TableofContentsPage 1.SUMMARYOFTESTRESULTS..............................................................................................5 1.1TESTFACTORY................................................................................................................6 1.2MEASUREMENTUNCERTAINTY.....................................................................................6 2.GENERALINFORMATION.......................................................................................................7 2.1GENERALDESCRIPTIONOFTHEEUT..........................................................................7 2.2DESCRIPTIONOFTHETESTMODES............................................................................8 2.3DESCRIPTIONOFNECESSARYACCESSORIESANDSUPPORTUNITS..................8 2.4EQUIPMENTSLIST.........................................................................................................10 3CONDUCTEDEMISSIONMEASUREMENT..........................................................................12 3.1LIMIT................................................................................................................................12 3.2TESTPROCEDURE........................................................................................................12 3.3TESTSETUP...................................................................................................................13 3.4TESTRESULTS...............................................................................................................13 4.RADIATEDEMISSIONMEASUREMENT..............................................................................16 4.1LIMIT................................................................................................................................16 4.2TESTPROCEDURE........................................................................................................17 4.3TESTSETUP...................................................................................................................18 4.4TESTRESULTS...............................................................................................................19 (30MHZ-1000MHZ)................................................................................................................21 5.20DBBANDWIDTHTEST.....................................................................................................23 5.1LIMIT................................................................................................................................23 5.2TESTPROCEDURE........................................................................................................23 5.3TESTSETUP...................................................................................................................23 5.4TESTRESULTS...............................................................................................................24 6.ANTENNAREQUIREMENT...................................................................................................26 6.1STANDARDREQUIREMENT..........................................................................................26 6.2EUTANTENNA................................................................................................................26 Page 4 of 26 CTSLTesting(Dongguan)Co.,Ltd. ReportNo.:CTSL2620120041 RevisionHistory Rev.IssueDateEffectPageContents 002025.12.3N/AN/A Page 5 of 26 CTSLTesting(Dongguan)Co.,Ltd. ReportNo.:CTSL2620120041 1.SUMMARYOFTESTRESULTS FCCRulesandRegulationsPart15SubpartC,Section209 Standard Section TestItemJudgmentRemark 15.207ConductedEmissionPASS-- 15.209(a)(f)RadiatedSpuriousEmissionPASS-- 15.215(c)20dBBandwidthPASS-- 15.203AntennaRequirementPASS-- NOTE: (1)”N/A”denotestestisnotapplicableinthisTestReport (2)AlltestsareaccordingtoANSIC63.10-2020 Page 6 of 26 CTSLTesting(Dongguan)Co.,Ltd. ReportNo.:CTSL2620120041 1.1TESTFACTORY EMCLab: A2LACertificateNumber:7556.01; CTSLTesting(Dongguan)Co.,Ltd.hasbeenlistedbyAmerican AssociationforLaboratoryAccreditationtoperformelectromagneticemissionme…

Text truncated - open the document above for the full version.

东莞市德弗力五金电子材料有限公司 Dongguan city DFL Electronic Technology Co.,LTD 承 认 书 客户名称(CUSTOMER): 客户料号(PART NO.): 品 名(DESCRIPTION): 规格(SPECIFICATION): 东莞市石碣镇新风西路107号 电话：0769-86016320 传真：0769-86372427 第 1 页 共 2 页 日 期(DATE): 15x38.5,0.08×105P，磁边起15MM 20230923 SPECIFICATION FOR APPROVEAL 本司确认（TRX APPROVAL） 制作 审核 客户确认（CUSTOMER APPROVAL） 确认结果(Result): 合格不合格 其它 承认日期 工程 批准 承认日期 曾小仙 邱志辉 20230923 线圈+磁片 ZLGD-Y15X38.5-15-FR ZLGD-A1-0053 产品型号: SPECIFICATION 二、原理图（schematic diagram:） 拟制/日期PREPARED BY/DATE 审核/日期CHECKED BY/DATE 东莞市德弗力五金电子材料有限公司 Dongguan city DFL Electronic Technology Co.,LTD DESC Rev:A 版本 Customer: Date: Description: 一、尺寸DIMENSION:(mm) A B C D E F G I 注: 三、绕线参数(WindingSpecification:) 序号 NO. 端子 TERMINAL 线径 WIRE 圈数 Turns 绕线方向 Winding Direction 四、电气特性 ELECTRICAL CHARACTERISTICS: 温度 TEMPERATURE:25±10°C,湿度 RELATIVE HUMIDITY:65±20% 序号 NO. 客户/日期CUSTOMEU/DATE 端子 TERMINAL 项目 ITEM 标准 SPECIFICATION 测试条件 TEST FREQUENCY 测试仪器 TEST EQUIPMENTS 1 2 3 4 IND. IND. Q值 DCR 20230923 15.0±1.0 38.5+1.5 1 0.08×105P丝包线 12TS 逆时针 1.线圈贴G44*0.8 硬磁 2.线圈出线位置缠 8MM高温胶带 3.磁片背面贴带耳 朵双面胶 4.线圈不可松线 J K L 44.0±1.0 M N O P 6.8uH±0.3加磁片 100KHz/1.0V SHDA 1062 H 线圈+磁片 15.0±2.0 3.0±2.0 0.8±0.2 C D F ZLGD-Y15X38.5-15-FR ZLGD-A1-0053 B A E

Page1of 5 东莞市德弗力五金电子材料有限公司 产品规格书 PRODUCT SPECIFICATION 客 户： CUSTOMER:____________________________________________________________________ 客户料号： CUST P/N:____________________________________________________________________ 德弗力料号： K C P/N:____________________________________________________________________ 产品型号： 22.0*39*80*0.08mm*80P*11TS D E S E : 日 期： 2025.08.22 D A T E :____________________________________________________________________ 版 本： A.0 VERSION :____________________________________________________________________ （客户承认受领印）ACCEPTANCE STAMP 拟制跟单员 PREPARED BY 曾小仙 Address:东莞市石碣镇新风西路107号Tel：86-076986016320 Http://www.hartai.com Fax：86-076986372427 MERCHANDISER 工程审核 ENGINEER CHECKED BY 批准 APPROVED BY 邱志辉 ZLGD 东莞市德弗力五金电子材料有限公司 Dongguan city DFL Electronic Technology Co.,LTD ZLGD-Y22.0*39-80-FR ZLGD-0535 版本 Rev. A.0 变更前 Before Change -- 变更后内容 DESCRIPTION(Content Or Reason ForChanged) 新发行（Initial Release） 日期 Date 修订者 Revisor 2025/08/22 曾小仙 拟制工程审核 PREPARED BY 曾小仙 ENGINEER CHECKED BY 邱志辉 版 本 变 更 履 历 Version Change History 东莞市德弗力五金电子材料有限公司 Dongguan city DFL Electronic Technology Co.,LTD Address:东莞市石碣镇新风西路107号Tel：86-076986016320 Http://www.hartai.com Fax：86-076986372427 客户料号： CUST P/N 德弗力料号： DFL P/N Page2of 5 ZLGD-Y22.0*39-80-FR ZLGD-0535 1.产品外形尺寸（OVERALL DIMENSIONS OF PRODUCTS): 2.单位(Unit):毫米(mm) A 42.5±0.5 J B 39±1.0 K C D 22.0±0.5 LM E N1/N2 F O G P HI 拟制工程审核 PREPARED BY 曾小仙 ENGINEER CHECKED BY 邱志辉 东莞市德弗力五金电子材料有限公司 Dongguan city DFL Electronic Technology Co.,LTD Address:东莞市石碣镇新风西路107号Tel：86-076986016320 Http://www.hartai.com Fax：86-076986372427 客户料号： CUST P/N 德弗力料号： DFL P/N 规 格 内 容 Specification 20±0.5 Page3of 5 80±3.0 3±2 1±0.2 77±1 A B D E F G H C 0.8±0.2 I 两引 线套 热缩 管 PE 膜 双 面 胶 ZLGD-Y22.0*39-80-FR ZLGD-0535 圈数 Turns 11TS 线径 Wire Dia. 0.08MM*80P热风线 （Silk-Covered Wire） 所有材料要求合格 ROHS 标准 绕线方式 疏/密 Wdg. Type Spred/Close 密绕（Close） 绕线方向 Wdg.Direction （Anticlockwise） 相交 是/否 Intersect Yes/Not 相交（Yes） 线圈 正/反贴 Coil Positive/Anti Paste （Anti/-Paste） 2.电气特性（ELECTRICAL CHARACTERISTICS): 温度 TEMPERATURE:25±10°C,湿度 RELATIVE HUMIDITY:65±10% 序号 NO. 1 2 3 项目 ITEM IND DCR 端子 TERMINAL S-F S-F Q 值 S-F 标准 SPECIFICATION 电感：8.3uH±0.3 阻值： Q 值：8.5 测试条件 TEST FREQUENCY 100kHz/V 100kHz/V 100kHz/V 测试仪器 TEST EQUIPMENTS 拟制工程审核 PREPARED BY 曾小仙 ENGINEER CHECKED BY 邱志辉 规 格 内 容 Specification 东莞市德弗力五金电子材料有限公司 Dongguan city DFL Electronic Technology Co.,LTD Address:东莞市石碣镇新风西路107号Tel：86-076986016320 Http://www.hartai.com Fax：86-076986372427 客户料号： CUST P/N 德弗力料号： DFL P/N SHDA 1062 SHDA 1062 SHDA 1062 Page4of 5 逆时针 反贴 ZLGD-Y22.0*39-80-FR ZLGD-0535 3. 材料清单（BILL OF MATERIAIS): 序号 NO. 材料名称 Material name 1 线材 2 磁片 3 黑膜 4 双面胶 5 锡条 6 …
