2AXTH-MG10-TMagnetic Wireless Car Charger Holder

LED 智能指示灯 包 装 为了您的权益，请您认真填写，并妥善保管，作为维前凭证！ 请勿擅自修改内容，否则视为作废。 本公司保留对该产品售后服务条例的最终解释权。 本产品三包有效期：自购买日起（以寄回的客户回执或购机发 票日期为准），提供12个月保修服务，其它附件（如包装等） 不属三包范围，产品外观为人为损坏，附件损失，不在三包之 列。不在三包之内或超过三包期的产品，客户仍享受维修服务 ，但需要交纳维修工本费。 保 修 使用说明 产品规格 注意事项 MG10-T 使用说明书 功能组件 安装说明 手机无线充电区域散热孔 将螺母扣在夹球头上 拧紧螺母 将球头卡入卡槽 旋转尾夹锁紧出风口叶片 1 12 34 2 Type-c 接口 充电指示灯 4 3 触摸灯按钮 球头螺帽 出风口夹片 5 6 旋转锁紧尾夹 8 7 1 4 3 6 5 7 2 8 1 4 3 6 5 7 2 8 模式 通电 待机 充电 充满 检测到异物 触摸按键 LED跑马两圈 LED当前选中颜色常亮（彩灯慢跑） LED指示灯熄灭 LED指示灯熄灭 LED红灯快闪5S熄灭，异物拿开后恢复 单击切换灯光，长按2S关闭灯光 指示灯 1、把该产品与配件通过球头螺帽装配并旋紧（可兼容其他球头 直径17mm配件），并固定在理想位置。用数据线把产品与 QC3.0车充 （选配）连接，并插入点烟器取电。 2、该产品通电后，LED跑马两圈等待放置手机；放上手机后磁 吸力自动吸住手机，且线圈对准。产品会启动无线充电，充电 状态LED灯熄灭；如果手机不支持无线充电或者检测到金属异物 ，指示灯闪烁5秒后灯灭。本 产品最大充电功率为15W，充电效 率根据充电环境和手机会有所不同。 3、无线充的最佳距离是4mm以内并不能穿透金属，所以需要 避免用金属的或太厚的（大于4mm）手机保护壳，这样才能 保证手机快速的无线充电。 4、从产品上取下手机后，指示灯即刻常亮待机状态。停车熄火 ，产品停止供电时，指示灯熄灭，手机依旧被磁力吸附在产品 上,可随时取下。 出风口支架 根据出风口叶片位置调整好出风口顶片和可旋转夹子组件的位置, 插入叶片，根据叶片厚度选择锁紧开关档位；适用于大部分汽车出 风口一键锁紧。硅胶接触汽车，更紧更贴合更好保护汽车不刮伤。 1.智能手机非磁吸手机，请增加引磁环后使用该产品。 2.请勿过度挤压或碰撞设备。 3. 请勿与带磁条或者芯片的磁卡（身份证、银行卡等）放置太近, 避免造成磁卡失效。 磁吸无线充*1 出风口夹子*1 Type-C 充电线*1 说明书*1 产品名称：MG10-T 输入电压：5V/2A, 9V/2A,12V/2A QC3.0 ,PD 输出功率：5W, 7.5W, 10W, 15W (Max) 工作温度: -10°C ~ +45°C 充电距离：≤4mm 磁铁吸力：1.7KG LED: 红 橙 黄 绿 青 蓝 紫 七彩（八种颜色） 适用手机：iPhone 12 / 13 / 14 / 15系列 温馨提示： 以上小型圆形款式的出风口,夹子不能适配。 万向旋转球头 出风口挡片 旋转调节夹子开合 深入出风口内部夹片 工作频率：115K~205KHz 产品保修卡 MG10-T USER MANUAL 12 3 4 5 6 8 7 Standby Charging Full Charged Foreign object detected Multicolored Ring Light Carousel LED current selected color (colored light jogging) LED Indicator light off LED Indicator light off Red light flashes quickly for 5seconds and goes out, and be restored after foreign object removed Click to switch light color, long press for 2 seconds to turn off the lights 1.Assemble and tighten the product and the accessories through the ball head nut (compatible with other ball head diameter 17mm accessories), and fix in the ideal position. Connect the product with a QC3.0 car charger (optional) with the data cable, and plug in the cigarette lighter to take power. 2.Multicolored light turns on after power on and wait for the phone to be placed. After placed the phone, the magnetic suction force automatically absorbs the phone, and the coil is aligned. The product will start wireless charging, the indicator light goes off at the same time; If the phone doesn't support wireless charging or if it detects a metal foreign object, the light flashes alternately for 5 seconds and then goes off. The maximum charging power of this productis 15W, and the charging efficiency will vary according to the charging environment and mobile phone. Adjust the position of the top piece of the air outlet and the rotatable clip assembly according to the position of the air outlet blade; insert the blade and select the lock switch position according to the thickness of the blade; suitable for one-key locking of the air outlet of most cars. Silicone touches the car, tighter and fits better to protect the car from scratches. 1. For smartphones that are not magnetic, please add a magnetic ring before using this product. 2. Do not over squeeze or collide with the equipment. 3. Please do not place it too close to the magnetic card (ID card, bank card, etc.) with magnetic stripe or chip to avoid magnetic card failure. Wireless charger*1 Air vent mount*1 Type-C cable*1 User manual*1 Model：MG10-T Input：5V/2A, 9V/2A,12V/2A QC3.0 ,PD Output power：5W, 7.5W, 10W, 15W (Max) Working temperature: -10°C ~ +45°C Charging frequency： Induction distance： 115K~205KHz ≤4mm Magnetic attraction：1.7KG LED: Red, orange, yellow, green, blue, purple, Multicolor (eight colors). Compatible phones: iPhone 12/13/14/15 bare phone or with magsafe cases or the other phones with magsafe cases or magnetic rings. Functional component 1 2 4 3 Wireless Charging Area Charging indicator light Type-C interface Light Switch Fasten the nut on the clamp ball Tighten the nut Snap the ball into the slot Rotate the tail clamp to lock the air outlet blades Heat Dispatch Hole Screw Cap Rotary locking tail clamp Air outlet clip Working Process Lighting mode ModeIndicator light Power on Touch switch for light Direction for use 3.The best distance of wireless charging is within 4mm, and it cannot penetrate metal, so it is necessary to avoid using metal or too thick (over 4mm) mobile phone case, so as to ensure fast wireless charging of mobilephone. 4.After the phone is removed from the product, the indicator will immediately show the standby status . When the car engined off and the power supply stops, the indicator light goes off. The mobile phone is still attached to the product by magnetic force and can be taken off at any time. Air vent mount A ball head that can be rotated at will Adjust the clip opening and closing by rotating. Upper and lower support plate A clip that goes deep into the air vent. Not suitable for circle air vent! Caution Product specification Package Warranty For your rights and interests, please fill in carefully and keep it properly as a pre maintenance voucher! Do not modify the content without authorization, otherwise it will be deemed invalid. The company reserves the final right to interpret the after-sales service regulations of the product. Product Warranty Card The three guarantee period of this product: from purchasing date (Prevail to the customer receipt date or invoice date), provide 12 months guarantee. product surface man-made damage,accessories missed are not include in this guarantee, repair service for the product is out of the guarantee period or not covered by warranty ,customer need to pay the repair charge. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 1…

Text truncated - open the document above for the full version.

TO: 。而ce of Engineering T配hnol og y Federal Communications Commission 7435 Oakland Mills Road c。lumbia，”D 21046 LETTER OF ATTESTATION Company Name: Wilson Tech Service LLC FRN: 0033402033 Contact Name: W ilson Cheung Address: 1312 17th Street Suite 692,Denver,C0,80202,US Telephone No: + 1-716-965-5112 E mail: [email protected] Appli臼nt: Company name:Shenzhen Caibo Technology Co.,Ltd. Pr oduct Description: Magnetic Wireless Car Charger Holder Grantee code:2AXTH FRN: 0030078273 FCC ID:2AXTH-MG10-T Contact Name:Li时un Hu A ddress:4th Floor, Building 30怕，No.5 Area, Cuigang Industrial Zone, Huaide, Fuyong, Ba饲n Di民 rict, Shenzhen China Te lephone No: +86-13713719057 Email:[email protected] [ Shenzhen Caibo丁echnology co.,Ltd.] certifies that, as of the date of this filing of the application with the TCB, [Wilson Tech Service LLC] is our designated US agent for service of process for the above referenced FCC ID. [Shenzhen Caibo Technology co.,Ltd.] accep也to maintain an agent for no less than one year after the grantee h as terminated all marketing and impo比ation or the conclusion of any commission related proceeding involving equipment. [Wilson Tech Service LLC] accep恒，as of the date of the filing of the application, the obligation of the designated US a gent for service of process for the above reference FCC ID. 有1e US Agent for Service of Process is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Pr，句ram, Report and Order FCC 22-84, and clause § 2.911. The Appli臼nt is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Pr吨ram, Report and Order FCC 22-84, and clause § 2.911. y竹m 1/1 US Agent’S Name: Wilson Cheun Title: Manager Signature For and 011 /Jelrn(f'qf' Wilson Tech Se � LUC

C5266091_X24_Ed.2 1/1 Shenzhen Caibo Technology Co.,Ltd. “Attestation Statements” TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 The Commission adopted rules that prohibit equipment authorization for “covered” telecommunications equipment and video surveillance equipment produced by entities identified on the Commission’s Covered List 1 , which is periodically updated. See the Covered List for more details. This Attestation Statement is to confirm that we follow the Section 2.911(d)(5)(i)-(ii) Applicant Company name: Shenzhen Caibo Technology Co.,Ltd. Grantee code: 2AXTH FCC ID: 2AXTH-MG10-T FRN: 0030078273 Contact Name: Linjun Hu Address: 4th Floor, Building 30th, No.5 Area, Cuigang Industrial Zone, Huaide, Fuyong, Baoan District, Shenzhen China Telephone No: / 13713719057 Fax No: / Email: [email protected] i. [Shenzhen Caibo Technology Co.,Ltd.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. The applicant must sign this certification. ii. [Shenzhen Caibo Technology Co.,Ltd.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [is not] (as a specifically named entity or any of its subsidiaries or affiliates) identified on the Covered List as an entity producing “covered” equipment. The applicant must sign this certification. [Shenzhen Caibo Technology Co.,Ltd.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [is not] identified on the Covered List as an entity producing “covered”equipment . Date: 2024/04/02 Applicant’s Name: Linjun Hu Title: Manager Signature 1 The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist

Modeldifferencedeclarationletter DifferencesDescription FCCID:2AXTH-MG10-T WeShenzhenCaiboTechnologyCo.,Ltd.state: Product： MagneticWirelessCarChargerHolder ModelName ： MG10-T,XSS-CH101N We(ShenzhenCaiboTechnologyCo.,Ltd.)herebystatethatallthemodelsareelectrical identicalincludingthesamesoftwareparameterandhardwaredesign(i.e.,circuitdesign, ChipLayout,RFmodule/circuit,ntennatype(s)andantennalocation,componentsonChip, etc.,),samemechanicalstructureanddesign(includingproductenclosure,materials,etc.,), theonlydifferenceisthemodelnameandappearancecolor. Signatory Date:04-07.2024 <Signature> Name：LinjunHu Title：Manager Company ： ShenzhenCaiboTechnologyCo.,Ltd. Address:4thfloor,building30,No.5Area,CuigangIndustrialzone,HuaiDe,Fuyong,Bao'andistrict, Shenzhen,China

C5266091_X8_Ed.1 1/1 Letter of Authorization Shenzhen Caibo Technology Co.,Ltd. Company: Shenzhen Caibo Technology Co.,Ltd. Address: 4th Floor, Building 30th, No.5 Area, Cuigang Industrial Zone, Huaide, Fuyong, Baoan District, Shenzhen China Product Name: Magnetic Wireless Car Charger Holder Model Number: MG10-T, XSS-CH101N FCC Identifier: 2AXTH-MG10-T We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Linjun Hu Date: 2024.04.02 Title: Manager Signature of applicant:

C5266091_X10_Ed.2 1/1 Shenzhen Caibo Technology Co.,Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2024.04.02 Subject: Request for Confidentiality FCC ID: 2AXTH-MG10-T To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual ☐ NOTE 1 ☐ Internal Photos ☐ NOTE 1 ☐ Parts List / Tune Up ☒ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No NOTE 1: Long-Term Confidentiality may be permitted under special conditions (See II. LONG-TERM CONFIDENTIALITY, Section 3 of KDB 726920, use last in force) NOTE 2: Short-Term Confidentiality can be requested for a maximum of 180 days from the date of the grant. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In case of short-term Confidentiality, the applicant requests the exhibits selected above are withheld from public view for a period of ______ days from the date of the Grant of Equipment Authorization and prior to marketing. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, C5266091_X10_Ed.2 1/1 Signature: Name: Linjun Hu Title: Manager 2024.04.02

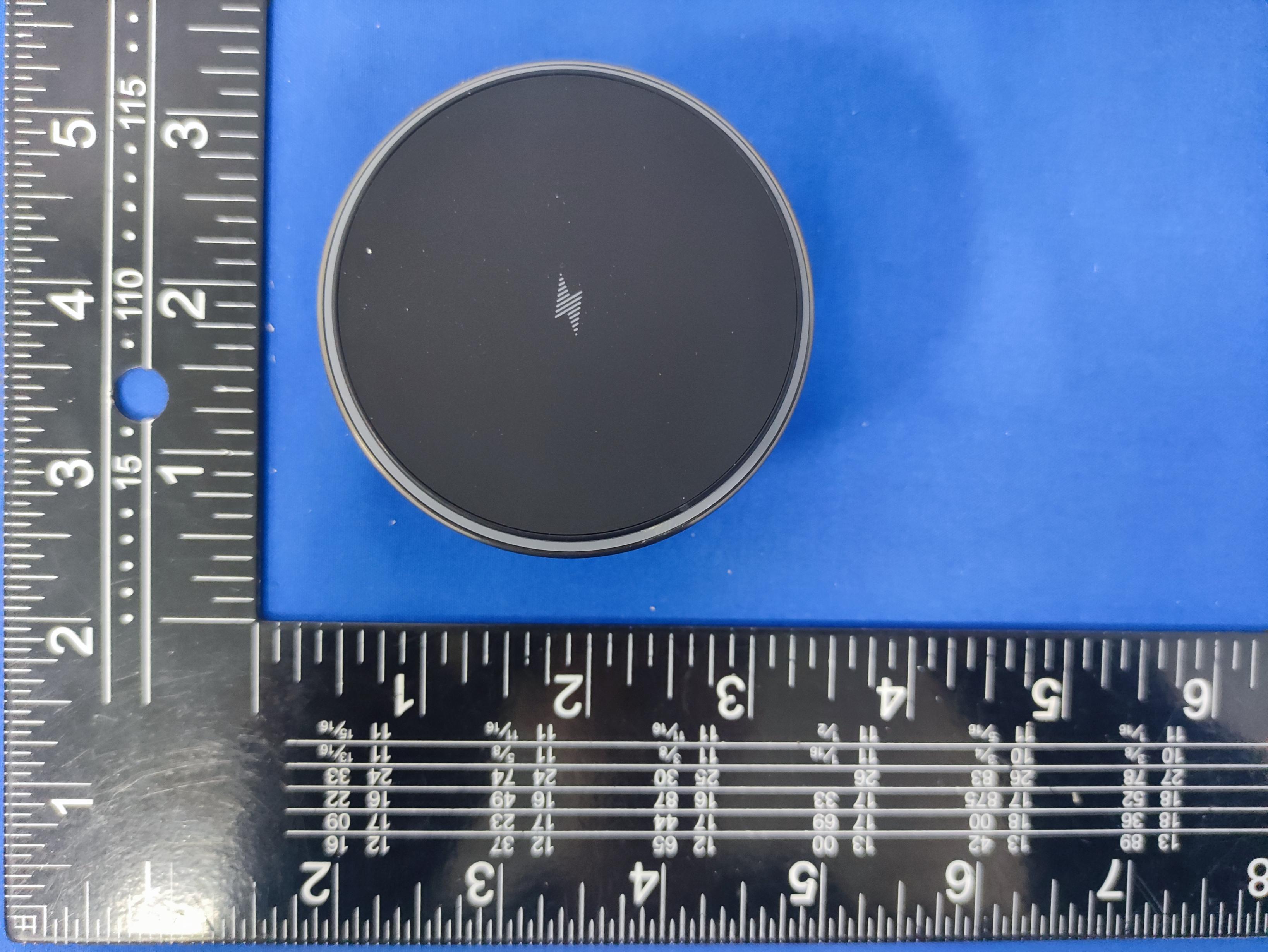

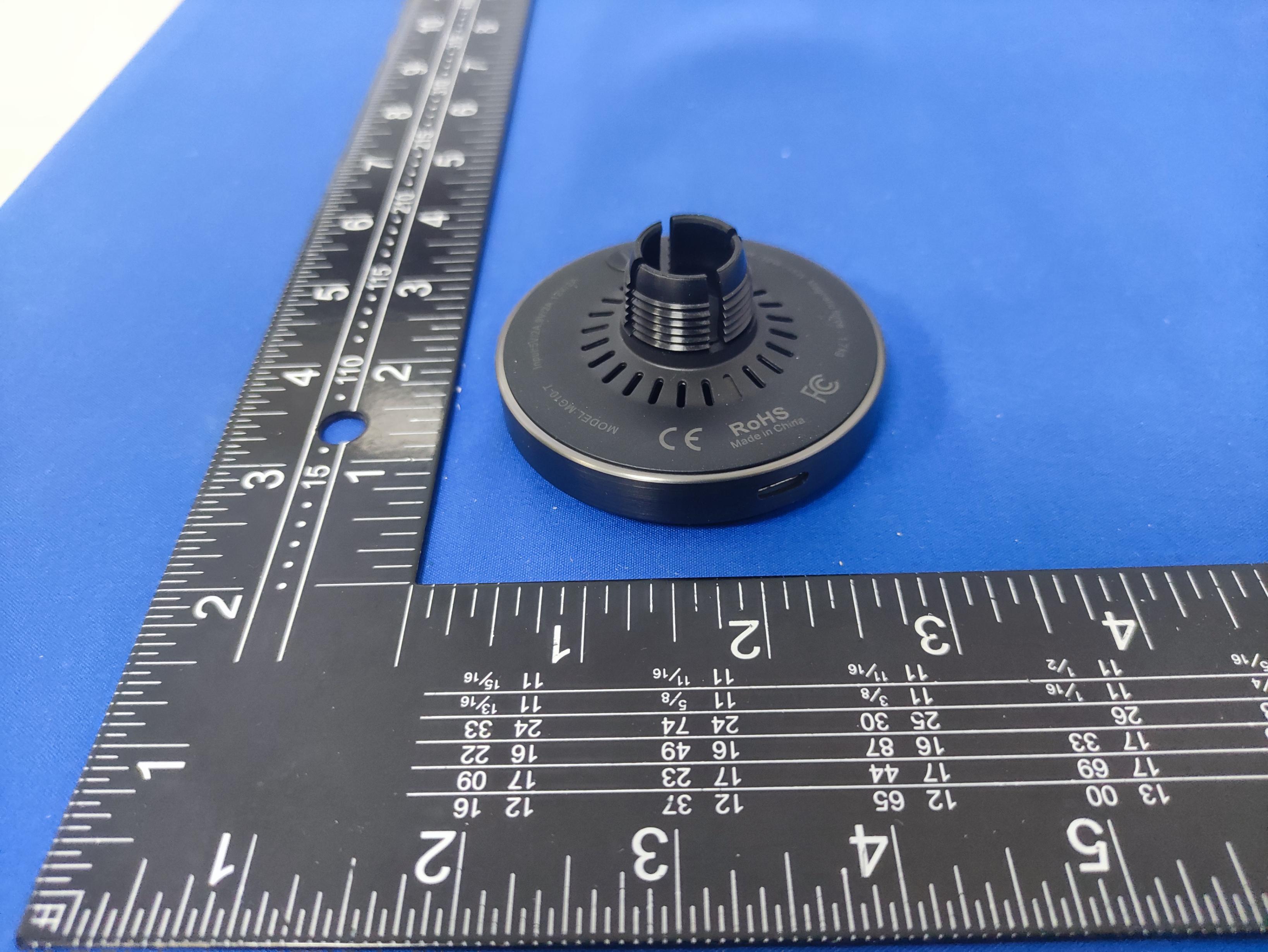

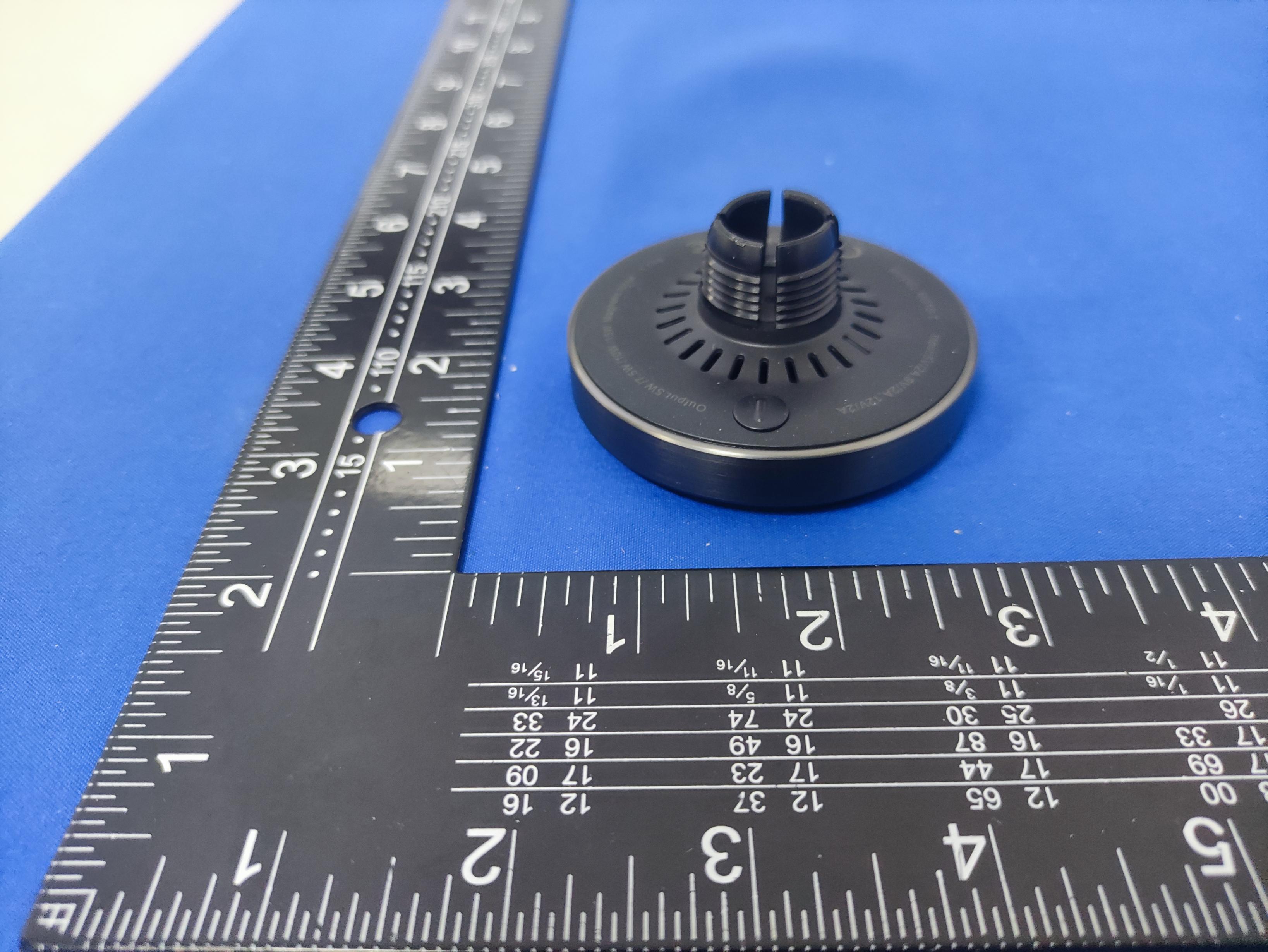

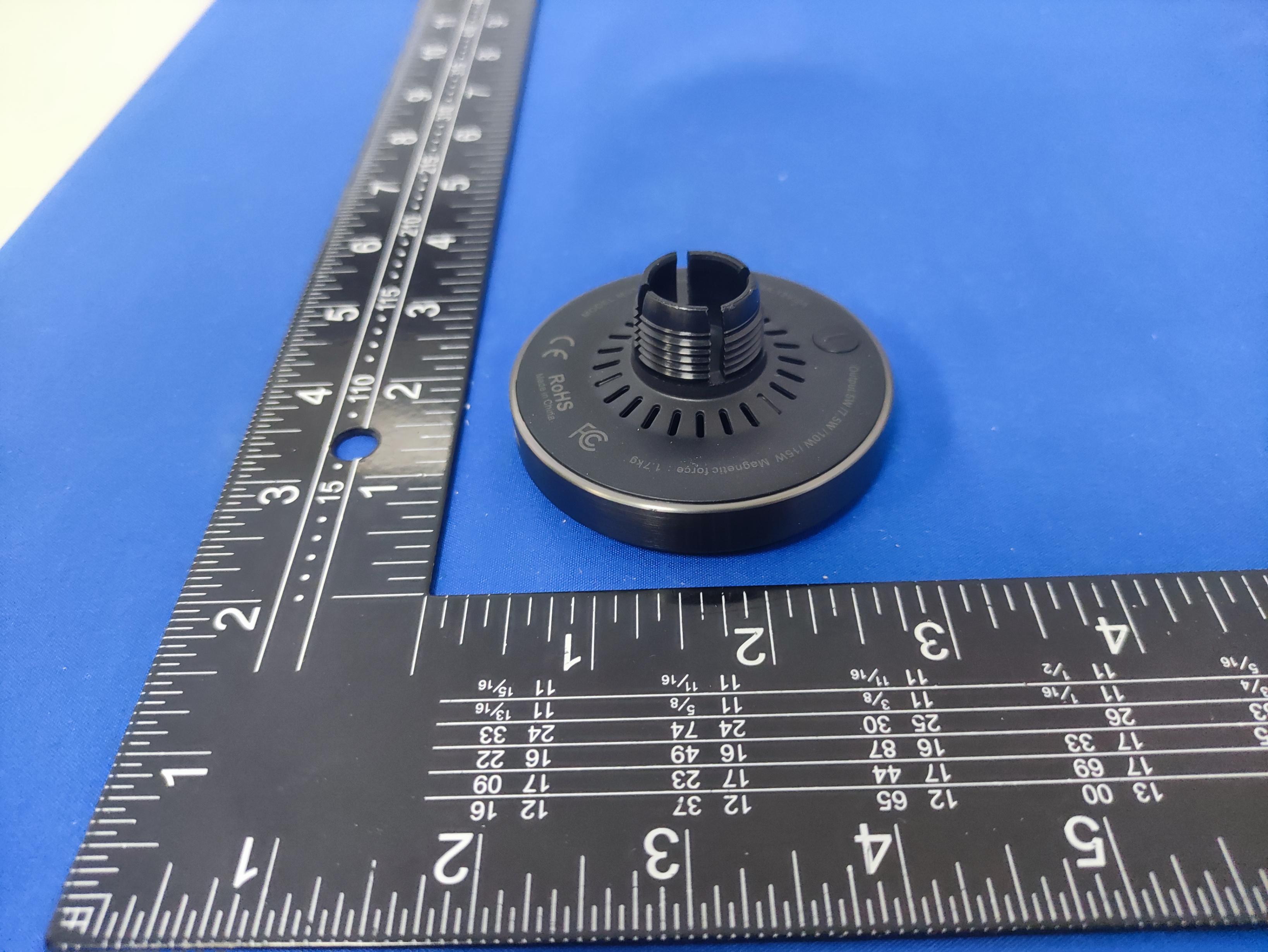

Page1of3ReportNo.:FCS202403311 Externalphotos Photo1 Photo2 Page2of3ReportNo.:FCS202403311 Photo3 Photo4 Page3of3ReportNo.:FCS202403311 Photo5 Photo6

LabelandLabelLocation FCCID:2AXTH-MG10-T

Page1of3ReportNo.:FCS202403311 Internalphotos Photo1 Photo2 Page2of3ReportNo.:FCS202403311 Photo3 InductiveLoopAntenna Photo3 Page3of3ReportNo.:FCS202403311 Photo4

Page1of5ReportNo.:FCS202403311 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com 3Limits Thecriterialistedinthefollowingtableshallbeusedtoevaluatetheenvironmentimpactofhuman exposuretoradiofrequency(RF)radiationasspecifiedin1.1307(b) LimitsforMaximumPermissibleExposure(MPE) 4TestSetup RFExposureEvaluation FCCID:2AXTH-MG10-T 1MeasuringStandard KDB680106WirelessPowerTransferD01V04 2Requirements AllrequirementsrefertoSection3ofKDB680106D01V04： 1.Thedevicesmaybeconsideredtomeetthe§2.1091-Mobileconditions(“generallybeusedinsucha waythataseparationdistanceofatleast20centimetersisnormallymaintainedbetweentheRF source'sradiatingstructure(s)and[thenearestperson]”) 2.DevicesOperatingatFrequenciesBelow4MHz. 3.For§2.1091-Mobiledevices,theMPElimitsbetween100kHzto300kHzaretobeconsideredthe sameasthoseat300kHzinTable1of§1.1310,thatis,614V/mand1.63A/m,fortheelectricfieldand magneticfield,respectively. Page2of6ReportNo.:FCS202308099 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com 5TestProcedure 1)TheRFexposuretestwasperformedinanechoicchamber. 2)Themeasurementprobewasplacedattestdistance(20cmfromthetop)whichisbetween theedgeofthechargerandthegeometriccenterofprobe. 3)Thehighestemissionlevelwasrecordedandcomparedwithlimitassoonasmeasurement ofeachpoints(A,B,C,D,E)werecompleted 4)TheEUTwasmeasuredaccordingtothedictatesofKDB680106D01WirelessPower Transferv04. 6. MeasurementUncertainty (95%confidencelevels,k=2) ItemUncertainty UncertaintyforH-Field2.36dB UncertaintyforE-Field2.42dB UncertaintyforconductedRFPower0.62dB Uncertaintyfortemperature0.2°C Uncertaintyforhumidity1.1% UncertaintyforDCandlowfrequencyvoltages0.06% 7.Equipmentlist TestEquipmentManufacturerModelNo.SN.Last calibration Calibrated until Electricand Magnetic field probe-Analyzer NardaEHP-200AN03565Aug29,2023Aug28,2024 Page3of6ReportNo.:FCS202308099 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com 7PlacementMode1Photo 8Testmode Mode1Mobilephonewirelesscharging(5W)5V/2A Mode2Mobilephonewirelesscharging(7.5W)5V/2A Mode3Mobilephonewirelesscharging(10W)5V/2A Mode4 Mobilephonewirelesscharging(5W)9V/2A Mode5Mobilephonewirelesscharging(7.5W)9V/2A Mode6Mobilephonewirelesscharging(10W)9V/2A Mode7 Mobilephonewirelesscharging(15W)9V/2A Mode8Mobilephonewirelesscharging(5W)12V/2A Page4of6ReportNo.:FCS202308099 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com Mode9Mobilephonewirelesscharging(7.5W)12V/2A Mode10Mobilephonewirelesscharging(10W)12V/2A Mode11 Mobilephonewirelesscharging(15W)12V/2A 9Necessaryaccessories EquipmentMfr/BrandModel/TypeNo.SerialNo.Note 1AdapterXIAOMIMDY-11-EBN/A Thisisfortestingonly inreport. 2PhoneAppleiPone13N/A Thisisfortestingonly inreport. 10TestResult PlacementMode11(Worst) E-FiledStrengthat20cmfromtheedgessurroundingtheEUT(V/m) Battery power Frequency Range(MHz) Test Position A Test Position B Test Positio nC Test Positio nD Limit s (V/m) 50%M PE limit (V/m) Result 1%0.115-0.2051.391.460.590.43614307 PASS 50%0.115-0.2051.501.370.460.60614307 PASS 95%0.115-0.2051.271.540.400.59614307 PASS Stand-by0.115-0.2051.401.330.580.61614307 PASS E-FiledStrengthat20cmfromthetopoftheEUT(V/m) Page5of6ReportNo.:FCS202308099 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com Battery power Frequency Range(MHz) Test PositionE Limits (V/m) 50%MPE limit (V/m) Result 1%0.115-0.2051.20614307 PASS 50%0.115-0.2051.28614307 PASS 95%0.115-0.2051.30614307 PASS Stand-by0.115-0.2051.45614307 PASS H-FiledStrengthat20cmfromtheedgessurroundingtheEUT(A/m) Battery power Frequency Range(MHz) Test Position A Test Position B Test Position C Test Position D Limits (A/m) 50%MP Elimit (A/m) Result 1%0.115-0.2050.610.600.640.611.630.815PASS 50%0.115-0.2050.600.580.590.621.630.815PASS 95%0.115-0.2050.630.590.580.591.630.815PASS Stand-by0.115-0.2050.620.570.600.641.630.815PASS H-FiledStrengthat20cmfromthetopoftheEUT(A/m) Battery power Frequency Range(MHz) Test PositionE Limits (A/m) 50%MPElimit (A/m) Result 1%0.115-0.2050.501.63 0.815PASS 50%0.115-0.2050.441.63 0.815PASS 95%0.115-0.2050.481.63 0.815PASS Stand-by0.115-0.2050.621.63 0.815PASS Testedby:Reviewedby: ※※※※※ENDOFTHEREPORT※※※※※

FCCTestReport ReportNo:FCS202403111W01 Issuedfor Applicant: ShenzhenCaiboTechnologyCo.,Ltd. Address: 4thfloor,building30,No.5Area,CuigangIndustrialzone, HuaiDe,Fuyong,Bao'andistrict,Shenzhen,China ProductName: MagneticWirelessCarChargerHolder BrandName: KOAKUMA ModelName: MG10-T SeriesModel: XSS-CH101N FCCID: 2AXTH-MG10-T IssuedBy:FluxComplianceServiceLaboratory Add:Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-Tech Industrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com Page2of23ReportNo.:FCS202403111W01 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com TESTRESULTCERTIFICATION Applicant’sName......................:ShenzhenCaiboTechnologyCo.,Ltd. Address......................................: 4thfloor,building30,No.5Area,CuigangIndustrialzone,HuaiDe, Fuyong,Bao'andistrict,Shenzhen,China Manufacture'sName ................ :ShenzhenCaiboTechnologyCo.,Ltd. Address ...................................... : 4thfloor,building30,No.5Area,CuigangIndustrialzone,HuaiDe, Fuyong,Bao'andistrict,Shenzhen,China ProductDescription ProductName...........................:MagneticWirelessCarChargerHolder BrandName.............................:KOAKUMA ModelName..............................:MG10-T SeriesModel .............................. :XSS-CH101N TestStandards..........................:FCCRulesandRegulationsPart15SubpartC,Section209 TestProcedure..........................:ANSIC63.10:2013 ThisdevicedescribedabovehasbeentestedFCS,thetestresultsshowthattheequipmentunder test(EUT)isincompliancewiththeFCCrequirements.Anditisapplicableonlytothetestedsample identifiedinthereport. Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofFCS,thisdocument maybealteredorrevisedbyFCS,personalonly,andshallbenotedintherevisionofthedocument.. DateofTest .................................. : Date(s)ofperformanceoftests . :Mar,282024~Apr1,2024 DateofIssue.................................:Apr1,2024 TestResult....................................:Pass Testedby: (ScottShen) Reviewedby : (DukeQian) Approvedby: (JackWang) Page3of23ReportNo.:FCS202403111W01 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com TableofContentsPage 1.SUMMARYOFTESTRESULTS...........................................................................................5 1.1TESTFACTORY............................................................................................................6 1.2MEASUREMENTUNCERTAINTY.................................................................................6 2.GENERALINFORMATION...................................................................................................7 2.1GENERALDESCRIPTIONOFTHEEUT.......................................................................7 2.2DESCRIPTIONOFTHETESTMODES.........................................................................8 2.3DESCRIPTIONOFNECESSARYACCESSORIESANDSUPPORTUNITS.................9 2.4EQUIPMENTSLIST.....................................................................................................10 3CONDUCTEDEMISSIONMEASUREMENT........................................................................11 3.1LIMIT............................................................................................................................11 3.2TESTPROCEDURE.....................................................................................................11 3.3TESTSETUP...............................................................................................................12 3.4TESTRESULTS...........................................................................................................13 4.RADIATEDEMISSIONMEASUREMENT...........................................................................15 4.1LIMIT............................................................................................................................15 4.2TESTPROCEDURE.....................................................................................................16 4.3TESTSETUP...............................................................................................................17 4.4TESTRESULTS...........................................................................................................18 (30MHZ-1000MHZ)............................................................................................................19 5.20DBBANDWIDTHTEST..................................................................................................21 5.1LIMIT............................................................................................................................21 5.2TESTPROCEDURE.....................................................................................................21 5.3TESTSETUP...............................................................................................................21 5.4TESTRESULTS...........................................................................................................22 6.ANTENNAREQUIREMENT................................................................................................23 6.1STANDARDREQUIREMENT.......................................................................................23 6.2EUTANTENNA............................................................................................................23 Page4of23ReportNo.:FCS202403111W01 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com RevisionHistory Rev.IssueDateEffectPageContents 00Apr1.2024N/AN/A Page5of23ReportNo.:FCS202403111W01 FluxComplianceServiceLaboratory Room105FloorBao…
