2AXTH-MG10-1Magnetic Wireless car charger

根据出风口叶片位置调整好出风口顶片和可旋转夹子组件的位置；插入叶片， 根据叶片厚度选择锁紧开关档位；适用于大部分汽车出风口一键锁紧。硅胶 接触汽车，更紧更贴合更好保护汽车不刮伤。 温馨提示： 以上小型圆形款式的出风口,夹子不能适配。 MG10 USER MANUAL Package Functional component Wireless charger Air vent mount Type-C cable User manual *1 *1 *1 *1 Specifications Air vent mount Adjust the position of the top piece of the air outlet and the rotatable clip assembly according to the position of the air outlet blade; insert the blade and select the lock switch position according to the thickness of the blade; suitable for one-key locking of the air outlet of most cars. Silicone touches the car, tighter and fits better to protect the car from scratches. Products three guarantees valid time:From purchasing date (Prevail to the customer receipt date or invoice date),provide 12 months guarantee.Prod-uct surface man-made damage,acces sories missed are not include in this guarantee.repair service for you for the product is out of the guarantee period or not covered by warranty ,but you need to pay the repair charge. Precautions The guarantee 1 . Do not use the product in the car at a temperature above 60 degrees. 2.Do not use this product in professional racing or extreme off-road driving. MG10 使用说明书 A ball head that can be rotated at will Direction for use 1.Assemble and tighten the product and the accessories through the ball head nut (compatible with other ball head diameter 17mm accessories), and fix in the ideal position. Connect the product with a QC3.0 car charger (optional) with the data cable, and plug in the cigarette lighter to take power. 2.After the product is powered on, the indicator light will turn on and wait for the phone to be placed. After placed the phone, the magnetic suction force automatically absorbs the phone, and the coil is aligned. The product will start wireless charging, the indicator light is on for breathing effect; If the phone doesn't support wireless charging or if it detects a metal foreign object, the light flashes alternately for 5 seconds and then goes off. The maximum charging power of this product is 15W, and the charging efficiency will vary according to the charging environment and mobile phone. 3.The best distance of wireless charging is within 4mm, and it cannot penetrate metal, so it is necessary to avoid using metal or too thick (over 4mm) mobile phone case, so as to ensure fast wireless charging of mobile phone. 4.After the phone is removed from the product, the indicator will immediately show the standby status . When the car engined off and the power supply stops, the indicator light goes off. The mobile phone is still attached to the product by magnetic force and can be taken off at any time. Screw Cap Type-c Charging Port indicator light Charge Coil position Cooling air outlet Air vent mount Model:MG10 Input: 5V/2A, 9V/2A, QC3.0 ,PD Output power: 5W, 7.5W, 10W, 15W (Max) Working temperature: - 10 ~+45 Induction distance: 4mm Magnetic attraction: 1.4KG Compatible phones: iPhone 12/13/14 bare phone or with magsafe cases or the other phones with magsafe cases or magnetic rings 球头螺帽 出风口夹 充电 线圈位置 指示灯 Type-C 充电接口 散热出风口 无线充电器出风口夹子 Type-C充电线说明书 *1*1 *1*1 包 装 功能组件 产品名称：MG10 磁吸无线充车载支架 输入电压：5V/2A, 9V/2A, QC3.0 ,PD 输出功率：5W, 7.5W, 10W, 15W (Max) 工作温度: -10°C ~ +45°C 充电距离：≤4mm 磁铁吸力：1.4KG 适用手机：iPhone 12 / 13 / 14系列 规格参数 使用说明 出风口支架 注意事项 保 修 1、把该产品与配件通过球头螺帽装配并旋紧（可兼容其他球头直径17mm 配件），并固定在理想位置。用数据线把产品与QC3.0车充 （选配）连接 ，并插入点烟器取电。 2、该产品通电后，指示灯会常亮等待放置手机；放上手机后磁吸力自动吸 住手机，且线圈对准。产品会启动无线充电，指示灯呈呼吸效果；如果手 机不支持无线充电或者检测到金属异物，指示灯闪烁5秒后灯灭。本 产品最 大充电功率为15W，充电效率根据充电环境和手机会有所不同。 3、无线充的最佳距离是4mm以内并不能穿透金属，所以需要避免用金属 的或太厚的（大于4mm）手机保护壳，这样才能保证手机快速的无线充电 。 4、从产品上取下手机后，指示灯即刻常亮待机状态。停车熄火，产品停止 供电时，指示灯熄灭，手机依旧被磁力吸附在产品上,可随时取下。 1、请勿在车内60摄氏度以上高温条件下使用本产品。 2、请勿在专业赛车或汽车极限越野时使用该产品。 本产品三包有效期：自购买日起（以寄回的客户回执或购机发票日期 为准），提供12个月保修服务，其它附件（如包装等）不属三包范围 ，产品外观为人为损坏，附件损失，不在三包之列。不在三包之内或 超过三包期的产品，客户仍享受维修服务，但需要交纳维修工本费。 旋转调节夹子开合 深入出风口内部夹片 万向旋转球头 出风口挡片 Adjust the clip opening and closing by rotating. Upper and lower support plate A clip that goes deep into the air vent. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Warning: changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

C5266091_X8_Ed.1 1/1 Letter of Authorization Shenzhen Caibo Technology Co.,Ltd. Company: Shenzhen Caibo Technology Co.,Ltd. Address: 4th Floor, Building 30th, No.5 Area, Cuigang Industrial Zone, Huaide, Fuyong, Baoan District, Shenzhen China Product Name: Magnetic Wireless car charger Model Number: MG10-1 FCC Identifier: 2AXTH-MG10-1 We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Linjun Hu Date: 2023.09.15 Title: manager Signature of applicant:

C5266091_X10_Ed.2 1/1 Shenzhen Caibo Technology Co.,Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2023-09-15 Subject: Request for Confidentiality FCC ID: 2AXTH-MG10-1 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual ☐ NOTE 1 ☐ Internal Photos ☐ NOTE 1 ☐ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No NOTE 1: Long-Term Confidentiality may be permitted under special conditions (See II. LONG-TERM CONFIDENTIALITY, Section 3 of KDB 726920, use last in force) NOTE 2: Short-Term Confidentiality can be requested for a maximum of 180 days from the date of the grant. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In case of short-term Confidentiality, the applicant requests the exhibits selected above are withheld from public view for a period of ______ days from the date of the Grant of Equipment Authorization and prior to marketing. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. C5266091_X10_Ed.2 1/1 Sincerely, Signature: Name: Linjun Hu Title: manager 2023.09.15

C5266091_X8_Ed.1 1/1 Letter of Authorization Shenzhen Caibo Technology Co.,Ltd. Company: Shenzhen Caibo Technology Co.,Ltd. Address: 4th Floor, Building 30th, No.5 Area, Cuigang Industrial Zone, Huaide, Fuyong, Baoan District, Shenzhen China Product Name: Magnetic Wireless car charger Model Number: MG10-1 FCC Identifier: 2AXTH-MG10-1 We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Linjun Hu Date: 2023.09.15 Title: manager Signature of applicant:

C5266091_X10_Ed.2 1/1 Shenzhen Caibo Technology Co.,Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2023-09-15 Subject: Request for Confidentiality FCC ID: 2AXTH-MG10-1 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual ☐ NOTE 1 ☐ Internal Photos ☐ NOTE 1 ☐ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No NOTE 1: Long-Term Confidentiality may be permitted under special conditions (See II. LONG-TERM CONFIDENTIALITY, Section 3 of KDB 726920, use last in force) NOTE 2: Short-Term Confidentiality can be requested for a maximum of 180 days from the date of the grant. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In case of short-term Confidentiality, the applicant requests the exhibits selected above are withheld from public view for a period of ______ days from the date of the Grant of Equipment Authorization and prior to marketing. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. C5266091_X10_Ed.2 1/1 Sincerely, Signature: Name: Linjun Hu Title: manager 2023.09.15

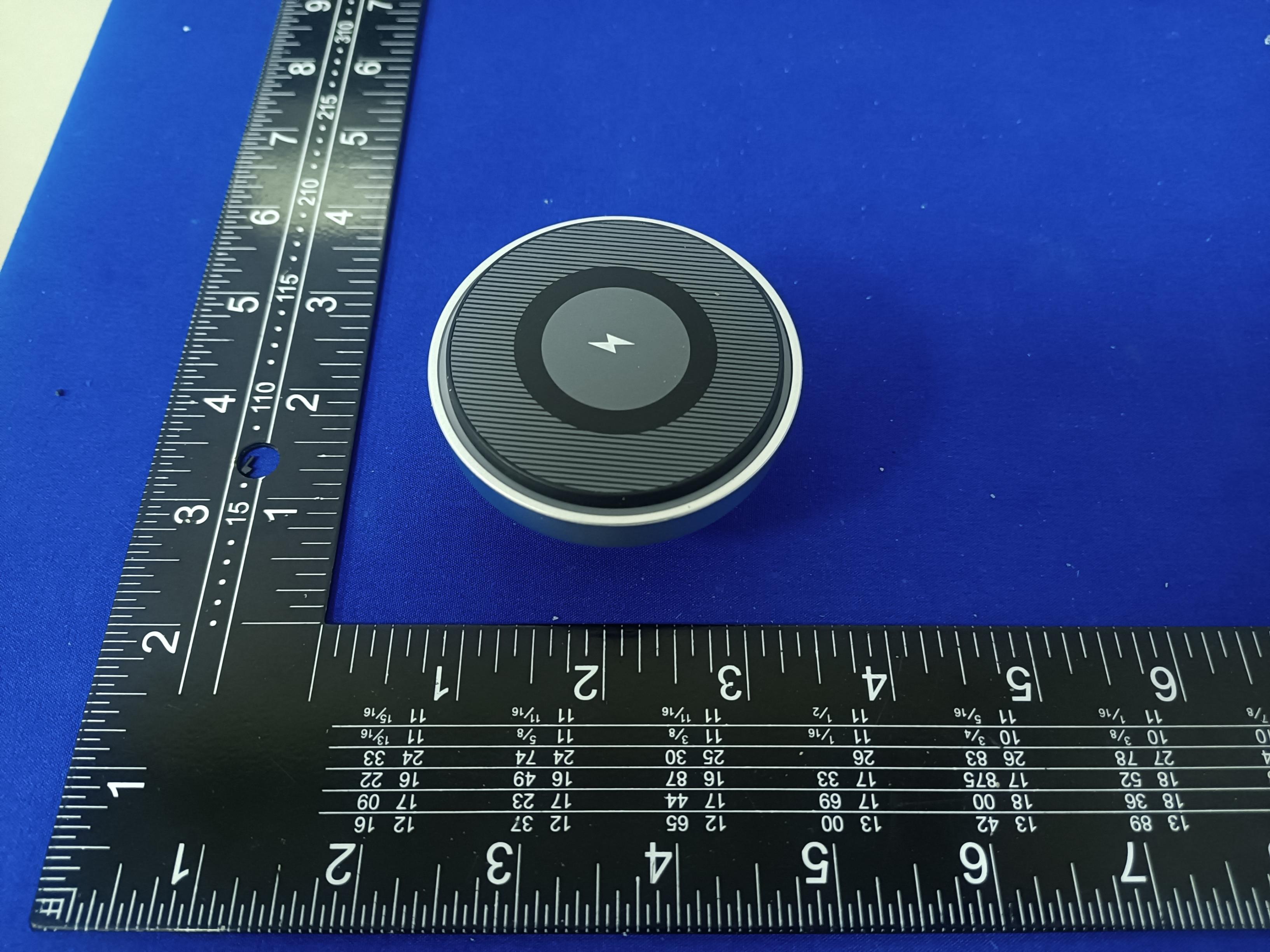

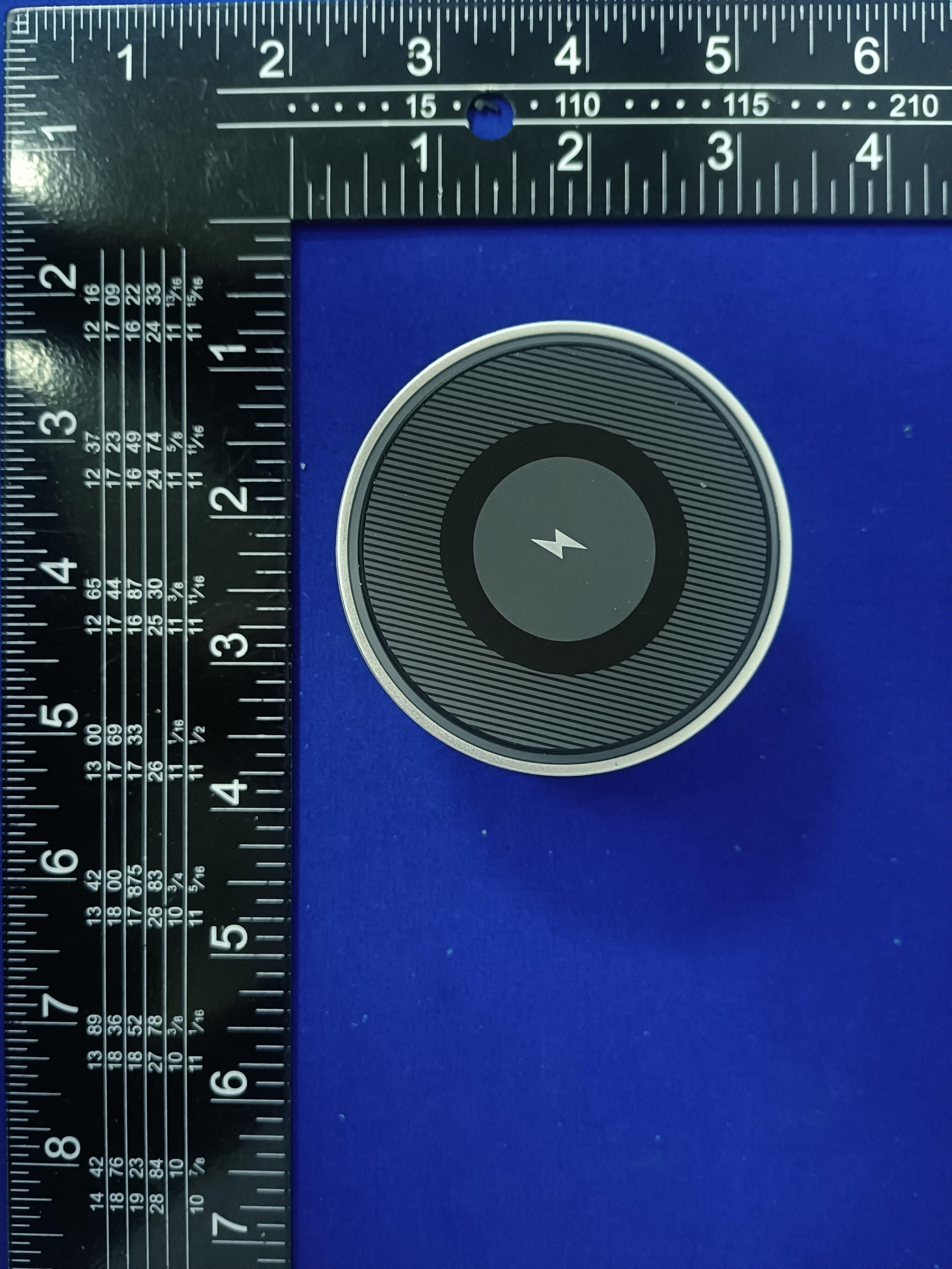

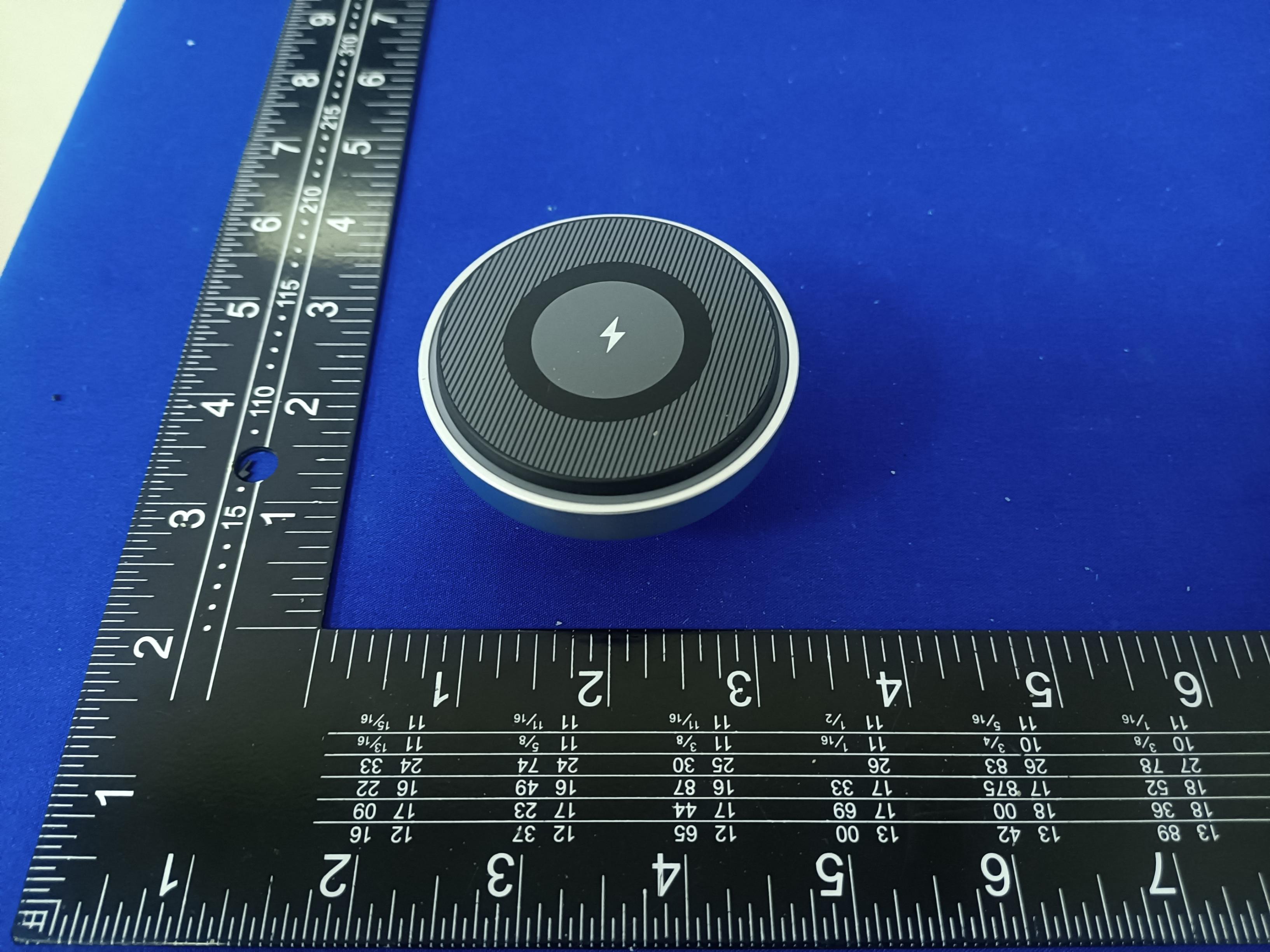

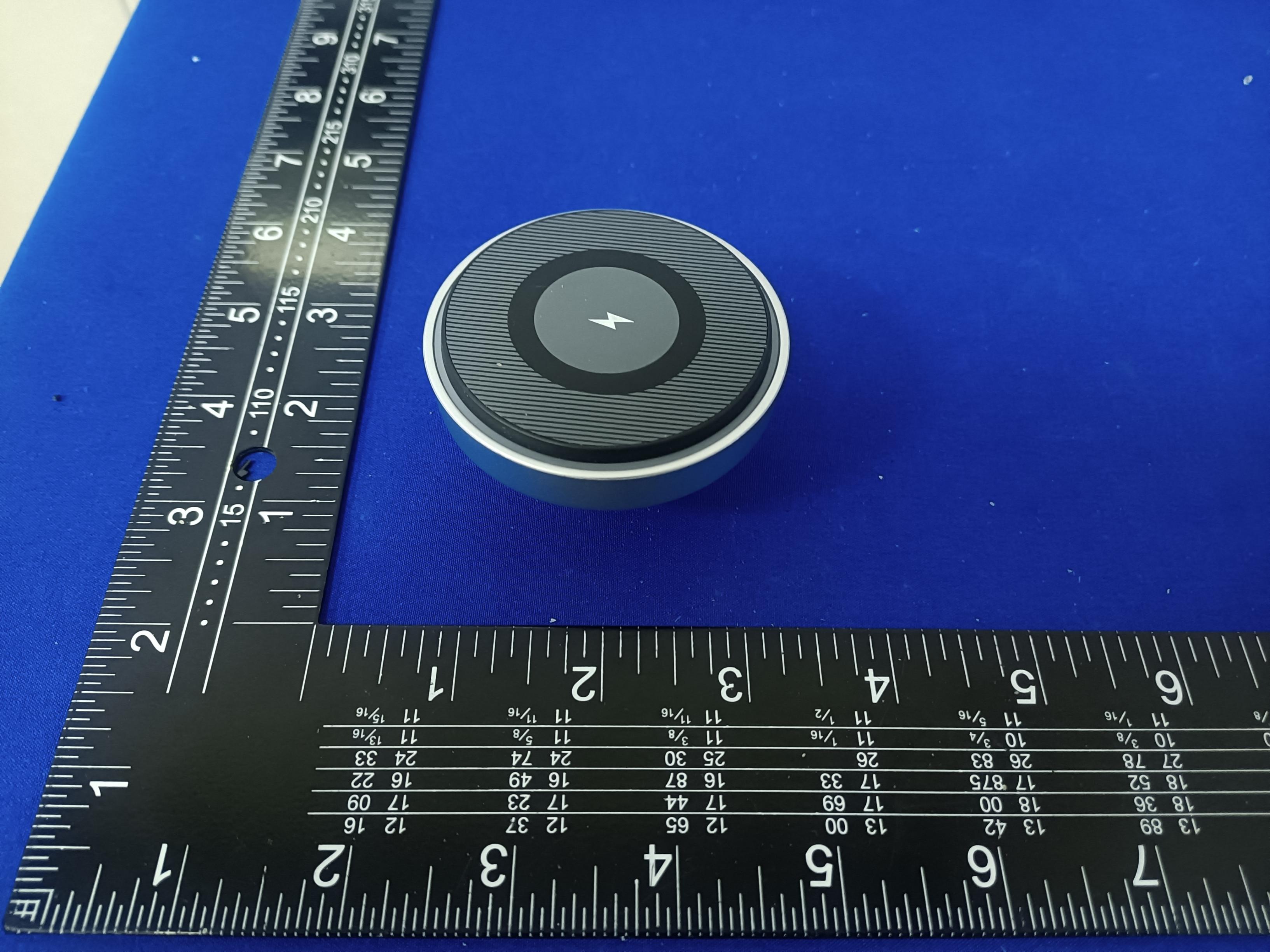

Page1of3ReportNo.:FCS202309217 Externalphotos Photo1 Photo2 Page2of3ReportNo.:FCS202309217 Photo3 Photo4 Page3of3ReportNo.:FCS202309217 Photo5 Photo6

LabelandLabelLocation FCCID:2AXTH-MG10-1

Page1of2ReportNo.:FCS202309217 Internalphotos Photo1 Photo2 InductiveLoopAntenna Page2of2ReportNo.:FCS202309217 Photo3 Photo4

Page1of6ReportNo.:FCS202309217 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com RFExposureEvaluation FCCID:2AXTH-MG10-1 1MeasuringStandard KDB680106D01RFExposureWirelessChargingAppsv03r01 2Requirements AccordingtoKDB680106clause5,b Inductivewirelesspowertransferapplicationsthatmeetallofthefollowingrequirementsareexcluded (1)Powertransferfrequencyislessthan1MHz. --Yes,thedeviceoperatedinthefrequencyrangefrom115KHzto205KHz (2)Outputpowerfromeachprimarycoilislessthanorequalto15watts. --Yes,themaximumoutputpoweroftheprimarycoilis15W (3)Thesystemmayconsistofmorethanonesourceprimarycoils,chargingoneormoreclients.If morethanoneprimarycoliispresent,thecoilpairymaybepoweredonatthesametime. --Yes,thetransfersystemincludeshavemultipleprimarycoilsandclientsthatareabletodetectand allowcouplingbepoweredonatthesametime. (4)Clientdeviceisplaceddirectlyincontactwiththetransmitter. --Yes,Clientdeviceisplaceddirectlyincontactwiththetransmitter (5)Mobileexposureconditionsonly(portableexposureconditionsarenotcoveredbythisexclusion). --Yes (6)TheaggregateH-fieldstrengthsat15cmsurroundingthedeviceand20cmabovethetopsurface fromallsimultaneoustransmittingcoilsaredemonstratedtobelessthan50%oftheMPElimit. --Yes,theEUTfieldstrengthlevelare50%xMPElimit. 3Limits Thecriterialistedinthefollowingtableshallbeusedtoevaluatetheenvironmentimpactofhuman exposuretoradiofrequency(RF)radiationasspecifiedin1.1307(b) LimitsforMaximumPermissibleExposure(MPE) Page2of6ReportNo.:FCS202309217 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com 4TestSetup 5TestProcedure 1)TheRFexposuretestwasperformedinanechoicchamber. 2)Themeasurementprobewasplacedattestdistance(15cmfromallsidesand20cmfrom thetop)whichisbetweentheedgeofthechargerandthegeometriccenterofprobe. 3)Thehighestemissionlevelwasrecordedandcomparedwithlimitassoonasmeasurement ofeachpoints(A,B,C,D,E)werecompleted 4)TheEUTwasmeasuredaccordingtothedictatesofKDB680106D01v03r01 Remark：TheEUT’stestpositionA,B,C,DandEisvalidfortheEandHfieldmeasurements Page3of6ReportNo.:FCS202309217 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com 6. MeasurementUncertainty (95%confidencelevels,k=2) ItemUncertainty UncertaintyforH-Field2.36dB UncertaintyforE-Field2.42dB UncertaintyforconductedRFPower0.62dB Uncertaintyfortemperature0.2°C Uncertaintyforhumidity1.1% UncertaintyforDCandlowfrequencyvoltages0.06% 7.Equipmentlist TestEquipmentManufacturerModelNo.SN.Last calibration Calibrated until Electricand Magnetic field probe-Analyzer NardaEHP-200AN03565Aug30,2023Aug29,2024 Page4of6ReportNo.:FCS202309217 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com 7PlacementMode1Photo 8Testmode Mode1Mobilephonewirelesscharging(5W) Mode2Mobilephonewirelesscharging(7.5W) Mode3Mobilephonewirelesscharging(10W) Mode4Mobilephonewirelesscharging(15W) Page5of6ReportNo.:FCS202309217 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com 9Necessaryaccessories I t e EquipmentMfr/BrandModel/TypeNo.SerialNo.Note 1AdapterXIAOMIMDY-11-EBN/A Thisisfortestingonly inreport. 2PhoneAppleiPone13N/A Thisisfortestingonly inreport. 1 0 TestResult PlacementMode4(Worst) E-FiledStrengthat15cmfromtheedgessurroundingtheEUT(V/m) Battery power Frequency Range(MHz) Test Position A Test Position B Test Position C Test Position D Limits (V/m) 50%M PE limit (V/m) Result 1%0.115-0.2051.381.440.570.44614307 PASS 50%0.115-0.2051.461.330.450.59614307 PASS 95%0.115-0.2051.301.530.430.57614307 PASS Stand-by0.115-0.2051.391.340.580.56614307 PASS E-FiledStrengthat20cmfromthetopoftheEUT(V/m) Battery power Frequency Range(MHz) Test PositionE Limits (V/m) 50%MPE limit(V/m) Result 1%0.115-0.2051.24614307 PASS 50%0.115-0.2051.26614307 PASS 95%0.115-0.2051.32614307 PASS Stand-by0.115-0.2051.41614307 PASS H-FiledStrengthat15cmfromtheedgessurroundingtheEUT(A/m) Page6of6ReportNo.:FCS202309217 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com Battery power Frequency Range(MHz) Test Position A Test Position B Test Position C Test Position D Limits (A/m) 50%MP Elimit (A/m) Result 1%0.115-0.2050.590.590.640.631.630.815PASS 50%0.115-0.2050.570.600.660.621.630.815PASS 95%0.115-0.2050.600.620.600.641.630.815PASS Stand-by0.115-0.2050.610.590.620.601.630.815PASS H-FiledStrengthat20cmfromthetopoftheEUT(A/m) Battery power Frequency Range(MHz) Test PositionE Limits (A/m) 50%MPElimit (A/m) Result 1%0.115-0.2050.501.63 0.815PASS 50%0.115-0.2050.471.63 0.815PASS 95%0.115-0.2050.461.63 0.815PASS Stand-by0.115-0.2050.601.63 0.815PASS Testedby:Reviewedby: ※※※※※ENDOFTHEREPORT※※※※※

客户代码版次编制日期承制方 A02022.09.07金晟智能 第 1 页 拟制审核批准 何雪松陈金凤茹威 开发/工程 审核 审核批准 广东金晟智能有限公司 GuangdongJinshengintelligentCo.,Ltd 承认书 SPECIFICATIONFORAPPROVAL 客户名称 深圳市星科微数码科技集团有限公司 物料描述 线圈 承制方型号 16x0.08x105px11TS-引线55mm 承认书编号 客户代码 W14218 日期 2022.09.07 生产料号 版本/页码 A0 承制方确认使用方确认 客户在收到产品后十天内需验收完毕，并将验收结果书面通知供货方，否则视为已验收合格。 承制方：广东金晟智能有限公司 地址：东莞市东城街道温周路289号B栋2楼 电话：0769-22252827 邮箱:[email protected] 客户代码版次编制日期承制方 A02022.09.07金晟智能 第 2 页 广东金晟智能有限公司 GuangdongJinshengintelligentCo.,Ltd 变更记录 序号版次 日期更改内容更改人 1A0 2022.09.07新规格承认何雪松 客户代码版次编制日期承制方 A02022.09.07金晟智能 第 3 页 广东金晟智能有限公司 GuangdongJinshengintelligentCo.,Ltd 结构尺寸 1.外形尺寸: （单位：mm） 16±0.5 39±1 2 5 ± 2 3 ± 1 . 5 1.2±0.1(线圈厚度不含进线) 2.3MAX(总厚度不含离型纸,胶纸) 44±1 普通背胶 2.电气性能（L）： 项目 标准 测试条件测试仪器 备注 电感3.6±10%100KHZ,1VTH2817B+线圈测式 电感 16.3 ± 10% 100KHZ,1VTH2817B+带磁片测式 3.外观要求： 1)产品形状尺寸要严格控制。 2)产品表面无油污，杂质，毛刺等。 3)不经客户确认，材料不能随意更改 4)产品必须符合ROSH要求 客户代码版次编制日期承制方 A02022.09.07金晟智能 第 4 页 广东金晟智能有限公司 GuangdongJinshengintelligentCo.,Ltd 材料清单 Billofmaterials（材料清单表） 序号 number 材料名称 Materialname 品名描述 Description 物料代码 MaterialCode 1 线材0.08*105P丝包线 2 磁片 G44x0.8H双槽带孔 3 胶布8MM茶色高温胶带 4 白胶工业专用硅酮胶 5 背胶 42*0.08H(有孔带手撕)

FCCTestReport ReportNo:FCS202309217W01 Issuedfor Applicant: ShenzhenCaiboTechnologyCo.,Ltd. Address: 4thFloor,Building30th,No.5Area,CuigangIndustrialZone, Huaide,Fuyong,BaoanDistrict,ShenzhenChina ProductName: MagneticWirelesscarcharger BrandName: N/A ModelName: MG10-1 SeriesModel: N/A FCCID: 2AXTH-MG10-1 IssuedBy:FluxComplianceServiceLaboratory Add:Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-Tech Industrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com Page2of23ReportNo.:FCS202309217W01 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com TESTRESULTCERTIFICATION Applicant’sName......................: ShenzhenCaiboTechnologyCo.,Ltd. Address......................................: 4thFloor,Building30th,No.5Area,CuigangIndustrialZone, Huaide,Fuyong,BaoanDistrict,ShenzhenChina Manufacture'sName ................ : ShenzhenCaiboTechnologyCo.,Ltd. Address ...................................... : 4thFloor,Building30th,No.5Area,CuigangIndustrialZone, Huaide,Fuyong,BaoanDistrict,ShenzhenChina ProductDescription ProductName...........................: MagneticWirelesscarcharger BrandName.............................: N/A ModelName..............................: MG10-1 SeriesModel..............................: N/A TestStandards .......................... :FCCRulesandRegulationsPart15SubpartC,Section209 TestProcedure .......................... :ANSIC63.10:2013 ThisdevicedescribedabovehasbeentestedFCS,thetestresultsshowthattheequipmentunder test(EUT)isincompliancewiththeFCCrequirements.Anditisapplicableonlytothetestedsample identifiedinthereport. Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofFCS,thisdocument maybealteredorrevisedbyFCS,personalonly,andshallbenotedintherevisionofthedocument.. DateofTest..................................: Date(s)ofperformanceoftests.:Sep8.2023~Sep11.2023 DateofIssue.................................:Sep11.2023 TestResult .................................... :Pass Testedby: (ScottShen) Reviewedby : (DukeQian) Approvedby: (JackWang) Page3of23ReportNo.:FCS202309217W01 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com TableofContentsPage 1.SUMMARYOFTESTRESULTS...........................................................................................5 1.1TESTFACTORY............................................................................................................6 1.2MEASUREMENTUNCERTAINTY.................................................................................6 2.GENERALINFORMATION...................................................................................................7 2.1GENERALDESCRIPTIONOFTHEEUT.......................................................................7 2.2DESCRIPTIONOFTHETESTMODES.........................................................................8 2.3DESCRIPTIONOFNECESSARYACCESSORIESANDSUPPORTUNITS.................9 2.4EQUIPMENTSLIST.....................................................................................................10 3CONDUCTEDEMISSIONMEASUREMENT........................................................................11 3.1LIMIT............................................................................................................................11 3.2TESTPROCEDURE.....................................................................................................11 3.3TESTSETUP...............................................................................................................12 3.4TESTRESULTS...........................................................................................................13 4.RADIATEDEMISSIONMEASUREMENT...........................................................................15 4.1LIMIT............................................................................................................................15 4.2TESTPROCEDURE.....................................................................................................16 4.3TESTSETUP...............................................................................................................17 4.4TESTRESULTS...........................................................................................................18 (30MHZ-1000MHZ)............................................................................................................19 5.20DBBANDWIDTHTEST..................................................................................................21 5.1LIMIT............................................................................................................................21 5.2TESTPROCEDURE.....................................................................................................21 5.3TESTSETUP...............................................................................................................21 5.4TESTRESULTS...........................................................................................................22 6.ANTENNAREQUIREMENT................................................................................................23 6.1STANDARDREQUIREMENT.......................................................................................23 6.2EUTANTENNA............................................................................................................23 Page4of23ReportNo.:FCS202309217W01 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com RevisionHistory Rev.IssueDateEffectPageContents 00Sep11.2023N/AN/A Page5of23ReportNo.:FCS202309217W01 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.1…

Text truncated - open the document above for the full version.

Page1of2ReportNo.:FCS202309217 Blow1GHzforradiatedemissiontestsetup Conductedemissiontestsetup Page2of2ReportNo.:FCS202309217
