2AXTH-MG6S-MG6Magnetic Wireless Car Charger Holder

根据出风口叶片位置调整好出风口顶片和可旋转夹子组件的位置；插入叶片， 根据叶片厚度选择锁紧开关档位；适用于大部分汽车出风口一键锁紧。硅胶 接触汽车，更紧更贴合更好保护汽车不刮伤。 温馨提示： 以上小型圆形款式的出风口,夹子不能适配。 无线充电器出风口夹子 Type-C充电线说明书 *1*1 *1*1 球头螺帽 出风口夹 磁吸和线圈位置 发光灯 Type-C 充电接口 产品名称：MG6 磁吸无线充车载支架 输入要求：QC3.0车充适配器 输出功率：5W/7.5W/10W/15W(MAX) 充电距离：≤6mm 适用手机：iPhone 12 或 兼容iPhone 12磁圈手机 本产品三包有效期：自购买日起（以寄回的客户回执或购机发票日期为准），提供12 个月保修服务，其它附件（如包装等）不属三包范围，产品外观为人为损坏，附件损 失，不在三包之列。不在三包之内或超过三包期的产品，客户仍享受维修服务，但需 要交纳维修工本费。 1、请勿在车内60摄氏度以上高温条件下使用本产品。 2、请勿在专业赛车或汽车极限越野时使用该产品。 MG6 USER MANUAL Package Functional component Wireless charger Air vent mount Type-C cable User manual *1 *1 *1 *1 Specifications Air vent mount Adjust the position of the top piece of the air outlet and the rotatable clip assembly according to the position of the air outlet blade; insert the blade and select the lock switch position according to the thickness of the blade; suitable for one-key locking of the air outlet of most cars. Silicone touches the car, tighter and fits better to protect the car from scratches. MG6 使用说明书 通过旋转调节夹子开合 上下挡片 深入出风口内部夹片 万向旋转球头 Adjust the clip opening and closing by rotating. Upper and lower support plate A clip that goes deep into the air vent. A ball head that can be rotated at will. 尊敬的用户： 感谢您购买本产品，为了确保您获得可靠的售后服务，请认真阅读以下说明： 1、把该产品与配件通过球头螺帽装配并旋紧（可兼容其他球头直径17mm配 件），并固定在理想位置。用数据线把产品与QC3.0车充（选配）连接， 并插入点烟器取电。 2、 该产品通电后，指示灯会常亮等待放置手机；放上手机后磁吸力自动吸 住手机，且线圈对准。产品会启动无线充电，指示灯呈呼吸效果；如果 手机不支持无线充电或者检测到金属异物，指示灯闪烁5秒后灯灭。 本 产品最大充电功率为15W，充电效率根据充电环境和手机会有所不同。 3、 无线充的最佳距离是3~5mm以内并不能穿透金属，所以需要避免用金属的 或太厚的（大于3mm）手机保护壳，这样才能保证手机快速的无线充电。 4、从产品上取下手机后，指示灯即刻常亮待机状态。停车熄火，产品停止 供电时，指示灯熄灭，手机依旧被磁力吸附在产品上,可随时取下。 Direction for use 1.Assemble and tighten the product and the accessories through the ball head nut (compatible with other ball head diameter 17mm accessories), and fix in the ideal position. Connect the product with a QC3.0 car charger (optional) with the data cable, and plug in the cigarette lighter to take power. 2.After the product is powered on, the indicator light will turn on and wait for the phone to be placed. After placed the phone, the magnetic suction force automatically absorbs the phone, and the coil is aligned. The product will start wireless charging, the indicator light is on for breathing effect; If the phone doesn't support wireless charging or if it detects a metal foreign object, the light flashes alternately for 5 seconds and then goes off. The maximum charging power of this product is 15W, and the charging efficiency will vary according to the charging environment and mobile phone. 3.The best distance of wireless charging is within 3-5mm, and it cannot penetrate metal, so it is necessary to avoid using metal or too thick (over 3mm) mobile phone case, so as to ensure fast wireless charging of mobile phone. 4.After the phone is removed from the product, the indicator will immediately show the standby status . When the car engined off and the power supply stops, the indicator light goes off. The mobile phone is still attached to the product by magnetic force and can be taken off at any time. Dear user: Thank you for purchasing this product. In order to ensure that you get reliable after-sales service, please read the following instructions carefully. Screw Cap Ring Lihgts Type-c Charging Port Magnetic suction and coil position Air vent mount Product Name:Magnetic Wireless Car Charger Holder Model:MG6 Car charger requirements: QC3.0 / 18W+ PD car charger Input: 5V/2A9V/2A Output power: 5W/7.5W/10W/15W(MAX) Induction distance: 6mm Compatible phones: Please use the original iphone 12/13/14 phone case or take off the phone case to use or phone case with magnetic ring - Precautions The guarantee Products three guarantees valid time:From purchasing date (Prevail to the customer receipt date or invoice date),provide 12 months guarantee.Prod- uct surface man-made damage,acces sories missed are not include in this guarantee.We can also provide the service for you for the product is out of surface or doesn’t include in this charge.guarantee,but you need to pay the repair charge. 1. Do not use the product in the car at a temperature above 60 degrees. 2.Do not use this product in professional racing or extreme off-road driving. FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC RF exposure statement: The equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance between 20cm the radiator your body.

C5266091_X8_Ed.1 1/1 Letter of Authorization Company: Shenzhen Caibo Technology Co., Ltd. Address: F4, Building 30, Fifth Industrial Zone, Huaide Cuigang Industrial Park, Fu Yong, Bao’an District, Shenzhen China. Product Name: Magnetic Wireless Car Charger Holder Model Number: MG6 FCC Identifier: 2AXTH-MG6S-MG6 We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Linjun Hu Date: 12/19/2022 Title: CEO Signature of applicant:

C5266091_X10_Ed.1 1/1 Shenzhen Caibo Technology Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 12/19/2022 Subject: Request for Confidentiality FCC ID: 2AXTH-MG6S-MG6 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality ID Label/Location No No Attestation Statement No No External Photos No Block Diagram Schematics Test Report No No Test Setup Photos No User’s Manual Internal Photos Parts List / Tune Up RF Exposure Info Operational Description Cover Letter(s) No No SDR Software / Security Info No Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Linjun Hu Date: 12/19/2022 Title: CEO

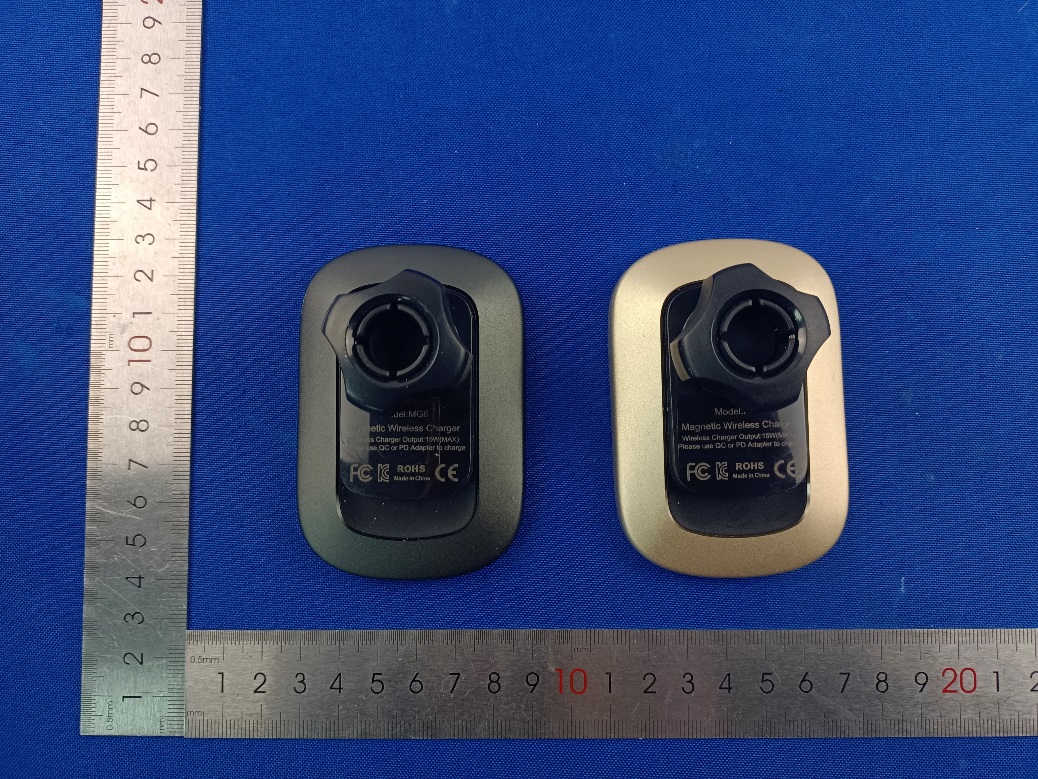

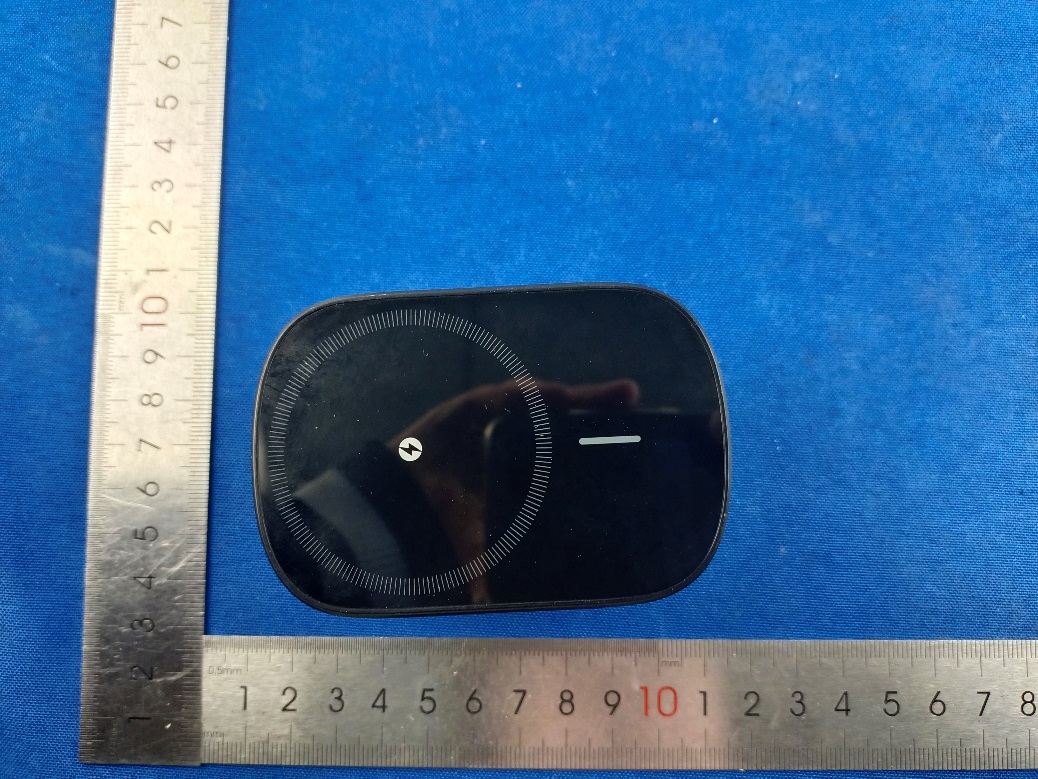

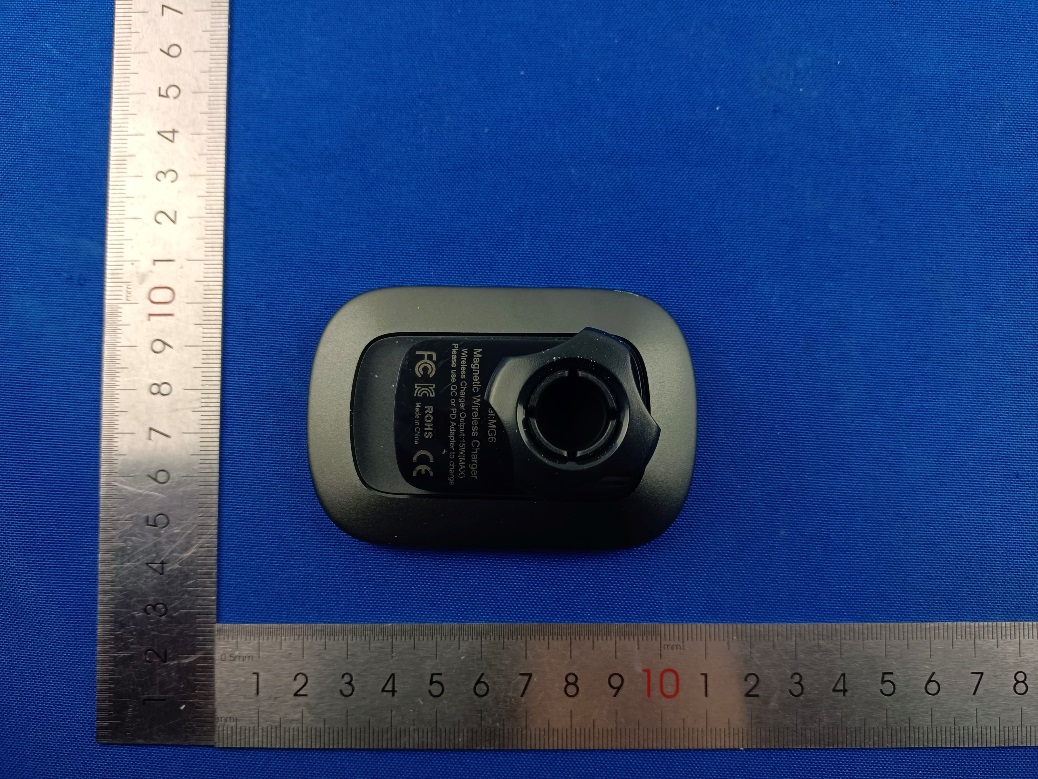

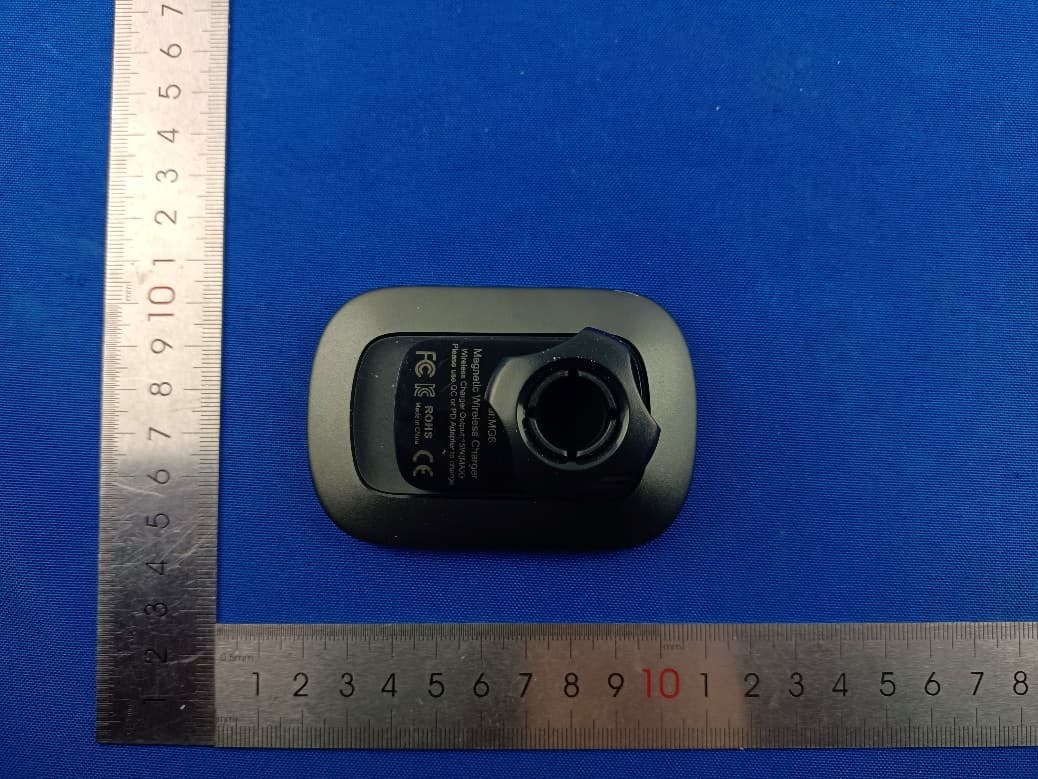

Page 1 of 4 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Te l : (86-755)88850135 Fax: (86-755) 88850136 Web:www.mtitest.com E-mail: [email protected] Appendix - Ext Photos Model: MG6 Photo 1 Photo 2 Page 2 of 4 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Te l : (86-755)88850135 Fax: (86-755) 88850136 Web:www.mtitest.com E-mail: [email protected] Photo 3 Photo 4 Page 3 of 4 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Te l : (86-755)88850135 Fax: (86-755) 88850136 Web:www.mtitest.com E-mail: [email protected] Photo 5 Photo 6 Page 4 of 4 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Te l : (86-755)88850135 Fax: (86-755) 88850136 Web:www.mtitest.com E-mail: [email protected] Photo 7 Photo 8 ----End of Report----

Label Size: 30MM*13MM Location Magnetic Wireless Car Charger Holder Model: MG6 Rating Input: 5VDC 2A, 9VDC 2A FCC ID: 2AXTH-MG6S-MG6 Shenzhen Caibo Technology Co., Ltd F4, Building 30, Fifth Industrial Zone, Huaide Cuigang Industrial Park, Fu Yong, Bao’an District, Shenzhen China. Importer: xxxx Address: xxxx

Page 1 of 3 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Te l : (86-755)88850135 Fax: (86-755) 88850136 Web:www.mtitest.com E-mail: [email protected] Appendix - Int Photos Model: MG6 Photo 1 Photo 2 ANT Page 2 of 3 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Te l : (86-755)88850135 Fax: (86-755) 88850136 Web:www.mtitest.com E-mail: [email protected] Photo 3 Photo 4 Page 3 of 3 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Te l : (86-755)88850135 Fax: (86-755) 88850136 Web:www.mtitest.com E-mail: [email protected] Photo 5 Photo 6 ----End of Report----

Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel : (8 6-755)88850135 Fax: (86-755) 88850136 We b : www.mtitest.com E-mail: [email protected] Test Report Report No.: MTi221119001-08E2 Date of issue: 2022-12-15 Applicant: Shenzhen Caibo Technology Co., Ltd. Product: Magnetic Wireless Car Charger Holder Model(s): MG6 FCC ID: 2AXTH-MG6S-MG6 Shenzhen Microtest Co., Ltd. http://www.mtitest.com Page 2 of 13 Report No.: MTi221119001-08E2 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Te l : (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Instructions 1. This test report shall not be partially reproduced without the written consent of the laboratory. 2. The test results in this test report are only responsible for the samples submitted 3. This test report is invalid without the seal and signature of the laboratory. 4. This test report is invalid if transferred, altered, or tampered with in any form without authorization. 5. Any objection to this test report shall be submitted to the laboratory within 15 days from the date of receipt of the report. Page 3 of 13 Report No.: MTi221119001-08E2 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Te l : (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Contents 1 General Description ........................................................................................................................ 5 1.1 Description of the EUT ....................................................................................................................................... 5 1.2 Description of test modes ................................................................................................................................... 5 1.3 Description of support units ................................................................................................................................ 6 2 Measurement uncertainty ............................................................................................................... 6 3 Test facilities and accreditations .................................................................................................... 7 3.1 Test laboratory .................................................................................................................................................... 7 4 List of test equipment ..................................................................................................................... 8 5 Test result ........................................................................................................................................ 9 5.2 Test setup ......................................................................................................................................................... 10 5.3 Test Procedures ................................................................................................................................................ 10 5.4 Equipment Approval Considerations item 5 b) of KDB 680106 D01 v03r01 .................................................... 11 5.5 Test results ....................................................................................................................................................... 12 Photographs of the Test Setup ............................................................................................................ 13 Photographs of the EUT....................................................................................................................... 13 Page 4 of 13 Report No.: MTi221119001-08E2 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Te l : (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Test Result Certification Applicant: Shenzhen Caibo Technology Co., Ltd. Address: F4, Building 30, Fifth Industrial Zone, Huaide Cuigang Industrial Park, Fu Yong, Bao’an District, Shenzhen China. Manufacturer: Shenzhen Caibo Technology Co., Ltd. Address: F4, Building 30, Fifth Industrial Zone, Huaide Cuigang Industrial Park, Fu Yong, Bao’an District, Shenzhen China. Factory: Shenzhen Caibo Technology Co., Ltd. Address: F4, Building 30, Fifth Industrial Zone, Huaide Cuigang Industrial Park, Fu Yong, Bao’an District, Shenzhen China. Product description Product name: Magnetic Wireless Car Charger Holder Trademark: KOAKUMA Model name: MG6 Series Model: N/A Standards: FCC CFR 47 PART 1, § 1.1310 Test method: KDB 680106 v03r01 Date of Test Date of test: 2022-11-26 ~ 2022-12-14 Te s t result: Pass Test Engineer : (Yanice Xie) Reviewed By: : (Leon Chen) Approved By: : (Tom Xue) Page 5 of 13 Report No.: MTi221119001-08E2 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Te l : (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] 1 General Description 1.1 Description of the EUT Product name: Magnetic Wireless Car Charger Holder Model name: MG6 Series Model: N/A Model difference: N/A Electrical rating: Input: 5V/2A, 9V/2A Wireless Output: 5W/7.5W/10W/15W(MAX) Accessories: N/A Hardware version: P73MG6 V1.0 Software version: EG9899F3 RF specification: Operation frequency: 115 kHz – 205 kHz Modulation type: ASK Antenna type: Coil Antenna 1.2 Description of test modes All the test modes were carried out with the EUT in normal operation, the final test mode of the EUT was the worst test mode for emission test, which was shown in this report and defined as: No. Emission test modes Mode 1 Wireless Output(5W) M…

Text truncated - open the document above for the full version.

Address: 101, No.7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel : (8 6-755)88850135 Fax: (86-755) 88850136 We b : www.mtitest.com E-mail: [email protected] Test Report Report No.: MTi221119001-08E1 Date of issue: 2022-12-15 Applicant: Shenzhen Caibo Technology Co., Ltd. Product: Magnetic Wireless Car Charger Holder Model(s): MG6 FCC ID: 2AXTH-MG6S-MG6 Shenzhen Microtest Co., Ltd. http://www.mtitest.com Page 2 of 22 Report No.: MTi221119001-08E1 Address: 101, No. 7, Zone2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Te l : (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Instructions 1. This test report shall not be partially reproduced without the written consent of the laboratory. 2. The test results in this test report are only responsible for the samples submitted 3. This test report is invalid without the seal and signature of the laboratory. 4. This test report is invalid if transferred, altered, or tampered with in any form without authorization. 5. Any objection to this test report shall be submitted to the laboratory within 15 days from the date of receipt of the report. Page 3 of 22 Report No.: MTi221119001-08E1 Address: 101, No. 7, Zone2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Te l : (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Table of contents 1. General Description ........................................................................................................................ 5 1.1 Description of the EUT ....................................................................................................................................... 5 1.2 Description of test modes ................................................................................................................................... 5 1.3 Description of support units ................................................................................................................................ 6 1.4 Environmental conditions ................................................................................................................................... 6 2. Measurement uncertainty ............................................................................................................... 7 3. Test laboratory ................................................................................................................................. 7 4. Summary of Test Result .................................................................................................................. 8 5. List of test equipment ..................................................................................................................... 9 6. Test Results ................................................................................................................................... 10 5.1 Antenna requirement ........................................................................................................................................ 10 5.3 AC power line conducted emissions ........................................................................................................... 11 5.4 Radiated emissions..................................................................................................................................... 14 5.5 Occupied bandwidth test ............................................................................................................................ 21 Photographs of the test setup ............................................................................................................. 22 Photographs of the EUT....................................................................................................................... 22 Page 4 of 22 Report No.: MTi221119001-08E1 Address: 101, No. 7, Zone2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Te l : (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Test Result Certification Applicant: Shenzhen Caibo Technology Co., Ltd. Address: F4, Building 30, Fifth Industrial Zone, Huaide Cuigang Industrial Park, Fu Yong, Bao’an District, Shenzhen China. Manufacturer: Shenzhen Caibo Technology Co., Ltd. Address: F4, Building 30, Fifth Industrial Zone, Huaide Cuigang Industrial Park, Fu Yong, Bao’an District, Shenzhen China. Factory: Shenzhen Caibo Technology Co., Ltd. Address: F4, Building 30, Fifth Industrial Zone, Huaide Cuigang Industrial Park, Fu Yong, Bao’an District, Shenzhen China. Product description Product name: Magnetic Wireless Car Charger Holder Trademark: KOAKUMA Model name: MG6 Series Model: N/A Standards: FCC 47 CFR Part 15 Subpart C Test method: ANSI C63.10-2013 Date of Test Date of test: 2022-11-26 ~ 2022-12-14 Te s t result: Pass Test Engineer : (Yanice Xie) Reviewed By: : (Leon Chen) Approved By: : (Tom Xue) Page 5 of 22 Report No.: MTi221119001-08E1 Address: 101, No. 7, Zone2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Te l : (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] 1. General Description 1.1 Description of the EUT Product name: Magnetic Wireless Car Charger Holder Model name: MG6 Series Model: N/A Model difference: N/A Electrical rating: Input: 5V/2A, 9V/2A Wireless Output: 5W/7.5W/10W/15W(MAX) Accessories: N/A Hardware version: P73MG6 V1.0 Software version: EG9899F3 Test sample(s) number: MTi221119001-08S1001 RF specification: Operation frequency: 115 kHz – 205 kHz Modulation type: ASK Antenna type: Coil Antenna 1.2 Description of test modes All the test modes were carried out with the EUT in normal …

Text truncated - open the document above for the full version.

Shenzhen Shenlianyu Electronics Co., Ltd Acknowledgment Customer Name： ming jing tian Customer Item No： P73 Product name ： Charging coil Product Item No ： Customer acknowledges Please sign back after recognition. If the following order is not signed back, it will be regarded as default. Thank you for your cooperation Issue Date Document No organization to examine approval 2022-08-26 SLY-MJT-01 zhang chen Lai wei Shenzhen Shenlianyu Electronics Co., Ltd Document No S LY-MJT-01 Issue Date 2022-08-26 Revision C effective date 2022-08-26 G43 Series Sample Acknowledgment Number of revisions 0 Page 1 /2 editi Change resume Changed by Change time A New issue: August 26, 2022 zhang 2022-08-26 B C Shenzhen Shenlianyu Electronics Co., Ltd Document No S LY-MJT-01 Issue Date 2022-08-26 Revision C effective date 2022-08-26 G43 Series Sample Acknowledgment Number of revisions 0 Page 2 /2 1.Overall dimensions: (Company：mm) 2.Electrical characteristics Inductance L 6.1uH±5% Test conditions 100KHz/1V Test instrument: Digital bridgeTH2817C+ DC resistance(DCR) 36mΩ Max Test conditions 100KHz/1V Qvalue ≥75 Test conditions 100KHz/1V 3.Material Science: 4.Electrical property diagram: (1)Magnetic disc:G43-1 (2)Copper wire: 0.08*105Wire wrapped strand (3)Winding method: 10 turns counterclockwise

Page 1 of 2 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Te l : (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Appendix - Test Setup Photos Model: MG6 Radiated emissions – Below 30 MHz Radiated emissions –Below 1 GHz Page 2 of 2 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Te l : (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Conducted emissions MPE ----End of Report----
