2AXTH-T33in1 FAST WIRLESS CHARGER

三合一桌面无线充 Type-C 充电线 说明书 绿灯常亮： 待机状态 输入: 5V/2A, 9V/2A,12V/2A 手机输出: 15W/10W/7.5W/5W 手表输出: 2.5 W 耳机输出: 3 W 输入接口: Type-C接口 充电频率: 110-205 kHZ 磁铁吸力: 0.8KG 产品尺寸: 118.03*150.13mm LED 智能指示灯 使用步骤 功能组件 包 装 充电示意图 为了您的权益，请您认真填写，并妥善保管，作为维前凭证！ 请勿擅自修改内容，否则视为作废。 本公司保留对该产品售后服务条例的最终解释权。 1.请勿过度挤压或碰撞设备。 2. 请勿与带磁条或者芯片的磁卡（身份证、银行卡等）放置 太近，避免造成磁卡失效 本产品三包有效期：自购买日起（以寄回的客户回执或购机发 票日期为准），提供12个月保修服务，其它附件（如包装等） 不属三包范围，产品外观为人为损坏，附件损失，不在三包之 列。不在三包之内或超过三包期的产品，客户仍享受维修服务 ，但需要交纳维修工本费。 保 修 适用设备 产品规格 注意事项 手机无线 充电区域 柔光灯区域 防滑垫 watch 充电区域 耳机充电区域 Type-c 接口 散热孔 触摸灯光 开/关 1.插入Type-C 电缆，给无 线充电器通电。 2.将智能手机放置在对应区 域，均可正常充电。 3.将苹果手表放置在Watch 区域，均可正常充电。 4.将耳机放置在对应区域， 均可正常充电。 绿灯呼吸： 给手机无线充电中 绿灯闪烁: 检测到异物 同时充3台苹果设备 手机可带非金属壳充 iPhone 12/13/14 非苹果12以上 手机请加引磁环 1.智能手机： 苹果：iPhone14 Pro/iPhone13 Pro/iPhone12/12Pro/12Pro Max/12 mini/SE/11/11Pro/Max/Xs/Xs Max/XR/8/8 Plus 三星:Galaxy S 215G/21+5G/21Ultra 5G/FE5G/205G/20+5G/20Ultra5G/10/10+/10e/9/9+/8/8+ 7/7 edge/6/6edge/6 edge+/6 G9209/6 Active/Galaxy Note:10/10e/10+/9/8/7/6/5/Z-Flip/Z-Fold series 华为:P30 Pro/P40 Pro/P40 Pro+/Mate:40E/40RS/40 Pro+40 Pro/40/30E Pro/305G/30 Pro5G/30 /30 Pro/30 RS/20 Pro/20 RS/RS 小米:12/12 Pro/11/11 Pro/10/10Pro/9/9 Pro/Mix3/Mix2s 谷歌：Spixe6/16 Pro 包括其它内置无线充电接收器的设备(注:以上所有设备必须符 合Qi标准) 2.智能手表: 苹果:iWatch S2/S3/S4/S5/S6/S7/SE/Nike (包括其它支持无线充的手表） 3.耳机: 苹果:Air Pods二代/三代/Air Pods Pro (包括其它支持无线充的耳机） 3 in 1 Desktop Wireless charger *1 Type-C charging cable *1 User Maunal *1 Green light on: Green light flashing: Standby status Foreign object detected Apple watch only Apple Watch Ultra Apple Watch Series/Full range Apple Watch SE Apple Watch Nermes Apple earphone only AiPods1 AiPods2 AiPods3 Pro Wireless charging mobile phone Mobile phone can be charged with non-metallic shell Input: 5V/2A, 9V/2A,12V/2A Mobile output: 15W/10W/7.5W/5W Watch output: 2.5 W Earphone output: 3 W Input interface: type-C interface Charging frequency: 110-205 kHZ Magnetic attraction: 0.8KG Product size: 118.03 * 150.13mm Mobile wireless Charging area watch Charging area Heat Dispatch Hole Type-C interface Earphone charging area Anti-slip mat Soft light 1. Plug in the type-C cable to supply power for wireless charger. 2. Place the smart phone in the corresponding area, that can be charged normally. 3. Place the Apple watch on the watch area, that can be charged normally. 4. Place the earphone in the corresponding area,that can be charged normally. Green light breathing: 1.Smartphone：For non-MagSafe phones, please use an extra magnetic ring or MagSafe case to use this product. Apple：iPhone13 Pro,iPhone12/12Pro/12Pro Max/12 mini/ SE/11/11Pro/Max/Xs/Xs Max/XR/8/8 Plus Samsung:Galaxy S 215G/21+5G/21Ultra 5G/FE5G/ 205G/20+5G/20U tra5G/10/10+/10e/9/9+/8/8+ 7/7 edge/6/6edge/6 edge+/6 G9209/6 Active /Galaxy Note:10/10e/10+/9/8/7/6/5/Z-Flip/Z-Fold series Huawei:P30 Pro/P40 Pro/P40 Pro+/Mate:40E/40RS/40 Pro+40 Pro/40/30E Pro/305G/30 Pro5G/30/30 Pro/30 RS/20 Pro/20 RS/RS Xiaomi:12/12 Pro/11/11 Pro/10/10Pro/9/9 Pro/Mix3/Mix2s Google:Spixe6/16 Pro Including other devices with built-in wireless charging receiver (Note: all the above devices must comply with Qi standard) 2.Smart Watch: Apple:iWatchS2/S3/S4/S5/S6/S7/SE/Nike (Including other watches that support wireless charging) 3.Earphone: Apple:AirPods1/2/AirPodsPro (Including other headphones that support wireless T3 使用说明书 T3 USER MANUAL Package Functional component Applicable Devices Product specification LED intelligent indicator Charging diagram Charge 3 Apple devices at the same time Use steps Caution Warranty 1. Do not over squeeze or collide with the equipment. 2. Do not place with magnetic card (ID card, bank card, etc.) with magnetic stripe or chip Too close to avoid magnetic card failure The three guarantee period of this product: from the date of purchase (sent by the returned customer receipt or purchase machineSubject to the ticket date), provide 12-month warranty service, and other accessories (such as packaging, etc.)It is not within the scope of three guarantees. The appearance of the product is artificially damaged, and the loss of accessories is not within the scope of three guarantees scope. For products that are not within the three guarantees or exceed the three guarantees period, customers still enjoy maintenance services, but the maintenance cost shall be paid. For your rights and interests, please fill in carefully and keep it properly as a pre maintenance voucher! Do not modify the content without authorization, otherwise it will be deemed invalid. The company reserves the final right to interpret the after-sales service regulations of the product. Product Warranty Card Touch light ON/OFF 可充苹果手机 Apple Watch Ultra Apple Watch Series/全系列 Apple Watch SE Apple Watch Nermes 可充苹果手表 Air Pods 二代 Air Pods 三代 Air Pods Pro 可充苹果耳机 非磁吸手机，请增加引磁环后使用该产品 Rechargeable Apple phone iPhone 12/13/14 non-MagSafe phones 12 Magnetic ring can be added with mobile phone This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the se…

Text truncated - open the document above for the full version.

C5266091_X24_Ed.2 1/1 ShenzhenCaiboTechnologyCo.,Ltd. “AttestationStatements” TO: OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 TheCommissionadoptedrulesthatprohibitequipmentauthorizationfor“covered” telecommunicationsequipmentandvideosurveillanceequipmentproducedbyentitiesidentified ontheCommission’sCoveredList 1 ,whichisperiodicallyupdated.SeetheCoveredListformore details.ThisAttestationStatementistoconfirmthatwefollowtheSection2.911(d)(5)(i)-(ii) Applicant Companyname:ShenzhenCaiboTechnologyCo.,Ltd. Granteecode:2AXTH FCCID:2AXTH-T3 ContactName:LinjunHu Address:4thFloor,Building30th,No.5Area,CuigangIndustrialZone,Huaide,Fuyong,Baoan District,ShenzhenChina TelephoneNo:13713719057 FaxNo:86075583299599 Email:[email protected] i.[ShenzhenCaiboTechnologyCo.,Ltd.](“theapplicant”)certifiesthatthe equipmentforwhichauthorizationissoughtisnot“covered”equipment prohibitedfromreceivinganequipmentauthorizationpursuanttosection 2.903oftheFCCrules.Theapplicantmustsignthiscertification. ii.[ShenzhenCaiboTechnologyCo.,Ltd.](“theapplicant”)certifiesthat,asof thedateofthefilingoftheapplication,theapplicant[isnot](asa specificallynamedentityoranyofitssubsidiariesoraffiliates)identifiedon theCoveredListasanentityproducing“covered”equipment.Theapplicant mustsignthiscertification. [ShenzhenCaiboTechnologyCo.,Ltd.](“theapplicant”)certifiesthat,asofthedate ofthefilingoftheapplication,theapplicant[isnot]identifiedontheCoveredList asanentityproducing“covered”equipment. Date:2023/06/25 Applicant’sName:LinjunHu Title:Manager Signature 1 TheCommission’sCoveredListispublishedbythePublicSafetyandHomelandSecurityBureauandpostedonthe Commission’swebsite.ThisCoveredList,whichisperiodicallyupdated,identifiesparticularequipment,producedby particularentities,thatconstitutes“covered”equipment.https://www.fcc.gov/supplychain/coveredlist

C5266091_X8_Ed.1 1/1 LetterofAuthorization ShenzhenCaiboTechnologyCo.,Ltd. Company:ShenzhenCaiboTechnologyCo.,Ltd. Address:4thFloor,Building30th,No.5Area,CuigangIndustrialZone, Huaide,Fuyong,BaoanDistrict,ShenzhenChina ProductName:3in1FASTWIRLESSCHARGER ModelNumber:T3 FCCIdentifier:2AXTH-T3 WeauthorizeLGAITechnologicalCenterS.A.,RondadelaFontdelCarme,s/n, 08193Bellaterra,Spain,toactonourbehalfonallmattersconcerningthe abovenamedequipment. AnyindividualwithinLGAITechnologicalCenterS.A.isauthorizedtoactonour behalfandtakeactionontheapplication. WedeclarethatauthorizeLGAITechnologicalCenterS.A.,RondadelaFontdel Carme,s/n,08193Bellaterra,Spain,isallowedtoforwardallinformation relatedtotheapprovalprojecttotheFederalCommunicationCommissionand todiscussanyissuesconcerningtheapprovalapplication.Anyandallacts carriedoutbyLGAITechnologicalCenterS.A.onourbehalfshallhavethe sameeffectasactsofourown. Name:LinjunHuDate:2023.06.25 Title:Manager Signatureofapplicant:

C5266091_X10_Ed.2 1/1 ShenzhenCaiboTechnologyCo.,Ltd. OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 Date:2023-06.25 Subject:RequestforConfidentiality FCCID:2AXTH-T3 ToWhomItMayConcern, PursuanttotheprovisionsofSections0.457and0.459ofCommission'srules (47CFR0.457,0.459),wearerequestingtheCommissiontowithholdthefollowing attachment(s)asconfidentialdocumentfrompublicdisclosure. ExhibitsLong-Term Confidentiality Short-Term Confidentiality NOTE2 IDLabel/LocationNoNo AttestationStatementNoNo ExternalPhotosNo ☐ BlockDiagram ☒☐ Schematics ☒☐ TestReportNoNo TestSetupPhotosNo ☐ User’sManual ☐ NOTE 1 ☐ InternalPhotos ☐ NOTE 1 ☐ PartsList/TuneUp ☐☐ RFExposureInfoNoNo OperationalDescription ☒☐ CoverLetter(s)NoNo SDRSoftware/SecurityInfo ☐ No NOTE1:Long-TermConfidentialitymaybepermittedunderspecialconditions(SeeII.LONG-TERMCONFIDENTIALITY,Section3of KDB726920,uselastinforce) NOTE2:Short-TermConfidentialitycanberequestedforamaximumof180daysfromthedateofthegrant. Abovementioneddocumentcontainsdetailedsystemandequipmentdescriptionare consideredasproprietaryinformationinoperationoftheequipment.Thepublic disclosureofabovedocumentsmightbeharmfultoourcompanyandwouldgive competitoranunfairadvantageinthemarket. Incaseofshort-termConfidentiality,theapplicantrequeststheexhibitsselected abovearewithheldfrompublicviewforaperiodof______daysfromthedateofthe GrantofEquipmentAuthorizationandpriortomarketing. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondentduringcertificationreviewprocesscannotbegrantedasconfidential documentsandthoseinformationwillbeavailableforpublicreviewoncethegrantof equipmentauthorizationisissued. C5266091_X10_Ed.2 1/1 Sincerely, Signature: Name:LinjunHu Title:Manager 2023.06.25

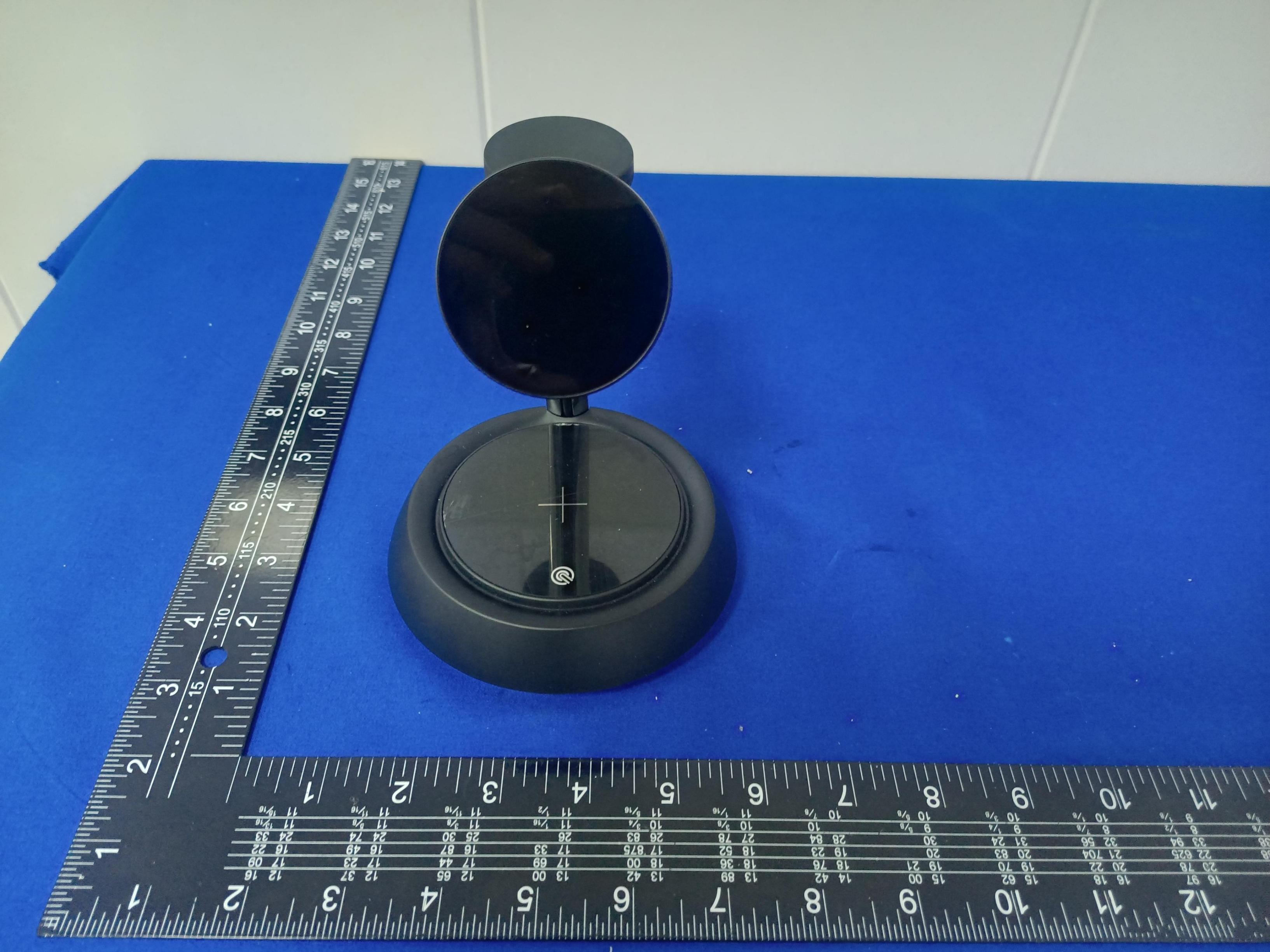

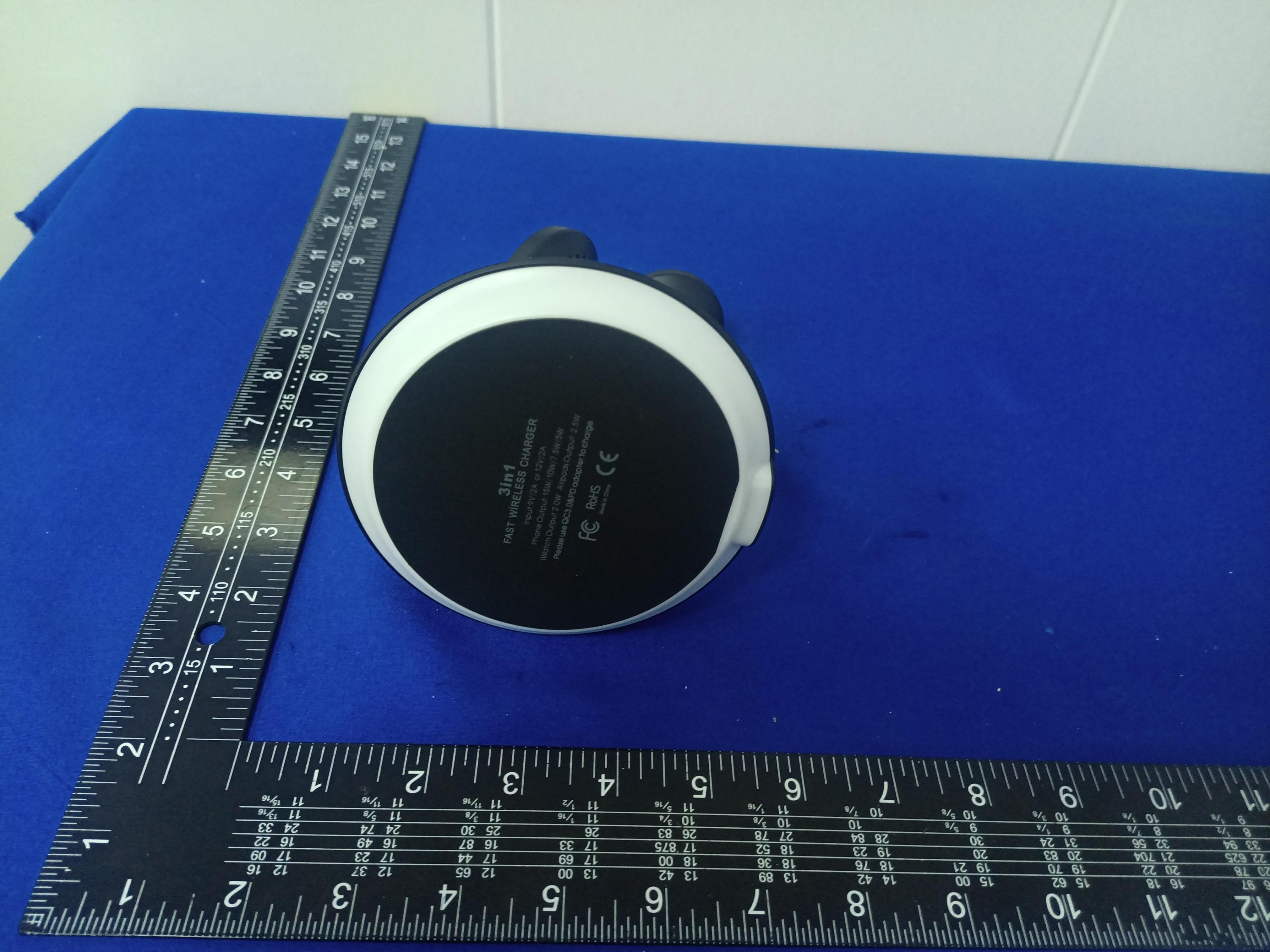

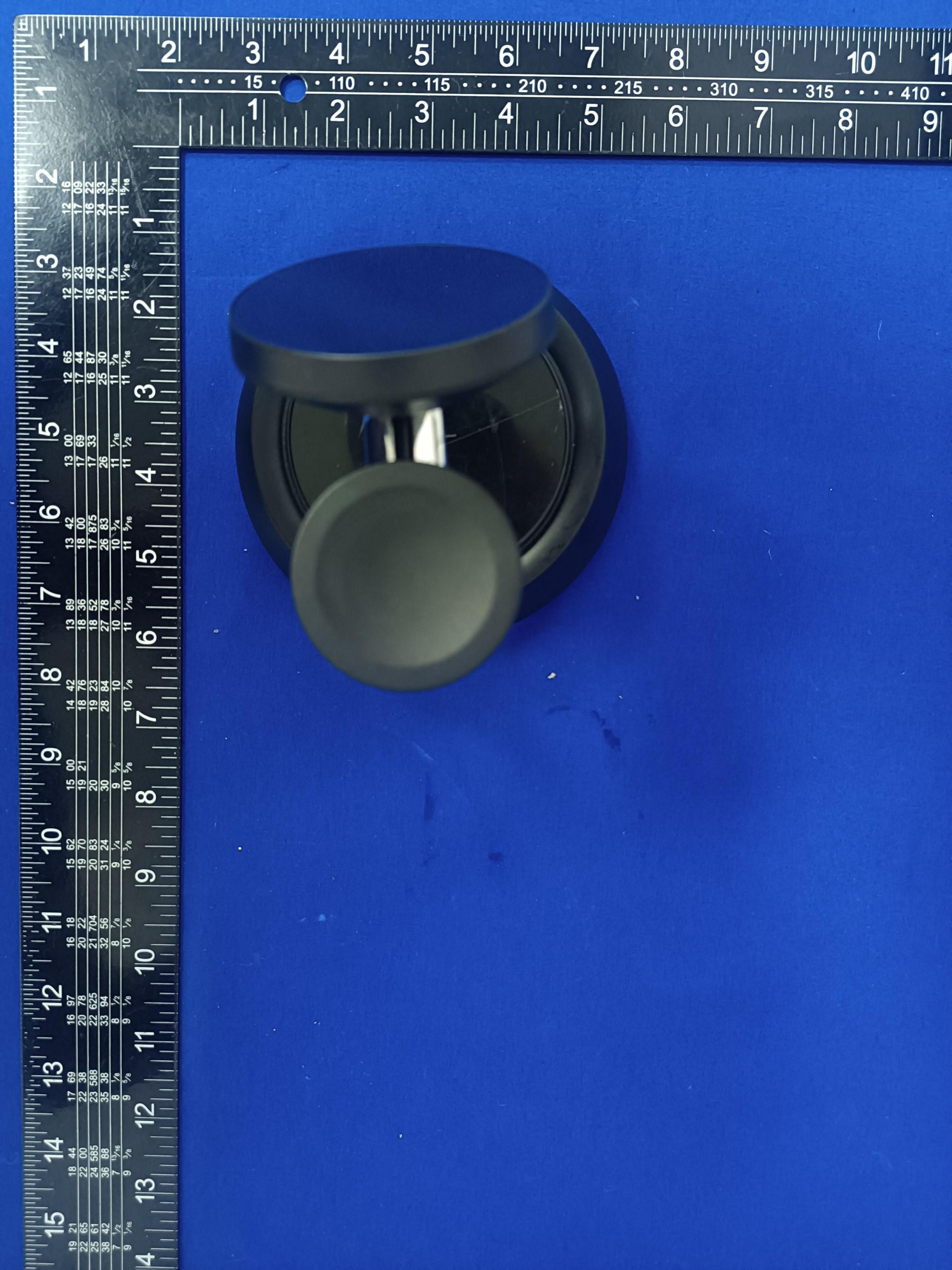

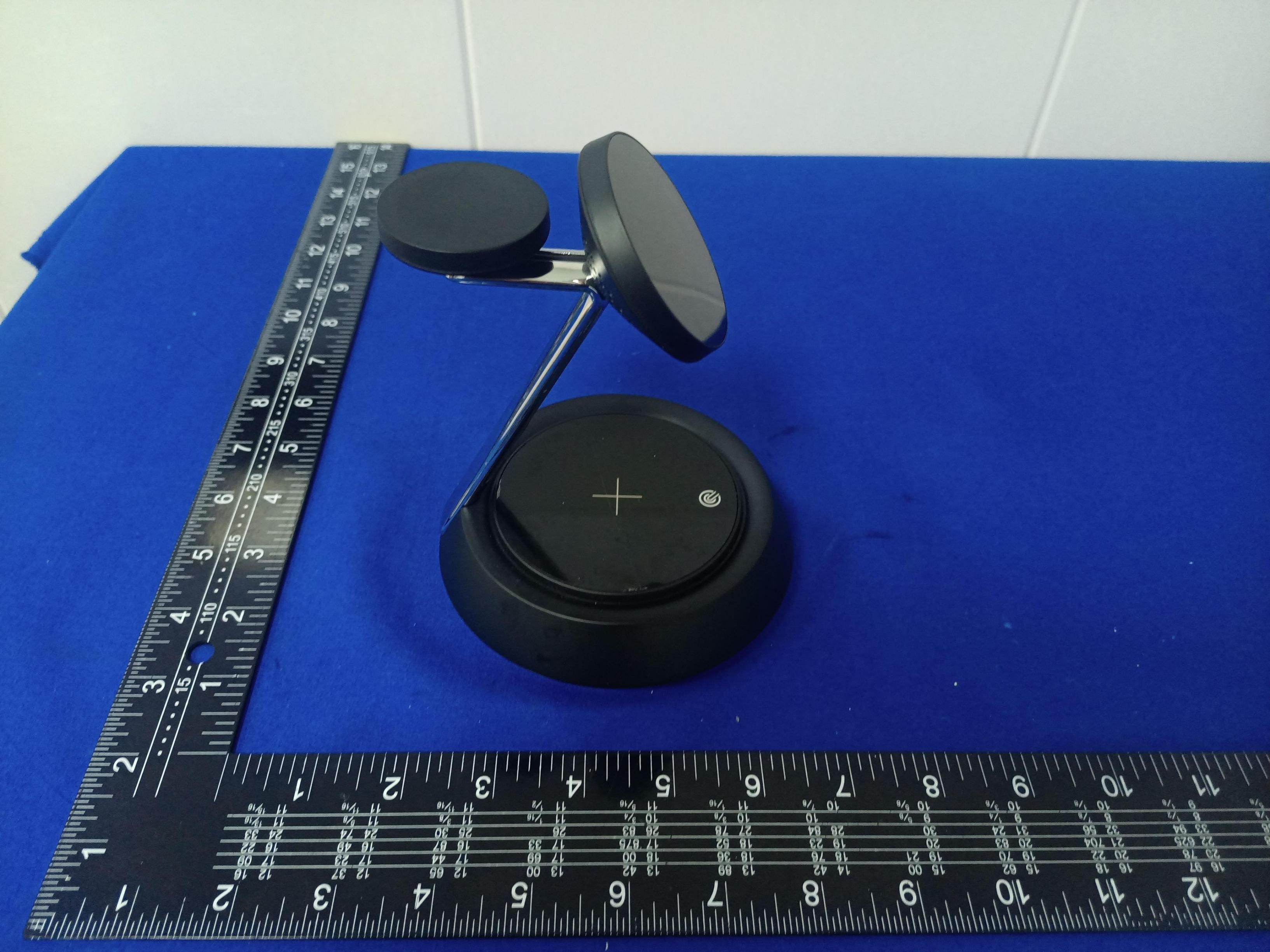

Page1of3ReportNo.:FCS202306089 Externalphotos Photo1 Photo2 Page2of3ReportNo.:FCS202306089 Photo3 Photo4 Page3of3ReportNo.:FCS202306089 Photo5 Photo6

LabelandLabelLocation FCCID:2AXTH-T3

Page1of5ReportNo.:FCS202306089 Internalphotos Photo1 InductiveLoopAntenna Photo2 Page2of5ReportNo.:FCS202306089 Photo3 Page3of5ReportNo.:FCS202306089 Photo5

Page1of5ReportNo.:FCS202306089 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com RFExposureEvaluation FCCID:2AXTH-T3 1MeasuringStandard KDB680106D01RFExposureWirelessChargingAppsv03r01c 2Requirements AccordingtoKDB680106clause5,b Inductivewirelesspowertransferapplicationsthatmeetallofthefollowingrequirementsareexcluded (1)Powertransferfrequencyislessthan1MHz. --Yes,thedeviceoperatedinthefrequencyrangefrom115KHzto205KHz (2)Outputpowerfromeachprimarycoilislessthanorequalto15watts. --Yes,themaximumoutputpoweroftheprimarycoilis15W (3)Thesystemmayconsistofmorethanonesourceprimarycoils,chargingoneormoreclients.If morethanoneprimarycoliispresent,thecoilpairymaybepoweredonatthesametime. --Yes,thetransfersystemincludeshavemultipleprimarycoilsandclientsthatareabletodetectand allowcouplingbepoweredonatthesametime. (4)Clientdeviceisplaceddirectlyincontactwiththetransmitter. --Yes,Clientdeviceisplaceddirectlyincontactwiththetransmitter (5)Mobileexposureconditionsonly(portableexposureconditionsarenotcoveredbythisexclusion). --Yes (6)TheaggregateH-fieldstrengthsat15cmsurroundingthedeviceand20cmabovethetopsurface fromallsimultaneoustransmittingcoilsaredemonstratedtobelessthan50%oftheMPElimit. --Yes,theEUTfieldstrengthlevelare50%xMPElimit. 3Limits Thecriterialistedinthefollowingtableshallbeusedtoevaluatetheenvironmentimpactofhuman exposuretoradiofrequency(RF)radiationasspecifiedin1.1307(b) LimitsforMaximumPermissibleExposure(MPE) Page2of5ReportNo.:FCS202207069 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com 4TestSetup 5TestProcedure 1)TheRFexposuretestwasperformedinanechoicchamber. 2)Themeasurementprobewasplacedattestdistance(15cmfromallsidesand20cmfrom thetop)whichisbetweentheedgeofthechargerandthegeometriccenterofprobe. 3)Thehighestemissionlevelwasrecordedandcomparedwithlimitassoonasmeasurement ofeachpoints(A,B,C,D,E)werecompleted 4)TheEUTwasmeasuredaccordingtothedictatesofKDB680106D01v03r01 Remark：TheEUT’stestpositionA,B,C,DandEisvalidfortheEandHfieldmeasurements Page3of5ReportNo.:FCS202207069 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com 6. MeasurementUncertainty (95%confidencelevels,k=2) ItemUncertainty UncertaintyforH-Field2.36dB UncertaintyforE-Field2.42dB UncertaintyforconductedRFPower0.62dB Uncertaintyfortemperature0.2°C Uncertaintyforhumidity1.1% UncertaintyforDCandlowfrequencyvoltages0.06% 7.Equipmentlist TestEquipmentManufacturerModelNo.SN.Last calibration Calibrated until Electricand Magnetic field probe-Analyzer NardaEHP-200AN03565Aug30,2022Aug29,2023 Page4of5ReportNo.:FCS202207069 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com 8PlacementMode1Photo 8Testmode ModeDescription Mode1iWatch(2.5W) Mode2Earbuds(3W) Mode3Phone(5W) Mode4Phone(7.5W) Mode5Phone(10W) Mode6Phone(15W) Mode7iWatch(2.5W)+Earbuds(3W)+Phone(5W) Mode8iWatch(2.5W)+Earbuds(3W)+Phone(7.5W) Mode9iWatch(2.5W)+Earbuds(3W)+Phone(10W) Mode10iWatch(2.5W)+Earbuds(3W)+Phone(15W) Mode11iWatch(2.5W)+Phone(5W) Mode12iWatch(2.5W)+Phone(7.5W) Mode13iWatch(2.5W)+Phone(10W) Page5of5ReportNo.:FCS202207069 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com Mode14 Mode15 Mode16 Mode17 Mode18 Mode19 Mode20 Mode21 Mode22 iWatch(2.5W)+Phone(15W) Earbuds(5W)+Phone(5W) Earbuds(5W)+Phone(7.5W) Earbuds(5W)+Phone(10W) Earbuds(5W)+Phone(15W) iWatch(2.5W)+Earbuds(5W) iWatch(2.5W)+Earbuds(5W) iWatch(2.5W)+Earbuds(5W) iWatch(2.5W)+Earbuds(5W) 9Necessaryaccessories ItemEquipmentMfr/BrandModel/TypeNo.SerialNo.Note 1PhoneappleiPhone12N/A Thisisfortesting onlyinreport. 2EarbudsAppleAirPodsAirPods2N/A Thisisfortesting onlyinreport. 3WatchXIAOMIS1N/A Thisisfortesting onlyinreport. 4AdapterXIAOMIMDY-11-EBN/A Thisisfortesting onlyinreport. 10TestResult Battery powe Placement Mode 10(Worst) Input:12V=2A E-Filed Strength at 15 cm from the edges surrounding the EUT (V/m) r Frequency Range(MHz) Test Position A Test Position B Test Position C Test Position D Limits (V/m) 1%0.115-0.2051.431.470.580.48614 50%0.115-0.2051.581.270.460.58614 95%0.115-0.2051.271.560.440.56614 Stand-by0.115-0.2051.381.270.590.58614 E-FiledStrengthat20cmfromthetopoftheEUT(V/m) Note:All modes have considered different input voltages Page6of5ReportNo.:FCS202207069 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com Battery power Frequency Range(MHz) Test PositionE Limits (V/m) 1%0.115-0.2051.23614 50%0.115-0.2051.29614 95%0.115-0.2051.28614 Stand-by0.115-0.2051.48614 H-FiledStrengthat15cmfromtheedgessurroundingtheEUT(A/m) Battery power Frequency Range(MHz) Test Position A Test Position B Test Position C Test Position D Limits (A/m) 1%0.115-0.2050.620.600.700.611.63 50%0.115-0.2050.610.620.650.571.63 95%0.115-0.2050.600.630.570.551.63 Stand-by0.115-0.2050.580.600.640.561.63 H-FiledStrengthat20cmfromthetopoftheEUT(A/m) Battery power Frequency Range(MHz) Test PositionE Limits (A/m) 1%0.115-0.2050.441.63 50%0.115-0.2050.381.63 95%0.115-0.2050.441.63 Stand-by0.115-0.2050.541.63 Testedby:Reviewedby: ※※※※※ENDOFTHEREPORT※※※※※

watch ANT SPECIFICATION APPROVAL 产品型号： D E S T: Ø13.8*0.07*100P*12TS- 6.4UH-12MM 版 本： VERSION: V0 客 户: CUSTOMER: 客 户 料 号： Y-5441 一、尺寸 DIMENSION:(mm)A13.8±0.5 B35.5±0.5 C43.5±0.5 D12±1 E3±1 F1±0.05 G2.5 MAX H I J K L 备注：线圈终止线处缠6MM高温胶带，磁片背面贴双面胶 制定/日期 PREPARED BY/DATE审核/日期 CHECKED BY/DATE 郑少东/2022.07.15姚振东/2022.07.15 Mobile ANT SPECIFICATION APPROVAL 产品型号： D E S T: Ø13.8*0.07*100P*12TS- 6.4UH-12MM 版 本： VERSION: V0 客 户: CUSTOMER: 客 户 料 号： 五，产品实物图 PRODUCT PICTURE 六、材料清单 MATERIAL LIST 序号 NO 材料名称 MATERIAL NAME 品名描述 DESCRIPTION 制造商 MANUFACTURER 1线 材0.07*100PRH 2磁 片 Ø43.8*5.3*1.0mm铁氧体磁片 KHF 3锡 条高温环保锡DB 4胶 水BE885-9007BR 5胶 带6mm高温胶带 6背 胶双面胶 7包 装夹链袋 备注：REMARK:以上物料符合ROHS 2.0+REACH环保要求 制定/日期 PREPARED BY/DATE审核/日期 CHECKED BY/DATE 郑少东/2022.07.15姚振东/2022.07.15 客户代码版次编制日期承制方 A02022.04.09金晟智能 第 3 页 广东金晟智能有限公司 GuangdongJinshengintelligentCo.,Ltd 结构尺寸 1.外形尺寸: （单位：mm） 10.5±0.5 39±1 1 5 ± 2 2 - 5 1.3MAX 2.8MAX 43.8max 磁片背面贴双面胶 5.0±0.3 磁铁 2.电气性能（L）： 项目 标准测式条件测试仪器备注 电感16.5uH±10% 100KHZ,1VTH2817B+ 带磁片测式 电感 3.6 ± 5% 100KHZ,1VTH2817B+线圈测式 电阻 Q 值 3.外观要求： 1)产品形状尺寸要严格控制。 2)产品表面无油污，杂质，毛刺等。 3)不经客户确认，材料不能随意更改 4)产品必须符合ROSH要求 Earphone ANT 客户代码版次编制日期承制方 A02022.04.09金晟智能 第 4 页 广东金晟智能有限公司 GuangdongJinshengintelligentCo.,Ltd 材料清单 Billofmaterials（材料清单表） 序号 number 材料名称 Materialname 品名描述 Description 物料代码 MaterialCode 1 线材0.08*105P丝包线 2 磁片 G44x0.8双槽带孔 3 胶布5MM茶色高温胶带 4 白胶工业专用硅酮胶 5 背胶G42x0.15h带手撕位 6 磁铁5.0*2.0

； FCCTestReport ReportNo:FCS202306089W01 Issuedfor Applicant: ShenzhenCaiboTechnologyCo.,Ltd. Address: 4thFloor,Building30th,No.5Area,CuigangIndustrialZone, Huaide,Fuyong,BaoanDistrict,ShenzhenChina ProductName: 3in1FASTWIRLESSCHARGER BrandName: N/A ModelName: T3 SeriesModel: N/A FCCID: 2AXTH-T3 IssuedBy:FluxComplianceServiceLaboratory Add:Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-Tech Industrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com Page2of25ReportNo.:FCS202306089W01 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com TESTRESULTCERTIFICATION Applicant’sName......................:ShenzhenCaiboTechnologyCo.,Ltd. Address......................................: 4thFloor,Building30th,No.5Area,CuigangIndustrialZone, Huaide,Fuyong,BaoanDistrict,ShenzhenChina Manufacture'sName ................ :ShenzhenCaiboTechnologyCo.,Ltd. Address......................................: 4thFloor,Building30th,No.5Area,CuigangIndustrialZone, Huaide,Fuyong,BaoanDistrict,ShenzhenChina ProductDescription ProductName ........................... :3in1FASTWIRLESSCHARGER BrandName ............................. :N/A ModelName .............................. :T3 SeriesModel .............................. :N/A TestStandards..........................:FCCRulesandRegulationsPart15SubpartC,Section209 TestProcedure..........................:ANSIC63.10:2013 ThisdevicedescribedabovehasbeentestedFCS,thetestresultsshowthattheequipmentunder test(EUT)isincompliancewiththeFCCrequirements.Anditisapplicableonlytothetestedsample identifiedinthereport. Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofFCS,thisdocument maybealteredorrevisedbyFCS,personalonly,andshallbenotedintherevisionofthedocument.. DateofTest..................................: Date(s)ofperformanceoftests.:Jun13.2023~Jun16.2023 DateofIssue.................................:Jun16.2023 TestResult .................................... :Pass Testedby: (ScottShen) Reviewedby : (DukeQian) Approvedby: (JackWang) Page3of25ReportNo.:FCS202306089W01 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com TableofContentsPage 1.SUMMARYOFTESTRESULTS..............................................................................................5 1.1TESTFACTORY................................................................................................................6 1.2MEASUREMENTUNCERTAINTY....................................................................................6 2.GENERALINFORMATION......................................................................................................7 2.1GENERALDESCRIPTIONOFTHEEUT.........................................................................7 2.2DESCRIPTIONOFTHETESTMODES...........................................................................8 2.3DESCRIPTIONOFNECESSARYACCESSORIESANDSUPPORTUNITS..................9 2.4EQUIPMENTSLIST.........................................................................................................10 3CONDUCTEDEMISSIONMEASUREMENT..........................................................................11 3.1LIMIT................................................................................................................................11 3.2TESTPROCEDURE........................................................................................................11 3.3TESTSETUP...................................................................................................................12 3.4TESTRESULTS..............................................................................................................13 4.RADIATEDEMISSIONMEASUREMENT..............................................................................15 4.1LIMIT................................................................................................................................15 4.2TESTPROCEDURE........................................................................................................16 4.3TESTSETUP...................................................................................................................17 4.4TESTRESULTS..............................................................................................................18 (30MHZ-1000MHZ)................................................................................................................19 5.20DBBANDWIDTHTEST.....................................................................................................21 5.1LIMIT................................................................................................................................21 5.2TESTPROCEDURE........................................................................................................21 5.3TESTSETUP...................................................................................................................21 5.4TESTRESULTS..............................................................................................................22 6.ANTENNAREQUIREMENT...................................................................................................25 6.1STANDARDREQUIREMENT.........................................................................................25 6.2EUTANTENNA................................................................................................................25 Page4of25ReportNo.:FCS202306089W01 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com RevisionHistory Rev.IssueDateEffectPageContents 00Jun16.2023N/AN/A Page5of25ReportNo.:FCS202306089W01 FluxCompl…
