2AXTH-X3-MCar wireless charger

BRAND 1.The product and the accessories are assembled and tightened by the ball head nut (compatible with other ball head diameter 17mm) and fixed in the suitable position of the car. Connect the product with QC3.0 car charger or ≥PD18W car charger (optional) by cable, and insert it into cigarette lighter . 2.After power on, the indicator light is always on, and it can automatically detect whether there is a mobile phone on the product: 1 When there’s a phone on it, the clamping arms hold the phone in a constant state. 2 Without a phone on it, the product will automatically open its arms and bottom support within 5 seconds to wait for the phone to be put upon it. When the mobile phone is placed on the product, the bottom support holds the mobile phone, the wireless charging coil will sense the metal parts of the mobile phone through the FOD, depending on the size of the phone, the bottom holder and the clamp-arms move simultaneously to the center of the coil, to automatically clamp the phone and charge it (if the phone has a wireless charging function) , because the ratio of length to width of the phone is basically the same, so the positions of the charging coil and the receiving coil are automatically aligned relative to each other. The charging efficiency can be ensured without adjusting the base support manually. 产品名称：X3-M 工作频率：110K-205KHZ 推荐充电距离：≤6mm 输 入：5V/2A, 9V/2A，12V/2A （QC3.0 /PD/AFC） 输出功率：5W/7.5W/10W/15W(MAX) 适用手机：4.0-6.9英寸 产品尺寸：97.5*62*20.5mm 净 重：137g 1、把该产品与配件通过球头螺帽装配并旋紧（可兼容其他球头直径 17mm配件），并固定在汽车合适位置。用数据线把产品与QC3.0车 充或PD18W及以上车充（选配）连接，并插入点烟器处取电。 2、该产品通电后，指示灯常亮，自动检测本产品上是否有手机 : 1 有手机时，夹臂夹紧手机的状态不变。 2 没有手机,5秒内自动张开左右夹臂和底托等待需充电的手机放入， 当手机放在产品上，底托托住手机，无线充线圈会通过FOD感应到手 机的金属部件，并根据不同手机的尺寸，底托和左右夹子同时向线圈 中心移动自动夹紧手机并对手机无线充电（如果手机具备无线充功能 ），因为手机的长宽比例基本一致，所以充电线圈和接收线圈的位置 都是相对重叠自动对齐。在无需调节底托的情况下保证了充电效率。 3、产品无线充电启动时指示灯呼吸；如果手机不支持无线充电，指 示灯闪烁5S熄灭，（有可能部分没有无线充功能的手机本产品感应不 到，需要按按键夹紧手机）。 4、为了保证充电的效率和稳定性，无线充的最佳距离是4mm以内 并不能穿透金属，所以需要避免用金属的或太厚的手机保护壳，这 样才能保证手机快速的无线充电。（大于4mm充电效率低，大于 1左夹臂 2右夹臂 3底托 4无线充线圈/指示灯 5无线充线圈区域 6按钮 7Type-C 充电口 8螺帽 产品介绍亮灯模式 使用说明 产品细节 包装清单 产品参数 模式 通电 待机 充电 充满 检测到异物 电压异常指示 指示灯常亮 指示灯常亮 指示灯呼吸 指示灯呼吸 指示灯闪烁5S熄灭 指示灯熄灭 指示灯 6mm可能不能充电） 5、取下手机方式： 单击左右的任一按键，夹臂和底托都张开到最大，等待取出手机，如 果5秒内没有取出手机，支架会再次自动夹紧手机。 6、通电后产品如果不亮灯或闪烁、按键失灵、无线充不工作，夹子 不张开或合拢，以上情况请停止使用并退回销售商处理。 为符合Qi无线充电标准的设备无线充电。 无线充电器支持15W快充，通用苹果和安卓机型。 无线充电式感应：当带有无线充电的手机靠近充电器时，被感应到后 开左右夹臂自动夹紧手机，并同时启动无线充电。 异物检测式感应：当不带无线充电的手机靠近充电器时，被感应到后 开左右夹臂也会自动夹紧，可作手机支架用。 固定在汽车出风口处，360°全角度可调，你可随意地调整你的手机 方向。 电路保护功能：过流保护、过热保护、短路保护， 产品认证书：FCC,CE,ROHS 产品说明 1.本产品有蓄电功能，熄火后5分钟内仍可以开合臂夹两次，防止熄火后 无法打开臂夹的尴尬。 3.本产品采用左右夹臂和底托三轴联动全自动夹臂设计。 2.本产品防滑硅胶垫采用局部凹槽设计，可有效的避开手机按键。 4.本产品有循环散热孔，保护手机充电不发热。 1.车载无线充支架 x1 2.USB线 x1 3.出风口夹子 x1 4.使用说明书 x1 1 6 7 出风口支架 根据汽车出风口叶片位置调整好出风口夹子支撑件和可旋转夹子组件的 位置；插入汽车出风口，根据叶片厚度选择锁紧开关档位；适用于大部 分汽车出风口一键锁紧。硅胶接触汽车，更紧更贴合更好保护汽车不刮 伤。 温馨提示： 以上小型圆形款式的出风口, 夹子不能完美适配。 通过按压调节夹子 可旋转的夹子配件 可调节的出风口支撑 2 3 4 5 8 1 Right arm clamp2 Left arm clamp 3Bottom bracket 4 Wireless charging coil/indicator 5Wireless charging coil area 6Button 7Type-C charging port 8 Nut 1 6 7 outlet, select the locking switch gear according to the thickness of the blades; Suitable for most automobile air outlet. The silicon rubber of the clamp mouth contacts the air outlet, more tightly fits, better protects Adjust the position of the support part and the Rotatory vent-mount according to the position of car outlets, install the machine to the car the outlet not to be scratched. Air vent mount Not suitable for round vents Adjust the clip by pressing Adjustable air outlet support Swivel clip fitting 2 3 4 5 8 Instructions for use Lighting mode Mode Power on Standby Indicator light is always on ChargingIndicator light breathing Indicator light breathing The indicator lamp flashes for 5s and goes out Indicator light off Full Charged Foreign object detected Over temperature protection status Indicator light is always on Indicator light 3.If the phone does not support wireless charging, the indicator will flash and turn off for 5s (there may be part of the mobile phone without wireless charging function can not be detected by this product, the need to press the button to clamp the mobile phone. 4. In order to ensure the efficiency and stability of charging, the best wireless charging distance is ≤4mm and can not penetrate the metal, so need to avoid using metal or too thick mobile phone case, this allows the phone to charge quickly and wirelessly . (Charging distance ≥4mm is inefficient and ≥6mm may not charge) 5. The Way to remove the phone Click any button on the left or right, clamp-arms and bottom support are open to the maximum, waiting to take out the phone, if the phone is not taken out within 5 seconds, the product will automatically clamp the phone again. 6. If the product does not turn on the light or flicker, button and wireless charging does not work, clamp-arms do not open or close, please stop using and return to the seller for Solving the problem. Wireless charging for devices that meet Qi wireless charging standards. Wireless charger supports 15W fast charging, Universal Apple and Android models. Wireless charging detective: when the mobile phone with wireless charging function placed onto machine and be sensed, it will open the left and right arm to automatically clamp the mobile phone, and start wireless charging. Foreign object detective: when a phone without wireless charging function is placed onto the machine and be sensed, the machine opens the clamp-arms and also automatically clamp the phone, it is used as a normal phone stand without charging. Fixed in the car air outlet, 360°adjustable, you can adjust the direction of your phone at will. Circuit protection function: over-current protection, overheat protection, short circuit protection CertificationFCC,CE,ROHS Product description 1. Car wireless charging stand * 1 2. USB cable *1 3. Air outlet clip *1 Product details 1. This product has a built-in capacitor, after power off within 5 minutes can still open the clamp arm twice, to prevent it can not…

Text truncated - open the document above for the full version.

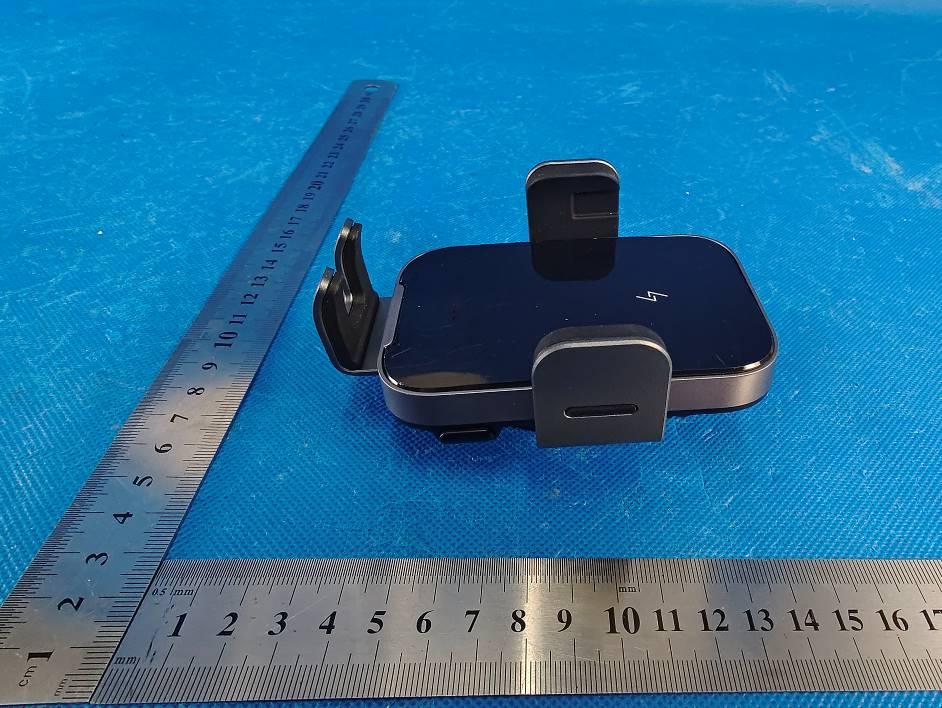

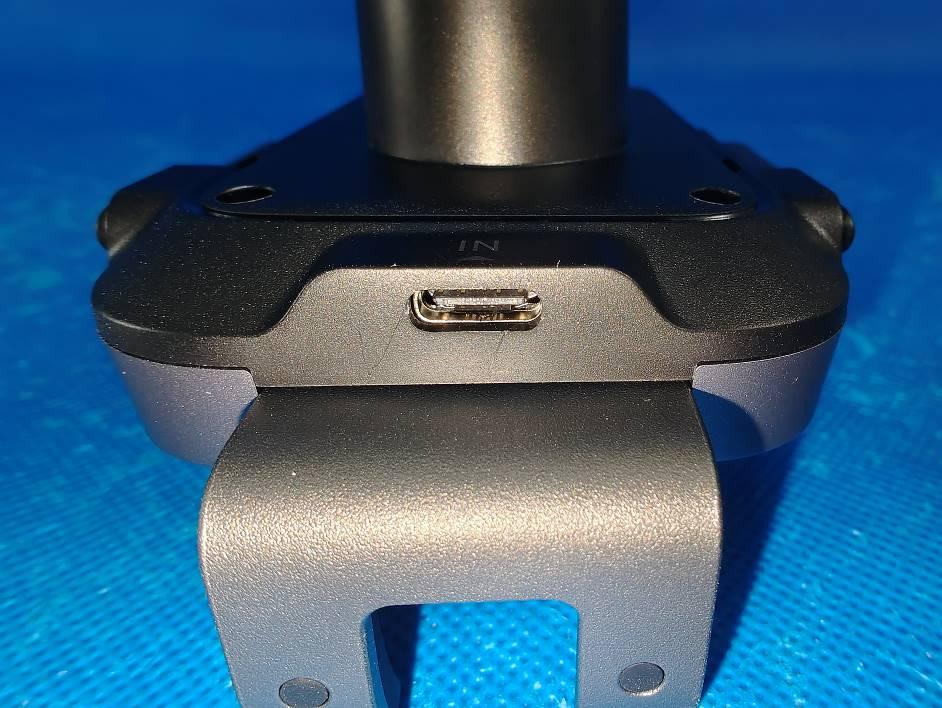

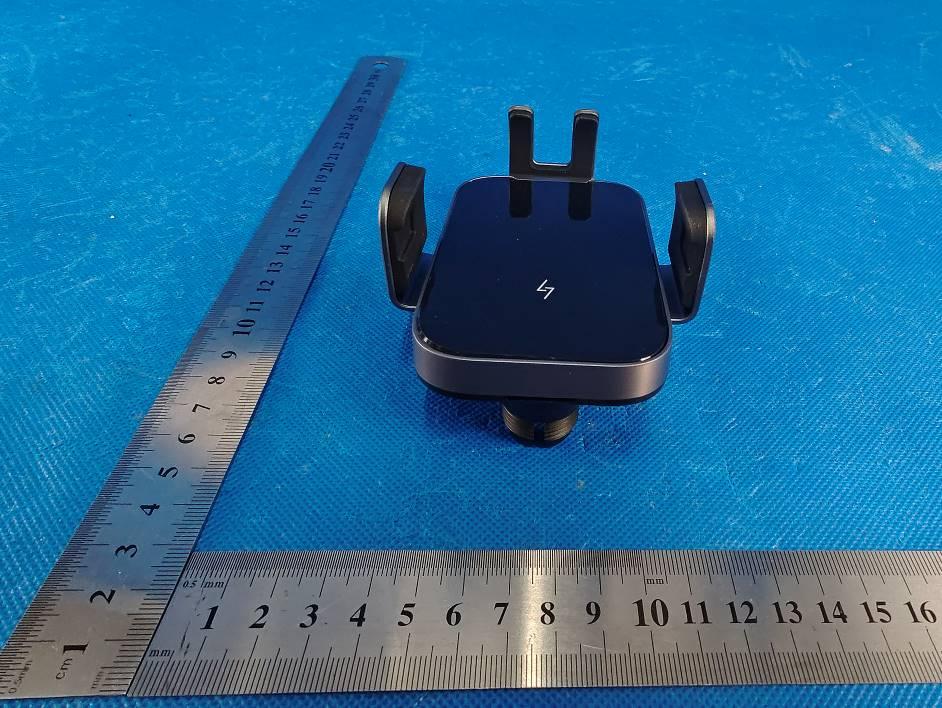

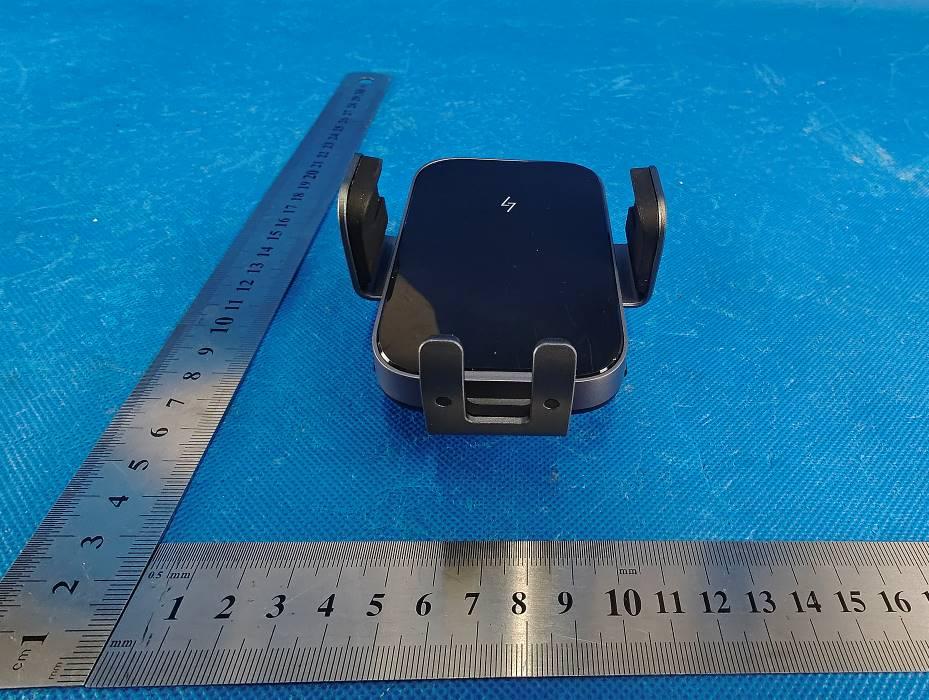

Page1of4FCCID: 2AXTH-X3-M DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. EUTConstructionalDetails ExternalEUTPhoto Photo1 Photo2 Page2of4FCCID: 2AXTH-X3-M DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo3 Photo4 Page3of4FCCID: 2AXTH-X3-M DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo5 Photo6 Page4of4FCCID: 2AXTH-X3-M DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo7 Photo8 ---TheEnd---

Label ModelNo.:X3-M FCCID:2AXTH-X3-M

Page1 of 5FCC ID: 2AXTH-X3-M DongguanYaxu (AiT) TechnologyLimited No.22,Jinqianling3rd Street,Jitigang, Huangjiang,Dongguan,Guangdong,China. EUT ConstructionalDetails InternalEUT Photo Photo1 Photo2 Antenna Page2 of 5FCC ID: 2AXTH-X3-M DongguanYaxu (AiT) TechnologyLimited No.22,Jinqianling3rd Street,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo3 Photo4 Page3 of 5FCC ID: 2AXTH-X3-M DongguanYaxu (AiT) TechnologyLimited No.22,Jinqianling3rd Street,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo5 Photo6 Page4 of 5FCC ID: 2AXTH-X3-M DongguanYaxu (AiT) TechnologyLimited No.22,Jinqianling3rd Street,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo7 Photo8 Page5 of 5FCC ID: 2AXTH-X3-M DongguanYaxu (AiT) TechnologyLimited No.22,Jinqianling3rd Street,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo9 Photo10 ------End------

Page 1 of 6 FCCID:2AXTH-X3-M RFExposureEvaluation 1MeasuringStandard KDB680106RFExposureWirelessChargingAppsv03r01 2Requirements Accordingtotheitem5ofKDB680106v03r01: Inductivewirelesspowertransferapplicationsthatmeetallofthefollowingrequirementsareexcludedfrom submittinganRFexposureevaluation. (1)Powertransferfrequencyislessthan1MHz. (2)Outputpowerfromeachprimarycoilislessthanorequalto15watts. (3)Thesystemmayconsistofmorethanonesourceprimarycoils,chargingoneormoreclients.Ifmorethan oneprimarycoilispresent,thecoilpairsmaybepoweredonatthesametime. (4)Clientdeviceisplaceddirectlyincontactwiththetransmitter. (5)Mobileexposureconditionsonly(portableexposureconditionsarenotcoveredbythisexclusion). (6)TheaggregateH-fieldstrengthsanywhereatorbeyond15cmsurroundingthedevice,and20cm awayfromthesurfacefromallcoilsthatbydesigncansimultaneouslytransmit,andwhilethose coilsaresimultaneouslyenergized,aredemonstratedtobelessthan50%oftheapplicableMPE limit. Remark:Meetalltheaboverequirements. Limits Thecriterialistedinthefollowingtableshallbeusedtoevaluatetheenvironmentimpactofhumanexposure toradiofrequency(RF)radiationasspecifiedin1.1307(b) LimitsforMaximumPermissibleExposure(MPE) Page 2 of 6 FCCID:2AXTH-X3-M 3TestSetup 4TestProcedure 1)TheRFexposuretestwasperformedinanechoicchamber. 2)Themeasurementprobewasplacedattestdistance(15cmfromallsidesand20cmfromthetop)whichis betweentheedgeofthechargerandthegeometriccenterofprobe. 3)Thehighestemissionlevelwasrecordedandcomparedwithlimitassoonasmeasurementofeachpoints (A,B,C,D,E)werecompleted. 4)TheEUTwasmeasuredaccordingtothedictatesofKDB680106D01v03. Remark：TheEUT’stestpositionA,B,C,DandEisvalidfortheEandHfieldmeasurements. 5Descriptionofthetestmode Equipmentundertestwasoperatedduringthemeasurementunderthefollowing conditions: Test Mode Description Mode1 ACAdapter+EUT+ Load Record Mode2 TesttheEUTinidlemode. Pre-tested Note:1.Alltestmodeswerepre-tested,butweonlyrecordedtheworstcaseinthisreport. 2.Unfoldedandfoldedmodeweretested,butweonlyrecordedtheworstcase. Page 3 of 6 FCCID:2AXTH-X3-M 6PeripheralList 7TestInstrumentslist TestEquipmentManufacturerModelNo.SN. Cal.Date (mm-dd-yy) Cal.Duedate (mm-dd-yy) ElectricandMagnetic FieldAnalyzer NardaEHP-200A180ZX1050521.06.202220.06.2024 8TestResult E-FiledStrengthat15cmfromtheedgessurroundingtheEUT(V/m) UnitTestmode TM1 Test Position A Test Position B Test Position C Test Position D Test Position E 50% Limits (V/m) Limits (V/m) V/mPhoneport93.42105.4493.4392.5590.47307614 H-FiledStrengthat15cmfromtheedgessurroundingtheEUT(A/m) UnitTestmode TM1 Test Position A Test Position B Test Position C Test Position D Test Position E 50% Limits (A/m) Limits (A/m) A/mPhoneport0.2110.2320.2200.1990.2230.8151.63 H-FiledStrengthat20cmfromthetopoftheEUT(A/m) UnitTestmode TM1 Test PositionE 50%Limits (A/m) Limits (A/m) TM1 A/mPhoneport0.2050.8151.63 Note:Alltestmodeswerepre-tested,butweonlyrecordedtheworstcaseinthisreport. N o. EquipmentManufacturerModelNo.SerialNo.Powercordsignalcable 1 Wireless charger receiver SLY15WN/A N/AN/A 2AdapterNOKIAAD-10WUN/AN/AN/A Page 4 of 6 FCCID:2AXTH-X3-M 9TestSetupphoto TestPositionA-15cmfromtheedgeofEUTtothegeometriccenteroftheprobe TestPositionB-15cmfromtheedgeofEUTtothegeometriccenteroftheprobe Page 5 of 6 FCCID:2AXTH-X3-M TestPositionC-15cmfromtheedgeofEUTtothegeometriccenteroftheprobe TestPositionD-15cmfromtheedgeofEUTtothegeometriccenteroftheprobe Page 6 of 6 FCCID:2AXTH-X3-M TestPositionE-15cmfromtheedgeofEUTtothegeometriccenteroftheprobe TestPositionE-20cmfromtheedgeofEUTtothegeometriccenteroftheprobe ***Endofreport***

Page1of23ReportNo.:AIT23110903FW1 DongguanYaxu(AiT)TechnologyLimited No.22,JinqianlingThirdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. FCCTESTREPORT ClientInformation: Applicant:ShenzhenCaiboTechnologyCo.,Ltd. Applicantadd.: F4,Building30,FifthIndustrialZone,HuaideCuigangIndustrialPark,Fu Yong,Bao'anDistrict,Shenzhen,China Manufacturer:ShenzhenCaiboTechnologyCo.,Ltd. Manufactureradd.: F4,Building30,FifthIndustrialZone,HuaideCuigangIndustrialPark,Fu Yong,Bao'anDistrict,Shenzhen,China ProductInformation: ProductName:Carwirelesscharger ModelNo.:X3-M BrandName:N/A FCCID:2AXTH-X3-M Applicablestandards:FCCCFRTitle47Part15SubpartC PreparedBy: DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang,Huangjiang,Dongguan, Guangdong,China Tel.:+86-769-82020499Fax.:+86-769-82020495 DateofReceipt:Nov.09,2023DateofTest:Nov.10,2023~Nov.14,2023 DateofIssue:Nov.15,2023TestResult:Pass ThisdevicedescribedabovehasbeentestedbyDongguanYaxu(AiT)TechnologyLimitedandthe testresultsshowthattheequipmentundertest(EUT)isincompliancewiththeFCCrequirements. Anditisapplicableonlytothetestedsampleidentifiedinthereport. Note:Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofDongguan Yaxu(AiT)TechnologyLimited,thisdocumentmaybealteredorrevisedbyDongguanYaxu(AiT) TechnologyLimited,personalonly,andshallbenotedintherevisionofthedocument.Thistest reportmustnotbeusedbytheclienttoclaimproductendorsement. Reviewedby:Approvedby: SimbaHuangSeal.chen Page2of23ReportNo.:AIT23110903FW1 DongguanYaxu(AiT)TechnologyLimited No.22,JinqianlingThirdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. 1Contents Page COVERPAGE 1CONTENTS............................................................................................................................................................2 2TESTSUMMARY...................................................................................................................................................5 2.1STATEMENTOFTHEMEASUREMENTUNCERTAINTY.............................................................................................5 2.2MEASUREMENTUNCERTAINTY............................................................................................................................5 3TESTFACILITY.....................................................................................................................................................6 3.1DEVIATIONFROMSTANDARD..............................................................................................................................6 3.2ABNORMALITIESFROMSTANDARDCONDITIONS...................................................................................................6 3.3TESTLOCATION.................................................................................................................................................6 4GENERALINFORMATION...................................................................................................................................7 4.1EUTTESTMODE...............................................................................................................................................8 4.2DESCRIPTIONOFTESTSETUP............................................................................................................................8 4.3PERIPHERALLIST...............................................................................................................................................9 4.4EUTPERIPHERALLIST......................................................................................................................................9 5EQUIPMENTSLISTFORALLTESTITEMS......................................................................................................10 6CONDUCTEDEMISSIONTEST.........................................................................................................................11 6.1CONDUCTEDEMISSIONMEASUREMENT................................................................................................11 6.2POWERLINECONDUCTEDEMISSIONLIMITS..........................................................................................11 6.3TESTPROCEDURE......................................................................................................................................11 6.4DEVIATIONFROMTESTSTANDARD........................................................................................................11 6.5TESTSETUP.................................................................................................................................................12 6.6EUTOPERATINGCONDITIONS..................................................................................................................12 6.7TESTRESULT..................................................................................................................................................13 7RADIATEDEMISSIONMEASUREMENT...........................................................................................................15 7.1RADIATEDEMISSIONLIMITS.............................................................................................................................15 7.2ANECHOICCHAMBERTESTSETUPDIAGRAM....................................................................................................16 7.3TESTPROCEDURE...........................................................................................................................................16 7.4DEVIATIONFROMTESTSTANDARD........................................................................................................16 7.5TESTRESULT..................................................................................................................................................17 8BANDWIDTHTEST.............................................................................................................................................20 8.1TESTPROCEDU…

Text truncated - open the document above for the full version.

customer codeeditioncompile date A contractor 02022.09.07 Jin Sung Intelligence 第 1 页 fiction auditratify Jin-Feng Xue-Song He Chen Frederic Jouve Development/ Engineering examine auditratify GuangdongJinshengintelligentCo.,Lt 广东金晟智能有限公司 d 承认书 SPECIFICATIONFORAPPROVAL customer name Shenzhen Star micro digital Technology Group Co., LTD 16x0.08x105px11TS-引线55m material description coil m W1421 Admission number customer code 8 2022.09.0 date 7 A Production part number Version/page number 0 Confirmation by contractorUser's confirmation The customer shall complete the inspection and acceptance within 10 days after receiving the produ ct, and notify the supplier of the inspection result in writing; otherwise, the inspection and acceptance shall be deemed qualified. Manufacturer: Guangdong Jinsheng Intelligent Co., LTD Address: 2F, Building B, 289 Wenzhou Road, Dongcheng Street, Dongguan Cit 电 话：0769-22252827 邮 箱:[email protected] compile customer codeeditiondate A contractor 02022.09.07 Jin Sung Intelligence 第 2 页 广东金晟智能有限公司 GuangdongJinshengintelligentCo.,Ltd 变更记录 序号 edition datechange content consignee modified fee 1A0 2022.09.07Xue-Song New specification recognition He customer codeeditioncompile date 2022.09.0A contractor 07Jin Sung Intelligence 第 3 页 广东金晟智能有限公司 GuangdongJinshengintelligentCo.,Ltd 结构尺寸 1.外形尺寸: （单位：mm） 16±0.5 39±1 2 5 ± 2 3 ± 1 . 5 1.2±0.1(线圈厚度不含进线) 2.3MAX(总厚度不含离型纸,胶纸) 44±1 普通背胶 2. behaviour of electricityL ： project standard备 test condition test instrument 注 3.6±10 inductance %100KHZ,1VTH2817B+ 100KHZ,1 6.3 ± Coil measurement inductor iron 10% VTH2817B+ Measurement with magnetic disc 1) The shape and size of the produc t should be strictly controlled. 2) The surface of the product is free of oil, impurities, burrs, etc. 3) Mate rials cannot be changed without cus tomer confirmation 4) Products mus 3. requirement of the surface t meet ROSH requirements A02022.09.07 第 4 页 广东金晟智能有限公司 GuangdongJinshengintelligentCo.,Ltd 材料清单 Billofmaterials（材料清单表） 序号 number 材料名称 Materialname 品名描述 Description 物料代码 MaterialCode 1 0.08*105P丝包wire rod线 2 magnetic sheet G44x0.8H Double grooves with holes 3 adhesive plaster 8MMB rown hot tape 4 white glues Silicone adhesive for industrial use 5 application of gum 42*0.08H( Hand tear with holes) customer code edition compile date contractor Jin Sung Intelligence

Page1of2FCCID: 2AXTH-X3-M DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. TestSetupPhoto RadiatedEmission Page2of2FCCID: 2AXTH-X3-M DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. ConductedEmission ------End------
