2AYYS-8822K4VTGonn. 4K Streaming Box

Cut line Fold line Copy safe area Outside bleed WHAT’S IN THE BOX Check to make sure you have everything below. TV Box x1Remote Control x1Quick Start Guide x1 Tear off the bottom release paper Stick the adhesive tape on the area within the white marking Batteries x2 Adhesive Tape x1 HDMI Cable x1Power Adapter x1 ADHESIVE TAPE DETAILS REMOTE CONTROL SAFETY INFORMATION No display after power on?CAUTION SAFETY INFORMATION Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. Google TV is the name of this device’s software experience and a trademark of Google LLC. Google and YouTube are trademarks of Google LLC. Netflix is a trademark of Netflix, Inc. All brands contained herein are trademarks of their respective owners. The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. • Confirm the HDMI cable is plugged in properly. • Make sure your TV has not entered sleep mode. Press the power button on the remote control to wake up your TV. TV has images but no sound? FCC Statement Make sure your TV is not in mute or low volume. Fail to connect to the network? Make sure Wi-Fi is functional and your box has a strong enough signal from your router. Remote control failure? • Replace the battery of the remote control with a new one, and make sure it is placed in the correct polarity. • Make sure the remote control is within the range of the TV box. • Long press the reset button on streaming box for 5 seconds to reset the remote pair. Please use the original accessories to ensure safety and a better experience. Google Assistant Home Back Volume down Volume up Input Channel up Channel down Mute Live TV EPG Standby on/off Use the adhesive tape onto the bottom label to keep the device static if neccessary. Tear off the top release paper to stick to a flat surface Dashboard Profile Left/Right direction buttons Enter Up/Down Quick Launch Buttons Front Panel Micro USB Back Panel SETUP Step 3: Networking Step 4: Setup Complete *Reset Button • Remote Reset: long press the button for 5 seconds to reset the remote pair. • Box Reset: long press the button and power on the box at the same time for 5 seconds, then it will enter the reset interface to remove all user data or accounts, etc. Follow the on screen instructions to set up Google TV™. WARNING! No parts should be repaired by users. Presence of live parts inside the device! Do not open. Risk of electric shock! Place the device on a flat, firm and stable surface. Do not put it on a carpet or rug. Place the device in a well-ventilated location to prevent the accumulation of internal heat. Protect the device from high temperatures, humidity, water and dust. Do not mix old and new batteries and Do not mix alkaline, standard (carbon-zinc) or rechargeable (ni-cab, ni-mh, etc.) batteries. Do not place any objects near your device that may damage it (e.g. liquid-filled objects or candles). Reset/Re-pair remoteHDMILed Indicator SETUP Step 1: Connection Step 2: Bluetooth pairing Connect the streaming box to the TV with the HDMI cable. Connect the power adapter. A white LED light indicates Power On and a red LED light indicates Standby. Select your WiFi network and key in the password Insert the 2 AAA batteries into the remote. Follow on-screen instructions for Bluetooth pairing. Hold both and buttons until pairing is successful. We’d love to hear from you. Scan with your smart- phone camera and let us know what you think. onn. 4K Streaming Box Input: 5.0V 1.0A FCC ID: XXXXX-XXXXXXXXX VSN: 110125667 Made in China 5025269 Conf. to UL STD.62368-1 Cert. to CSA STD. C22.2 No. 62368-1 SN: XXXXXXXXXXXXXX onn. 4K Streaming Box Quick Start Guide onn. 4K Streaming Box Quick Start Guide FRONT BACK 3.15" 80.01mm 3.15" 80.01mm 560.0mm 3.15" 80.01mm 3.15" 80.01mm 560.0mm TROUBLESHOOTINGCOMPLIANCECOMPLIANCECOMPLIANCE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. The Replacement to Battery Risks of explosion if the battery is replaced by an incorrect type: – replacement of a battery with an incorrect type that can defeat a safeguard (for example, in the case of some lithium battery types); – disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion; – leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas; – a battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas. The Environment for Device – Appropriate Operating Temperature: 0 to 40 – Appropriate Operating Humidity: 5% ~ 85% Non-condensing FCC Radiation Exposure Statement This device complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment must be installe…

Text truncated - open the document above for the full version.

Askey Computer Corp [05 January 2022] Federal Communications Commission 445 12 th Street SW Washington, DC 20554 Subject: Limited Agency Agreement (Luxshare Precision Industry Co.,Ltd.) FCC ID: 2AYYS-8822K4VTG To Whom It May Concern: We, Luxshare Precision Industry Co.,Ltd., hereby authorized Intertek Testing Services to act as our Agent for the purpose of preparing application for FCC ID number 2AYYS-8822K4VTG under all applicable parts of the FCC rules and regulations. The effective date of this limited agency agreement is (2023.01.05). The Limited Agency Agreement expires on (2023.02.20), unless sooner terminated or extended by written notice to Intertek Testing Services and the Federal Communications Commission. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. The applicant is not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 U.S.C. 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. If you have any questions or comments, please do not hesitate to contact me. Sincerely, Bin Lin [Type Title] Product Design Engineer

1(2) Luxshare Precision Industry Co.,Ltd. Attention: Certification reviewer RE: Request for Confidentiality FCC ID: 2AYYS-8822K4VTG To Whom It May Concern: Permanent Confidentiality [Complete this section if permanent confidentiality is requested] Request to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: [Select one or more of items below, as appropriate] Schematics Block Diagrams Operational Description Tune-up Procedure Parts List Internal Photos (see note) Users Manual (see note) Note 1: Internal Photos may be held confidential 1) if the circuit board or internal components are not accessible to users. For example, it is acceptable if the circuit board is enclosed in epoxy. 2) Also, it is acceptable if the device is not accessible to the public, for example, a device mounted on the top of a large tower (or in a fenced enclosure) such that it is only serviceable by professional designated technicians under a Non-Disclosure Agreement (NDA). All sales for these devices must be under a NDA restricting the disclosure of the propriety information, including internal photos. Users Manual may be held confidential only when the manual contains proprietary technical information intended for professional technicians obligated under a NDA. All sales and distribution of the user’s manual must be under a NDA that restricts the disclosure of the information. In the application cover letter requesting permanent confidentiality the following additional description and the NDA exhibit is required: 1. Describe in detail how internal photos and/or users manual information are controlled to prevent them from becoming public or disclosed to unauthorized persons. 2. Describe how public access is restricted for products serviceable by professional designated technicians. 3. A statement that all sales of the non-consumer device will be under a NDA to include third party sales and that the final user of the device is subject to the NDA. 4. Provide an example of the NDA between the grantee and a purchaser. The request for confidentiality must Note 2: For scanning receiver, the schematics, block diagrams, operational description, tune-up procedure, parts list and internal photos are always held permanently confidential. Short-term Confidentiality [Complete this section if short-term confidentiality is requested] Request to withhold from public review for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing, certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept short-term confidential for a period above from the date of the grant [Select one or more of items below that are not selected in the list above, as appropriate] Schematics Block diagrams Operational Description Tune-up Procedure 2(2) Parts List Test Setup Photos External Photos Internal Photos Users Manual Rationale for request for confidentiality: We have invested considerable time and materials in research and development to produce the referenced product. Permanent confidentiality: Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. Short-term confidentiality: Disclosure of the short-term confidential portions of this application during the period of importation and/or distribution would reveal key aspects of proprietary technology to competitors and diminish the value of our investment in research and development. If you have questions or need further information, please contact the undersigned. Sincerely, _________________ Bin Lin Product Design Engineer 05 January 2023

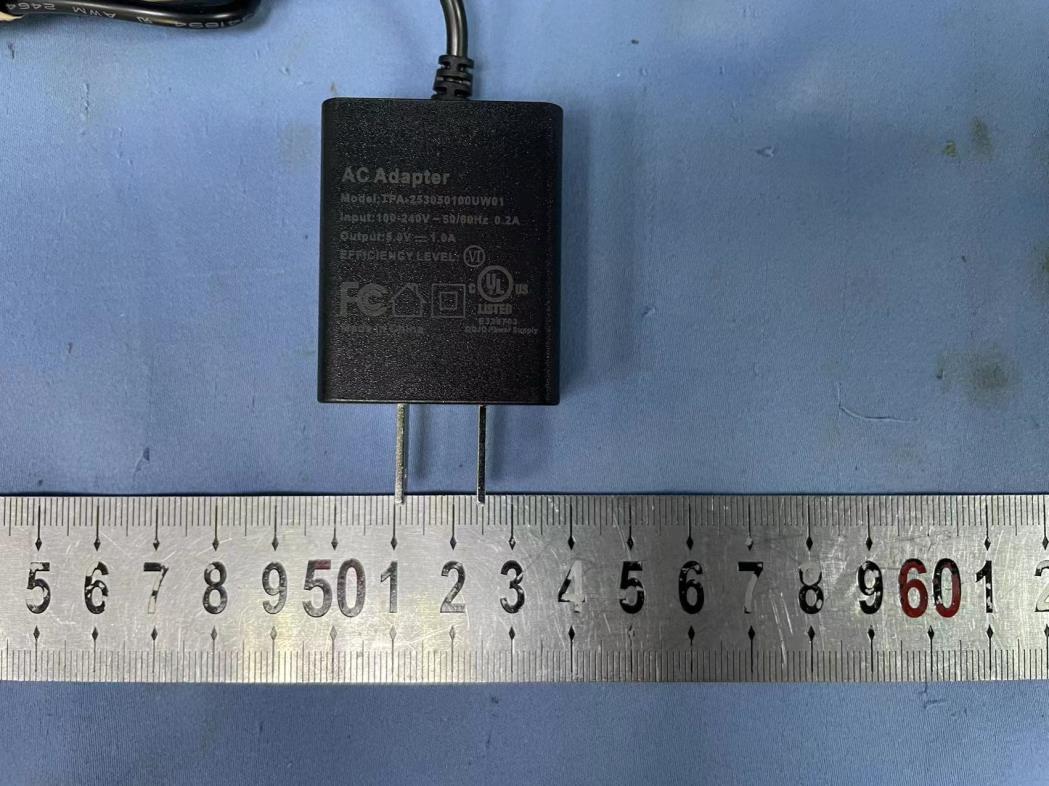

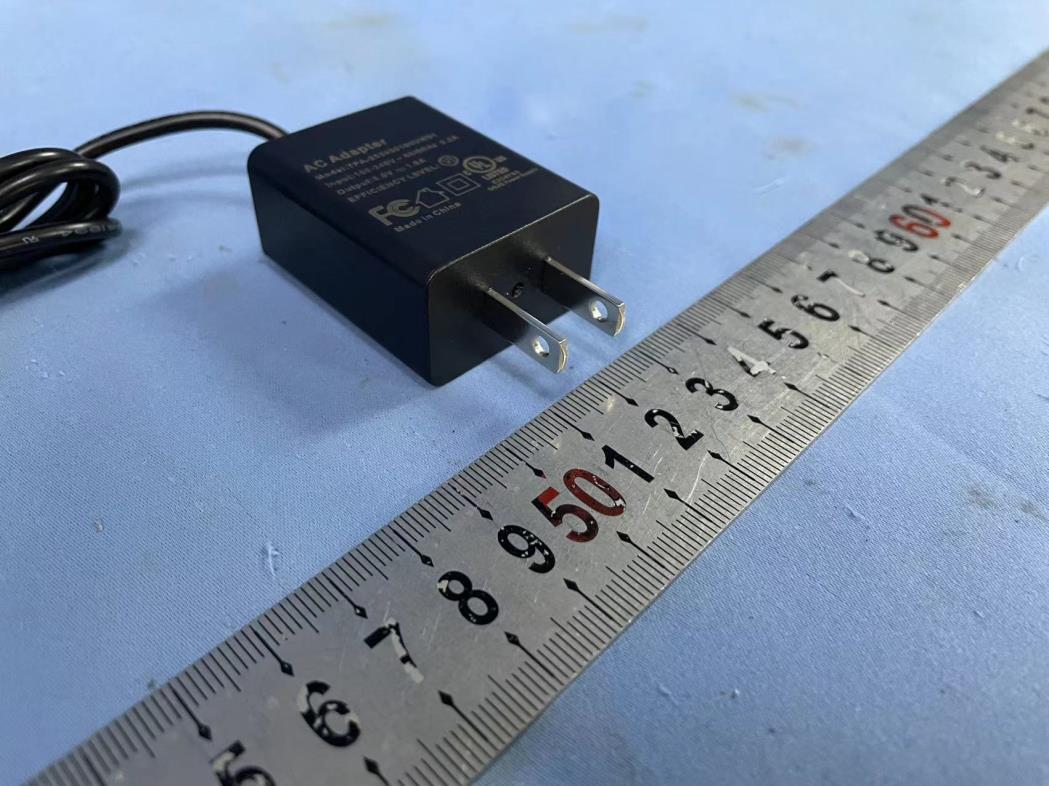

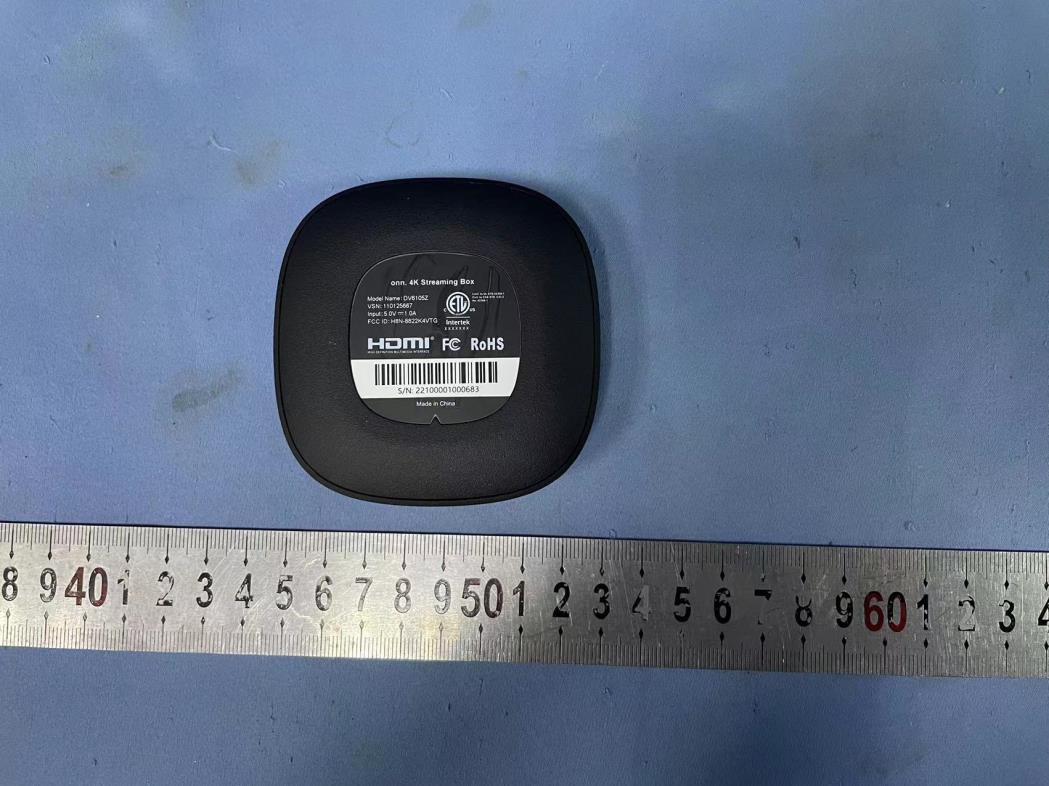

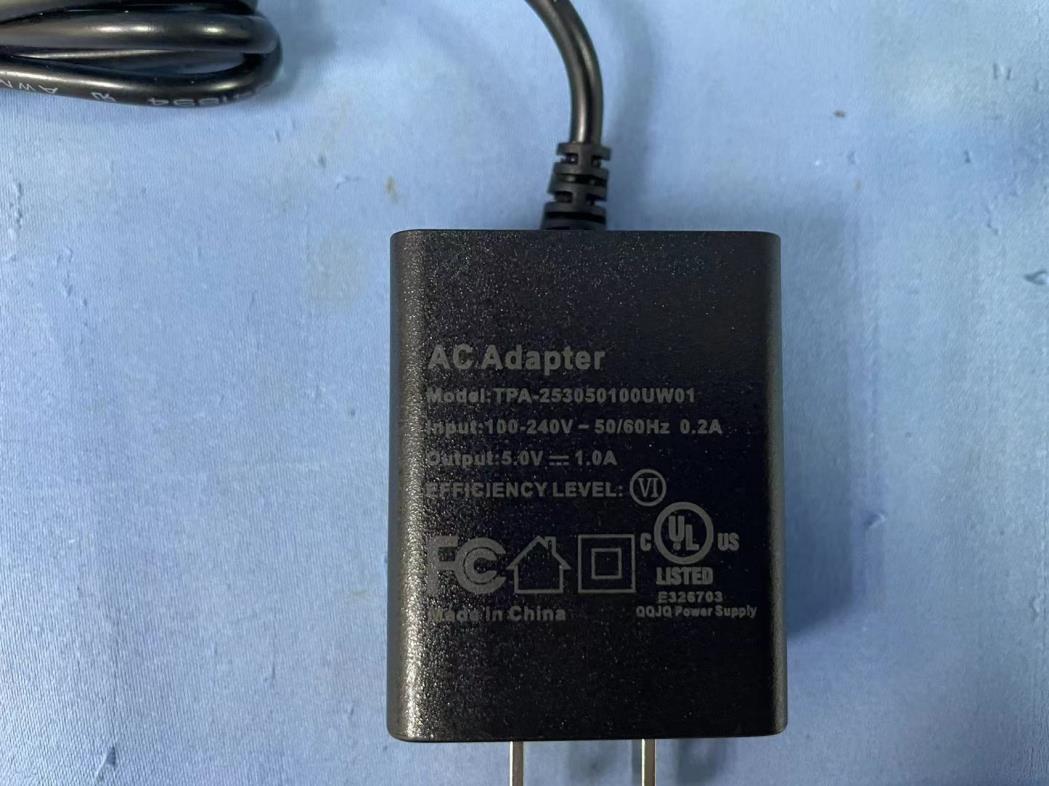

External Photos

机器贴纸位置 onn. 4K Streaming Box Input: 5.0V 1.0A FCC ID: 2AYYS-8822K4VTG VSN: 110125667 Made in China 5025269 Conf. to UL STD.62368-1 Cert. to CSA STD. C22.2 No. 62368-1 SN: XXXXXXXXXXXXXX 39.6mm 40mm

Internal Photos WIFI&BT Module WIFI&BT Module WIFI&BT Module

INTERTEK TESTING SERVICES RF Exposure The equipment under test (EUT) is an onn. 4K Streaming Box with Bluetooth 5.0 (dual-mode) function operating in 2402-2480MHz, 2.4G WIFI function operating in 2412-2462MHz and 5G WIFI function operating in 5150MHz~5250 MHz, 5250MHz~5350MHz, 5470MHz-5725MHZ, 5725MHz~5850MHz. The EUT is powered by DC 5V from an adapter. For more detail information pls. refer to the user manual. Bluetooth Version: 5.0 Antenna Type: Integral antenna. Antenna Gain: 2.29dBi. Modulation Type: GFSK, π/4DQPSK, 8DPSK. The nominal radiated output power (e.i.r.p) specified: -3.5dBm (+/- 3dB) According to the KDB 447498: The maximun peak radiated emission for the EUT is 89.2dBμV/m at 3m in the frequency 2402MHz (EDR mode) The EIRP = [(FS*D) ^2 / 30] mW = -6.03dBm which is within the production variation. The minimum peak radiated emission for the EUT is 90.8dBμV/m at 3m in the frequency 2480MHz (BLE mode) The EIRP = [(FS*D) ^2 / 30] mW = -4.43dBm which is within the production variation. According to FCC Part 2.1091, this unlicensed transmitting devices is categorically excluded from routine environmental evaluation for RF exposure prior to equipment authorization or use, According to the KDB 447498 and OET 65, the simple calculation as below: The source-based time averaged maximum radiated power = -0.5dBm = 0.89mW From above data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna for 5.0 BLE mode can be calculated according to OET 65 as follow: = 0.89mW/ 4πR^2 = 0.0002 mW/cm^2 <1mW/cm^2 The MPE limit is 1.0 mW/cm^2 for general population and uncontrolled exposure in the Bluetooth frequency range according to FCC Part 1.1310. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structure and body of the user or nearby persons. FCC ID: 2AYYS-8822K4VTG INTERTEK TESTING SERVICES 2.4GHz WiFi: Antenna Type: Integral Antenna. Antenna1 Gain: 2.78dBi. Antenna2 Gain: 2.61dBi. MIMO:5.7dBi Modulation Type: BPSK, QPSK, 16QAM, 64QAM, CCK, DQPSK, DBPSK and DSSS. The nominal conducted output power specified: 23dBm (Tolerance: +/-3dB). The maximun conducted output power for the EUT is 27.0dBm in the frequency 2437MHz(IEEE 802.11n-HT20) which is within the production variation. The minimum conducted output power for the EUT is 20.9dBm in the frequency 2412MHz(IEEE 802.11b) which is within the production variation. According to FCC Part 2.1091, this unlicensed transmitting devices is categorically excluded from routine environmental evaluation for RF exposure prior to equipment authorization or use, According to the KDB 447498 and OET 65, the simple calculation as below: The source-based time averaged maximum radiated power = 26dBm +5.7dBi = 31.7dBm = 1479.11mW From above data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna for 2.4GHz band can be calculated according to OET 65 as follow: = 849.18mW/ 4πR^2 = 0.2944 mW/cm^2 <1mW/cm^2 The MPE limit is 1.0 mW/cm^2 for general population and uncontrolled exposure in the WIFI frequency range according to FCC Part 1.1310. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structure and body of the user or nearby persons. FCC ID: 2AYYS-8822K4VTG INTERTEK TESTING SERVICES 5GHz WiFi: Antenna Type: Integral Antenna. Antenna1 Gain: 4.34dBi. Antenna2 Gain: 4.02dBi. MIMO: 7.19dBi. Modulation Type: BPSK, QPSK, 16QAM, 64QAM and OFDM. The nominal conducted output power specified: 16dBm (Tolerance: +3dB/-10dB). The maximun conducted output power for the EUT is 19.5dBm in the frequency 5775MHz(IEEE 802.11 ac-HT80) which is within the production variation. The minimum conducted output power for the EUT is 6.54dBm in the frequency 5320MHz(IEEE 802.11 ac-HT20) which is within the production variation. According to FCC Part 2.1091, this unlicensed transmitting devices is categorically excluded from routine environmental evaluation for RF exposure prior to equipment authorization or use, According to the KDB 447498 and OET 65, the simple calculation as below: The source-based time averaged maximum radiated power = 18dBm +7.19dBi = 25.19dBm =330.37mW From above data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna for 2.4GHz band can be calculated according to OET 65 as follow: = 330.37mW/ 4πR^2 = 0.0658 mW/cm^2 <1mW/cm^2 The MPE limit is 1.0 mW/cm^2 for general population and uncontrolled exposure in the WIFI frequency range according to FCC Part 1.1310. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structure and body of the user or nearby persons. FCC ID: 2AYYS-8822K4VTG INTERTEK TESTING SERVICES For Simultaneous transmitting of 2.4GHz WiFi and 5GHz WiFi, According to 865664D02 2.2 d) 1): The sum of the ratios of the spatially averaged results to the applicable frequency dependent MPE limits = 0.2944/1 + 0.0658/1 = 0.3602 < 1 For Simultaneous transmitting of 2.4GHz WiFi and Bluetooth, According to 865664D02 2.2 d) 1): The sum of the ratios of the spatially averaged results to the applicable frequency dependent MPE limits = 0.2944/1 + 0.0002/1 = 0.2946 < 1 For Simultaneous transmitting of 5GHz WiFi and Bluetooth, According to 865664D02 2.2 d) 1): The sum of the ratios of the spatially averaged results to the applicable frequency dependent MPE limits = 0.0658/1 + 0.0002/1 = 0.0660< 1 For Simultaneous transmitting of 2.4GHz WiFi, Bluetooth and 5GHz WiFi, According to 865664D02 2.2 d) 1): The sum of the ratios of the spatially averaged results to the appl…

Text truncated - open the document above for the full version.

Luxshare Precision Industry Co.,Ltd. TEST REPORT SCOPE OF WORK FCC TESTING–VSN:110125667 REPORT NUMBER 221125030SZN-003 ISSUE DATE [REVISED DATE] 05 January 2023 [--------------------] PAGES 30 DOCUMENT CONTROL NUMBER FCC ID 247_b © 2017 INTERTEK 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, Shenzhen, P.R. China. Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 www.intertek.com TEST REPORT Intertek Report No.: 221125030SZN-003 This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, Shenzhen, P.R. China. Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Version: 01-November-2017 Page: 1 of 30 FCC ID 247_b Luxshare Precision Industry Co.,Ltd. Application For Certification FCC ID: 2AYYS-8822K4VTG onn. 4K Streaming Box Model: VSN:110125667 2.4GHz Wi-Fi Transceiver Report No.: 221125030SZN-003 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [10-1-21] Prepared and Checked by: Approved by: Bruce Zheng Peter Kang Project Engineer Sr. Technical Supervisor Date: 05 January 2023 TEST REPORT Intertek Report No.: 221125030SZN-003 Version: 01-November-2017 Page: 2 of 30 FCC ID 247_b MEASUREMENT/TECHNICAL REPORT This report concerns (check one) Original Grant X Class II Change Equipment Type: DTS - Part 15 Digital Transmission Systems (Wi-Fi transmitter portion) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until : date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [10-01-21] Edition] provision. Report prepared by: Bruce Zheng Intertek Testing Services Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, Shenzhen, P.R. China. Tel: (86 755) 8614 0743 Fax: (86 755) 8601 6661 TEST REPORT Intertek Report No.: 221125030SZN-003 Version: 01-November-2017 Page: 3 of 30 FCC ID 247_b Table of Contents 1.0 Summary of Test results........................................................................................... 4 2.0 General Description ................................................................................................. 5 2.1 Product Description ...................................................................................................... 5 2.2 Related Submittal(s) Grants .......................................................................................... 5 2.3 Test Methodology ......................................................................................................... 5 2.4 Test Facility ................................................................................................................... 5 3.0 System Test Configuration ....................................................................................... 6 3.1 Justification ................................................................................................................... 6 3.2 EUT Exercising Software ................................................................................................ 6 3.3 Special Accessories ....................................................................................................... 7 3.4 Measurement Uncertainty ............................................................................................ 7 3.5 Equipment Modification ............................................................................................... 7 3.6 Support Equipment List and Description ..................................................................... 7 4.0 Measurement Results .............................................................................................. 8 4.1 Maximum Conducted Output Power at Antenna Terminals ............................................ 8 4.2 Minimum 6 dB RF Bandwidth ..................................................................................... 11 4.3 Maximum Power Density Reading .............................................................................. 12 4.4 Out of Band Conducted Emissions .............................................................................. 13 4.5 Out of Band Radiated Emissions ................................................................................. 14 4.6 Transmitter Radiated Emissions in Restricted Bands ................................................... 15 4.7 Field Strength Calculation ........................................................................................... 16 4.8 Antenna information ................................................................................................ 17 4.9 Radiated Spurious Emission .......................................…

Text truncated - open the document above for the full version.

Appendix of 221125030SZN-003 Appendix A1:6dB Emission Bandwidth Test Result TestMode Antenna Channel 6db EBW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11G SISO Ant1 2412 15.750 2404.200 2419.950 >=0.5 PASS Ant2 2412 16.380 2403.810 2420.190 >=0.5 PASS Ant1 2437 15.900 2429.050 2444.950 >=0.5 PASS Ant2 2437 15.870 2429.080 2444.950 >=0.5 PASS Ant1 2462 15.750 2454.050 2469.800 >=0.5 PASS Ant2 2462 15.750 2453.840 2469.590 >=0.5 PASS 11N20SISO Ant1 2412 16.320 2403.840 2420.160 >=0.5 PASS Ant2 2412 16.080 2404.080 2420.160 >=0.5 PASS Ant1 2437 17.640 2428.180 2445.820 >=0.5 PASS Ant2 2437 16.620 2428.810 2445.430 >=0.5 PASS Ant1 2462 16.860 2453.570 2470.430 >=0.5 PASS Ant2 2462 15.150 2454.440 2469.590 >=0.5 PASS 11N40SISO Ant1 2422 36.420 2403.820 2440.240 >=0.5 PASS Ant2 2422 35.280 2404.360 2439.640 >=0.5 PASS Ant1 2437 35.220 2419.360 2454.580 >=0.5 PASS Ant2 2437 35.280 2419.360 2454.640 >=0.5 PASS Ant1 2452 35.220 2434.360 2469.580 >=0.5 PASS Ant2 2452 35.280 2434.360 2469.640 >=0.5 PASS 11B SISO Ant1 2412 10.140 2406.930 2417.070 >=0.5 PASS Ant2 2412 10.140 2406.930 2417.070 >=0.5 PASS Ant1 2437 10.140 2431.930 2442.070 >=0.5 PASS Ant2 2437 10.140 2431.930 2442.070 >=0.5 PASS Ant1 2462 10.140 2456.930 2467.070 >=0.5 PASS Ant2 2462 10.140 2456.930 2467.070 >=0.5 PASS Appendix of 221125030SZN-003 Test Graphs 11G_Ant1_2412 11G_Ant2_2412 Appendix of 221125030SZN-003 11G_Ant1_2437 11G_Ant2_2437 11G_Ant1_2462 Appendix of 221125030SZN-003 11G_Ant2_2462 11N20SISO_Ant1_2412 11N20SISO_Ant2_2412 Appendix of 221125030SZN-003 11N20SISO_Ant1_2437 11N20SISO_Ant2_2437 11N20SISO_Ant1_2462 Appendix of 221125030SZN-003 11N20SISO_Ant2_2462 11N40SISO_Ant1_2422 11N40SISO_Ant2_2422 Appendix of 221125030SZN-003 11N40SISO_Ant1_2437 11N40SISO_Ant2_2437 11N40SISO_Ant1_2452 Appendix of 221125030SZN-003 11N40SISO_Ant2_2452 11B_Ant1_2412 11B_Ant2_2412 Appendix of 221125030SZN-003 11B_Ant1_2437 11B_Ant2_2437 11B_Ant1_2462 Appendix of 221125030SZN-003 11B_Ant2_2462 Appendix of 221125030SZN-003 Appendix A2: 99%Occupied channel bandwidth Test Result TestMode Antenna Channel OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11G Ant1 2412 17.083 2403.518 2420.601 --- PASS Ant2 2412 16.963 2403.518 2420.482 --- PASS Ant1 2437 17.173 2428.459 2445.631 --- PASS Ant2 2437 17.083 2428.459 2445.541 --- PASS Ant1 2462 17.173 2453.489 2470.661 --- PASS Ant2 2462 17.023 2453.489 2470.511 --- PASS 11N20SISO Ant1 2412 18.252 2402.919 2421.171 --- PASS Ant2 2412 18.192 2402.919 2421.111 --- PASS Ant1 2437 18.342 2427.979 2446.321 --- PASS Ant2 2437 18.252 2427.919 2446.171 --- PASS Ant1 2462 18.072 2453.009 2471.081 --- PASS Ant2 2462 18.132 2452.889 2471.021 --- PASS 11N40SISO Ant1 2422 36.384 2403.898 2440.282 --- PASS Ant2 2422 36.384 2403.838 2440.222 --- PASS Ant1 2437 36.444 2418.838 2455.282 --- PASS Ant2 2437 36.444 2418.838 2455.282 --- PASS Ant1 2452 36.324 2433.898 2470.222 --- PASS Ant2 2452 36.444 2433.778 2470.222 --- PASS 11B Ant1 2412 14.985 2404.567 2419.552 --- PASS Ant2 2412 14.715 2404.657 2419.373 --- PASS Ant1 2437 14.835 2429.627 2444.463 --- PASS Ant2 2437 14.715 2429.657 2444.373 --- PASS Ant1 2462 14.925 2454.537 2469.463 --- PASS Ant2 2462 14.745 2454.657 2469.403 --- PASS Appendix of 221125030SZN-003 Test Graphs 11G_Ant1_2412 11G_Ant2_2412 Appendix of 221125030SZN-003 11G_Ant1_2437 11G_Ant2_2437 11G_Ant1_2462 Appendix of 221125030SZN-003 11G_Ant2_2462 11N20SISO_Ant1_2412 11N20SISO_Ant2_2412 Appendix of 221125030SZN-003 11N20SISO_Ant1_2437 11N20SISO_Ant2_2437 11N20SISO_Ant1_2462 Appendix of 221125030SZN-003 11N20SISO_Ant2_2462 11N40SISO_Ant1_2422 11N40SISO_Ant2_2422 Appendix of 221125030SZN-003 11N40SISO_Ant1_2437 11N40SISO_Ant2_2437 11N40SISO_Ant1_2452 Appendix of 221125030SZN-003 11N40SISO_Ant2_2452 11B_Ant1_2412 11B_Ant2_2412 Appendix of 221125030SZN-003 11B_Ant1_2437 11B_Ant2_2437 11B_Ant1_2462 Appendix of 221125030SZN-003 11B_Ant2_2462 Appendix of 221125030SZN-003 Appendix B: Maximum power spectral density Test Result TestMode Antenna Channel Result Limit Verdict 11G SISO Ant1 2412 -8.65 <=8 PASS Ant2 2412 -11.23 <=8 PASS Ant1 2437 -8.7 <=8 PASS Ant2 2437 -10.5 <=8 PASS Ant1 2462 -9.43 <=8 PASS Ant2 2462 -11.57 <=8 PASS 11N20 SISO Ant1 2412 -9.32 <=8 PASS Ant2 2412 -11.25 <=8 PASS Ant1 2437 -9.46 <=8 PASS Ant2 2437 -11.05 <=8 PASS Ant1 2462 -10.26 <=8 PASS Ant2 2462 -11.96 <=8 PASS 11N40 SISO Ant1 2422 -12.9 <=8 PASS Ant2 2422 -14.93 <=8 PASS Ant1 2437 -12.12 <=8 PASS Ant2 2437 -14.17 <=8 PASS Ant1 2452 -12.84 <=8 PASS Ant2 2452 -14.22 <=8 PASS 11B SISO Ant1 2412 -3.59 <=8 PASS Ant2 2412 -3.67 <=8 PASS Ant1 2437 -2.29 <=8 PASS Ant2 2437 -1.81 <=8 PASS Ant1 2462 -1.32 <=8 PASS Ant2 2462 -2.1 <=8 PASS 11N20 MIMO Ant1 2412 -8.63 <=8 PASS Ant2 2412 -12.11 <=8 PASS total 2412 -7.02 <=8 PASS Ant1 2437 -9.89 <=8 PASS Ant2 2437 -12.04 <=8 PASS total 2437 -7.82 <=8 PASS Ant1 2462 -10.53 <=8 PASS Ant2 2462 -12.15 <=8 PASS total 2462 -8.25 <=8 PASS 11N40 MIMO Ant1 2422 -12.49 <=8 PASS Ant2 2422 -14.24 <=8 PASS total 2422 -10.27 <=8 PASS Ant1 2437 -13.51 <=8 PASS Appendix of 221125030SZN-003 Ant2 2437 -15.39 <=8 PASS total 2437 -11.34 <=8 PASS Ant1 2452 -13.21 <=8 PASS Ant2 2452 -15.61 <=8 PASS total 2452 -11.24 <=8 PASS Note：The Duty Cycle Factor is compensated in the graph. Appendix of 221125030SZN-003 Test Graphs 11G_Ant1_2412 11G_Ant2_2412 Appendix of 221125030SZN-003 11G_Ant1_2437 11G_Ant2_2437 11G_Ant1_2462 Appendix of 221125030SZN-003 11G_Ant2_2462 11N20SISO_Ant1_2412 11N20SISO_Ant2_2412 Appendix of 221125030SZN-003 11N20SISO_Ant1_2437 11N20SISO_Ant2_2437 11N20SISO_Ant1_2462 Appendix of 221125030SZN-003 11N20SISO_Ant2_2462 11N40SISO_Ant1_2422 11N40SISO_Ant2_2422 Appendix of 221125030SZN-003 11N40SISO_Ant1_2437 11N40SISO_Ant2_2437 11N40SISO_Ant1_2452 Appendix of 221125030SZN-003 11N40SISO_Ant2_2452 11B_Ant1_2412 11B_Ant2_2412 Appendix of 221125030SZN-003 11B_Ant1_2437 11B_Ant2_2437 11B_Ant1_2462 Appendix of 221125030SZN-003 11B_Ant2_2462 11N20MIMO_Ant1_2412 11N20MIMO_Ant2_2412 Appendix of 221125030SZN-003 11N…

Text truncated - open the document above for the full version.

Appendix of 221125030SZN-003 Appendix C: Band edge measurements Test Result TestMode Antenna ChName Channel Result Limit Verdict 11G Ant1 Low 2412 -34.99 <=-15.35 PASS Ant2 Low 2412 -35.84 <=-17.25 PASS Ant1 High 2462 -51.67 <=-15.73 PASS Ant2 High 2462 -49.15 <=-17.66 PASS 11N20SISO Ant1 Low 2412 -32.84 <…
