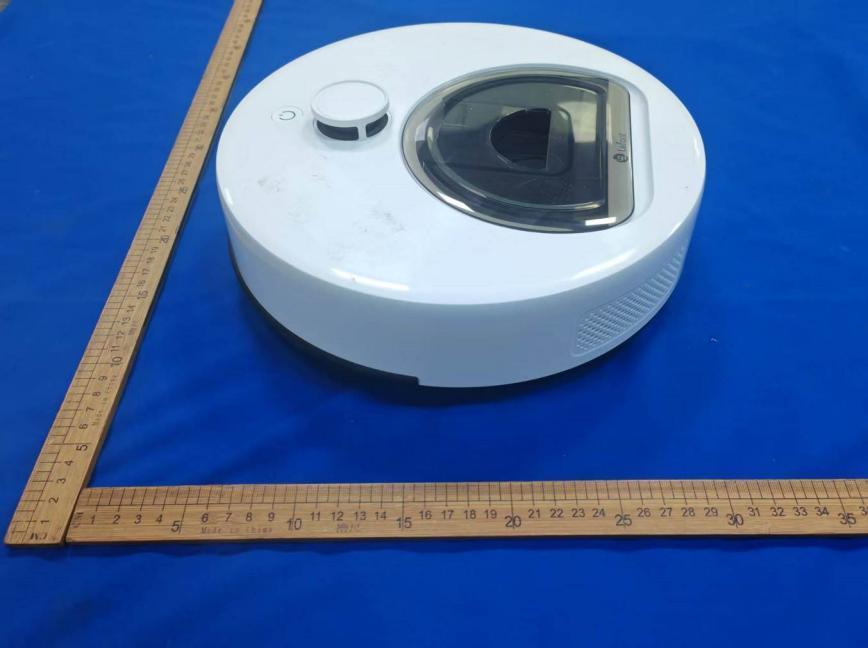

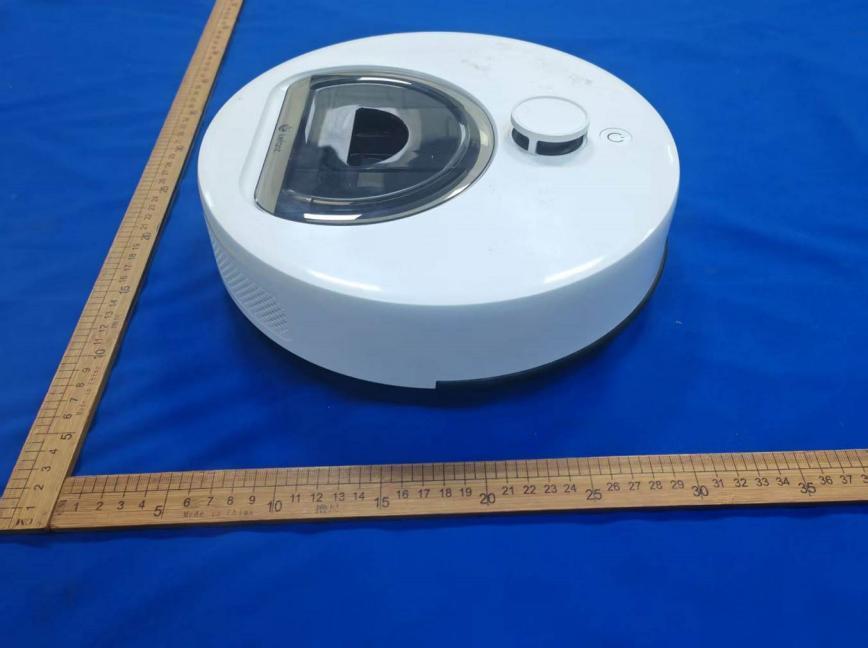

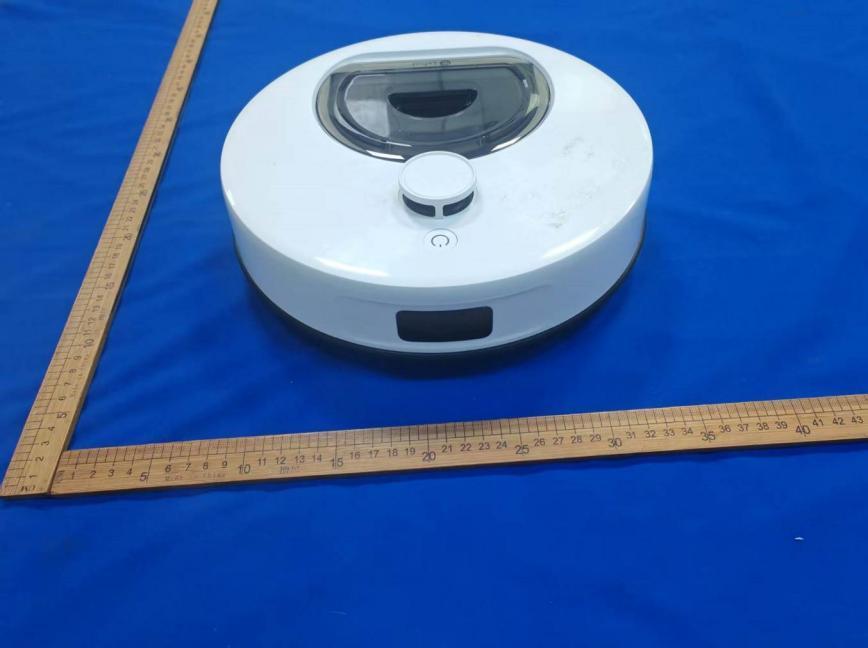

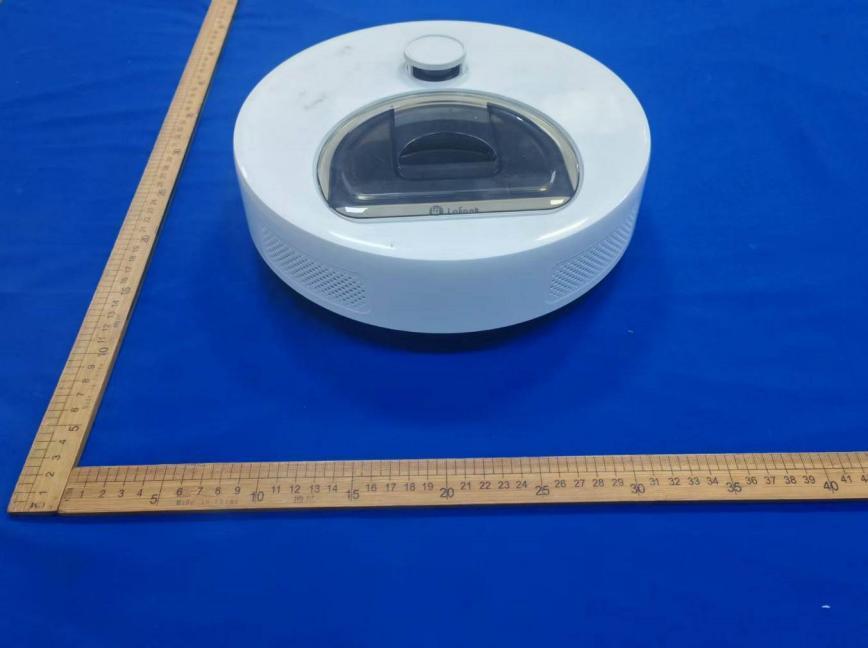

2AZ2R-MPSRobotic Vacuum Cleaner

User manual lefant M330 Plus Robotic Vacuum Cleaner 1. Scan the QR code for the English version of the online user manual. 2. Scannen Sie den QR-Code, um das Online-Handbuch auf Deutsch zu erhalten. 3. Scannez le QR code pour obtenir le manuel en ligne en français. 4. Scansiona il codice QR per ottenere il manuale online in italiano. 5. Escanee el código QR para obtener el manual en línea en español. �. コードをスキャンして、日本語のオンラインマニュアルを取得します。 1 Please read this instruction manual carefully before using the product and keep it in a safe place for future reference. You can scan the QR code or download the "Lefant" app from the app store to connect to the robot and unlock more features. Thank you for choosing Lefant. This manual will guide you to fully understand and quickly install the robotic vacuum cleaner (hereinafter referred to as "the robot"). It will also provide detailed information on usage and maintenance to help you have the best product experience. If you encounter situations not properly addressed in this user manual, please contact our after - sales service. We'll solve your specific problems. For more information, please visit the official website of Lefant ROBOTICS: www.lefant.com, or send an email to the following email address: Products are subject to physical appearance and specific details may differ from those shown. Kind Reminder: After the installation of the robot, please follow the instructions on the mobile app to complete registration, logging in, and network configuration. Before configuring the network, please ensure that your phone and home network are connected. This robot is only compatible with 2.4GHz Wi-Fi networks. Lefant NA: [email protected] EU: [email protected] Other countries: [email protected] Facebook: @LEFANTOFFICIAL Scan the QR code to access the charging dock installation video. 2 Safety Information Precautions • For indoor household floor cleaning only. Do not use it outdoors (e.g., open balconies), on non-floor surfaces (e.g., sofas), or in commercial/industrial environments. • Clean or maintain the charging dock and the robot only when the charging dock is powered off and the robot is turned off. • Do not treat the robot or charging dock as a toy, nor ride on or stand on them. When the robot or charging dock is in operation, supervise children and pets to keep them at a safe distance. • Do not use this product in rooms where infants or young children are sleeping. • Do not allow children, or people with physical, mental, or sensory impairments, to use or operate this product. • When using the product in elevated environments (e.g., duplex floors), be sure to use a stable physical barrier to prevent the robot from accidental falling and causing personal injury or property damage. • Do not let human or pet body parts (such as limbs) get close to the rotating brush head of the robot or put them into the gaps of the machine to avoid injury. • Before use, clean up scattered wires and other debris on the floor, and move unstable, fragile, valuable, and potentially hazardous items to prevent them from being tangled, stuck, dragged, or knocked over by the robot (which may cause personal injury or property damage). • Ensure the floor where the robot operates is free of standing water; otherwise, the robot may be damaged by water ingress. • Do not use the robot to clean any burning objects (e.g., unextinguished cigarette butts, matches, ashes) or any flammable and explosive items (e.g., lighters, gasoline, toner and color powder used in printers or copiers). • Before use, ensure that components such as the dustbin, filter, side brush, and mopping pad are properly installed. • Do not spray or douse the robot and charging dock with any liquid. • Do not use the robot to clean long-pile carpets (note: some dark-colored carpets may not be cleaned properly). • If the product is damaged in any way, do not use it and contact the official after-sales service promptly for resolution. • Do not store or use the product in environments where the temperature is above 40, below 0, or where the floor has any liquid or viscous substances. • Do not place any objects on the robot or charging dock, and do not cover them with any items (including dust covers). • Avoid having hard or sharp objects (e.g., construction waste, glass, iron nails) on the floor where the robot operates; otherwise, the robot and the floor may be scratched. 3 • Be sure to place the charging dock on a horizontal, hard indoor floor. Keep the robot, charging dock, and power cord away from open flames, heat sources (e.g., radiators), and areas that are damp, have water, are narrow, or may cause the robot to be elevated. • Put away fragile items and debris (e.g., vases, mirrors, plastic bags) placed on the floor to prevent the robot from being blocked during operation or causing damage to valuable items at home when it touches them slightly. • Do not place low-lying objects such as floor mats and shoes at locations where the robot may fall (e.g., stair entrances); otherwise, it may interfere with the normal operation of the robot's anti-fall sensor and cause the robot to fall. • Use this product in accordance with the instructions in the manual. The user shall bear full responsibility for any loss or injury caused by improper use, or any indirect loss resulting from the use, misuse, or inability to use this product. SAVE THESE INSTRUCTIONS For indoor use only Direct current Alternating current To satisfy RF exposure requirements, a separation distance of 20 cm or more should be maintained between this device and persons during device operation. To ensure compliance, operations at closer than this distance is not recommended. The antenna used for this transmitter must not be co-located in conjunction with any other antenna or transmitter. 4 This marking indicates that this product should not be disposed of with other household waste throughout the EU. To prevent possible harm to the environment or huma…

Text truncated - open the document above for the full version.

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure MPE Report Reference No. ..................... : FCC ID. ............................................ : CTA25111800905 2AZ2R-MPS Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue ..................................... : Feb. 03, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : Shenzhen USEER Robotics Co.,Ltd. Address ............................................ : Building 2, Fashion Brand Industrial Park, E'Bu Town, Shenzhen- Shanwei Special Cooperation Zone Shenzhen, Guangdong, 518172 China Standard ........................................... : 47CFR §1.1310 47CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Robotic Vacuum Cleaner Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen USEER Robotics Co.,Ltd. Model/Type reference ...................... : M330 Plus Listed Models ................................... : M330 Ultra, M330, M330 Pro, M330S Rating ............................................... : DC 14.4V From battery and DC 19.0V From external circuit Result ............................................... : PASS Report No.: CTA25111800905 Page 2 of 10 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Robotic Vacuum Cleaner Model /Type : M330 Plus Listed Models : M330 Ultra, M330, M330 Pro, M330S Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : Shenzhen USEER Robotics Co.,Ltd. Address : Building 2, Fashion Brand Industrial Park, E'Bu Town, Shenzhen- Shanwei Special Cooperation Zone Shenzhen, Guangdong, 518172 China Manufacturer : Shenzhen USEER Robotics Co.,Ltd. Address : Building 2, Fashion Brand Industrial Park, E'Bu Town, Shenzhen- Shanwei Special Cooperation Zone Shenzhen, Guangdong, 518172 China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25111800905 Page 3 of 10 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 6 2.4 Modifications ............................................................................................................ 6 3 TEST ENVIRONMENT ....................................................................................................... 7 3.1 Address of the test laboratory .................................................................................. 7 3.2 Test Facility .............................................................................................................. 7 3.3 Statement of the measurement uncertainty ............................................................. 7 4 Test limit .............................................................................................................................. 8 4.1 Requirement ............................................................................................................ 8 4.2 MPE Calculation Method ......................................................................................... 8 4.3 Conducted Power Results ....................................................................................... 8 4.4 Manufacturing tolerance .......................................................................................... 9 4.5 Standalone MPE Result ......................................................................................... 10 4.6 Simultaneous Transmission for MPE Result ......................................................... 10 5 Conclusion ..…

Text truncated - open the document above for the full version.

FCCID:2AZ2R-MPS RF

1 FCC Appendix RF Test Data for BLE FCC ID : 2AZ2R-MPS Company : Shenzhen USEER Robotics Co.,Ltd. EUT : Robotic Vacuum Cleaner Model Number : M330 Plus Report No. : CTA25111800901 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Freq(MHz) DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.648 2401.696 2402.344 0.5 PASS 2440 0.656 2439.684 2440.340 0.5 PASS 2480 0.640 2479.692 2480.332 0.5 PASS BLE_2M Ant1 2402 1.132 2401.436 2402.568 0.5 PASS 2440 1.116 2439.468 2440.584 0.5 PASS 2480 1.128 2479.448 2480.576 0.5 PASS 3 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 4 BLE_2M_Ant1_2402 BLE_2M_Ant1_2440 5 BLE_2M_Ant1_2480 6 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 1.0079 2401.5176 2402.5255 --- --- 2440 1.0032 2439.5228 2440.5260 --- --- 2480 1.0021 2479.5189 2480.5210 --- --- BLE_2M Ant1 2402 2.0099 2401.0285 2403.0384 --- --- 2440 2.0138 2439.0285 2441.0423 --- --- 2480 2.0145 2479.0271 2481.0416 --- --- 7 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 8 BLE_2M_Ant1_2402 BLE_2M_Ant1_2440 9 BLE_2M_Ant1_2480 10 Appendix C: Maximum conducted output power Test Result Peak TestMode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict BLE_1M Ant1 2402 3.67 ≤30 PASS 2440 3.23 ≤30 PASS 2480 3.16 ≤30 PASS BLE_2M Ant1 2402 3.59 ≤30 PASS 2440 3.28 ≤30 PASS 2480 3.21 ≤30 PASS 11 Appendix D: Maximum power spectral density Test Result TestMode Antenna Freq(MHz) Result[dBm/3kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -11.82 ≤8.00 PASS 2440 -12.72 ≤8.00 PASS 2480 -12.12 ≤8.00 PASS BLE_2M Ant1 2402 -14.37 ≤8.00 PASS 2440 -14.81 ≤8.00 PASS 2480 -14.80 ≤8.00 PASS 12 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 13 BLE_2M_Ant1_2402 BLE_2M_Ant1_2440 14 BLE_2M_Ant1_2480 15 Appendix E: Band edge measurements Test Result TestMod e Antenn a ChNam e Freq(MHz ) RefLevel[dBm ] Result[dBm ] Limit[dBm ] Verdic t BLE_1M Ant1 Low 2402 3.37 -47.28 ≤-16.63 PASS High 2480 2.81 -47.61 ≤-17.19 PASS BLE_2M Ant1 Low 2402 3.22 -31.65 ≤-16.78 PASS High 2480 2.76 -47.69 ≤-17.24 PASS 16 Test Graphs BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 BLE_2M_Ant1_Low_2402 17 BLE_2M_Ant1_High_2480 18 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 Reference 3.12 3.12 --- PASS 30~1000 3.12 -67.28 ≤-16.88 PASS 1000~26500 3.12 -37.45 ≤-16.88 PASS 2440 Reference 1.71 1.71 --- PASS 30~1000 1.71 -67.74 ≤-18.29 PASS 1000~26500 1.71 -39.3 ≤-18.29 PASS 2480 Reference 2.73 2.73 --- PASS 30~1000 2.73 -68.54 ≤-17.27 PASS 1000~26500 2.73 -38.28 ≤-17.27 PASS BLE_2M Ant1 2402 Reference 0.70 0.70 --- PASS 30~1000 0.70 -68.14 ≤-19.3 PASS 1000~26500 0.70 -39.55 ≤-19.3 PASS 2440 Reference 1.31 1.31 --- PASS 30~1000 1.31 -68.34 ≤-18.69 PASS 1000~26500 1.31 -41.18 ≤-18.69 PASS 2480 Reference 1.48 1.48 --- PASS 30~1000 1.48 -67.29 ≤-18.52 PASS 1000~26500 1.48 -42.24 ≤-18.52 PASS 19 Test Graphs BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 BLE_1M_Ant1_2402_1000~26500 20 BLE_1M_Ant1_2440_0~Reference BLE_1M_Ant1_2440_30~1000 21 BLE_1M_Ant1_2440_1000~26500 BLE_1M_Ant1_2480_0~Reference BLE_1M_Ant1_2480_30~1000 22 BLE_1M_Ant1_2480_1000~26500 BLE_2M_Ant1_2402_0~Reference 23 BLE_2M_Ant1_2402_30~1000 BLE_2M_Ant1_2402_1000~26500 BLE_2M_Ant1_2440_0~Reference 24 BLE_2M_Ant1_2440_30~1000 BLE_2M_Ant1_2440_1000~26500 25 BLE_2M_Ant1_2480_0~Reference BLE_2M_Ant1_2480_30~1000 BLE_2M_Ant1_2480_1000~26500 26 27 Appendix G: Duty Cycle Test Result TestMode Antenna Freq(MHz) ON Time [ms] Period [ms] X DC [%] xFactor Limit Verdict BLE_1M Ant1 2402 0.42 0.63 0.6667 66.67 1.76 --- --- 2440 0.41 0.62 0.6613 66.13 1.80 --- --- 2480 0.42 0.63 0.6667 66.67 1.76 --- --- BLE_2M Ant1 2402 0.23 0.63 0.3651 36.51 4.38 --- --- 2440 0.22 0.62 0.3548 35.48 4.50 --- --- 2480 0.22 0.62 0.3548 35.48 4.50 --- --- 28 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 29 BLE_2M_Ant1_2402 BLE_2M_Ant1_2440 30 BLE_2M_Ant1_2480 31 Appendix H: Emissions in Restricted Bands Test Result TestMode Antenna ChName Freq(MHz) Detector Freq [MHz] Result [dBm] Gain [dB] DC Factor [dB] Result [dBuV/m] Limit [dBuV/m] Verdict BLE_1M Ant1 Low 2402 AV 2310.000 -59.83 2.98 1.76 40.11 ≤54 PASS AV 2354.495 -58.34 2.98 1.76 41.6 ≤54 PASS AV 2390.000 -59.72 2.98 1.76 40.22 ≤54 PASS Peak 2310.000 -51.91 2.98 0.00 46.27 ≤74 PASS Peak 2357.435 -48.73 2.98 0.00 49.45 ≤74 PASS Peak 2390.000 -51.54 2.98 0.00 46.64 ≤74 PASS High 2480 AV 2483.500 -56.8 2.98 1.76 43.14 ≤54 PASS AV 2483.600 -56.4 2.98 1.76 43.54 ≤54 PASS AV 2500.000 -59.28 2.98 1.76 40.66 ≤54 PASS Peak 2483.500 -45.6 2.98 0.00 52.58 ≤74 PASS Peak 2484.560 -41.13 2.98 0.00 57.05 ≤74 PASS Peak 2500.000 -50.93 2.98 0.00 47.25 ≤74 PASS BLE_2M Ant1 Low 2402 AV 2310.000 -60.25 2.98 4.38 42.31 ≤54 PASS AV 2374.550 -58.8 2.98 4.38 43.76 ≤54 PASS AV 2390.000 -59.46 2.98 4.38 43.1 ≤54 PASS Peak 2310.000 -51.97 2.98 0.00 46.21 ≤74 PASS Peak 2385.155 -48.27 2.98 0.00 49.91 ≤74 PASS Peak 2390.000 -52.06 2.98 0.00 46.12 ≤74 PASS High 2480 AV 2483.500 -56.72 2.98 4.50 45.96 ≤54 PASS AV 2483.520 -56.72 2.98 4.50 45.96 ≤54 PASS AV 2500.000 -58.78 2.98 4.50 43.9 ≤54 PASS Peak 2483.500 -44.87 2.98 0.00 53.31 ≤74 PASS Peak 2484.240 -40.56 2.98 0.00 57.62 ≤74 PASS Peak 2500.000 -50.39 2.98 0.00 47.79 ≤74 PASS Note： 1. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. 32 Test Graphs BLE_1M_Ant1_Low_2402_AV BLE_1M_Ant1_Low_2402_Peak BLE_1M_Ant1_High_2480_AV 33 BLE_1M_Ant1_High_2480_Peak BLE_2M_Ant1_Low_2402_AV 34 BLE_2M_Ant1_Low_2402_Peak BLE_2M_Ant1_High_2480_AV BLE_2M_Ant1_High_2480_Peak 35

26 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference 27 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant1_2437_0~Reference 28 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 29 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 30 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000 31 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference 11N20SISO_Ant1_2437_30~1000 32 11N20SISO_Ant1_2437_1000~26500 11N20SISO_Ant1_2462_0~Reference 33 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 34 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] DC Factor [dB] T Factor [dB] 11B Ant1 2412 8.35 8.39 99.52 0.02 0.12 2437 8.35 8.39 99.52 0.02 0.12 2462 8.36 8.40 99.52 0.02 0.12 11G Ant1 2412 0.15 0.19 78.95 1.03 6.67 2437 0.15 0.19 78.95 1.03 6.67 2462 0.15 0.20 75.00 1.25 6.67 11N20SISO Ant1 2412 0.17 0.22 77.27 1.12 5.88 2437 0.18 0.23 78.26 1.06 5.56 2462 0.17 0.22 77.27 1.12 5.88 35 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 36 11G_Ant1_2412 11G_Ant1_2437 37 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 38 11N20SISO_Ant1_2462 39 Appendix H: Emissions in Restricted Bands Test Result TestMode Antenn a ChNam e Frequency [MHz] Detector Freq [MHz] Result [dBm] Gai n [dB] DC Facto r [dB] Result [dBuV/m ] Limit [dBuV/m ] Verdic t 11B Ant1 Low 2412 AV 2310.000 -60.03 2.98 0.02 38.17 ≤54 PASS AV 2386.060 -54.84 2.98 0.02 43.36 ≤54 PASS AV 2390.000 -57.31 2.98 0.02 40.89 ≤54 PASS Peak 2310.000 -52.66 2.98 0.00 45.52 ≤74 PASS Peak 2372.800 -47.13 2.98 0.00 51.05 ≤74 PASS Peak 2390.000 -48.97 2.98 0.00 49.21 ≤74 PASS High 2462 AV 2483.500 -55.87 2.98 0.02 42.33 ≤54 PASS AV 2487.740 -55.4 2.98 0.02 42.8 ≤54 PASS AV 2500.000 -57.71 2.98 0.02 40.49 ≤54 PASS Peak 2483.500 -47.46 2.98 0.00 50.72 ≤74 PASS Peak 2486.860 -46.18 2.98 0.00 52 ≤74 PASS Peak 2500.000 -50.89 2.98 0.00 47.29 ≤74 PASS 11G Ant1 Low 2412 AV 2310.000 -59.7 2.98 1.03 39.51 ≤54 PASS AV 2389.310 -58.49 2.98 1.03 40.72 ≤54 PASS AV 2390.000 -58.63 2.98 1.03 40.58 ≤54 PASS Peak 2310.000 -51.4 2.98 0.00 46.78 ≤74 PASS Peak 2354.470 -47.8 2.98 0.00 50.38 ≤74 PASS Peak 2390.000 -52.12 2.98 0.00 46.06 ≤74 PASS High 2462 AV 2483.500 -59.08 2.98 1.25 40.35 ≤54 PASS AV 2492.140 -58.35 2.98 1.25 41.08 ≤54 PASS AV 2500.000 -59.02 2.98 1.25 40.41 ≤54 PASS Peak 2483.500 -49.3 2.98 0.00 48.88 ≤74 PASS Peak 2488.290 -48.2 2.98 0.00 49.98 ≤74 PASS Peak 2500.000 -51.81 2.98 0.00 46.37 ≤74 PASS 11N20SIS O Ant1 Low 2412 AV 2310.000 -59.78 2.98 1.12 39.52 ≤54 PASS AV 2388.270 -58.56 2.98 1.12 40.74 ≤54 PASS AV 2390.000 -59.28 2.98 1.12 40.02 ≤54 PASS Peak 2310.000 -51.5 2.98 0.00 46.68 ≤74 PASS Peak 2379.690 -48.53 2.98 0.00 49.65 ≤74 PASS Peak 2390.000 -50.48 2.98 0.00 47.7 ≤74 PASS High 2462 AV 2483.500 -58.58 2.98 1.12 40.72 ≤54 PASS AV 2485.870 -58.2 2.98 1.12 41.1 ≤54 PASS AV 2500.000 -59.18 2.98 1.12 40.12 ≤54 PASS Peak 2483.500 -50.58 2.98 0.00 47.6 ≤74 PASS Peak 2495.110 -48.74 2.98 0.00 49.44 ≤74 PASS 40 Peak 2500.000 -52.91 2.98 0.00 45.27 ≤74 PASS Note: The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. 41 Test Graphs 11B_Ant1_Low_2412_AV 11B_Ant1_Low_2412_Peak 11B_Ant1_High_2462_AV 42 11B_Ant1_High_2462_Peak 11G_Ant1_Low_2412_AV 43 11G_Ant1_Low_2412_Peak 11G_Ant1_High_2462_AV 11G_Ant1_High_2462_Peak 44 11N20SISO_Ant1_Low_2412_AV 11N20SISO_Ant1_Low_2412_Peak 45 11N20SISO_Ant1_High_2462_AV 11N20SISO_Ant1_High_2462_Peak

1 FCC Appendix RF Test Data for 2.4GWIFI FCC ID : 2AZ2R-MPS Company : Shenzhen USEER Robotics Co.,Ltd. EUT : Robotic Vacuum Cleaner Model Number : M330 Plus Report No. : CTA25111800902 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 10.200 2406.920 2417.120 0.5 PASS 2437 10.200 2431.920 2442.120 0.5 PASS 2462 10.200 2456.920 2467.120 0.5 PASS 11G Ant1 2412 15.920 2404.080 2420.000 0.5 PASS 2437 15.360 2429.440 2444.800 0.5 PASS 2462 15.520 2454.120 2469.640 0.5 PASS 11N20SISO Ant1 2412 16.360 2404.080 2420.440 0.5 PASS 2437 16.040 2429.040 2445.080 0.5 PASS 2462 16.760 2453.720 2470.480 0.5 PASS 3 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 4 11G_Ant1_2412 11G_Ant1_2437 5 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 6 11N20SISO_Ant1_2462 7 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 13.393 2405.3459 2418.7389 --- --- 2437 13.395 2430.3313 2443.7263 --- --- 2462 13.410 2455.3067 2468.7167 --- --- 11G Ant1 2412 16.831 2403.6413 2420.4723 --- --- 2437 16.888 2428.6099 2445.4979 --- --- 2462 16.888 2453.5792 2470.4672 --- --- 11N20SISO Ant1 2412 17.898 2403.0655 2420.9635 --- --- 2437 17.867 2428.0919 2445.9589 --- --- 2462 17.839 2453.0832 2470.9222 --- --- 8 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 9 11G_Ant1_2412 11G_Ant1_2437 10 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11 11N20SISO_Ant1_2462 12 Appendix C: Maximum conducted output power Test Result Peak Test Mode Antenna Frequency[MHz] Peak power [dBm] Limit [dBm] Verdict 11B Ant1 2412 14.09 ≤30.00 PASS 2437 14.39 ≤30.00 PASS 2462 14.49 ≤30.00 PASS 11G Ant1 2412 12.91 ≤30.00 PASS 2437 13.15 ≤30.00 PASS 2462 13.38 ≤30.00 PASS 11N20SISO Ant1 2412 12.73 ≤30.00 PASS 2437 13.03 ≤30.00 PASS 2462 13.26 ≤30.00 PASS 13 Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -11.34 ≤8.00 PASS 2437 -12.14 ≤8.00 PASS 2462 -11.98 ≤8.00 PASS 11G Ant1 2412 -18.94 ≤8.00 PASS 2437 -18.07 ≤8.00 PASS 2462 -18.17 ≤8.00 PASS 11N20SISO Ant1 2412 -18.42 ≤8.00 PASS 2437 -18.35 ≤8.00 PASS 2462 -18.00 ≤8.00 PASS 14 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 15 11G_Ant1_2412 11G_Ant1_2437 16 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 17 11N20SISO_Ant1_2462 18 Appendix E: Band edge measurements Test Result TestMode Antenn a ChNam e Frequency[MH z] RefLevel[dB m] Result[dB m] Limit[dBm ] Verdic t 11B Ant1 Low 2412 2.05 -46.16 ≤-17.95 PASS High 2462 2.23 -55.6 ≤-17.77 PASS 11G Ant1 Low 2412 -3.50 -35.32 ≤-23.5 PASS High 2462 -3.10 -56.64 ≤-23.1 PASS 11N20SIS O Ant1 Low 2412 -3.65 -35.19 ≤-23.65 PASS High 2462 -3.12 -57.41 ≤-23.12 PASS 19 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 20 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 21 11N20SISO_Ant1_High_2462 22 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference 1.24 1.24 --- PASS 30~1000 1.24 -68.44 ≤-18.76 PASS 1000~26500 1.24 -54.77 ≤-18.76 PASS 2437 Reference 1.88 1.88 --- PASS 30~1000 1.88 -67.74 ≤-18.12 PASS 1000~26500 1.88 -55.27 ≤-18.12 PASS 2462 Reference 1.06 1.06 --- PASS 30~1000 1.06 -67.57 ≤-18.94 PASS 1000~26500 1.06 -54.84 ≤-18.94 PASS 11G Ant1 2412 Reference -3.79 -3.79 --- PASS 30~1000 -3.79 -66.82 ≤-23.79 PASS 1000~26500 -3.79 -55.33 ≤-23.79 PASS 2437 Reference -3.90 -3.90 --- PASS 30~1000 -3.90 -67.69 ≤-23.9 PASS 1000~26500 -3.90 -55.11 ≤-23.9 PASS 2462 Reference -3.11 -3.11 --- PASS 30~1000 -3.11 -67.44 ≤-23.11 PASS 1000~26500 -3.11 -54.95 ≤-23.11 PASS 11N20SISO Ant1 2412 Reference -4.78 -4.78 --- PASS 30~1000 -4.78 -67.37 ≤-24.78 PASS 1000~26500 -4.78 -54.26 ≤-24.78 PASS 2437 Reference -3.87 -3.87 --- PASS 30~1000 -3.87 -66.78 ≤-23.87 PASS 1000~26500 -3.87 -54.33 ≤-23.87 PASS 2462 Reference -3.72 -3.72 --- PASS 30~1000 -3.72 -68.02 ≤-23.72 PASS 1000~26500 -3.72 -55.24 ≤-23.72 PASS 23 Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 24 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 25 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. .......................................... : CTA25111800902 2AZ2R-MPS Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Feb. 03, 2026 Testing Laboratory Name ............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Shenzhen USEER Robotics Co.,Ltd. Address ............................................ : Building 2, Fashion Brand Industrial Park, E'Bu Town, Shenzhen- Shanwei Special Cooperation Zone Shenzhen, Guangdong, 518172 China Test specification.......................... : Standard .......................................... : FCC Part 15.247 TRF Originator ................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Robotic Vacuum Cleaner Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen USEER Robotics Co.,Ltd. Model/Type reference ...................... : M330 Plus Listed Models ................................... : M330 Ultra, M330, M330 Pro, M330S Modulation Type .............................. : CCK/DSSS/OFDM Operation Frequency ....................... : From 2412 - 2462MHz Rating ............................................... : DC 14.4V From battery and DC 19.0V From external circuit Result ............................................... : PASS Report No.: CTA25111800902 Page 2 of 30 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Robotic Vacuum Cleaner Model /Type : M330 Plus Listed Models : M330 Ultra, M330, M330 Pro, M330S Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : Shenzhen USEER Robotics Co.,Ltd. Address : Building 2, Fashion Brand Industrial Park, E'Bu Town, Shenzhen- Shanwei Special Cooperation Zone Shenzhen, Guangdong, 518172 China Manufacturer : Shenzhen USEER Robotics Co.,Ltd. Address : Building 2, Fashion Brand Industrial Park, E'Bu Town, Shenzhen- Shanwei Special Cooperation Zone Shenzhen, Guangdong, 518172 China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25111800902 Page 3 of 30 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS .............................…

Text truncated - open the document above for the full version.
