MWC1 Wireless charger User Manual Please contact us at <[email protected]> with your order ID and issue details. G-TiDE Facebook Official Account Subscribe to our Facebook account to get the latest information about G-TiDE. https://www.facebook.com/gtide.fans Warranty All G-TiDE products carries a 12-month warranty from purchase date. Please contact us via official mail to activate the extra 2-year warranty. G-TiDE OFFICIAL SERVICE TEAM MAILBOX: [email protected] Official Website: www.g-tide.com E N 01 Thanks for choosing G-TiDE Wireless charger To get the better product experience, please read this manual first. All product drawing& function-instruction is used for reference only for the final correct data please see in instructions and packing kinds. Typing errors and discrepancies in this manual will be updated with the latest products. In case of any update, this manual will be changed at any time without notice. We reserve the final explanation right. Charging instructions E N 02 1. Please charge the smartwatch with wireless charging stand. 2. Support PC USB and standard 5V charger. 3. Fully charged in 3-4 hours. 1. Please follow the direction indicated on the charging stand for charging. 2. It is normal that the temperature of the charging stand and the watch may rise to 50-60 degrees Celsius while charging. FCC WARNING This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated with minimum distance between 20cm the radiator your body: Use only the supplied antenna. FCC ID:2AZUR- MWC1

ShenZhen Telconn Technology Co.,Ltd. Date: November 2, 2022 FCC ID: 2AZUR-MWC1 Model Number: MWC1 To: Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21048 To Whom It May Concern, We, ShenZhen Telconn Technology Co.,Ltd. declare that this EUT (FCC ID: 2AZUR-MWC1) will conduct FCC compliance testing, the SDOC part recognized test lab(Shenzhen NTEK Testing Technology Co., Ltd.( ShenZhen Lab.). 1/F, Building E, Fenda Science Park, Sanwei Community,Xixiang Street Bao’an District, Shenzhen 518126 P.R. China) Please contact me if you have any question. Sincerely, (Signed) Name / Title:James Peng/ manager Company: ShenZhen Telconn Technology Co.,Ltd. Address: 41A Building 301C Room The 5th district of huaide cuigang industrial park , fuyong town, Baoan district, Shenzhen, Guangdong,China.

ShenZhen Telconn Technology Co.,Ltd. Agent Authorization Company: ShenZhen Telconn Technology Co.,Ltd. Address: 41A Building 301C Room The 5th district of huaide cuigang industrial park , fuyong town, Baoan district, Shenzhen, Guangdong,China. Product Name: Wireless charger Model Number(s): MWC1 Product Description: Wireless charger We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 11/2/2022 Name: James Peng Title: manager Company: ShenZhen Telconn Technology Co.,Ltd.

ShenZhen Telconn Technology Co.,Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 11/2/2022 Subject; Request for Confidentiality FCC ID:2AZUR-MWC1 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description SOFTWARE SECURITY REQUIREMENTS FOR U-NII DEVICES In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: James Peng Title: manager Email: [email protected]

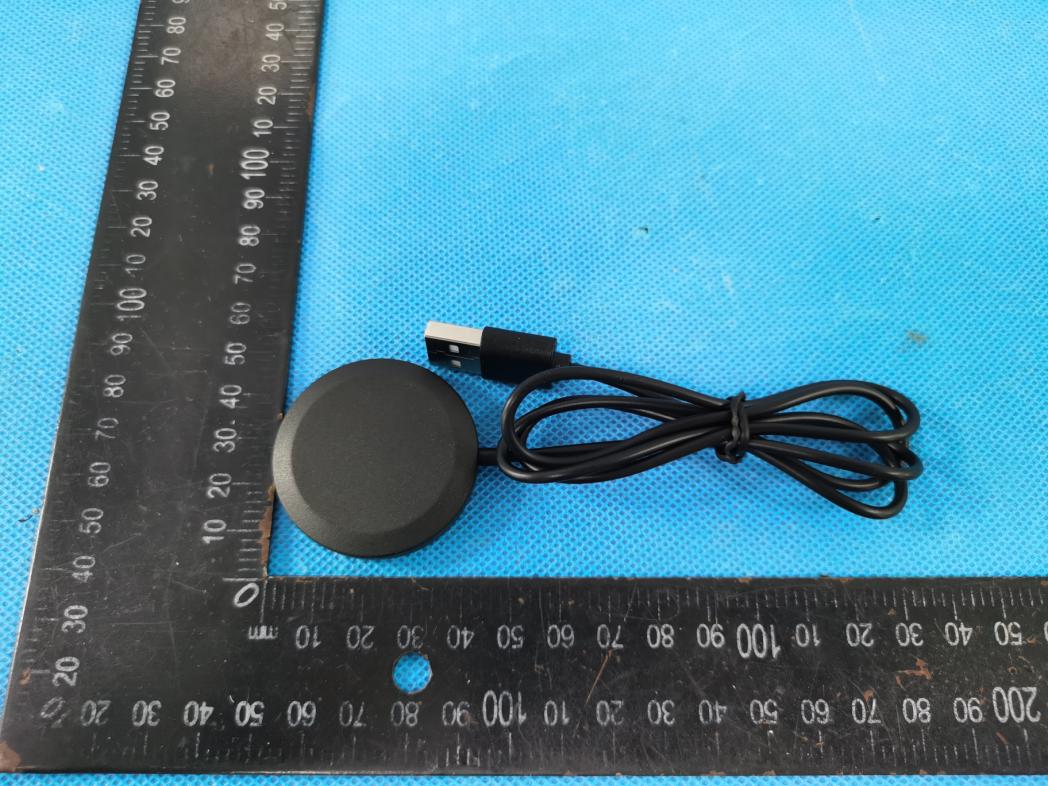

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6

2AZUR-MWC1 Made in China Wireless charger MWC1 USB Port direction 25mm 35mm

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 WPT ANT Photo 3

FCC ID: 2AZUR-MWC1 1.Measuring Standard FCC Part 1(1.1310) and Part 2(2.1091), KDB 680106 D01v03r01 RF Exposure Wireless Charging App v03 1.2. Requiments Three different categories of transmitters are defined by the FCC in OET Bulletin 65. These categories are fixed installation, mobile, and portable and are defined as follows: o Fixed Installations: fixed location means that the device, including its antenna, is physically secured at a permanent location and is not able to be easily moved to another location. Additionally, distance to humans from the antenna is maintained to at least 2 meters. o Mobile Devices: a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to be generally used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter's radiating structures and the body of the user or nearby persons. Transmitters designed to be used by consumers or workers that can be easily re-located, such as a wireless modem operating in a laptop computer, are considered mobile devices if they meet the 20 centimeter separation requirement. The FCC rules for evaluating mobile devices for RF compliance are found in 47 CFR §2.1091. o Portable Devices: a portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable device requirements are found in Section 2.1093 of the FCC's Rules (47 CFR§2.1093). The FCC also categorizes the use of the device as based upon the user’s awareness and ability to exercise control over his or her exposure. The two categories defined are Occupational/ Controlled Exposure and General Population/Uncontrolled Exposure. These two categories are defined as follows: Occupational/Controlled Exposure: In general, occupational/controlled exposure limits are applicable to situations in which persons are exposed as a consequence of their employment, who have been made fully aware of the potential for exposure and can exercise control over their exposure. This exposure category is also applicable when the exposure is of a transient nature due to incidental passage through a location where the exposure levels may be higher than the general population/uncontrolled limits, but the exposed person is fully aware of the potential for exposure and can exercise control over his or her exposure by leaving the area or by some other appropriate means. Awareness of the potential for RF exposure in a workplace or similar environment can be provided through specific training as part of a RF safety program. If appropriate, warning signs and labels can also be used to establish such awareness by providing prominent information on the risk of potential exposure and instructions on methods to minimize such exposure risks. General Population/Uncontrolled Exposure: The general population / uncontrolled exposure limits are applicable to situations in which the general public may be exposed or in which persons who are exposed as a consequence of their employment may not be made fully aware of the potential for exposure or cannot exercise control over their exposure. Members of the general public would come under this category when exposure is not employment-related; for example, in the case of a wireless transmitter that exposes persons in its vicinity. Warning labels placed on low-power consumer devices such as cellular telephones are not considered sufficient to allow the device to be considered under the occupational/controlled category, and the general population/uncontrolled exposure limits apply to these devices. 1.3 Test configuration 1, The field strength of both E-field was measured at 15cm, H-field was measured at 15cm surrounding the device, and 20 cm away from the surface from all coils using the equipment list above for determining compliance with the MPE requirements of FCC Part 1.1310. 2, The RF power density was measured at Under maximum load test 3, Maximum E-field measurements was made 15cm from each side of the EUT and H-field measurements was made 15cm from surrounding the EUT and 20 cm away from the surface from all coils. Along the side of the EUT and still 20cm away from the edge of the EUT, the field probes were positioned at the location where there is maximum field strength. The maximum E-field and H-field is reported below. 4, This device uses a wireless charging circuit for power transfer operating at the frequency of 111–205kHz. Thus, the 300kHz limits were used: E-field Limit = 614 (V/m); H-field limit = 1.63 (A/m). 1.4 Test Setup 2. Limits 3. MEASURING DEVICE AND TEST EQUIPMENT 2.1For MPE Measurement 4. Measuring Results EUT: Wireless charger Model Name. : MWC1 Temperature: 24 °C Relative Humidity: 56% Pressure: 1010hPa Test Date: 2022-10-08 Test Voltage: DC 5V from Adapter half-load: Table 1. H-Field MPE Data-Top EUT Side E (A/m) Limits (A/m) Max load 0.738 1.63 Table 2. H-Field MPE Data- Surrounding EUT Side B(uT) A(uT) C (uT) D(above) (uT) Max load 0.930 0.844 0.920 0.853 EUT Side B(A/m) A(A/m) C (A/m) D(above) (A/m) Limits (A/m) Max load 0.744 0.675 0.736 0.682 1.63 Table 3. E-Field MPE E-Field Measurement (15cm) EUT Side B(V/m) A(V/m) E(V/m) C (V/m) D(above) (V/m) Limits (V/m) Max load 4.482 3.799 4.499 3.796 3.993 614 empty load: Table 1. H-Field MPE Data-Top EUT Side E(A/m) Limits (A/m) Max load 0.734 1.63 Table 2. H-Field MPE Data- Surrounding EUT Side B(uT) A(uT) C (uT) D(above) (uT) Max load 0.925 0.966 0.964 0.866 EUT Side B(A/m) A(A/m) C (A/m) D(above) (A/m) Limits (A/m) Max load 0.74 0.773 0.771 0.693 1.63 Table 3. E-Field MPE E-Field Measurement (15cm) EUT Side B(V/m) A(V/m) E(V/m) C (V/m) D(above) (V/m) Limits (V/m) Max load 3.801 4.482 4.486 3.805 3.981 614 Full-load: Table 1. H-Field MPE Data-Top EUT Side E (A/m) Limits (A/m) Max load 0.747 1.63 Table 2. H-Field MPE Data- Surrounding EUT Side B(uT) A(uT) C (uT) D(above) (uT) Max …
