•:Fτπ司F贯Ti可-..r可F才F…………………………· Dlspla耻 6.58" FH D>lncell lPS 1 2口Hz T。uchScr,嗣n COi。 n C呵1R回 Ope国ti『咱可冒回m Android 13.0 O喔 Pro四盟soc. MediaTek Hello G99 octa吨:ore22GHz GPU: MallGS7MC Merr田市 12GB RAM• 2S6GB ROM Spea陆民 Dual Sp回悟，s恒陪。 日a忧四事 165口口mAhBlg ea，目态巾，33WFast Cha咆e 由臼mera 阳回r臼me田·108M P + 20MP Night Vision + SMP Micro Came田 Front Cam, 32M P Night Vision LED Flash LED Flash 88 ot hlll' FHturu Vid田，AVl.M间，WMV.MKV. MOV. ASF. FLV.RMVB Audio:FLA巳APE.AA巳MKA.M陌M4AAMR ALAC. WAV 忖nage,JPEG. BMP. CIF. PNC 。国咽en1ion1 Height 172mm Width，但3mmThickness, 25.Bmm Welghl492g el p础咿国翩翩 l' USB Cable l' P时配tlliefllm l' Charger l' SIM ca叫 PIN l' Multi-language ManuaiJ,N坦rrant¥田rd s FCC Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. FCC/IC RF Radiation Exposure and SAR Statements The Smart Phone WP26 has been tested for body-worn Specific Absorption Rate(SAR) compliance. The FCC/IC has established detailed SAR requirements and has established that these requirements. RF Exposure Information The radio module has been evaluated under FCC Bulletin C95.1 and IEEE 1528 and found to be compliant to RF Exposure from radio frequency devices. This model meets the applicable government requirements for exposure to radio frequency waves. The highest reported SAR level for usage near the body (10mm) is 0.548 W/kg, Body simultaneous transmission is 0.723W/kg at the same time.SAR level for usage near the Head is 0.541 W/kg and Head simultaneous transmission is 0.653 W/kg ， SAR level for usage near the Hotspot is 0.548 W/kg and Hotspot simultaneous transmission is 0.723 W/kg

Shenzhen Qichang Intelligent Technology Co., Ltd 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – Equipment Type Company name: Shenzhen Qichang Intelligent Technology Co., Ltd Address: Room 510, Building 7, Yunli Intelligent Park, No. 7, Bantian Street, Longgang , Shenzhen Product Name: Smart Phone FCC ID: 2BAK2-F102 Model(s): F102, F102+,F102PLUS,F102PRO,F102S 2.911(d)(5)(i) Equipment Type We, [Shenzhen Qichang Intelligent Technology Co., Ltd] (“the applicant”) certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Date: 2023.6.30 Title and Company name: Wenwen Jiang / Manager NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Shenzhen Qichang Intelligent Technology Co., Ltd 2.911 (d)(5)(ii) Applicant Attestation v1.2 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: Shenzhen Qichang Intelligent Technology Co., Ltd Address: Room 510, Building 7, Yunli Intelligent Park, No. 7, Bantian Street, Longgang , Shenzhen Product Name: Smart Phone FCC ID: 2BAK2-F102 Model(s): F102, F102+,F102PLUS,F102PRO,F102S 2.911(d)(5)(ii) Applicant filing We, [Shenzhen Qichang Intelligent Technology Co., Ltd] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2, established pursuant to § 1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Name: Date: 2023.6.30 Title and Company name: Wenwen Jiang / Manager NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the Shenzhen Qichang Intelligent Technology Co., Ltd 2.911 (d)(5)(ii) Applicant Attestation v1.2

Shenzhen Qichang Intelligent Technology Co., Ltd U.S. Agent Designation for Service of Process (Applicant and U.S. Agent are Separate Parties) TO: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: Baihetian Innovative Solutions FRN: 0033401605 Contact Name: Kenneth Young Street Address: 6837 Chase Rd City/Province/Zip: Dearborn, MI 48126 Telephone No: 313-395-3113 Email: [email protected] This letter is to confirm that we (“the Designated U.S. Agent) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date: May 29, 2023 Signed by (Printed Name/Title): Kenneth Young/Manager The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: Shenzhen Qichang Intelligent Technology Co., Ltd Grantee Code: 2BAK2 FCC ID: 2BAK2-F102 Contact Name: Wenwen Jiang Street Address: Room 510, Building 7, Yunli Intelligent Park, No. 7, Bantian Street, City/Province/Zip: Longgang , Shenzhen Telephone No: +86-755-81797123 Email: [email protected] Applicant Signature: Date: 2023/05/24 Signed by (Printed Name/Title): Wenwen Jiang /Manager

Shenzhen Qichang Intelligent Technology Co., Ltd Authorization Company: Shenzhen Qichang Intelligent Technology Co., Ltd Address: Room 510, Building 7, Yunli Intelligent Park, No. 7, Bantian Street, Longgang , Shenzhen Product Name: smartphone Model Number(s): F102, F102+,F102PLUS,F102PRO,F102S Product Description: smartphone We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2023/06/30 Name: Wenwen Jiang Title: Manager Company: Shenzhen Qichang Intelligent Technology Co., Ltd

Shenzhen Qichang Intelligent Technology Co., Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject; Request for Confidentiality FCC ID: 2BAK2-F102 Date: 2023/06/30 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description BOM Tune-up Procedure software security requirement In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Wenwen Jiang Title: Manager

Shenzhen Qichang Intelligent Technology Co., Ltd Model Difference 2023/06/30 EUT NAME: smartphone FCC ID: FCC ID: 2BAK2-F102 MODEL : F102, F102+,F102PLUS,F102PRO,F102S All the model are the same circuit and RF module, except model names. Sincerely Client’s signature Client’s name / title : Wenwen Jiang / manager Contact information / address: Room 510, Building 7, Yunli Intelligent Park, No. 7, Bantian Street, Longgang , Shenzhen

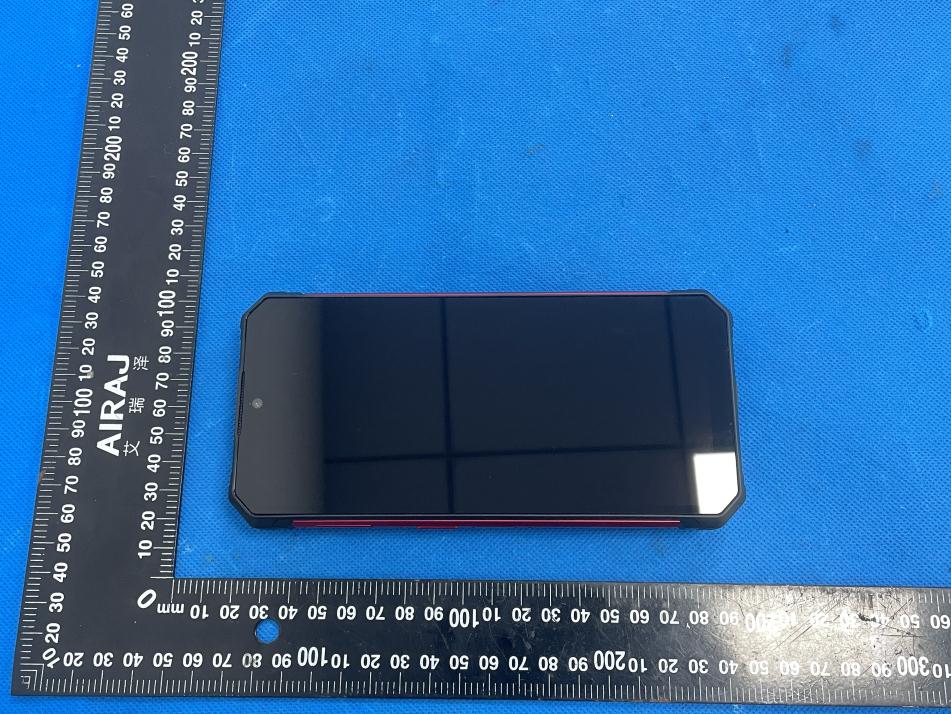

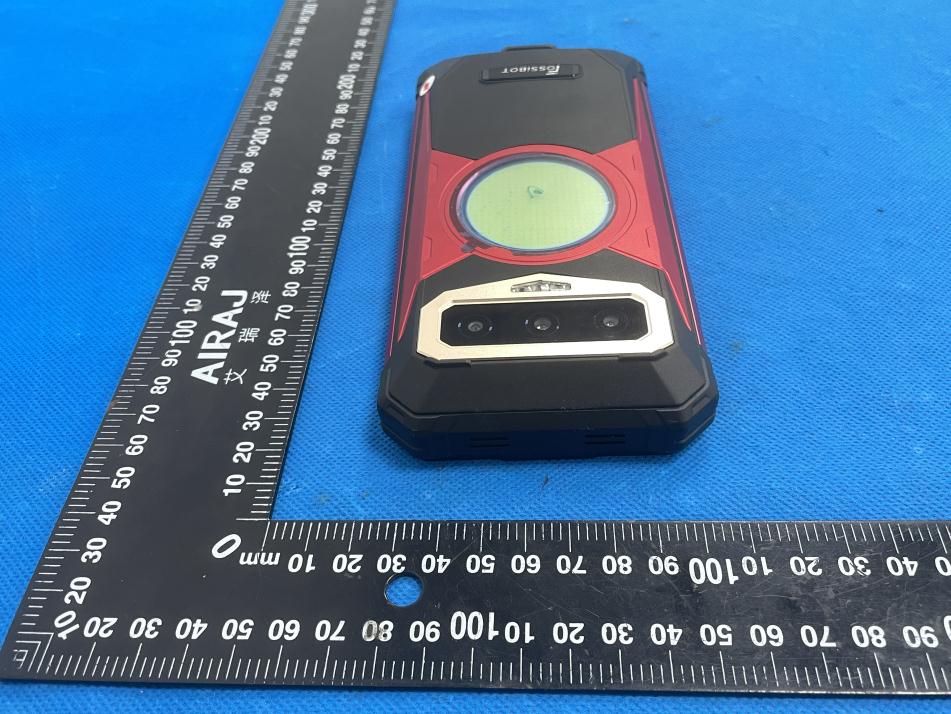

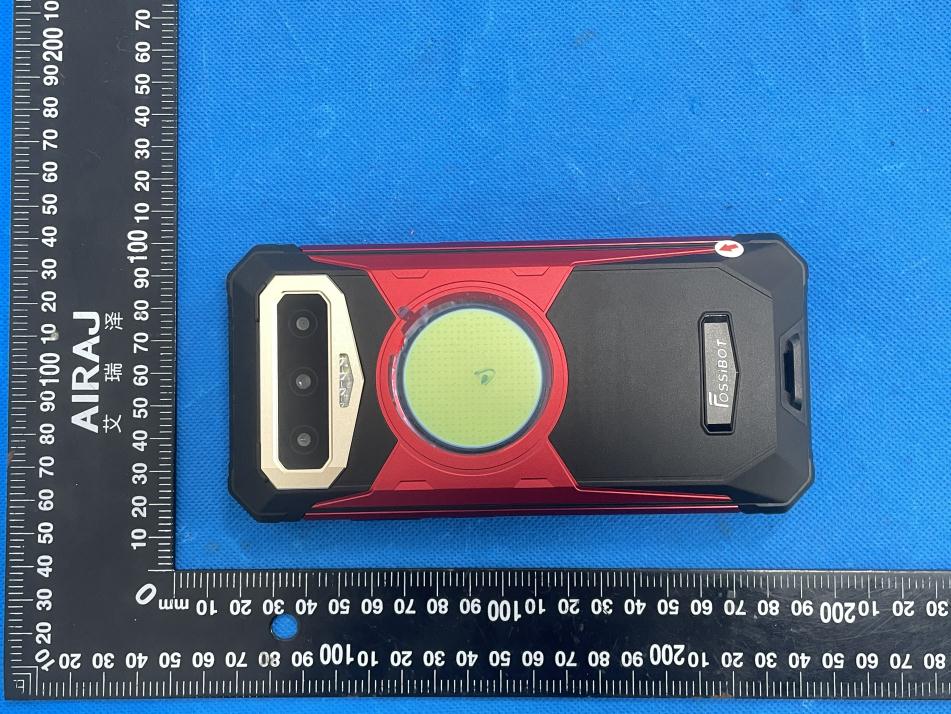

External Photos

Size:40*20mm smartphone FCC ID: 2BAK2-F102 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Label location

Internal Photos Antenna GSM/WCDMA/LTE Antenna BT/WIFI/GPS Antenna NFC

Report No：BCTC2304875804E Tune up procedure Tune up procedure shall be over the power range or at specific operating power levels. 1. It must provide an operational voltage to turn on the device and on one certain channel in service mode by means of company proprietary software. 2. Base station simulator (CMW500) measures the Mobile phone device specific RF characteristics. 3. The maximum gains of each individual device are adjusted until the target value met. Tune‐up Power Mode GSM 850 GSM 1900 GSM 33.0 dBm±1.0 30.0 dBm±1.0 GPRS 850 1Txslot 33.0 dBm±1.0 30.0 dBm±1.0 GPRS 850 2Txslots 32.0 dBm±1.0 29.0 dBm±1.0 GPRS 850 3Txslots 30.0 dBm±1.0 27.0 dBm±1.0 GPRS 850 4Txslots 29.0 dBm±1.0 25.0 dBm±1.0 EGPRS 850 1Txslot 33.0 dBm±1.0 26.0 dBm±1.0 EGPRS 850 2Txslots 32.0 dBm±1.0 25.0 dBm±1.0 EGPRS 850 3Txslots 30.0 dBm±1.0 23.0 dBm±1.0 EGPRS 850 4Txslots 29.0 dBm±1.0 21.5 dBm±1.0 Tune‐up Power Mode WCDMA Band II WCDMA Band IV WCDMA Band V RMC 12.2kbps 22.5dBm ±1.0 22.0dBm ±1.0 22.5dBm ±1.0 HSDPA 21.5dBm ±1.0 21.0dBm ±1.0 21.5dBm ±1.0 HSUPA 21.5dBm ±1.0 21.0dBm ±1.0 21.5dBm ±1.0 Tune‐up Power Mode LTE Band 2 LTE Band 4 LTE Band 5 QPSK 23.0dBm ±1.0 22.0dBm ±1.0 22.5dBm ±1.0 16QAM 22.0dBm ±1.0 21.5dBm ±1.0 22.0dBm ±1.0 Tune‐up Power Mode LTE Band 7 LTE Band 12 LTE Band 17 QPSK 22.0dBm ±1.0 23.0dBm ±1.0 23.0dBm ±1.0 16QAM 21.0dBm ±1.0 22.5dBm ±1.0 22.5dBm ±1.0 Report No：BCTC2304875804E Tune‐up Power WLAN 2.4G 802.11b 14.0 dBm±1.0 802.11g 13.0 dBm±1.0 802.11n(HT20) 12.0 dBm±1.0 802.11n(HT40) 11.0 dBm±1.0 WLAN 5.1G 802.11a 8.0 dBm±1.0 802.11n(HT20) 7.0 dBm±1.0 802.11n(HT40) 7.5 dBm±1.0 802.11ac(HT20) 7.0 dBm±1.0 802.11ac(HT40) 7.0 dBm±1.0 802.11ac(HT80) 6.5 dBm±1.0 WLAN 5.8G 802.11a 10.0 dBm±1.0 802.11n(HT20) 9.0 dBm±1.0 802.11n(HT40) 7.5 dBm±1.0 802.11ac(HT20) 9.0 dBm±1.0 802.11ac(HT40) 8.0 dBm±1.0 802.11ac(HT80) 6.5 dBm±1.0 Bluetooth GFSK 1.0 dBm±1.0 Pi/4QPSK 0.5 dBm±1.0 8DPSK 0.0 dBm±1.0 BLE(1M) GFSK -2.0 dBm±1.0 BLE(2M) GFSK -2.0 dBm±1.0 Then these appropriate gain settings are stored in each device individually. The user has no possibility to change these settings later on, and during manufacturing each device will be individual calibrated. The measurement is done in fully calibrated setup, which is based on a CMW500 base station simulator. Furthermore, the highest power level is verified afterwards in a call measurement on three channels (low, middle and high).

No.：BCTC/RF-EMC-005 Page 1 of 261 Edition：A.41of 261 Edition：A.4 FCC SAR TEST REPORT Sh enzhen BCTC Testing Co., Ltd. Report No.: BCTC2304875804-8E Applicant: Shenzhen Qichang Intelligent Technology Co., Ltd Product Name: smartphone Model/Type Ref.: F102 Tested Date: 2023-06-12 to 2023-06-21 Issued Date: 2023-06-26 Report No：BCTC2304875804-8E No.：BCTC/RF-EMC-005 Page 2 of 261 Edition：A.42of 261 Edition：A.4 FCC ID: 2BAK2-F102 The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: smartphone Trademark: Fossibot Model/Type Ref.: F102 F102+, F102PLUS, F102PRO, F102S Applicant: Shenzhen Qichang Intelligent Technology Co., Ltd Address: Room 510, Building 7, Yunli Intelligent Park, No. 7, Bantian Street, Longgang , Shenzhen Manufacturer: Shenzhen Qichang Intelligent Technology Co., Ltd Address: Room 510, Building 7, Yunli Intelligent Park, No. 7, Bantian Street, Longgang , Shenzhen Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2023-04-27 Sample tested Date: 2023- 06- 12 to 2023-06- 21 Issue Date: 2023-06-26 SAR Max. Values is： 0.541 W/kg (1g) for Head 0.548 W/kg (1g) for Body 0.548 W/kg (1g) for Hotspot Test Standards: IEEE Std C95.1, 2019/ IEEE Std 1528™-2013/FCC Part 2.1093 Test Results: PASS Remark: This is SAR test report Tested by: Approved by: Approved by: Hubery Cai/Project Handler Zero Zhou/Reviewer Report No：BCTC2304875804-8E No.：BCTC/RF-EMC-005 Page 3 of 261 Edition：A.4 3of 261 Edition：A.4 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Standards ...................................................................................................... 6 3. Test Summary ....................................................................................................... 7 4. SAR Limits............................................................................................................. 8 5. Measurement Uncertainty ..................................................................................... 9 6. Product Information and Test Setup .................................................................... 10 6.1 Product Information ............................................................................................... 10 6.2 Test Setup Configuration ....................................................................................... 13 6.3 Support Equipment ................................................................................................ 13 6.4 Test Environment .................................................................................................. 13 7. Test Facility and Test Instrument Used ............................................................... 14 7.1 Test Facility ........................................................................................................... 14 7.2 Test Instrument Used ............................................................................................ 14 8. Specific Absorption Rate (SAR) .......................................................................... 16 8.1 Introduction ............................................................................................................ 16 8.2 SAR Definition ....................................................................................................... 16 9. SAR Measurement System ................................................................................. 17 9.1 The Measurement System ..................................................................................... 17 9.2 Probe ..................................................................................................................... 17 9.3 Probe Calibration Process ..................................................................................... 19 9.4 Phantom ................................................................................................................ 20 9.5 Device Holder ........................................................................................................ 20 10. Tissue Simulating Liquids .................................................................................... 21 10.1 Composition of Tissue Simulating Liquid ............................................................. 21 10.2 Limit ..................................................................................................................... 22 10.3 Tissue Calibration Result ..................................................................................... 23 11. System Check ..................................................................................................... 24 11.1 Purpose of System Performance Check .............................................................. 24 11.2 Syst em Setup ...................................................................................................... 24 11.3 Validation Results ................................................................................................ 25 12. EUT Testing Position ........................................................................................... 26 12.1 Define Two Imaginary Lines on the Handset ....................................................... 26 12.2 Cheek Position .................................................................................................... 27 12.3 Tilted Position ..........................................................................…

Text truncated - open the document above for the full version.

Report No：BCTC2304875804-8E No.：BCTC/RF-EMC-005 Page 81 of 261 Edition：A.4 15.2 SAR Test Graph Results SAR plots for the highest measured SAR in each exposure configuration, wireless mode and frequency band combination according to FCC KDB 865664 D02 Plot 1 A. Experimental conditions. Probe SN 25/22 EPGO373 ConvF 3.01 Area Scan dx=8mm dy=8mm, Adaptative 1 max Zoom Scan 7x7x8,dx=5mm dy=5mm dz=5mm Phantom Right head Device Position Cheek Band GSM850 Channels Low Signal TDMA (Crest factor: 8.0) B. Permitivity Frequency (MHz) 824.200 Relative permitivity (real part) 41.748 Relative permitivity (imaginary part) 19.649 Conductivity (S/m) 0.890 C. SAR Surface and Volume SURFACE SAR VOLUME SAR Maximum location: X=-40.00, Y=-32.00 ; SAR Peak: 0.07 W/kg D. SAR 1g & 10g SAR 10g (W/Kg) 0.040 SAR 1g (W/Kg) 0.052 Variation (%) -0.880 Horizontal validation criteria: minimum distance (mm) -- Vertical validation criteria: SAR ratio M2/M1 (%) -- Report No：BCTC2304875804-8E No.：BCTC/RF-EMC-005 Page 82 of 261 Edition：A.4 E. Z Axis Scan Z (mm) 0.00 4.00 8.00 12.00 16.00 SAR (W/Kg) 0.168 0.055 0.038 0.037 0.025 F. 3D Image 3D screen shot Hot spot position Report No：BCTC2304875804-8E No.：BCTC/RF-EMC-005 Page 83 of 261 Edition：A.4 Plot 2 A. Experimental conditions. Probe SN 25/22 EPGO373 ConvF 3.01 Area Scan surf_sam_plan.txt Zoom Scan 7x7x8,dx=5mm dy=5mm dz=5mm Phantom Validation plane Device Position Body Band GPRS850_2TX Channels Low Signal Custom (Crest factor: 4.0) B. Permitivity Frequency (MHz) 824.200 Relative permitivity (real part) 41.748 Relative permitivity (imaginary part) 19.649 Conductivity (S/m) 0.890 C. SAR Surface and Volume SURFACE SAR VOLUME SAR Maximum location: X=0.00, Y=8.00 ; SAR Peak: 0.33 W/kg D. SAR 1g & 10g SAR 10g (W/Kg) 0.136 SAR 1g (W/Kg) 0.209 Variation (%) 0.990 Horizontal validation criteria: minimum distance (mm) -- Vertical validation criteria: SAR ratio M2/M1 (%) -- E. Z Axis Scan Z (mm) 0.00 4.00 8.00 12.00 16.00 SAR (W/Kg) 0.334 0.218 0.144 0.101 0.077 Report No：BCTC2304875804-8E No.：BCTC/RF-EMC-005 Page 84 of 261 Edition：A.4 F. 3D Image 3D screen shot Hot spot position Report No：BCTC2304875804-8E No.：BCTC/RF-EMC-005 Page 85 of 261 Edition：A.4 Plot 3 A. Experimental conditions. Probe SN 25/22 EPGO373 ConvF 3.27 Area Scan dx=8mm dy=8mm, Adaptative 1 max Zoom Scan 7x7x8,dx=5mm dy=5mm dz=5mm Phantom Right head Device Position Cheek Band GSM1900 Channels Low Signal TDMA (Crest factor: 8.0) B. Permitivity Frequency (MHz) 1850.200 Relative permitivity (real part) 40.597 Relative permitivity (imaginary part) 13.629 Conductivity (S/m) 1.401 C. SAR Surface and Volume SURFACE SAR VOLUME SAR Maximum location: X=-42.00, Y=-63.00 ; SAR Peak: 0.03 W/kg D. SAR 1g & 10g SAR 10g (W/Kg) 0.010 SAR 1g (W/Kg) 0.018 Variation (%) 3.240 Horizontal validation criteria: minimum distance (mm) -- Vertical validation criteria: SAR ratio M2/M1 (%) -- E. Z Axis Scan Z (mm) 0.00 4.00 8.00 12.00 16.00 SAR (W/Kg) 0.030 0.019 0.012 0.007 0.005 Report No：BCTC2304875804-8E No.：BCTC/RF-EMC-005 Page 86 of 261 Edition：A.4 F. 3D Image 3D screen shot Hot spot position Report No：BCTC2304875804-8E No.：BCTC/RF-EMC-005 Page 87 of 261 Edition：A.4 Plot 4 A. Experimental conditions. Probe SN 25/22 EPGO373 ConvF 3.27 Area Scan surf_sam_plan.txt Zoom Scan 7x7x8,dx=5mm dy=5mm dz=5mm Phantom Validation plane Device Position Body Band GPRS1900_2TX Channels Low Signal Custom (Crest factor: 4.0) B. Permitivity Frequency (MHz) 1850.200 Relative permitivity (real part) 40.597 Relative permitivity (imaginary part) 13.629 Conductivity (S/m) 1.401 C. SAR Surface and Volume SURFACE SAR VOLUME SAR Maximum location: X=-5.00, Y=25.00 ; SAR Peak: 0.22 W/kg D. SAR 1g & 10g SAR 10g (W/Kg) 0.060 SAR 1g (W/Kg) 0.118 Variation (%) -0.310 Horizontal validation criteria: minimum distance (mm) -- Vertical validation criteria: SAR ratio M2/M1 (%) -- E. Z Axis Scan Z (mm) 0.00 4.00 8.00 12.00 16.00 SAR (W/Kg) 0.280 0.125 0.063 0.038 0.019 Report No：BCTC2304875804-8E No.：BCTC/RF-EMC-005 Page 88 of 261 Edition：A.4 F. 3D Image 3D screen shot Hot spot position Report No：BCTC2304875804-8E No.：BCTC/RF-EMC-005 Page 89 of 261 Edition：A.4 Plot 5 A. Experimental conditions. Probe SN 25/22 EPGO373 ConvF 3.27 Area Scan surf_sam_plan.txt Zoom Scan 7x7x8,dx=5mm dy=5mm dz=5mm Phantom Validation plane Device Position Body Band GPRS1900_2TX Channels Low Signal Custom (Crest factor: 4.0) B. Permitivity Frequency (MHz) 1850.200 Relative permitivity (real part) 40.597 Relative permitivity (imaginary part) 13.629 Conductivity (S/m) 1.401 C. SAR Surface and Volume SURFACE SAR VOLUME SAR Maximum location: X=-1.00, Y=15.00 ; SAR Peak: 0.26 W/kg D. SAR 1g & 10g SAR 10g (W/Kg) 0.072 SAR 1g (W/Kg) 0.142 Variation (%) 2.140 Horizontal validation criteria: minimum distance (mm) -- Vertical validation criteria: SAR ratio M2/M1 (%) -- E. Z Axis Scan Z (mm) 0.00 4.00 8.00 12.00 16.00 SAR (W/Kg) 0.440 0.152 0.070 0.046 0.020 Report No：BCTC2304875804-8E No.：BCTC/RF-EMC-005 Page 90 of 261 Edition：A.4 F. 3D Image 3D screen shot Hot spot position Report No：BCTC2304875804-8E No.：BCTC/RF-EMC-005 Page 91 of 261 Edition：A.4 Plot 6 A. Experimental conditions. Probe SN 25/22 EPGO373 ConvF 3.27 Area Scan dx=8mm dy=8mm, Adaptative 1 max Zoom Scan 7x7x8,dx=5mm dy=5mm dz=5mm Phantom Right head Device Position Cheek Band WCDMA1900 Channels Low Signal WCDMA (Crest factor: 1.0) B. Permitivity Frequency (MHz) 1852.400 Relative permitivity (real part) 40.607 Relative permitivity (imaginary part) 13.612 Conductivity (S/m) 1.405 C. SAR Surface and Volume SURFACE SAR VOLUME SAR Maximum location: X=-41.00, Y=-58.00 ; SAR Peak: 0.08 W/kg D. SAR 1g & 10g SAR 10g (W/Kg) 0.022 SAR 1g (W/Kg) 0.041 Variation (%) -1.020 Horizontal validation criteria: minimum distance (mm) -- Vertical validation criteria: SAR ratio M2/M1 (%) -- E. Z Axis Scan Z (mm) 0.00 4.00 8.00 12.00 16.00 SAR (W/Kg) 0.075 0.044 0.025 0.015 0.009 Report No：BCTC2304875804-8E No.：BCTC/RF-EMC-005 Page 92 of 261 Edition：A.4 F. 3D Image 3D scre…

Text truncated - open the document above for the full version.

Report No：BCTC2304875804-8E No.：BCTC/RF-EMC-005 Page 149 of 261 Edition：A.4 Plot 35 A. Experimental conditions. Probe SN 25/22 EPGO373 ConvF 2.86 Area Scan surf_sam_plan.txt Zoom Scan 7x7x12,dx=4mm dy=4mm dz=2mm Phantom Validation plane Device Position Body Band IEEE 802.11a U-NII-3 Channels High Signal IEEE802.a (Crest factor: 1.0) B. Permitivity Frequency (MHz) 5825.000 Relative permitivity (real part) 34.670 Relative permitivity (imaginary part) 16.370 Conductivity (S/m) 5.228 C. SAR Surface and Volume SURFACE SAR VOLUME SAR Maximum location: X=9.00, Y=-1.00 ; SAR Peak: 1.79 W/kg D. SAR 1g & 10g SAR 10g (W/Kg) 0.156 SAR 1g (W/Kg) 0.483 Variation (%) 1.170 Horizontal validation criteria: minimum distance (mm) -- Vertical validation criteria: SAR ratio M2/M1 (%) -- E. Z Axis Scan Z (mm) 0.00 2.00 4.00 6.00 8.00 10.00 12.00 14.00 16.00 SAR (W/Kg) 1.694 0.872 0.388 0.147 0.048 0.014 0.004 0.003 0.004 Report No：BCTC2304875804-8E No.：BCTC/RF-EMC-005 Page 150 of 261 Edition：A.4 F. 3D Image 3D screen shot Hot spot position Report No：BCTC2304875804-8E No.：BCTC/RF-EMC-005 Page 151 of 261 Edition：A.4 16. CALIBRATION CERTIFICATES Probe-EPGO373 Calibration Certificate SID750Dipole Calibration Ceriticate SID835Dipole Calibration Ceriticate SID1800Dipole Calibration Ceriticate SID1900Dipole Calibration Ceriticate SID2450Dipole Calibration Ceriticate SID2600Dipole Calibration Ceriticate SID5000Dipole Calibration Ceriticate Report No：BCTC2304875804-8E No.：BCTC/RF-EMC-005 Page 152 of 261 Edition：A.4 Report No：BCTC2304875804-8E No.：BCTC/RF-EMC-005 Page 153 of 261 Edition：A.4 Report No：BCTC2304875804-8E No.：BCTC/RF-EMC-005 Page 154 of 261 Edition：A.4 Report No：BCTC2304875804-8E No.：BCTC/RF-EMC-005 Page 155 of 261 Edition：A.4 Report No：BCTC2304875804-8E No.：BCTC/RF-EMC-005 Page 156 of 261 Edition：A.4 Report No：BCTC2304875804-8E No.：BCTC/RF-EMC-005 Page 157 of 261 Edition：A.4 Report No：BCTC2304875804-8E No.：BCTC/RF-EMC-005 Page 158 of 261 Edition：A.4 Report No：BCTC2304875804-8E No.：BCTC/RF-EMC-005 Page 159 of 261 Edition：A.4 Report No：BCTC2304875804-8E No.：BCTC/RF-EMC-005 Page 160 of 261 Edition：A.4 Report No：BCTC2304875804-8E No.：BCTC/RF-EMC-005 Page 161 of 261 Edition：A.4 Report No：BCTC2304875804-8E No.：BCTC/RF-EMC-005 Page 162 of 261 Edition：A.4 Report No：BCTC2304875804-8E No.：BCTC/RF-EMC-005 Page 163 of 261 Edition：A.4 Report No：BCTC2304875804-8E No.：BCTC/RF-EMC-005 Page 164 of 261 Edition：A.4 Report No：BCTC2304875804-8E No.：BCTC/RF-EMC-005 Page 165 of 261 Edition：A.4 Report No：BCTC2304875804-8E No.：BCTC/RF-EMC-005 Page 166 of 261 Edition：A.4 Report No：BCTC2304875804-8E No.：BCTC/RF-EMC-005 Page 167 of 261 Edition：A.4 Report No：BCTC2304875804-8E No.：BCTC/RF-EMC-005 Page 168 of 261 Edition：A.4 Report No：BCTC2304875804-8E No.：BCTC/RF-EMC-005 Page 169 of 261 Edition：A.4 Report No：BCTC2304875804-8E No.：BCTC/RF-EMC-005 Page 170 of 261 Edition：A.4 Report No：BCTC2304875804-8E No.：BCTC/RF-EMC-005 Page 171 of 261 Edition：A.4 Report No：BCTC2304875804-8E No.：BCTC/RF-EMC-005 Page 172 of 261 Edition：A.4
