2BAK2-W101Smart watch

Shenzhen Qichang Intelligent Technology Co., Ltd U.S. Agent Designation for Service of Process (Applicant and U.S. Agent are Separate Parties) TO: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: Baihetian Innovative Solutions FRN: 0033401605 Contact Name: Kenneth Young Street Address: 6837 Chase Rd City/Province/Zip: Dearborn, MI 48126 Telephone No: 313-395-3113 Email: [email protected] This letter is to confirm that we (“the Designated U.S. Agent) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date: 2023.12.06 Signed by (Printed Name/Title): Kenneth Young/Manager The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: Shenzhen Qichang Intelligent Technology Co., Ltd Grantee Code: 2BAK2 FCC ID: 2BAK2-W101 FRN: 0033538703 Contact Name: Wenwen Jiang Street Address: Room 510, Building 7, Yunli Intelligent Park, No. 7, Bantian Street, City/Province/Zip: Longgang , Shenzhen Telephone No: +86-755-81797123 Email: [email protected] Applicant Signature: Date: 2023/12 /06 Signed by (Printed Name/Title): Wenwen Jiang / CEO

(Shenzhen Qichang Intelligent Technology Co., Ltd) (2023.12.06) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2BAK2-W101) [Shenzhen Qichang Intelligent Technology Co., Ltd] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Applicant printed name) Wenwen Jiang (Shenzhen Qichang Intelligent Technology Co., Ltd) (2023.12.06) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID: 2BAK2-W101) [Shenzhen Qichang Intelligent Technology Co., Ltd] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Wenwen Jiang

Shenzhen Qichang Intelligent Technology Co., Ltd 2023.12.06 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: Smart watch Trademark: N/A MODEL : W101, W102, W103, C25 PRO, C27 FCC ID: 2BAK2-W101 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title: Wenwen Jiang / CEO Contact information / address: Room 510, Building 7, Yunli Intelligent Park, No. 7, Bantian Street, Longgang, Shenzhen, China

Shenzhen Qichang Intelligent Technology Co., Ltd 2023.12.06 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION EUT NAME: Smart watch Trademark: N/A MODEL : W101, W102, W103, C25 PRO, C27 FCC ID: 2BAK2-W101 To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title: Wenwen Jiang / CEO Contact information / address: Room 510, Building 7, Yunli Intelligent Park, No. 7, Bantian Street, Longgang, Shenzhen, China

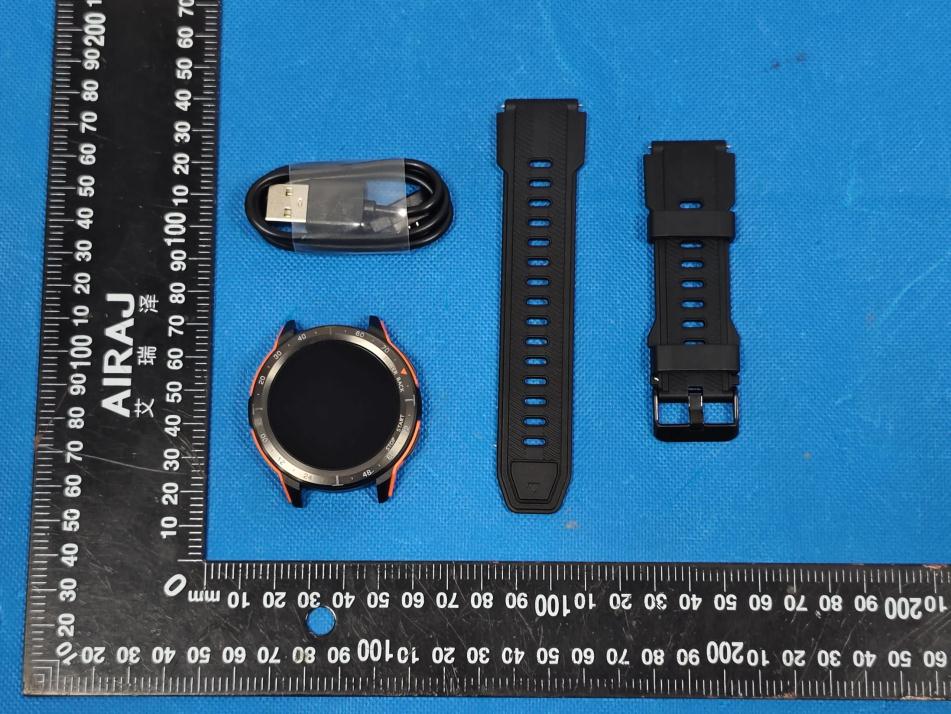

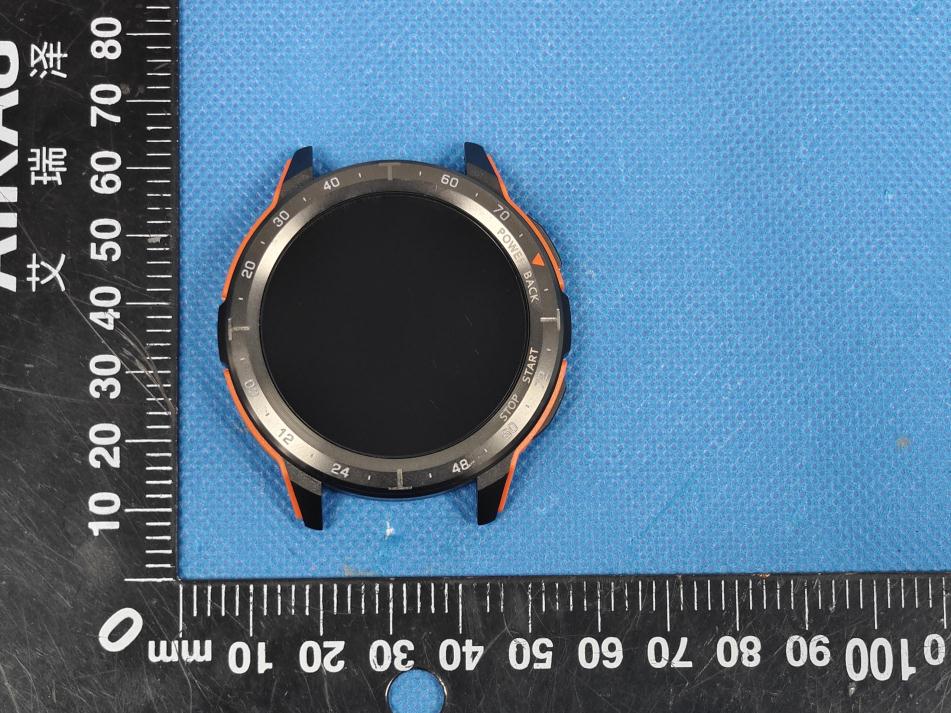

External Photos

Size:10*4mm FCC ID: 2BAK2-W101 Label location

Internal Photos Antenna

FCC ID: 2BAK2-W101 RF exposure evaluation §2.1093 Radiofrequency radiation exposure evaluation: Portable Devices. According to§15.247(i) and§1.1307b(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the commission’s guidance. The 1-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  When the minimum test separation distance is < 5 mm, a distance of 5 mm according is applied to determine SAR test exclusion.  The result is rounded to one decimal place for comparison  GFSK Modulation Frequency (GHz) Max. Power (dBm) Tune up Power (dBm) Max. Tune up Power (dBm) Max. Tune up Power (mW) Test distance (mm) Result exclusion thresholds for 1-g SAR GFSK(1Mbps) 2.480 2.02 2±1 3 2.51 5 0.63 3.0 GFSK(2Mbps) 2.480 1.53 1±1 2 1.58 5 0.50 3.0 Conclusion: For the max result : 0.63W/Kg ≤ FCC Limit 3.0 for 1g SAR. The Product unsupported at the same time to Transmitting.

Antenna test report test report Client ：LeDai Project name：W101 RF：Li Gong Date： 2023.12.04 Version： 01 Laboratory testing environment and equipment Test itemsTest equipment S11、S12 、VSWR 、LOSSnetwork analyzerE5071B、E5062A Efficiency、Gain 3D Radiation Pattern Satimo SG16darkroom、GP7*4*3darkroom、 E5071B TRP、TIS Satimo SG16darkroom、GP7*4*3darkroom、 8960 、CMW500、MT8820C、E4438C、 Introduction to Project Debugging Type of complete machine Frequency band information antenna form Antenna type and frequency band information BT 2400M-2480MSingle stage Antenna material wire l(((i豆沙／ 凯普i家 E c 日 A ＼ 2 3 4 0.5mm 1 3 4 a a 5 6 l I / E 。 c B Shenihen Kaipushen臼阻micationTechnology 仇， Ltd 斗争岳弓一 Project n皿e 。回0.03 Pro也Jctnaoo 一L 0.02 Pro曲ctc叫e C7 0.04 UNIT: m CCI OUR 5 6 WlOl 即回tellllll I SCALE: I I I e削咀. A l A I " 深圳市凯普深通讯科技有限公司 Shenzhen cape deep communi臼liontechnology co., LT口 26±1mm Free free Gong THE END

No.：BCTC/RF-EMC-005 Page: 1 of 53 Edition：B.1 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2311422065E Applicant: Shenzhen Qichang Intelligent Technology Co., Ltd Product Name: Smart watch Test Model: W101 Tested Date: 2023-11-24 to 2023-12-01 Issued Date: 2023-12-06 Report No.: BCTC2311422065E No.：BCTC/RF-EMC-005 Page: 2 of 53 Edition：B.1 FCC ID: 2BAK2-W101 The test report is effective only with both signature and specialized stamp.This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full.The tested sample(s) and the sample information are provided by the client. Product Name: Smart watch Trademark: N/A Model/Type Reference: W101 W102, W103, C25 PRO, C27 Prepared For: Shenzhen Qichang Intelligent Technology Co., Ltd Address: Room 510, Building 7, Yunli Intelligent Park, No. 7, Bantian Street, Longgang, Shenzhen, China Manufacturer: Shenzhen Qichang Intelligent Technology Co., Ltd Address: Room 510, Building 7, Yunli Intelligent Park, No. 7, Bantian Street, Longgang, Shenzhen, China Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2023-11-24 Sample Tested Date: 2023-11-24 to 2023-12-01 Issue Date: 2023-12-06 Report No.: BCTC2311422065E Test Standards: FCC Part15.247 ANSI C63.10-2013 Test Results: PASS Remark: This is Bluetooth BLE radio test report. Tested by: Approved by: Min Zhi Cheng/ Project Handler Zero Zhou/Reviewer Report No.: BCTC2311422065E No.：BCTC/RF-EMC-005 Page: 3 of 53 Edition：B.1 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information And Test Setup ..................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 9 4.3 Support Equipment ............................................................................................... 9 4.4 Channel List ........................................................................................................ 10 4.5 Test Mode ........................................................................................................... 10 4.6 Table of parameters of text software setting ....................................................... 10 5. Test Facility And Test Instrument Used ............................................................... 11 5.1 Test Facility ......................................................................................................... 11 5.2 Test Instrument Used .......................................................................................... 11 6. Conducted Emissions .......................................................................................... 13 6.1 Block Diagram Of Test Setup .............................................................................. 13 6.2 Limit .................................................................................................................... 13 6.3 Test procedure .................................................................................................... 13 6.4 EUT Operating Conditions .................................................................................. 13 6.5 Test Result .......................................................................................................... 14 7. Radiated Emissions ............................................................................................. 16 7.1 Block Diagram Of Test Setup .............................................................................. 16 7.2 Limit .................................................................................................................... 17 7.3 Test procedure .................................................................................................... 18 7.4 EUT operating Conditions ................................................................................... 19 7.5 Test Result .......................................................................................................... 19 8. Radiated Band Emission Measurement And Restricted Bands Of Operation ..... 24 8.1 Block Diagram Of Test Setup .............................................................................. 24 8.2 Limit .................................................................................................................... 24 8.3 Test Procedure ................................................................................................... 25 8.4 EUT Operating Conditions .................................................................................. 26 8.5 Test Result .......................................................................................................... 26 9. Power Spectral Density Test ............................................................................... 27 9.1 Block Diagram Of Test Setup .............................................................................. 27 9.2 Limit .................................................................................................................... 27 9.3 Test procedure .................................................................................................... 27 9.4 EUT Operating Conditions .............................…

Text truncated - open the document above for the full version.

Report No.: BCTC2311422065E No.：BCTC/RF-EMC-005 Page: 51 of 53 Edition：B.1 15. EUT Test Setup Photographs Conducted Measurement Photos Report No.: BCTC2311422065E No.：BCTC/RF-EMC-005 Page: 52 of 53 Edition：B.1 Radiated Measurement Photos
