2BDBM-R1-1One-key RF Remote Controller

● Apply to single color LED controller. ● Each remote can match one or more receiver. ● R bC 2032 attery powered. ● Operate with LED indicator light. ●Magnet on the back which can be easily stuck on any metal surfaces. User Manual Ver 1.0.9 Technical Parameters Input and Output Warranty 5 years Warranty Operation temperature Environment IP rating IP20 Ta: -30 O C ~ +55 O C Model No.: R1-1 Features One-key portable dimmer/Wireless remote 30m distance/CR2032 battery/Magnet stuck fix One-key RF Remote Controller Output signalRF 2.4GHz() Working voltage 3VDC CR2032() Working current ＜5mA Standby current ＜2μA Standby time2 years Remote distance 30m(Barrier-free space) Match Remote Control (two match ways) Use the controller’s Match key Match: Short press match key, immediately press on/off key on the remote. The LED indicator fast flash a few times means match is successful. Use Power Restart Match: Switch off the power, then switch on power, repeat again. Immediately short press on/off key 3 times on the remote. The light blinks 3 times means match is successful. . Delete: Switch off the power, then switch on power, repeat again. Immediately short press on/off key 5 times on the remote. The light blinks 5 times means all matched remotes were deleted. Delete: Press and hold match key for 5s to delete all match, The LED indicator fast flash a few times means all matched remotes were deleted. End user can choose the suitable match/delete ways. Two options are offered for selection: R1-1 One-key RF Remote Controller LVDRED 43.00 mm 17.00 mm Safety infor mation 1. Read all instructions carefully before you begin this installation. 2.When installing battery, pay attention to the battery positive and negative polarity. A long time without the remote control, remove the battery. When remote distance becomes smaller and insensitive, replace the battery. 3. If no response from the receiver, please re-match the remote. 4. Gently handle remote, beware of falling. 5. For indoor and dry location use only. CR2032 Battery Note: Before the first use, please remove the protective film on the battery. LED indicator Click to turn on/off, Press and hold 1-6s to increase/ decrease brightness. Back holder with magnet Mechanical Structures and Installations 26.50 mm To fix the remote, three options are offered for selection: Option 1: stuck on any metal surfaces directly. Option 2: fix it on the wall with two screws. Option 3: adhere it to the wall with paster. Safety and EMC EMC standard (EMC) ETSI EN 301 489-1 V2.2.3 ETSI EN 301 489-17 V3.2.4 Radio Equipment(RED) ETSI EN 300 328 V2.2.2 Certification CE,EMC,LVD,RED EN 62368-1:2020+A11:2020 Safety standard(LVD) FCC Warning 15.19 Labeling requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 15.21 Information to user. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 15.105 Information to the user. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. FCC RF Radiation Exposure Statement: 1.This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2.This equipment complies with RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 5mm between the radiator and your body.

GUANGZHOU SKYDANCE CO.,LTD Section 2.911(d)(5)(i) Certification – Equipment Type Company name: GUANGZHOU SKYDANCE CO.,LTD Address: 2-3 Floor, Building A, No.36, Zhongsan, Shiguang Road, Zhongcun Street, Panyu District, Guangzhou, China Product Name: One-key RF Remote Controller FCC ID: 2BDBM-R1-1 Model(s): R1-1 2.911(d)(5)(i) Equipment Type We, [GUANGZHOU SKYDANCE CO.,LTD ] (“the applicant”) certify that the equipment for which authorization is sought through certification is not: • Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules. • Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: feifei.chen Date: 2023-1 1-1 Title and Company name: Manager NOTE 1 “Covered List ”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the 2.911 (d)(5)(i) Equipment Type Attestation v1.2

GUANGZHOU SKYDANCE CO.,LTD Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: GUANGZHOU SKYDANCE CO.,LTD Address: 2-3 Floor, Building A, No.36, Zhongsan, Shiguang Road, Zhongcun Street, Panyu District, Guangzhou, China Product Name: One-key RF Remote Controller FCC ID: 2BDBM-R1-1 Model(s): R1-1 2.911(d)(5)(ii) Applicant filing We, [GUANGZHOU SKYDANCE CO.,LTD ] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 , established pursuant to § 1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Name: feifei.chen Date: 2023-11-1 Title and Company name: Manager NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List ”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the 2.911 (d)(5)(ii) Applicant Attestation v1.2

GUANGZHOU SKYDANCE CO.,LTD 2.911 (d)(7)USA Agent v1.2 Section 2.911(d)(7) USA Agent for Service of Process Company name: GUANGZHOU SKYDANCE CO.,LTD Address: 2-3 Floor, Building A, No.36, Zhongsan, Shiguang Road, Zhongcun Street, Panyu District, Guangzhou, China Product Name: One-key RF Remote Controller FCC ID: 2BDBM-R1-1 Model(s): R1-1 2.911(d)(7) USA Designated Agent for Service of Process We, [ GUANGZHOU SKYDANCE CO.,LTD ] (“the applicant”) designate [THREE STONES MEDIA LLC] NOTE1 for the purpose of accepting service of process on behalf of the applicant. Applicant consent: We Acknowledge our consent to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address of the designated agent and acknowledge our acceptance of our obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. Agent obligation: We Acknowledge our obligation to accept service of process in the United States for matters related to the applicable equipment at our physical U.S. address and email address for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. USA Agent Company name: THREE STONES MEDIA LLC Address: 1200 Broadway St. APT 329, Los Angeles, CA90015 FRN: 0033401761 Contact Name: Sijie Zhang Telephone No: +1 267 909 3692 Email: [email protected] Applicant Company name: GUANGZHOU SKYDANCE CO.,LTD Address: 2-3 Floor, Building A, No.36, Zhongsan, Shiguang Road, Zhongcun Street, Panyu District, Guangzhou, China FRN: 0034376343 FCC Grantee Code: 2BDBM Contact Name: feifei.chen Telephone No: 020-84719740 Email: [email protected] GUANGZHOU SKYDANCE CO.,LTD 2.911 (d)(7)USA Agent v1.2 Signature: Title: Manager Signature: Title: Manager Date: 2023-11-1 Date: 2023-11-1 NOTE 1: An applicant located in the United States may designate itself as the agent for service of process. Reference; Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threat s-to-the-communications-supply-chain-through-the

GUANGZHOU SKYDANCE CO.,LTD Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2023-11-1 Subject; Request for Long Term Confidentiality FCC ID: 2BDBM-R1-1 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram BOM Operational Description It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: feifei.chen Title: Manager

Letter of Authorization Company: GUANGZHOU SKYDANCE CO.,LTD Address: 2-3 Floor, Building A, No.36, Zhongsan, Shiguang Road, Zhongcun Street, Panyu District, Guangzhou, China Product Name: One-key RF Remote Controller Model Number: R1-1 FCC Identifier: 2BDBM-R1-1 We authorize MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. We declare that MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: feifei.chen Date: 2023-1 1-1 Title: Manager

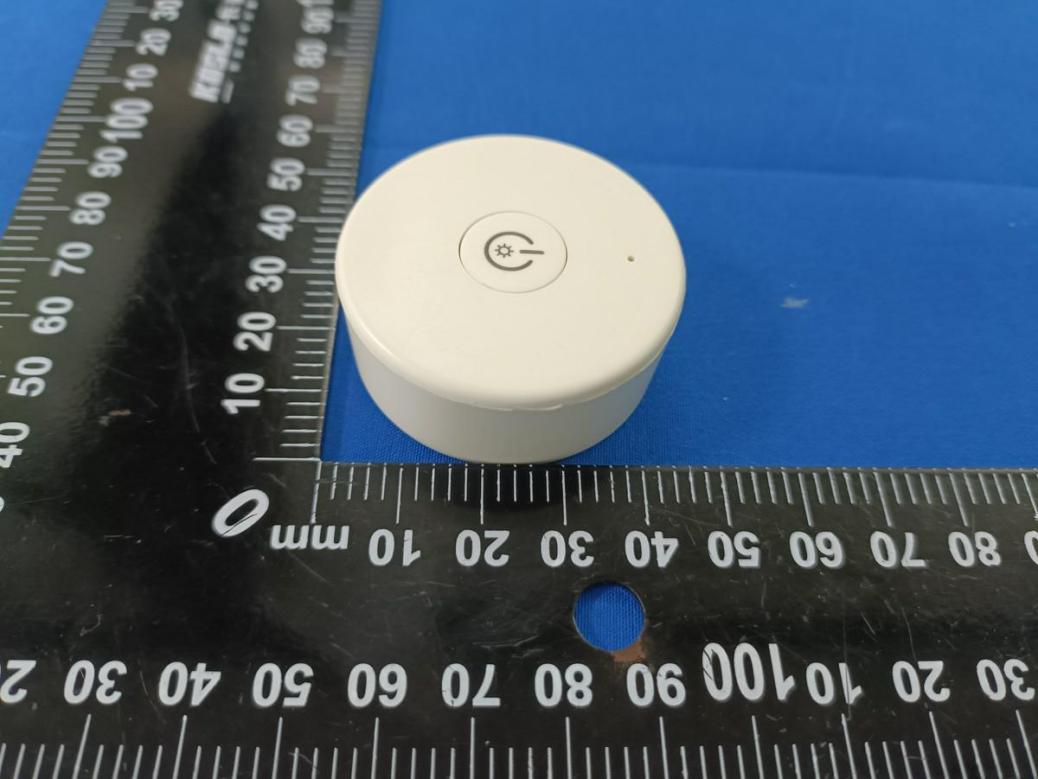

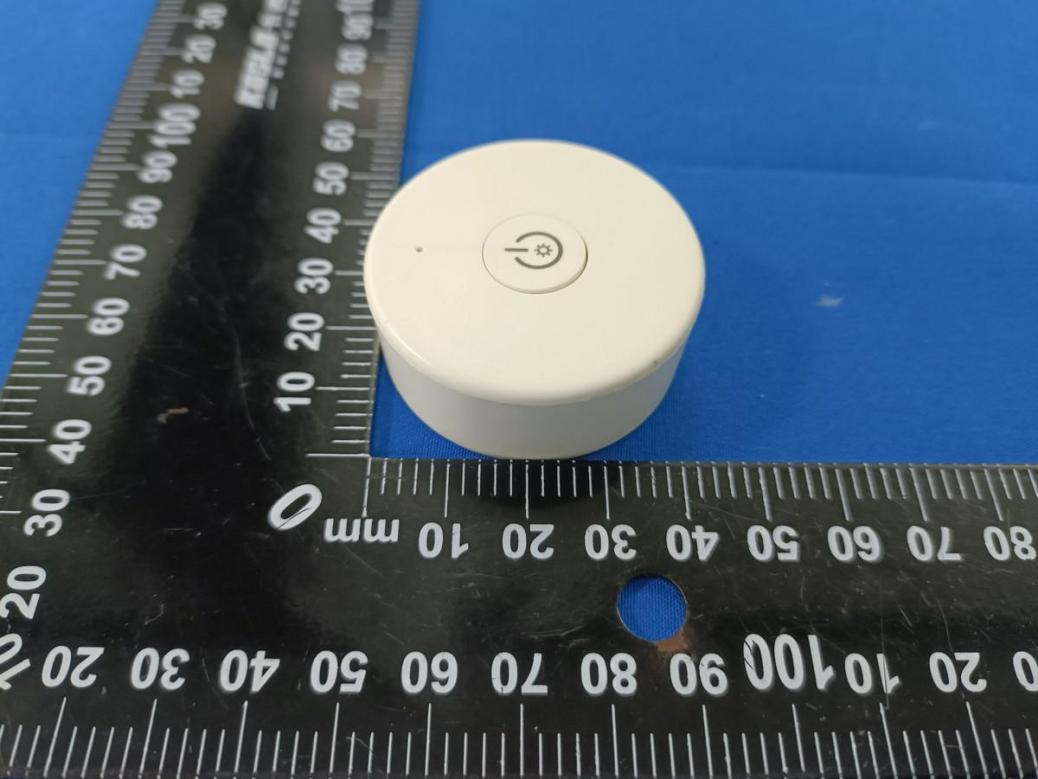

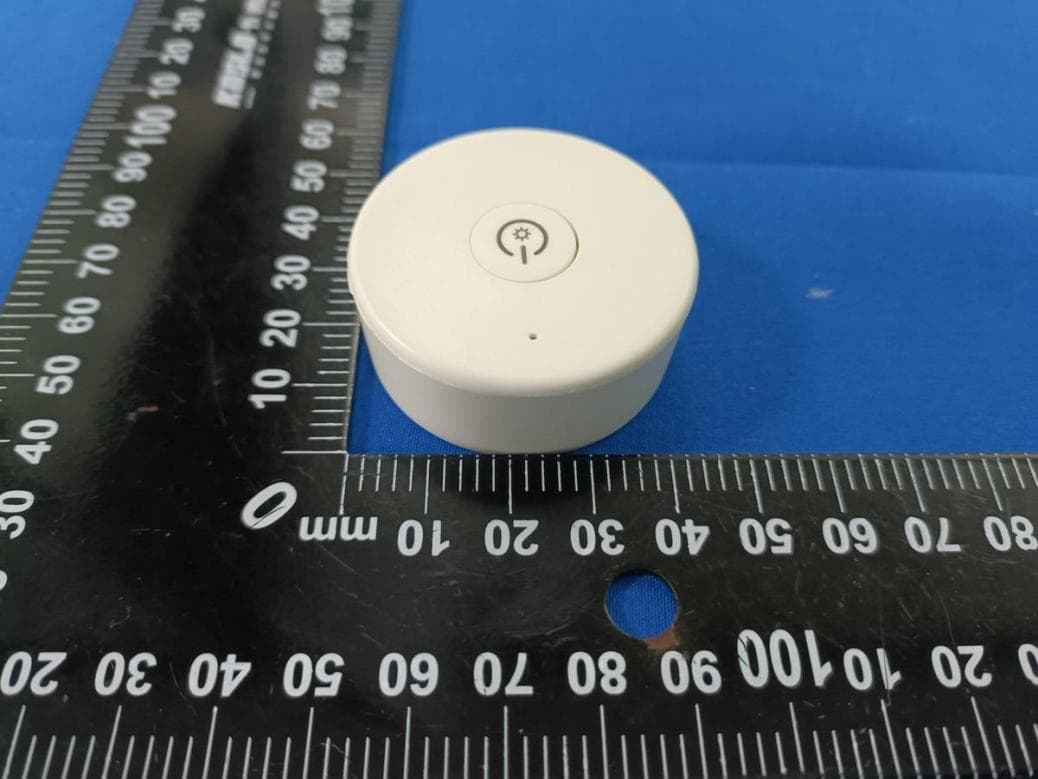

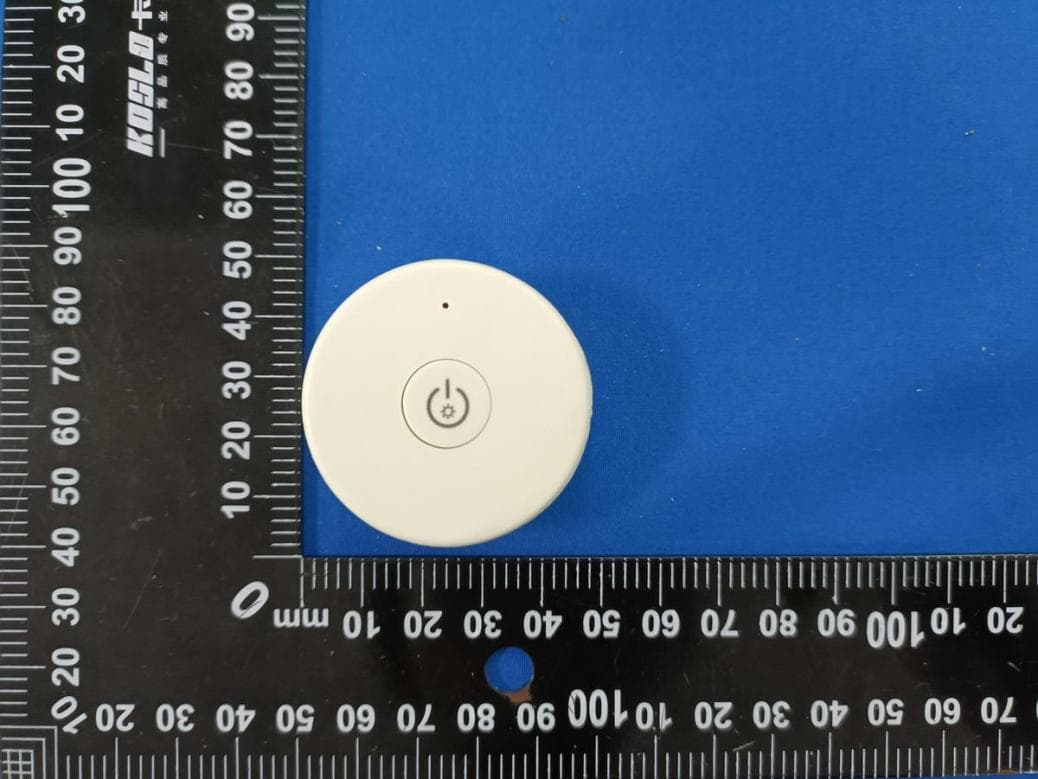

Model:R1-1 External Model:R1-1 Model:R1-1

Label&Location One-key RF Remote Controller Model: R1-1 FCC ID: 2BDBM-R1-1

Model:R1-1 Internal Model:R1-1 Model:R1-1 Model:R1-1

Total or partial reproduction of this document without permission of the Laboratory is not allowed. Page 1 of 7 BTF Testing Lab (Shenzhen) Co., Ltd. F101, 201 and 301, Building 1, Block 2, Tantou Industrial Park, Tantou Community, Songgang Street, Bao'an District, Shenzhen, China RF Exposure Report For Applicant Name: GUANGZHOU SKYDANCE CO., LTD Address: 2-3 Floor, Building A, No.36, Zhongsan, Shiguang Road, Zhongcun Street, Panyu District, Guangzhou, China EUT Name: One-key RF Remote Controller Brand Name: SKYDANCE Model Number: R1-1 Issued By Company Name: BTF Testing Lab (Shenzhen) Co., Ltd. Address: F101, 201 and 301, Building 1, Block 2, Tantou Industrial Park, Tantou Community, Songgang Street, Bao'an District, Shenzhen, China Report Number: BTF230925R00602 Test Standards: 47 CFR Part 2 Subpart J Section 2.1093 FCC ID: 2BDBM-R1-1 Test Conclusion: Pass Test Date: 2023-09-26 to 2023-10-23 Date of Issue: 2023-10-24 Prepared By: Chris Liu / Project Engineer Date: 2023-10-24 Approved By: Ryan.CJ / EMC Manager Date: 2023-10-24 Note: All the test results in this report only related to the testing samples. Which can be duplicated completely for the legal use with approval of applicant; it shall not be reproduced except in full without the written approval of BTF Testing Lab (Shenzhen) Co., Ltd., All the objections should be raised within thirty days from the date of issue. To validate the report, you can contact us. Test Report Number: BTF230925R00602 Total or partial reproduction of this document without permission of the Laboratory is not allowed. Page 2 of 7 BTF Testing Lab (Shenzhen) Co., Ltd. F101, 201 and 301, Building 1, Block 2, Tantou Industrial Park, Tantou Community, Songgang Street, Bao'an District, Shenzhen, China Revision History Version Issue Date Revisions Content R_V0 2023-10-24 Original Note: Once the revision has been made, then previous versions reports are invalid. Test Report Number: BTF230925R00602 Total or partial reproduction of this document without permission of the Laboratory is not allowed. Page 3 of 7 BTF Testing Lab (Shenzhen) Co., Ltd. F101, 201 and 301, Building 1, Block 2, Tantou Industrial Park, Tantou Community, Songgang Street, Bao'an District, Shenzhen, China Table of Contents 1. Introduction ............................................................................................................................................................................................ 4 1.1 Identification of Testing Laboratory ................................................................................................................................. 4 1.2 Identification of the Responsible Testing Location ...................................................................................................... 4 1.3 Laboratory Condition ........................................................................................................................................................... 4 1.4 Announcement ....................................................................................................................................................................... 4 2. Product Information .............................................................................................................................................................................. 5 2.1 Application Information ....................................................................................................................................................... 5 2.2 Manufacturer Information .................................................................................................................................................... 5 2.3 Factory Information .............................................................................................................................................................. 5 2.4 General Description of Equipment under Test (EUT)................................................................................................... 5 3. Test Requirement ................................................................................................................................................................................. 6 3.1 Assessment Result ............................................................................................................................................................... 6 Test Report Number: BTF230925R00602 Total or partial reproduction of this document without permission of the Laboratory is not allowed. Page 4 of 7 BTF Testing Lab (Shenzhen) Co., Ltd. F101, 201 and 301, Building 1, Block 2, Tantou Industrial Park, Tantou Community, Songgang Street, Bao'an District, Shenzhen, China 1. Introduction 1.1 Identification of Testing Laboratory Company Name: BTF Testing Lab (Shenzhen) Co., Ltd. Address: F101, 201 and 301, Building 1, Block 2, Tantou Industrial Park, Tantou Community, Songgang Street, Bao'an District, Shenzhen, China Phone Number: +86-0755-23146130 Fax Number: +86-0755-23146130 1.2 Identification of the Responsible Testing Location Test Location: BTF Testing Lab (Shenzhen) Co., Ltd. Address: F101, 201 and 301, Building 1, Block 2, Tantou Industrial Park, Tantou Community, Songgang Street, Bao'an District, Shenzhen, China Description: All measurement facilities used to collect the measurement data are located at F101,201 and 301, Building 1, Block 2, Tantou Industrial Park, Tantou Community, Songgang Street, Bao'an District, Shenzhen, China FCC Registration Number: 518915 Designation Number: CN1330 1.3 Laboratory Condition Ambient Temperature: 20°C to 25°C Ambient Relative Humidity: 45% to 55% Ambient Pressure: 100 kPa to 102 kPa 1.4 Announcement (1) The test report reference to the report template version v0. (2) The test report is invalid if not marked with the signatures of the persons responsible for preparing, reviewing and approving the test report. (3) The test report is invalid…

Text truncated - open the document above for the full version.

Total or partial reproduction of this document without permission of the Laboratory is not allowed. Page 1 of 47 BTF Testing Lab (Shenzhen) Co., Ltd. F101, 201 and 301, Building 1, Block 2, Tantou Industrial Park, Tantou Community, Songgang Street, Bao'an District, Shenzhen, China RF Test Report For Applicant Name: GUANGZHOU SKYDANCE CO., LTD Address: 2-3 Floor, Building A, No.36, Zhongsan, Shiguang Road, Zhongcun Street, Panyu District, Guangzhou, China EUT Name: One-key RF Remote Controller Brand Name: SKYDANCE Model Number: R1-1 Issued By Company Name: BTF Testing Lab (Shenzhen) Co., Ltd. Address: F101, 201 and 301, Building 1, Block 2, Tantou Industrial Park, Tantou Community, Songgang Street, Bao'an District, Shenzhen, China Report Number: BTF230925R00601 Test Standards: 47 CFR Part 15.247 Test Conclusion: Pass FCC ID: 2BDBM-R1-1 Test Date: 2023-09-26 to 2023-10-23 Date of Issue: 2023-10-24 Prepared By: Chris Liu / Project Engineer Date: 2023-10-24 Approved By: Ryan.CJ / EMC Manager Date: 2023-10-24 Note: All the test results in this report only related to the testing samples. Which can be duplicated completely for the legal use with approval of applicant; it shall not be reproduced except in full without the written approval of BTF Testing Lab (Shenzhen) Co., Ltd., All the objections should be raised within thirty days from the date of issue. To validate the report, you can contact us. Test Report Number: BTF230925R00601 Total or partial reproduction of this document without permission of the Laboratory is not allowed. Page 2 of 47 BTF Testing Lab (Shenzhen) Co., Ltd. F101, 201 and 301, Building 1, Block 2, Tantou Industrial Park, Tantou Community, Songgang Street, Bao'an District, Shenzhen, China Revision History Version Issue Date Revisions Content R_V0 2023-10-24 Original Note: Once the revision has been made, then previous versions reports are invalid. Test Report Number: BTF230925R00601 Total or partial reproduction of this document without permission of the Laboratory is not allowed. Page 3 of 47 BTF Testing Lab (Shenzhen) Co., Ltd. F101, 201 and 301, Building 1, Block 2, Tantou Industrial Park, Tantou Community, Songgang Street, Bao'an District, Shenzhen, China Table of Contents 1 INTRODUCTION ..........................................................................................................................................5 1.1 Identification of Testing Laboratory ...............................................................................................5 1.2 Identification of the Responsible Testing Location ......................................................................5 1.3 Announcement .................................................................................................................................5 2 PRODUCT INFORMATION ..........................................................................................................................6 2.1 Application Information ...................................................................................................................6 2.2 Manufacturer Information ................................................................................................................6 2.3 Factory Information .........................................................................................................................6 2.4 General Description of Equipment under Test (EUT) ...................................................................6 2.5 Technical Information ......................................................................................................................6 3 SUMMARY OF TEST RESULTS .................................................................................................................7 3.1 Test Standards ..................................................................................................................................7 3.2 Uncertainty of Test ...........................................................................................................................7 3.3 Summary of Test Result ..................................................................................................................7 4 TEST CONFIGURATION .............................................................................................................................8 4.1 Test Equipment List .........................................................................................................................8 4.2 Test Auxiliary Equipment ............................................................................................................. 10 4.3 Test Modes ..................................................................................................................................... 10 5 EVALUATION RESULTS (EVALUATION) ................................................................................................. 11 5.1 Antenna requirement ..................................................................................................................... 11 5.1.1 Conclusion: ........................................................................................................................... 11 6 RADIO SPECTRUM MATTER TEST RESULTS (RF) .............................................................................. 12 6.1 Occupied Bandwidth .................................................................................................................... 12 6.1.1 E.U.T. Operation: ................................................................................................................. 12 6.1.2 Test Setup Diagram: ............................................................................................................ 12 6.1.3 Test Data: ............................................................................................................................ 13 6.2 Maximum Conducted Output Power ...........................…

Text truncated - open the document above for the full version.

1. Description 2. L oca t i o n 3. Bluetooth TRP Test Bluetooth TRP Result Frequency (MHz) 2478 TRP(dBm) 1.46 NHPRP(dBm) 45 0.27 MAX(dBm) 6.02 EIRP peak 6.02 Min(dBm) - 11.77 Attenuation Horizontal 41.17 Attenuation Vertical 41.16 Company Shenzhen ATWE Antenna Co., Ltd Antenna model A01 Ga in ： 2.5 dbi T yp e ： Copper antenna 4.Bluetooth TIS Test Bluetooth TIS Result Frequency (MHz)2478 TIS(dBm)-85.74 NHPIS(dBm) 45-84.56 RSSIAve2.37 MaxPosRSSI5.7 MaxPosSens-89.08 MAX(dBm)6.93 EIS peak6.93 Min(dBm)-10.86 Attenuation Horizontal42.08 Attenuation Vertical42.07

Model:R1-1 Band edge emissions (Radiated) Emissions in frequency bands (above 1GHz) Emissions in frequency bands (below 1GHz)
