2BDBM-R14Ultra-thin touch slider wireless remote control

Technical Parameters Input and Output Operation temperature Environment Ta: -30 O C ~ +55 O C Safety and EMC EMC standard (EMC) ETSI EN 301 489-1 V2.2.3 ETSI EN 301 489-17 V3.2.4 Radio Equipment(RED) ETSI EN 300 328 V2.2.2 Certication CE,EMC,LVD,RED EN 62368-1:2020+A11:2020 Safety standard(LVD) Warranty 5 years Warranty 1 User Manual Ver 1.1.2 ●Apply to single color, dual color ,RGB, RGB+W or RGB+CCT LED controller. ●Ultra sensitive color adjustment touch slide. ●Each remote can match one or more receiver. ●CR2032 battery powered. ●Operate with LED indicator light. ●Magnet on the back which can be easily stuck on back holder or any metal surfaces. ●White & Black available Features Touch color slide/1-5 color /Wireless remote 30m distance/CR2032 battery/Magnet stuck fix Ultrathin Touch Slide RF Remote Controller Model No.: R11, R12, R13, R14, R10 R11 R12R13 Dimming CCTRGB R10 RGB+CCT R14 RGBW LVDRED Output signal(2.4 z)RF GH Working voltage 32032)VDC(CR Working current<5mA Standby current<10μA Standby time1 year Remote distance 30m(Barrier-free space) Package L156 x W48 x H22mm Gross weight Size 0.075kg Mechanical Structures and Installations 36.00 mm 139.00 mm 11.00 mm 53.50 mm Note: Before the first use, please remove the protective film on the battery. C 2032 Battery R Back holder with magnet To fix the remote, three options are offered for selection: Option 1: stuck the remote on any metal surfaces directly. Option 2: fix the remote' back holder on the wall with two screws. Option 3: adhere the remote' back holder to the wall with paster. Match Remote Control (two match ways) Use the controller’s Match key Match: Short press match key, immediately press on/off key on the remote. The LED indicator fast flash a few times means match is successful. Use Power Restart Match: Switch off the power, then switch on power, repeat again. Immediately short press on/off key 3 times on the remote. The light blinks 3 times means match is successful. Delete: Switch off the power, then switch on power, repeat again. Immediately short press on/off key 5 times on the remote. The light blinks 5 times means all matched remotes were deleted. Delete: Press and hold match key for 5s to delete all match, The LED indicator fast flash a few times means all matched remotes were deleted. End user can choose the suitable match/delete ways. Two options are offered for selection: ●R11 1 zone dimming remote ●R12 1 zone CCT remote WW 50% CW 50% WW 100% CW 0% WW 0% CW 100% Short press to turn on or turn off light. Long press 1-6s to adjust brightness. Color touch slide On/Off LED indicator Key function Bright touch slide On/Off LED indicator 1% 100% 50% R 100% G 100% B 100% Color touch slide ●R13 1 zone RGB remote Short press to turn on or turn off light. Long press 1-6s to adjust brightness. Fast press 2 times to get white color (RGB mixed). On/Off LED indicator 2 User Manual Ver 1.1.2 R 100% G 100% B 100% Color touch slide W 50% W 100% 1% 1. Short press for On/Off. 2. Press and hold 1-6s for RGB brightness dimming. 3. Fast press 2 times for shift between RGB, W and RGB+W mode. In RGB or RGB+W mode, touch slide to change RGB color. In W mode, touch slide to change white brightness. LED indicator ●R10 1 zone RGB+CCT Safety information 1.Read all instructions carefully before you begin this installation. 2.When installing battery, pay attention to the battery positive and negative polarity. A long time without the remote control, remove the battery. When remote distance becomes smaller and insensitive, replace the battery. 3. If no response from the receiver, please re-match the remote. 4.Gently handle remote, beware of falling. 5. For indoor and dry location use only. R 100% G 100% B 100% Color touch slide WW 50% CW 50% WW 100% CW 0% WW 0% CW 100% 1. Short press for On/Off. 2. Press and hold 1-6s for brightness dimming. 3. When light is on, fast press 2 times for shift between RGB and CCT touch slide. LED indicator ●R14 1 zone RGBW remote FCC Warning 15.19 Labeling requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 15.21 Information to user. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 15.105 Information to the user. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. FCC RF Radiation Exposure Statement: 1.This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2.This equipment complies with RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 5mm between the radiator and your body. IC Warning This device complies with Industry Canada’s licen…

Text truncated - open the document above for the full version.

GUANGZHOU SKYDANCE CO.,LTD 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – Equipment Type Company name: GUANGZHOU SKYDANCE CO.,LTD Address: 2-3 Floor, Building A, No.36, Zhongsan, Shiguang Road, Zhongcun Street, Panyu District, Guangzhou, China Product Name: Ultra-thin touch slider wireless remote control FCC ID: 2BDBM-R14 Model(s): R14, R10,R11, R13 2.911(d)(5)(i) Equipment Type We, [GUANGZHOU SKYDANCE CO.,LTD ] (“the applicant”) certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: feifei.chen Date: 2024-07-29 Title and Company name: Manager NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

GUANGZHOU SKYDANCE CO.,LTD 2.911 (d)(5)(ii) Applicant Attestation v1.2 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: GUANGZHOU SKYDANCE CO.,LTD Address: 2-3 Floor, Building A, No.36, Zhongsan, Shiguang Road, Zhongcun Street, Panyu District, Guangzhou, China Product Name: Ultra-thin touch slider wireless remote control FCC ID: 2BDBM-R14 Model(s): R14, R10, R11, R13 2.911(d)(5)(ii) Applicant filing We, [GUANGZHOU SKYDANCE CO.,LTD ] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 , established pursuant to § 1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Name: feifei.chen Date: 2024-07-29 Title and Company name: Manager NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

GUANGZHOU SKYDANCE CO.,LTD 2.911 (d)(7)USA Agent v1.2 Section 2.911(d)(7) USA Agent for Service of Process Company name: GUANGZHOU SKYDANCE CO.,LTD Address: 2-3 Floor, Building A, No.36, Zhongsan, Shiguang Road, Zhongcun Street, Panyu District, Guangzhou, China Product Name: Ultra-thin touch slider wireless remote control FCC ID: 2BDBM-R14 Model(s): R14, R10, R11, R13 2.911(d)(7) USA Designated Agent for Service of Process We, [ GUANGZHOU SKYDANCE CO.,LTD ] (“the applicant”) designate [THREE STONES MEDIA LLC] NOTE1 for the purpose of accepting service of process on behalf of the applicant. Applicant consent: We Acknowledge our consent to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address of the designated agent and acknowledge our acceptance of our obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. Agent obligation: We Acknowledge our obligation to accept service of process in the United States for matters related to the applicable equipment at our physical U.S. address and email address for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. USA Agent Company name: THREE STONES MEDIA LLC Address: 1200 Broadway St. APT 329, Los Angeles, CA90015 FRN: 0033401761 Contact Name: Sijie Zhang Telephone No: +1 267 909 3692 Email: [email protected] Applicant Company name: GUANGZHOU SKYDANCE CO.,LTD Address: 2-3 Floor, Building A, No.36, Zhongsan, Shiguang Road, Zhongcun Street, Panyu District, Guangzhou, China FRN: 0034376343 FCC Grantee Code: 2BDBM Contact Name: feifei.chen Telephone No: 020-84719740 Email: [email protected] S俨沪� GUANGZHOU SKYDANCE CO.,LTD 2.911 (d)(7)USA Agent v1.2 Signature: Title: Manager Signature: Title: Manager Date: 2024-07-29 Date: 2024-07-29 NOTE 1: An applicant located in the United States may designate itself as the agent for service of process. Reference; Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threat s-to-the-communications-supply-chain-through-the

GUANGZHOU SKYDANCE CO.,LTD Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2024-07-29 Subject; Request for Long Term Confidentiality FCC ID: 2BDBM-R14 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: feifei.chen Title: Manager

Letter of Authorization Company: GUANGZHOU SKYDANCE CO.,LTD Address: 2-3 Floor, Building A, No.36, Zhongsan, Shiguang Road, Zhongcun Street, Panyu District, Guangzhou, China Product Name: Ultra-thin touch slider wireless remote control Model Number: R14, R10, R11, R13 FCC Identifier: 2BDBM-R14 We authorize MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. We declare that MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: feifei.chen Date: 2024-07-29 Title: Manager

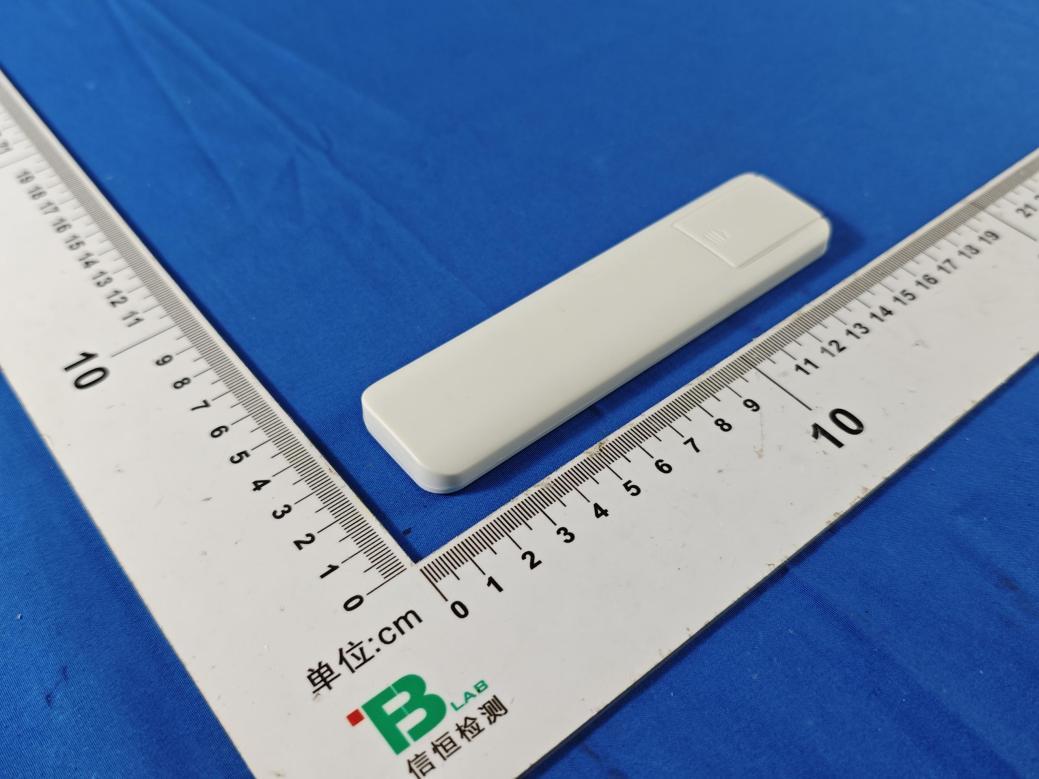

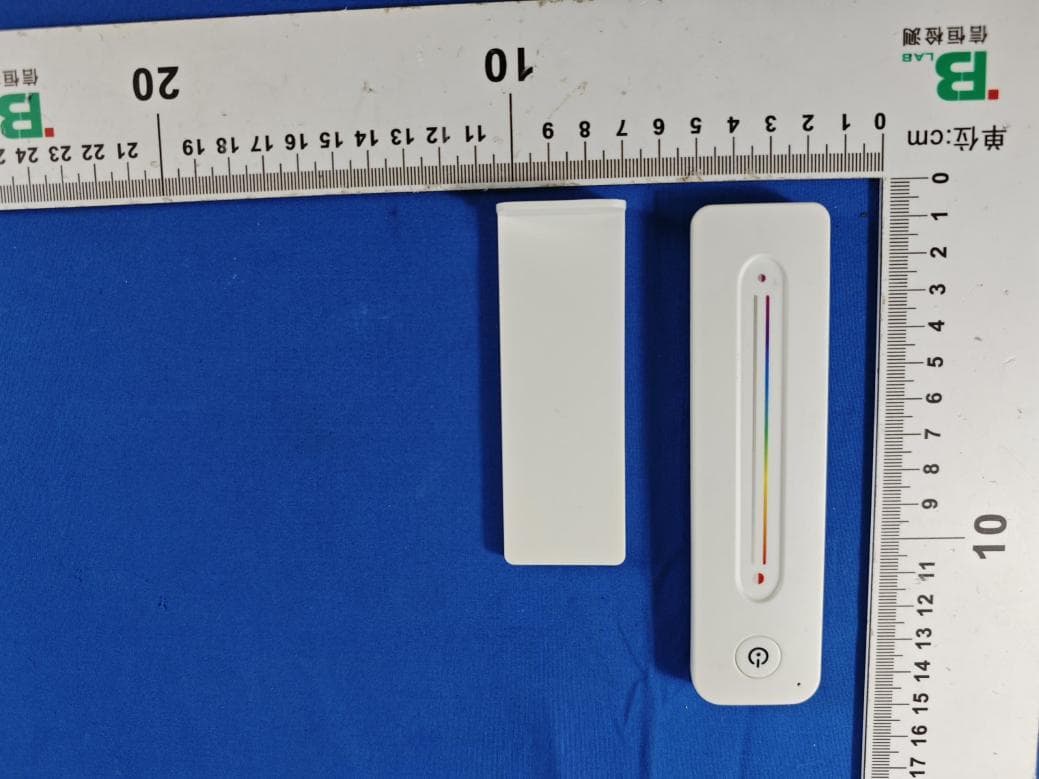

Model: R14 External Model: R14

Label & Location T he label is laser engraved SKYDANCE Ultra-thin touch slider wireless remote control Model: R14 FCC ID: 2BDBM-R14

Model:R14 Internal 2.4GRX ANT Model:R14 ‘ Model:R14

TotalorpartialreproductionofthisdocumentwithoutpermissionoftheLaboratoryisnotallowed.Page 1 of 7 BTFTestingLab(Shenzhen)Co.,Ltd. F101,201and301,Building1,Block2,TantouIndustrialPark,TantouCommunity,SonggangStreet,Bao'anDistrict,Shenzhen,China RFExposureReport For ApplicantName:GUANGZHOUSKYDANCECO.,LTD Address: 2-3Floor,BuildingA,No.36,Zhongsan,ShiguangRoad,Zhongcun Street,PanyuDistrict,Guangzhou EUTName:Ultra-thintouchsliderwirelessremotecontrol BrandName:SKYDANCE ModelNumber:R14 Seriesmodelnumber:R10,R11.R13 IssuedBy CompanyName:BTFTestingLab(Shenzhen)Co.,Ltd. Address: F101,201and301,Building1,Block2,TantouIndustrialPark, TantouCommunity,SonggangStreet,Bao'anDistrict,Shenzhen, China ReportNumber:BTF240704R00402 TestStandards:47CFRPart2SubpartJSection2.1093 FCCID:Pass TestConclusion:2BDBM-R14 TestDate:2024-07-04to2024-07-18 DateofIssue:2024-07-19 PreparedBy: AceXie/ProjectEngineer Date:2024-07-19 ApprovedBy: Ryan.CJ/EMCManager Date:2024-07-19 Note:Allthetestresultsinthisreportonlyrelatedtothetestingsamples.Whichcanbeduplicatedcompletelyforthelegalusewithapprovalof applicant;itshallnotbereproducedexceptinfullwithoutthewrittenapprovalofBTFTestingLab(Shenzhen)Co.,Ltd.,Alltheobjectionsshouldbe raisedwithinthirtydaysfromthedateofissue.Tovalidatethereport,youcancontactus. TestReportNumber:BTF240704R00402 TotalorpartialreproductionofthisdocumentwithoutpermissionoftheLaboratoryisnotallowed.Page 2 of 7 BTFTestingLab(Shenzhen)Co.,Ltd. F101,201and301,Building1,Block2,TantouIndustrialPark,TantouCommunity,SonggangStreet,Bao'anDistrict,Shenzhen,China RevisionHistory VersionIssueDateRevisionsContent R_V02024-07-19Original Note:Oncetherevisionhasbeenmade,thenpreviousversionsreportsareinvalid. TestReportNumber:BTF240704R00402 TotalorpartialreproductionofthisdocumentwithoutpermissionoftheLaboratoryisnotallowed.Page 3 of 7 BTFTestingLab(Shenzhen)Co.,Ltd. F101,201and301,Building1,Block2,TantouIndustrialPark,TantouCommunity,SonggangStreet,Bao'anDistrict,Shenzhen,China TableofContents 1.Introduction.............................................................................................................................................................................................4 1.1IdentificationofTestingLaboratory..................................................................................................................................4 1.2IdentificationoftheResponsibleTestingLocation......................................................................................................4 1.3LaboratoryCondition............................................................................................................................................................4 1.4Announcement........................................................................................................................................................................4 2.ProductInformation...............................................................................................................................................................................5 2.1ApplicationInformation........................................................................................................................................................5 2.2ManufacturerInformation.....................................................................................................................................................5 2.3FactoryInformation...............................................................................................................................................................5 2.4GeneralDescriptionofEquipmentunderTest(EUT)...................................................................................................5 3.TestRequirement..................................................................................................................................................................................6 3.1AssessmentResult................................................................................................................................................................6 TestReportNumber:BTF240704R00402 TotalorpartialreproductionofthisdocumentwithoutpermissionoftheLaboratoryisnotallowed.Page 4 of 7 BTFTestingLab(Shenzhen)Co.,Ltd. F101,201and301,Building1,Block2,TantouIndustrialPark,TantouCommunity,SonggangStreet,Bao'anDistrict,Shenzhen,China 1.Introduction 1.1IdentificationofTestingLaboratory CompanyName:BTFTestingLab(Shenzhen)Co.,Ltd. Address: F101,201and301,Building1,Block2,TantouIndustrialPark,Tantou Community,SonggangStreet,Bao'anDistrict,Shenzhen,China PhoneNumber:+86-0755-23146130 FaxNumber:+86-0755-23146130 1.2IdentificationoftheResponsibleTestingLocation TestLocation:BTFTestingLab(Shenzhen)Co.,Ltd. Address: F101,201and301,Building1,Block2,TantouIndustrialPark,Tantou Community,SonggangStreet,Bao'anDistrict,Shenzhen,China Description: Allmeasurementfacilitiesusedtocollectthemeasurementdataarelocated atF101,201and301,Building1,Block2,TantouIndustrialPark,Tantou Community,SonggangStreet,Bao'anDistrict,Shenzhen,China FCCRegistrationNumber:518915 DesignationNumber:CN1330 1.3LaboratoryCondition AmbientTemperature:20°Cto25°C AmbientRelativeHumidity:45%to55% AmbientPressure:100kPato102kPa 1.4Announcement (1)Thetestreportreferencetothereporttemplateversionv0. (2)Thetestreportisinvalidifnotmarkedwiththesignaturesofthepersonsresponsibleforpreparing, reviewingandapprovingthetestreport. (3)Thetestreportisinvalidifthereisanyevidenceand/orfalsification. (4)ThisdocumentmaynotbealteredorrevisedinanywayunlessdonesobyBTFandallrevisionsareduly notedintherevisionssection. (5)Contentofthetestreport,inpartorinfull,cannotbeusedforpublicityand/orpromotionalpurposeswithout priorwrittenapprovalfromthelaboratory. (6)Thelaboratoryisonlyresponsibleforthedatareleasedbythelaboratory,exceptforthepartprovidedbythe applicant. TestReportNumber:BTF240704R00402 Totalorpartialreproductionofthisdocumentwithoutpermission…

Text truncated - open the document above for the full version.

1.Description 3.Bluetooth TRP Test Bluetooth TRP Result Frequency (MHz) 2478 TRP(dBm) 1.47 NHPRP(dBm) 45 0.28 MAX(dBm) 6.01 EIRP peak 6.01 Min(dBm) - 11.79 Attenuation Horizontal 41.18 Attenuation Vertical 41.17 Company Shenzhen ATWE Antenna Co., Ltd Gain: 2.5 dBi T yp e: PCB antenna 2. L oca t i o n 4.Bluetooth TIS TestBluetooth TIS Result Frequency (MHz)2478 TIS(dBm)-85.72 NHPIS(dBm) 45-84.50 RSSIAve2.34 MaxPosRSSI5.6 MaxPosSens-89.07 MAX(dBm)6.91 EIS peak6.91 Min(dBm)-10.87 Attenuation Horizontal42.02 Attenuation Vertical42.01

TotalorpartialreproductionofthisdocumentwithoutpermissionoftheLaboratoryisnotallowed. Page 1 of 44 BTFTestingLab(Shenzhen)Co.,Ltd. F101,201and301,Building1,Block2,TantouIndustrialPark,TantouCommunity,SonggangStreet,Bao'anDistrict,Shenzhen,China RFTestReport For ApplicantName:GUANGZHOUSKYDANCECO.,LTD Address: 2-3Floor,BuildingA,No.36,Zhongsan,ShiguangRoad,Zhongcun Street,PanyuDistrict,Guangzhou EUTName:Ultra-thintouchsliderwirelessremotecontrol BrandName:SKYDANCE ModelNumber:R14 Seriesmodelnumber:R10,R11.R13 IssuedBy CompanyName:BTFTestingLab(Shenzhen)Co.,Ltd. Address: F101,201and301,Building1,Block2,TantouIndustrialPark, TantouCommunity,SonggangStreet,Bao'anDistrict,Shenzhen, China ReportNumber:BTF240704R00401 TestStandards:47CFRPart15.247 TestConclusion:Pass FCCID:2BDBM-R14 TestDate:2024-07-04to2024-07-18 DateofIssue:2024-07-19 PreparedBy: AceXie/ProjectEngineer Date:2024-07-19 ApprovedBy: Ryan.CJ/EMCManager Date:2024-07-19 Note:Allthetestresultsinthisreportonlyrelatedtothetestingsamples.Whichcanbeduplicatedcompletelyforthelegalusewithapprovalof applicant;itshallnotbereproducedexceptinfullwithoutthewrittenapprovalofBTFTestingLab(Shenzhen)Co.,Ltd.,Alltheobjectionsshouldbe raisedwithinthirtydaysfromthedateofissue.Tovalidatethereport,youcancontactus. TestReportNumber:BTF240704R00401 TotalorpartialreproductionofthisdocumentwithoutpermissionoftheLaboratoryisnotallowed. Page2of44 BTFTestingLab(Shenzhen)Co.,Ltd. F101,201and301,Building1,Block2,TantouIndustrialPark,TantouCommunity,SonggangStreet,Bao'anDistrict,Shenzhen,China RevisionHistory VersionIssueDateRevisionsContent R_V02024-07-19Original Note:Oncetherevisionhasbeenmade,thenpreviousversionsreportsareinvalid. TestReportNumber:BTF240704R00401 TotalorpartialreproductionofthisdocumentwithoutpermissionoftheLaboratoryisnotallowed. Page3of44 BTFTestingLab(Shenzhen)Co.,Ltd. F101,201and301,Building1,Block2,TantouIndustrialPark,TantouCommunity,SonggangStreet,Bao'anDistrict,Shenzhen,China TableofContents 1INTRODUCTION.................................................................................................................................................5 1.1IdentificationofTestingLaboratory...................................................................................................5 1.2IdentificationoftheResponsibleTestingLocation..........................................................................5 1.3Announcement......................................................................................................................................5 2PRODUCTINFORMATION.................................................................................................................................6 2.1ApplicationInformation.......................................................................................................................6 2.2ManufacturerInformation....................................................................................................................6 2.3FactoryInformation..............................................................................................................................6 2.4GeneralDescriptionofEquipmentunderTest(EUT).......................................................................6 2.5TechnicalInformation..........................................................................................................................6 3SUMMARYOFTESTRESULTS.........................................................................................................................7 3.1TestStandards......................................................................................................................................7 3.2UncertaintyofTest...............................................................................................................................7 3.3SummaryofTestResult.......................................................................................................................7 4TESTCONFIGURATION.....................................................................................................................................8 4.1TestEquipmentList.............................................................................................................................8 4.2TestAuxiliaryEquipment...................................................................................................................10 4.3TestModes..........................................................................................................................................10 5EVALUATIONRESULTS(EVALUATION)........................................................................................................11 5.1Antennarequirement..........................................................................................................................11 5.1.1Conclusion:..............................................................................................................................11 6RADIOSPECTRUMMATTERTESTRESULTS(RF)......................................................................................12 6.1ConductedEmissionatACpowerline............................................................................................12 6.1.1E.U.T.Operation:.....................................................................................................................12 6.1.2TestSetupDiagram:................................................................................................................12 6.1.3TestData:TheDCproductsarenotapplicabletothisproject...............................................12 6.2OccupiedBandwidth..........................................................................................................................13 6.2.1E.U.T.Operation:.....................................................................................................................13 6.2.2TestSetupDiagram:.......................................…

Text truncated - open the document above for the full version.

Model:R14 Band edge emissions (Radiated) Emissions in frequency bands (above 1GHz) Emissions in frequency bands (below 1GHz)
