2BDBM-VD1WiFi&RF 3-Button LED Dimmer

Features Technical Parameters Input and Output Operation temperature Environment Ta: -30 O C ~ +50 O C Case temperature (Max.) Tc: +85 O C Safety and EMC EMC standard (EMC) Radio Equipment(RED) Certication Safety standard 5 years Warranty Dimming data Output voltage Output current Input voltage Max. 5A 5-24VDC 5-24VDC Dimming range Input signal Control distance Dimming level PWM Frequency Dimming curve Gross weight Size Package 0.013kg Tuya APP + RF 2.4GHz + 3 button 30m(Barrier-free space) 4096 (2^12) levels 0 -100% 2KHz (default) Logarithmic Dimension 1 User Manual Ver 1.0.1 CE,EMC,RED ETSI EN 301 489-1 V2.2.3 ETSI EN 301 489-17 V3.2.4 ETSI EN 300 328 V2.2.2 EN 62368-1:2020+A11:2020 Model No.: VD1(WT) WiFi & RF 3-Button LED Dimmer Tuya APP cloud control // 3-button / Wireless remote control / Step-less dimming Voice
control ● WiFi & RF 1 channel constant voltage single color LED dimmer. ● 5A output, connect with 5 meters single color LED strip. ● Tuya APP cloud control, support on/off, brightness adjust, delay turn on/off light, timer run, scene edit function. ● Voice control, support for Amazon Alexa, Google Assistant, Tmall Genie and Xiaodu smart speakers. ● 3 button operation with on/off and dimming. ● Match with 2.4G single zone or multiple zone single color remote control optional. ● 4096 levels 0-100% dimming smoothly without any ash. Protection Over-heat, Short circuit (Back side) Wiring Diagram + - 5m single color LED strip Dimming remote Note: (Brightness-)
Press and hold the and button for 2s, output LED flashes 3 times, the light on/off fade time will change between 3s and 0.5s. VD1(WT) WiFi & RF LED Dimmer Uin: 5-24VDC Iout: Max. 5A Pout: 25W@5V 60W@12V 120W@24V Temp Range: -30°C~+50°C DC IN LED OUT Power Adapter 5-24VDC W120 x L43 x H27mm Output power 25W@5V 60W@12V 120W@24V RED 73.00mm 35.00 mm 14.00 mm
Inner diameter 2.1mm Outer diameter 5.5mm Tuya APP network connection Please download the corresponding tuya/smart life app according to your region. Press and hold








and (+)
button for 2s: Brightness clear previous network connection, enter Smart config mode, the output LED will flash 10 times. Press and hold and (+)
button for 5s: Brightness Clear previous network connection, enter AP config mode, the output LED will flash 5 times. If smart config failed, please try AP config. Repeat power on and off for 5 consecutive times, also clear previous network connection, enter Smart config mode, the output LED will flash 10 times. If Tuya APP network connection succeed, the output
LED
will stop flash, and in Tuya APP, you can find DIMc device . Tuya APPSmart life APP 2 User Manual Ver 1.0.1 Wired connection Wireless connection DIM WiFi Router Mobile Phone RF
Remote(Optional) Panel
RF
Remote(Optional) 15m 30m 30m DIM Note:
1.
he
Tabove distance is measured in spacious
(no
obstacle) environment, Please refer to the actual test distance before installation. 2.
Please
check
if
the
WiFi router
net
in
2.4G
band, the
5G
band is
not
available, and do
not
hide
your
router
network. 3. Please
keep
the
distance
between
VD1(WT) devices
and
router
close, and
check
the
WiFi
signals. 4. WiFi signal strength detection: click
, click "" for testing.open the main interface of social security,enter the device interfacecheck device network WiFi 3G/4G/5G Tuya Cloud Smart Speaker WiFi POWER SCENE SCENE ZONE ZONE ZONE ZONESCENE System
Wiring : Turn on or off light. : Brightness -, short press 10 levels, long press 1-6s for continuous 256 levels adjustment. : Brightness +, short press 10 levels, long press 1-6s for continuous 256 levels adjustment. Button function Tuya APP interface Touch brightness slide to adjust brightness. White interface The 1-4 scene is static color. the inner color of these scene can be editable. Scene interface The Schedule key can add multiple timers to turn on or turn off light according to different time periods. The Timer key can turn on or turn off light in the next 24 hours. Timer, Schedule Match Remote Control (optional) 3 User Manual Ver 1.0.1 100 90 80 70 60 50 40 30 20 10 506070809010010203040 Gamma=1.6 P W M d u t y ( % ) Brightness(%) Dimming Curve Packing list LED Dimmer 1 pcs User Manual 1 pcs DC Extension Cable （12cm） 1 pcs Features Technical Parameters Input and Output Safety and EMC EMC standard (EMC) Dimming data Input voltage 5-24VDC Input signal Tuya APP + RF 2.4GHz + 3 button RED ETSI EN 301 489-1 V2.2.3 Model No.: VD1(WT) WiFi & RF 3-Button LED Dimmer Tuya APP cloud control // 3-button / Wireless remote control / Step-less dimming Voice
control ● 1 channel constant voltage single color LED WiFi & RF mini dimmer. ● 5A output, connect with 5 meters single color LED strip. ● Tuya APP cloud control, support on/off, brightness adjust, delay turn on/off light, timer run, scene edit function. ● Voice control, support for Amazon Alexa, Google Assistant, Tmall Genie and Xiaodu smart speakers. ● 3 button operation with on/off and dimming. ● Match with 2.4G single zone or multiple zone single color remote control optional. ● 4096 levels 0-100% dimming smoothly without any ash. Operation temperature Environment Ta: -30 O C ~ +55 O C Case temperature (Max.) Tc: +85 O C Radio Equipment(RED) Certication Safety standard 5 years Warranty Output voltage Output current Max. 5A 5-24VDC Dimming range Control distance Dimming level PWM Frequency Dimming curve Gross weight Size Package 0.013kg 30m(Barrier-free space) 4096 (2^12) levels 0 -100% 2KHz (default) Logarithmic Dimension CE,EMC,RED ETSI EN 301 489-17 V3.2.4 ETSI EN 300 328 V2.2.2 EN 62368-1:2020+A11:2020 Protection Over-heat, Short circuit 73.00mm 35.00 mm 14.00 mm (Back side) VD1(WT) WiFi & RF LED Dimmer Uin: 5-24VDC Iout: Max. 5A Pout: 25W@5V 60W@12V 120W@24V Temp Range: -30°C~+55°C DC IN LED OUT W80 x L45 x H30mm Output power 25W@5V 60W@12V 120W@24V 1 User Manual Ver 1.0.0 Wiring Diagram + - 5m single color LED strip Dimming remote Note: Press and hold the and button for 2s, output LED flashes 3 times, …

Text truncated - open the document above for the full version.

GUANGZHOU SKYDANCE CO.,LTD Section 2.911(d)(5)(i) Certification – Equipment Type Company name: GUANGZHOU SKYDANCE CO.,LTD Address: 2-3 Floor, Building A, No.36, Zhongsan, Shiguang Road, Zhongcun Street, Panyu District, Guangzhou, China Product Name: WiFi&RF 3-Button LED Dimmer FCC ID: 2BDBM-VD1 Model(s): VD1(WT) 2.911(d)(5)(i) Equipment Type We, [GUANGZHOU SKYDANCE CO.,LTD ] (“the applicant”) certify that the equipment for which authorization is sought through certification is not: • Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules. • Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: feifei.chen Date: 2023-1 1-1 Title and Company name: Manager NOTE 1 “Covered List ”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the 2.911 (d)(5)(i) Equipment Type Attestation v1.2

GUANGZHOU SKYDANCE CO.,LTD Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: GUANGZHOU SKYDANCE CO.,LTD Address: 2-3 Floor, Building A, No.36, Zhongsan, Shiguang Road, Zhongcun Street, Panyu District, Guangzhou, China Product Name: WiFi&RF 3-Button LED Dimmer FCC ID: 2BDBM-VD1 Model(s): VD1(WT) 2.911(d)(5)(ii) Applicant filing We, [GUANGZHOU SKYDANCE CO.,LTD ] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 , established pursuant to § 1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Name: feifei.chen Date: 2023-11-1 Title and Company name: Manager NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List ”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the 2.911 (d)(5)(ii) Applicant Attestation v1.2

GUANGZHOU SKYDANCE CO.,LTD Section 2.911(d)(7) USA Agent for Service of Process Company name: GUANGZHOU SKYDANCE CO.,LTD Address: 2-3 Floor, Building A, No.36, Zhongsan, Shiguang Road, Zhongcun Street, Panyu District, Guangzhou, China Product Name: WiFi& RF 2CH LED Controller FCC ID: 2BDBM-VD1 Model(s): VD1(WT) 2.91 1(d)(7) USA Designated Agent for Service of Process W e, [ GUANGZHOU SKYDANCE CO.,LTD ] (“the applicant”) designate [THREE STONES MEDIA LLC] NOTE1 for the purpose of accepting service of process on behalf of the applicant. Applicant consent: We Acknowledge our consent to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address of the designated agent and acknowledge our acceptance of our obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. A gent obligation: We Acknowledge our obligation to accept service of process in the United States for matters related to the applicable equipment at our physical U.S. address and email address for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. USA Agent Company name: THREE STONES MEDIA LLC Address: 1200 Broadway St. APT 329, Los Angeles, CA90015 F RN: 0033401761 Contact Name: Sijie Zhang Telephone No: +1 267 909 3692 Email: [email protected] Applicant Company name: GUANGZHOU SKYDANCE C O. , LT D Address: 2-3 Floor, Building A, No.36, Zhongsan, Shiguang Road, Zhongcun Street, Panyu District, Guangzhou, China FRN: 0034376343 FCC Grantee Code: 2BDBM Contact Name: feifei.chen Tel ephone No: 020-84719740 Email: [email protected] 2.911 (d)(7)USA Agent v1.2 GUANGZHOU SKYDANCE CO.,LTD Signature: Title: Manager Signature: Title: Manager Date: 2023-11-1 Date: 2023-11-1 NOTE 1: An applicant located in the United States may designate itself as the agent for service of process. Reference; Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threat s-to -the-communications-supply-chain-through-the 2.911 (d)(7)USA Agent v1.2

Letter of Authorization Company: GUANGZHOU SKYDANCE CO.,LTD Address: 2-3 Floor, Building A, No.36, Zhongsan, Shiguang Road, Zhongcun Street, Panyu District, Guangzhou, China Product Name: WiFi&RF 3-Button LED Dimmer Model Number: VD1(WT) FCC Identifier: 2BDBM-VD1 We authorize MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. We declare that MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: feifei.chen Date: 2023-1 1-1 Title: Manager

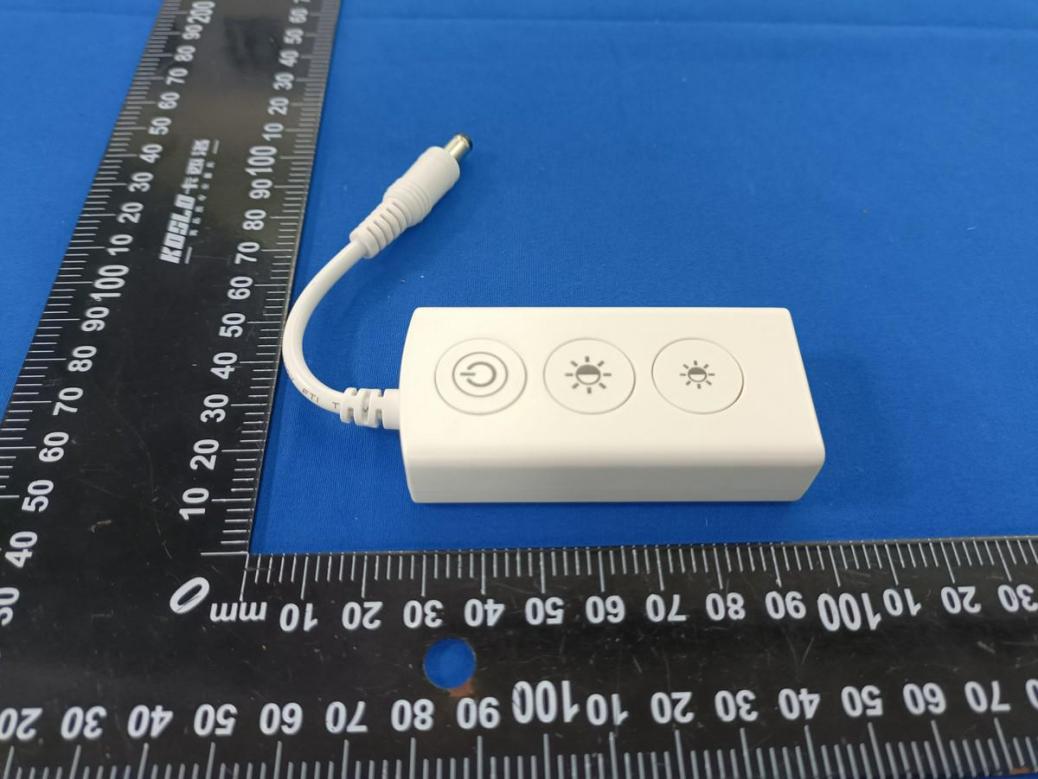

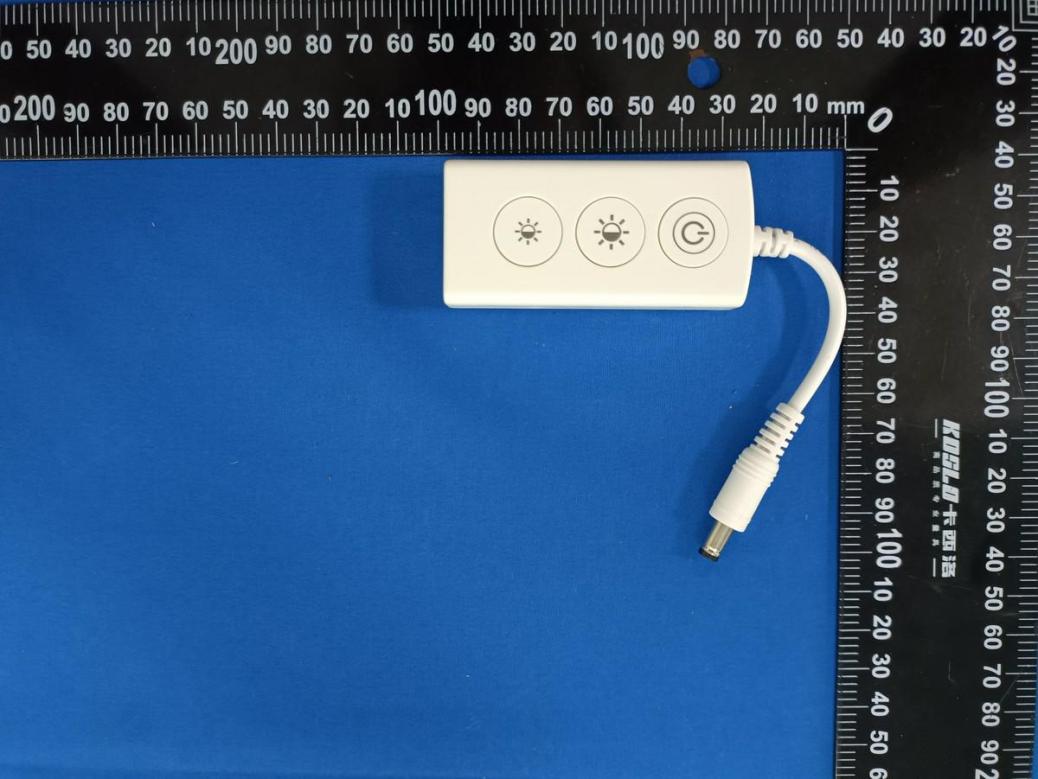

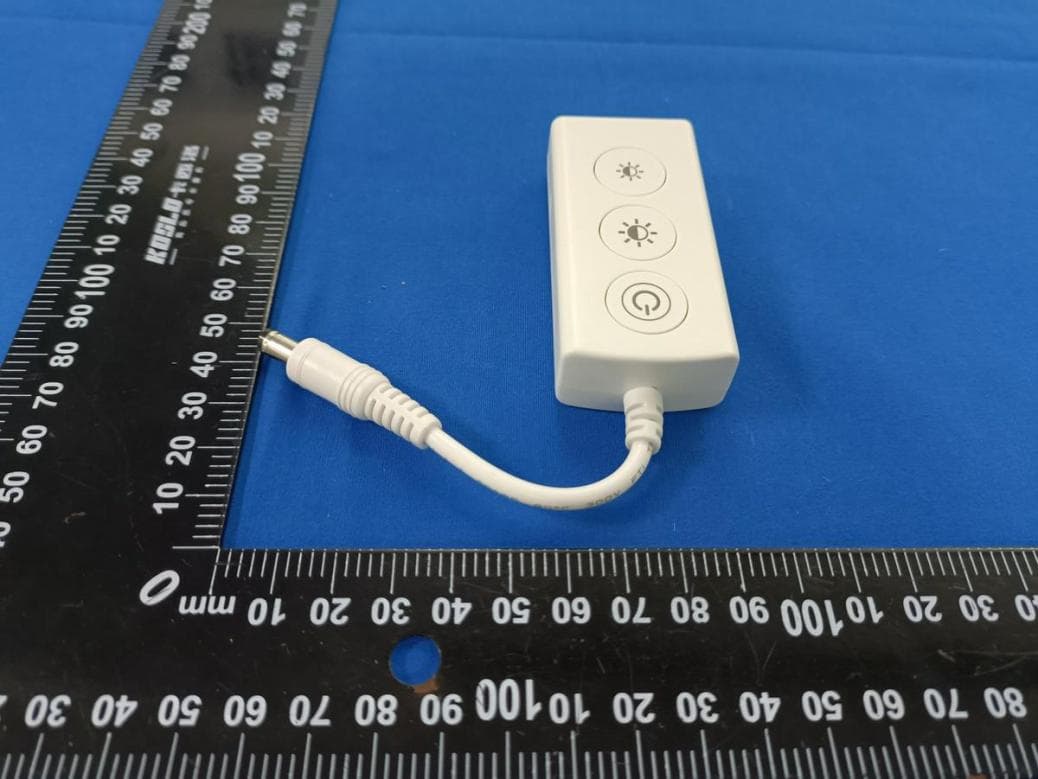

Model:VD1(WT) External Model:VD1(WT) Model:VD1(WT) Model:VD1(WT)

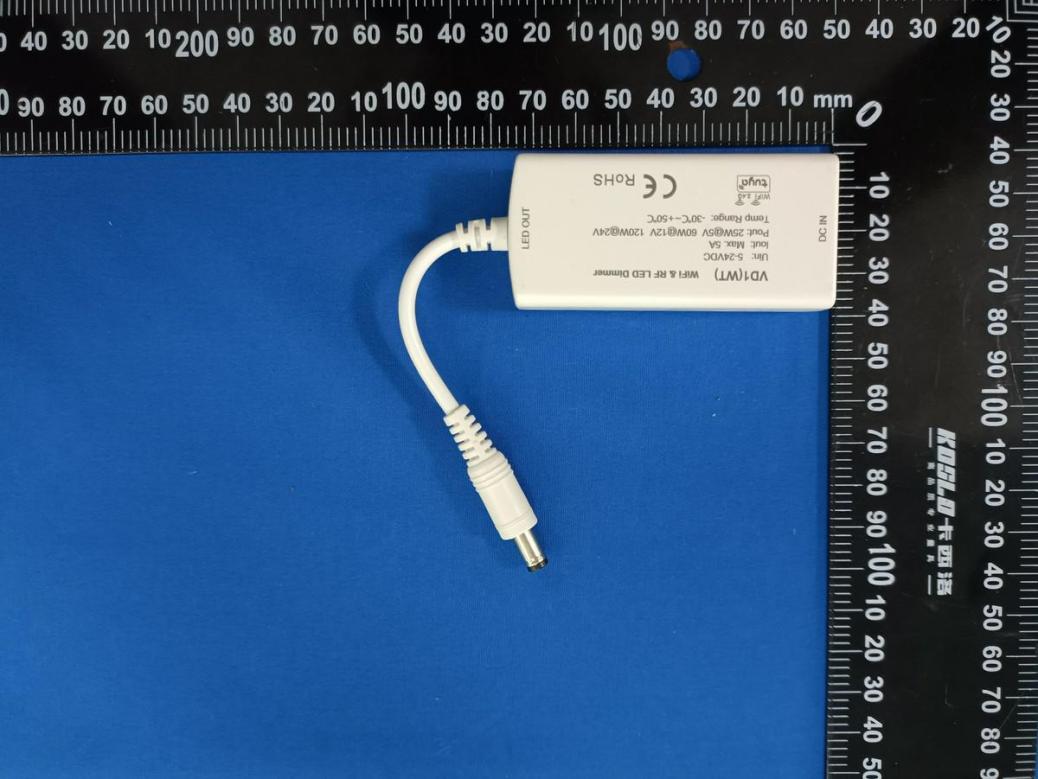

Label & Location SKYDANCE WiFi&RF 3-Button LED Dimmer Model: VD1(WT) FCC ID: 2BDBM-VD1 Contains FCC ID: 2ANDL-CB3S

Model:VD1(WT) Internal Model:VD1(WT) Model:VD1(WT)

Total or partial reproduction of this document without permission of the Laboratory is not allowed. Page 1 of 7 BTF Testing Lab (Shenzhen) Co., Ltd. F101, 201 and 301, Building 1, Block 2, Tantou Industrial Park, Tantou Community, Songgang Street, Bao'an District, Shenzhen, China RF Exposure Report For Applicant Name: GUANGZHOU SKYDANCE CO., LTD Address: 2-3 Floor, Building A, No.36, Zhongsan, Shiguang Road, Zhongcun Street, Panyu District, Guangzhou, China EUT Name: WiFi&RF 3-Button LED Dimmer Brand Name: SKYDANCE Model Number: VD1(WT) Issued By Company Name: BTF Testing Lab (Shenzhen) Co., Ltd. Address: F101, 201 and 301, Building 1, Block 2, Tantou Industrial Park, Tantou Community, Songgang Street, Bao'an District, Shenzhen, China Report Number: BTF230925R00402 Test Standards: 47 CFR Part 2 Subpart J Section 2.1091 FCC ID: 2BDBM-VD1 Test Conclusion: Pass Test Date: 2023-09-26 to 2023-10-23 Date of Issue: 2023-10-24 Prepared By: Aria Zhang / Project Engineer Date: 2023-10-24 Approved By: Ryan.CJ / EMC Manager Date: 2023-10-24 Note: All the test results in this report only related to the testing samples. Which can be duplicated completely for the legal use with approval of applicant; it shall not be reproduced except in full without the written approval of BTF Testing Lab (Shenzhen) Co., Ltd., All the objections should be raised within thirty days from the date of issue. To validate the report, you can contact us. Test Report Number: BTF230925R00402 Total or partial reproduction of this document without permission of the Laboratory is not allowed. Page 2 of 7 BTF Testing Lab (Shenzhen) Co., Ltd. F101, 201 and 301, Building 1, Block 2, Tantou Industrial Park, Tantou Community, Songgang Street, Bao'an District, Shenzhen, China Revision History Version Issue Date Revisions Content R_V0 2023-10-24 Original Note: Once the revision has been made, then previous versions reports are invalid. Test Report Number: BTF230925R00402 Total or partial reproduction of this document without permission of the Laboratory is not allowed. Page 3 of 7 BTF Testing Lab (Shenzhen) Co., Ltd. F101, 201 and 301, Building 1, Block 2, Tantou Industrial Park, Tantou Community, Songgang Street, Bao'an District, Shenzhen, China Table of Contents 1. Introduction ............................................................................................................................................................................................ 4 1.1 Identification of Testing Laboratory ................................................................................................................................. 4 1.2 Identification of the Responsible Testing Location ...................................................................................................... 4 1.3 Laboratory Condition ........................................................................................................................................................... 4 1.4 Announcement ....................................................................................................................................................................... 4 2. Product Information .............................................................................................................................................................................. 5 2.1 Application Information ....................................................................................................................................................... 5 2.2 Manufacturer Information .................................................................................................................................................... 5 2.3 Factory Information .............................................................................................................................................................. 5 2.4 General Description of Equipment under Test (EUT)................................................................................................... 5 3. Test Requirement ................................................................................................................................................................................. 6 3.1 Assessment Result ............................................................................................................................................................... 6 Test Report Number: BTF230925R00402 Total or partial reproduction of this document without permission of the Laboratory is not allowed. Page 4 of 7 BTF Testing Lab (Shenzhen) Co., Ltd. F101, 201 and 301, Building 1, Block 2, Tantou Industrial Park, Tantou Community, Songgang Street, Bao'an District, Shenzhen, China 1. Introduction 1.1 Identification of Testing Laboratory Company Name: BTF Testing Lab (Shenzhen) Co., Ltd. Address: F101, 201 and 301, Building 1, Block 2, Tantou Industrial Park, Tantou Community, Songgang Street, Bao'an District, Shenzhen, China Phone Number: +86-0755-23146130 Fax Number: +86-0755-23146130 1.2 Identification of the Responsible Testing Location Test Location: BTF Testing Lab (Shenzhen) Co., Ltd. Address: F101, 201 and 301, Building 1, Block 2, Tantou Industrial Park, Tantou Community, Songgang Street, Bao'an District, Shenzhen, China Description: All measurement facilities used to collect the measurement data are located at F101,201 and 301, Building 1, Block 2, Tantou Industrial Park, Tantou Community, Songgang Street, Bao'an District, Shenzhen, China FCC Registration Number: 518915 Designation Number: CN1330 1.3 Laboratory Condition Ambient Temperature: 20°C to 25°C Ambient Relative Humidity: 45% to 55% Ambient Pressure: 100 kPa to 102 kPa 1.4 Announcement (1) The test report reference to the report template version v0. (2) The test report is invalid if not marked with the signatures of the persons responsible for preparing, reviewing and approving the test report. (3) The test report is inval…

Text truncated - open the document above for the full version.

Total or partial reproduction of this document without permission of the Laboratory is not allowed. Page 1 of 51 BTF Testing Lab (Shenzhen) Co., Ltd. F101, 201 and 301, Building 1, Block 2, Tantou Industrial Park, Tantou Community, Songgang Street, Bao'an District, Shenzhen, China RF Test Report For Applicant Name: GUANGZHOU SKYDANCE CO., LTD Address: 2-3 Floor, Building A, No.36, Zhongsan, Shiguang Road, Zhongcun Street, Panyu District, Guangzhou, China EUT Name: WiFi&RF 3-Button LED Dimmer Brand Name: SKYDANCE Model Number: VD1(WT) Issued By Company Name: BTF Testing Lab (Shenzhen) Co., Ltd. Address: F101, 201 and 301, Building 1, Block 2, Tantou Industrial Park, Tantou Community, Songgang Street, Bao'an District, Shenzhen, China Report Number: BTF230925R00401 Test Standards: 47 CFR Part 15.247 Test Conclusion: Pass FCC ID: 2BDBM-VD1 Test Date: 2023-09-26 to 2023-10-23 Date of Issue: 2023-10-24 Prepared By: Aria Zhang / Project Engineer Date: 2023-10-24 Approved By: Ryan.CJ / EMC Manager Date: 2023-10-24 Note: All the test results in this report only related to the testing samples. Which can be duplicated completely for the legal use with approval of applicant; it shall not be reproduced except in full without the written approval of BTF Testing Lab (Shenzhen) Co., Ltd., All the objections should be raised within thirty days from the date of issue. To validate the report, you can contact us. Test Report Number: BTF230925R00401 Total or partial reproduction of this document without permission of the Laboratory is not allowed. Page 2 of 51 BTF Testing Lab (Shenzhen) Co., Ltd. F101, 201 and 301, Building 1, Block 2, Tantou Industrial Park, Tantou Community, Songgang Street, Bao'an District, Shenzhen, China Revision History Version Issue Date Revisions Content R_V0 2023-10-24 Original Note: Once the revision has been made, then previous versions reports are invalid. Test Report Number: BTF230925R00401 Total or partial reproduction of this document without permission of the Laboratory is not allowed. Page 3 of 51 BTF Testing Lab (Shenzhen) Co., Ltd. F101, 201 and 301, Building 1, Block 2, Tantou Industrial Park, Tantou Community, Songgang Street, Bao'an District, Shenzhen, China Table of Contents 1 INTRODUCTION ..........................................................................................................................................5 1.1 Identification of Testing Laboratory ...............................................................................................5 1.2 Identification of the Responsible Testing Location ......................................................................5 1.3 Announcement .................................................................................................................................5 2 PRODUCT INFORMATION ..........................................................................................................................6 2.1 Application Information ...................................................................................................................6 2.2 Manufacturer Information ................................................................................................................6 2.3 Factory Information .........................................................................................................................6 2.4 General Description of Equipment under Test (EUT) ...................................................................6 2.5 Technical Information ......................................................................................................................6 3 SUMMARY OF TEST RESULTS .................................................................................................................7 3.1 Test Standards ..................................................................................................................................7 3.2 Uncertainty of Test ...........................................................................................................................7 3.3 Summary of Test Result ..................................................................................................................7 4 TEST CONFIGURATION .............................................................................................................................8 4.1 Test Equipment List .........................................................................................................................8 4.2 Test Auxiliary Equipment ............................................................................................................. 10 4.3 Test Modes ..................................................................................................................................... 10 5 EVALUATION RESULTS (EVALUATION) ................................................................................................. 11 5.1 Antenna requirement ..................................................................................................................... 11 5.1.1 Conclusion: ........................................................................................................................... 11 6 RADIO SPECTRUM MATTER TEST RESULTS (RF) .............................................................................. 12 6.1 Conducted Emission at AC power line ....................................................................................... 12 6.1.1 E.U.T. Operation: ................................................................................................................. 12 6.1.2 Test Setup Diagram: ............................................................................................................ 12 6.1.3 Test Data: ............................................................................................................................ 13 6.2 Occupied Bandwidth .................................................…

Text truncated - open the document above for the full version.

1. Description 2. L oca t i o n 3. Bluetooth TRP Test Bluetooth TRP Result Frequency (MHz) 2478 TRP(dBm) 1.46 NHPRP(dBm) 45 0.27 MAX(dBm) 6.02 EIRP peak 6.02 Min(dBm) - 11.77 Attenuation Horizontal 41.17 Attenuation Vertical 41.16 Company Shenzhen ATWE Antenna Co., Ltd Antenna model A01 Ga in ： 2.5 dbi T yp e ： Copper antenna 4.Bluetooth TIS TestBluetooth TIS Result Frequency (MHz)2478 TIS(dBm)-85.74 NHPIS(dBm) 45-84.56 RSSIAve2.37 MaxPosRSSI5.7 MaxPosSens-89.08 MAX(dBm)6.93 EIS peak6.93 Min(dBm)-10.86 Attenuation Horizontal42.08 Attenuation Vertical42.07

Model:VD1(WT) Conducted Emission at AC power line Band edge emissions (Radiated) Emissions in frequency bands (above 1GHz) Model:VD1(WT) Emissions in frequency bands (below 1GHz)
