2BDJ8-EGC2075BWireless Game Controller

尺寸：90*115mm 材质：128g铜版纸，彩色双面印刷，折页 Instruction Manual SG5 MADE IN CHINA www.sunderelectronics.com SUNDER ELECTRONICS Unit #135, 1st Floor, Praga� Industrial Estate N.M. Joshi Marg, Lower Parel (East), Mumbai – 400011 India Product Introduc�on: P4 BT Gamepad with TOUCHPAD/ Six axis Sensor/Speaker/ Mic is a new patent design compa�ble with PS4, PS4 Slim, PS4 Pro consoles. Product Photos: Product Features: Standard Bu�ons: PS, Share, Op�on, ↑, ↓, ←, →, , ○,□, ,L1,L2,L3, R1, R2,R3 ,VRL,VRR,RESET. So�ware Support: Support with all versions of PS4. Effect Distance: ≥10m LED: RGB LED Charging Method: USB cable Ba�ery: High Quality 850mA rechargeable Lithium Polymer Ba�ery Speaker: With speaker separate output solu�on Mic/Headset: 3.5mm TRRS stereophonic hole, support mic and headset. Touchpad: With two point capacitance touchpad Vibra�on: Double Vibra�on Sensor: With Six axis sensor func�on Compa�ble: Full compa�ble with PS4(same as original) Func�ons: Power ON Hold the Home bu�on for 1 second to power on Power OFF Hold the Home bu�on for 1 second to power off through gamepad manual. Hold the Home bu�on for 10 seconds to power off when connect to console. Working Mode PS4 Console Basically Func�on: Fully support all func�ons in games, including digital/analog bu�ons, and LED color display func�on, vibra�on func�on. Colorful LED Display: Searching Mode: white LED keeps blink Disconnect: LED turns off Mul�-users: User 1: blue, User 2: Red, User3: Green, User 4: Pink Sleeping Mode: LED turns off Charging when standby: Orange LED keeps light, LED light power off a�er full charging. Charging when playing/connected: Blue LED keeps light In game: LED color based on game`s instruc�o n Connect To Console: First �me connect to the console or another PS4 system: Connect your wireless controller to your system using the USB cable, and then press the PS bu�on. Your controller pairs with your system and turns on. PS: You`ll need to pair a controller when you use it for the first �me and when you use your controller on another PS4 system. If you want to use two or more controllers, you must pair each controller. A�er you`ve paired your controller, you can disconnect the USB cable and use your controller wirelessly. It`s possible to use up to four controllers at the same �me. When you press the PS bu�on, the light bar glows in your assigned color. The fist controller to connect is blue, with subsequent controllers glowing red, green, and pink. Re-connect to console paired before: Power on console, and power on the game controller by press PS/Home bu�on for 1 second, controller should connect to console automa�cally. Wake Up game controller: Game controller turns to sleep mode a�er 30 seconds searching but cannot connect to console, or, with no use for 10mins under connect mode. Press PS bu�on for 1 second to wake up game controller. Connect the mono headset: For in-game voice chat, plug the mono headset into your controller`s stereo headset jack. Share your gameplay online Press the SHARE bu�on and choose one of these op�ons for sharing your gameplay online.(Follow the steps on screen) PC PS4 □ ○ L1 R1 L2 R2 SHARE OPTION L3 R3 PS T-PAD PC 1 2 3 4 5 6 7 8 9 10 11 12 13 14 PS4 vs PC Keycode Compare Form FCC Caution： This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

Targetever (GuangDong) Technology Co.Ltd. 2024.07.10 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for FCC ID: 2BDJ8-EGC2075B [Targetever (GuangDong) Technology Co.Ltd.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Applicant printed name) CHAO CHEN Targetever (GuangDong) Technology Co.Ltd. 2024.07.10 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for FCC ID: 2BDJ8-EGC2075B [Targetever (GuangDong) Technology Co.Ltd.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) CHAO CHEN

Targetever (GuangDong) Technology Co.Ltd. 2024.07.10 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: Wireless Game Controller Trademark: N/A MODEL : EG-C2075B A12, A21, B31, B23, EG-C2075BPS, A11, B234E, GP148, HG04D, HG04E, HG04F, A01, 5139, 5139W, FG07A, HG04G FCC ID : 2BDJ8-EGC2075B To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : CHAO CHEN /Manager Contact information / address: Building 10, Floors 2-11th, and Building 11, Floors 1-11th, Lang Yuan, 16 Chenghai Avenue, Chenjiang Street, Zhongkai High-Tech Zone, Huizhou, China

Targetever (GuangDong) Technology Co.Ltd. 2024.07.10 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : CHAO CHEN /Manager Contact information / address: Building 10, Floors 2-11th, and Building 11, Floors 1-11th, Lang Yuan, 16 Chenghai Avenue, Chenjiang Street, Zhongkai High-Tech Zone, Huizhou, China

Targetever (GuangDong) Technology Co.Ltd. Model Difference Product description: Wireless Game Controller Model name: EG-C2075B A12, A21, B31, B23, EG-C2075BPS, A11, B234E, GP148, HG04D, HG04E, HG04F, A01, 5139, 5139W, FG07A, HG04G Trade Name: N/A FCC ID: 2BDJ8-EGC2075B All the model are the same circuit and RF module, except model names. Regards Sincerely Client’s signature: Client’s name / title : CHAO CHEN/Manager Contact information / address: Building 10, Floors 2-11th, and Building 11, Floors 1-11th, Lang Yuan, 16 Chenghai Avenue, Chenjiang Street, Zhongkai High-Tech Zone, Huizhou, China

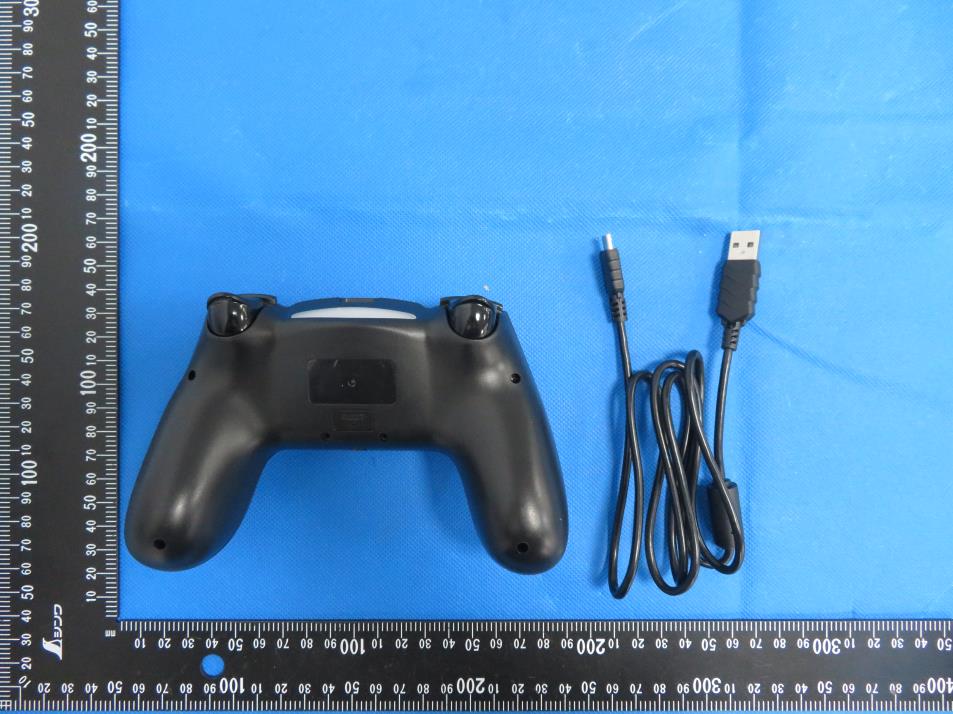

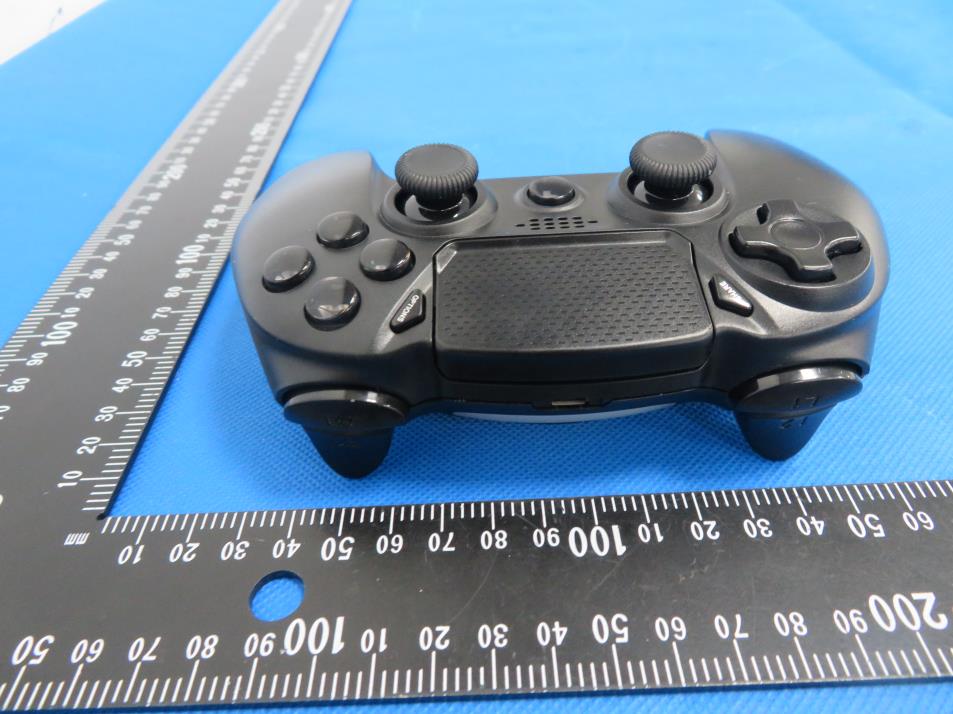

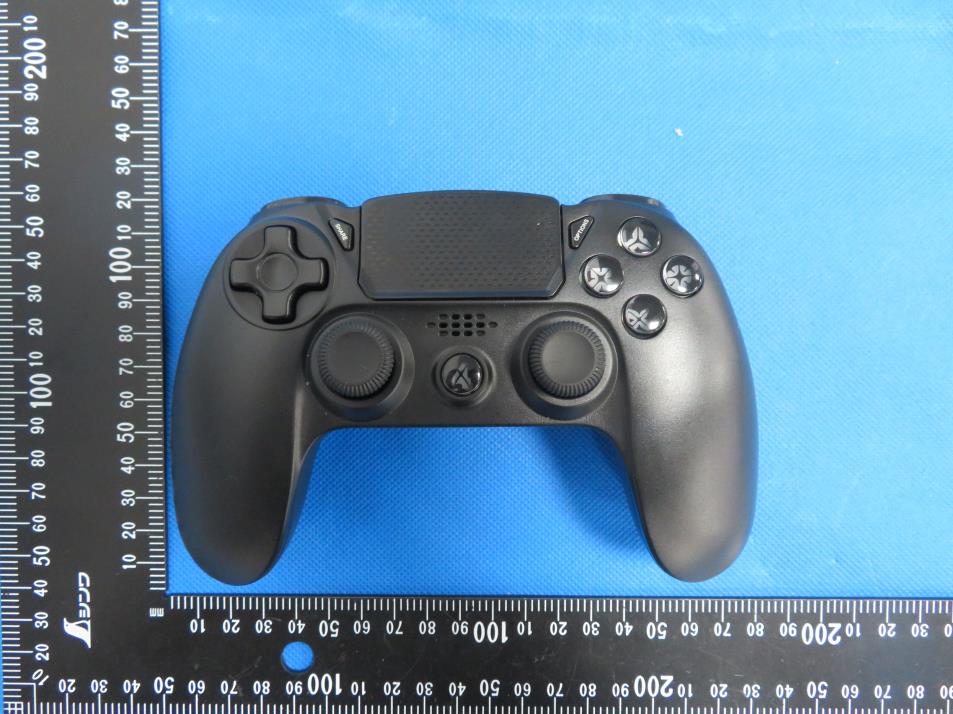

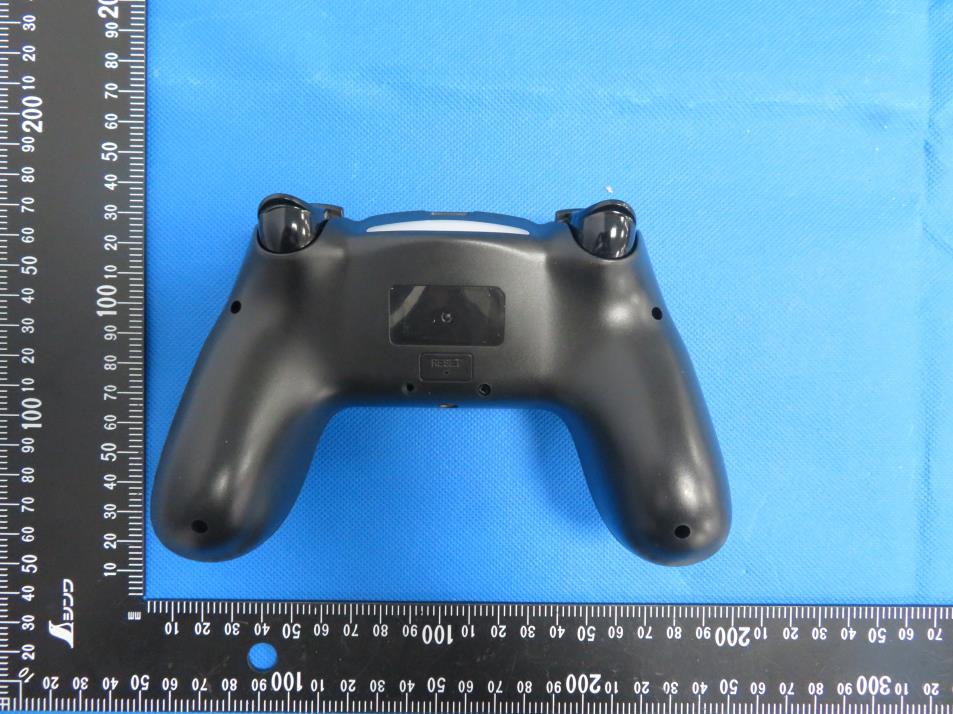

External Photos

Size:20*10mm FCC ID:2BDJ8-EGC2075B Label location

Internal Photos Antenna

RF EXPOSURE EVALUATION METHOD FCC ID:2BDJ8-EGC2075B Applicable standard： In accordance with FCC 47 CFR part 2 (2.1093) this device has been defined as a portable device which is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable devices must be evaluated using the specified in FCC 47 CFR part 2 (2.1093) and ANSI/IEEEC95.1-1992. and had been tested in accordance with the measurement methods and procedures specified in IEEE 1528-2003. Per FCC KDB 447498 D01 v06, the 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances s 50 mm are determined by: SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. BT GFSK 2402 2.81 21 GFSK 2441 2.77 21 GFSK 2480 2.53 21 π/ 4 DQPSK 2402 3.28 21 π/ 4 DQPSK 2441 3.24 21 π/ 4 DQPSK 2480 3.01 21 8DPSK 2402 3.37 21 8DPSK 2441 3.31 21 8DPSK 2480 3.12 21 max possible output power (PK,conducted)：4±1dBm 0 dBi logarithmic terms convert to numeric result is nearly 1.00 5dBm=3.16mW 2402MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 3.16/5*√2.402=0.98≤3.0 2441MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 3.16/5*√2.441=0.99≤3.0 2480MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 3.16/5*√2.48=1.00≤3.0 Conclusion: 1. [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] < 3.0. 2. SAR Test Exclusion Thresholds is 3.0 for separation distance 5mm. Therefore, SAR test is not required.

Antenna specification Doc No. IS-QR-PD-010 Rev. V1.0 Page 1/10 2013/05/22 Copyright 2013© Shenzhen InnosystemTechnologyLimited All rights reserved. Antenna specification Antenna specification Doc No. IS-QR-PD-010 Rev. V1.0 Page 2/10 2013/05/22 Copyright 2013© Shenzhen InnosystemTechnologyLimited All rights reserved. Antenna model: MP341 V1.0 APPlications ※Bluetooth Home RF ※ISM band 2.4GHz applications 1.Dimensions 2.Specifications number Item Specifications 1 Working Central Frequency 2441 MHz 2 Band Width (2402-2480)MHz 3 Gain 0dBi 4 VSWR ≤2.0 5 Antenna type PCB antenna 6 Azimuth Beam width Omni‐directional 7 Impedance 50ohm 8 Modulation mode GFSK ‣Company Name Shenzhen Innosystem Technology Ltd ‣Company address F2 Building 3 Shenzhen Software Park Technology Middle 2 Rd Gao Xin Science & Technology Park North, S.Z Antenna specification Doc No. IS-QR-PD-010 Rev. V1.0 Page 3/10 2013/05/22 Copyright 2013© Shenzhen InnosystemTechnologyLimited All rights reserved. 3.simulation parameter ① VSWR Mkr1: 2397MHz 1.47 Mkr2: 2450MHz 1.51 Mkr3: 2482 MHz 1.59 Antenna specification Doc No. IS-QR-PD-010 Rev. V1.0 Page 4/10 2013/05/22 Copyright 2013© Shenzhen InnosystemTechnologyLimited All rights reserved. ②Smith Char Mkr1: 2397MHz 73.4 Mkr2: 2450MHz 62.7 Mkr3: 2482MHz 66.8 Antenna specification Doc No. IS-QR-PD-010 Rev. V1.0 Page 5/10 2013/05/22 Copyright 2013© Shenzhen InnosystemTechnologyLimited All rights reserved. ③Return Loss Mkr1: 2397MHz -15 Mkr2: 2450MHz -18 Mkr3: 2482 MHz -16 Antenna specification Doc No. IS-QR-PD-010 Rev. V1.0 Page 6/10 2013/05/22 Copyright 2013© Shenzhen InnosystemTechnologyLimited All rights reserved. ④Smith Char Mkr1: 2400MHz 1.234 Mkr2: 2500MHz 1.051Mkr3: 2600MHz 1.322 Antenna specification Doc No. IS-QR-PD-010 Rev. V1.0 Page 7/10 2013/05/22 Copyright 2013© Shenzhen InnosystemTechnologyLimited All rights reserved. ⑤Return Loss Mkr1: 2400MHz -19.59 Mkr2: 2450MHz -27.70Mkr3: 2500MHz -31.97 Mkr4: 2550MHz -21.83 ` Antenna specification Doc No. IS-QR-PD-010 Rev. V1.0 Page 8/10 2013/05/22 Copyright 2013© Shenzhen InnosystemTechnologyLimited All rights reserved. ⑥Phase Mkr1: 2400MHz -54.89 Mkr2: 2500MHz -82.03 Mkr3: 2600MHz -102.6 Antenna specification Doc No. IS-QR-PD-010 Rev. V1.0 Page 9/10 2013/05/22 Copyright 2013© Shenzhen InnosystemTechnologyLimited All rights reserved. 4. Radiation Pattems XY-plane XZ-plane YZ-plane Antenna specification Doc No. IS-QR-PD-010 Rev. V1.0 Page 10/10 2013/05/22 Copyright 2013© Shenzhen InnosystemTechnologyLimited All rights reserved.  3DRadiation pattern

No.：BCTC/RF-EMC-005 Page: 1 of 79 Edition：B.2 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2405055512E Applicant: Targetever (GuangDong) Technology Co.Ltd. Product Name: Wireless Game Controller Test Model: EG-C2075B Tested Date: 2024-05-10 to 2024-05-17 Issued Date: 2024-05-17 Report No.:BCTC2405055512E No.：BCTC/RF-EMC-005 Page: 2 of 79 Edition：B.2 FCC ID:2BDJ8-EGC2075B The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: Wireless Game Controller Trademark: N/A Model/Type Reference: EG-C2075B A12, A21, B31, B23, EG-C2075BPS, A11, B234E, GP148, HG04D, HG04E, HG04F, A01, 5139, 5139W, FG07A, HG04G Prepared For: Targetever (GuangDong) Technology Co.Ltd. Address: Building 10, Floors 2-11th, and Building 11, Floors 1-11th, Lang Yuan, 16 Chenghai Avenue, Chenjiang Street, Zhongkai High-Tech Zone, Huizhou, China Manufacturer: Targetever (GuangDong) Technology Co.Ltd. Address: Building 10, Floors 2-11th, and Building 11, Floors 1-11th, Lang Yuan, 16 Chenghai Avenue, Chenjiang Street, Zhongkai High-Tech Zone, Huizhou, China Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2024-05-10 Sample tested Date: 2024-05-10 to 2024-05-17 Issue Date: 2024-05-17 Report No.: BCTC2405055512E Test Standards FCC Part15.247 ANSI C63.10-2013 Test Results PASS Remark: This is Bluetooth Classic radio test report. Tested by: Approved by: Tang Changyu/ Project Handler Zero Zhou/Reviewer Report No.:BCTC2405055512E No.：BCTC/RF-EMC-005 Page: 3 of 79 Edition：B.2 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information And Test Setup ..................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 8 4.3 Support Equipment ............................................................................................... 9 4.4 Channel List .......................................................................................................... 9 4.5 Test Mode ........................................................................................................... 10 4.6 Table Of Parameters Of Text Software Setting ................................................... 10 5. Test Facility And Test Instrument Used ............................................................... 11 5.1 Test Facility ......................................................................................................... 11 5.2 Test Instrument Used .......................................................................................... 11 6. Conducted Emissions .......................................................................................... 13 6.1 Block Diagram Of Test Setup .............................................................................. 13 6.2 Limit .................................................................................................................... 13 6.3 Test procedure .................................................................................................... 13 6.4 EUT operating Conditions ................................................................................... 13 6.5 Test Result .......................................................................................................... 14 7. Radiated emissions ............................................................................................. 16 7.1 Block Diagram Of Test Setup .............................................................................. 16 7.2 Limit .................................................................................................................... 17 7.3 Test procedure .................................................................................................... 18 7.4 EUT operating Conditions ................................................................................... 19 7.5 Test Result .......................................................................................................... 19 8. Radiated Band Emission Measurement And Restricted Bands Of Operation ..... 23 8.1 Block Diagram Of Test Setup .............................................................................. 23 8.2 Limit .................................................................................................................... 23 8.3 Test procedure .................................................................................................... 24 8.4 EUT operating Conditions ................................................................................... 24 8.5 Test Result .......................................................................................................... 25 9. Spurious RF Conducted Emissions ..................................................................... 26 9.1 Block Diagram Of Test Setup .............................................................................. 26 9.2 Limit .....................................................................................................…

Text truncated - open the document above for the full version.

Report No.:BCTC2405055512E No.：BCTC/RF-EMC-005 Page: 59 of 79 Edition：B.2 Power NVNT 3-DH1 2480MHz Report No.:BCTC2405055512E No.：BCTC/RF-EMC-005 Page: 60 of 79 Edition：B.2 12. Hopping Channel Separation 12.1 Block Diagram Of Test Setup 12.2 Limit Frequency hopping systems shall have hopping channel carrier frequencies separated by a minimum of 25 kHz or the 20 dB bandwidth of the hopping channel, whichever is greater. Alternatively, frequency hopping systems operating in the 2400-2483.5 MHz band may have hopping channel carrier frequencies that are separated by 25 kHz or two-thirds of the 20 dB bandwidth of the hopping channel, whichever is greater, provided the systems operate with an output power no greater than 0.125W. 12.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set the spectrum analyzer: RBW = 30kHz. VBW = 100kHz , Span = 2.0MHz. Sweep = auto; Detector Function = Peak. Trace = Max hold. 3. Allow the trace to stabilize. Use the marker-delta function to determine the separation between the peaks of the adjacent channels. The limit is specified in one of the subparagraphs of this Section Submit this plot. 12.4 Test Result Temperature: 26°C Relative Humidity: 54% Test Voltage: DC 3.7V Remark: N/A Condition Mode Hopping Freq1 (MHz) Hopping Freq2 (MHz) HFS (MHz) Limit (MHz) Verdict NVNT 1-DH1 2401.866 2402.87 1.004 0.649 Pass NVNT 1-DH1 2440.868 2441.87 1.002 0.665 Pass NVNT 1-DH1 2478.872 2479.872 1 0.663 Pass NVNT 2-DH1 2401.866 2402.868 1.002 0.814 Pass NVNT 2-DH1 2440.868 2441.872 1.004 0.838 Pass NVNT 2-DH1 2478.872 2479.87 0.998 0.831 Pass NVNT 3-DH1 2401.868 2402.87 1.002 0.819 Pass NVNT 3-DH1 2440.87 2441.872 1.002 0.817 Pass NVNT 3-DH1 2479.032 2480.03 0.998 0.817 Pass Report No.:BCTC2405055512E No.：BCTC/RF-EMC-005 Page: 61 of 79 Edition：B.2 Test Graphs CFS NVNT 1-DH1 2402MHz CFS NVNT 1-DH1 2441MHz Report No.:BCTC2405055512E No.：BCTC/RF-EMC-005 Page: 62 of 79 Edition：B.2 CFS NVNT 1-DH1 2480MHz CFS NVNT 2-DH1 2402MHz Report No.:BCTC2405055512E No.：BCTC/RF-EMC-005 Page: 63 of 79 Edition：B.2 CFS NVNT 2-DH1 2441MHz CFS NVNT 2-DH1 2480MHz Report No.:BCTC2405055512E No.：BCTC/RF-EMC-005 Page: 64 of 79 Edition：B.2 CFS NVNT 3-DH1 2402MHz CFS NVNT 3-DH1 2441MHz Report No.:BCTC2405055512E No.：BCTC/RF-EMC-005 Page: 65 of 79 Edition：B.2 CFS NVNT 3-DH1 2480MHz Report No.:BCTC2405055512E No.：BCTC/RF-EMC-005 Page: 66 of 79 Edition：B.2 13. Number Of Hopping Frequency 13.1 Block Diagram Of Test Setup 13.2 Limit Frequency hopping systems in the 2400-2483.5 MHz band shall use at least 15 channels. 13.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set the spectrum analyzer: RBW = 100kHz. VBW = 300kHz. Sweep = auto; Detector Function = Peak. Trace = Max hold. 3. Allow the trace to stabilize. It may prove necessary to break the span up to sections. in order to clearly show all of the hopping frequencies. The limit is specified in one of the subparagraphs of this Section. 4. Set the spectrum analyzer: Start Frequency = 2.4GHz, Stop Frequency = 2.4835GHz. Sweep=auto; 13.4 Test Result Temperature: 26°C Relative Humidity: 54% Test Voltage: DC 3.7V Remark: N/A Condition Mode Hopping Number Limit Verdict NVNT 1-DH1 79 15 Pass NVNT 2-DH1 79 15 Pass NVNT 3-DH1 79 15 Pass Report No.:BCTC2405055512E No.：BCTC/RF-EMC-005 Page: 67 of 79 Edition：B.2 Test Graphs Hopping No. NVNT 1-DH1 2441MHz Hopping No. NVNT 2-DH1 2441MHz Report No.:BCTC2405055512E No.：BCTC/RF-EMC-005 Page: 68 of 79 Edition：B.2 Hopping No. NVNT 3-DH1 2441MHz Report No.:BCTC2405055512E No.：BCTC/RF-EMC-005 Page: 69 of 79 Edition：B.2 14. Dwell Time 14.1 Block Diagram Of Test Setup 14.2 Limit Frequency hopping systems in the 2400-2483.5 MHz band shall use at least 15 channels. The average time of occupancy on any channel shall not be greater than 0.4 seconds within a period of 0.4 seconds multiplied by the number of hopping channels employed. Frequency hopping systems may avoid or suppress transmissions on a particular hopping frequency provided that a minimum of 15 channels are used. 14.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set spectrum analyzer span = 0. Centred on a hopping channel; 3. Set RBW = 1MHz and VBW = 3MHz.Sweep = as necessary to capture the entire dwell time per hopping channel. Set the EUT for DH5, DH3 and DH1 packet transmitting. 4. Use the marker-delta function to determine the dwell time. If this value varies with different modes of operation (e.g.. data rate. modulation format. etc.). repeat this test for each variation. The limit is specified in one of the subparagraphs of this Section. Submit this plot(s). 14.4 Test Result DH5 Packet permit maximum 1600 / 79 / 6 hops per second in each channel (5 time slots RX, 1 time slot TX). DH3 Packet permit maximum 1600 / 79 / 4 hops per second in each channel (3 time slots RX, 1 time slot TX). DH1 Packet permit maximum 1600 / 79 /2 hops per second in each channel (1 time slot RX, 1 time slot TX). So, the Dwell Time can be calculated as follows: DH5:1600/79/6*0.4*79*(MkrDelta)/1000 DH3:1600/79/4*0.4*79*(MkrDelta)/1000 DH1:1600/79/2*0.4*79*(MkrDelta)/1000 Remark: Mkr Delta is once pulse time. Report No.:BCTC2405055512E No.：BCTC/RF-EMC-005 Page: 70 of 79 Edition：B.2 Temperature: 26°C Relative Humidity: 54% Test Voltage: DC 3.7V Remark: N/A Condition Mode Frequency (MHz) Pulse Time (ms) Total Dwell Time (s) Limit (s) Verdict NVNT 1-DH1 2441 0.373 0.119 0.4 Pass NVNT 1-DH3 2441 1.621 0.259 0.4 Pass NVNT 1-DH5 2441 2.869 0.306 0.4 Pass NVNT 2-DH1 2441 0.378 0.121 0.4 Pass NVNT 2-DH3 2441 1.628 0.260 0.4 Pass NVNT 2-DH5 2441 2.881 0.307 0.4 Pass NVNT 3-DH1 2441 0.381 0.122 0.4 Pass NVNT 3-DH3 2441 1.63 0.261 0.4 Pass NVNT 3-DH5 2441 2.881 0.307 0.4 Pass Test Graphs Dwell NVNT 1-DH1 2441MHz One Burst Report No.:BCTC2405055512E No.：BCTC/RF-EMC-005 Page: 71…

Text truncated - open the document above for the full version.

17. EUT Test Setup Photographs Conducted Measurement Photo Radiated Measurement Photos
