2BDJ8-IG01AJC01Wireless Game Controller

IG01A 2.4G Manual PRODUCTS FEATURES - Compatibility: PC/PS3/Android/ Nintendo Switch - Wireless 2.4GHz technology with a range of up to 8 meters . New Hall Effect magnetic sensors offer a better trigger feel for a lifetime of precision and consistent smoothness - Lithium Polymer 6O0mAh battery for playing up to 10-15 hours- Charging time 2 to 3 hours - Hall Sensor 3D joystick without deadzone - 19 numeric buttons. including[Home].[Start].ISelect]...- Special "Rapid Fire"with [Turbo] mode - Dual vibration motors - LED indicators connection charge,discharge...)- Dongle USB receiver - Length of charging cable:1m:5cm- Dimensions:155.5*103.7*59.8mm - Weight:180g±10g POWER,BATTERY,STANDBY Power On/Off: Power on/off gamepad by press Home button 1 second.Charging The Battery: When the gamepad is running out of power, the indicator light blinks quickly,. in that case,you need charge the gamepad. 1. Connected mode : When the gamepad is charged. the indicator tight that shows the current mode will blink slowly; When it's fully charged. the indicator light will keep light. 5 minutes later,no action operation, the indicator light turns off. Example: When the gamepad connects computer under Xinput mode (the 1 st /2nd indicator light keeps light): When the gamepad is charged, the Second indicator light will blink slowly when it's fully charged,the Second indicator light will keep on. 2.Disconnected mode : When the gamepad is charged. the Four indicator lights will blink slowly; when it's fully charged, the Four indicator lights will keep on. lnfo: The charging time is 2 to 3 hours life-time of 10-15 hours of non-stop play T ips: you can turn off light by press Led button for longer play-time. 3.Under the controller power on status, short press Turbo and Start button together and it will remind the power capacity. The 1 Led light stands for 1%-25%; the 1/2 LED and SECOND LED stands for 26%-50%;the 1/2/3 LED stands for 51%-75%;the 1/2/3/4 stands for 76%-100%. SLEEPING MODE 1. Disconnected mode : The Four indicator lights will blink quickly.1 minute later, the indicator lights stay off,the gamepad goes into sleep. 2. Connected mode : The indicator light will keep light. no action operation,5 minutes later, the indicator lights stay off, the controller goes into sleep. lnfo: you can press HOME button to wake up the gamepad. WIRED MODE CONNECTION 1. Connect PC through cable, please press HOME button after plugged, Or it will be just charging function. 2.The gamepad is default with dongle connection. If you connect with cable and dongle at the same time,the USB cable will just charging function. WIRELESS CONNECTION On PC Insert the dongle receiver to PC. Power on gamepad by press Home button. The Second LED will remains on, the gamepad is connected into X-input mode.Under this mode.you can exchange the D-pad function and Left joystick function by press START and L3(Push the left joystick ) at the same time. Turn into D-input: Short press HOME button for 2 seconds , turn into D-input.TheL1&L2 keep light.' PS: For first time connection, please press HOME button for 2 seconds after insert dongle into PC and power on gamepad. On PS3 . Plug the USB dongle receiver to your Playstation 3.. Turn on your gamepad by press [HOME] Button .The 4 LED indicators flash. Your gamepad is connected to your PS3 when the First LED remains on. On Nintendo Switch Plug the USB dongle receiver to your Nintendo Switch console. The 4 LED indicators flash.Your gamepad is connected to your switch when the First LED remains on. PS: with sensor function and Capture function in Switch platform ln Switch mode，button&" becomes "B"""B" becomes "A""X"becomes ""Y".and ""Y" becomes “X","SELECT" becomes " -";"START" becomes ~ +”. On Android Some devices work with the Android operating system such as Smart Phone, Tablet.Smart TV.TV Box.So, you can connect your gamepad. Plug the USB dongle receiver to your Android device. Warning:Smart Phone/Android Tablet must support OTG function and be equipped with an oTG converter.The Type-C OTG converter is not included. Press Home button for 1 Second The 6 LED indicators flash. Your gamepad is connected to your android Device when the Third LED remains on.Now in Gamepad mode, you can switch into mouse mode by press START and R3 at the same time, the Third and Fourth LED will remain on. SETTING OF TURBO FUNCTION 1.Keys available to be set to turbo function:A/B/X/Y/LB/RB/LT/RT Keys 2.Turn on the turbo function: Press the Turbo key without losing your finger, then press any function key to turn on the manual turbo function. 3.Clear the turbo function: Press the Clear key without loosing your finger, then press the function key that has been turned on the turbo to turn off the turbo function. 4.There is three levels for the turbo speed: Slow: 5 shots/s, the corresponding led indicators will flash at a slow speed. Medium: 12 shots/s, the corresponding led indicators will flash at a medium speed.Fast: 20 shots/s, the corresponding led indicators will flash at a fast speed. 5. lncrease the turbo speed: Press the Turbo key without loosing your finger, pull right the right joystick to increase one grade of turbo speed. Decrease the turbo speed: Press the Turbo key without loosing your finger, pull left the right joystick to decrease one grade of turbo speed. NOTE:Hold the “Turbo” button 5s and “select”button the controller will has a vibration, means it cleared all buttons turbo setted function. ADJUST VIBRATION INTENSITY 1.There are four levels of vibration: None, weak, medium.strong. 2.Adjust the vibration intensity: - Please connect the gamepad to console successfully. . Press the Turbo key without loosing your finger, pull up the right joystick to increase one grade of vibration intensity. - Press the Turbo key without loosing your finger, pull down the right joystick to decrease one grade of vibration intensity. Joystick Drawing Circles and Squares at 45-Degree Angles Feature 1. Press and hold L3 + TURBO for 1 s…

Text truncated - open the document above for the full version.

Targetever (GuangDong) Technology Co.Ltd. 2024.11.04 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for FCC ID: 2BDJ8-IG01AJC01 Targetever (GuangDong) Technology Co.Ltd. certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Applicant signature: Applicant printed name: CHAO CHEN / Manager Targetever (GuangDong) Technology Co.Ltd. 2024.11.04 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for FCC ID: 2BDJ8-IG01AJC01 Targetever (GuangDong) Technology Co.Ltd. certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Applicant signature: Applicant printed name: CHAO CHEN / Manager

Targetever (GuangDong) Technology Co.Ltd. 2024.11.04 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: Wireless Game Controller MODEL: IG01AJC01, IG01BJC01, IG01CJC01, IG01B, IG01C, FG02A, HG01D, HG02A, HG02C, HG04A, HG06, GG06, IG06, HG01A, PR2A, EG10, 30715, IG14A FCC ID: 2BDJ8-IG01AJC01 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title: CHAO CHEN / Manager Contact information / address: Building 10, Floors 2-11th, and Building 11, Floors 1-11th, Lang Yuan, 16 Chenghai Avenue, Chenjiang Street, Zhongkai High-Tech Zone, Huizhou, China

Targetever (GuangDong) Technology Co.Ltd. 2024.11.04 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title: CHAO CHEN / Manager Contact information / address: Building 10, Floors 2-11th, and Building 11, Floors 1-11th, Lang Yuan, 16 Chenghai Avenue, Chenjiang Street, Zhongkai High-Tech Zone, Huizhou, China

Targetever (GuangDong) Technology Co.Ltd. Model Difference EUT NAME: Wireless Game Controller MODEL: IG01AJC01, IG01BJC01, IG01CJC01, IG01B, IG01C, FG02A, HG01D, HG02A, HG02C, HG04A, HG06, GG06, IG06, HG01A, PR2A, EG10, 30715, IG14A All the model are the same circuit and RF module, except model names. Regards Sincerely Client’s signature: Client’s name / title: CHAO CHEN /Manager Contact information / address: Building 10, Floors 2-11th, and Building 11, Floors 1-11th, Lang Yuan, 16 Chenghai Avenue, Chenjiang Street, Zhongkai High-Tech Zone, Huizhou, China

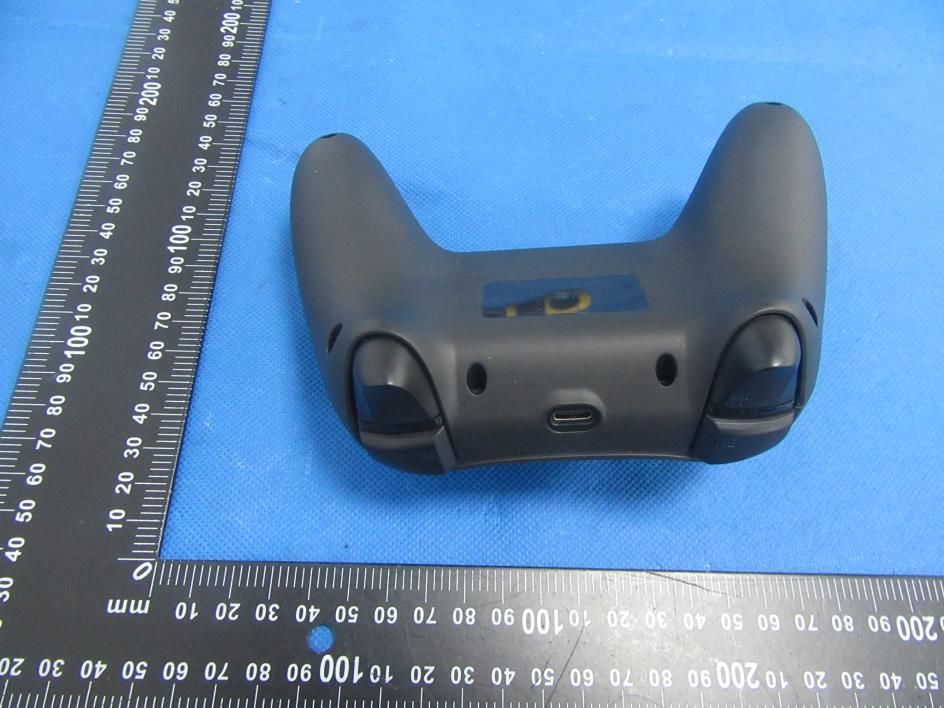

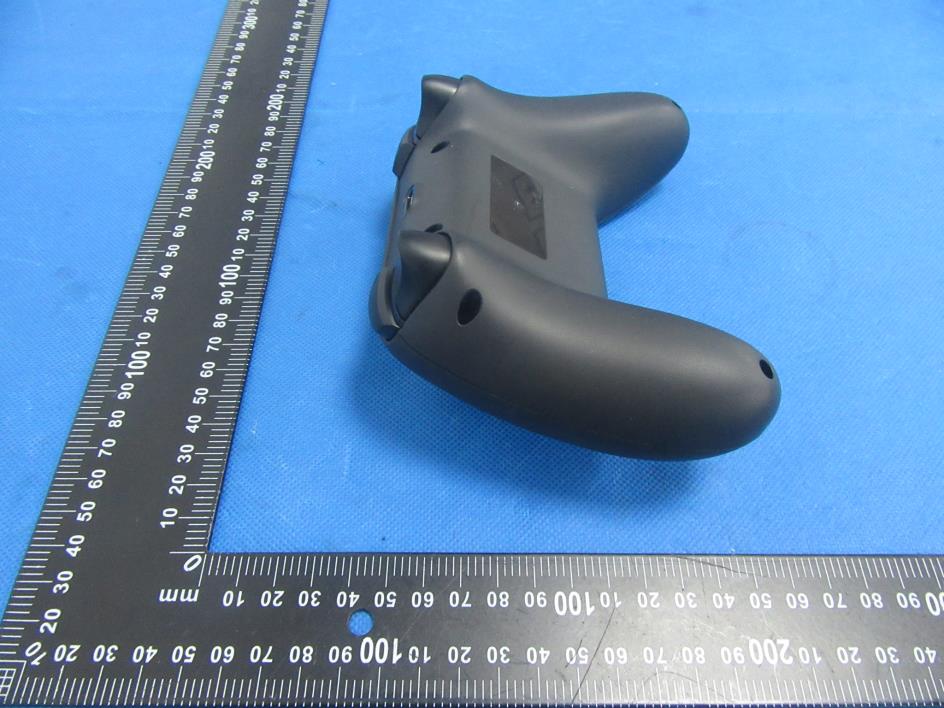

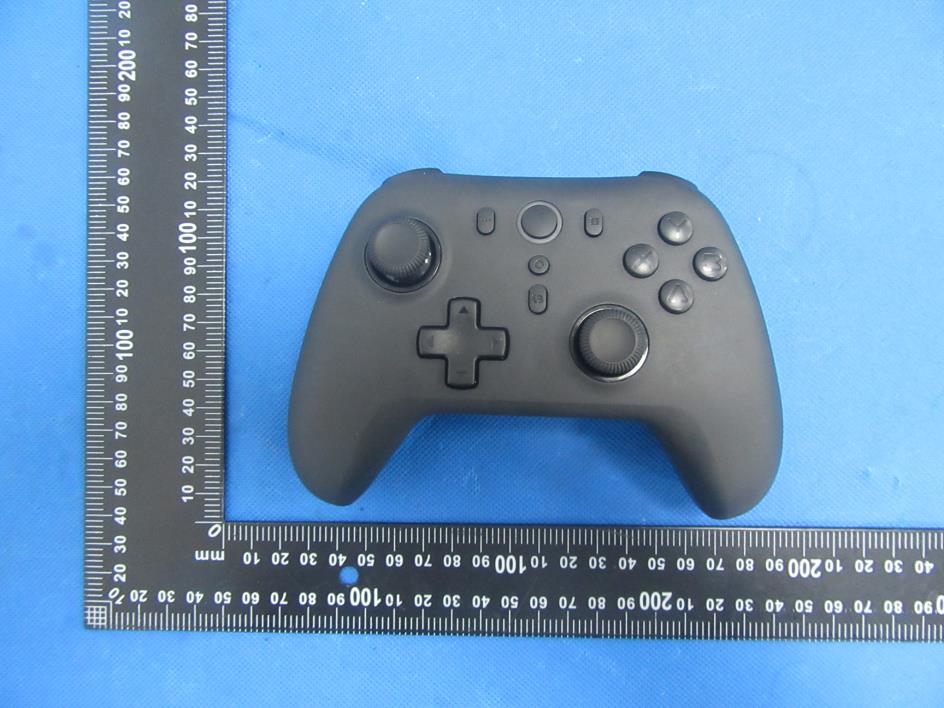

External Photos

10*5mm Label Location FCC ID: 2BDJ8-IG01AJC01

Internal Photos Antenna Antenna

FCC ID: 2BDJ8-IG01AJC01 Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n SAR Exclusion threshold SAR test exclusion GFSK 2.480 2.05 1.60 2±1 3.00 2.00 <5 0.62843 3.00 YES Conclusion: For the max result : 0.62843＜3, the SAR testing is not required.

Antenna Specification Summary ITEM ANT SPEC Model Name 2.4G ANT Center Frequency 2420MHz 2451.5MHz 2483MHz -4.36 -5.62 -6.69 MAX. Gain -4.36 Impedance 50 Ohm Azimuth Beam Pattern Omni-directional Manufacture DongGuan Hua Tuo Electronic Co. Ltd Address Tiantouhuan Village West Road, Hengli Town, Dongguan City Antenna Photo & Length (mm) Since there is no ground plane beneath the antenna, PCB thickness will have little effect on the performance. The results presented in this design note are based on an antenna implemented on a PCB with 1 mm thickness. Antenna efficiency Frequency（MHz） Efficiency Efficiency . dB 2420 13.76% -8.613161 2451.500000 12.32% -9.095116 2483 10.72% -9.696378 E1 E2 Ant Gain 2420MHz 2451.5MHz 2483MHz Frequency（MHz） Gain . dB 2420 -4.36221 2451.500000 -5.61743 2483 -6.68688
