2BDTH-QRM-GTPFront radar

QGLOBALSolutions(Xiamen)ElectronicsCorp. 195,Si-Ming-Yuan,Tong-AnCollectiveIndustrialPark,Tong-Andistrict,Xiamen,China361100 1 RadarSensorUserManual Readthismanualcarefullybeforeusingtheproductandkeepitproperly ProductPresentation Adual-zonewide-beamradarsensorfordetectingmovingandstationarytargets ModelDetectionRangeConnectionWorkingVoltageOutput QRM-GTP0-200meters8-pinwaterproofterminal12V/24VDCCAN/UART  77-81GHzFMCWradarsystemforhigh-precisiondistance, angle,andvelocitydetectionofbothstationaryandmoving objects Maximumdetectionwidth:150degrees  Maximumdetectionrangeofvehicle:200meters Multipleantennaconfigurationdetectstargets  CAN/UART/4IOinterfaces|ProgramcanbeupgradedviaCAN <0.1sfaststartuptime Workingtemperature:-40~85°C  Powershortcircuit,positiveandnegativeconnectionprotection Maintainsstabledetectionperformanceunaffectedbyadverse weatherconditions(wind/rain/snow/fog),temperature/humidity variations,orlightinterference Warning:MakeNoModificationstothisproduct Withoutauthorizationfromourcompany,anymodificationtothisproductmayresultin thefailureoftheoperationoftheequipmentorthelossofofficialsupport.ContactQ GLOBALSolutions(Xiamen)ElectronicsCorp.formoreinformation. Warning:Donotuseforpersonnelsafetyprotection ⚠Donotusethisdeviceasasensorforpersonnelsafetyprotection! Thedevicedoesnothavetheself-testredundantcircuitorfaultprotectionmechanism requiredforpersonalsafetyprotection. Sensorfailureormisoperationmayleadtoabnormaloutputsignal(suchaswrong triggerorfailure),whichmayleadtoseriousinjuryorevendeath. Q GLOBALSolutions (Xiamen) Electronics Corp. 195, Si-Ming-Yuan, Tong-An Collective Industrial Park,Tong-An district, Xiamen, China 361100 FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment . This transmitter must not be co‐located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with minimum distance 20cm between the radiator& your body. Q GLOBALSolutions (Xiamen) Electronics Corp. 195, Si-Ming-Yuan, Tong-An Collective Industrial Park,Tong-An district, Xiamen, China 361100 Specifications Detection Range: 0-200m for objects with high dielectric constants (e.g., metal, wood). Detection range is adjustable as required. Output Configuration: CAN output (default baud rate 500k) UART output (default baud rate 19200) 12V trigger output (Zone A output: green wire, Zone B output: white wire) Function adjustment: the radar detection range, sensitivity and response time can be adjusted by the programmer Max. RF Output Power (EIRP) : 33.66dBm(EU) Detection Capability: Stationary and moving targets Working Principle: Frequency Modulated Continuous Wave (FMCW) radar technology Operating Frequency: 77-81GHz Working Voltage: 12V/24V DC Power Protection: Integrated reverse polarity protection circuit prevents damage from incorrect power connections Fast Start Time: < 0.1 seconds Output Protection : short circuit protection design Working temperature: -40 ~ 85 °C Environmental Protection: IP67-rated Connection: 8-pin waterproof terminal Material ： Front cover/ Radar interface: PC Rear cover/ Baffle: aluminum alloy Beam Angle: horizontal Angle 120 ° , pitch Angle 10 ° QGLOBALSolutions(Xiamen)ElectronicsCorp. 195,Si-Ming-Yuan,Tong-AnCollectiveIndustrialPark,Tong-Andistrict,Xiamen,China361100 ProductImage QGLOBALSolutions(Xiamen)ElectronicsCorp. 195,Si-Ming-Yuan,Tong-AnCollectiveIndustrialPark,Tong-Andistrict,Xiamen,China361100 BeamPatterns AntennaMode1 Standardbeammode(comparisonoftruckdetection underdifferentsensitivities) Standardbeammode(comparisonofdifferentobjectsat thesamesensitivity) Sensitivity1-5Sensitivity1 QGLOBALSolutions(Xiamen)ElectronicsCorp. 195,Si-Ming-Yuan,Tong-AnCollectiveIndustrialPark,Tong-Andistrict,Xiamen,China361100 1、Pedestrian(radarRCS=-5dBsm) 2、Bicycle(RCSradar=0dBsm) 3、Motorcycle(radarRCS=5dBsm) 4、Car(RCSradar=10dBsm) 5、Truck(radarRCS=15dBsm) Sensitivity5 QGLOBALSolutions(Xiamen)ElectronicsCorp. 195,Si-Ming-Yuan,Tong-AnCollectiveIndustrialPark,Tong-Andistrict,Xiamen,China361100 AntennaMode2 Standardbeammode(comparisonoftruckdetection underdifferentsensitivities) Standardbeammode(comparisonofdifferentobjectsat thesamesensitivity) Sensitivity1-5Sensitivity1 6、Pedestrian(radarRCS=-5dBsm) 7、Bicycle(RCSradar=0dBsm) 8、Motorcycle(radarRCS=5dBsm) 9、Car(RCSradar=10dBsm) 10、Truck(radarRCS=15dBsm) Sensitivity5 QGLOBALSolutions(Xiamen)ElectronicsCorp. 195,S…

Text truncated - open the document above for the full version.

Date: 2026-01-19 U.S. AGENT LETTER OF ATTESTATION FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(7) Filing FCC ID:2BDTH-QRM-GTP Q Global Solutions (Xiamen) Electronics Corp. (“the Applicant”) certifies that, as of the date of the filing of the application, Iconsigh is our designated U.S. agent for service of process for the above referenced FCC ID. Q Global Solutions (Xiamen) Electronics Corp. (“the Applicant”) accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission- related proceeding involving the equipment. Iconsigh accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Company Name: Iconsigh Address: 2310 Homestead Road, Suite C1, Los Altos, CA, 94024, USA FRN: 0033398652 Tel.: +1 (408) 320-9867 Email: [email protected] Signed by (printed name): Benjamin Kaur Signature: Applicant: Q Global Solutions (Xiamen) Electronics Corp. Address: Floor 3,4,5,No 195 Simingyuan,Tong an Collective Industrial Park,Tong an District, Xiamen,Fujian, China FRN: 0034527242 Tel: 0592-5790369 Email:[email protected] Signed by (printed name): KO-CHIN LOH Signature:

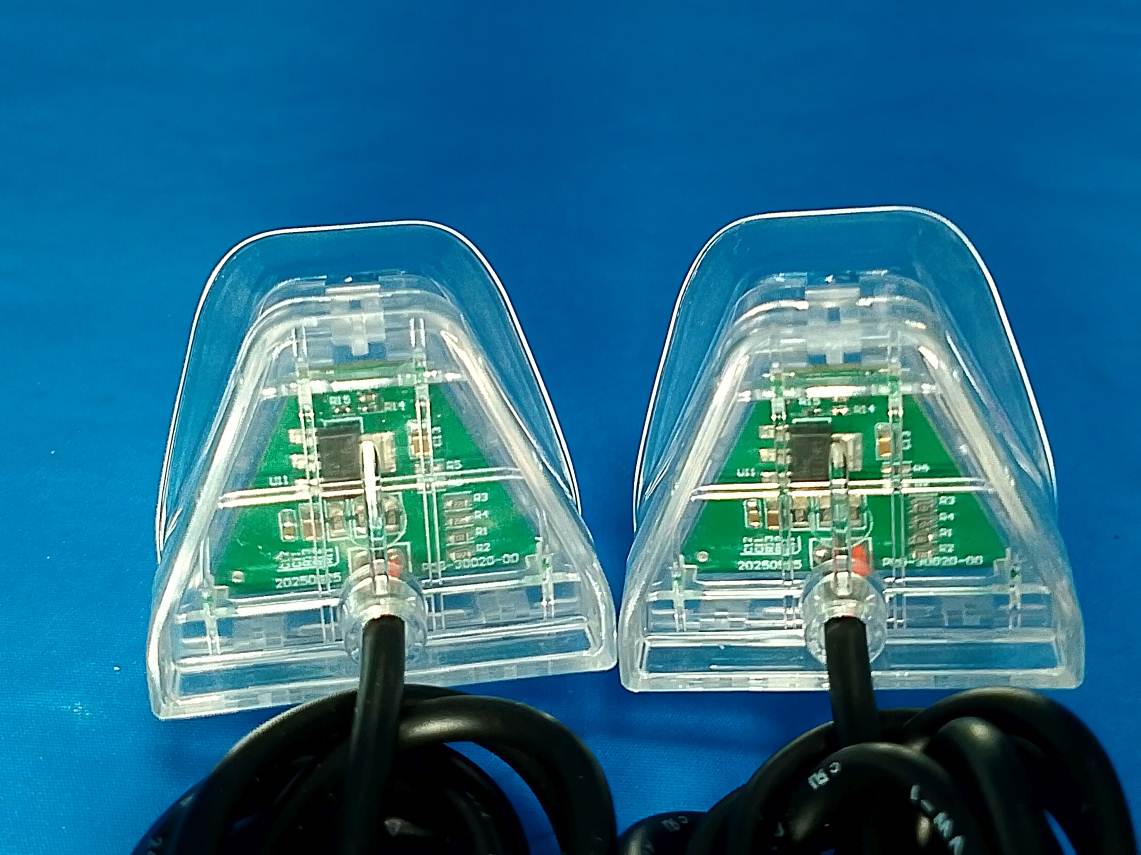

Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502A89456E-RF-EXP Page 1 / 12 EUT EXTERNAL PHOTOS Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502A89456E-RF-EXP Page 2 / 12 Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502A89456E-RF-EXP Page 3 / 12 Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502A89456E-RF-EXP Page 4 / 12 Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502A89456E-RF-EXP Page 5 / 12 Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502A89456E-RF-EXP Page 6 / 12 Three-color visual alarm Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502A89456E-RF-EXP Page 7 / 12 Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502A89456E-RF-EXP Page 8 / 12 Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502A89456E-RF-EXP Page 9 / 12 Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502A89456E-RF-EXP Page 10 / 12 Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502A89456E-RF-EXP Page 11 / 12 Triangular LED display 1# Triangular LED display 2# Bay Area Compliance Laboratories Corp. (Dongguan) EXHIBIT No.: 2502A89456E-RF-EXP Page 12 / 12 *****END *****
