2BEBP-TW02GWireless Earbuds

蓝牙连接 打开蓝牙搜索连接设备 蓝牙 蓝牙 蓝牙 蓝牙 设备 Ne tac TW02G 耳机开机后一边指示灯显示绿灯，一边耳机指示灯 熄灭 。此时在手机蓝牙列表中，可搜索到配对名： “Ne tac TW02G”,点击配对名即可连接使用 开关 手动开机 长按左右耳机MFB键3秒 耳机开机并伴有提示音 长按左右耳机MFB键5秒耳机关机 ，态状队组SWT机耳右左（.音示提有伴并 长按任意一边耳机关机，左右耳机同步关机） 放入充电盒中关闭充电盒上盖， 耳机自动关机并开始充电 打开充电盒耳机自动开机 自动开机 手动关机自动关机 长按区域 注意事项 请在常温环境中存放以及使用本产品； 请勿将本产品长期暴露在雨中或潮湿的环境中； 请勿丢掷,避免因跌落造成产品破坏； 请勿自行拆解、修理和改造本产品； 请使用额定电压的电源充电器充电； 擅自拆解将使保修失效。 充电盒及耳机内的电池为不可更换电池 不得暴露在诸如日照、火烤或类似过热的环境中 充电描述 耳 机 充 电 仓 灯闪烁 灯长亮 充电仓 BLINK Light On 充电仓 音乐控制 通话语音控制 L R RL 触摸区域 双击(播放/暂停) 三击(上一首) 双击(播放/暂停) 三击(下一首) 五击左/右(恢复出厂设置） 耳机在未连接状态下 四击左/右 进/出(语音助手) 单击 （音量减小） 单击： 左/右耳机 （接听通话） 双击： 左/右耳机 （挂断当前通话） 长按2秒：左/右耳机 （拒接来电） 单击(音量增加） 耳机电量低时伴有提示音,请及时放入仓内充电。 When the earbud batter y is low with warning tone. Ple ase put it into the charge c ase t o charge it in time. Dongle连接 插入Dongle自动连接设备 Dongle插入手机自动连接上耳机 (Dongle需另行选配） Type -C转USB口转接器+Dongle插入电脑自动连接上耳机 部分手机需要手动开启 OTG 功能耳机自动进入游戏模式， Dongle Dongle Type -C转 USB口转接器 Type -C转USB口转接器 +Dongle Blue too th c onnectivity FIND THE DEVICECONECTED Blue too th Blue too th DEVICE Music Control Control Calling Blue too th Blue too th Aft er the headse t is turned on, the indicator light on one side displays green light, and the indicator light on the other side displays headphones Off. A t this time, you c an se ar ch the pairing name in the Bluetoo th lis t of the mobile phone: "Netac TW02G", click the pairing name to c onnect Ne tac TW02G TOUCH 3X TOUCH 2XTOUCH 2X TOUCH 3X RL Power ON/OFF Manual startup Touch & hold both left and right earbud for 3S to P owe on Touch & hold either left or right earbud for 5S t o P owe off (When Left and right earbuds are connect, Long press L/R earbud to turn off both of the ear buds) Put e arbuds into charging case and close the case , it will power off aut oma tic ally Open the case , then Earbuds will po wer on automa tic ally Auto startup Manual shutdo wnAuto shutdown Touch area TOUCH ZONE L R ma tter s needing attention Ple ase s tor e and use this produc t in normal temperatur e environment; Do not e xpose this produc t t o r ain or humid environment for a long time; Do not thr ow it t o av oid produc t damage c aused by f alling; Do not disassemble, rep air or transf orm this produc t b y y our self; Ple ase use the power charger with rated v olt ag e t o charge; Unauthorized disassembly will invalida te the warr anty . TOUCH L/R 1X TOUCH L/R 2X Long press L/R 2s Char ging Description The batteries in the charging stand and earphone are non replac eable batteries Do not e xpose to such conditions as sunlight, fir e or similar overheating TOUCH 1X （volume down ） TOUCH 1X （Volume increase ） (Dongle needs to be purchased separ ately) Dongle Connection Plug-in Dongle aut oma tic c onnection devic e Insert Dongle into y our phone and automa tic ally connect the earbuds. Insert Type -C t o U SB adapter +Dongle into the computer to aut oma tic ally c onnect the earbuds. Some mobile phones requir e manual activ e OTG function. The Earbuds automa tic ally enter g ame mode Dongle Dongle Type -C t o U SB port adapter Type -C t o U SB port adapter+Dongle TOUCH L/R 5X (R es tor e f ac tor y se ttings) When the earbuds are no t c onnected TOUCH L/R 4X In/out (siri) 128g铜版纸 规格参数 型号:TW02G 充电仓电池:300mAh 充电时长:1.5H 扬声器单元:φ12mm 输入:DC5V 350mA 蓝牙距离:10M 耳机电池:35mAh 播放时间:5.5H(Earbuds) +22H(Charging Case） 产品重量：43±5g Specifications Model:TW02G Char ging Case:300mAh Char ging Time:1.5H Spe ak er Unit:φ12mm Input :DC5V 350mA BT Dis tanc e：10M Earbud Batter y:35mAh Play Time:5.5H(Earbuds) +22H(Charging Case） Pr oduc t Weight：43±5g FCC Caution： This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

U.S.AgentDesignationforServiceofProcess (ApplicantandU.S.AgentareSeparateParties) TO:FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 ATTENTION:FCCCertification–Section2.911(d)(7)Information DesignatedU.S.Agent CompanyName:HOPEKCORPORATIONINC Address:4358SBANNOCKSTENGLEWOOD,CO80110UnitedStates FRN:0034562900 ContactName:PeterDavis Tel.:561-235-6113 Email:[email protected] Thisletteristoconfirmthatwe(“theDesignatedU.S.Agent)haveacceptedtheresponsibilitytoactasthe DesignatedU.S.AgentforServiceofProcessasrequiredbysection47CFR2.911(d)(7)onbehalfofthe Applicantnotedbelow. U.S.AgentSignature:PeterDavis Date:June11,2024 Signedby(PrintedName/Title): TheApplicantacknowledgesthattheymustmaintainanagentfornolessthanoneyearafterterminatingall marketingandimportationORtheconclusionofanyCommission-relatedproceedinginvolvingthe equipment.TheapplicantfurtheracknowledgestheirresponsibilitytoinformtheFCCwheneverthe DesignatedU.S.Agentinformationabovechanges. Applicant Companyname:BeijingNetacInnovationTechnologyDevelopmentCo.Ltd FRN:0034670349 GranteeCode:2BEBP FCCID:2BEBP-TW02G ContactName:dongdongxie StreetAddress:138-1-3NO.20YONGANROADMENTOUGOUDISTRICTBEIJINGCHINA TelephoneNo:13612842510 Email:[email protected] ApplicantSignature: Date:June11,2024 Signedby(PrintedName/Title):dongdongxie/M anager

Beijing Netac Innovation Technology Development Co.Ltd 2024.06.11 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for FCC ID: 2BEBP-TW02G [Beijing Netac Innovation Technology Development Co.Ltd] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Applicant printed name) Dongdong xie Beijing Netac Innovation Technology Development Co.Ltd 2024.06.11 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for FCC ID: 2BEBP-TW02G [Beijing Netac Innovation Technology Development Co.Ltd] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Dongdong xie

Beijing Netac Innovation Technology Development Co.Ltd 2024.06.11 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: Wireless Earbuds Trademark: Netac MODEL : TW02G FCC ID : 2BEBP-TW02G To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : Dongdong xie /Manager Contact information / address: 138-1-3 NO.20 YONG AN ROAD MEN TOU GOU DISTRICT BEIJING CHINA

Beijing Netac Innovation Technology Development Co.Ltd 2024.06.11 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : dongdong xie /Manager Contact information / address: 138-1-3 NO.20 YONG AN ROAD MEN TOU GOU DISTRICT BEIJING CHINA

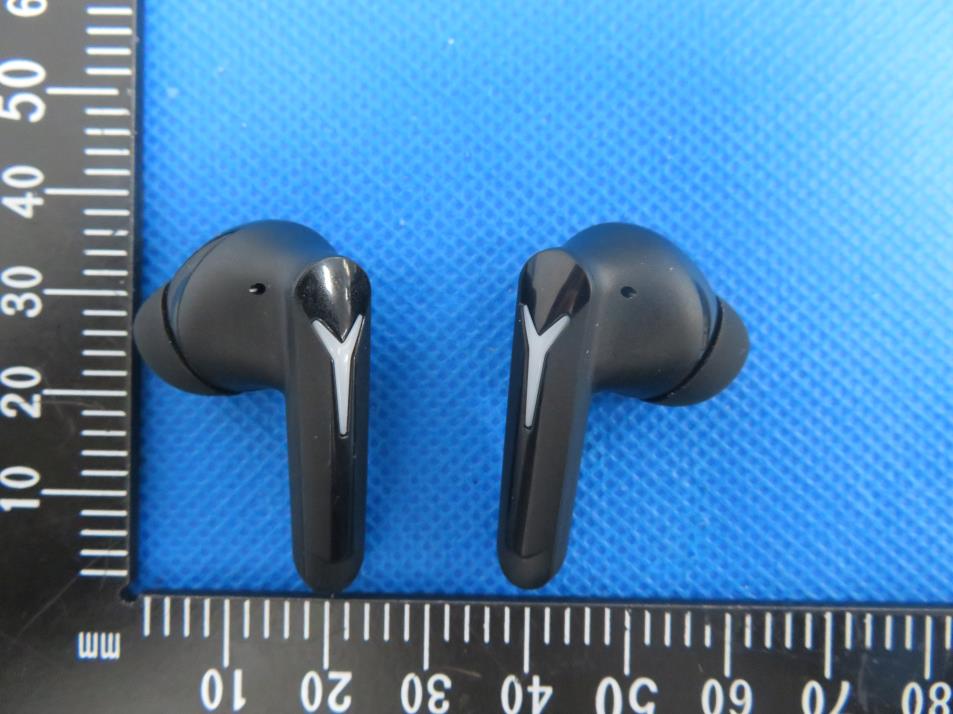

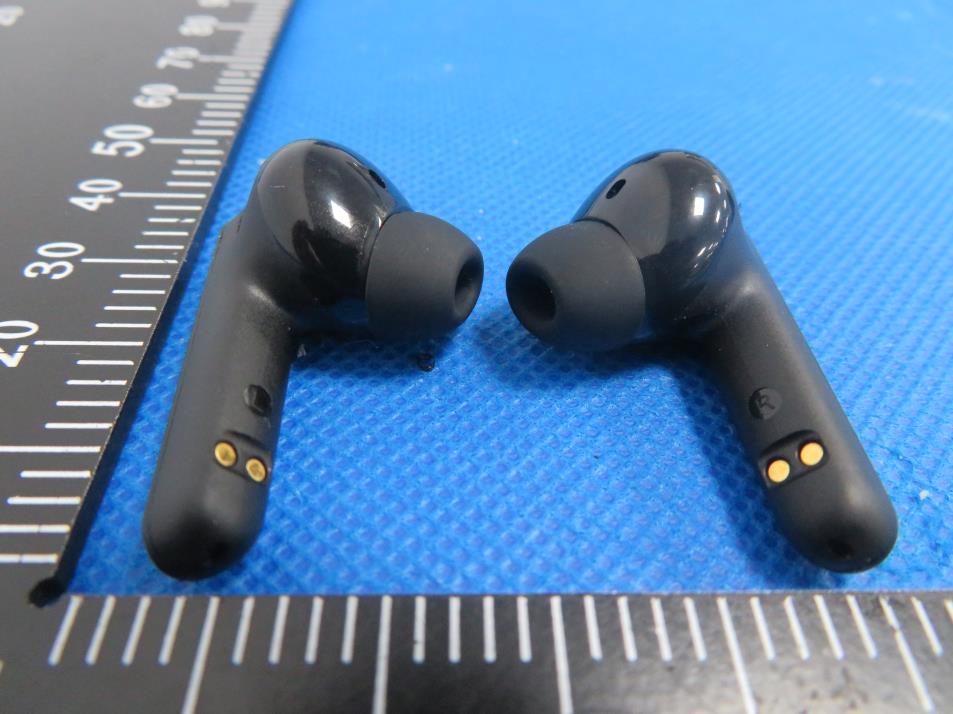

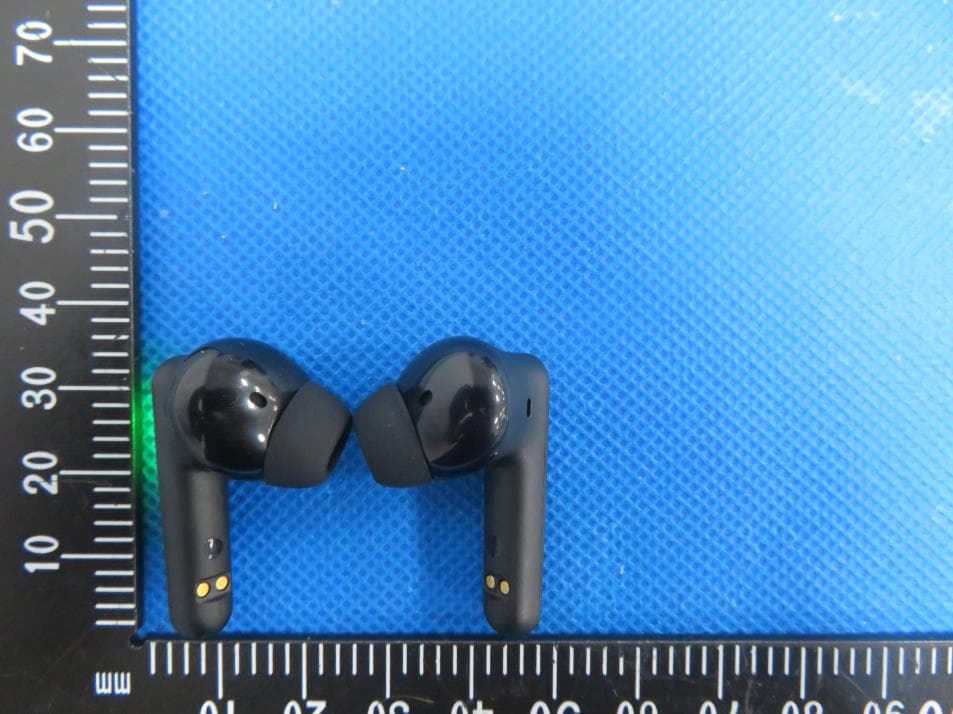

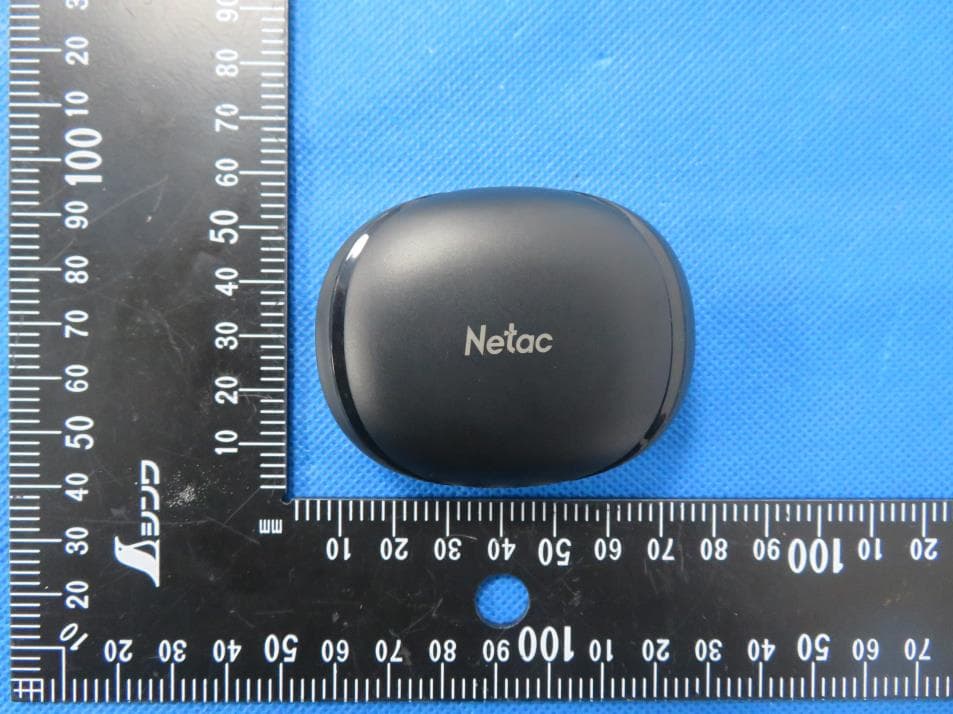

External Photos

Size:10*5mm FCC ID: 2BEBP-TW02G Label location

Internal Photos Antenna

RF EXPOSURE EVALUATION METHOD FCC ID:2BEBP-TW02G Applicable standard： In accordance with FCC 47 CFR part 2 (2.1093) this device has been defined as a portable device which is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable devices must be evaluated using the specified in FCC 47 CFR part 2 (2.1093) and ANSI/IEEEC95.1-1992. and had been tested in accordance with the measurement methods and procedures specified in IEEE 1528-2003. Per FCC KDB 447498 D01 v06, the 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances s 50 mm are determined by: SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. BT GFSK 2402 2.44 21 GFSK 2441 1.99 21 GFSK 2480 1.18 21 π/ 4 DQPSK 2402 3.3 21 π/ 4 DQPSK 2441 2.44 21 π/ 4 DQPSK 2480 1.59 21 8DPSK 2402 3.75 21 8DPSK 2441 3.3 21 8DPSK 2480 2.48 21 max possible output power (PK,conducted)：4±1dBm 2.43dBi logarithmic terms convert to numeric result is nearly 2.2 5dBm=3.16mW 2402MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 3.16/5*√2.402=0.98≤3.0 2441MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 3.16/5*√2.441=0.99≤3.0 2480MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 1.26/5*√2.48=1.00≤3.0 Conclusion: 1. [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] < 3.0. 2. SAR Test Exclusion Thresholds is 3.0 for separation distance 5mm. Therefore, SAR test is not required.

Features 1.Surface Mounted Devices with a small dimension of 2.0 x 1.25 x 0.25 mm 3 meet future miniaturization trend. 2.Embedded and (Low Temperature Co-fired Ceramic) technology is able to future integrate with system design as well as beautifying the housing of final product. 3.High Stability in Temperature / Humidity Change Applications 1.Bluetooth 2.Wireless LAN 3.HormRF 4.ISM band 2.4GHz wireless applications Dimensions（Unit：mm） H L X 20125025 A03 Dimension (mm) L 2.0 ± 0.20 W 1.2 ± 0.20 T 0.25 ± 0.05 Antenna Test Report Customer深羽 ProjectES22-7006F Antenna RevisionA0 Prepared by15993920520 Checked by15993920520 Date:2024.05.10 This report is to measure the performance of antenna for ES22-7006F The antenna operating frequency at 2400-2500MHz, All test data are showed as below. Content 1. est system 2.Product Overview & Dimension 3.Test Result VSWR&Log Mag&Smith(Ω) 4.Test Result 4.1 2D Pattern——BT ANT 5.OTA Data 5.1.TestResult Purpose Manufacturer:Beijing Netac Innovation Technology Development Co.Ltd Address:138-1-3 NO.20 YONG AN ROAD MEN TOU GOU DISTRICT BEIJING CHINA Sequence Number Test Item equipment S parameter VSWR Agilent 5071C & Agilent 5071B OTA TestTRP&TIS Agilent8960 & CMW500 STIMO Gain & Efficiency Gain & Efficiency SATIMO Agilent 5071C 1.TestSystem 2.Product Overview & Dimension A03 3.3P 1P 0.5P Frequency (MHz)2400245024802500 Log Mag-15.86-43.99-20.89-16.95 Smith(Ω)52.2149.3942.5638.11 VSWR1.381.011.191.33 3.Test Result VSWR&Log Mag&Smith(Ω) 4.Test Result 4.1 Gain & Efficiency——ANT Frequency (MHz)Efficiency (%)Max GAIN (dBi) 2400 36.551.34 2410 39.810.8 2420 41.781.05 2430 41.780.95 2440 43.261.23 2450 47.421.59 2460 45.192.43 2470 45.611.56 2480 43.552.39 2490 41.641.74 2500 40.871.98 4.TestResult 4.1 2D Pattern——BT ANT 4.TestResult 4.1 2D Pattern——BT ANT 4.TestResult 4.1 2D Pattern——BT ANT 5.OTA Data Test Equipment：R&S CMW500 Test Condition：3D chamber BandChannelTRP(dBm)TIS(dBm) BT L 0 2.44-88.72 39 3.58-88.11 78 2.56-85.9 R 0 2.27-87.83 39 2.99-88.62 78 2.87-86.59 5.1.TestResult 4 L-TRP 5.1.TestResult L-TIS 5.1.TestResult R-TRP 5.1.TestResult R-TIS

No.：BCTC/RF-EMC-005 Page: 1 of 79 Edition：B.2 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2405585268E Applicant: Beijing Netac Innovation Technology Development Co.Ltd Product Name: Wireless Earbuds Test Model: TW02G Tested Date: 2024-05-29 to 2024-06-05 Issued Date: 2024-06-06 Report No.:BCTC2405585268E No.：BCTC/RF-EMC-005 Page: 2 of 79 Edition：B.2 FCC ID:2BEBP-TW02G The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: Wireless Earbuds Trademark: Netac Model/Type Reference: TW02G Prepared For: Beijing Netac Innovation Technology Development Co.Ltd Address: 138-1-3 NO.20 YONG AN ROAD MEN TOU GOU DISTRICT BEIJING CHINA Manufacturer: Beijing Netac Innovation Technology Development Co.Ltd Address: 138-1-3 NO.20 YONG AN ROAD MEN TOU GOU DISTRICT BEIJING CHINA Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2024-05-29 Sample tested Date: 2024-05-29 to 2024-06-05 Issue Date: 2024-06-06 Report No.: BCTC2405585268E Test Standards FCC Part15.247 ANSI C63.10-2013 Test Results PASS Remark: This is Bluetooth Classic radio test report. Tested by: Approved by: Tang Changyu/ Project Handler Zero Zhou/Reviewer Report No.:BCTC2405585268E No.：BCTC/RF-EMC-005 Page: 3 of 79 Edition：B.2 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information And Test Setup ..................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 8 4.3 Support Equipment ............................................................................................... 9 4.4 Channel List .......................................................................................................... 9 4.5 Test Mode ........................................................................................................... 10 4.6 Table Of Parameters Of Text Software Setting ................................................... 10 5. Test Facility And Test Instrument Used ............................................................... 11 5.1 Test Facility ......................................................................................................... 11 5.2 Test Instrument Used .......................................................................................... 11 6. Conducted Emissions .......................................................................................... 13 6.1 Block Diagram Of Test Setup .............................................................................. 13 6.2 Limit .................................................................................................................... 13 6.3 Test procedure .................................................................................................... 13 6.4 EUT operating Conditions ................................................................................... 13 6.5 Test Result .......................................................................................................... 14 7. Radiated emissions ............................................................................................. 16 7.1 Block Diagram Of Test Setup .............................................................................. 16 7.2 Limit .................................................................................................................... 17 7.3 Test procedure .................................................................................................... 18 7.4 EUT operating Conditions ................................................................................... 19 7.5 Test Result .......................................................................................................... 19 8. Radiated Band Emission Measurement And Restricted Bands Of Operation ..... 23 8.1 Block Diagram Of Test Setup .............................................................................. 23 8.2 Limit .................................................................................................................... 23 8.3 Test procedure .................................................................................................... 24 8.4 EUT operating Conditions ................................................................................... 24 8.5 Test Result .......................................................................................................... 25 9. Spurious RF Conducted Emissions ..................................................................... 26 9.1 Block Diagram Of Test Setup .............................................................................. 26 9.2 Limit .................................................................................................................... 26 9.3 Test procedure .................................................................................................... 26 9.4 Test Result ..........................................................................................................…

Text truncated - open the document above for the full version.

Report No.:BCTC2405585268E No.：BCTC/RF-EMC-005 Page: 53 of 79 Edition：B.2 -20dB Bandwidth NVNT 3-DH1 2480MHz Report No.:BCTC2405585268E No.：BCTC/RF-EMC-005 Page: 54 of 79 Edition：B.2 11. Maximum Peak Output Power 11.1 Block Diagram Of Test Setup 11.2 Limit FCC Part15 (15.247) , Subpart C Section Test Item Limit Frequency Range (MHz) Result 15.247(b)(1) Peak Output Power 0.125 watt or 21dBm 2400-2483.5 PASS 11.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set the spectrum analyzer: RBW = 2MHz. VBW = 6MHz. Sweep = auto; Detector Function = Peak. 3. Keep the EUT in transmitting at lowest, medium and highest channel individually. Record the max value. 11.4 Test Result Temperature: 26°C Relative Humidity: 54% Test Voltage: DC 3.7V Remark: N/A Condition Mode Frequency (MHz) Conducted Power (dBm) Limit (dBm) Verdict NVNT 1-DH1 2402 2.44 21 Pass NVNT 1-DH1 2441 1.99 21 Pass NVNT 1-DH1 2480 1.18 21 Pass NVNT 2-DH1 2402 3.3 21 Pass NVNT 2-DH1 2441 2.44 21 Pass NVNT 2-DH1 2480 1.59 21 Pass NVNT 3-DH1 2402 3.75 21 Pass NVNT 3-DH1 2441 3.3 21 Pass NVNT 3-DH1 2480 2.48 21 Pass Report No.:BCTC2405585268E No.：BCTC/RF-EMC-005 Page: 55 of 79 Edition：B.2 Test Graphs Power NVNT 1-DH1 2402MHz Power NVNT 1-DH1 2441MHz Report No.:BCTC2405585268E No.：BCTC/RF-EMC-005 Page: 56 of 79 Edition：B.2 Power NVNT 1-DH1 2480MHz Power NVNT 2-DH1 2402MHz Report No.:BCTC2405585268E No.：BCTC/RF-EMC-005 Page: 57 of 79 Edition：B.2 Power NVNT 2-DH1 2441MHz Power NVNT 2-DH1 2480MHz Report No.:BCTC2405585268E No.：BCTC/RF-EMC-005 Page: 58 of 79 Edition：B.2 Power NVNT 3-DH1 2402MHz Power NVNT 3-DH1 2441MHz Report No.:BCTC2405585268E No.：BCTC/RF-EMC-005 Page: 59 of 79 Edition：B.2 Power NVNT 3-DH1 2480MHz Report No.:BCTC2405585268E No.：BCTC/RF-EMC-005 Page: 60 of 79 Edition：B.2 12. Hopping Channel Separation 12.1 Block Diagram Of Test Setup 12.2 Limit Frequency hopping systems shall have hopping channel carrier frequencies separated by a minimum of 25 kHz or the 20 dB bandwidth of the hopping channel, whichever is greater. Alternatively, frequency hopping systems operating in the 2400-2483.5 MHz band may have hopping channel carrier frequencies that are separated by 25 kHz or two-thirds of the 20 dB bandwidth of the hopping channel, whichever is greater, provided the systems operate with an output power no greater than 0.125W. 12.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set the spectrum analyzer: RBW = 30kHz. VBW = 100kHz , Span = 2.0MHz. Sweep = auto; Detector Function = Peak. Trace = Max hold. 3. Allow the trace to stabilize. Use the marker-delta function to determine the separation between the peaks of the adjacent channels. The limit is specified in one of the subparagraphs of this Section Submit this plot. 12.4 Test Result Temperature: 26°C Relative Humidity: 54% Test Voltage: DC 3.7V Remark: N/A Condition Mode Hopping Freq1 (MHz) Hopping Freq2 (MHz) HFS (MHz) Limit (MHz) Verdict NVNT 1-DH1 2401.868 2402.868 1 0.609 Pass NVNT 1-DH1 2440.868 2441.868 1 0.659 Pass NVNT 1-DH1 2478.868 2479.868 1 0.618 Pass NVNT 2-DH1 2401.868 2402.868 1 0.848 Pass NVNT 2-DH1 2440.866 2441.866 1 0.847 Pass NVNT 2-DH1 2478.868 2479.866 0.998 0.834 Pass NVNT 3-DH1 2402.022 2403.022 1 0.811 Pass NVNT 3-DH1 2441.026 2442.026 1 0.807 Pass NVNT 3-DH1 2479.028 2480.028 1 0.823 Pass Report No.:BCTC2405585268E No.：BCTC/RF-EMC-005 Page: 61 of 79 Edition：B.2 Test Graphs CFS NVNT 1-DH1 2402MHz CFS NVNT 1-DH1 2441MHz Report No.:BCTC2405585268E No.：BCTC/RF-EMC-005 Page: 62 of 79 Edition：B.2 CFS NVNT 1-DH1 2480MHz CFS NVNT 2-DH1 2402MHz Report No.:BCTC2405585268E No.：BCTC/RF-EMC-005 Page: 63 of 79 Edition：B.2 CFS NVNT 2-DH1 2441MHz CFS NVNT 2-DH1 2480MHz Report No.:BCTC2405585268E No.：BCTC/RF-EMC-005 Page: 64 of 79 Edition：B.2 CFS NVNT 3-DH1 2402MHz CFS NVNT 3-DH1 2441MHz Report No.:BCTC2405585268E No.：BCTC/RF-EMC-005 Page: 65 of 79 Edition：B.2 CFS NVNT 3-DH1 2480MHz Report No.:BCTC2405585268E No.：BCTC/RF-EMC-005 Page: 66 of 79 Edition：B.2 13. Number Of Hopping Frequency 13.1 Block Diagram Of Test Setup 13.2 Limit Frequency hopping systems in the 2400-2483.5 MHz band shall use at least 15 channels. 13.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set the spectrum analyzer: RBW = 100kHz. VBW = 300kHz. Sweep = auto; Detector Function = Peak. Trace = Max hold. 3. Allow the trace to stabilize. It may prove necessary to break the span up to sections. in order to clearly show all of the hopping frequencies. The limit is specified in one of the subparagraphs of this Section. 4. Set the spectrum analyzer: Start Frequency = 2.4GHz, Stop Frequency = 2.4835GHz. Sweep=auto; 13.4 Test Result Temperature: 26°C Relative Humidity: 54% Test Voltage: DC 3.7V Remark: N/A Condition Mode Hopping Number Limit Verdict NVNT 1-DH1 79 15 Pass NVNT 2-DH1 79 15 Pass NVNT 3-DH1 79 15 Pass Report No.:BCTC2405585268E No.：BCTC/RF-EMC-005 Page: 67 of 79 Edition：B.2 Test Graphs Hopping No. NVNT 1-DH1 2441MHz Hopping No. NVNT 2-DH1 2441MHz Report No.:BCTC2405585268E No.：BCTC/RF-EMC-005 Page: 68 of 79 Edition：B.2 Hopping No. NVNT 3-DH1 2441MHz Report No.:BCTC2405585268E No.：BCTC/RF-EMC-005 Page: 69 of 79 Edition：B.2 14. Dwell Time 14.1 Block Diagram Of Test Setup 14.2 Limit Frequency hopping systems in the 2400-2483.5 MHz band shall use at least 15 channels. The average time of occupancy on any channel shall not be greater than 0.4 seconds within a period of 0.4 seconds multiplied by the number of hopping channels employed. Frequency hopping systems may avoid or suppress transmissions on a particular hopping frequency provided that a minimum of 15 channels are used. 14.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set spectrum analyzer span = 0. Centred on a hopping channel; 3. Set…

Text truncated - open the document above for the full version.

17. EUT Test Setup Photographs Conducted Measurement Photo Radiated Measurement Photos
