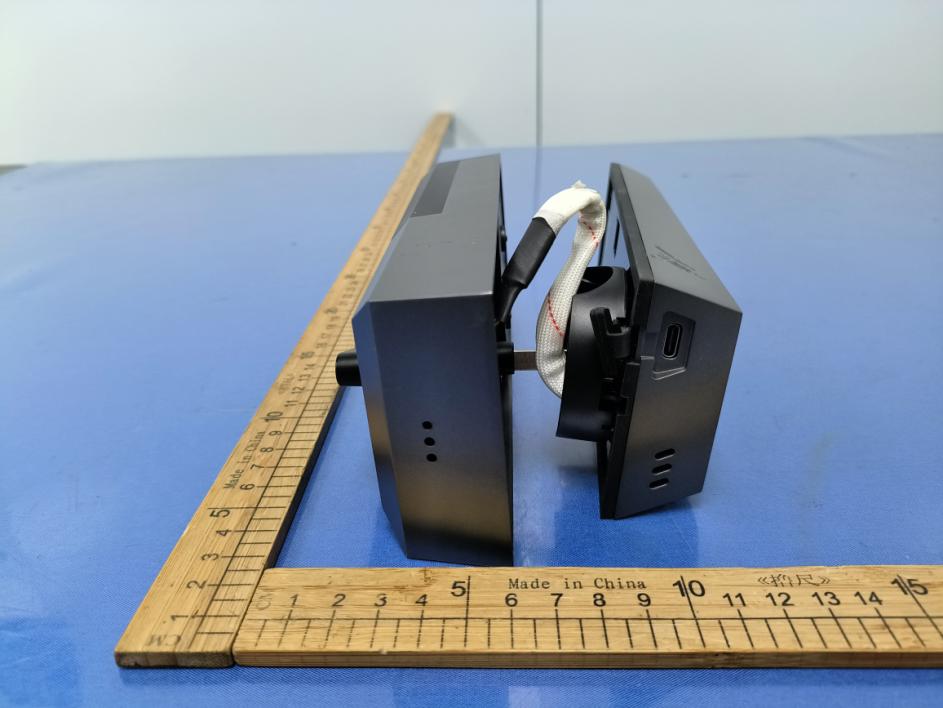

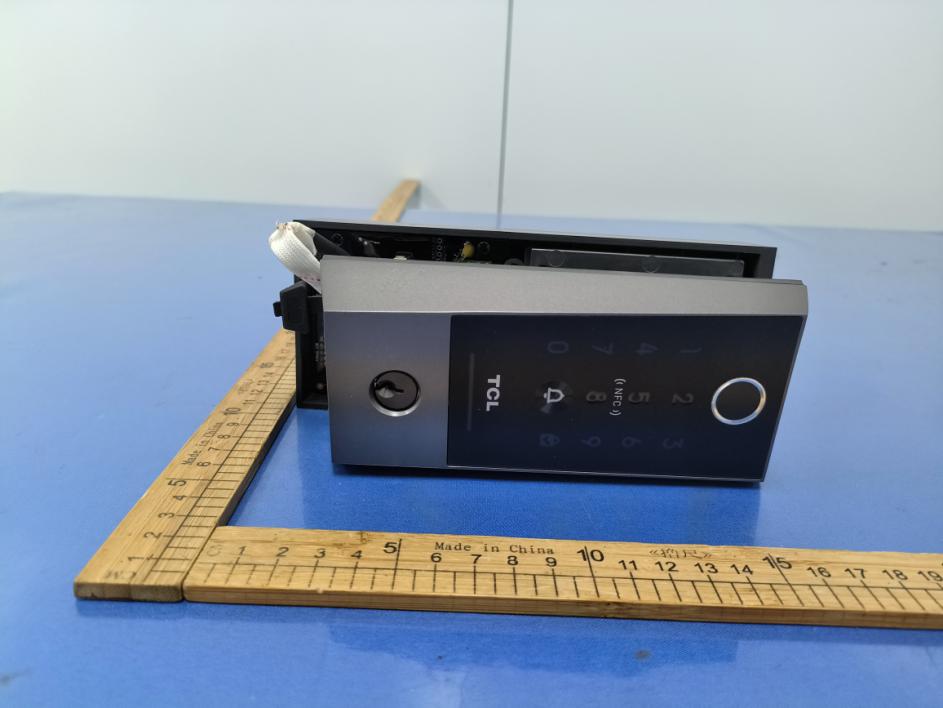

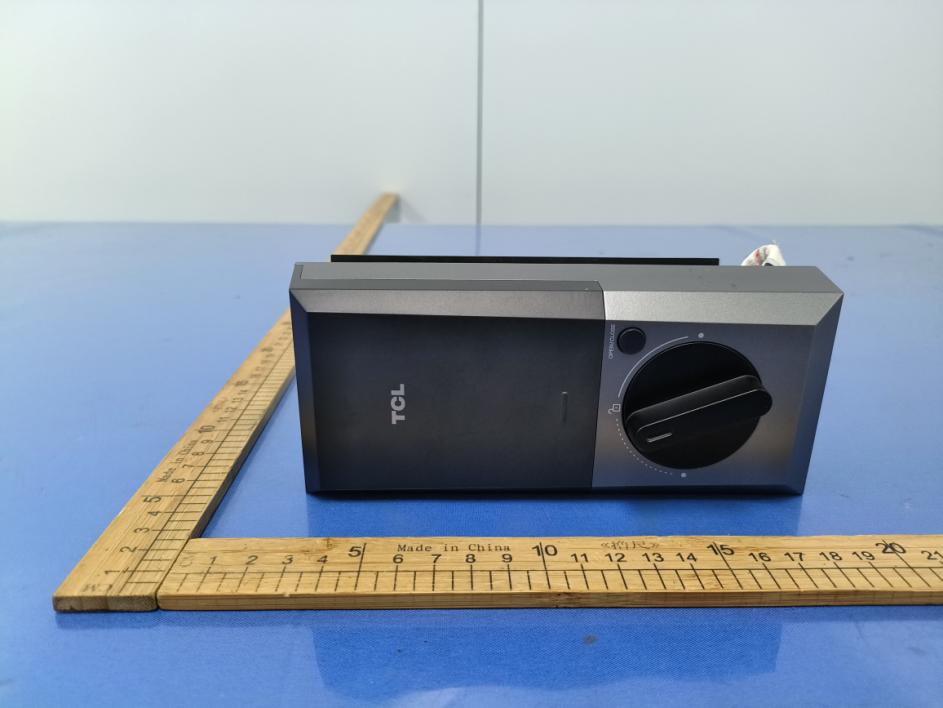

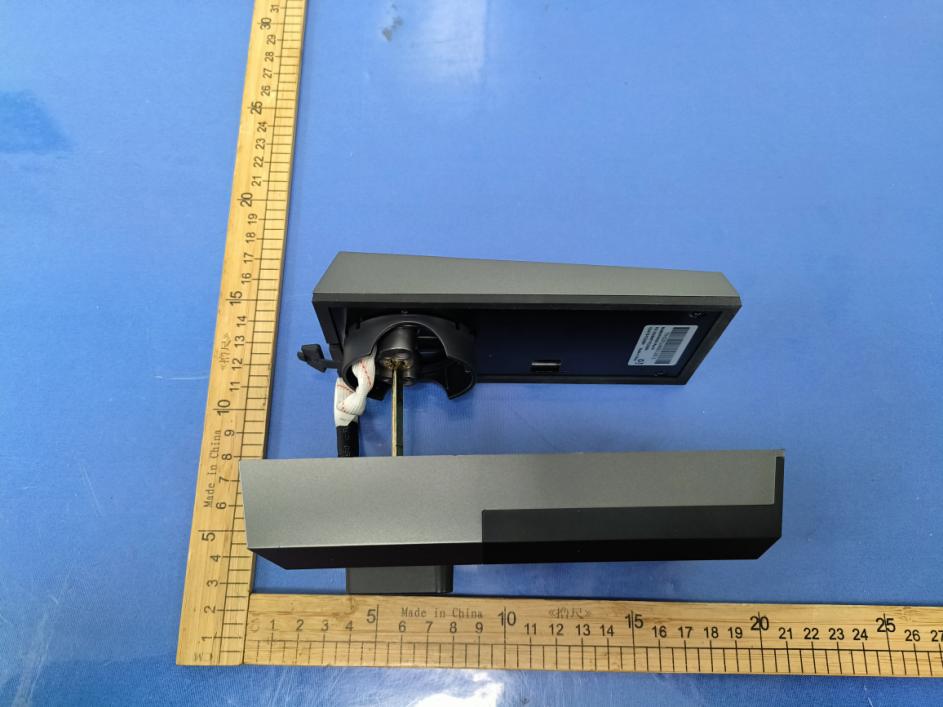

2BG9T-TCLD2AMD2 Series Smart Door Lock

Customer Service Call Us United States: 1-(833)838-3931 Monday to Friday: 9:00 AM - 9:00 PM(PT) Saturday and Sunday: 9:00 AM - 6:00 PM(PT) Email Us Customer support: [email protected] Shenzhen TCL Smart Home Technology Co., Ltd. 702, Building G1, TCL International E City, Shuguang Community, Xili Street, Nanshan District, Shenzhen, China User Manual D2 Series Smart Door Lock Model / HVIND2 Plus-M V01 Contents Part List..................................................................... 01 Product Overview................................................. 02 Installation............................................................... 03 Lock Setup.............................................................. 13 Using your lock.................................................... 17 FAQ...................................................................... 18 Disclaimer............................................................... 19 Statement............................................................. 20 Exterior Exterior AssemblyInterior Assembly Latch Bolt Strike (box) Mounting PlateBackup key User Manual Guide User Manual Screws A Screws C Screws B Interior ① ① ② ② ③ ③ ④ ④ ⑤ ⑤ ⑥ ⑥ ⑦ ⑦ ⑨ ⑨ ⑧ ⑧ ① ① ② ② ③ ③ ④ ④ ⑤ ⑤ ⑥ ⑥ Touch Keypad NFC Card Area Doorbell Short-pressConfirm Long-pressLock the door Indicator Light: Greensuccessfully Redfailed Flash whiteoperating Cylinder Type-C port Emergency Power Support Loudspeaker Battery Cover Setup Button One-tap Unlock/Lock Knob Loudspeaker Fingerprint Scanner Card Lithium Battery 10000mAh Lithium Battery 2. Product Overview1. Parts List 0102 3. Installation Step 1 Installation Overview Scan the QR code to watch the video of installation guide Key Exterior Assembly Mounting Plate Screws(A) Latch Strike(box) Interior Assembly Battery Cover Screws(B) Screws(C) 0403 Step 2 Check the door’s dimensions ①Check if your door has holes like the one below, Standard US doors are already compatible. ②If you have a new door, please drill the holes according to Drill Template. Backset Door Hole Diameter 2.36in/60mm or 2.76in/70mm 0.98in/25mm Door Thickness 1.38in/35mm~ 2.17in/55mm Cross Bore Diameter 1.50in/38mm~ 2.13in/54mm Step 3 Install Bolt 1.Check your door to see if the deadbolt requires adjustment. If the backset is 2.76in/70mm, turn the faceplate 180° to extend the length. Latch Hole Backset 2. Insert and screw the deadbolt into the doorframe. Make sure the word "UP" on the bolt faces up. 2.36 in/60mm 2.76 in/70mm 1 2 3 Screws(A) Latch 180° 0506 0807 Step 4 Install Bolt If you have an existing strike plate installed, skip this step. To install the strike plate: 1.Align the strike plate with the center hole of the deadbolt. 2.Secure the strike plate with screws A. Make sure the plate is placed in the correct direction. Screws(A) Strike Strike Box Step 5 Installing Exterior Assembly If you have a 2.13 in / 54mm cross bore, you can go with installation directly. Cross Bore Diameter 2.13in /54mm Don’t be disassembled Cross Bore Diameter 1.50in /38mm If you have a 1.50in/38mm cross bore,remove the spacer before installation. UP 1.Keep the bolt retracted and the cylinder tailpiece horizontal. 2.Install Exterior Assembly.Please do not insert the mechanical key during installation.The cable goes through the hole below Bolt. Step 7 Install the Interior Assembly Upside Down Note: Check carefully whether the wire is stuck or tangled. lf the wire is stuck, re-install the lnterior Assembly. 1.Wire to the interior assembly ! 0910 Step 6 Install the Mounting 1.Route the cable through the hole on Mounting Plate. 2.Secure Interior Assembly Mounting Plate to Exterior Assembly using Screws C. Tool required: All you need is a manual screwdriver or an electronic screwdriver. Screws C 2.Rotate the knob and keep it in a vertical position to remain unlocked. 3. Attach the interior assembly to the mounting plateand check if the bolt retracts by turning the knob. 4.Tighten the interior Assembly with screws B Screw(B) Step 8 Install the Battery 1.Fully charge the battery before first use, lt might take about 6 hours. If the status indicator flashes red and green while charging, the lithium battery is abnormal. Stop charging and contact customer support immediately. Notice 2. Align the pin connector on the battery with the pin as illustrated below and slide the battery into the battery compartment. ！ 1211 2.Account Registration/Login Notice Please ensure that the country/region selected during account registration matches the location where the device was purchased. Otherwise, the device cannot be successfully added. 4. Lock Setup 1.Download the TCL Home app from Google Play or App Store Google Play and the Google Play logo are trademarks of Google Inc. Apple and the Apple logo are trademarks of Apple Inc. Scan QR code to download the App 1314 3.Add the Smart Door Lock Add devices Press the“Set” button for 5s to enter pairing mode. Set Master Password Connecting to Wi-Fi Lock Calibration Bluetooth Pairing 4.APP Homepage Overview Images shown above are for reference only. Actual features may vary in the app. Notice Settings Unlock / Lock Button User Management One-time Password Home Assistant Events Bluetooth / Wi-Fi connection status 5. Using your lock 5. Connecting to Matter Ecosystem First Matter Ecosystem Binding 1.For devices already added to the TCL Home app, press the "Set" button 2 times consecutively to enter Matter binding mode. 2.Scan the Matter Pairing Code on the interior assembly to add the lock in a third-party app. Note: 1. To connect the smart lock , you will need a Thread-enabled Matter Controller of the desired ecosystem. 2. Ensure that IPv6 is enabled on your local wireless network before connecting this Matter-enabled device to your smart home. IPv6 is required for Matter ecosystem connection. 3. Make sure your phone and the Thread-enabled Matter Controller are under the same Wi-Fi network. 4. Bluetooth must be enabled during the binding process. 5. We …

Text truncated - open the document above for the full version.

Note: This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA, or any agency of the Federal Government. The information marked “#” is provided by the applicant, the laboratory is not responsible for its authenticity and this information can affect the validity of the result in the test report. Customer model name, addresses, names, trademarks etc. are included but no need marked. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. Shenzhen Accurate Technology Co., Ltd. Floor 1, KuMaKe Building, Dongzhou Community, Guangming Street, Guangming District, Shenzhen, Guangdong, China. Tel: +86 755-26503290 Web: www.atc-lab.com Rev:A/4.0(2024/11/01) Page 1 of 7 TR-4-E-R052 TEST REPORT Applicant Name : Shenzhen TCL Smart Home Technology Co., Ltd. Address : 702, Building G1, TCL International E City, Shuguang Community, Xili Street, Nanshan District, Shenzhen, China Report Number : 2604Q29440E-RF-00F FCC ID: 2BG9T-TCLD2AM Test Standard (s) 47 CFR §2.1091 Sample Description Product Type: D2 Series Smart Door Lock Model No.: D2 Plus-M Trade Mark: TCL Date Received: 2026-02-09 Report Date: 2026-03-29 Test Result: The EUT complied with the standards above. Prepared and Checked By: Approved By: Amanda Wei Bob.Liao EMC Engineer EMC Engineer Shenzhen Accurate Technology Co., Ltd. Report No.: 2604Q29440E-RF-00F Rev:A/4.0(2024/11/01) Page 2 of 7 TR-4-E-R052 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ................................................................................................................ 3 GENERAL INFORMATION ............................................................................................................................ 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ........................................................................ 4 OBJECTIVE ................................................................................................................................................... 4 TEST FACILITY .............................................................................................................................................. 4 RF EXPOSURE .............................................................................................................................................. 5 APPLICABLE STANDARD ................................................................................................................................. 5 RESULT ........................................................................................................................................................ 5 EXHIBIT A-EUT PHOTOGRAPHS ................................................................................................................ 7 Shenzhen Accurate Technology Co., Ltd. Report No.: 2604Q29440E-RF-00F Rev:A/4.0(2024/11/01) Page 3 of 7 TR-4-E-R052 DOCUMENT REVISION HISTORY Revision Number Report Number Description of Revision Date of Revision Rev.00 2604Q29440E-RF-00F Original Report 2026-03-29 Shenzhen Accurate Technology Co., Ltd. Report No.: 2604Q29440E-RF-00F Rev:A/4.0(2024/11/01) Page 4 of 7 TR-4-E-R052 GENERAL INFORMATION Product Description for Equipment under Test (EUT) Product Name D2 Series Smart Door Lock Tested Model D2 Plus-M Voltage Range # DC 3.635V from battery Note 1: The device (D2 Series Smart Door Lock) has two parts: Exterior Assembly and Interior Assembly. Note 2: The Exterior Assembly has BLE / NFC function. Note 3: The Interior Assembly has a WIFI module with BLE/2.4G WIFI function and a Thread module with BLE/2.4G Thread function. Frequency Range NFC: 13.56MHz BLE: 2402-2480MHz 2.4G Wi-Fi: 2412-2462MHz 2.4G Thread: 2405-2480MHz Maximum Conducted Output Peak Power (actual test result) Exterior Assembly: BLE: -2.16dBm Interior Assembly: WIFI module: BLE: 2.2 dBm, 2.4G Wi-Fi: 14.99 dBm Thread module: BLE: 8.51dBm, 2.4G Thread: 4.17 dBm Maximum E-field Strength (actual test result) NFC: 66.84dBuV/m@3m Antenna Specification # Exterior Assembly: BLE: PCB Antenna, Gain:2.7dBi NFC: LOOP Antenna Interior Assembly: WIFI module: BLE&2.4G Wi-Fi: PCB Antenna, Gain: 4.54 dBi Thread module: BLE&2.4G Thread: PCB Antenna, Gain: 4.44 dBi (The antenna gain is provided by the applicant.) Sample/EUT Status Good condition Objective This test report is in accordance with Part 2-Subpart J, Part 15-Subparts C and Part 2-Subpart J, Radiofrequency Radiation Exposure of the Federal Communication Commission rules. The tests were performed in order to determine compliance with FCC §2.1091 rules. Test Facility The test site used by Shenzhen Accurate Technology Co., Ltd. to collect test data is located on the Floor 1, KuMaKe Building, Dongzhou Community, Guangming Street, Guangming District, Shenzhen, Guangdong, China. Accredited by American Association for Laboratory Accreditation (A2LA).The Certificate Number is 4297.01. Shenzhen Accurate Technology Co., Ltd. Report No.: 2604Q29440E-RF-00F Rev:A/4.0(2024/11/01) Page 5 of 7 TR-4-E-R052 RF EXPOSURE Applicable Standard According to subpart 2.1091 systems operating under the provisions of this section shall be operated in a manner that ensures the public is not exposed to RF energy level in excess of the communication guidelines. Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (Minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density Result Calcula…
