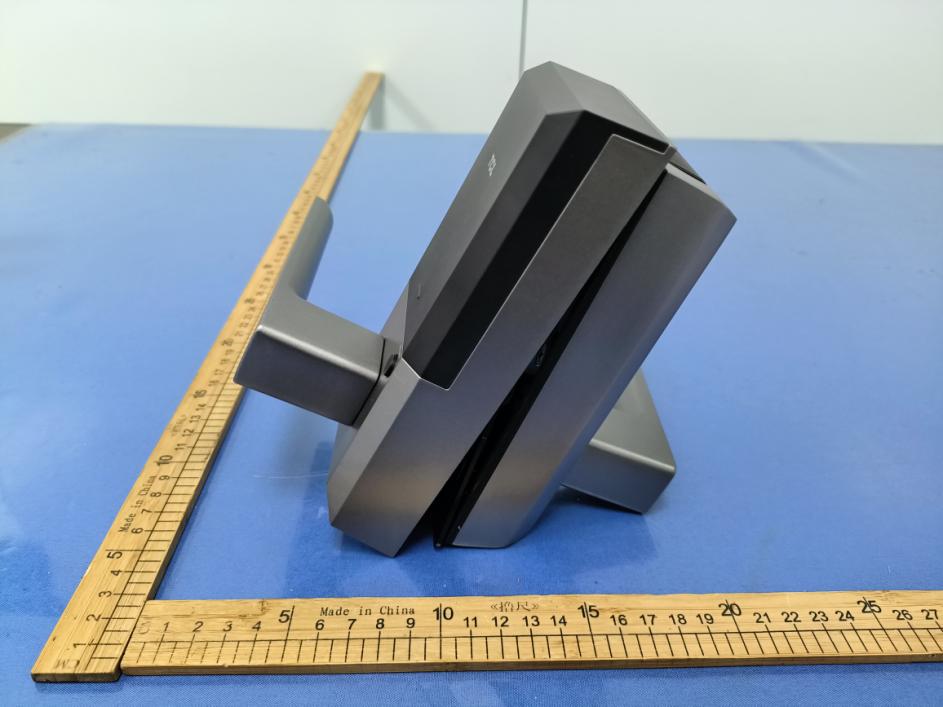

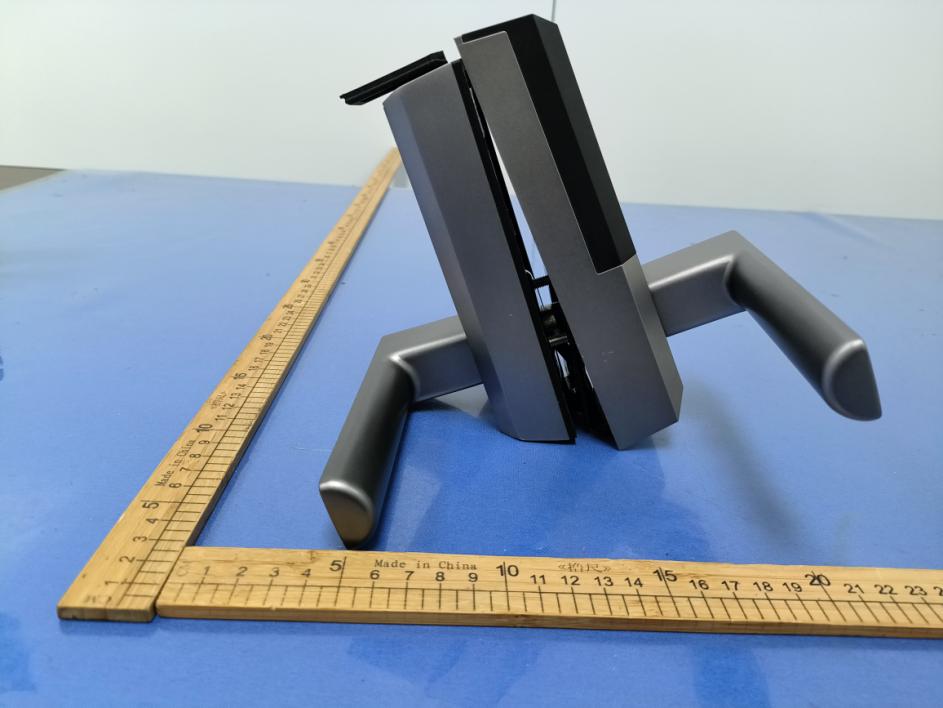

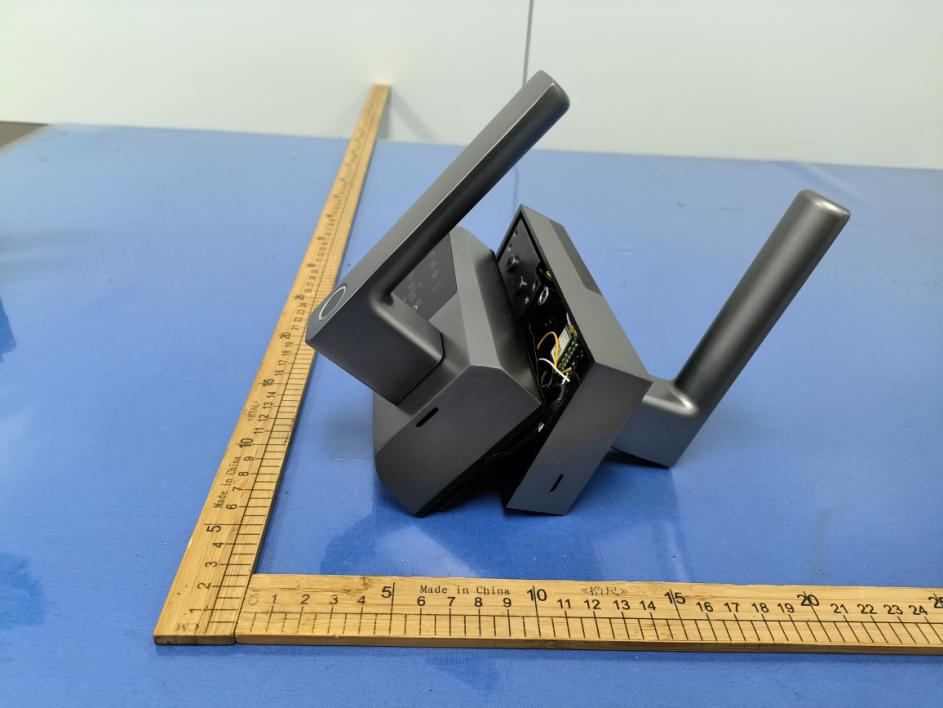

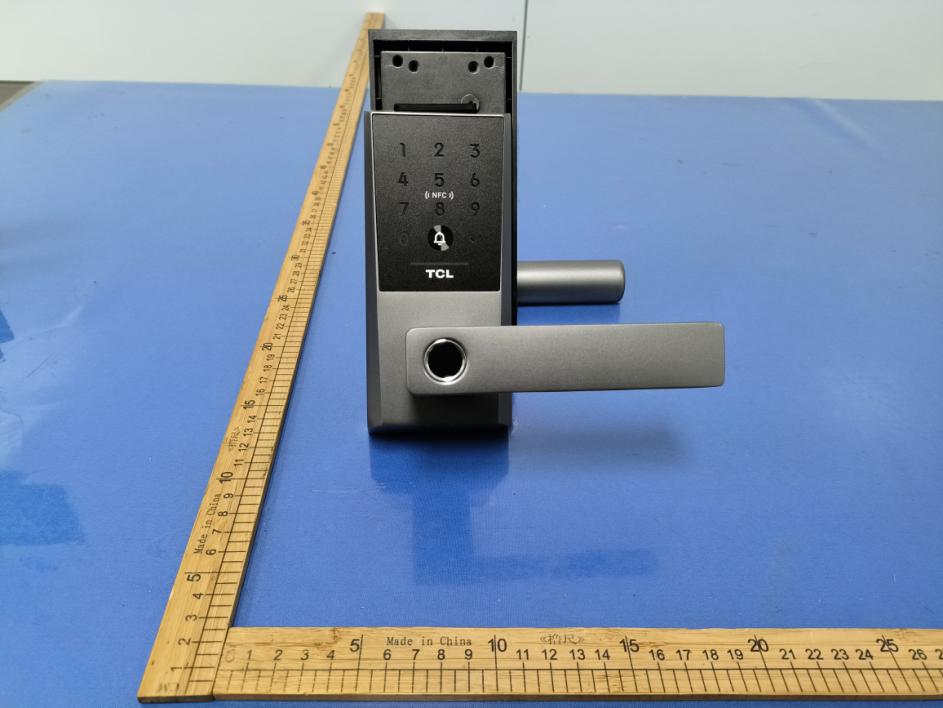

2BG9T-TCLD2LMD2 Series Smart Door Lock

Customer Service Call Us United states: 1-(833)838-3931 Monday to Friday: 9:00 AM - 9:00 PM(PT) Saturday and sunday: 9:00 AM - 6:00 PM(PT) Email Us Customer support: [email protected] Shenzhen TCL Smart Home Technology Co., Ltd. 7/F,TCL G1 Building. TCL International E City, No.1001 Zhongshan Yuan Road,Nanshan District,Shenzhen. User Manual D2 Series Smart Door Lock ModelD2L V01 Contents Part List..................................................................... 01 Product Overview................................................. 02 Installation............................................................... 03 Lock Setup.............................................................. 13 Using your lock.................................................... 17 FAQ...................................................................... 18 Disclaimer............................................................... 19 Statement............................................................. 20 Exterior Exterior AssemblyInterior Assembly Latch Bolt Strike (box) Mounting PlateBackup key Screws D Screws A Interior Card Mounting Post Screws B & C B C 2. Product Overview1. Parts List 0102 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ② Touch keypad ③ NFC recognition area ⑤ Doorbell ④ Confirm Button ⑥ Indicator light: Greensuccessfully Redfailed Flash whiteoperating ① Cylinder & Type-C port Emergency Power Support ⑨ Loudspeaker ⑧ Fingerprint Reader ⑦ Handle ① ② ③ ④ ⑤ ⑥ ① AA Batteries ② Battery Cover ⑥ Loudspeaker ④ Privacy Mode Button ③ Setup Button ⑤ Handle Spindle 3. Installation Step 1 Installation Overview Scan the QR code to watch the video of installation guide Mounting Plate Screws ( B or C ) Screws (A) Screws (D) Strike(box) Plug Battery Cover Interior Assemble Latch Exterior Assemble Spindle Key 0403 Step 2 Check the door’s dimensions Measure the backset: the distance from the edge of the door to the center of the deadbolt hole. It should be 2 ⅜ in (60 mm) or 2 ¾ in (70 mm). Step 3 Install the Latch 0506 2 ⅜ in (60 mm) or 2 ¾ in (70 mm) 0 10 20 30 40 50 60 70 Adjust the latch according to the measurements. 2 ⅜ in (60 mm) 2 ¾ in (70 mm) Install directly if it's 2 3/8 in (60mm). Pull the latch outward to extend it to 2 ¾ in (70 mm). The latch holes must be centered in the door's hole. Mount the lock onto the door, ensuring during installation that the beveled edge of the lock faces the door frame. * The bevel on the latch should face the door jamb Install the strike plate to the door frame. Screws(A) Door jamb Screws(A) 0807 Exterior AssemblyLift the handle, rotate the spindle to reveal the screw, remove the screw, rotate the handle 180 degrees, lift it up, and thread the screw into the hole on the other side. Interior AssemblyRemove the screws, rotate the handle 180°, and then tighten the screws. Step 4 Handle Reversal InstructionsStep 5 Installing Exterior Assembly Install the spindle and the mounting post by inserting the spindle into the hole (if you need to remove the spindle later, you can press diagonally on the release button to pull it out). Then, twist to install the mounting post. From the outside, pass the Outer Panel through the lock body, and reinforce it with the backplate. Pay special attention to the positions of the Top and the cable. Thread the screw on the other sideRotate the handle 180 degrees Rotate the spindleRemove the screw Lift the handle Step 7 Install the Interior Assembly Upside Down Note: Check carefully whether the wire is stuck or tangled. lf the wire is stuck, re-install the lnterior Assembly. Connect the Outer Panel's cable to the socket on the interior assembly, and tuck any excess cable into the mounting hole. ! Screws B or C Screws B (35mm) Suitable for door thickness 40-55mm Screws C (25mm) Suitable for door thickness 35-40mm 0910 Step 6 Install the Mounting Route the cable through the hole on Mounting Plate. Secure Interior Assembly Mounting Plate to Exterior Assembly using Screws B or Screws C. Tool required: All you need is a manual screwdriver or an electronic screwdriver. Attach the interior assembly to the mounting plateand check if the bolt retracts by turning the handle. Tighten the interior Assembly with screws D. 1.Insert 8 AA Alkaline Batteries and keep the batteries on the battery pull tab, then install the battery cover. Batteries are not included and must be purchased separately. Step 8 Install the Battery Screws D 1211 4. Lock Setup 1.Download the TCL Home app from Google Play or App Store Google Play and the Google Play logo are trademarks of Google Inc. Apple and the Apple logo are trademarks of Apple Inc. Scan QR code to download the App 2.Create a User Account 3.Add the Smart Door Lock Connecting Wi-FiSet Master Password (required) Press and hold the“Set” button for 5s to enter pairing mode. PSThe account's login region and registration region must be consistent; otherwise, you may not be able to add devices. Notice Please securely safeguard the master password to prevent unauthorized access. The master password is applied to: Unlock the door. Disable Privacy mode. 1314 Add devices 4.APP Homepage Overview Images shown above are for reference only. Actual features may vary in the app. Notice Door Lock setting Long Press to Unlock/Lock User ManagementAdd Users and permissions One-time PasswordValid for 10 minutes Home AssistantHomecoming Reminder/Summary) EventsAll event history 1615 5. Using your lock 5. Matter Setup Product Notes 1. To control this Matter-certified accessory, the latest version of iOS or iPadOS is recommended. An Apple Home hub such as HomePod mini, HomePod (2nd generation), or Apple TV 4K (3rd generation Wi-Fi + Ethernet) running the latest software is required. To use home keys, iPhone XS or later with iOS 17.1 or later and Apple Watch Series 4 or later with watchOS 10.1 or later are required. 2. Apple, Apple Watch, HomePod, HomePod mini and iPhone are trademarks of Apple Inc., registered in the U.S. and other countries and regions. The Wor…
