2BPQF-HTCE5ELITEHTC Smartphone

HTCWildfireE5Elite QuickStartGuide GuíadeInicioRápido Краткоеруководствопользователя عيرسلاءدبلاليلد 1 Contents Insidethebox............................................................................2 Turningonandrestartingthephone.........................................2 Components..............................................................................3 InstallingyourSIMandmicroSDcards.....................................4 Chargingthebattery..................................................................4 Productsupport.........................................................................5 Safetyandregulatoryinformation.............................................5 2 ThankyouforchoosingHTCWildfireE5Elite. ReadthisQuickStartGuidetogetstarted. Insidethebox 1.HTCWildfireE5Elite 2.WarrantyCard 3.QuickStartGuide 4.Poweradapter 5.USB-CtoUSB-Ccable 6.Ejecttool *Theincludedaccessoriesmayvarybyregion. Turningonandrestartingthephone Toturnonthephone,pressandholdthePowerbuttonforat leastthreesecondsuntilthescreenturnson. Whenyouturnonthephoneforthefirsttime,followthe onscreeninstructionstosetitup. Torestartthephone,pressandholdthePowerbutton,and thentapRestart. 3 Components 1.nanoSIMandmicroSDcard slot 2.Volumecontrol 3.Powerbutton/Fingerprint sensor 4.Headphonejack 5.Microphone 6.USBType-Cport 4 InstallingyourSIMandmicroSDcards FollowtheillustrationsabovetoinserttwonanoSIMcardsora nanoSIMcardandamicroSDcard.Toremovethetray,usethe ejecttoolincludedinthebox. Chargingthebattery  Connectoneendofthecabletothepoweradapterandthe otherendtotheUSBType-Cportonthephone.  Toextendbatterylife: -Connecttoastablenetworkconnection. -Avoidrepeatedlyunpluggingthepoweradapterwhile charging. 5 Productsupport CheckouttheHTCwebsiteatwww.htc.com/af/support-wildfire/ InthephoneSettings,tapAboutphone>Legalinformation toviewlegalinformationaboutyourproduct. Safetyandregulatoryinformation. Safetyregulations Beforeusingthedevice,readthesafetyinformationbelow. DonotinsertorremovetheSIMcardwhenyourdeviceis on. DonotusecutormodifiedSIMcardswithyourdeviceas thesemaynotberecognizedandcoulddamagethecard tray(slot). Donotusethedeviceinplacesorpremiseswheretheuse ofmobilephonesandradioequipmentisnotrecommended orisprohibited.  Donotusethedevicenearelectronicormedicalequipment, becauseinterferencemayaffectdeviceoperation.  Donotuseorstorethedeviceindustyplaces. Dustmaycausethedevicetomalfunction. Donotusethedevicewithdamagedcasesoraccessories. Keepthedeviceawayfromchildrenandpets.Smallpartsof thedevicecancausesuffocationifswallowed. Becarefulnottoscratchthedeviceorhurtyourselfwhen usingtheejecttool.  Donotusethedeviceoutdoorsduringathunderstorm. 6  Donotstorethedeviceinhightemperatures(nearaheater, microwaveoven,oven,etc.).Anoverheatedrechargeable batterymaycauseafireorexplosion. Followallsafetyprecautionsandlocalrulesforusingmobile deviceswhiledriving. Useonlychargers,rechargeablebatteries,andother accessoriesapprovedbythemanufacturer. Donotallowthebatterytocomeintocontactwith conductiveobjects(metalobjects,liquids,etc.). Donotusethedeviceinplaceswithhighhumidity (swimmingpool,bathroom,etc.),andavoidusingthedevice withwethands.  Donotattempttoopenthedeviceandremovethebattery byyourself.Thismaycausethebatterytoexplode. Pleasegotoanauthorizedservicecenterfortechnical support. IfyourSIMcardisnotcompatiblewithyourdevice,please contactyourcarrier. Toavoiddamagetoyourhearing,donotusetheearphones atmaximumvolumewhenlisteningtomusicforalongtime. Highsoundpressure Hearingdamagerisk Donotlistenathighvolumelevelsfor longperiods Transportationandstorageconditions Thepackageddevicecanbetransportedinanytypeof closedvehicleattemperaturesfrom5°Cto40°C,protected fromdirectexposuretoprecipitation,solarradiation,and mechanicaldamage. 7 Operatingtemperature Usetheproductinenvironmentswithtemperaturesbetween -20°Cand40°Candamaximumchargingambient temperatureof35°C.Otherwise,itmaydamageyour product. Disposalrules  Keepinmindthattheproductorelectronicaccessories (memory,cable,andsoon)cannotbedisposedofwithother householdwaste.Itisnecessarytousespeciallandfillsor pointsfordisposalofelectronicdevices. ________________________________________________________ Forthefollowingequipment: Device:HTCsmartphone Model:WildfireE5Elite Brandname:HTC ShenzhenBrandsWorldTechnologyCo.,Ltd. (Email:[email protected])herebydeclaresthat thisproduct[Device:HTCsmartphone,Model:WildfireE5Elite] isincompliancewiththeessentialrequirementsandother relevantprovisionsofDirective2014/53/EU. 8 FCCRadiationExposureStatement: Thisdevicemeetsthegovernment'srequirementsforexposuretoradiowaves.The guidelinesarebasedonstandardsthatweredevelopedbyindependentscientific organizationsthroughperiodicandthoroughevaluationofscientificstudies.The standardsincludeasubstantialsafetymargindesignedtoassurethesafetyofall personsregardlessofageorhealth.TheSARlimitofUSA(FCC)is1.6W/kgaveraged. Devicetypes:HTCSmartphone(FCCID:2BPQF-HTCE5ELITE)hasalsobeentested againstthisSARlimit.SARinformationcanbeviewedon‐lineat http://www.fcc.gov/oet/ea/fccid/.PleaseusethedeviceFCCIDnumberforsearch.This devicewastestedsimulationtypical10mmtobody.TomaintaincompliancewithFCC RFexposurerequirements,useaccessoriesshouldmaintainaseparationdistance betweentheuser'sbodiesmentionedabove,theuseofholstersandsimilaraccessories shouldnotcontainmetalliccomponentsinitsassembly,theuseofaccessoriesthatdo notsatisfytheserequirementsmaynotcomplywithFCCRFexposurerequirements, andshouldbeavoided. FCCWarning ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowing twoconditions: (1)Thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptany interferencereceived,includinginterferencethatmaycauseundesiredoperation. NOTE1:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClass Bdigitaldevice,pursuanttopart15oftheFCCRules.Theselimitsaredesignedto providereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation. Thisequipmentgeneratesusesandcanr…

Text truncated - open the document above for the full version.

ShenzhenBrandsWorldTechnologyCo.,Ltd. Room A, 20/F, Building 5, Lehui Science and Technology Innovation Center,No. 489 Jihua, Road, B antian, Longgang, Shenzhen,Guangdong,China Date: 2025-12-11 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA FCC ID: 2BPQF-HTCE5ELITE Applicant FRN: 0037068244 US Agent – Attestation Statement / Part 2.911(d)(7) Shenzhen Brands World Technology Co., Ltd. certifies that, as of 2025-12-11, we have designated FCC US Agent, LLC to accept service of process on our behalf for FCC ID: 2BPQF-HTCE5ELITE. Shenzhen Brands World Technology Co., Ltd., accepts to maintain an agent of service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. FCC US Agent, LLC, accepts as of the date of the filing of this application, the obligation of being the designated agent for the purpose of accepting service of processon behalf of Shenzhen Brands World Technology Co., Ltd. for FCC ID: 2BPQF-HTCE5ELITE. Designated Agent Information: Company Name: FCC US Agent, LLC U.S. Agent FRN: 0033402884 Address: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA Contact Person: Tim Payne Phone: 708-571-3148 Email: [email protected] Sincerely, Company: Shenzhen Brands World Technology Co., Ltd. Designated Agent: FCC US Agent, LLC Company Representative: ZU FA WUDesignated Agent Representative: Tim Payne Signature:Signature:

ShenzhenBrandsWorldTechnologyCo.,Ltd. Room A, 20/F, Building 5, Lehui Science and Technology Innovation Center,No. 489 Jihua, Road, B antian, Longgang, Shenzhen,Guangdong,China Date: 2025-12-11 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Ref:Attestation Statements Part 2.911(d) (5) (ii) Filing FCC ID: 2BPQF-HTCE5ELITE To Whom It May Concern: Shenzhen Brands World Technology Co., Ltd. certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, Signatory [ZU FA WU, Engineer]

ShenzhenBrandsWorldTechnologyCo.,Ltd. Room A, 20/F, Building 5, Lehui Science and Technology Innovation Center,No. 489 Jihua, Road, B antian, Longgang, Shenzhen,Guangdong,China Date: 2025-12-11 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref:Attestation Statements Part 2.911(d) (5) (i) Filing FCC ID: 2BPQF-HTCE5ELITE To Whom It May Concern: Shenzhen Brands World Technology Co., Ltd. certifies that the equipment for which authorization is soughtis not“covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Shenzhen Brands World Technology Co., Ltd. certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidancesection B(2a). Device is inherently compliant based on hardware limitations or softwarecontrols. or A Software Bill of Materials (SBOM) is provided to the TCB for review, and The end-user or third parties cannot install additional software on this device. Sincerely, Signatory [ZU FA WU, Engineer]

ShenzhenBrandsWorldTechnologyCo.,Ltd. Room A, 20/F, Building 5, Lehui Science and Technology Innovation Center,No. 489 Jihua, Road, B antian, Longgang, Shenzhen,Guangdong,China Date: 2025-12-11 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC Application for FCC ID: 2BPQF-HTCE5ELITE To Whom It May Concern: I, the undersigned, hereby states this equipment has been tested and foundto comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules, and will apply the Supplier's Declaration of Conformity procedure to the Part 15 Class B Digital and receivers that operate in the range between 30 and 960 MHz of this composite device. I understand the following FCC requirements: 1. Devices subject to the SDoC procedure are required to be tested to show compliance with the FCC technical regulations by a recognized accredited testing laboratory. The testing laboratory must be accredited by a Commission approved accreditation body or designated under the terms of a government-to-government Mutual Recognition Agreement (MRA). A listing of those accredited testing laboratories that have been recognized by the Commission is published on the FCC Webpage: https://apps.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm (Select the "accredited" option to search for FCC recognized accredited test firms.) 2. Pt 2.1077 contains the list of information that must be included in the Supplier's Declaration of Conformity, which must be supplied with each product sold. The SDoC compliance info shall be included in the User’s Manual or as a separate sheet. The info must contain thename, address, and phone number of the responsible party, which must be located within the United States.According to 2.909(b), the responsible party is either the Manufactureror if the product is imported the Importer . Sincerely, Signatory [ZU FA WU, Engineer]

ShenzhenBrandsWorldTechnologyCo.,Ltd. Room A, 20/F, Building 5, Lehui Science and Technology Innovation Center,No. 489 Jihua Road, B antian, Longgang, Shenzhen,Guangdong,China ResponsibilityDeclarationLetterv1.0 Responsibility Declaration Letter Company name: Shenzhen Brands World Technology Co., Ltd. Address: Room A, 20/F, Building 5, Lehui Science and Technology Innovation Center, No. 489 Jihua Road, B antian, Longgang, Shenzhen,Guangdong,China Product Name: HTC Smartphone FCC ID: 2BPQF-HTCE5ELITE Model(s): Wildfire E5 Elite We, Shenzhen Brands World Technology Co., Ltd. hereby acknowledge that allthe product information (including all original, drafted, or modified documents) provided to the TCB either by us or our agent or representative(s) for the purposes of FCC certification will meet FCC regulations and requirements; and that any modifications or changes made as a result of TCB review of the documents will be formally implemented into the manufacturing process and product documentation shipped with equipment. We also confirm that all information provided is legitimate and does not contain any false content such as forgery, fabrication, alteration, tampering and concealment. We assume all economic and legal responsibilities in matters that may ariseasa result of disclosure on sample products and associated product documentation provided for product certification that may subsequently be found to be a mis-representation of the final product and accompanying documentationwhen produced, marketed, or sold in the United States, Canada, or anywhere in theworld. Your sincerely, Name: ZU FAWUDate: 2025-12-11 Title and Company name: Engineer, Shenzhen Brands World Technology Co., Ltd. Signature of FCC grant holder (Include Title, Company name, date, and official company stamp):

ShenzhenBrandsWorldTechnologyCo.,Ltd. Room A, 20/F, Building 5, Lehui Science and Technology Innovation Center,No. 489 Jihua, Road, B antian, Longgang, Shenzhen,Guangdong,China Date: 2025-12-11 FEDERAL COMMUNICATIONS COMMISSION AUTHORIZATION AND EVALUATION DIVISION 7435 OAKLAND MILLS ROAD COLUMBIA, MD 21046 SUBJECT: FCCApplication for FCC ID: 2BPQF-HTCE5ELITE POWER OF ATTORNEY To Whom It May Concern: We, the undersigned, hereby authorize Waltek Testing Group (Shenzhen) Co., Ltd. Jandy So on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Waltek Testing Group (Shenzhen) Co., Ltd. Jandy So on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Shenzhen Brands World Technology Co., Ltd. are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Signatory [ZU FA WU, Engineer]

ShenzhenBrandsWorldTechnologyCo.,Ltd. Room A, 20/F, Building 5, Lehui Science and Technology Innovation Center,No. 489 Jihua, Road, B antian, Longgang, Shenzhen,Guangdong,China Date: 2025-12-11 FEDERAL COMMUNICATIONS COMMISSION AUTHORIZATION AND EVALUATION DIVISION 7435 OAKLAND MILLS ROAD COLUMBIA, MD 21046 SUBJECT: FCCApplication for FCC ID: 2BPQF-HTCE5ELITE Confidentiality Request To whom it may concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. ☒ Block Diagram ☒ Tune-Up Information ☒ Operational Description, SBOM ☒ Security Information ☒ Schematics ☐ Software Defined Radio (SDR) Information ☒ Parts List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); ☐ External Photos ☐ Test Setup Photos ☐ Internal Photos ☐ User Manual ☐For 45 days, pursuant to Public Notice DA04-1705. or ☐For 180 days pursuant to KDB 726920 D01. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signatory [ZU FA WU, Engineer]

ShenzhenBrandsWorldTechnologyCo.,Ltd. Room A, 20/F, Building 5, Lehui Science and Technology Innovation Center,No. 489 Jihua Road, B antian, Longgang,Shenzhen,Guangdong,China Agent Authorization Company: Shenzhen Brands World Technology Co., Ltd. Address: Room A, 20/F, Building 5, Lehui Science and Technology Innovation Center, No. 489 Jihua, Road, B antian, Longgang, Shenzhen,Guangdong,China Product Name: HTC Smartphone Model Number(s): Wildfire E5 Elite Product Description: HTC Smartphone We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature:Date: 2025-12-11 Name: ZUFAWU Title:Engineer Company: Shenzhen Brands World Technology Co., Ltd.

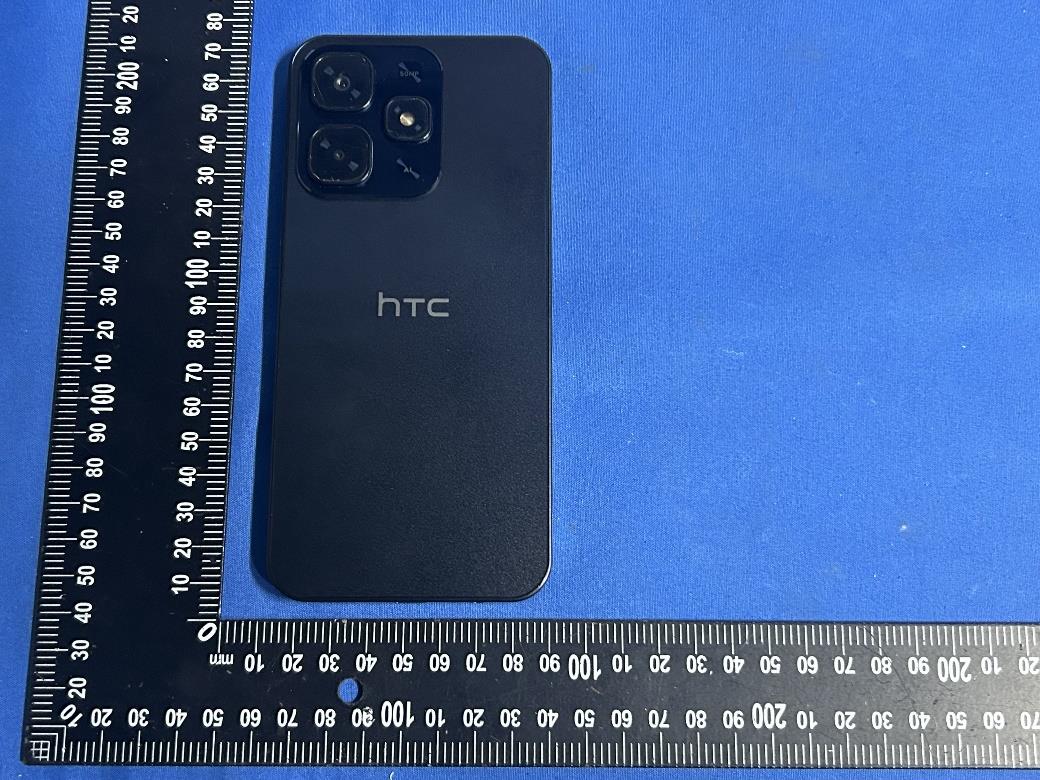

ReferenceNo.:WTX25X11303330W001/002/003/004/005/006/007/008Page2of14 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cn EXHIBIT2-EUTEXTERNALPHOTOGRAPHS EUTView1 EUTView2 ReferenceNo.:WTX25X11303330W001/002/003/004/005/006/007/008Page3of14 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cn EUTView3 EUTView4 ReferenceNo.:WTX25X11303330W001/002/003/004/005/006/007/008Page4of14 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cn EUTView5 EUTView6 ReferenceNo.:WTX25X11303330W001/002/003/004/005/006/007/008Page5of14 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cn EUTView7 EUTView8 ReferenceNo.:WTX25X11303330W001/002/003/004/005/006/007/008Page6of14 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cn EUTView9

ReferenceNo.:WTX25X11303330W001/002/003/004/005/006/007/008Page1of14 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cn ANNEX EXHIBIT1-PRODUCTLABELING ProposedFCCIDLabelFormat Specifications:Thelabelshallbesecurelyaffixedtoapermanentlyattachedpartofthedevice,inalocation whereitisvisibleoreasilyaccessibletotheuser,andshallnotbereadilydetachable.Thelabelshallbe sufficientlydurabletoremainfullylegibleandintactonthedeviceinallnormalconditionsofusethroughout thedevice’sexpectedlifetime. ProposedLabelLocationonEUT FCCIDLabel Location

ReferenceNo.:WTX25X11303330W001/002/003/004/005/006/007/008Page7of14 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cn EXHIBIT3-EUTINTERNALPHOTOGRAPHS EUTHousingand BoardView1 EUTHousingand BoardView2 ReferenceNo.:WTX25X11303330W001/002/003/004/005/006/007/008Page8of14 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cn Solder Board-Component View1 Solder Board-Component View2 ReferenceNo.:WTX25X11303330W001/002/003/004/005/006/007/008Page9of14 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cn Solder Board-Component View3 Solder Board-Component View4 ReferenceNo.:WTX25X11303330W001/002/003/004/005/006/007/008Page10of14 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cn Solder Board-Component View5 Solder Board-Component View6 ReferenceNo.:WTX25X11303330W001/002/003/004/005/006/007/008Page11of14 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cn AntennaView1 AntennaView2 DivAnt. NFCAnt

Page: 1/10 Ref : ACR.49.6.25.BES.A WALTEK TESTING GROUP (SHENZHEN) CO., LTD 1/F., ROOM 101, BUILDING 1, HONGWEI INDUSTRIAL PARK, LIUXIAN 2ND ROAD, BLOCK 70 BAO'AN DISTRICT, SHENZHEN, GUANGDONG, 518101 CHINA MVG COMOSAR DOSIMETRIC E-FIELD PROBE SERIAL NO.: 0725-EPGO-446 Calibrated at MVG Z.I. de la pointe du diable Technopôle Brest Iroise – 295 avenue Alexis de Rochon 29280 PLOUZANE - FRANCE Calibration date: 02/12/2025 Accreditations #2-6789 Scope available on www.cofrac.fr The use of the Cofrac brand and the accreditation references is prohibited from any reproduction. Summary: This document presents the method and results from an accredited COMOSAR Dosimetric E-Field Probe calibration performed at MVG, using the CALIPROBE test bench, for use with a MVG COMO SAR system only. The test results covered by accreditation are traceable to the International System of Units (SI). COMOSAR E-Field Probe Calibration Report


          COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.49.6.25.BES.A Page: 2/10 Template_ACR.DDD.N.YY.MVGB.ISSUE_COMOSAR Probe vM This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. Name Function Date Signature Prepared by : Pedro Ruiz Technical Manager 02/18/2025 Checked & approved by: Pedro Ruiz Technical Manager 02/18/2025 Authorized by: Geraldine Toutain Quality Manager Customer Name Distribution : WALTEK TESTING GROUP (SHENZHEN) CO., LTD Issue Name Date Modifications A Pedro Ruiz 2/18/2025 Initial release




 COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.49.6.25.BES.A Page: 3/10 Template_ACR.DDD.N.YY.MVGB.ISSUE_COMOSAR Probe vM This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. TABLE OF CONTENTS 1 Device Under Test ..................................................................................................... 4 2 Product Description ................................................................................................... 4 2.1 General Information _______________________________________________________ 4 3 Measurement Method ................................................................................................ 4 3.1 Sensitivity _______________________________________________________________ 4 3.2 Linearity ________________________________________________________________ 5 3.3 Isotropy _________________________________________________________________ 5 3.4 Boundary Effect __________________________________________________________ 5 3.5 Probe Modulation Response _________________________________________________ 6 4 Measurement Uncertainty .......................................................................................... 6 5 Calibration Results ..................................................................................................... 6 5.1 Calibration in air __________________________________________________________ 6 5.2 Calibration in liquid _______________________________________________________ 7 6 Verification Results ................................................................................................... 8 7 List of Equipment ...................................................................................................... 9


          COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.49.6.25.BES.A Page: 4/10 Template_ACR.DDD.N.YY.MVGB.ISSUE_COMOSAR Probe vM This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. 1 DEVICE UNDER TEST Device Under Test Device Type COMOSAR DOSIMETRIC E FIELD PROBE Manufacturer MVG Model SSE2 Serial Number 0725-EPGO-446 Product Condition (new / used) New Frequency Range of Probe 0.15 GHz-7.5GHz Resistance of Three Dipoles at Connector Dipole 1: R1=0.248 M: Dipole 2: R2= 0.215 M: Dipole 3: R3=0.224 M: 2 PRODUCT DESCRIPTION 2.1 GENERAL INFORMATION MVG’s COMOSAR E field Probes are built in accordance to the IEC/IEEE 62209-1528 and FCC KDB865664 D01 standards. Figure 1 – MVG COMOSAR Dosimetric E field Probe Probe Length 330 mm Length of Individual Dipoles 2 mm Maximum external diameter 8 mm Probe Tip External Diameter 2.5 mm Distance between dipoles / probe extremity 1 mm 3 MEASUREMENT METHOD The IEC/IEEE 62209-1528 and FCC KDB865664 D01 standards provide recommended practices for the probe calibrations, including the performance characteristics of interest and methods by which to assess their effect. All calibrations / measurements performed meet the fore-mentioned standards. 3.1 SENSITIVITY The sensitivity factors of the three dipoles were determined using a two step calibration method (air and tissue simulating liquid) using waveguides as outlined in the standards for frequency range 600- 7500MHz and using the calorimeter cell method (transfer method) as outlined in the standards for frequency 150-450 MHz.


          COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.49.6.25.BES.A Page: 5/10 Template_ACR.DDD.N.YY.MVGB.ISSUE_COMOSAR Probe vM This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. 3.2 LINEARITY The evaluatio…

Text truncated - open the document above for the full version.

ReferenceNo.:WTX23X10215772W009 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 260 of 266 AntennaView NFCAnt MainAnt. DivAnt. WIFI/BT/GPSAnt ReferenceNo.:WTX23X10215772W009 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 261 of 266 AnnexD.TestSetupPhotos HeadExposureConditions RightCheek RightTilt ReferenceNo.:WTX23X10215772W009 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 262 of 266 LeftCheek LeftTilt ReferenceNo.:WTX23X10215772W009 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 263 of 266 BodymodeExposureConditions Testdistance:10mm BodyFront BodyBack ReferenceNo.:WTX23X10215772W009 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 264 of 266 BodyRight BodyLeft ReferenceNo.:WTX23X10215772W009 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 265 of 266 BodyTop BodyBottom ReferenceNo.:WTX23X10215772W009 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 266 of 266 AnnexE.CalibrationCertificate Pleaserefertotheexhibitforthecalibrationcertificate *****ENDOFREPORT*****

ReferenceNo.:WTX23X10215772W009 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 209 of 266 MEASUREMENT34/60 Type:Measurement(Complete) Dateofmeasurement:2025-11-23 Measurementduration:12minutes3seconds E-fieldProbe:SSE2-0725-EPGO-446;ConvF:1.23;Calibrated:2025-02-12 A.Experimentalconditions AreaScandx=8mmdy=8mm ZoomScandx=5mmdy=5mmdz=4mm PhantomFlatPlane DevicePositionBack BandLTEBand2 ChannelsQPSK,20MHz,1RB,Low SignalDutyCycle1:1 B.SARMeasurementResults Frequency(MHz)1860.000000 RelativePermittivity(realpart)38.761419 Conductivity(S/m)1.364169 PowerVariation(%)-1.194700 AmbientTemperature22.4 LiquidTemperature22.4 C.SARSurfaceandVolume SURFACESARVOLUMESAR ReferenceNo.:WTX23X10215772W009 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 210 of 266 Maximumlocation:X=1.00,Y=16.00 D.SAR1g&10g SAR10g(W/Kg)0.336153 SAR1g(W/Kg)0.553128 E.ZAxisScan Z(mm)0.004.008.0012.0016.00 SAR(W/Kg)0.87580.58990.39920.27850.2036 F.3DImage 3DscreenshotHotspotposition ReferenceNo.:WTX23X10215772W009 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 211 of 266 MEASUREMENT35/61 Type:Measurement(Complete) Dateofmeasurement:2025-11-23 Measurementduration:12minutes3seconds E-fieldProbe:SSE2-0725-EPGO-446;ConvF:1.23;Calibrated:2025-02-12 A.Experimentalconditions AreaScandx=8mmdy=8mm ZoomScandx=5mmdy=5mmdz=4mm PhantomFlatPlane DevicePositionBack BandLTEBand4 ChannelsQPSK,20MHz,1RB,Middle SignalDutyCycle1:1 B.SARMeasurementResults Frequency(MHz)1745.000000 RelativePermittivity(realpart)38.763275 Conductivity(S/m)1.361987 PowerVariation(%)-1.866400 AmbientTemperature22.4 LiquidTemperature22.4 C.SARSurfaceandVolume SURFACESARVOLUMESAR ReferenceNo.:WTX23X10215772W009 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 212 of 266 Maximumlocation:X=5.00,Y=21.00 D.SAR1g&10g SAR10g(W/Kg)0.401471 SAR1g(W/Kg)0.658835 E.ZAxisScan Z(mm)0.004.008.0012.0016.00 SAR(W/Kg)1.01270.71300.50290.36130.2667 F.3DImage 3DscreenshotHotspotposition ReferenceNo.:WTX23X10215772W009 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 213 of 266 MEASUREMENT36/62 Type:Measurement(Complete) Dateofmeasurement:2025-11-21 Measurementduration:12minutes3seconds E-fieldProbe:SSE2-0725-EPGO-446;ConvF:0.99;Calibrated:2025-02-12 A.Experimentalconditions AreaScandx=8mmdy=8mm ZoomScandx=8mmdy=8mmdz=5mm PhantomFlatPlane DevicePositionBack BandLTEBand5 ChannelsQPSK,10MHz,1RB,Low SignalDutyCycle1:1 B.SARMeasurementResults Frequency(MHz)829.000000 RelativePermittivity(realpart)42.073245 Conductivity(S/m)0.894575 PowerVariation(%)-2.814700 AmbientTemperature22.2 LiquidTemperature22.2 C.SARSurfaceandVolume SURFACESARVOLUMESAR ReferenceNo.:WTX23X10215772W009 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 214 of 266 Maximumlocation:X=13.00,Y=27.00 D.SAR1g&10g SAR10g(W/Kg)0.216281 SAR1g(W/Kg)0.354361 E.ZAxisScan Z(mm)0.004.009.0014.0019.00 SAR(W/Kg)0.55410.37750.23500.15400.1102 F.3DImage 3DscreenshotHotspotposition ReferenceNo.:WTX23X10215772W009 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www…
